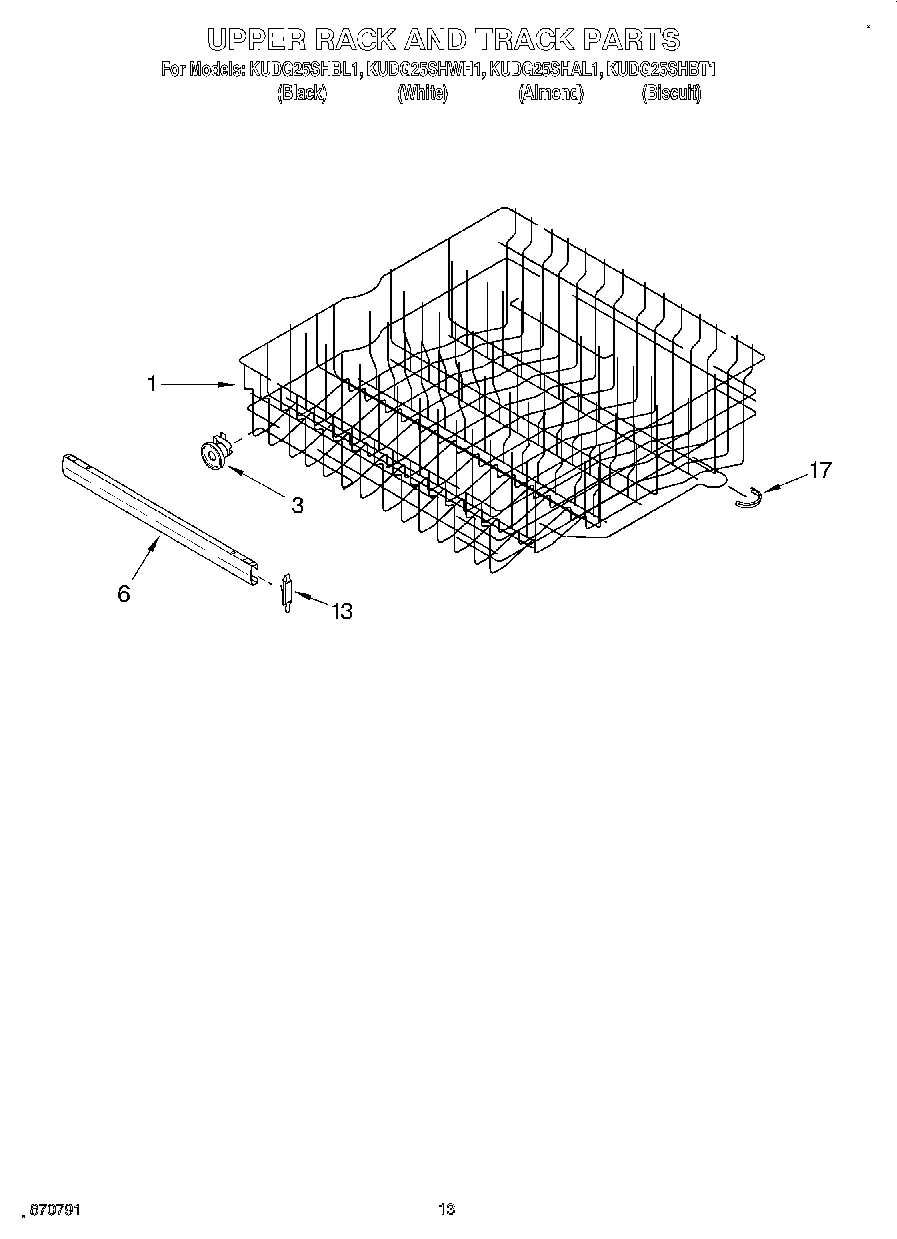

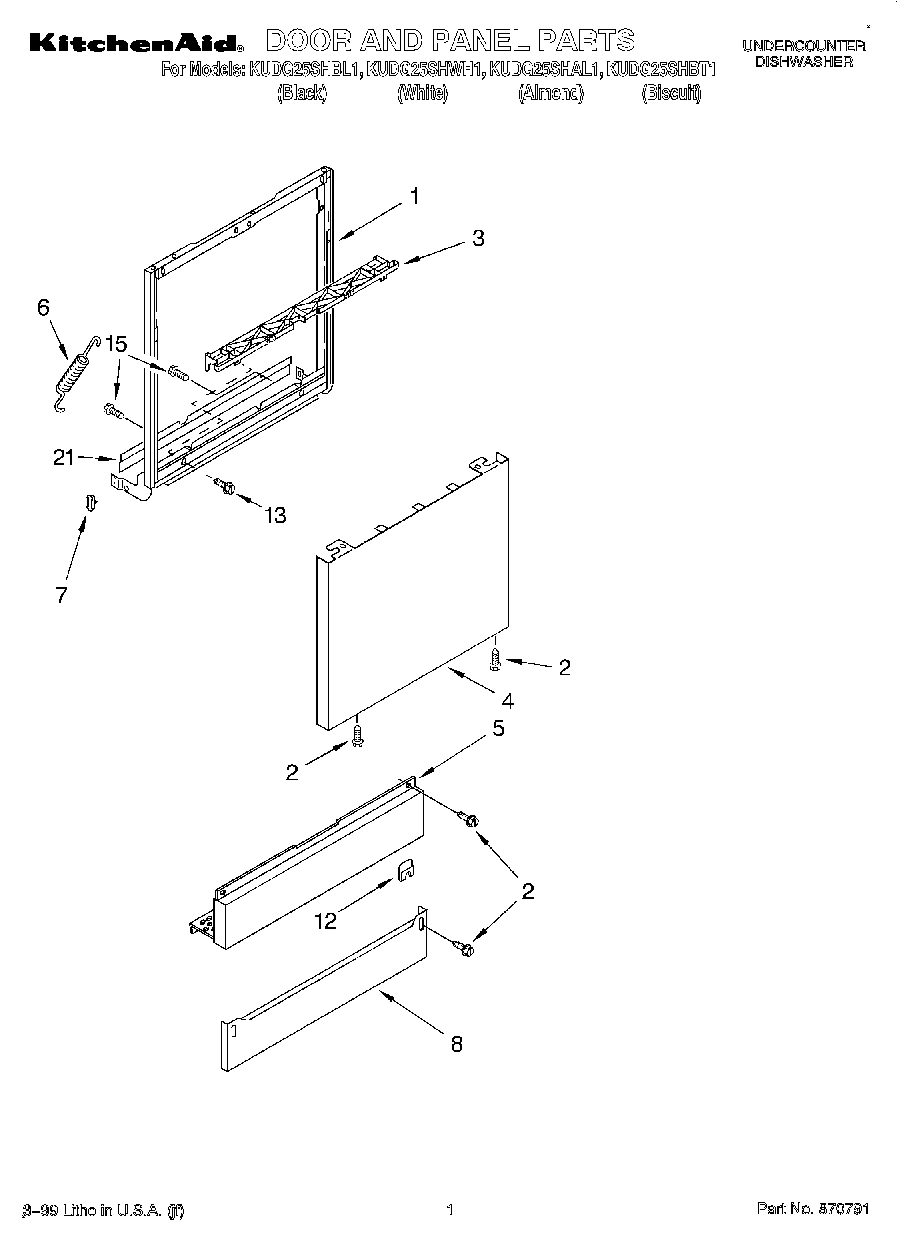

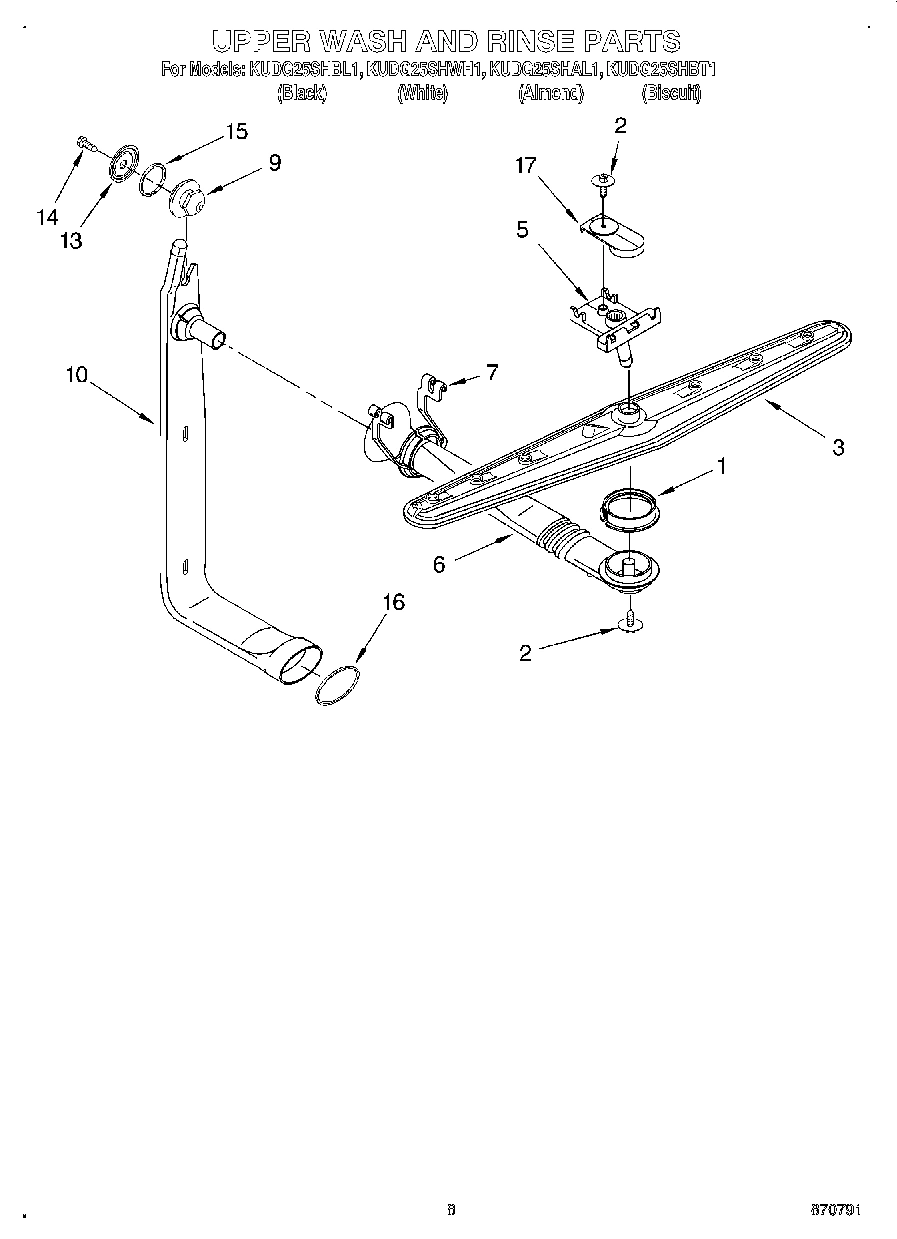

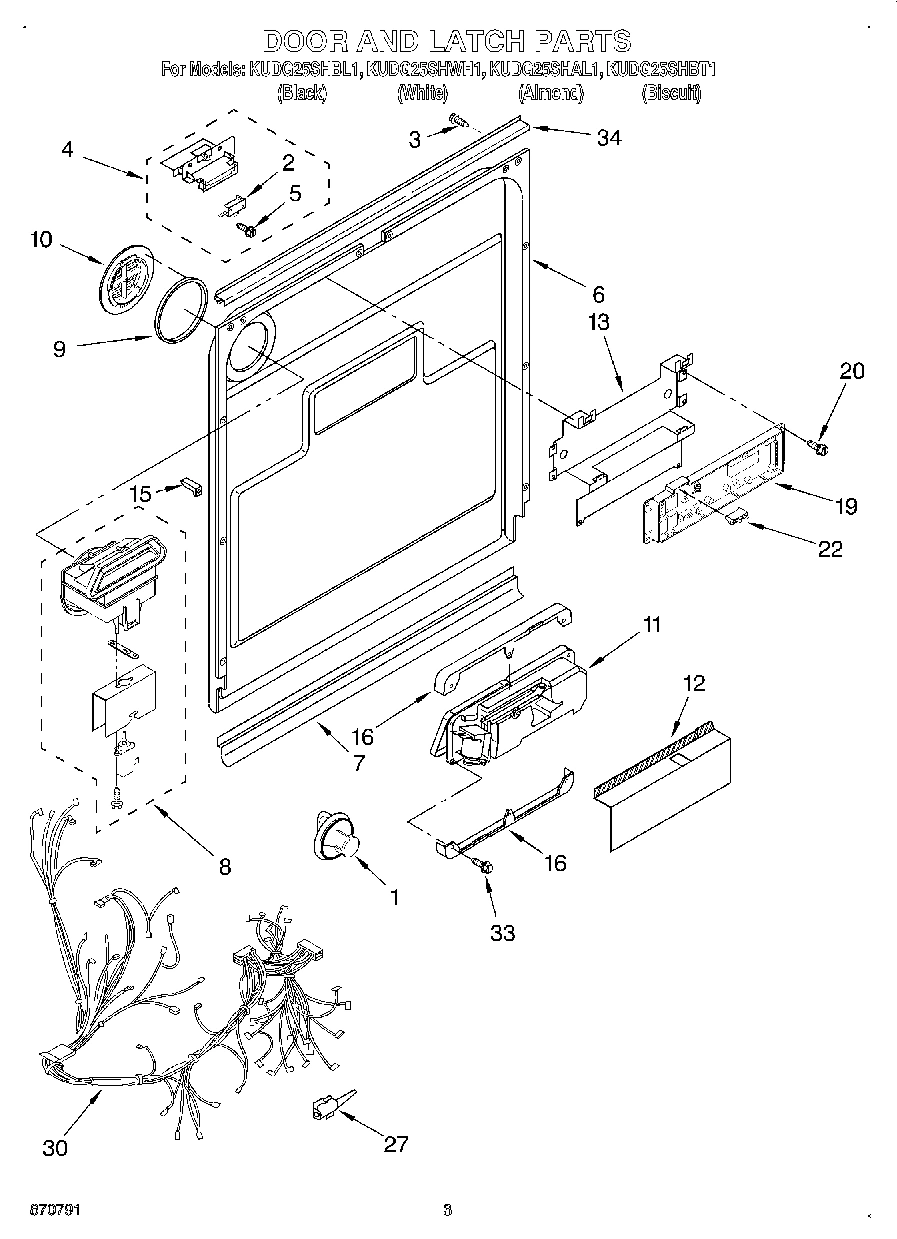

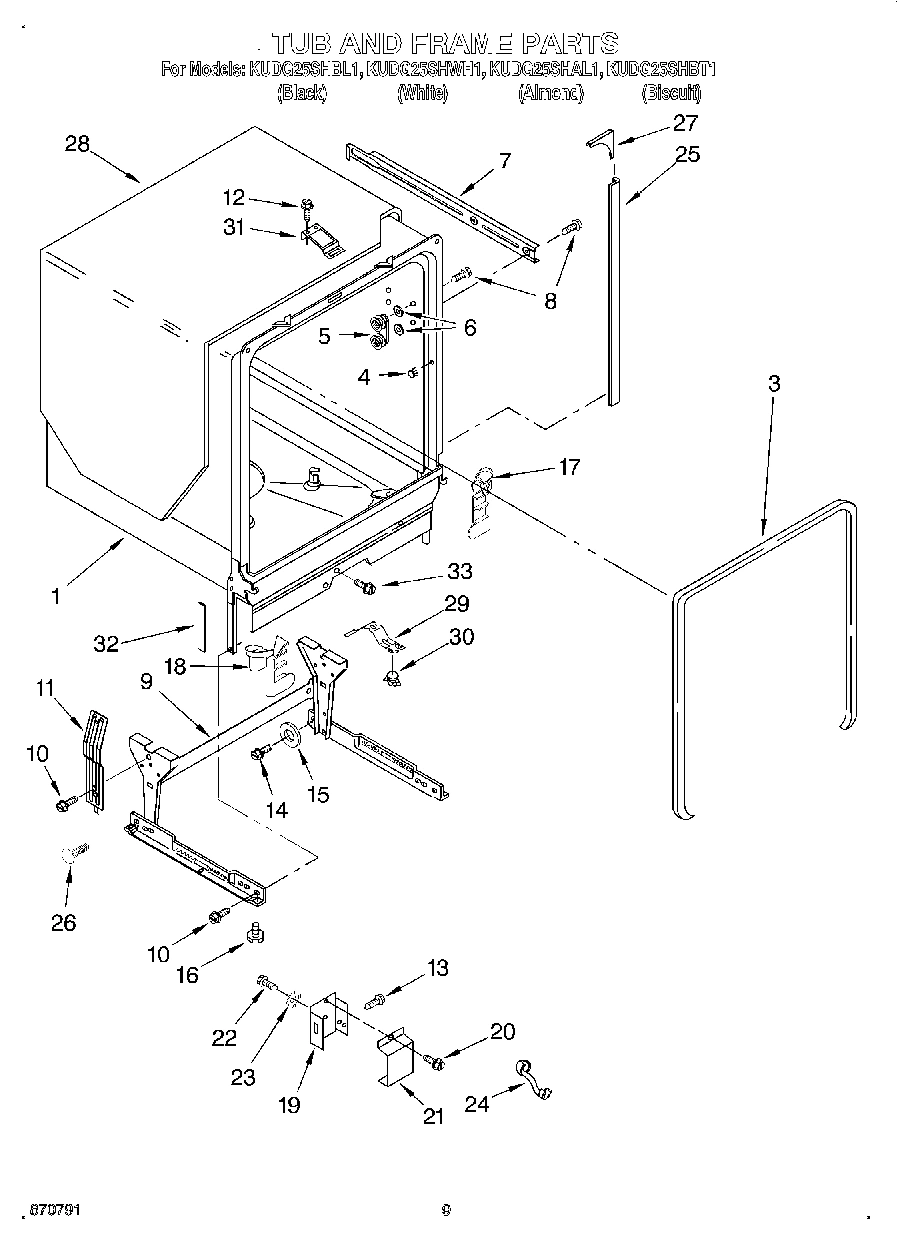

Model Whirlpool KUDG25SHWH1 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4378867 Whirlpool Dishwasher Panel Backorder WPL 4378867 $156.64

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $21.05

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Glisten WPL 4319102 Contact Us For Availability

Frameless (White) WPL 4378861 Contact Us For Availability

Door Frameless Kits (Black) WPL 4378862 Contact Us For Availability

Frameless (Almond) WPL 4378863 Contact Us For Availability

Door Framed Kits (White) WPL 4378864 Contact Us For Availability

Door Framed Kits (Black) WPL 4378865 Contact Us For Availability

Door Framed Kits (Almond) WPL 4378866 Contact Us For Availability

Side Panel Kits (Black) WPL 4378868 Contact Us For Availability

Side Panel Kits (Almond) WPL 4378869 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT9743822 Contact Us For Availability

Tech Sheet (English) WPL LIT9744033 Contact Us For Availability

Tech Sheet (French) WPL LIT9744034 Contact Us For Availability

Guide, Use & Care WPL LIT9744036 Contact Us For Availability

Energy Guide WPL LIT9744391 Contact Us For Availability

1

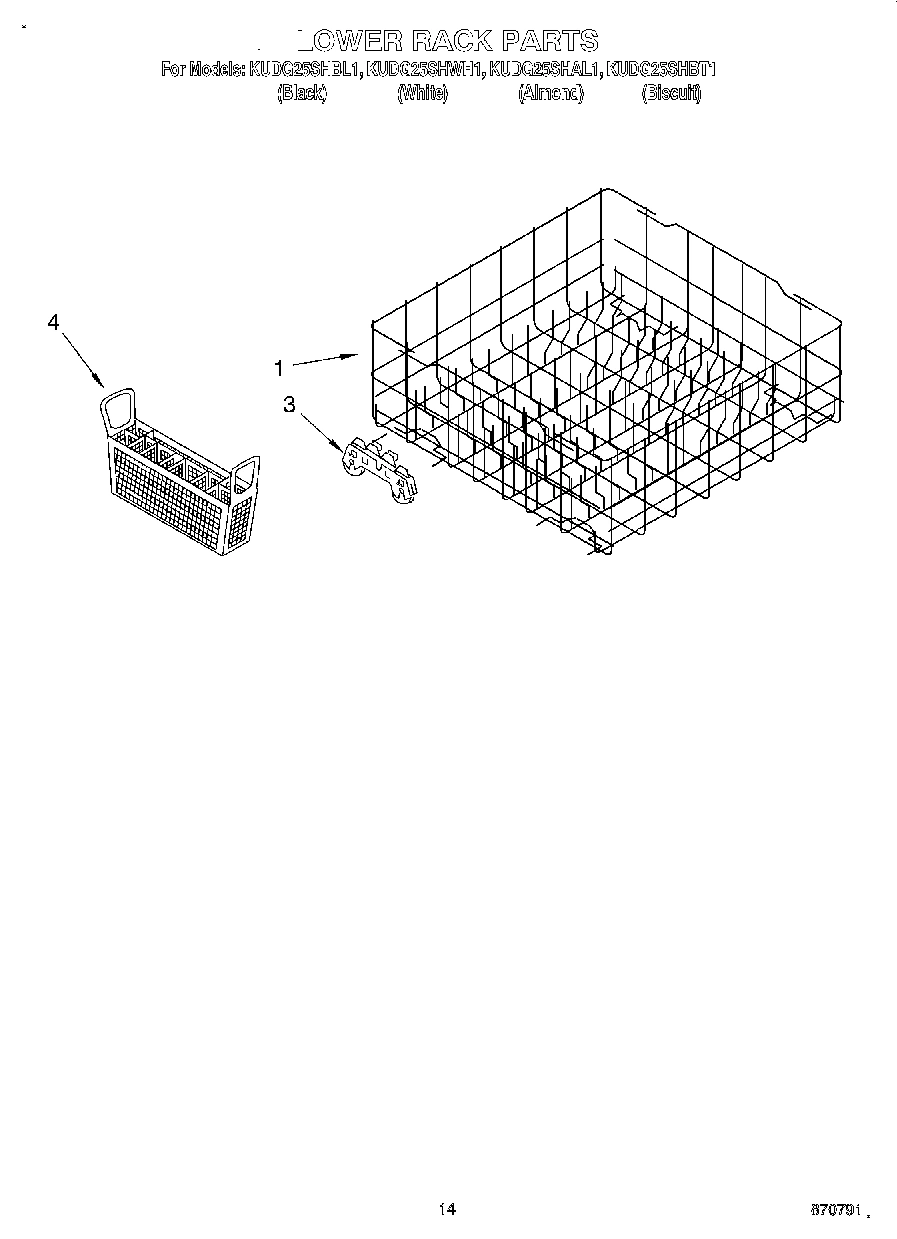

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $179.00

1

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $71.95

1

WPW10253040 Whirlpool Dishwasher Dish Rack Backorder WPL WPW10253040 $232.32

1

Knob, Dispenser WPL 9743399 Contact Us For Availability

1

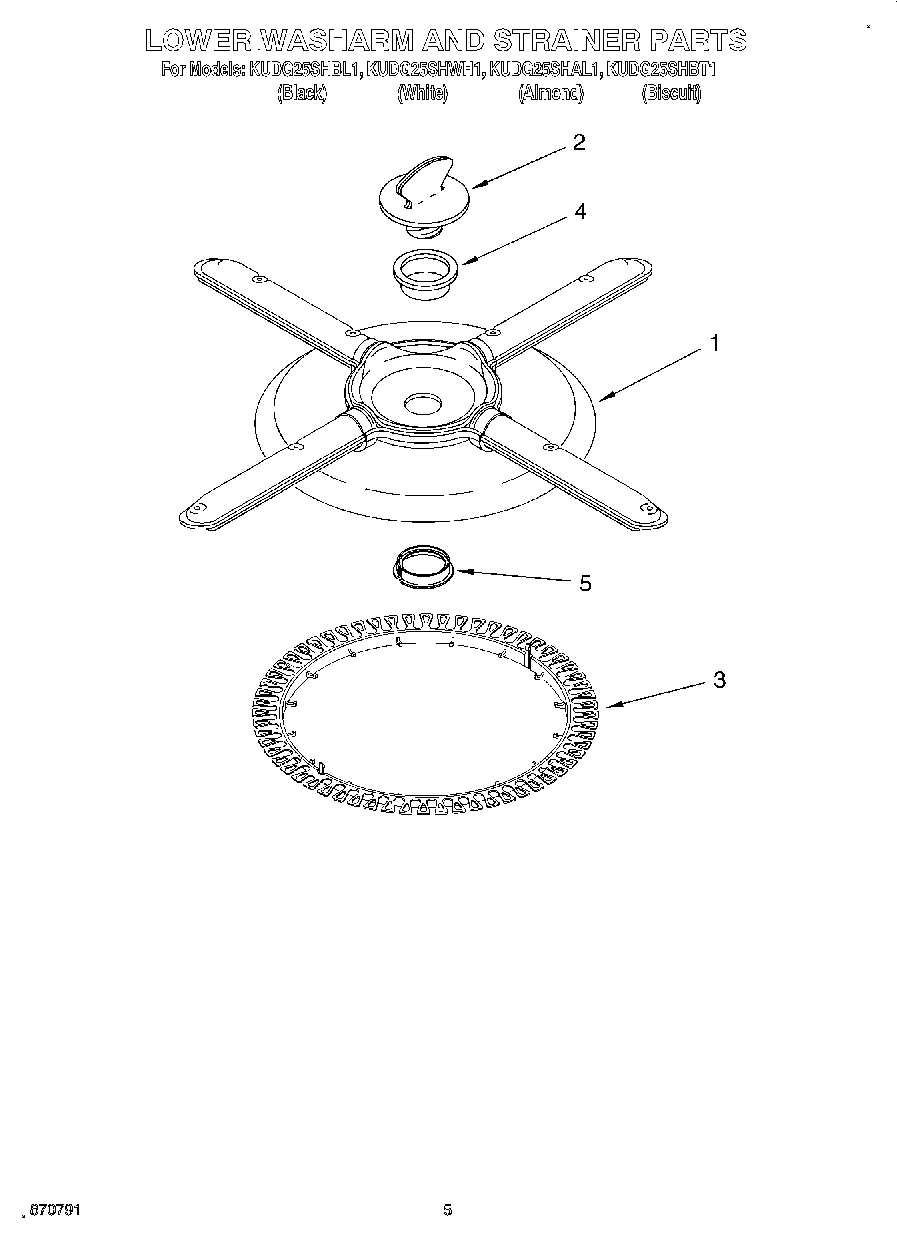

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

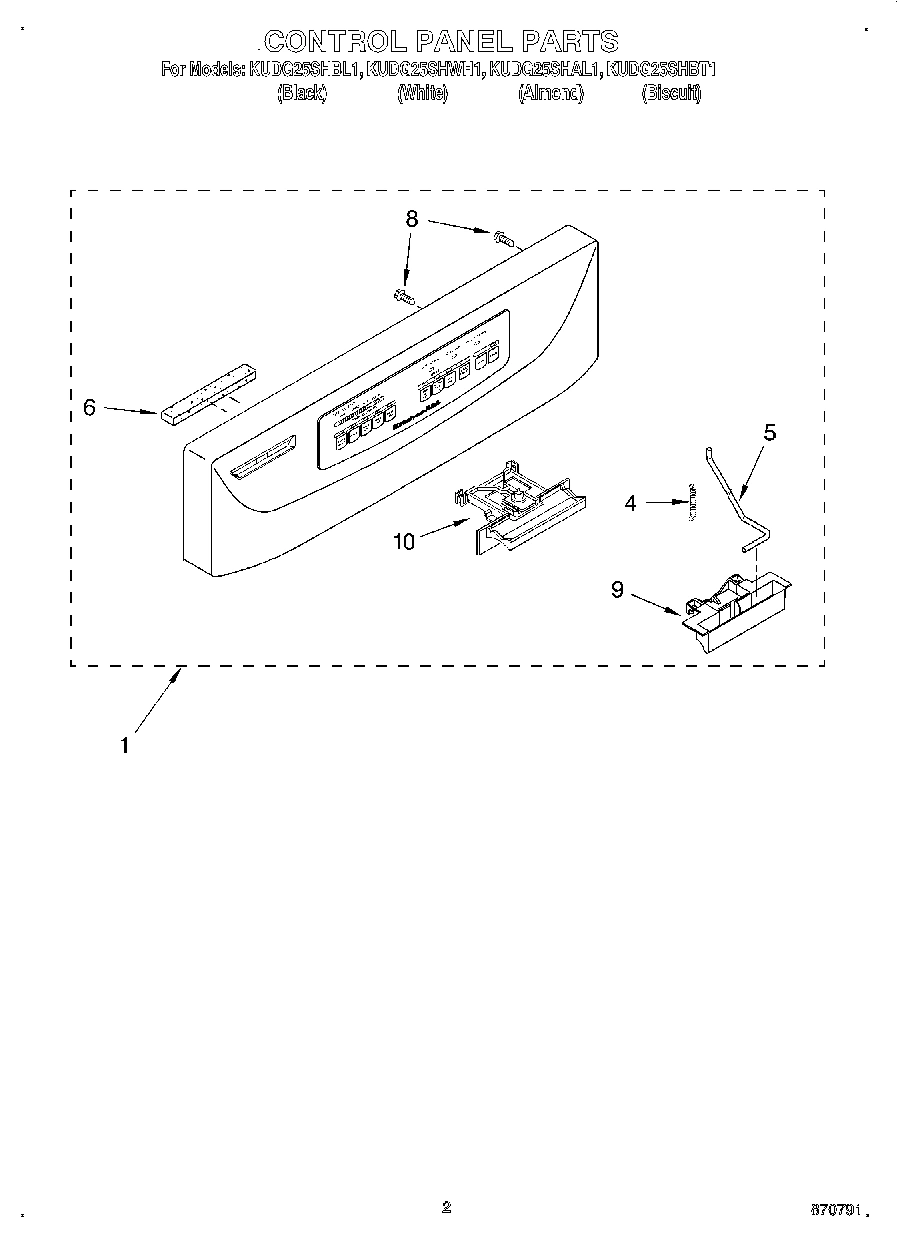

Console, Complete (Black Mdl.) WPL 9744101 Contact Us For Availability

1

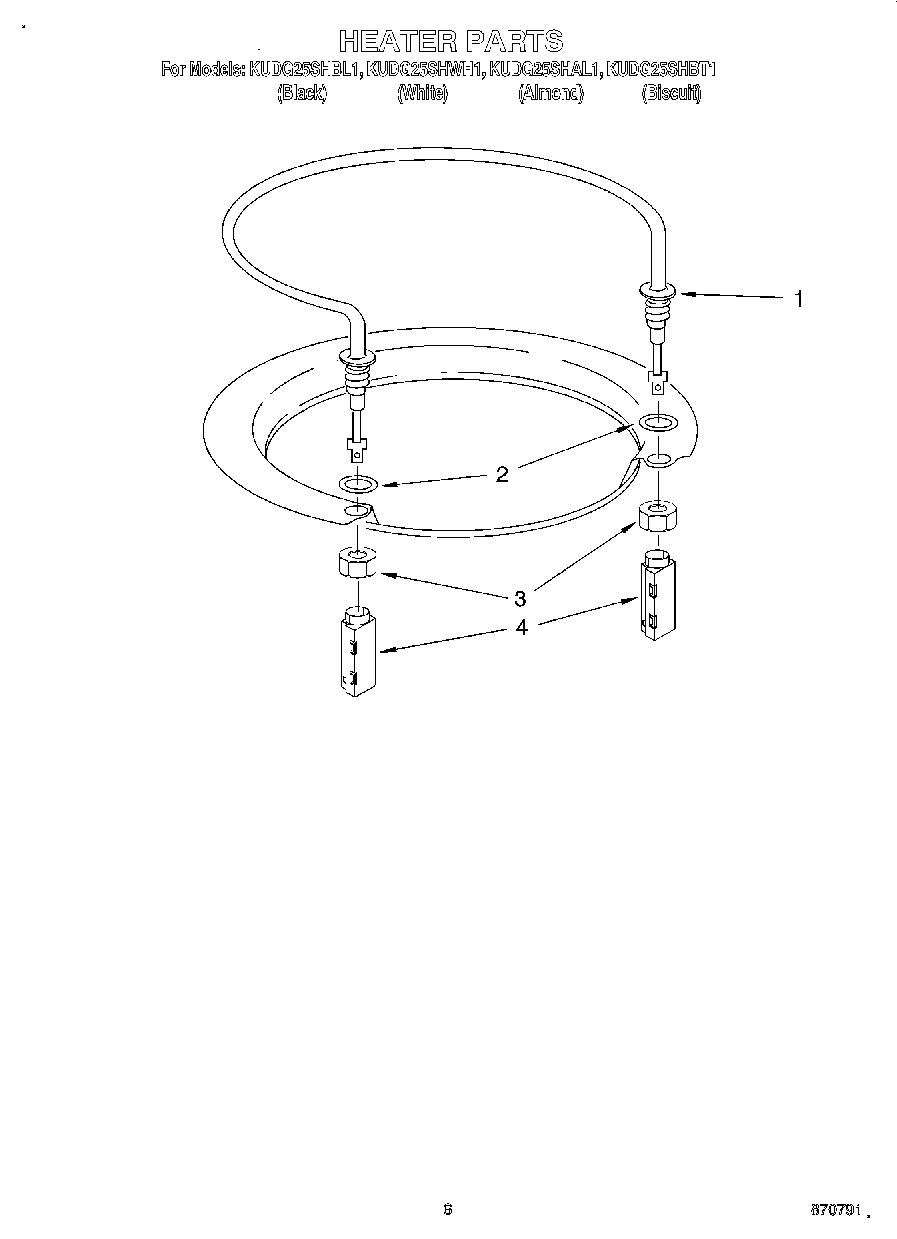

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

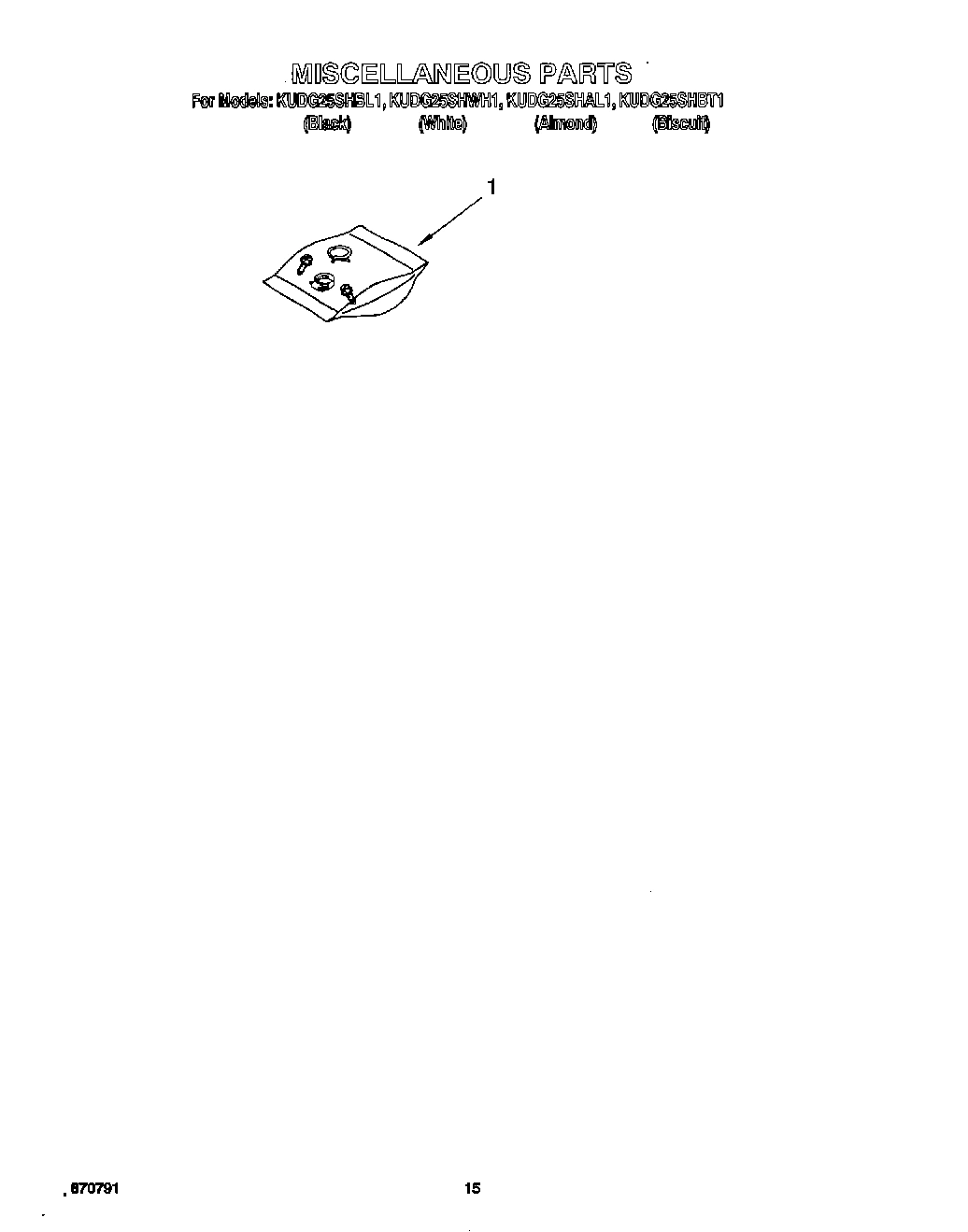

Miscellanous Parts Bag (Includes 2 Screws & 2 WPL 3369816 Contact Us For Availability

1

Console, Complete (White Mdl.) WPL 9744102 Contact Us For Availability

1

Console, Complete (Almond Mdl.) WPL 9744124 Contact Us For Availability

1

Console, Complete (Biscuit Mdl.) WPL 9744307 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $5.44

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $3.51

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

3

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $18.92

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $5.36

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

3

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

Stiffener, Door WPL 9742964 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $11.42

4

WP9743573 Whirlpool Dishwasher Spring Backorder WPL WP9743573 $2.51

4

Latch, Bolt Assy. (Includes Item 2) WPL 3380654 Contact Us For Availability

4

Gasket WPL 9742787 Contact Us For Availability

4

Panel Front (White Mdl.) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Mdl.) WPL 3379375 Contact Us For Availability

4

Panel Front (Biscuit Mdl.) WPL 8054178 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

4

Basket, Silverware WPL 8051119 Contact Us For Availability

4

Panel Front (Almond Model) WPL 3379377 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $4.67

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $3.29

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Access Panel & Clip Assembly (Black Mdl.) WPL 3379917 Contact Us For Availability

5

Access Panel & Clip Assembly (White Mdl.) WPL 3379918 Contact Us For Availability

5

Access Panel & Clip Assembly (Almond Mdl.) WPL 3379919 Contact Us For Availability

5

Access Panel & Clip Assembly (Biscuit Mdl.) WPL 8054179 Contact Us For Availability

6

WP3378144 Whirlpool Dishwasher Tube Backorder WPL WP3378144 $28.05

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $9.99

6

Sponge, Vent WPL 9743412 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $10.82

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $4.43

8

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $78.93

8

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $71.95

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

8

Toe Panel (Includes Item 11) (Biscuit Mdl.) WPL 8054181 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Almond Mdl.) WPL 9742862 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle Backorder WPL WP9743903 $50.67

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

10

Latch Lever Asm. WPL 3380655 Contact Us For Availability

10

Feed Tube Assembly WPL 9744136 Contact Us For Availability

11

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

12

Clip, Grounding WPL 3378123 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $33.96

Washer WPL 9743475 Contact Us For Availability

14

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $3.70

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

16

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

16

Seal, Tube WPL 9742953 Contact Us For Availability

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $6.35

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $14.38

21

Barrier, Lower vent WPL 8054188 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $31.66

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness, Main WPL 9744027 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $47.73

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $4.41

34

Seal, Console/Door WPL 9743806 Contact Us For Availability

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $3.93

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70
