Model Whirlpool KUDG23HBWH0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Wood Top Kit WPL 4162841 Contact Us For Availability

Insulation Kit (Kit Includes Tub, Kickboard, WPL 4171179 Contact Us For Availability

WPL 4171476 WPL 4171476 Contact Us For Availability

WPL 4171632 WPL 4171632 Contact Us For Availability

WPL 4171633 WPL 4171633 Contact Us For Availability

WPL 4171634 WPL 4171634 Contact Us For Availability

WPL 4171635 WPL 4171635 Contact Us For Availability

WPL 675506 WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 9741358 WPL 9741358 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT9741869 WPL LIT9741869 Contact Us For Availability

WPL LIT9742114 WPL LIT9742114 Contact Us For Availability

WPL LIT9742211 WPL LIT9742211 Contact Us For Availability

WPL LIT9742292 WPL LIT9742292 Contact Us For Availability

1

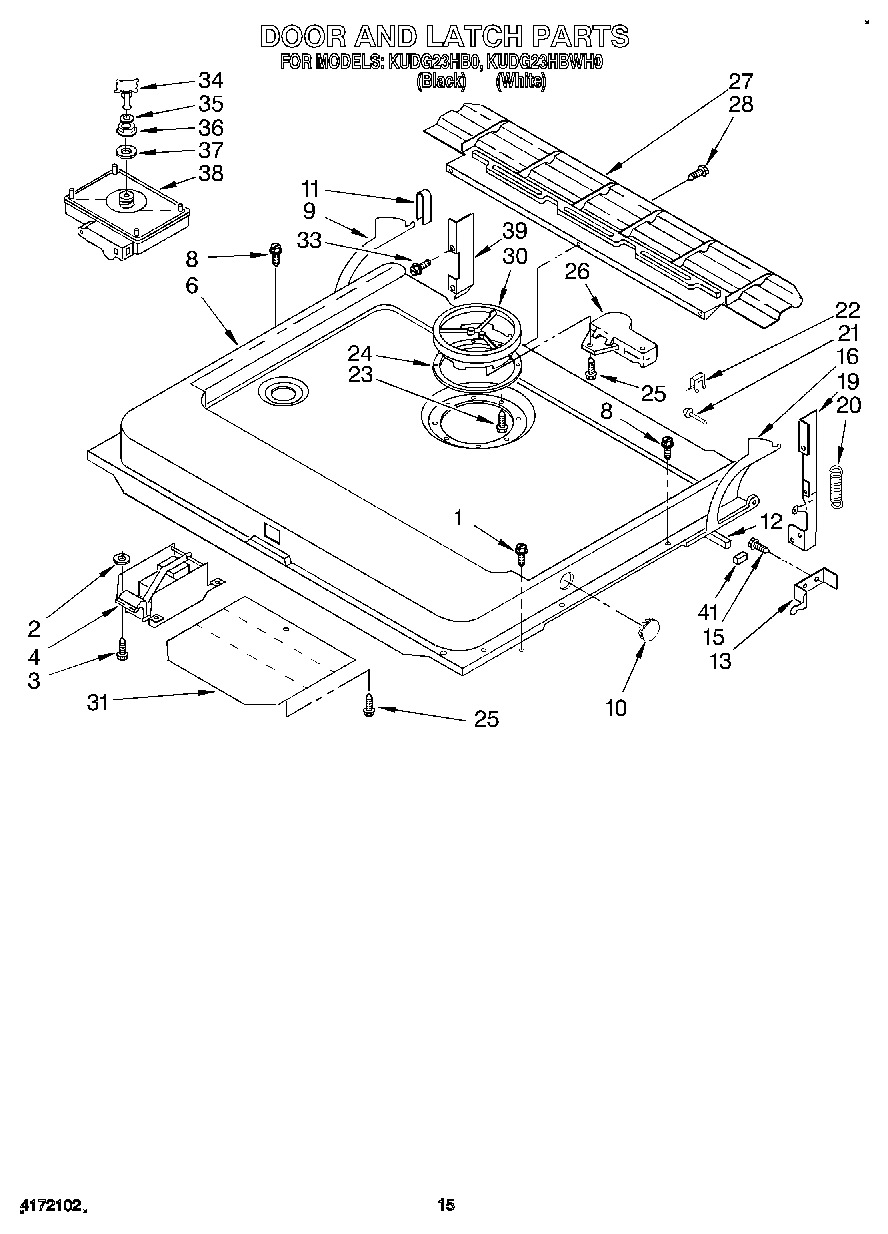

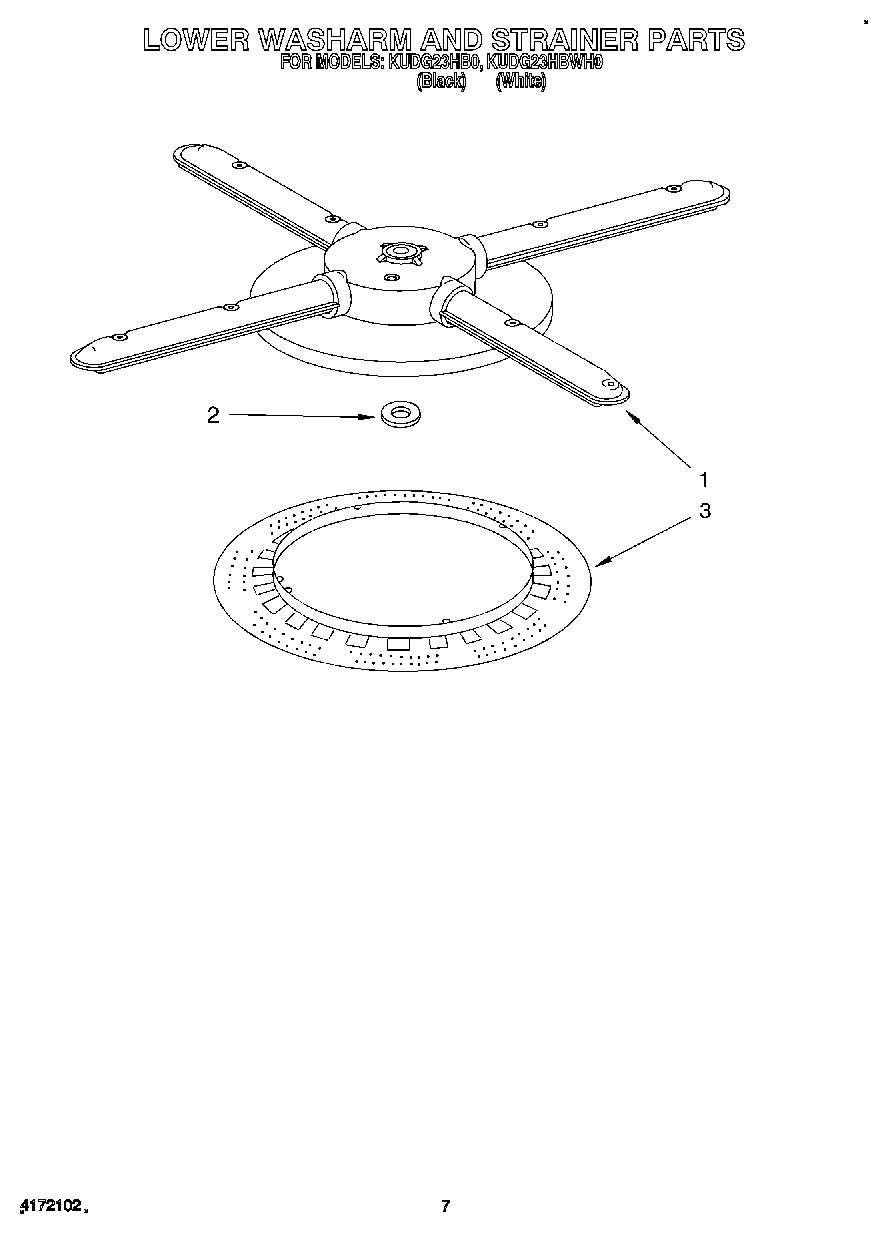

Wash Arm Assembly WPL 9740733 Contact Us For Availability

1

Inlet Base Assy. (Also Order Item 30) See Not WPL 675704 Contact Us For Availability

1

Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 4171638 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Tube & Connector Assembly WPL 9740307 Contact Us For Availability

1

Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability

1

Control Panel (Includes: Insert, No.3 Seal, a WPL 9742284 Contact Us For Availability

1

Control Panel (Includes: Insert, No.3 Seal, a WPL 9742285 Contact Us For Availability

1

Upper Rack Assembly (Includes Items 2, 3, 5, WPL 9742297 Contact Us For Availability

2

Axle, Lower Rack (8) WPL 4162321 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 9742083 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Upper WPL 9742085 Contact Us For Availability

2

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Screw, 10-16 x 1/2 WPL 9740980 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

Hook, Heater Element WPL 4163549 Contact Us For Availability

2

Clamp, Hose WPL 4162103 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $2.51

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Door Seal Assembly (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Strainer (Coarse) WPL 9741049 Contact Us For Availability

3

Filler (Upper Panel) WPL 4171421 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Seal, Control Panel WPL 9741864 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability

3

Washer WPL 4159477 Contact Us For Availability

3

Water Inlet and Hose Assembly WPL 9741568 Contact Us For Availability

4

8519598 Whirlpool Silverware Basket Backorder WPL 8519598 $35.48

4

Screw (White Model) WPL 4171463 Contact Us For Availability

4

Screw (Black Model) WPL 9740957 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Clip, Seal WPL 4161608 Contact Us For Availability

4

Roller, Upper Rack Track (4) WPL 9741816 Contact Us For Availability

4

Washer, Sealing WPL 4160051 Contact Us For Availability

4

Gasket, Rubber WPL 4161545 Contact Us For Availability

5

Bumper, Lower Rack (2) WPL 4171555 Contact Us For Availability

5

Side Trim (Upper Panel) (White Model) WPL 9742087 Contact Us For Availability

5

Side Trim (Upper Panel) (Black Model) WPL 9742089 Contact Us For Availability

5

Retainer, Manifold WPL 4171540 Contact Us For Availability

5

Bumper, Door WPL 4161626 Contact Us For Availability

5

Spring, Switch Cancel WPL 9742256 Contact Us For Availability

5

Screw, 10-16 X 5/8 WPL 4159428 Contact Us For Availability

5

Washer WPL 4159567 Contact Us For Availability

5

Nut (Fill Air Gap) WPL 4171300 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

6

Side Trim (Lower Panel) (White Model) WPL 4171673 Contact Us For Availability

6

Side Trim (Lower Panel) (Black Model) WPL 4172054 Contact Us For Availability

6

Manifold, Upper Arm WPL 4171541 Contact Us For Availability

6

Bracket, Program Switch WPL 9741861 Contact Us For Availability

6

Track, Rack WPL 3369071 Contact Us For Availability

6

Washer WPL 4159583 Contact Us For Availability

6

Clamp, Hose WPL 4161505 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

7

Fill Valve Assembly WPL 9741906 Contact Us For Availability

7

Grommet, Panel WPL 4162735 Contact Us For Availability

7

Clip, Retainer WPL 9740303 Contact Us For Availability

7

Thermostat WPL 9741196 Contact Us For Availability

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

Lower Mounting Panel Assembly (Includes Upper WPL 4171672 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4172053 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Switch, Program WPL 9741878 Contact Us For Availability

8

Stop, Track (2) WPL 3374701 Contact Us For Availability

8

Bracket, Thermostat WPL 9741192 Contact Us For Availability

8

Screw, 10-16 X 3/8 WPL 3369139 Contact Us For Availability

9

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

9

Actuator, Interlock Switch WPL 4172040 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Box, Separator Collector (Also Order Item 30) WPL 9740676 Contact Us For Availability

9

Filler (Lower Panel) WPL 4162734 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Washer WPL 9741062 Contact Us For Availability

Screw, 8-18 (4) WPL 9741258 Contact Us For Availability

Wash/Rinse Arm Assembly WPL 9740877 Contact Us For Availability

Washer, Cup WPL 718817 Contact Us For Availability

Screw, 4-40 X 3/4 WPL 4159424 Contact Us For Availability

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $13.18

Bearing, Door Stop Insert (2) WPL 4160355 Contact Us For Availability

Keeper, Latch WPL 4160092 Contact Us For Availability

Locknut WPL 718829 Contact Us For Availability

Roller, Rack Track WPL 300844 Contact Us For Availability

W10207863 Whirlpool Dishwasher Switch Backorder WPL W10207863 $33.16

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

Screw, 10-16 X 3/8 WPL 9741435 Contact Us For Availability

Trim, Panel (Upper & Lower) (White Model) WPL 4171671 Contact Us For Availability

Trim, Panel (Upper & Lower) (Black Model) WPL 4172052 Contact Us For Availability

Screw, Track Roller WPL 9741951 Contact Us For Availability

Element, Heater WPL 9740416 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $3.70

Endcap, Front or Rear (2) WPL 300845 Contact Us For Availability

Channel, Evaporation WPL 9740868 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Grommet, Heater Element WPL 4162521 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $9.59

Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Stainless WPL 4171198 Contact Us For Availability

Outlet, Pump (Includes Item 13) WPL 9741379 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Almond/Whi WPL 4171200 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Harvest Go WPL 4171201 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Harvest Go WPL 4171592 Contact Us For Availability

Panel Insert Kits (White/Black) WPL 4171595 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Fresh Avoc WPL 4172092 Contact Us For Availability

Screw, 7-19 x 1/2 WPL 9741257 Contact Us For Availability

Washer, Heater Element WPL 4163554 Contact Us For Availability

Nut, Standpipe WPL 4161596 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

Guard, Arm WPL 4171543 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Nut, Heater Element WPL 718537 Contact Us For Availability

Float & Retainer Assembly WPL 4171216 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Support, Lower Panel WPL 9741276 Contact Us For Availability

Clip, Wash Arm Guard WPL 4171551 Contact Us For Availability

Thermostat WPL 9741786 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Pump & Motor Assembly (Includes Item 16) WPL 9740665 Contact Us For Availability

Arm, Receiver WPL 4171545 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Track, Adjustable (R.H.) WPL 9741828 Contact Us For Availability

Track, Adjustable (L.H.) WPL 9741829 Contact Us For Availability

18

Bushing, Grind WPL 302707 Contact Us For Availability

18

Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability

18

Washer WPL 4162452 Contact Us For Availability

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Cross Frame, Rear WPL 9741173 Contact Us For Availability

Washer WPL 4159593 Contact Us For Availability

WP4171237 Whirlpool Dishwasher Spring Backorder WPL WP4171237 $11.00

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

Sleeve, Actuator Spacer WPL 9740120 Contact Us For Availability

Screw, 8-32 X 1/4 WPL 9741677 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability

Rackstop (R.H.) WPL 4171291 Contact Us For Availability

Rackstop (L.H.) WPL 4171292 Contact Us For Availability

Seal, Drain Cover WPL 302704 Contact Us For Availability

Screw, 1/4-20 x 1/2 WPL 9741690 Contact Us For Availability

Lift, Receiver (R.H.) WPL 9741974 Contact Us For Availability

Lift, Receiver (L.H.) WPL 9741975 Contact Us For Availability

23

Cover, Drain (Includes Item 33) (Also Order I WPL 302723 Contact Us For Availability

23

Cross Frame, Front WPL 9742264 Contact Us For Availability

23

Rivet WPL 4159166 Contact Us For Availability

WP4171447 Whirlpool Dishwasher Seal Backorder WPL WP4171447 $5.03

Kick Board ((Black)) WPL 4171618 Contact Us For Availability

Kick Board ((White)) WPL 9742213 Contact Us For Availability

Kick Board ((Almond)) WPL 9742214 Contact Us For Availability

25

Base, Pump (Includes Items 24 & 33) (Also Ord WPL 9740671 Contact Us For Availability

25

Foot, Leveling (4) WPL 4162911 Contact Us For Availability

25

Clip, Grounding (Front Panel) WPL 9742169 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

WP9741678 Whirlpool Dishwasher Bi-Metal Backorder WPL WP9741678 $29.48

26

Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

Baffle, Lower WPL 4161295 Contact Us For Availability

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

Button, Program Switch (4) (Black Model) WPL 9742241 Contact Us For Availability

Button, Program Switch (4) (White Model) WPL 9742242 Contact Us For Availability

28

Motor (Includes Items 24 & 27) (Also Order It WPL 3369330 Contact Us For Availability

28

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

29

Screw (4) WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 12, 13, 22 & 36 WPL 675703 Contact Us For Availability

30

Bracket, Support WPL 4171364 Contact Us For Availability

31

WP912618 Whirlpool Dishwasher Screw Backorder WPL WP912618 $2.51

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Screw, 8-32 x 1/2 (Black Model) WPL 4172012 Contact Us For Availability

32

Tank (Serviced Complete with Frame) WPL 9741966 Contact Us For Availability

32

Handle, Latch (Black Model) WPL 9741857 Contact Us For Availability

32

Handle, Latch (White Model) WPL 9741858 Contact Us For Availability

33

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

33

Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability

34

Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability

34

Relay, Start WPL 304658 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

Connector, Overhead WPL 4161605 Contact Us For Availability

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

Wiring Harness (Main) WPL 9741880 Contact Us For Availability

36

WP9740678 Whirlpool Dishwasher Ring Seal Backorder WPL WP9740678 $9.85

38

Knob, Timer (Black Model) WPL 9741853 Contact Us For Availability

38

Knob, Timer (White Model) WPL 9741854 Contact Us For Availability

39

Tube, Drain WPL 9741366 Contact Us For Availability

39

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

40

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

41

Cap, Drain WPL 9741415 Contact Us For Availability

43

Shield, Timer WPL 9742182 Contact Us For Availability

44

Timer Assembly WPL 9741692 Contact Us For Availability

45

Barrier, Timer WPL 9741378 Contact Us For Availability
