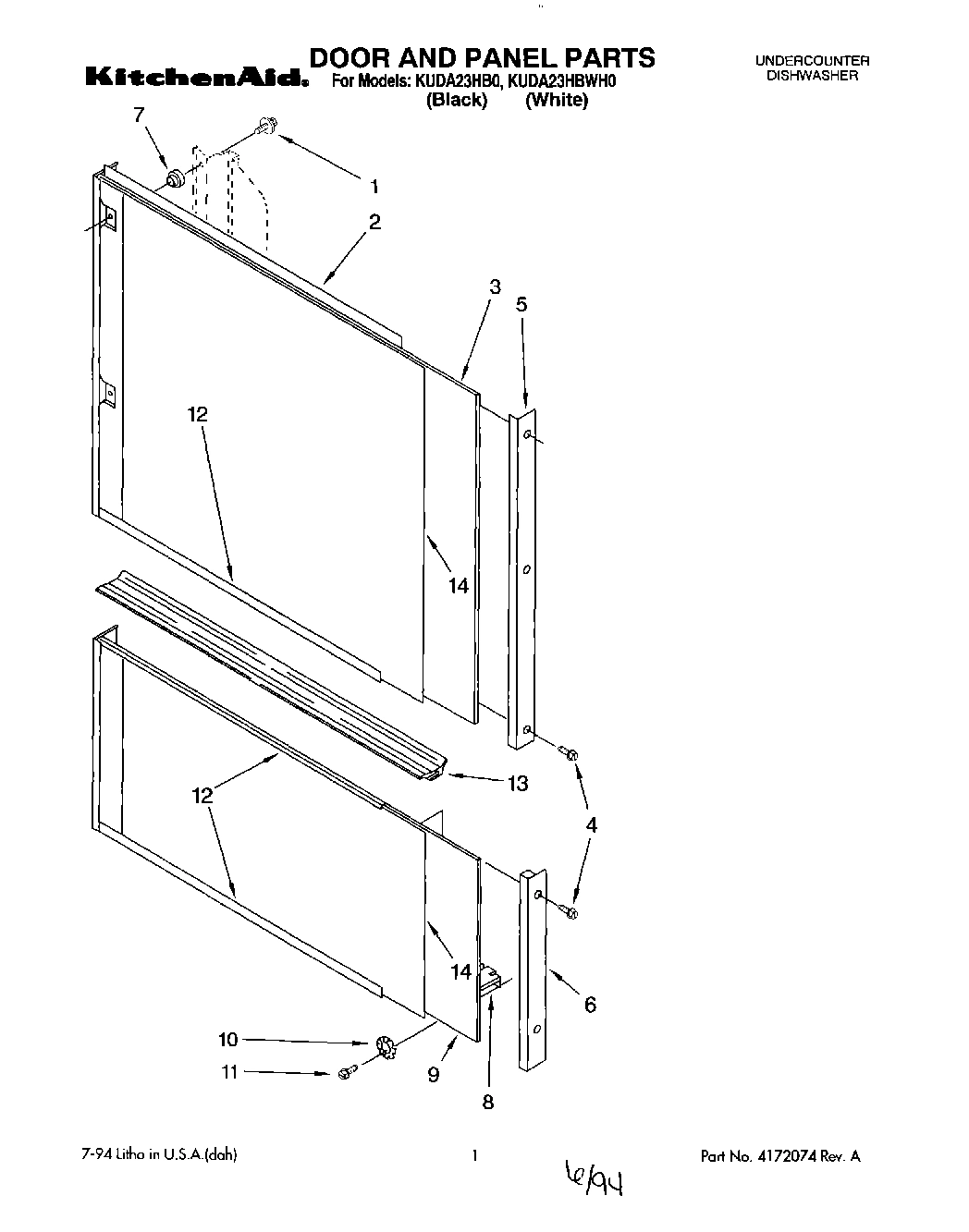

Model Whirlpool KUDA23HBWH0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Wood Top Kit WPL 4162841 Contact Us For Availability

Insulation Kit (Kit Includes Tub, Kickboard, WPL 4171179 Contact Us For Availability

Adjustable Kickboard Kit WPL 4171476 Contact Us For Availability

White (R.H.) WPL 4171632 Contact Us For Availability

Almond (R.H.) WPL 4171633 Contact Us For Availability

White (L.H.) WPL 4171634 Contact Us For Availability

Almond (L.H.) WPL 4171635 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9741358 WPL 9741358 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT9741532 WPL LIT9741532 Contact Us For Availability

WPL LIT9742005 WPL LIT9742005 Contact Us For Availability

WPL LIT9742114 WPL LIT9742114 Contact Us For Availability

WPL LIT9742141 WPL LIT9742141 Contact Us For Availability

1

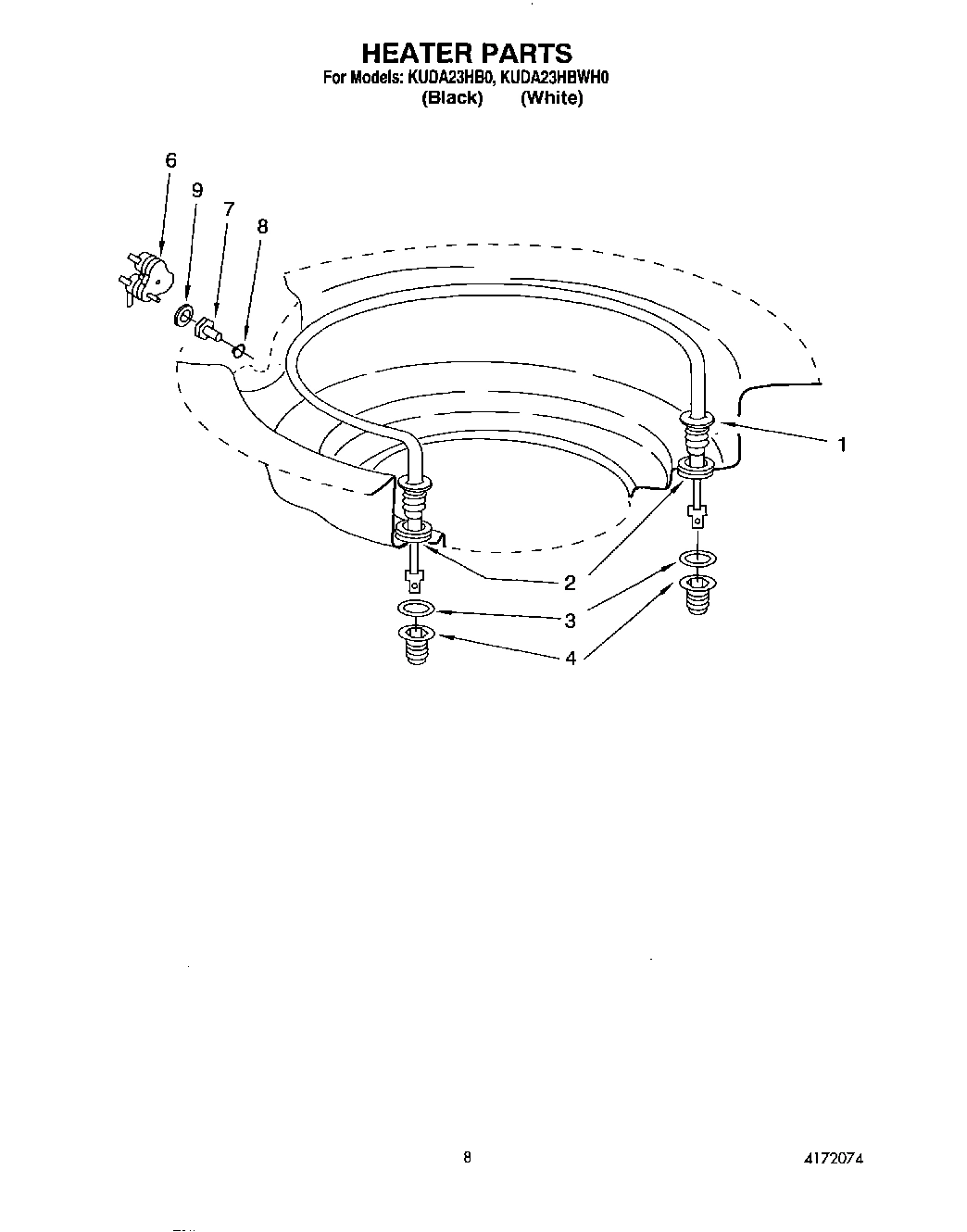

Element, Heater WPL 9740724 Contact Us For Availability

1

Cover, Air Inlet WPL 9740633 Contact Us For Availability

1

Short Frame Assembly (Includes Items 2, 18, 1 WPL 4171627 Contact Us For Availability

1

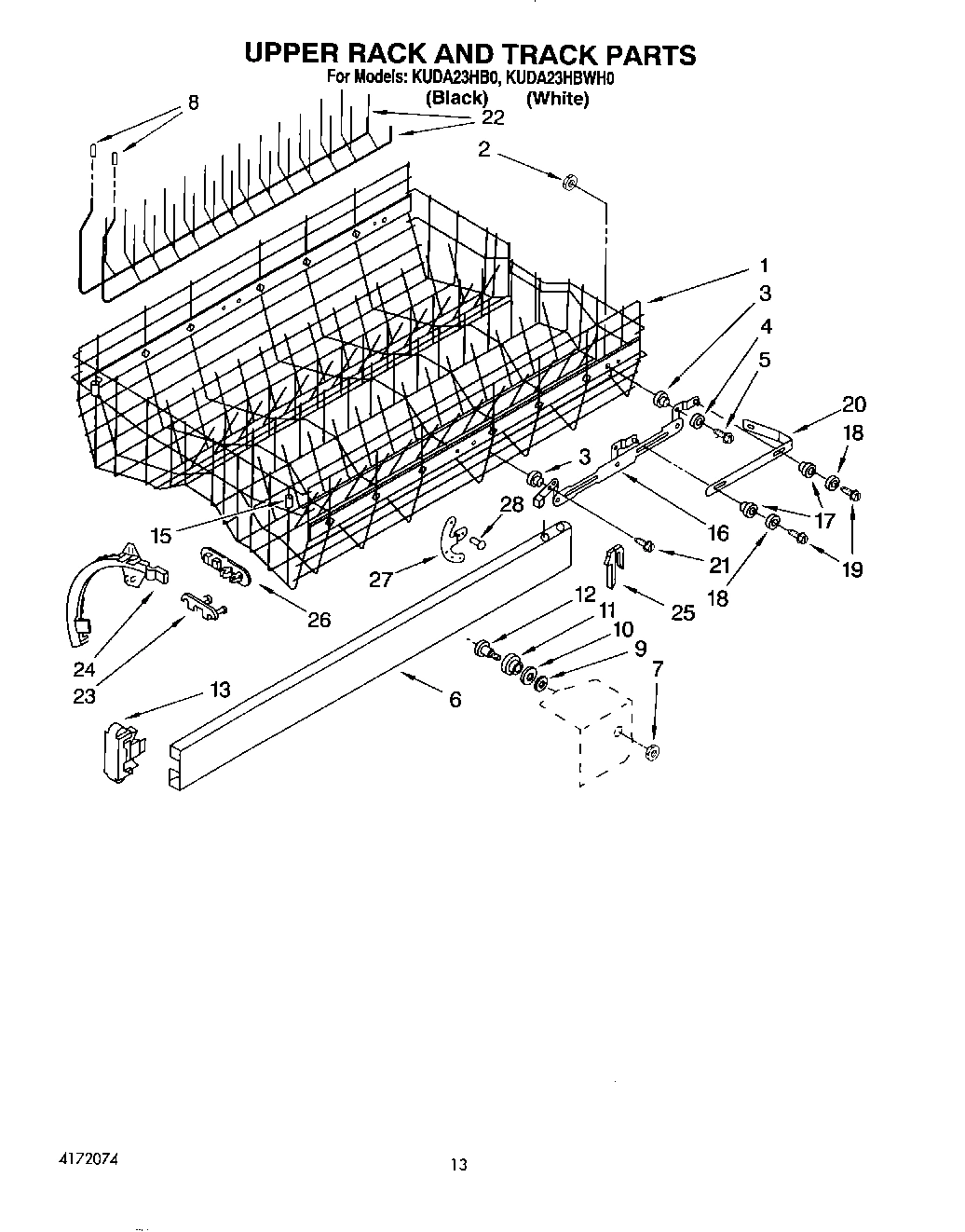

Upper Rack Assembly (Includes Items 2, 3, 4, WPL 9741955 Contact Us For Availability

1

Tube & Connector Assembly WPL 9740307 Contact Us For Availability

1

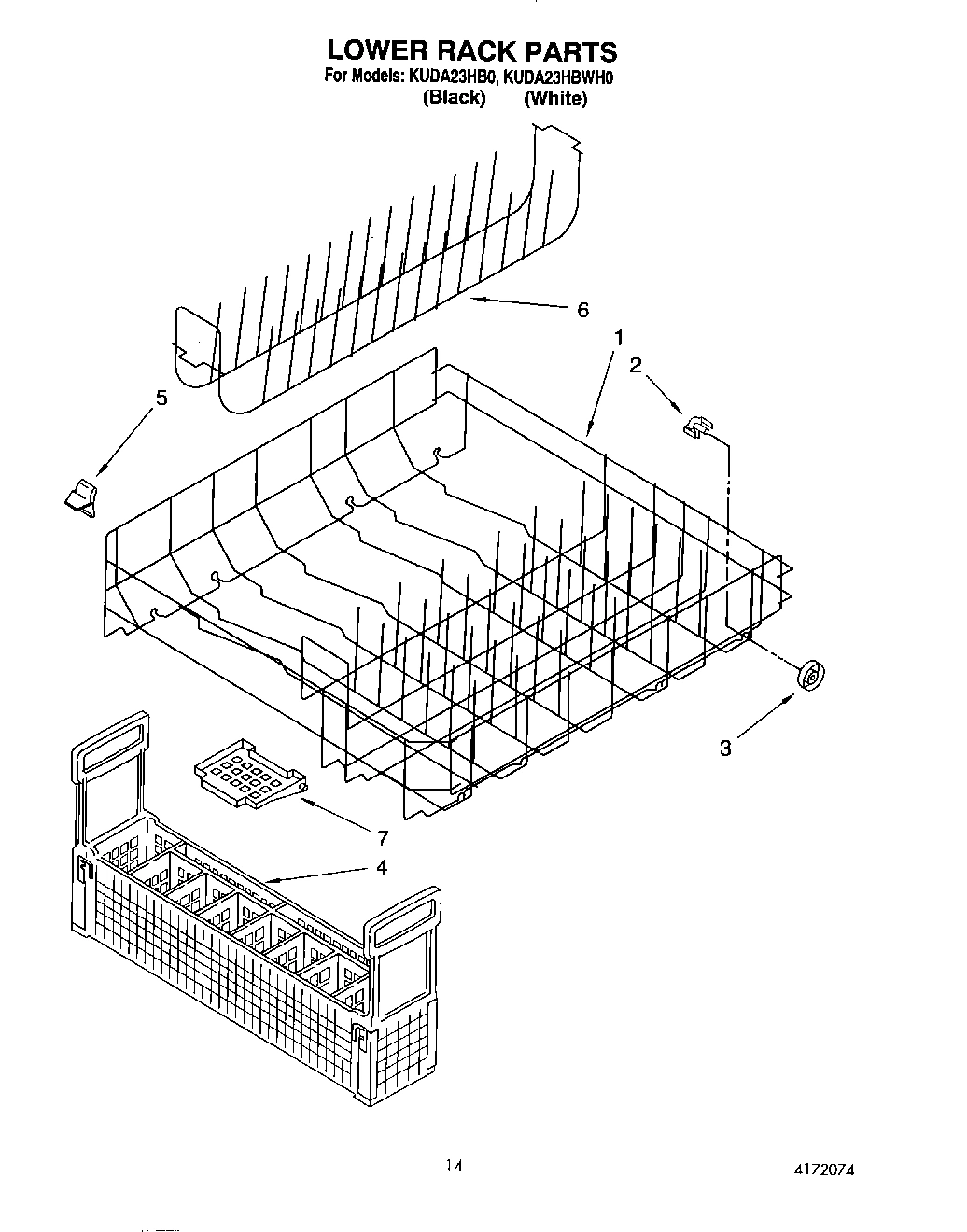

Lower Rack Assembly (Includes Items 2, 3 & 5) WPL 9741002 Contact Us For Availability

1

Screw WPL 4162215 Contact Us For Availability

1

Clip, Grounding WPL 4171274 Contact Us For Availability

1

Inlet Base Assy. (Also Order Item 30) See Not WPL 675704 Contact Us For Availability

2

Axle, Lower Rack (8) WPL 4162321 Contact Us For Availability

2

Grommet, Heater Element WPL 4162521 Contact Us For Availability

2

Float, Check Valve WPL 4161590 Contact Us For Availability

2

Screw, 10-16 x 1/2 WPL 9740980 Contact Us For Availability

2

Nut, Roller WPL 4161226 Contact Us For Availability

2

Connector, Vertical Conduit WPL 9740763 Contact Us For Availability

2

Upper Mounting Panel Assembly (Includes Lower WPL 9741100 Contact Us For Availability

2

Screw, 8 x 5/16 WPL 4159364 Contact Us For Availability

3

WP4162322 Whirlpool Dishwasher Roller In Stock WPL WP4162322 $2.51

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

Door Seal (Includes Item 4) WPL 4161631 Contact Us For Availability

3

Strainer (Coarse) WPL 9741049 Contact Us For Availability

3

Washer, Heater Element WPL 4163554 Contact Us For Availability

3

Vent Tube WPL 9740634 Contact Us For Availability

3

Bearing & Spacer, Rack Roller WPL 4171288 Contact Us For Availability

3

Conduit, Vertical WPL 4162655 Contact Us For Availability

3

Filler (Upper Panel) WPL 4171421 Contact Us For Availability

3

Spacer, Interlock Bracket WPL 9740019 Contact Us For Availability

4

8519598 Whirlpool Silverware Basket Backorder WPL 8519598 $35.48

4

Nut, Heater Element WPL 718537 Contact Us For Availability

4

Seal WPL 9740635 Contact Us For Availability

4

Clip, Seal WPL 4161608 Contact Us For Availability

4

Washer WPL 4162452 Contact Us For Availability

4

Retainer, Conduit WPL 4162609 Contact Us For Availability

4

Screw, 6 X 1/4 WPL 4159439 Contact Us For Availability

4

Drip Shield WPL 4171344 Contact Us For Availability

5

Bumper, Lower Rack (2) WPL 4171555 Contact Us For Availability

5

Retainer, Vent Tube WPL 9740632 Contact Us For Availability

5

Bumper, Door WPL 4161626 Contact Us For Availability

5

Retainer, Manifold WPL 4171540 Contact Us For Availability

5

Side Trim (Upper Panel) WPL 4171395 Contact Us For Availability

5

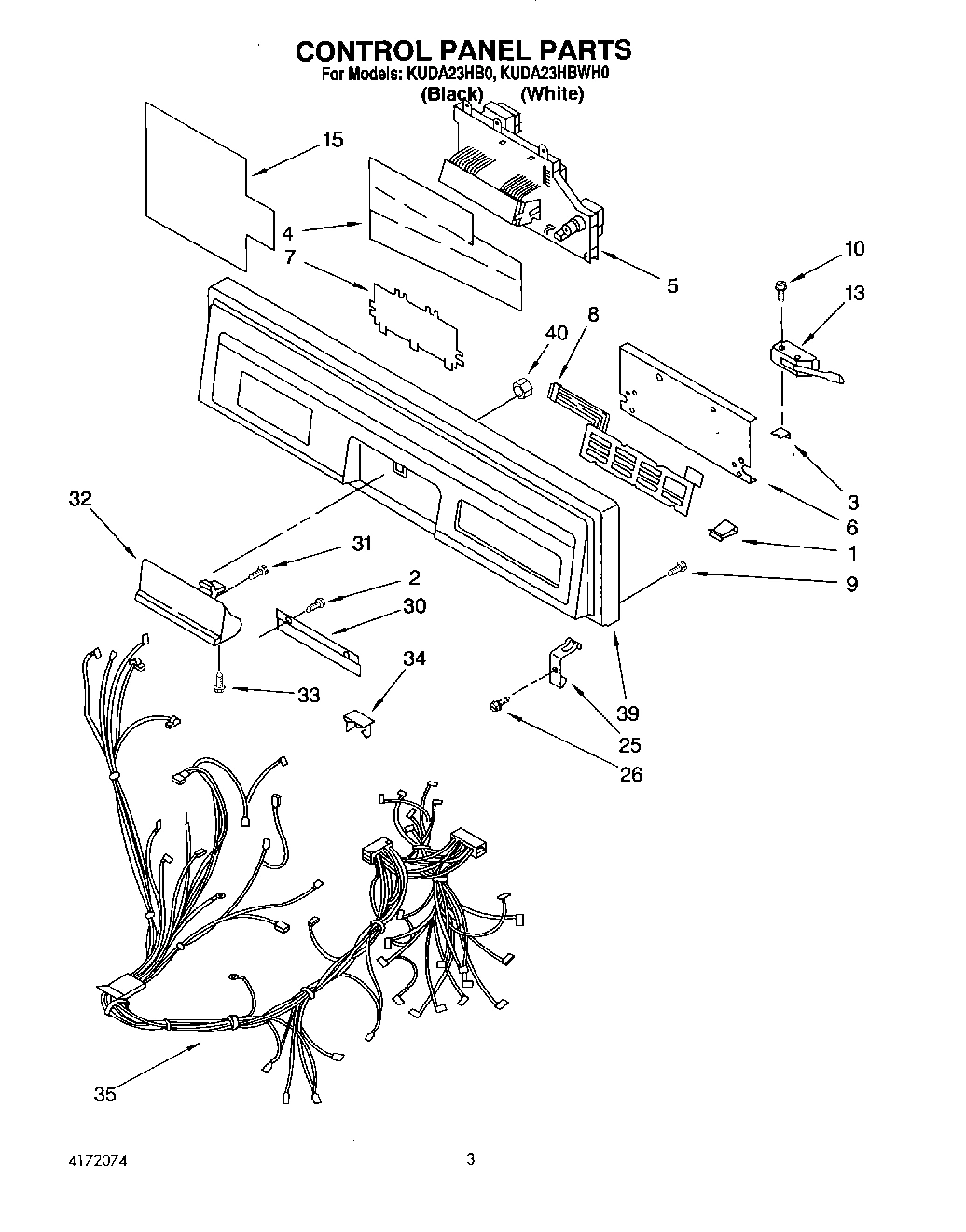

Electronic Control WPL 9741929 Contact Us For Availability

6

Probe, Temperature WPL 9741330 Contact Us For Availability

6

Dryer Housing WPL 9740638 Contact Us For Availability

6

Insulation, Tank Back (Mastic) WPL 4171910 Contact Us For Availability

6

Track, Rack WPL 3369071 Contact Us For Availability

6

Manifold, Upper Arm WPL 4171541 Contact Us For Availability

6

Plate Rack WPL 4171556 Contact Us For Availability

6

Side Trim (Lower Panel) WPL 4171624 Contact Us For Availability

6

Bracket, Membrane WPL 4171251 Contact Us For Availability

6

``O`` Ring WPL 95080 Contact Us For Availability

7

Fill Valve Assembly WPL 9741906 Contact Us For Availability

7

Probe, Heat Sensing WPL 9741277 Contact Us For Availability

7

Bracket, Housing Support WPL 4162703 Contact Us For Availability

7

Clip, Retainer WPL 9740303 Contact Us For Availability

7

Nut, Lock WPL 718829 Contact Us For Availability

7

Lid, Basket WPL 4171554 Contact Us For Availability

7

Grommet (4) WPL 4162735 Contact Us For Availability

7

Display Lens WPL 4171363 Contact Us For Availability

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

``O`` Ring WPL 4159822 Contact Us For Availability

8

Screw, 8-18 X 5/16 (8) WPL 4159442 Contact Us For Availability

8

Tip WPL 9740023 Contact Us For Availability

8

Bearing, Arm (Bottom) WPL 4162625 Contact Us For Availability

8

Lower Mounting Panel Assembly (Includes Upper WPL 4171623 Contact Us For Availability

8

Switch, Membrane WPL 4171696 Contact Us For Availability

8

Black Model WPL 4171730 Contact Us For Availability

9

Bracket, L.H. Door Stop WPL 4161592 Contact Us For Availability

9

Gasket WPL 4161644 Contact Us For Availability

9

Screw, No.6 (2) WPL 9740664 Contact Us For Availability

9

Actuator, Interlock Switch WPL 9741676 Contact Us For Availability

9

Washer WPL 9741062 Contact Us For Availability

9

Bearing, Arm (Top) WPL 4162491 Contact Us For Availability

9

Filler (Lower Panel) WPL 4171464 Contact Us For Availability

9

Screw (4) WPL 4162214 Contact Us For Availability

9

Box, Separator Collector (Also Order Item 30) WPL 9740676 Contact Us For Availability

W11596033 Whirlpool Microwave Screw Backorder WPL W11596033 $9.59

Screw, 10-16 X 5/8 (2) WPL 4159178 Contact Us For Availability

Lock Washer WPL 4159494 Contact Us For Availability

Washer, Cup WPL 718817 Contact Us For Availability

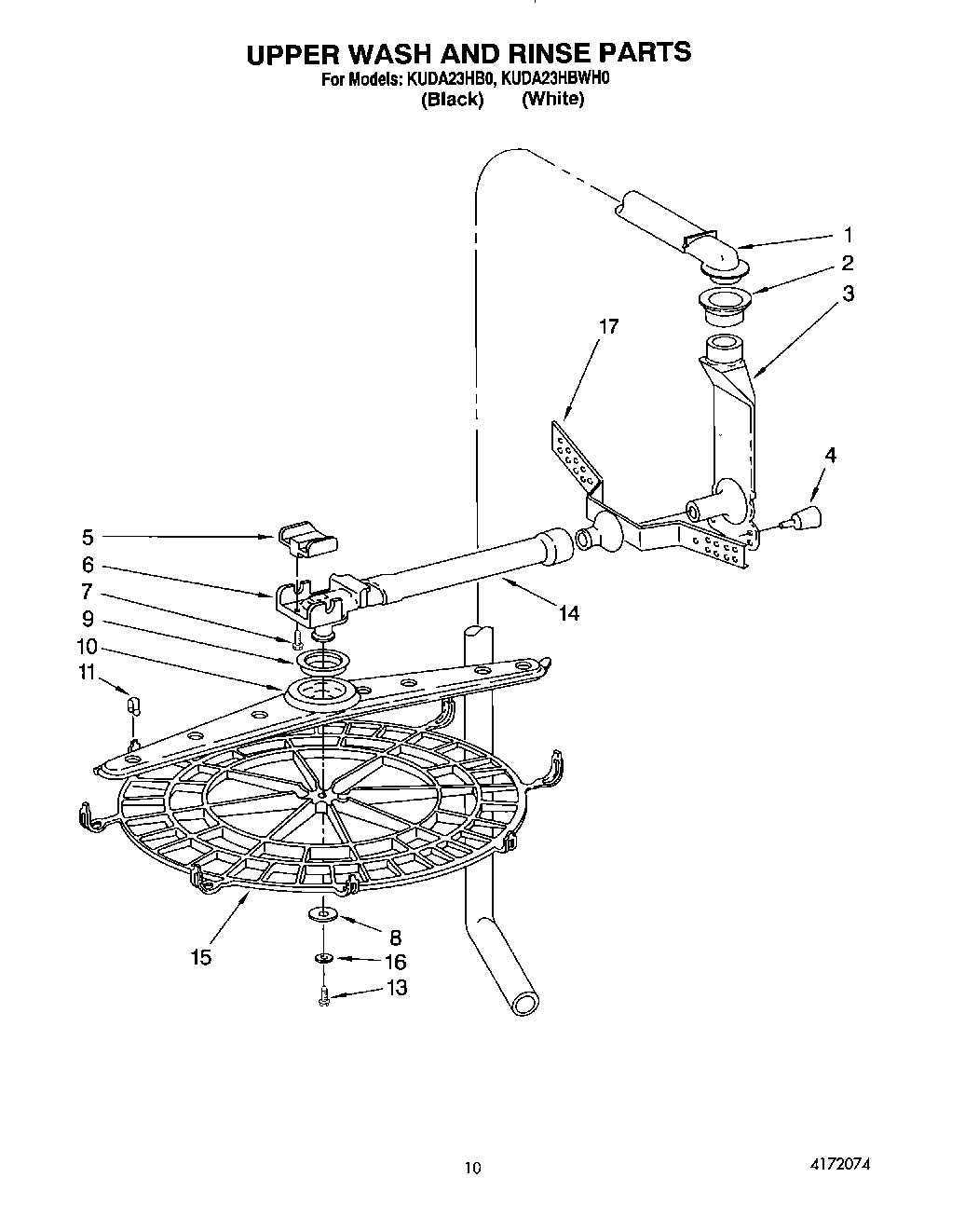

Wash/Rinse Arm Assembly WPL 9742178 Contact Us For Availability

Screw, 8-18 (4) WPL 9741258 Contact Us For Availability

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

Bearing, Door Stop Insert WPL 4160355 Contact Us For Availability

Wheel, Blower WPL 4162741 Contact Us For Availability

Keeper, Latch WPL 4160092 Contact Us For Availability

Roller, Rack Track WPL 300844 Contact Us For Availability

Clip, Arm Guard (8) WPL 4171551 Contact Us For Availability

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

Screw, 10-16 x 3/8 WPL 4159421 Contact Us For Availability

Screw, Track Roller WPL 9741951 Contact Us For Availability

Trim, Panel WPL 4171625 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

WP9741251 Whirlpool Mounting Bracket In Stock WPL WP9741251 $3.70

Endcap (2) WPL 300845 Contact Us For Availability

Screw WPL 4161737 Contact Us For Availability

Channel, Evaporation WPL 9740868 Contact Us For Availability

Switch, Interlock WPL 4160658 Contact Us For Availability

Tube (Manifold to Receiver) WPL 4171544 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Stainless WPL 4171198 Contact Us For Availability

Cover, Dryer Motor WPL 4162443 Contact Us For Availability

Screw, 7-19 x 1/2 WPL 9741257 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Almond/Whi WPL 4171200 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Harvest Go WPL 4171201 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Harvest Go WPL 4171592 Contact Us For Availability

Panel Insert Kits (White/Black) WPL 4171595 Contact Us For Availability

Panel Insert Kits (OPTIONAL KITS) (Fresh Avoc WPL 4172092 Contact Us For Availability

Outlet, Pump (Includes Item 13) WPL 9741379 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

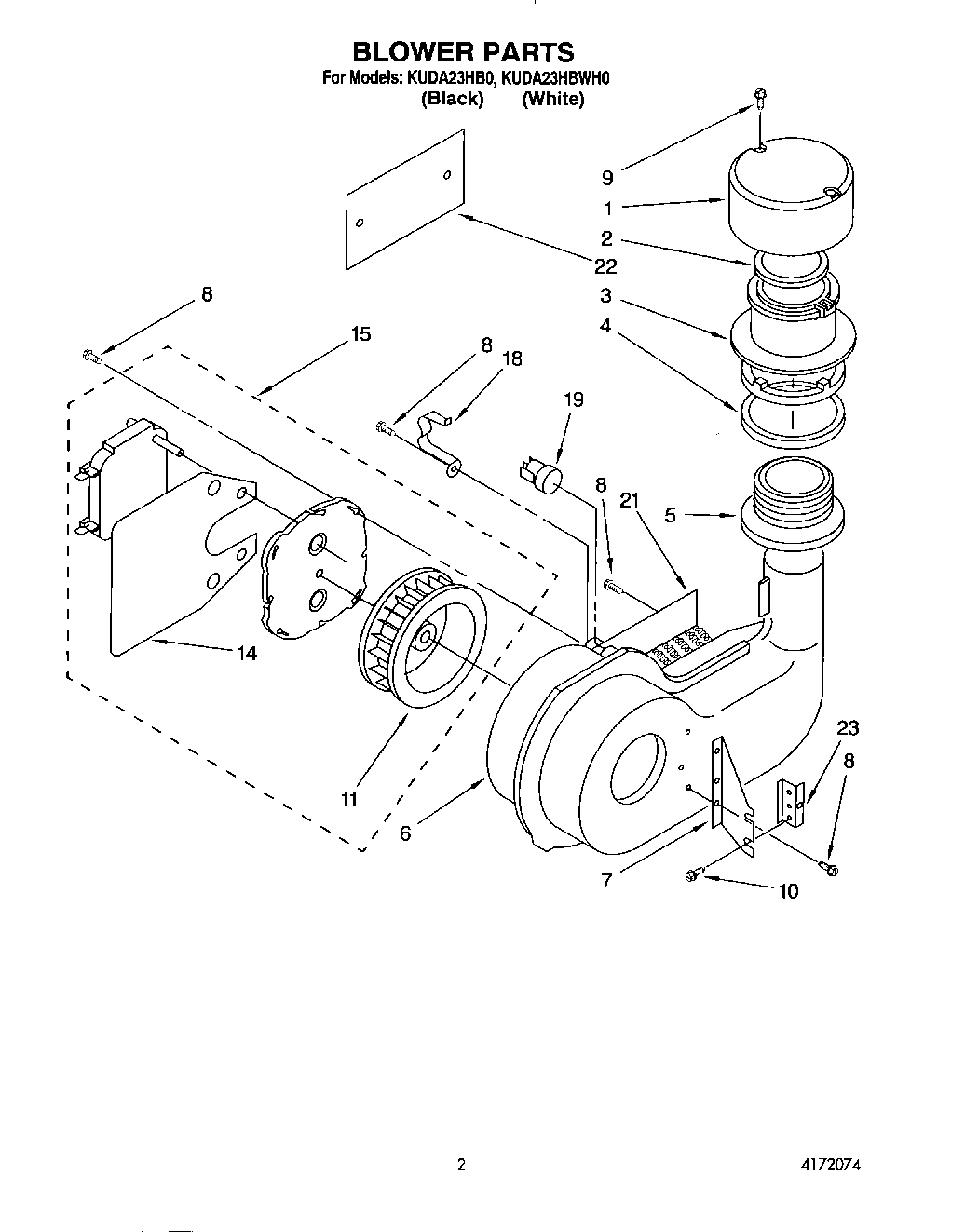

Blower Motor Assembly WPL 4162742 Contact Us For Availability

Bumper, Upper Rack WPL 4162048 Contact Us For Availability

Guard, Arm WPL 4171543 Contact Us For Availability

Barrier, Electric Insulation WPL 9741409 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Bracket, R.H. Door Stop WPL 4161594 Contact Us For Availability

Support, Lower Panel WPL 9741276 Contact Us For Availability

Track, Adjustable (R.H.) WPL 9741828 Contact Us For Availability

Track, Adjustable (L.H.) WPL 9741829 Contact Us For Availability

Washer WPL 4162624 Contact Us For Availability

Screw, 10-32 X 1/2 WPL 4162151 Contact Us For Availability

Roller, Upper Rack Track (4) WPL 9741816 Contact Us For Availability

Arm, Receiver WPL 4171545 Contact Us For Availability

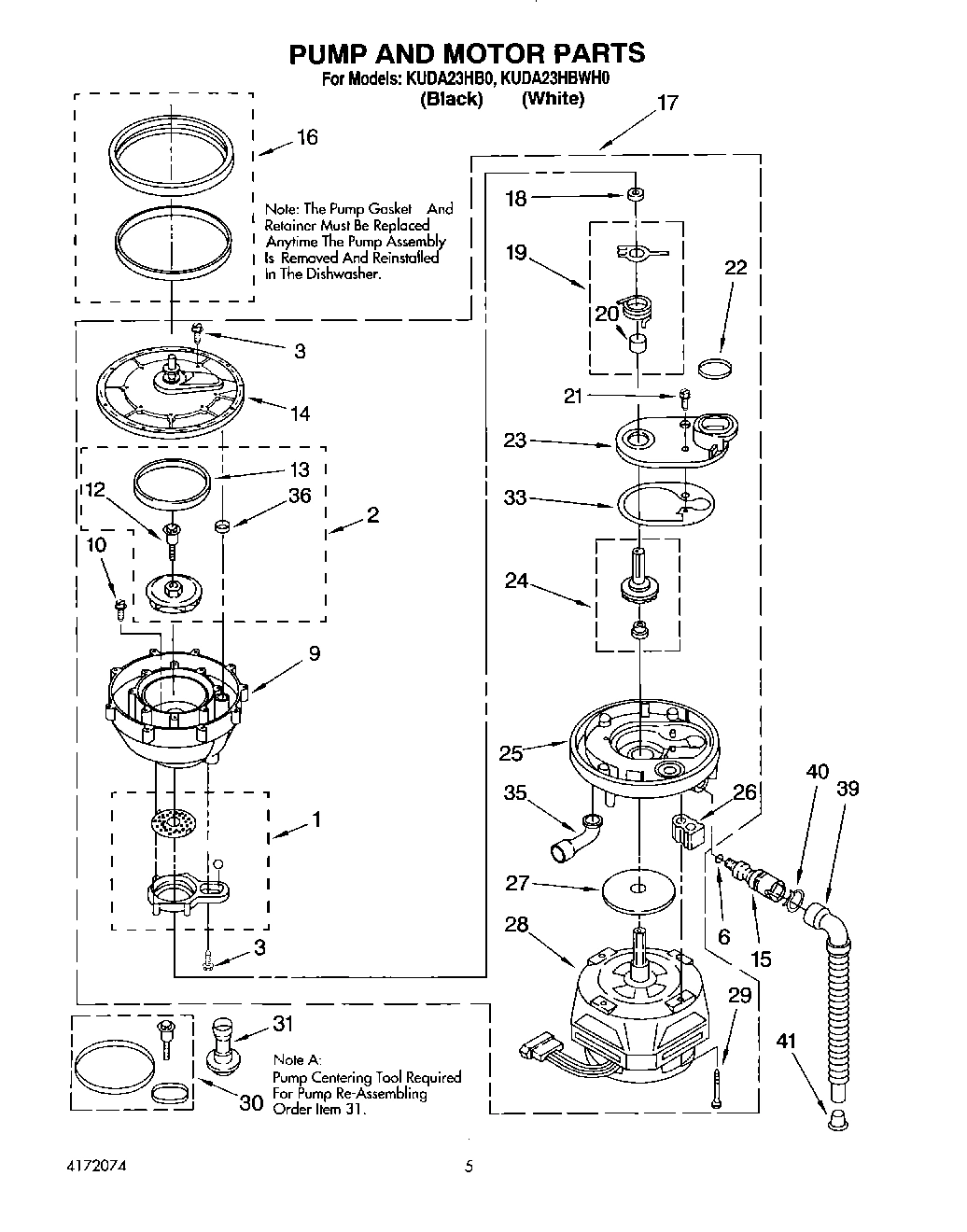

Pump & Motor Assembly (Includes Item 16) WPL 9740665 Contact Us For Availability

Clip, Thermoprotector WPL 4162990 Contact Us For Availability

Frame Assembly (L.H.) WPL 4171620 Contact Us For Availability

Washer WPL 4159593 Contact Us For Availability

Bushing, Grind WPL 302707 Contact Us For Availability

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

Bracket, R.H. Hinge WPL 4161587 Contact Us For Availability

Thermostat WPL 4171164 Contact Us For Availability

Cross Frame, Rear WPL 9741173 Contact Us For Availability

Screw WPL 9741677 Contact Us For Availability

20

Lift, Receiver (R.H.) WPL 9741974 Contact Us For Availability

20

Lift, Receiver (L.H.) WPL 9741975 Contact Us For Availability

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Heater, Open WPL 9742072 Contact Us For Availability

Frame Assembly (R.H.) WPL 4171619 Contact Us For Availability

Screw, 10 X 5/8 WPL 4159428 Contact Us For Availability

Access Cover WPL 4163186 Contact Us For Availability

Screw WPL 9741690 Contact Us For Availability

Partition WPL 4171548 Contact Us For Availability

Seal, Drain Cover WPL 302704 Contact Us For Availability

Clip, Partition (6) WPL 4160480 Contact Us For Availability

Bracket, Blower Mounting WPL 9740631 Contact Us For Availability

Cross Frame, Front WPL 4161368 Contact Us For Availability

Cover, Drain (Includes Item 33) (Also Order I WPL 302723 Contact Us For Availability

WP4171447 Whirlpool Dishwasher Seal Backorder WPL WP4171447 $5.03

Kick Board ((Black)) WPL 4171618 Contact Us For Availability

Kick Board ((White)) WPL 9742213 Contact Us For Availability

Kick Board ((Almond)) WPL 9742214 Contact Us For Availability

Quadrant, Divider (R.H.) WPL 4171549 Contact Us For Availability

Quadrant, Divider (L.H.) WPL 4171550 Contact Us For Availability

Foot, Levelier WPL 4162911 Contact Us For Availability

Stop, Track (2) WPL 3369046 Contact Us For Availability

Clip, Grounding (Front Panel) WPL 9742169 Contact Us For Availability

Base, Pump (Includes Items 24 & 33) (Also Ord WPL 9740671 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

WP9741678 Whirlpool Dishwasher Bi-Metal Backorder WPL WP9741678 $29.48

26

Screw, 8-18 x 1/2 WPL 9741365 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

Baffle, Lower WPL 4161295 Contact Us For Availability

Screw, 10-32 X 3/8 WPL 4159372 Contact Us For Availability

Rackstop (R.H.) WPL 4171291 Contact Us For Availability

Rackstop (L.H.) WPL 4171292 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Enclosure, Elec. Supply WPL 4161369 Contact Us For Availability

Rivet WPL 4171491 Contact Us For Availability

Motor (Includes Items 24 & 27) (Also Order It WPL 3369330 Contact Us For Availability

29

Trim, Tank (R.H.) WPL 4171304 Contact Us For Availability

29

Trim, Tank (L.H.) WPL 4171305 Contact Us For Availability

29

Screw (4) WPL 3369331 Contact Us For Availability

WP9740171 Whirlpool Dishwasher Dispenser Backorder WPL WP9740171 $197.45

Pump Seal Kit (Includes Items 12, 13 & 22) WPL 675703 Contact Us For Availability

Screw, 10-24 X 1/2 WPL 9741233 Contact Us For Availability

Bracket, Door Panel WPL 4171364 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Shield, Insulation WPL 3382404 Contact Us For Availability

31

Screw WPL 4172012 Contact Us For Availability

32

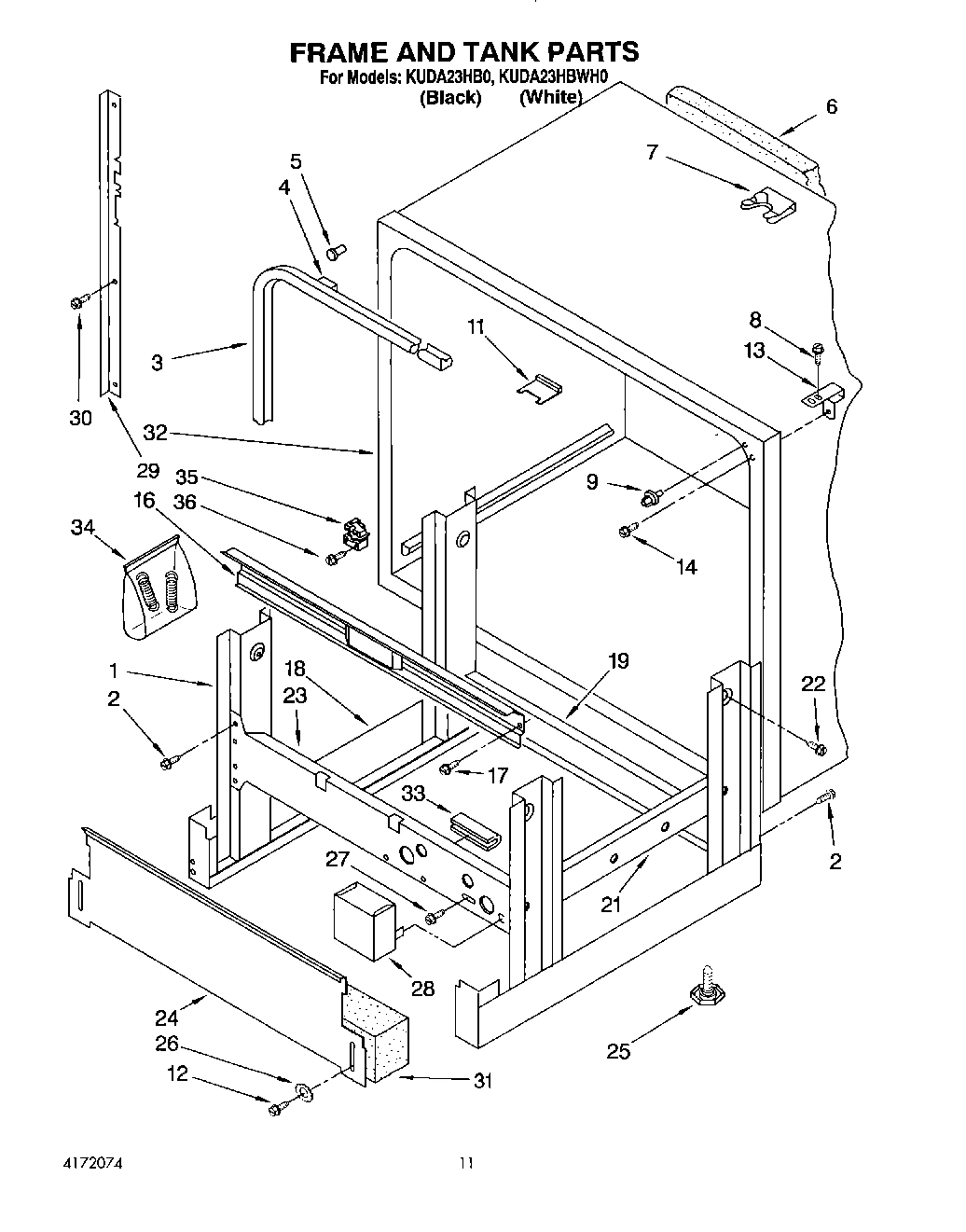

Tank (Serviced Complete with Frame) WPL 9741965 Contact Us For Availability

32

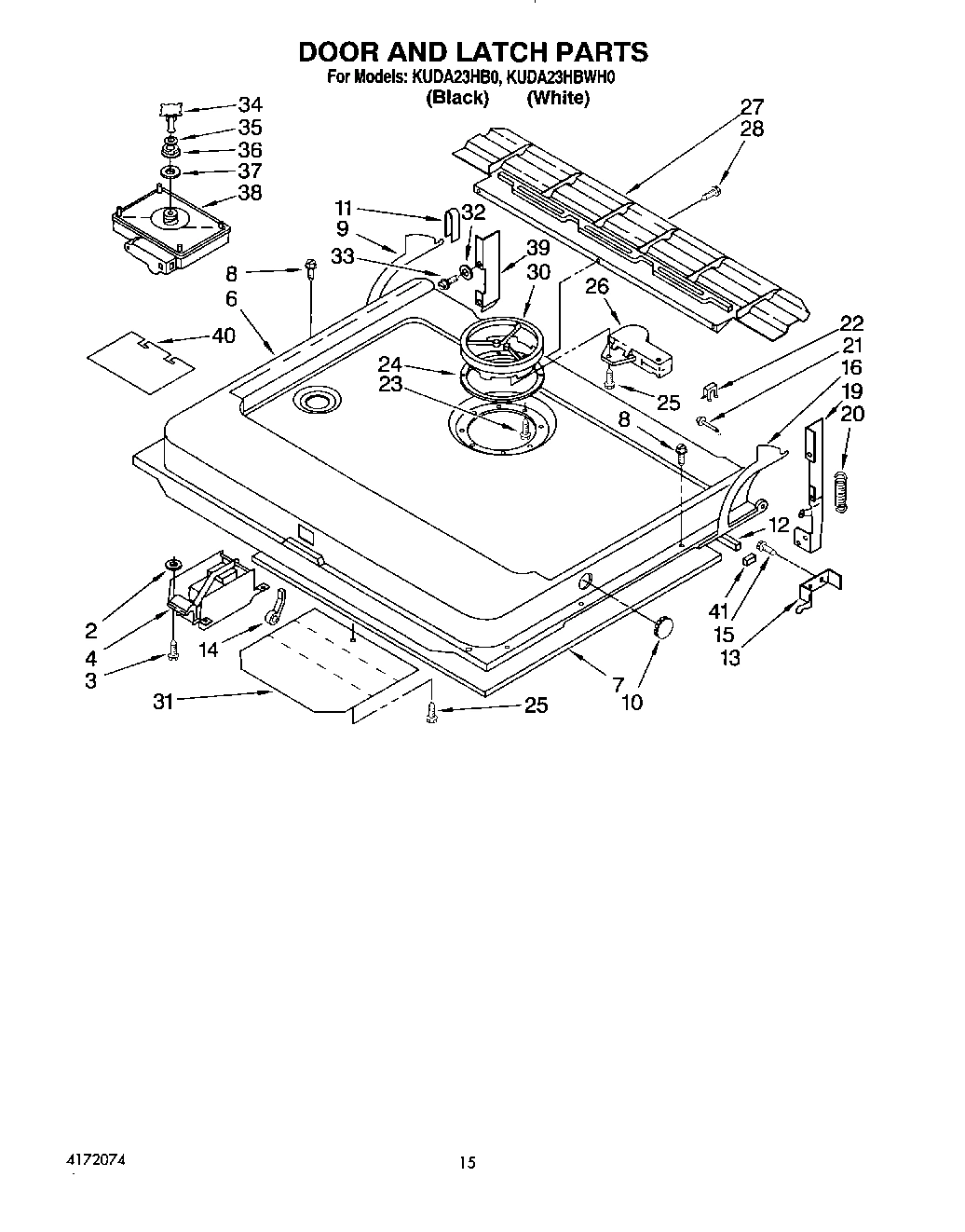

Handle, Latch WPL 4171270 Contact Us For Availability

33

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $3.70

33

Protector, Edge WPL 4171215 Contact Us For Availability

33

Screw, 10-32 x 5/8 WPL 9741328 Contact Us For Availability

34

9741248 Whirlpool Dishwasher Spring Kit Backorder WPL 9741248 $7.61

34

Fill Hole Plug Assembly (Includes Item 35) WPL 4171221 Contact Us For Availability

34

Clip, Harness Guide WPL 4163372 Contact Us For Availability

Relay, Start WPL 304658 Contact Us For Availability

Screw, 8-18 X 3/8 WPL 4159349 Contact Us For Availability

Wiring Harness (Main) WPL 9741542 Contact Us For Availability

Connector, Overhead WPL 4161605 Contact Us For Availability

36

WP9740678 Whirlpool Dishwasher Ring Seal Backorder WPL WP9740678 $9.85

36

Screw, 8-18 x 1-1/4 WPL 4159403 Contact Us For Availability

37

Gasket, Rinse Agent Dispenser WPL 4161545 Contact Us For Availability

38

Rinse Agent Dispensing Valve WPL 9741234 Contact Us For Availability

Tube, Drain WPL 9741366 Contact Us For Availability

Bracket, L.H. Hinge WPL 4161589 Contact Us For Availability

Control Panel (Incl. Item 40) (Black Model) WPL 4171280 Contact Us For Availability

Control Panel (Incl. Item 40) (White Model) WPL 9740703 Contact Us For Availability

40

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

40

Shield, Rinse Dispenser WPL 9741866 Contact Us For Availability

40

Nut, Twist (8) WPL 9740020 Contact Us For Availability

41

Vapor Barrier, Corner (2) WPL 4162950 Contact Us For Availability

41

Cap, Drain WPL 9741415 Contact Us For Availability
