Model Whirlpool KTRS22QAWH01 – Common Parts & Diagrams

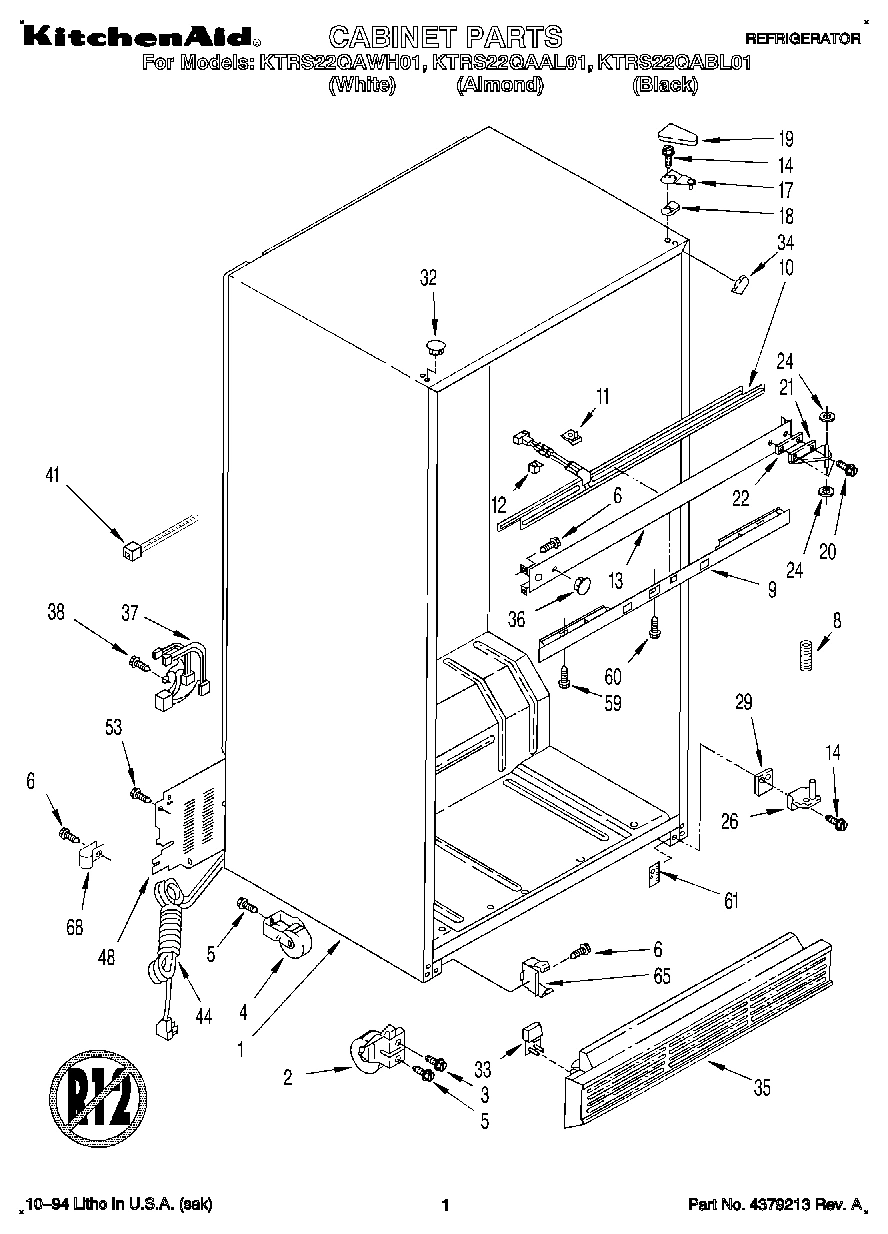

01 - CABINET

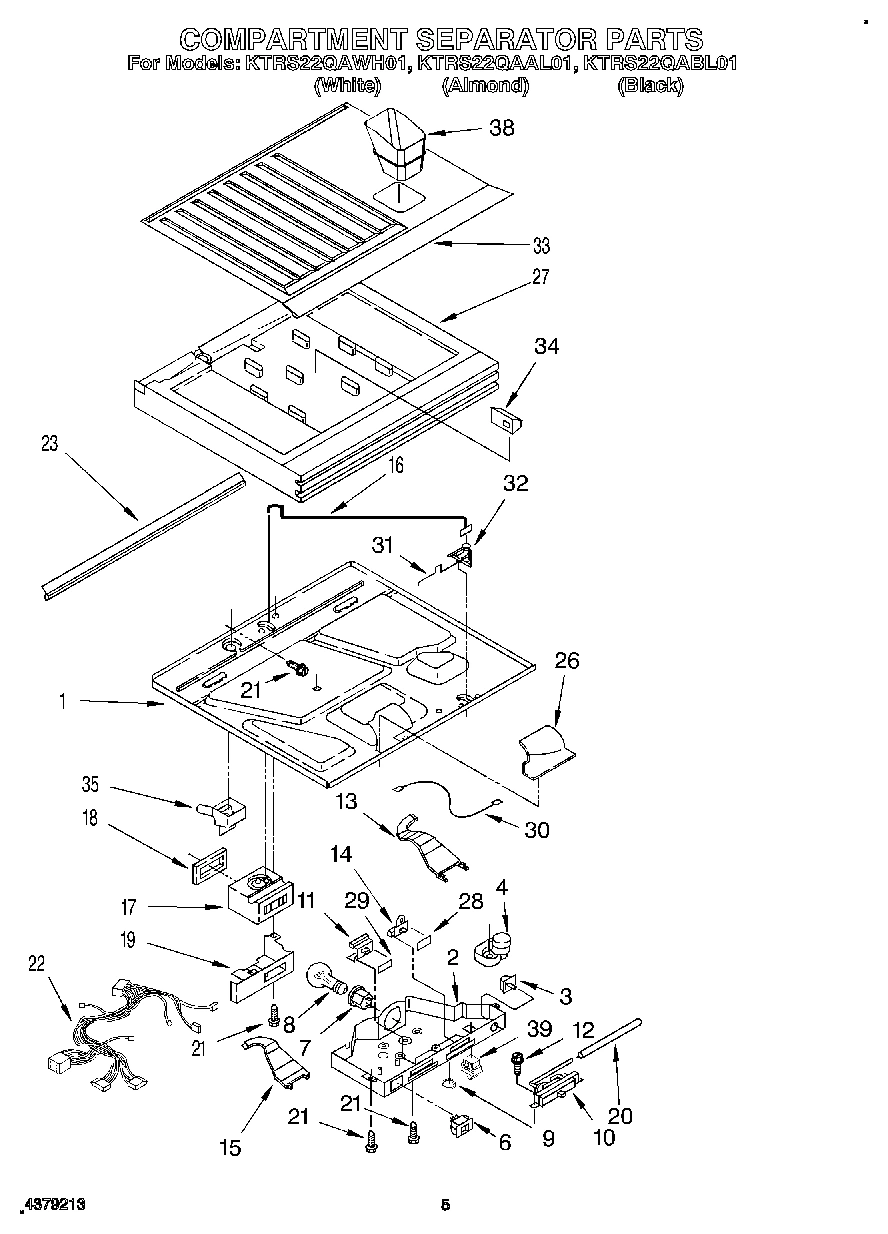

03 - COMPARTMENT SEPARATOR

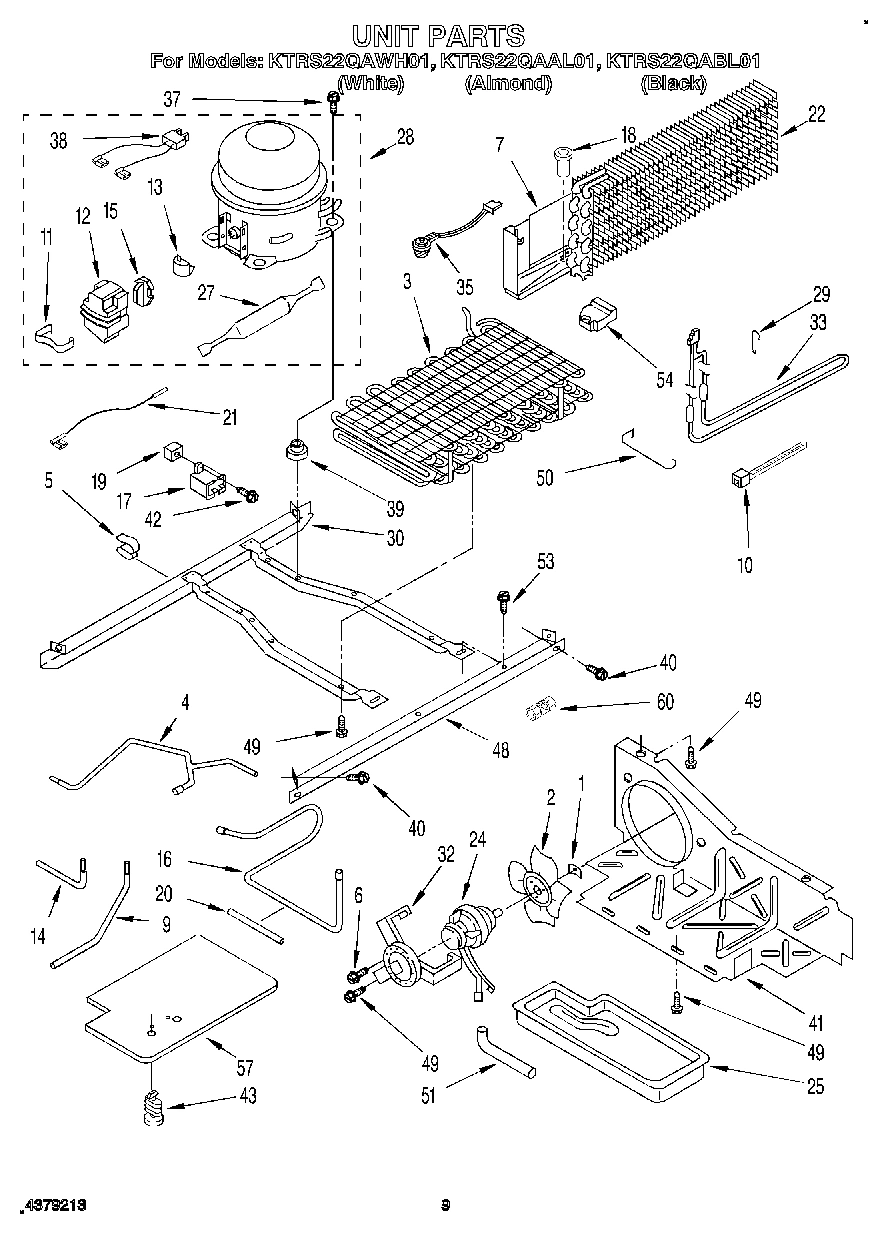

06 - UNIT

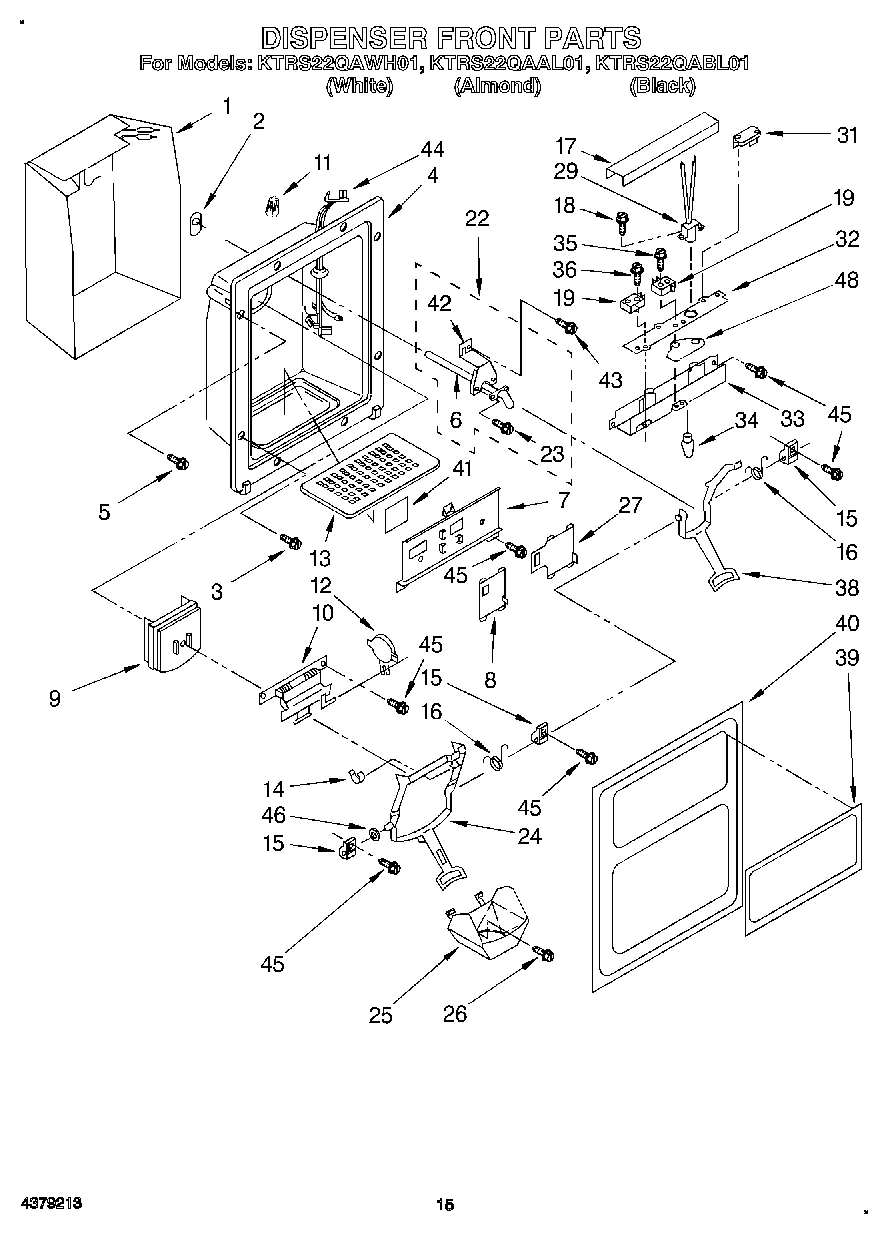

09 - DISPENSER FRONT

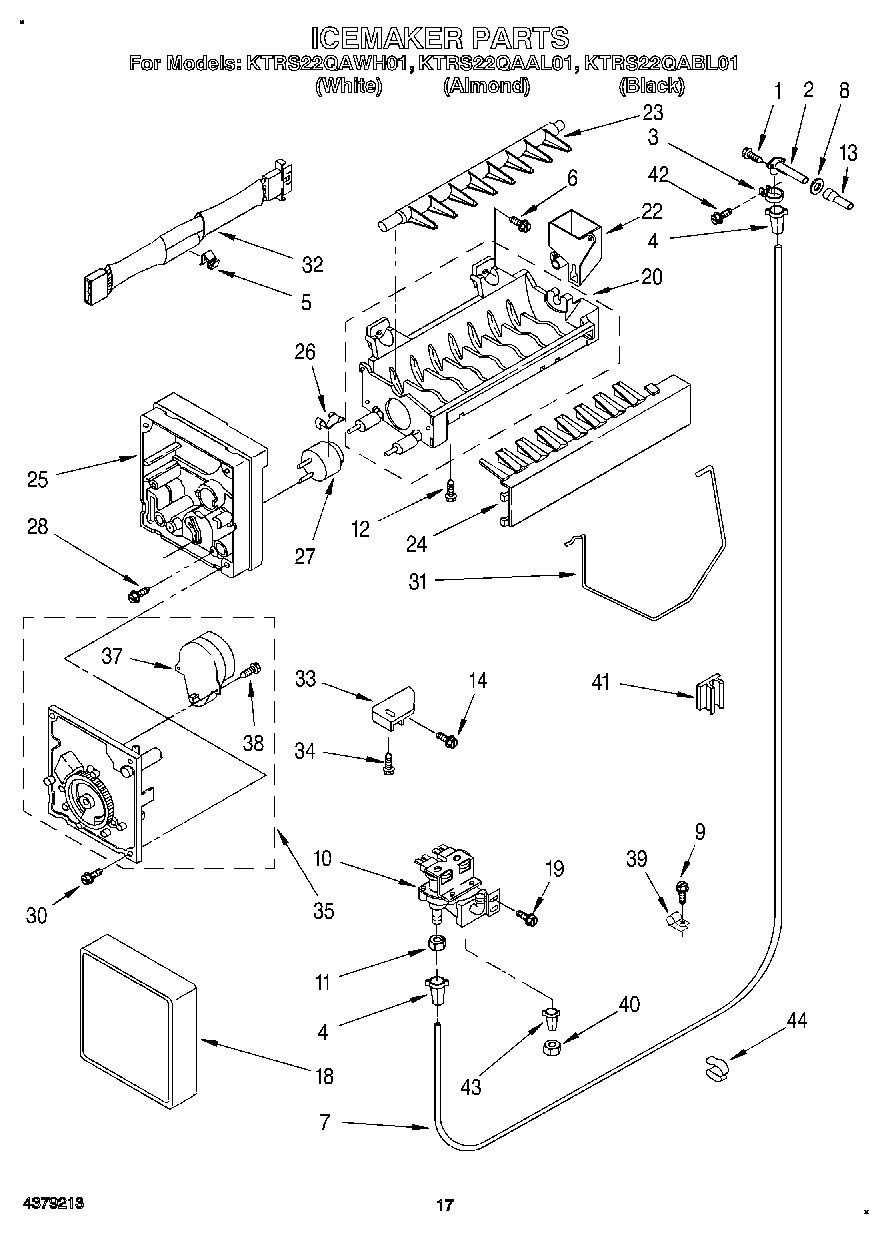

10 - ICEMAKER

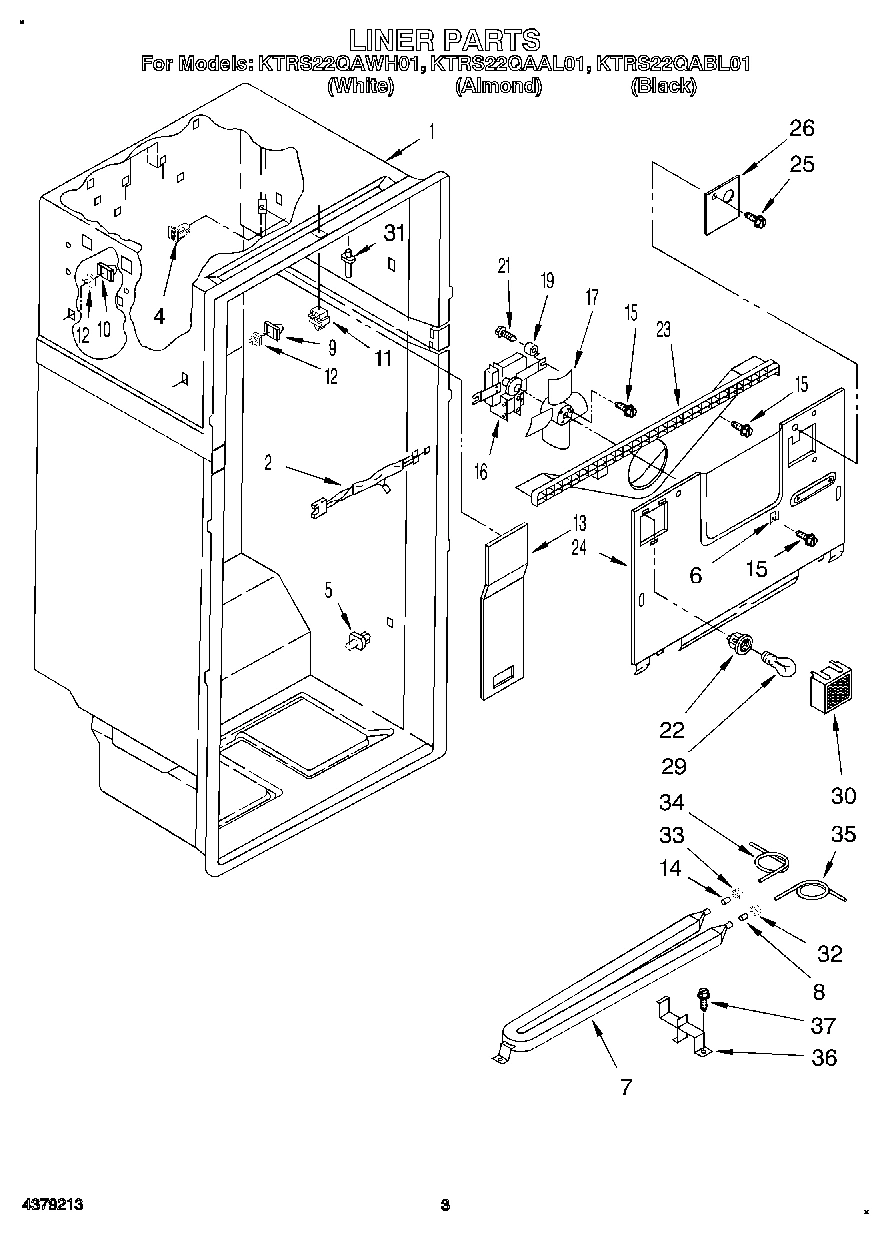

02 - LINER

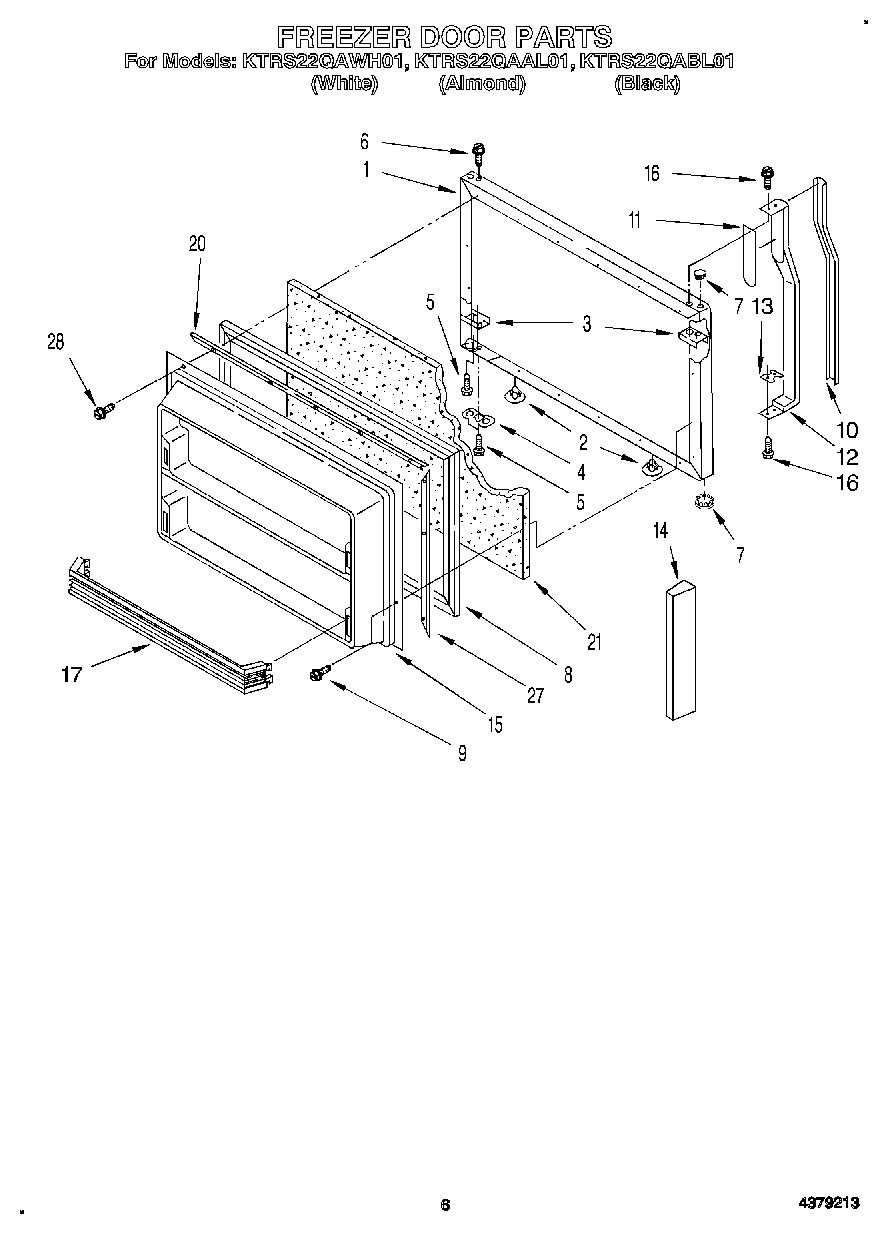

04 - FREEZER DOOR

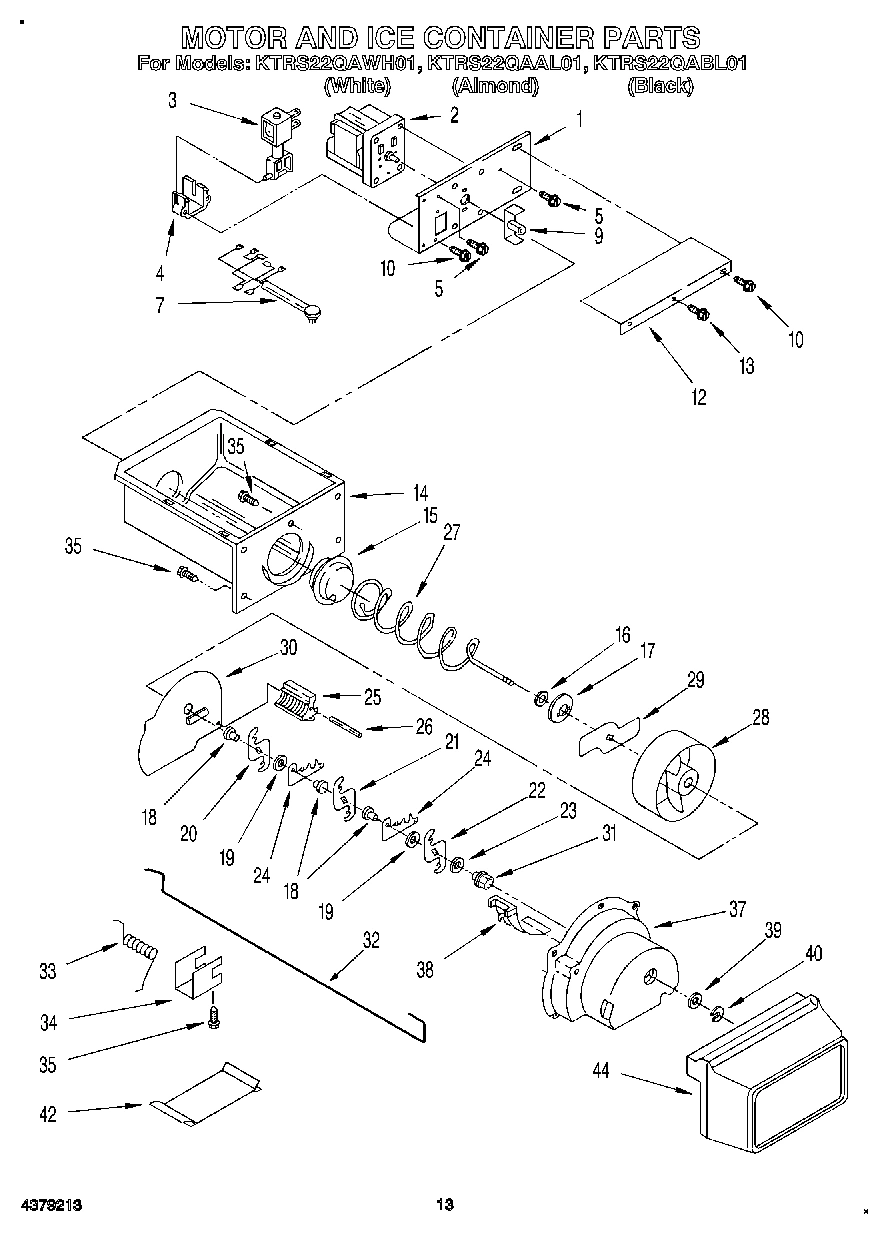

08 - MOTOR AND ICE CONTAINER
05 - SHELF, LIT/OPTIONAL

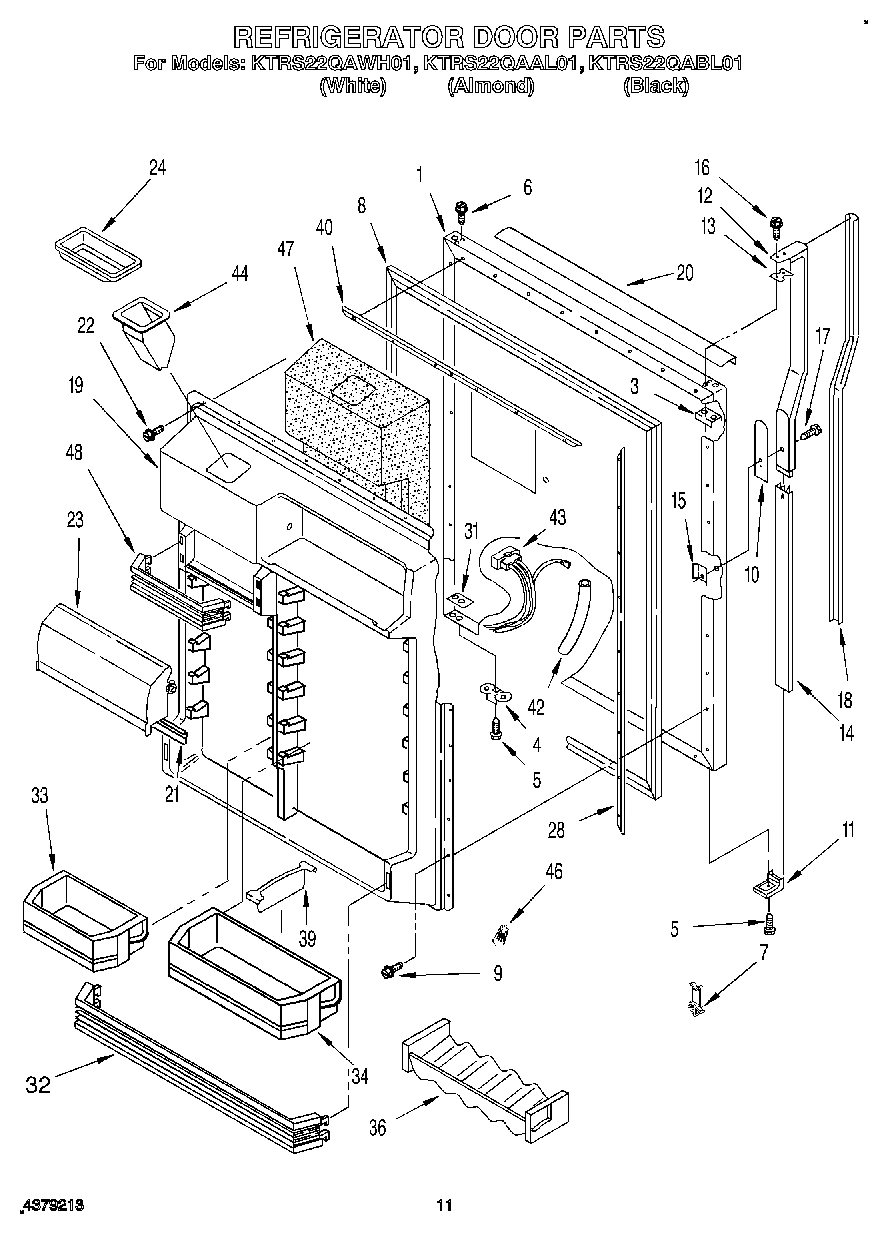

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRS22QAWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2168556 WPL LIT2168556 Contact Us For Availability
WPL LIT2168564 WPL LIT2168564 Contact Us For Availability
WPL LIT2169249 WPL LIT2169249 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112819A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2160677 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168610 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168611 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Wine Rack WPL 1125913 Contact Us For Availability
4
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Tube, Water (Not a Serviceable Part) WPL ARI112821A Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1125520 Contact Us For Availability
7
Clip WPL 2168567 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Roller WPL 2161749 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2160770 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
10
Retainer, Glass Shelf (2) WPL 1110744 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
11
Spacer, Door WPL 1107628 Contact Us For Availability
11
Glass, Crisper Cover WPL 1125531 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Handle, Center WPL 2161517 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Meat Pan Shelf Cantilever WPL 2161758 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Grille, Overflow (For White Model) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (For Almond Model) WPL 1126121 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
14
Door Dike (2) WPL 1125577 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Eyelet WPL 1112308 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
15
Relay (See Overload) WPL ARI112820A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2162472 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Glass, Shelf Cantilever (2) WPL 1125521 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Support Wall I/M WPL 2160619 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
18
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Utility WPL 2161889 Contact Us For Availability
19
Interior Door Panel WPL 2160664 Contact Us For Availability
20
Pan, Meat WPL 2161890 Contact Us For Availability
20
Trim, Door WPL 1107199 Contact Us For Availability
21
Wire, Assembly Overload WPL 2159678 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Glass, Roll-Out Shelf WPL 2161681 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Baffle-Air, I/M WPL 2157452 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Compartment Door, WPL 1125733 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
24
Evaporator Cover WPL 2160648 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160695 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Gasket (Front) WPL 1125782 Contact Us For Availability
26
Screw (For White And Almond Models) WPL 488892 Contact Us For Availability
26
Screw (For Black Model) WPL 489197 Contact Us For Availability
26
Gasket, Baffle I/M WPL 2160729 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Slide, Light Swit WPL 2152724 Contact Us For Availability
27
WPL 2152726 WPL 2152726 Contact Us For Availability
27
WPL 2152727 WPL 2152727 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
WPL 2147131 WPL 2147131 Contact Us For Availability
30
WPL 488361 WPL 488361 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Reflector, Shelf Cantilever WPL 2161807 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
WPL 2147164 WPL 2147164 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
32
Shelf, Bin WPL 1125557 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
WPL 2147163 WPL 2147163 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Gasket, Rear WPL 1125529 Contact Us For Availability
33
Door Bin (Narrow) WPL 1125556 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Door Bin (Wide) WPL 1125555 Contact Us For Availability
35
WPL 489360 WPL 489360 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Gasket, Shelf Front WPL 2161684 Contact Us For Availability
36
WPL 489155 WPL 489155 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Crisper, Pan Front WPL 2161888 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
38
WPL 2159196 WPL 2159196 Contact Us For Availability
38
WPL 2159197 WPL 2159197 Contact Us For Availability
38
WPL 2159198 WPL 2159198 Contact Us For Availability
39
WPL 1126176 WPL 1126176 Contact Us For Availability
39
WPL 1126177 WPL 1126177 Contact Us For Availability
39
WPL 1126178 WPL 1126178 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Load Lock WPL 1117999 Contact Us For Availability
40
WPL 1126170 WPL 1126170 Contact Us For Availability
40
WPL 1126171 WPL 1126171 Contact Us For Availability
40
WPL 1126172 WPL 1126172 Contact Us For Availability
40
Retainer, Gasket WPL 1122552 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Frame, Shelf WPL 2161704 Contact Us For Availability
43
Plug, Crossover WPL 2160685 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
44
Front Cover, Ice Container WPL 2160605 Contact Us For Availability
44
Frame, Cantilever WPL 2161804 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
45
Glass, Meat Pan Shelf WPL 1125539 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
46
Gasket, Front WPL 1125576 Contact Us For Availability
46
Connector-Wire WPL 2160674 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
47
Gasket, Rear WPL 1125815 Contact Us For Availability
47
WPL 542639 WPL 542639 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Trim-Door Shelf WPL 2160776 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
60
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
