Model Whirlpool KTRS22QABL00 – Common Parts & Diagrams

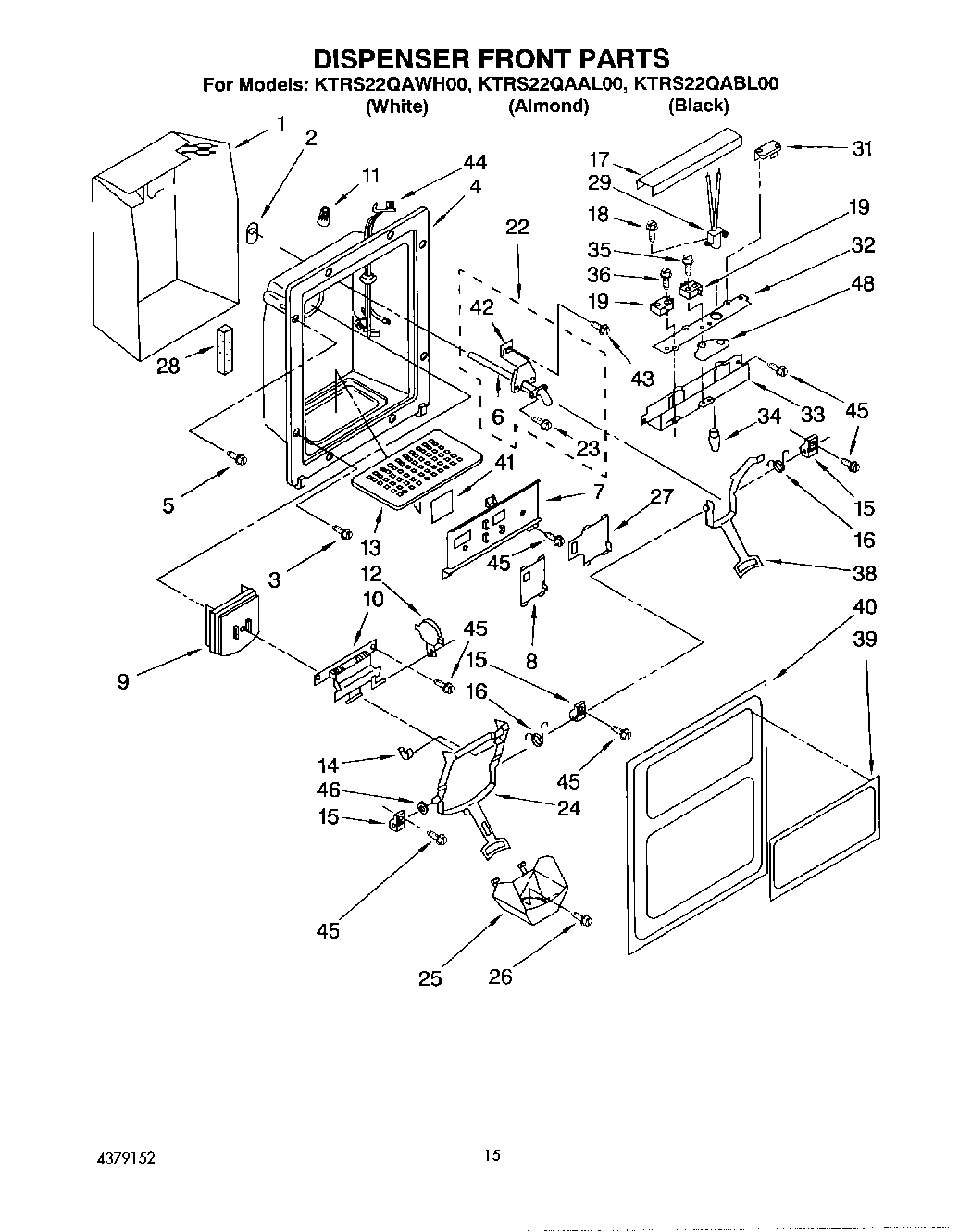

09 - DISPENSER FRONT

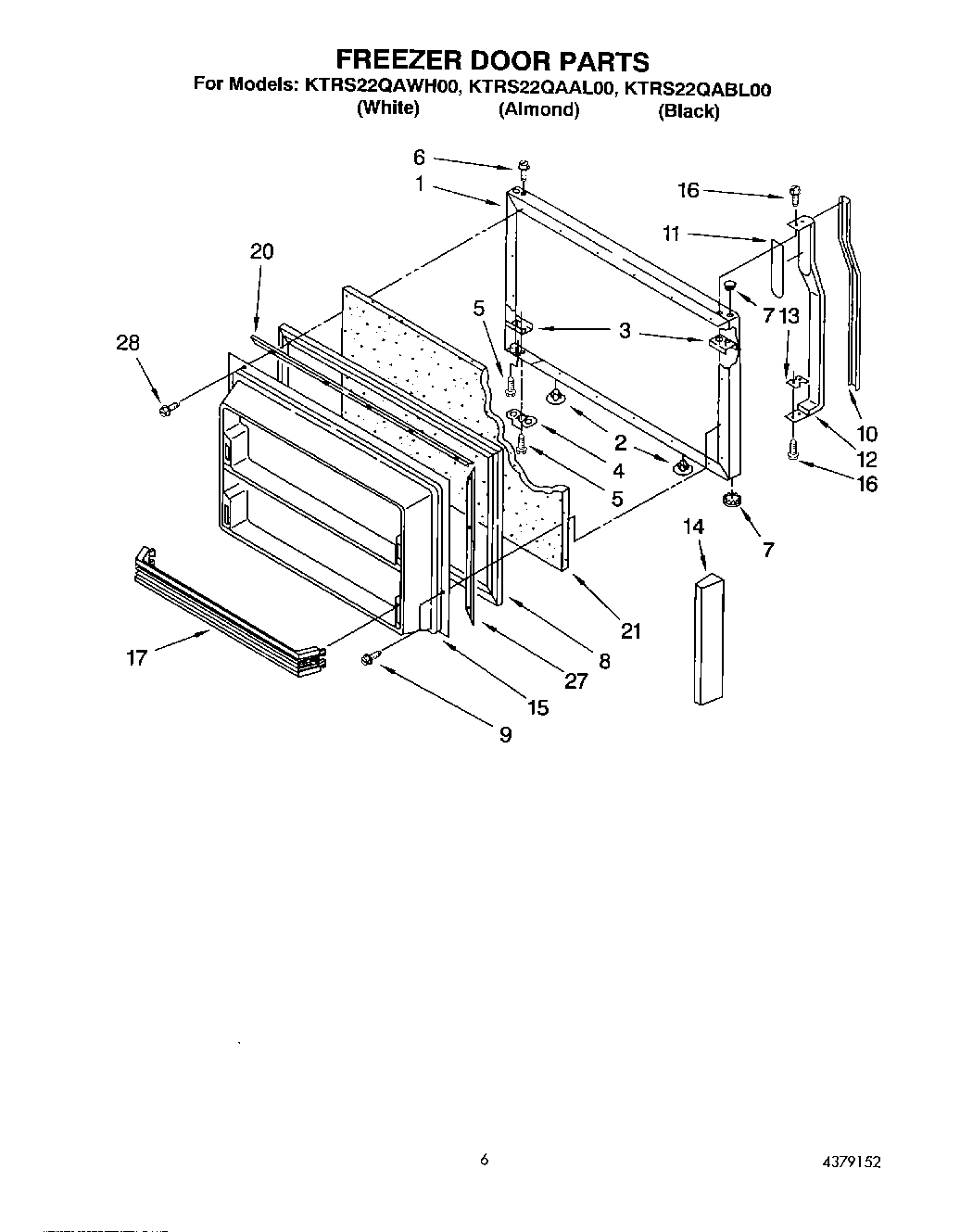

04 - FREEZER DOOR

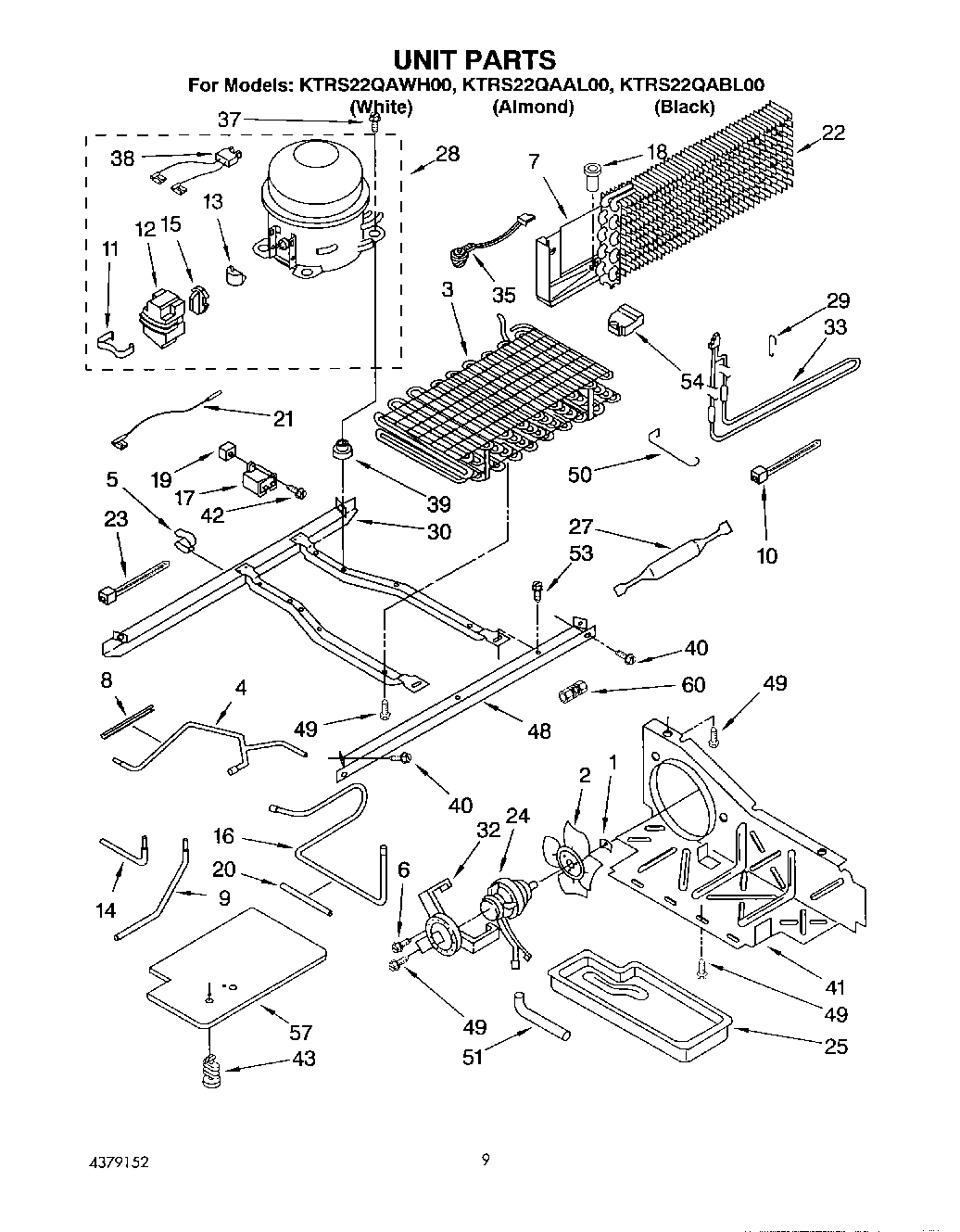

06 - UNIT

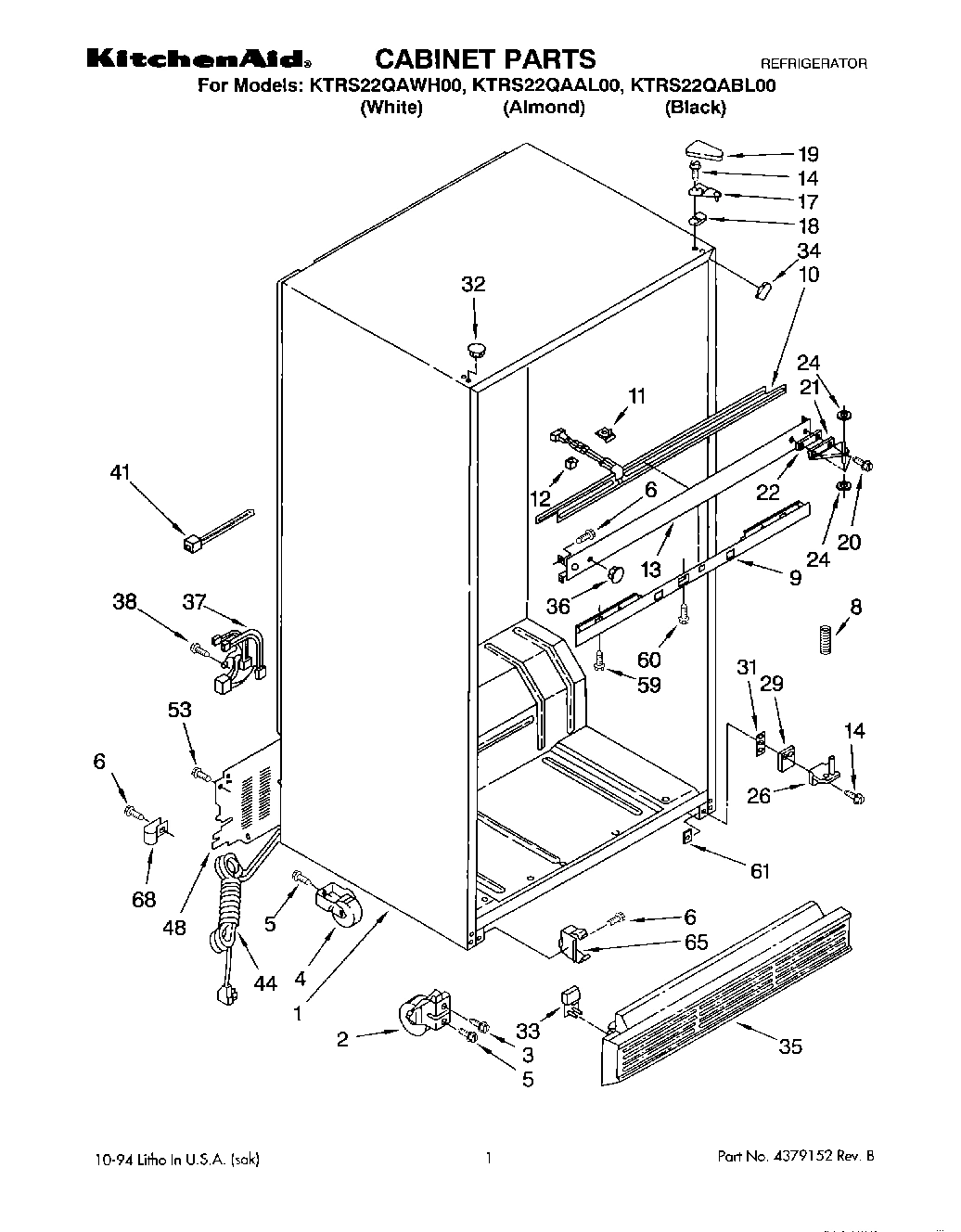

01 - CABINET

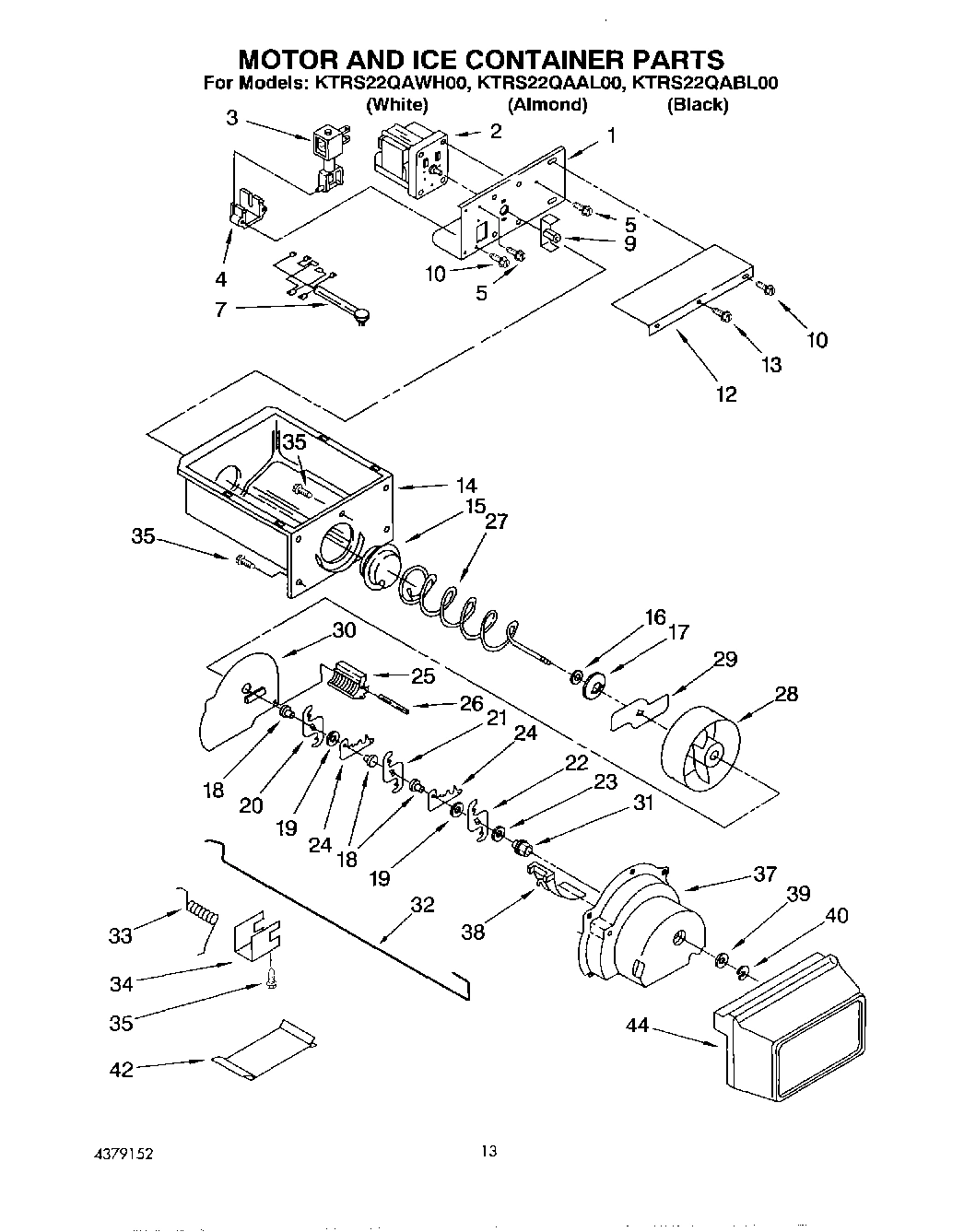

08 - MOTOR AND ICE CONTAINER

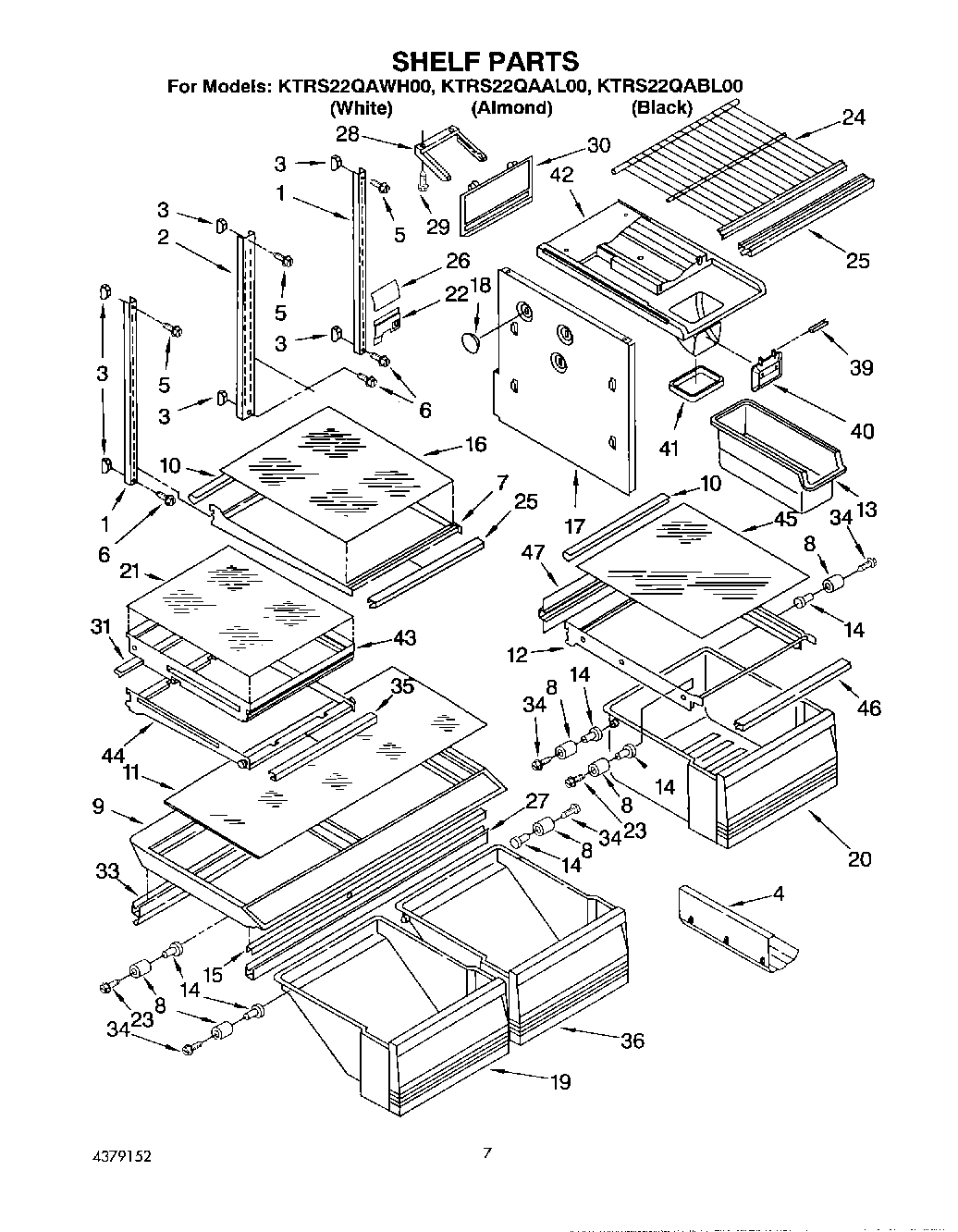

05 - SHELF, LIT/OPTIONAL

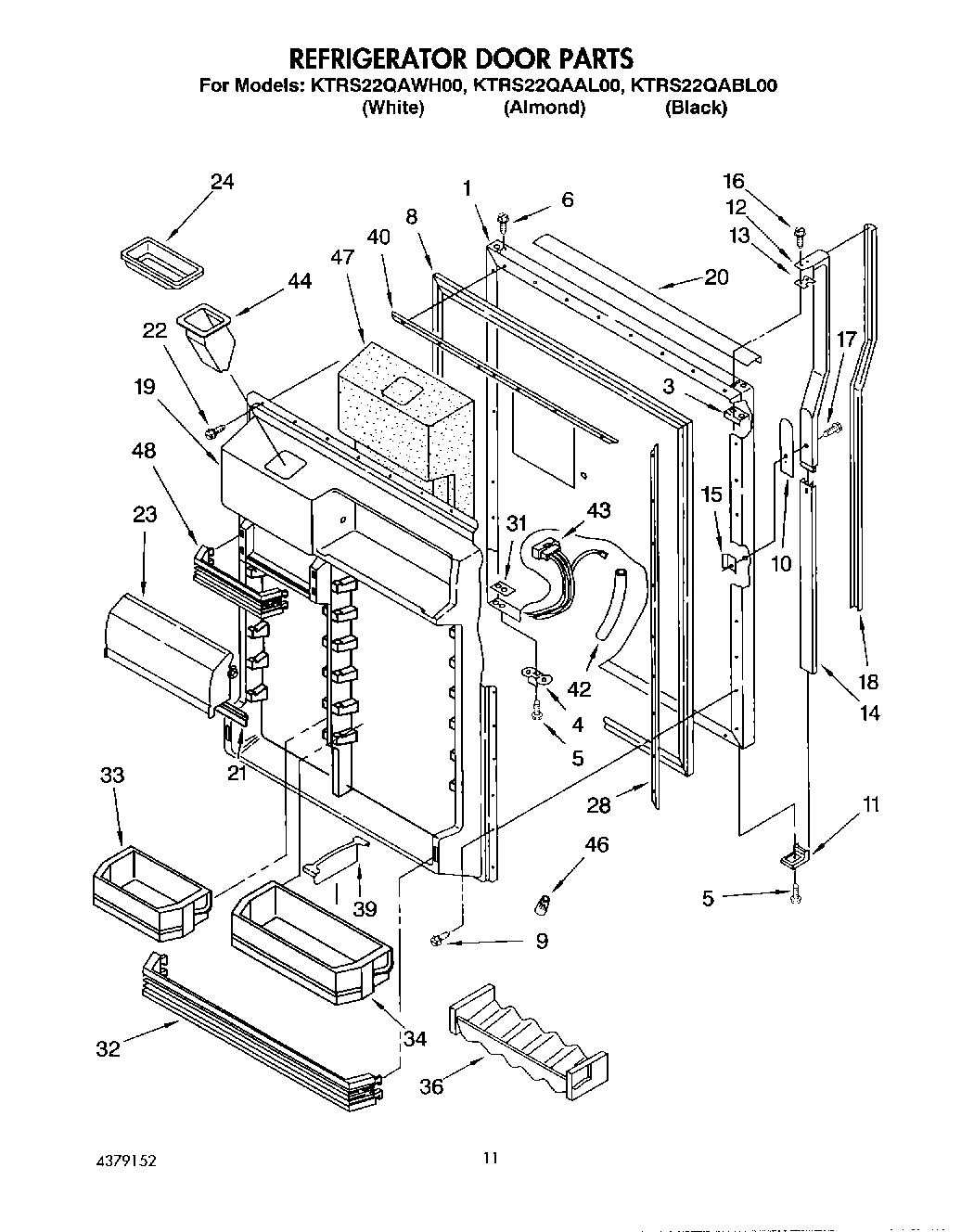

07 - REFRIGERATOR DOOR

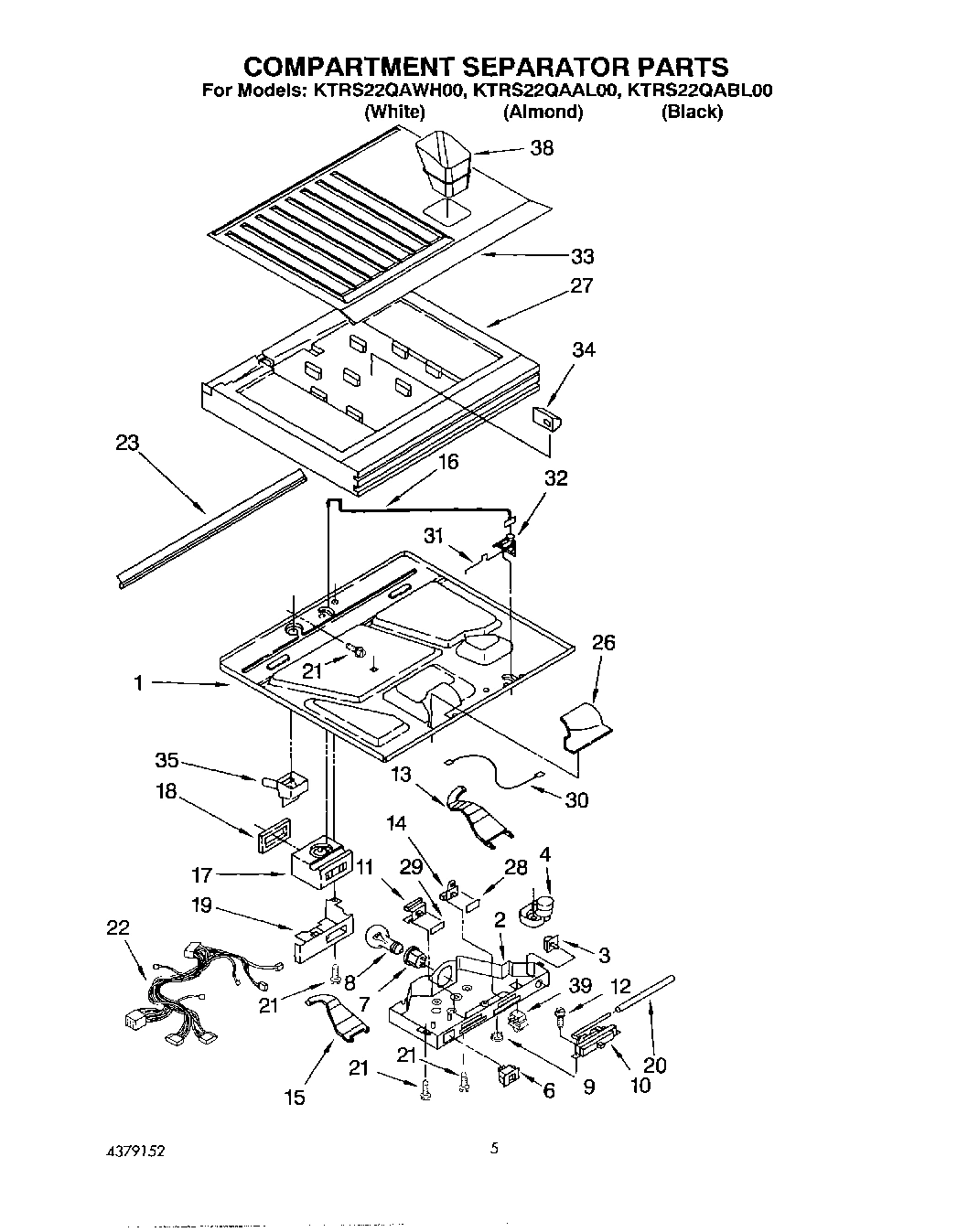

03 - COMPARTMENT SEPARATOR

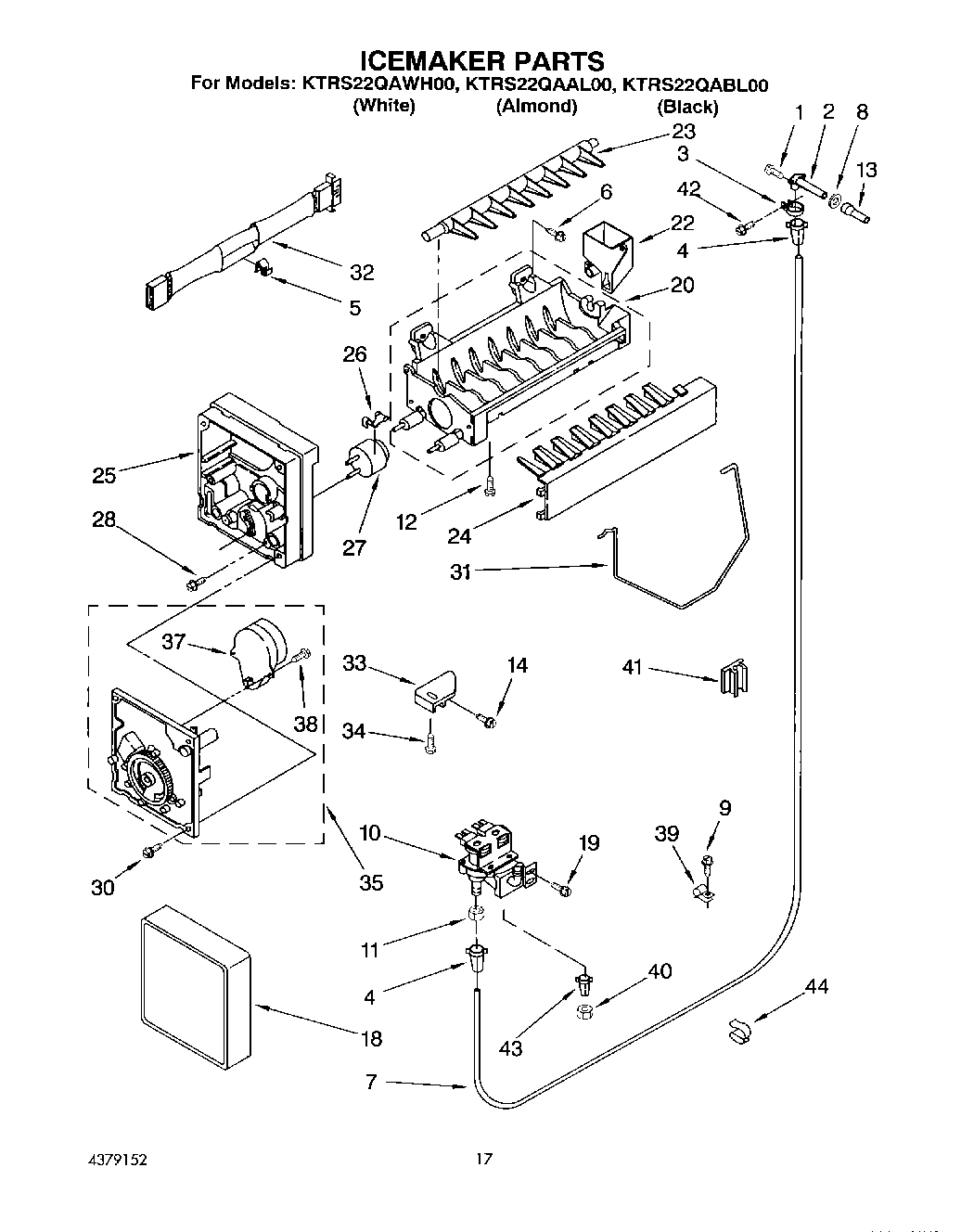

10 - ICEMAKER

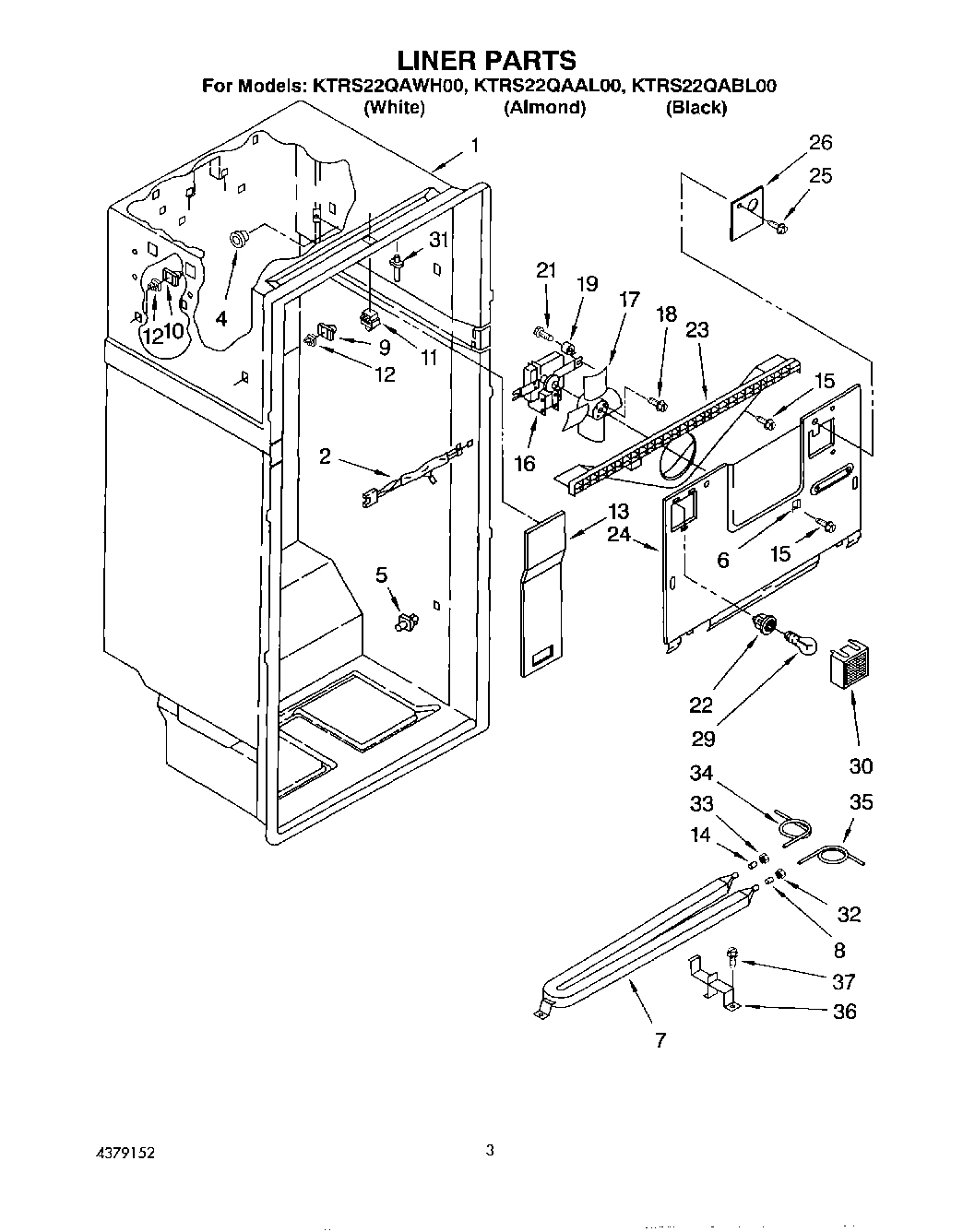

02 - LINER
Common parts from model Whirlpool KTRS22QABL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2160774 WPL LIT2160774 Contact Us For Availability
WPL LIT2168556 WPL LIT2168556 Contact Us For Availability
WPL LIT2168564 WPL LIT2168564 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112810A Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2160677 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168610 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2168611 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2160630 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112811A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 2160636 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Tube, Dishcharge WPL 2159618 Contact Us For Availability
4
Wine Rack WPL 1125913 Contact Us For Availability
4
Bracket, Door Stop WPL 988420 Contact Us For Availability
4
Grommet (2) WPL 848445 Contact Us For Availability
5
Clip, Wire (2) WPL 2155658 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1125520 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
8
Roller WPL 2161749 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2160770 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Retainer, Glass Shelf WPL 1110744 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
10
Thermostat Assembly WPL 2160779 Contact Us For Availability
11
Spring, Relay Case (Service) WPL 938384 Contact Us For Availability
11
Spring, Relay Case (Production) WPL 943322 Contact Us For Availability
11
Clip, Rail (4) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 1125531 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
11
Slide, Thermostat WPL 1125513 Contact Us For Availability
12
Case, Relay (Production) WPL 1105055 Contact Us For Availability
12
Case, Relay (Service) WPL 1108115 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Meat Pan Shelf Cantilever WPL 2161758 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2159599 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Light, Bar Left WPL 2160640 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Door Dike (2) WPL 1125577 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
14
Eyelet WPL 1112308 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
14
Slide, Air Control WPL 1125578 Contact Us For Availability
14
Insert WPL 1129177 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
15
Relay (See Overload) WPL ARI112812A Contact Us For Availability
15
Light, Bar Right WPL 2160641 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Tube, Suction WPL 2159616 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Glass, Shelf Cantilever WPL 1125521 Contact Us For Availability
16
Rod, Connecting WPL 1125514 Contact Us For Availability
17
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Support Wall I/M WPL 2160619 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
18
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Pan, Utility WPL 2161889 Contact Us For Availability
19
Interior Door Panel WPL 2160664 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Pan, Meat WPL 2161890 Contact Us For Availability
20
Trim, Door WPL 1107199 Contact Us For Availability
21
Wire, Assembly Overload WPL 2159678 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Glass, Roll-Out Shelf WPL 2161681 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Baffle-Air, I/M WPL 2157452 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
23
Compartment Door, WPL 1125733 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf, Freezer (Top) (2) WPL 2160695 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
24
Evaporator Cover WPL 2160648 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Gasket (Front) WPL 1125782 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2160753 Contact Us For Availability
26
Gasket, Baffle I/M WPL 2160729 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160626 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154561 Contact Us For Availability
28
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Reflector, Shelf Cantilever WPL 2161807 Contact Us For Availability
31
Short Rod WPL 2160752 Contact Us For Availability
32
Shelf, Bin WPL 1125557 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
32
Nut, Compression WPL 1129179 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Gasket, Rear WPL 1125529 Contact Us For Availability
33
Door Bin (Narrow) WPL 1125556 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2160624 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Door Bin (Wide) WPL 1125555 Contact Us For Availability
34
Rubber Strip WPL 2168582 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
35
Grille (Black) WPL 2160686 Contact Us For Availability
35
Grille (Almond) WPL 2160757 Contact Us For Availability
35
Grille (White) WPL 2168621 Contact Us For Availability
35
Gasket, Shelf Front WPL 2161684 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Crisper, Pan Front WPL 2161888 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
37
Screw (Production) WPL 489387 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2149199 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
39
Grommet (4) (Production) WPL 2162067 Contact Us For Availability
39
Roll Pin WPL 489395 Contact Us For Availability
39
Load Lock WPL 1117999 Contact Us For Availability
40
Retainer, Gasket WPL 1122552 Contact Us For Availability
40
Door-Platform WPL 2160613 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
Gasket-Platform WPL 2160615 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Platform-Ice Container WPL 2160612 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
43
Frame, Shelf WPL 2161704 Contact Us For Availability
43
Plug, Crossover WPL 2160685 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Front Cover, Ice Container WPL 2160605 Contact Us For Availability
44
Frame, Cantilever WPL 2161804 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
45
Glass, Meat Pan Shelf WPL 1125539 Contact Us For Availability
46
Gasket, Front WPL 1125576 Contact Us For Availability
46
Connector-Wire WPL 2160674 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
47
Gasket, Rear WPL 1125815 Contact Us For Availability
47
WPL 542639 WPL 542639 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Trim-Door Shelf WPL 2160776 Contact Us For Availability
51
Tube, Drain WPL 2154119 Contact Us For Availability
54
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
54
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
57
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
60
WPL 978029 WPL 978029 Contact Us For Availability
60
WPL 978028 WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
