Model Whirlpool KTRS22KFWH00 – Common Parts & Diagrams

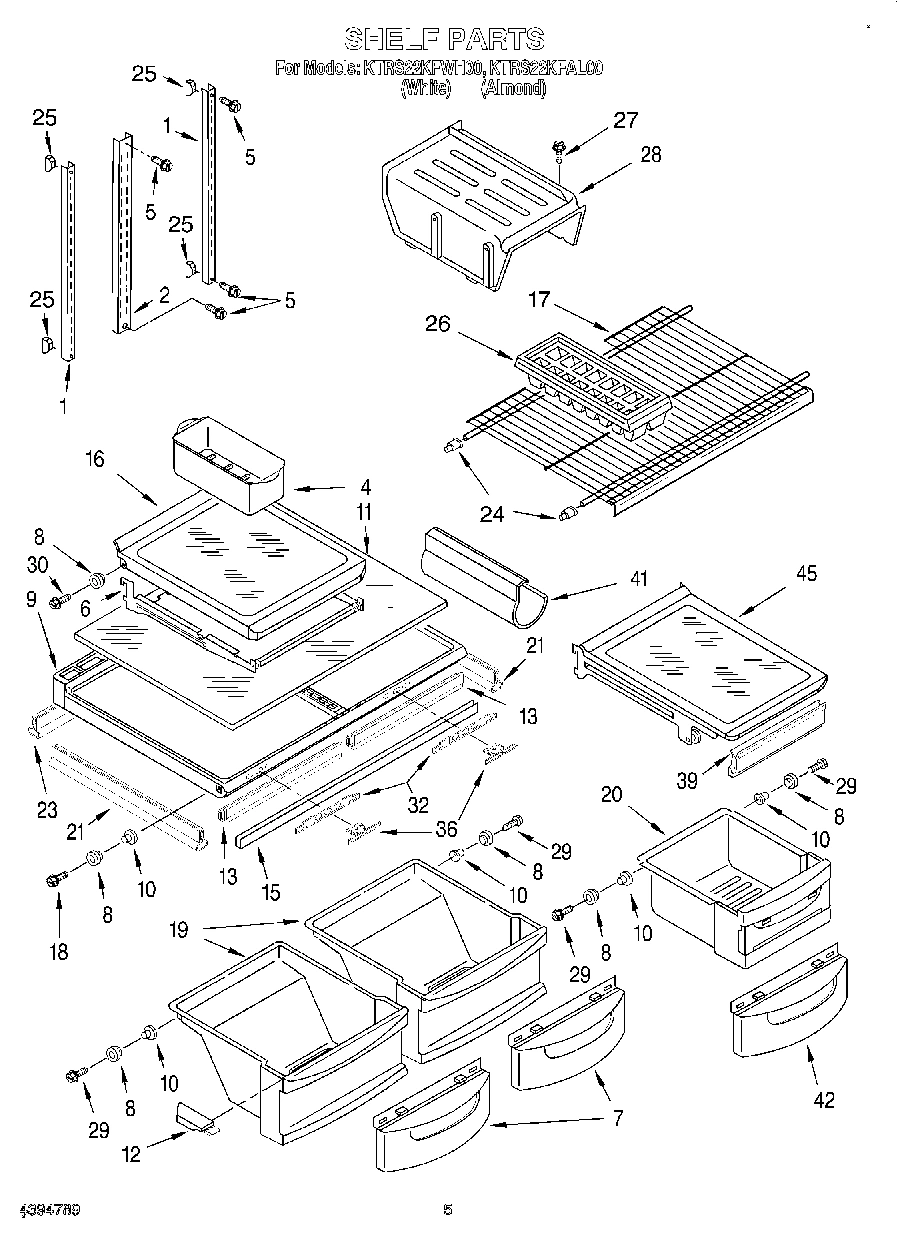

03 - SHELF

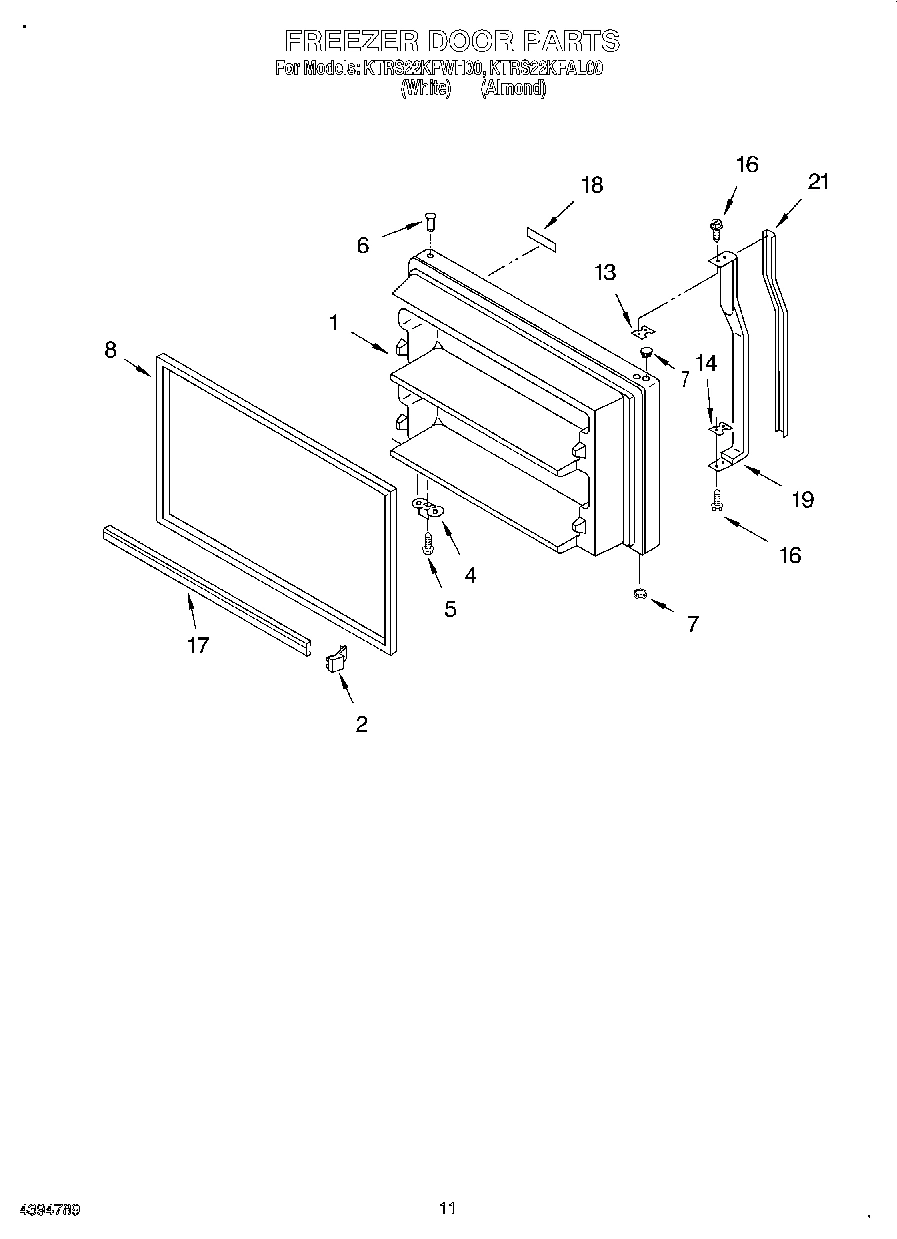

06 - FREEZER, LIT/OPTIONAL

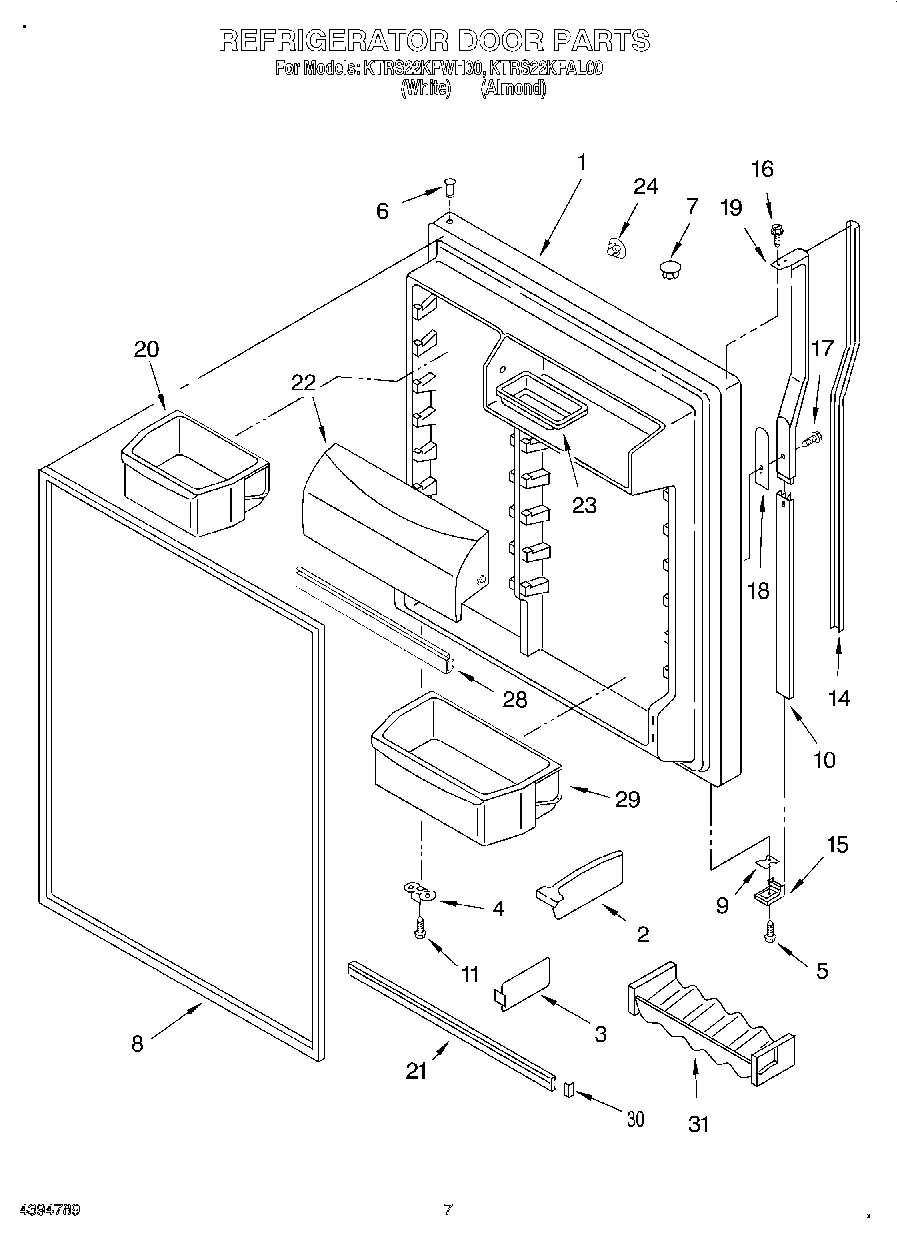

04 - REFRIGERATOR DOOR
05 - UNIT

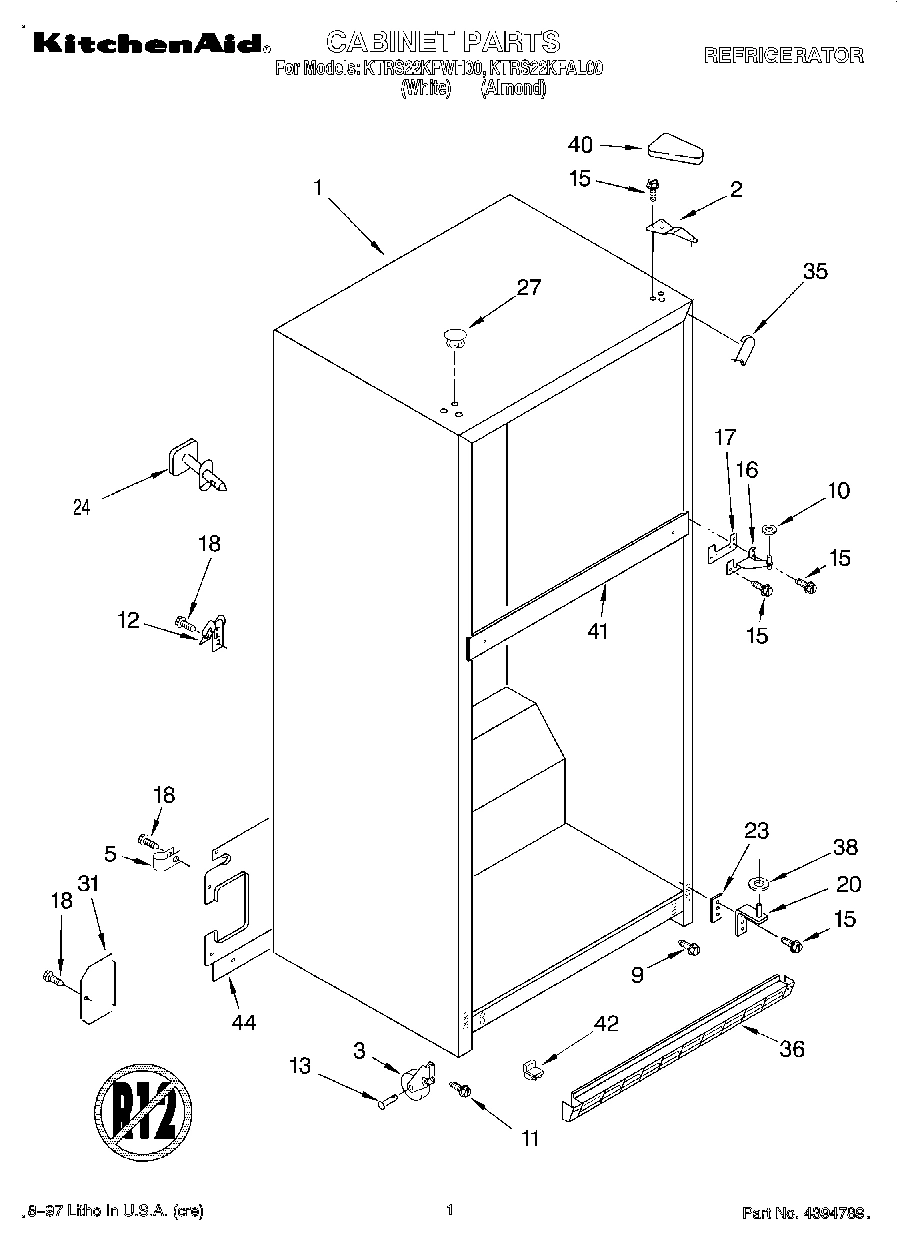

01 - CABINET

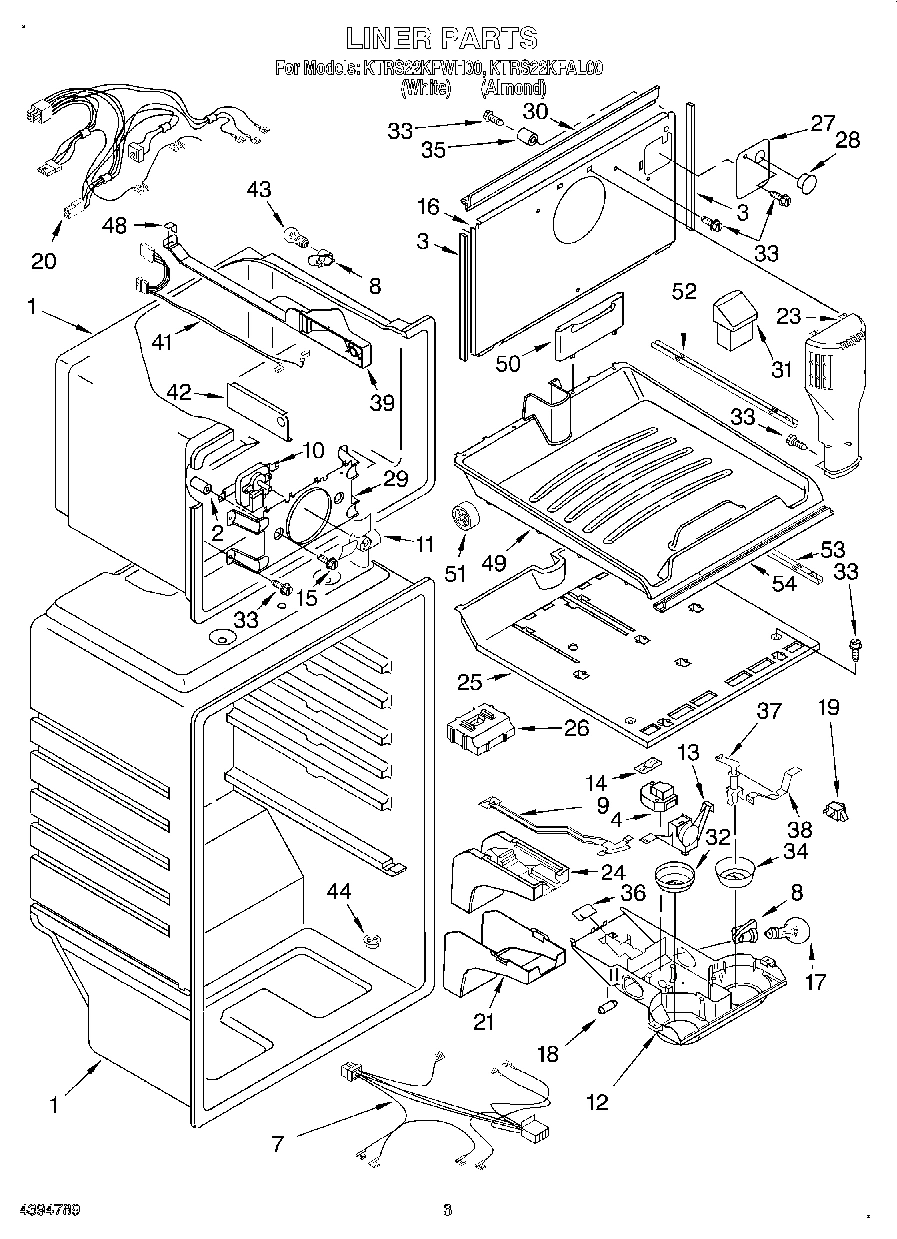

02 - LINER
Common parts from model Whirlpool KTRS22KFWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195272 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112601A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112604A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2161509 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI112605A Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Support Block WPL 2189906 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI112602A Contact Us For Availability
25
Support WPL 2189314 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2189984 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
31
Relay (Not Serviced) WPL ARI112606A Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Featurepak (Includes 3,20,21, 22,23,28,29,30 WPL 2182579 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
32
Knob, Thermostat WPL 2193455 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2183991 Contact Us For Availability
36
Grille (Almond) WPL 2183992 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Housing Base WPL 2184633 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI112603A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2189994 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189846 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2189992 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
