Model Whirlpool KTRS19MGWH00 REFRIGERATOR – Common Parts & Diagrams

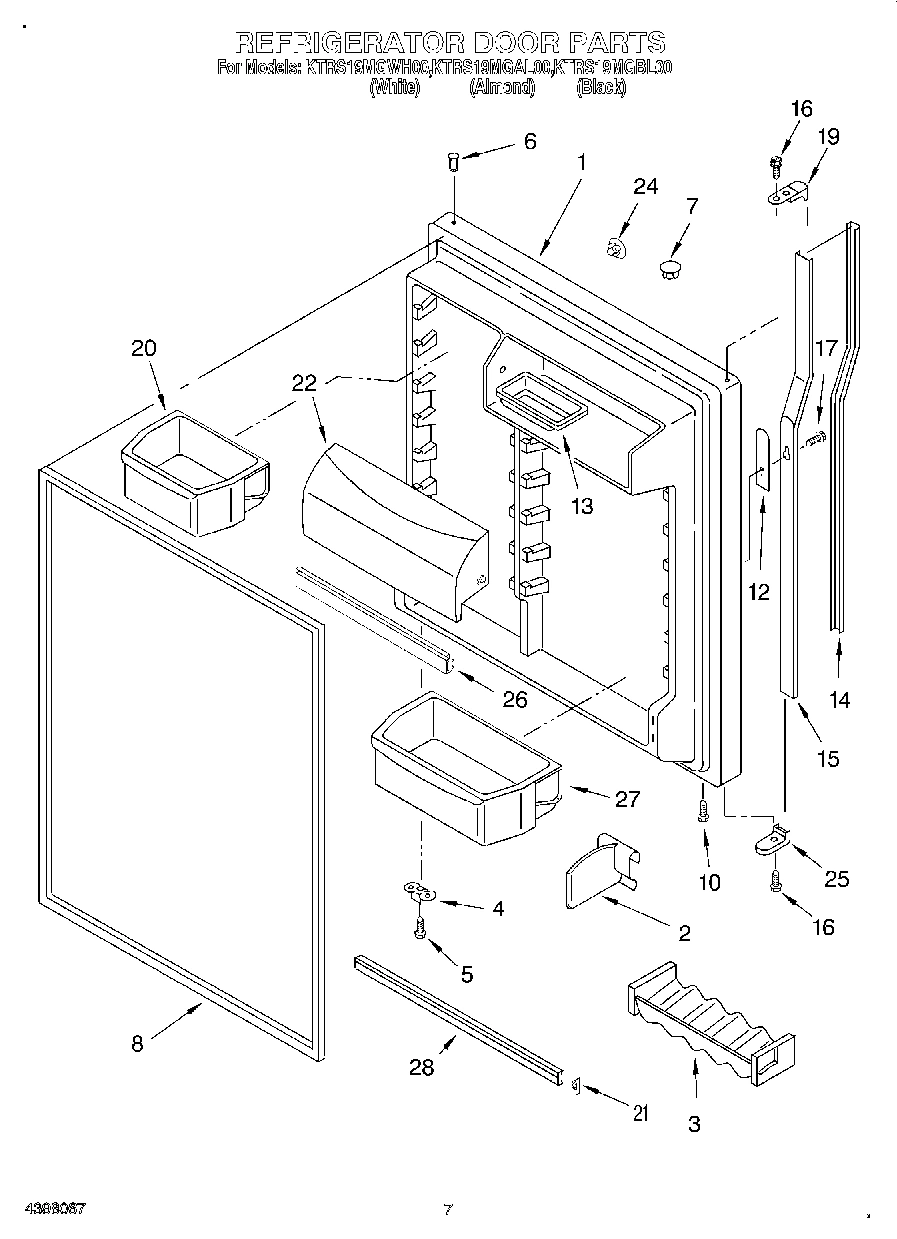

04 - REFRIGERATOR DOOR

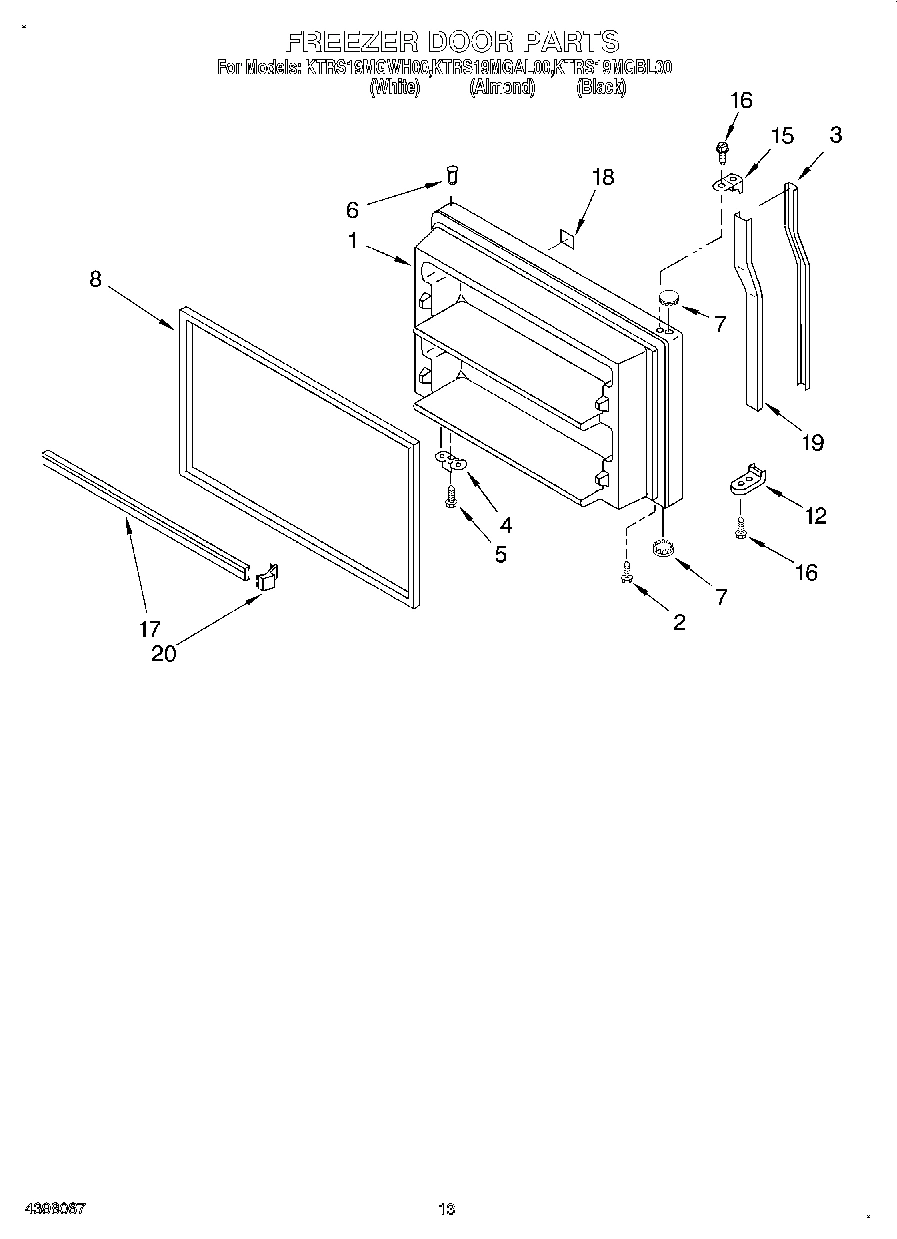

07 - FREEZER DOOR, LIT/OPTIONAL
02 - LINER
05 - UNIT
06 - ICE MAKER
01 - CABINET
03 - SHELF
Common parts from model Whirlpool KTRS19MGWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111858A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
12
Spacer, Handle (White) WPL 2195995W Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2175446 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175450 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111862A Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Relay (See Overload) WPL ARI111863A Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2176302 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111859A Contact Us For Availability
24
Window, Crisper Pan WPL 2175444 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
26
Window, Crisper Pan WPL 2175373 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
31
Window, Meat Pan WPL 2175449 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
34
Air Damper WPL 2179858 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (Almond) WPL 2201010 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Knob, Thermostat WPL 2193455 Contact Us For Availability
38
Knob, Damper WPL 2176297 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Wire Harness, Freezer light WPL 2198891 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111860A Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 4,8,10, 14,16,20,41,45) WPL 2199084 Contact Us For Availability
× ![]()
