Model Whirlpool KTRS19MGBL00 REFRIGERATOR – Common Parts & Diagrams
06 - ICE MAKER
07 - FREEZER DOOR, LIT/OPTIONAL

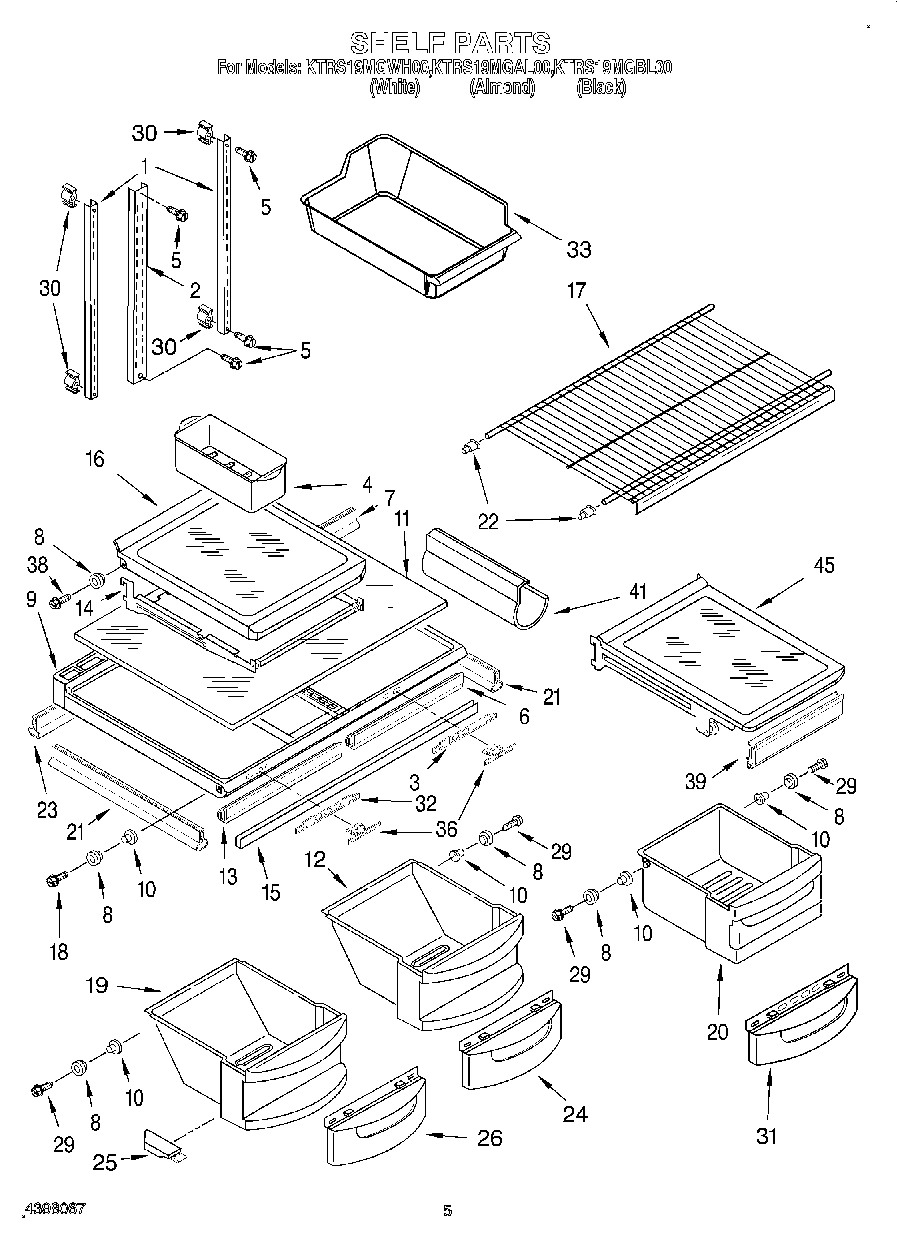

03 - SHELF

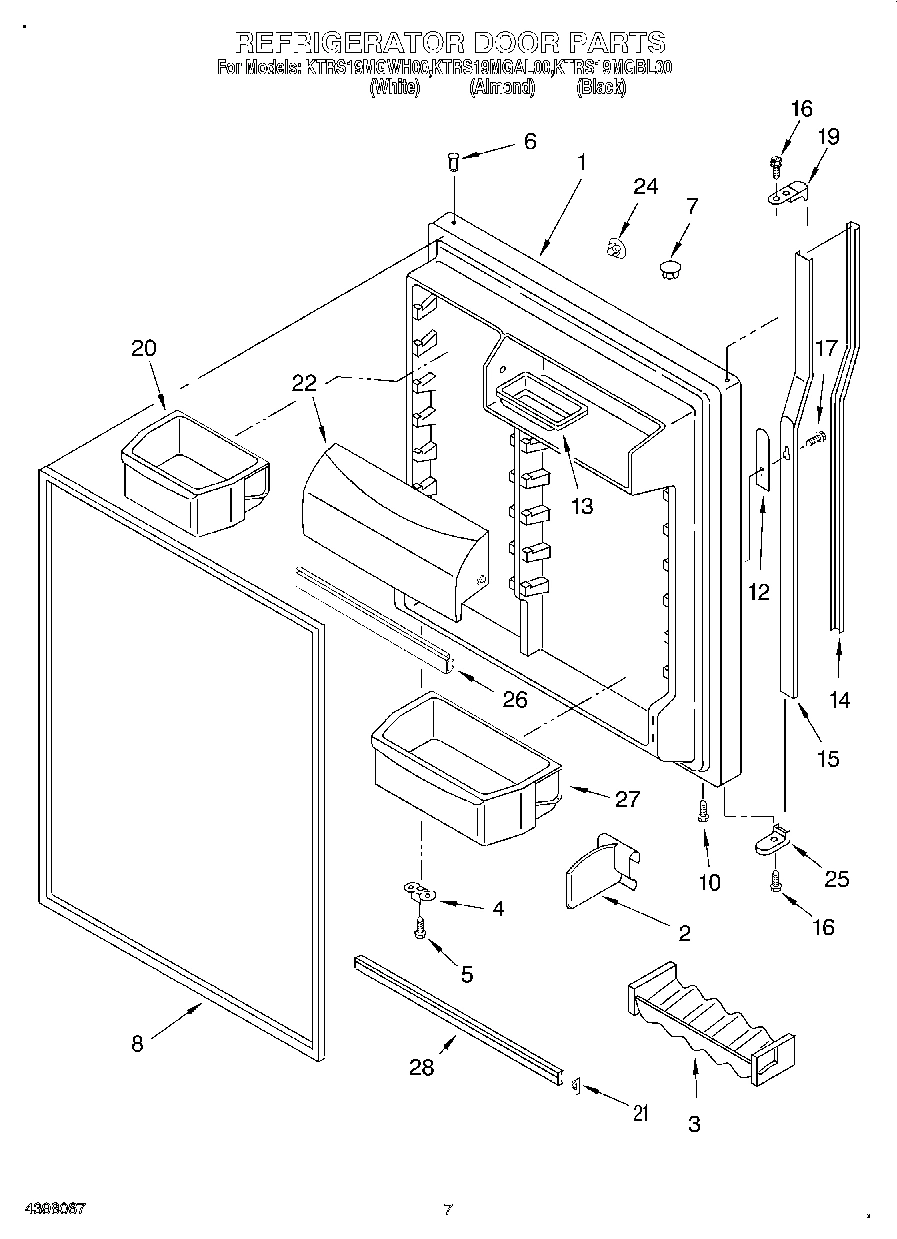

04 - REFRIGERATOR DOOR

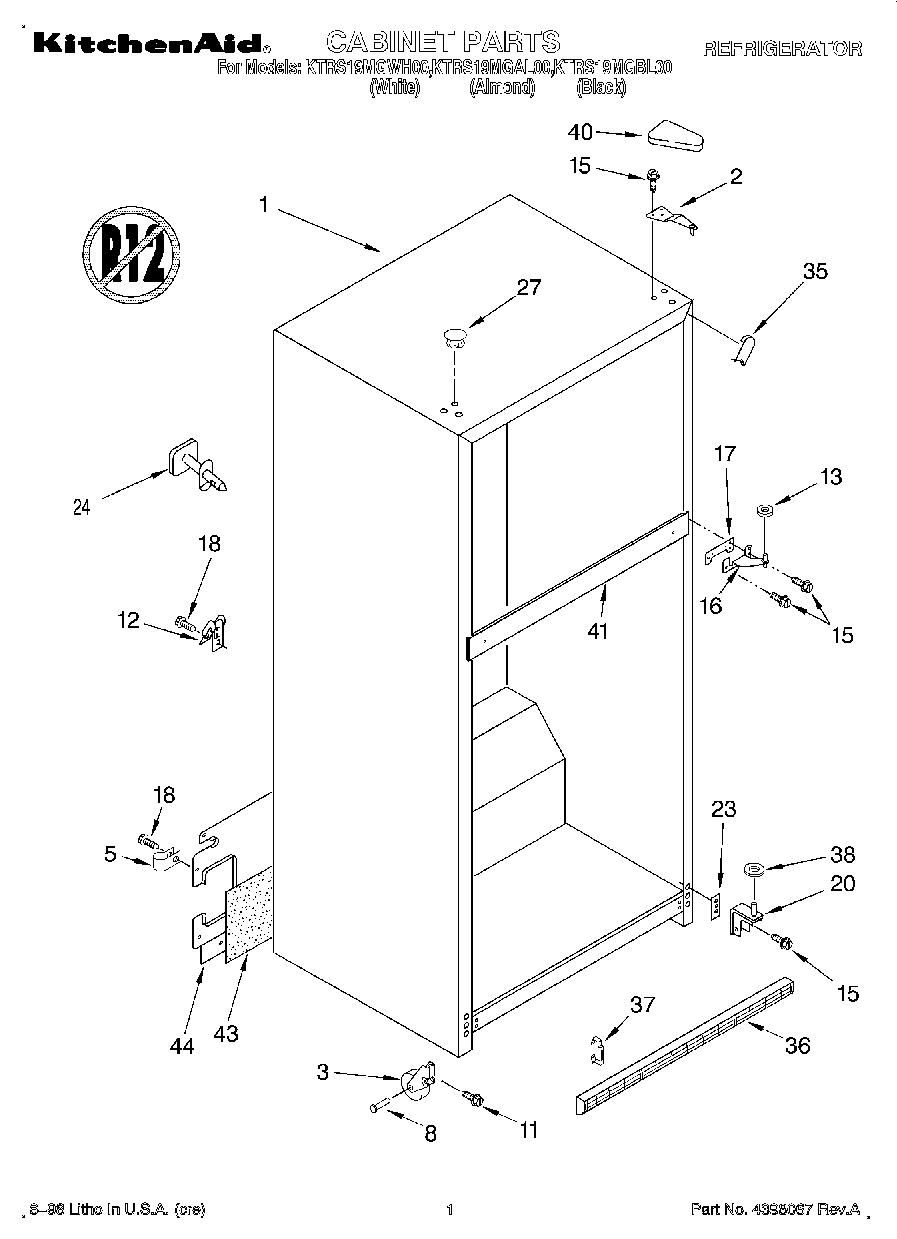

01 - CABINET

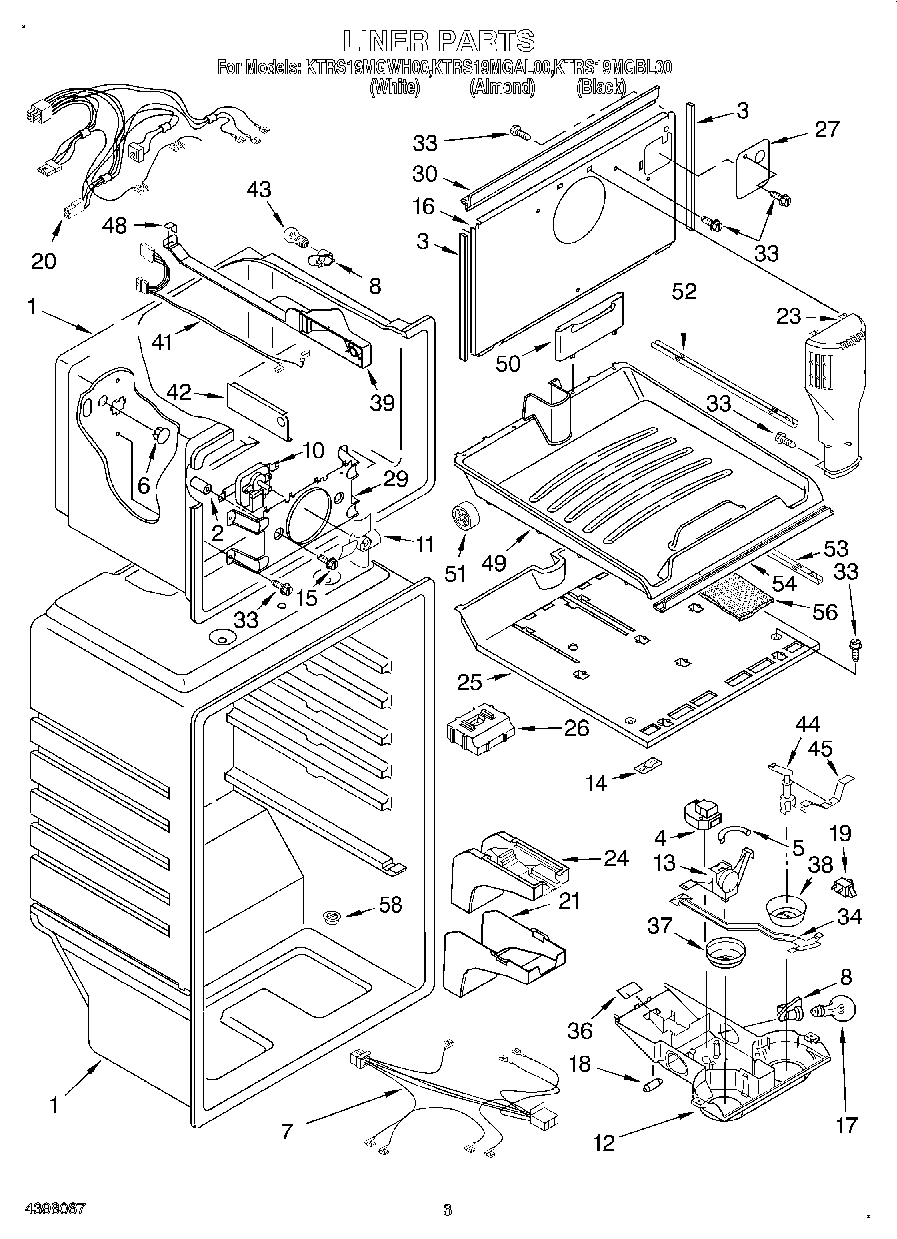

02 - LINER

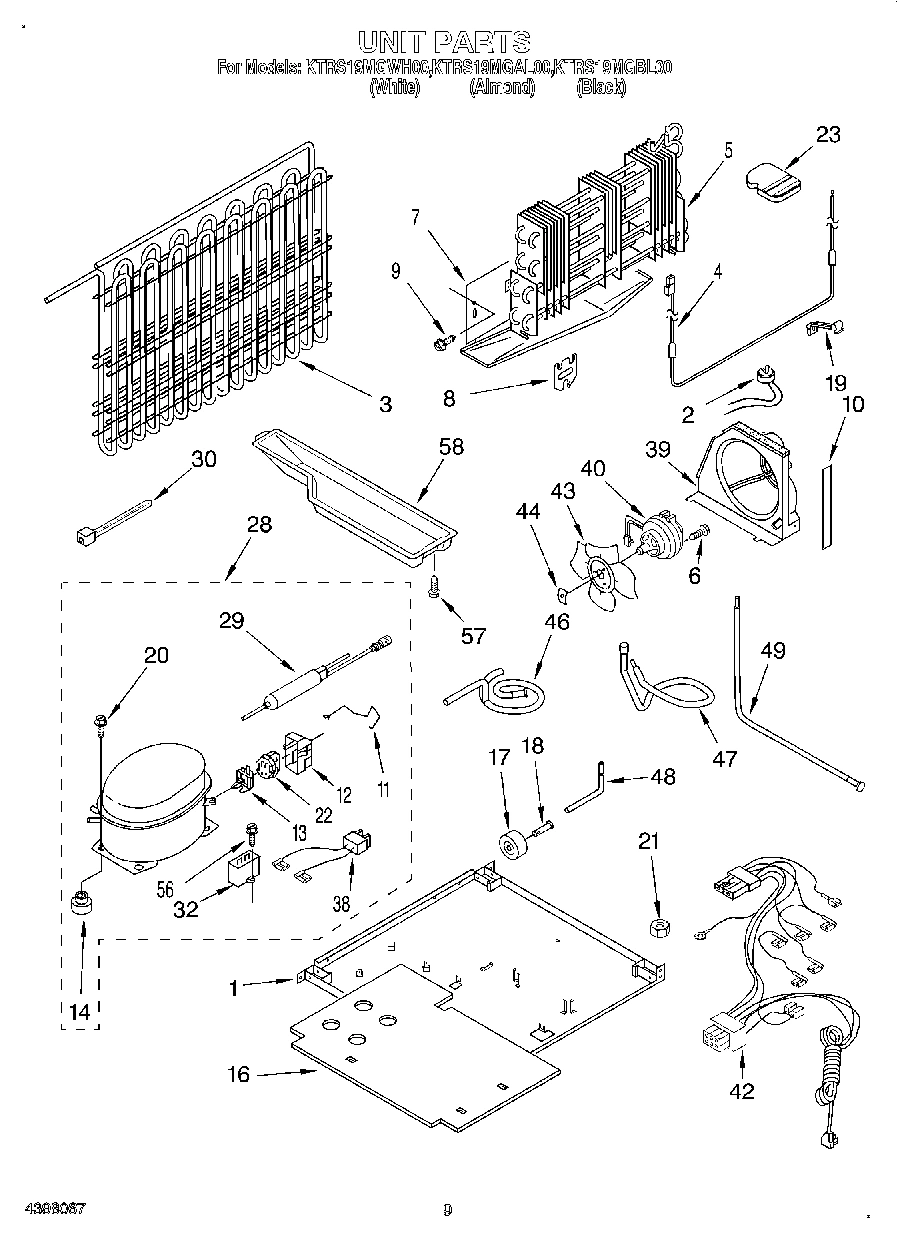

05 - UNIT
Common parts from model Whirlpool KTRS19MGBL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2200616 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111847A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI111850A Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
2
Divider, Door Bin WPL 1123293 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183448 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
12
Spacer, Handle (White) WPL 2195995W Contact Us For Availability
12
Spacer, Door Handle WPL 2188146 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Tray, Butter WPL 2165792 Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2195987 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Retainer, Insert (Black) WPL 2188222B Contact Us For Availability
15
Retainer, Insert (Almond) WPL 2188222N Contact Us For Availability
15
Retainer, Insert (White) WPL 2188222W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
17
Screw WPL 3400873 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
End Cap (Black) WPL 2195995B Contact Us For Availability
19
Endcap (Almond) WPL 2195995N Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171065 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111851A Contact Us For Availability
22
Relay (See Overload) WPL ARI111852A Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2176302 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111848A Contact Us For Availability
25
Endcap, Bottom (Black) WPL 2188132 Contact Us For Availability
25
Endcap, Bottom (White) WPL 2195990 Contact Us For Availability
25
Endcap, Bottom (Almond) WPL 2195991 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
34
Air Damper WPL 2179858 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (Almond) WPL 2201010 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Knob, Thermostat WPL 2193455 Contact Us For Availability
38
Knob, Damper WPL 2176297 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111849A Contact Us For Availability
41
Wire Harness, Freezer light WPL 2198891 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
44
Post, Damper WPL 2179859 Contact Us For Availability
45
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 2,3,13, 20,21,22,26,27,2 WPL 2199084 Contact Us For Availability
× ![]()
