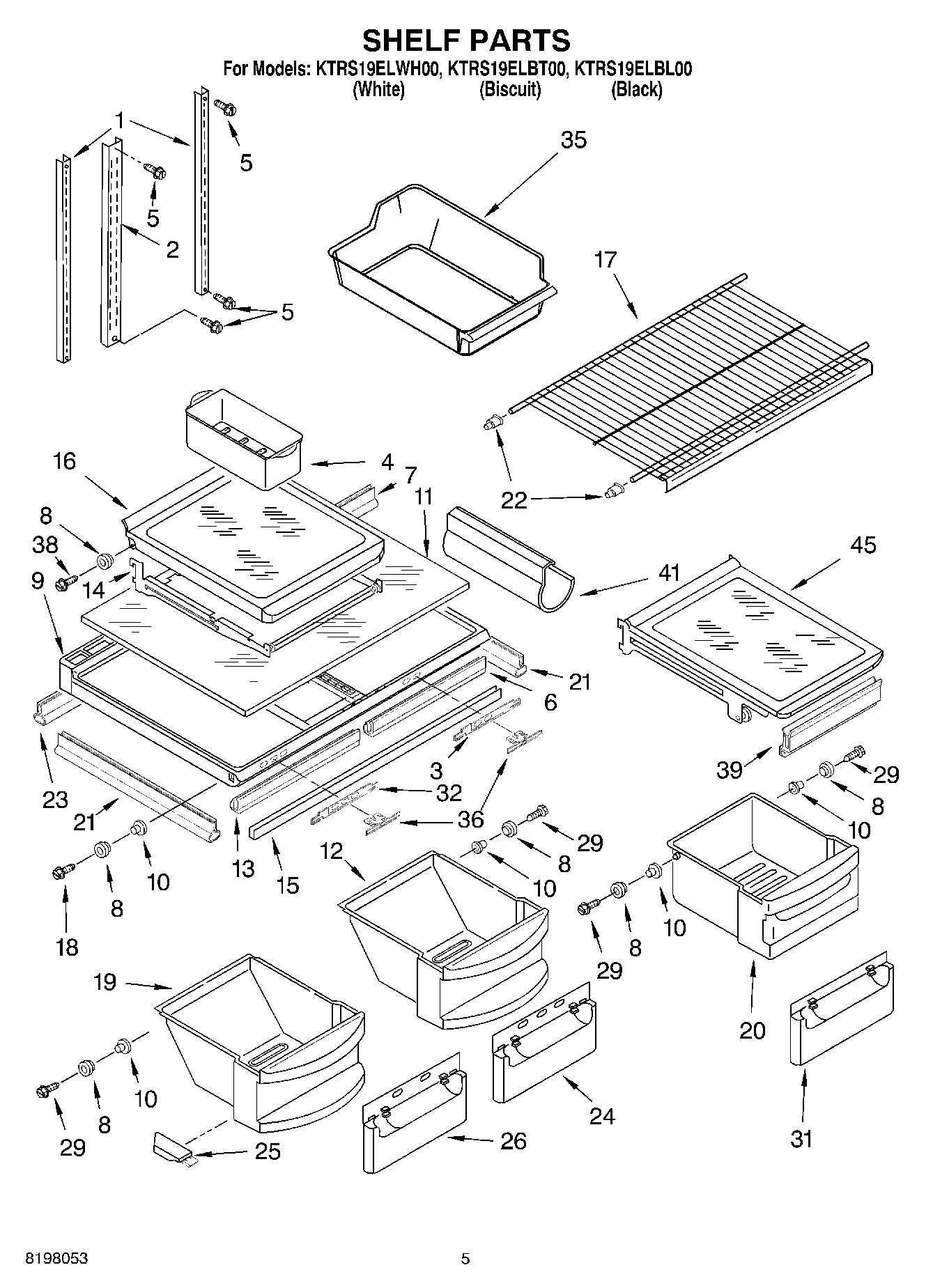

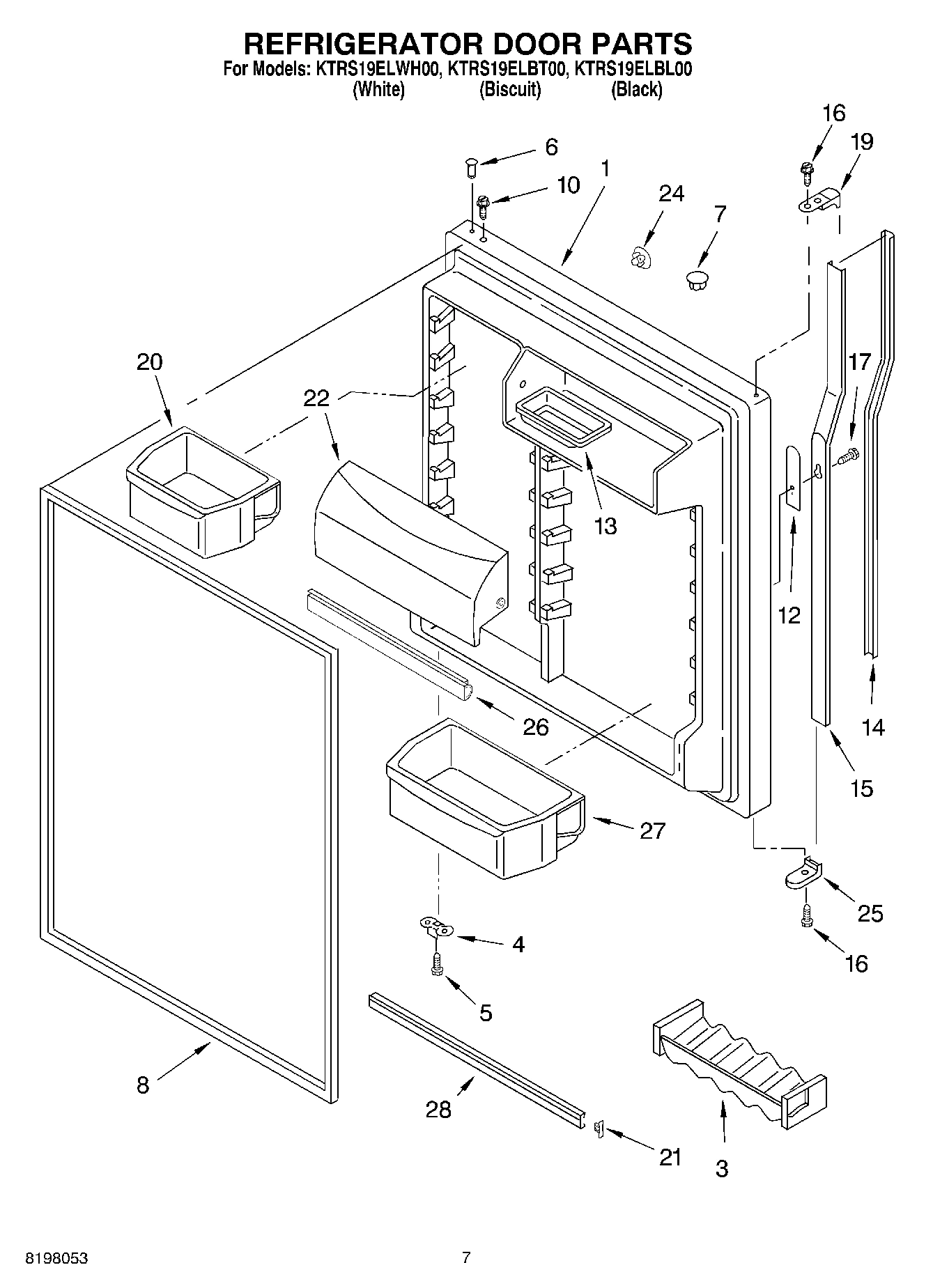

Model Whirlpool KTRS19ELBT00 REFRIGERATOR – Common Parts &amp; Diagrams

1

Plate, Unit Mounting WPL 2205341 Contact Us For Availability

1

Literature Parts (Instruction Sheet, Water Fi WPL LIT2210486 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2212849 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2213207 Contact Us For Availability

1

Literature Parts (Customer Quick Tips) WPL LIT2218345 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2225119 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Housing, Dispenser WPL 2219617 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $45.16

4

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $91.66

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP2188785 Whirlpool Water Inlet Valve Backorder WPL WP2188785 $99.80

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Evaporator Assy. WPL 2195391 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

7

Drain Pan WPL 2172619 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

8

285006 Whirlpool Spray In Stock WPL 285006 $28.82

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $105.37

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

8

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

8

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

8

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

8

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

8

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

8

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

8

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Strap WPL 2212997 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Endcap (White) WPL 2195995W Contact Us For Availability

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $35.14

13

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

13

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Endcap (White) WPL 2195994W Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

Wire Assembly, Freezer Compartment WPL 2187301 Contact Us For Availability

21

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

21

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

8201647 Whirlpool Refrigerator Start Device Backorder WPL 8201647 $71.60

Knob, Thermostat WPL 2205094 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Shim WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

Support Block WPL 2201184 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Fitting, Water Tube (Not Serviced) WPL ARI111511A Contact Us For Availability

25

Freezer Floor, Pullout WPL 2189429 Contact Us For Availability

26

Air Diffuser, Top WPL 2179877 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Bin, Door WPL 2171062 Contact Us For Availability

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

Freezer Floor, Slide Base WPL 2204746 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $27.52

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Roller, Slide WPL 2176246 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

34

Knob, Frz. Control WPL 2204951 Contact Us For Availability

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Slide Support, Floor Assembly WPL 2179713 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $33.18

36

Grille (Black) WPL 2201011 Contact Us For Availability

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

Center Support, Floor Assembly WPL 2179714 Contact Us For Availability

39

Housing Base WPL 2201152 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

Air Seal, Foam WPL 2205055 Contact Us For Availability

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI111512A Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.28

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Rear Fence, Pullout Floor WPL 2198768 Contact Us For Availability

44

Cover, Unit WPL 2202883 Contact Us For Availability

45

Shield, heat WPL 2204639 Contact Us For Availability

45

Tube, Transition WPL 2212603 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI111513A Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $30.25

46

Freezer Control Assembly (Includes 5, 18) WPL 2204991 Contact Us For Availability

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $35.89

47

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Bracket Assy, Water Filter WPL 2210510 Contact Us For Availability

50

Cover, Filter WPL 2219639 Contact Us For Availability

51

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

52

Tube, Filter Inlet WPL 2210518 Contact Us For Availability

53

Cover, Tubing WPL 2210521 Contact Us For Availability

54

Cartridge, Filter WPL 2213384 Contact Us For Availability

55

Clip, Retainer WPL 2210563 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

56

In WPL 2214981 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Evaporator Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
