Model Whirlpool KTRP22KJWH01 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
04 - REFRIGERATOR DOOR

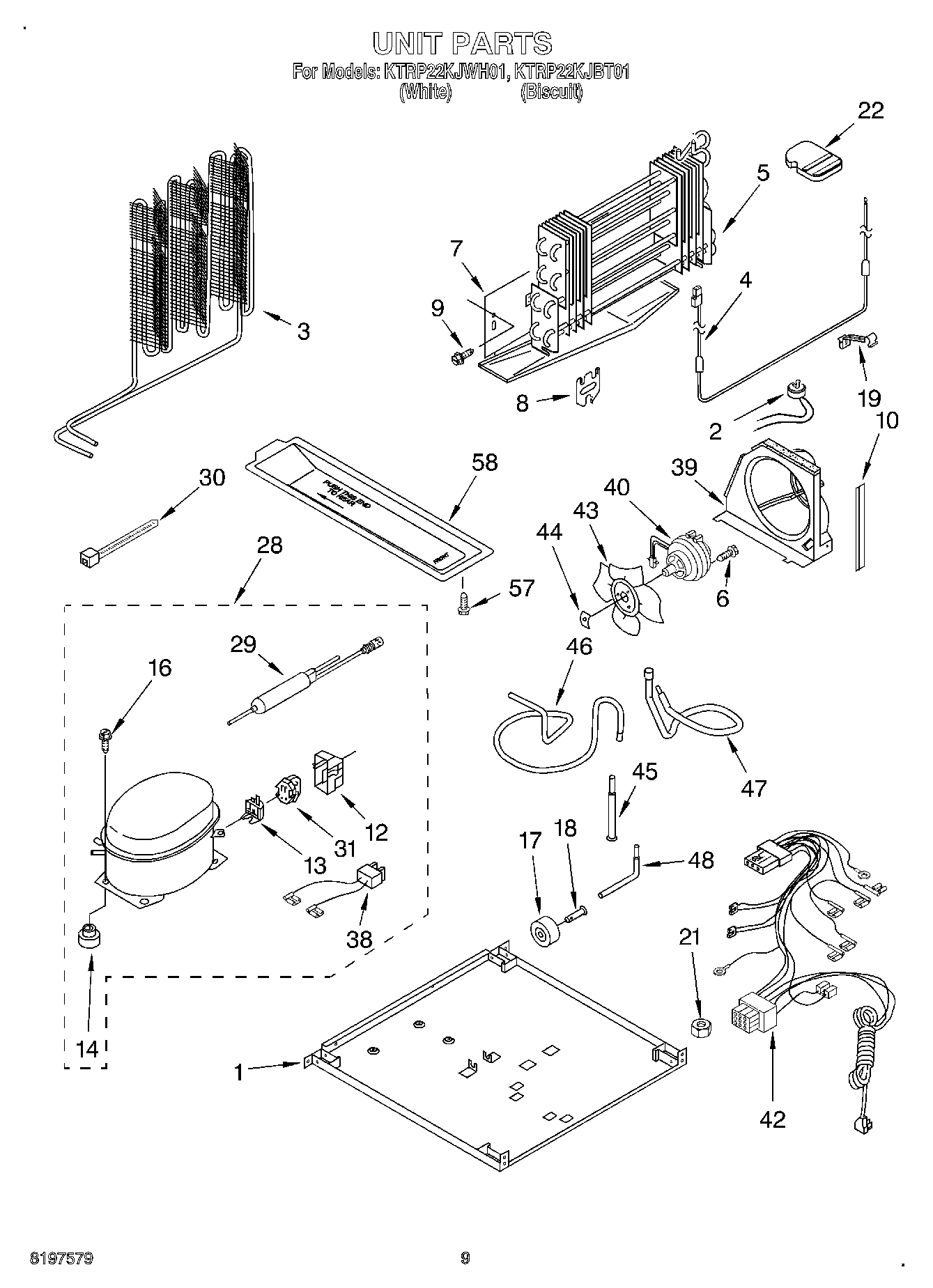

05 - UNIT

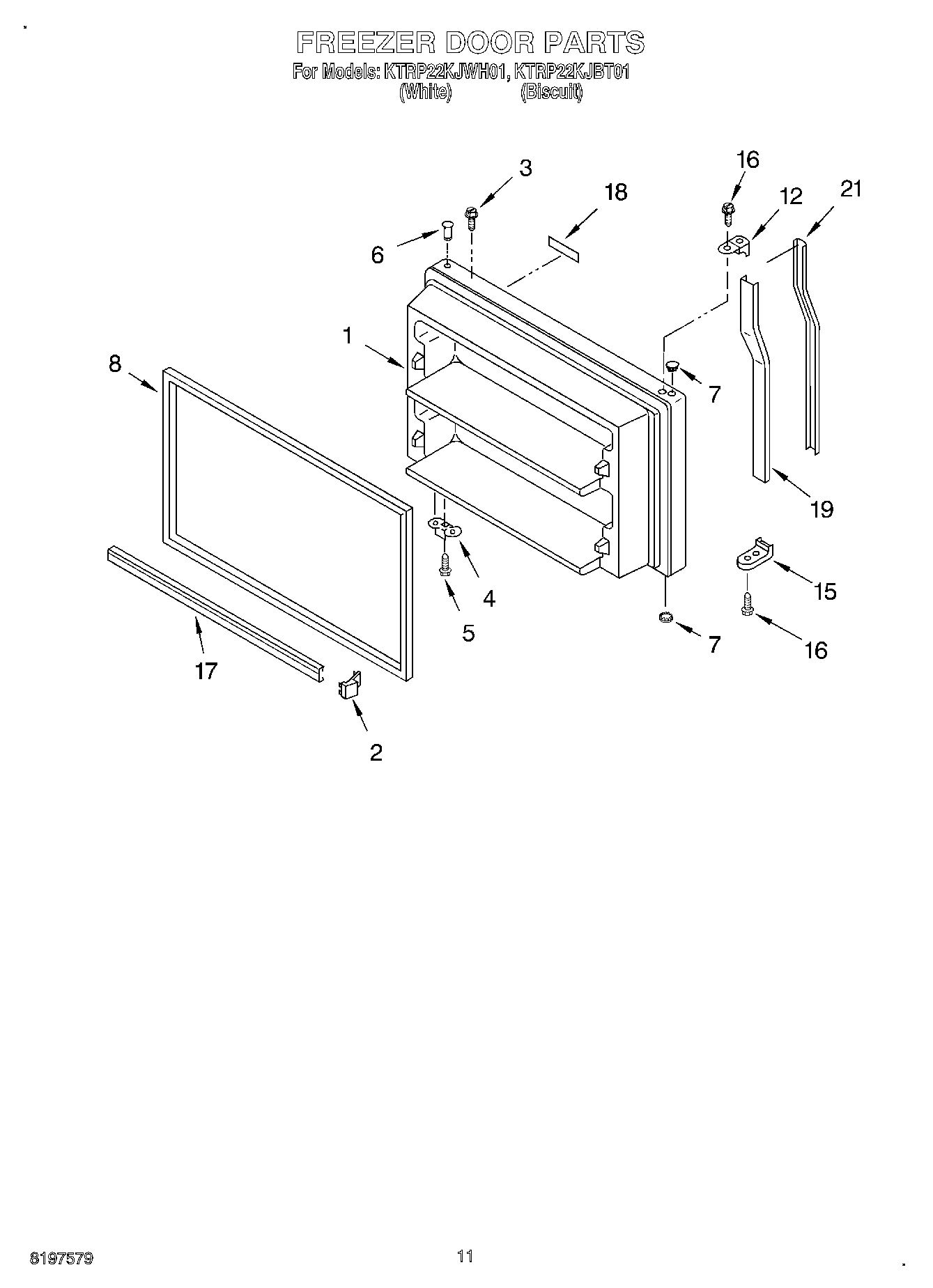

06 - FREEZER DOOR, OPTIONAL

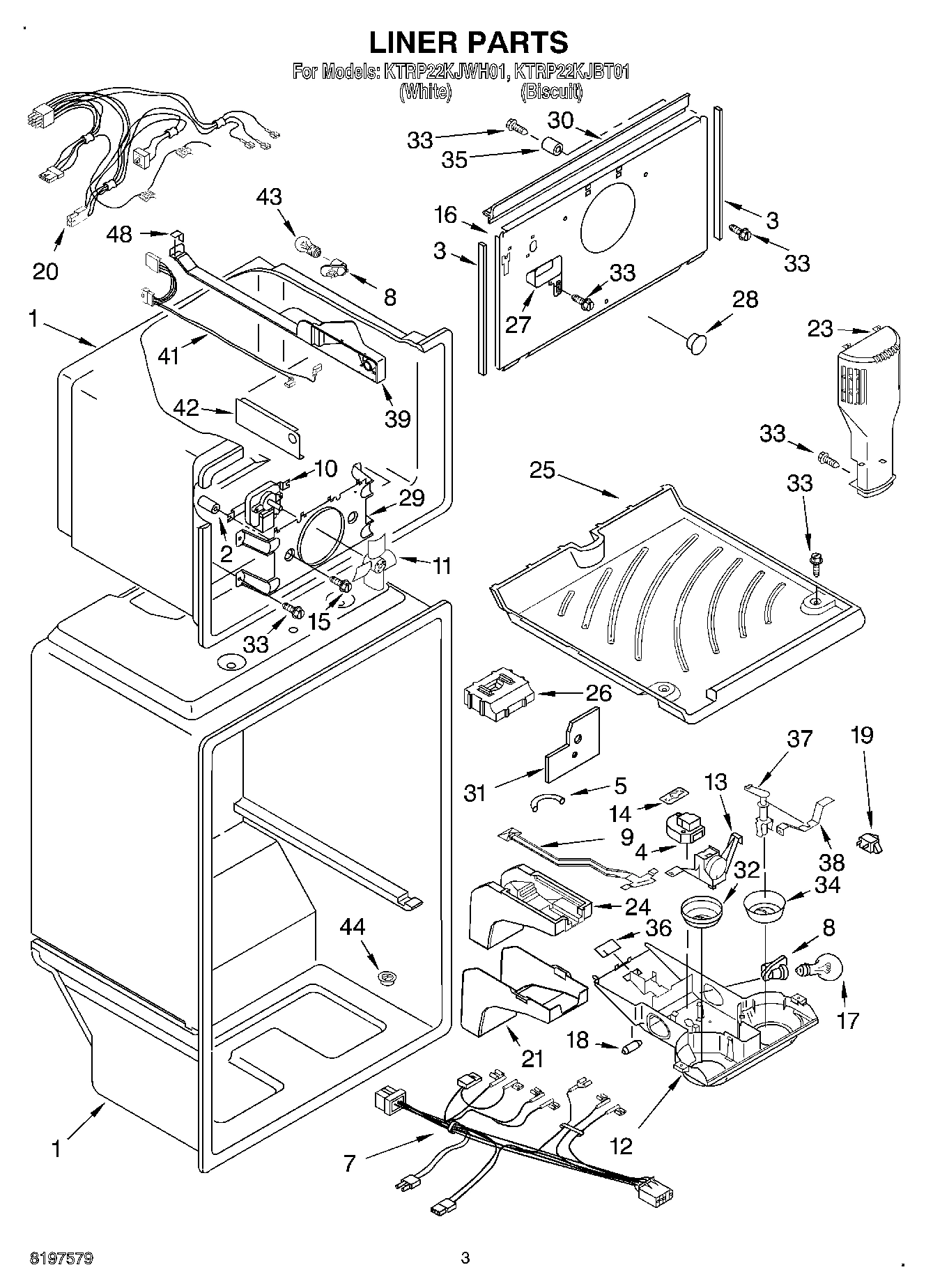

02 - LINER

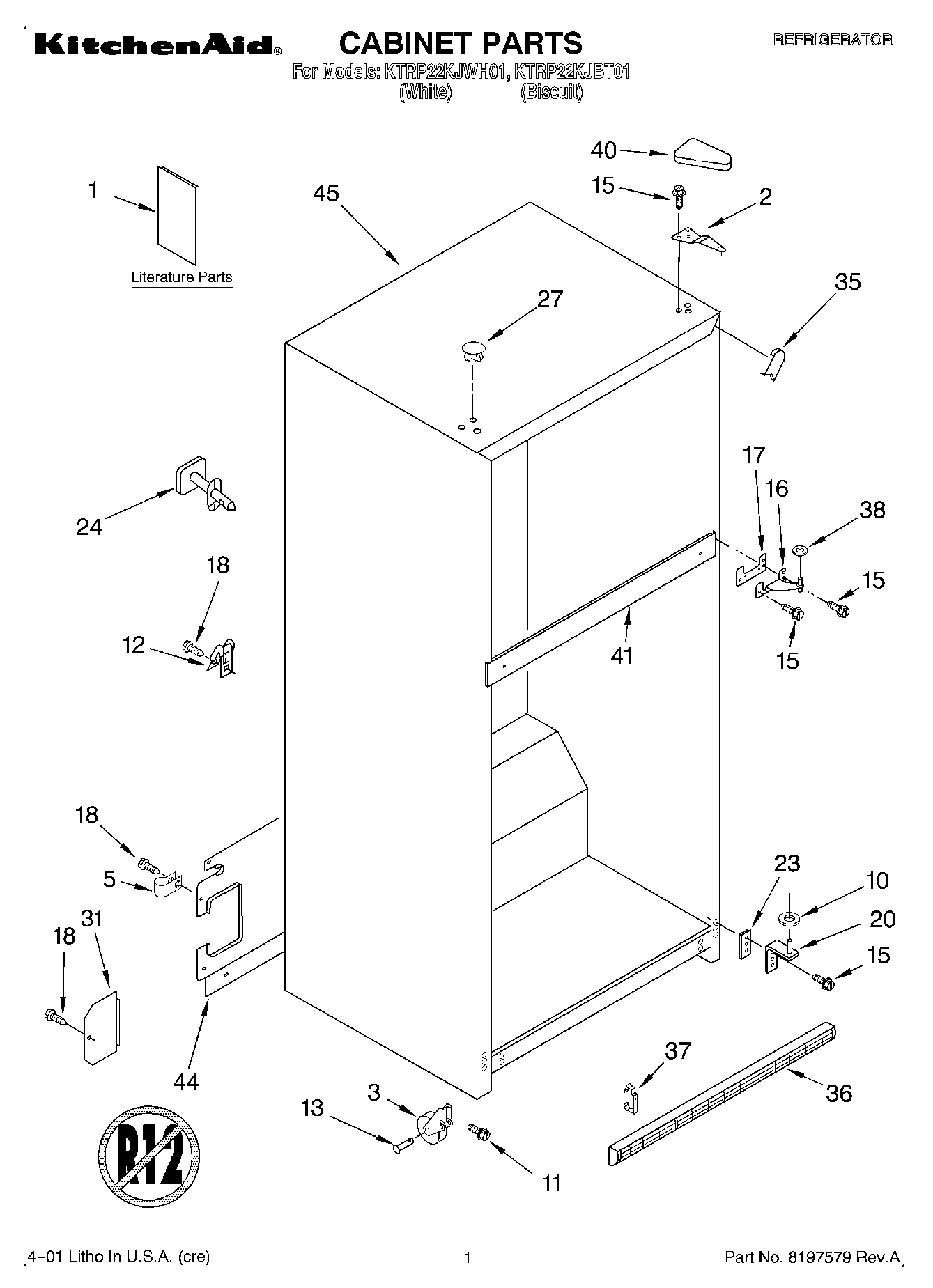

01 - CABINET, LITERATURE
Common parts from model Whirlpool KTRP22KJWH01 REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI111425A Contact Us For Availability
1
Service & Wiring Sheet WPL LIT2201079 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2205264 Contact Us For Availability
1
Energy Label WPL LIT2205501 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Thermostat Tube Barrier WPL 2212485 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187306 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
12
Endcap, Handle (White) WPL 2195994W Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Endcap (White) WPL 2195995W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2201180 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187295 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
WPL 799344 WPL 799344 Contact Us For Availability
21
Torx Key WPL 1117510 Contact Us For Availability
21
Enamel, Black (1 Qt. WPL 799340 Contact Us For Availability
21
WPL 799832 WPL 799832 Contact Us For Availability
21
WPL 799833 WPL 799833 Contact Us For Availability
22
Support Block WPL 2201185 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111423A Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
31
Shield, heat WPL 2204639 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
36
Slide, Humidity Control WPL 2176222 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Biscuit) WPL 2201020 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
39
Housing Base WPL 2201153 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111424A Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2210542 Contact Us For Availability
46
Tube, Discharge WPL 2205294 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
