Model Whirlpool KTRC22MMWH00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL ARI110527A WPL ARI110527A Contact Us For Availability

WPL ARI110528A WPL ARI110528A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

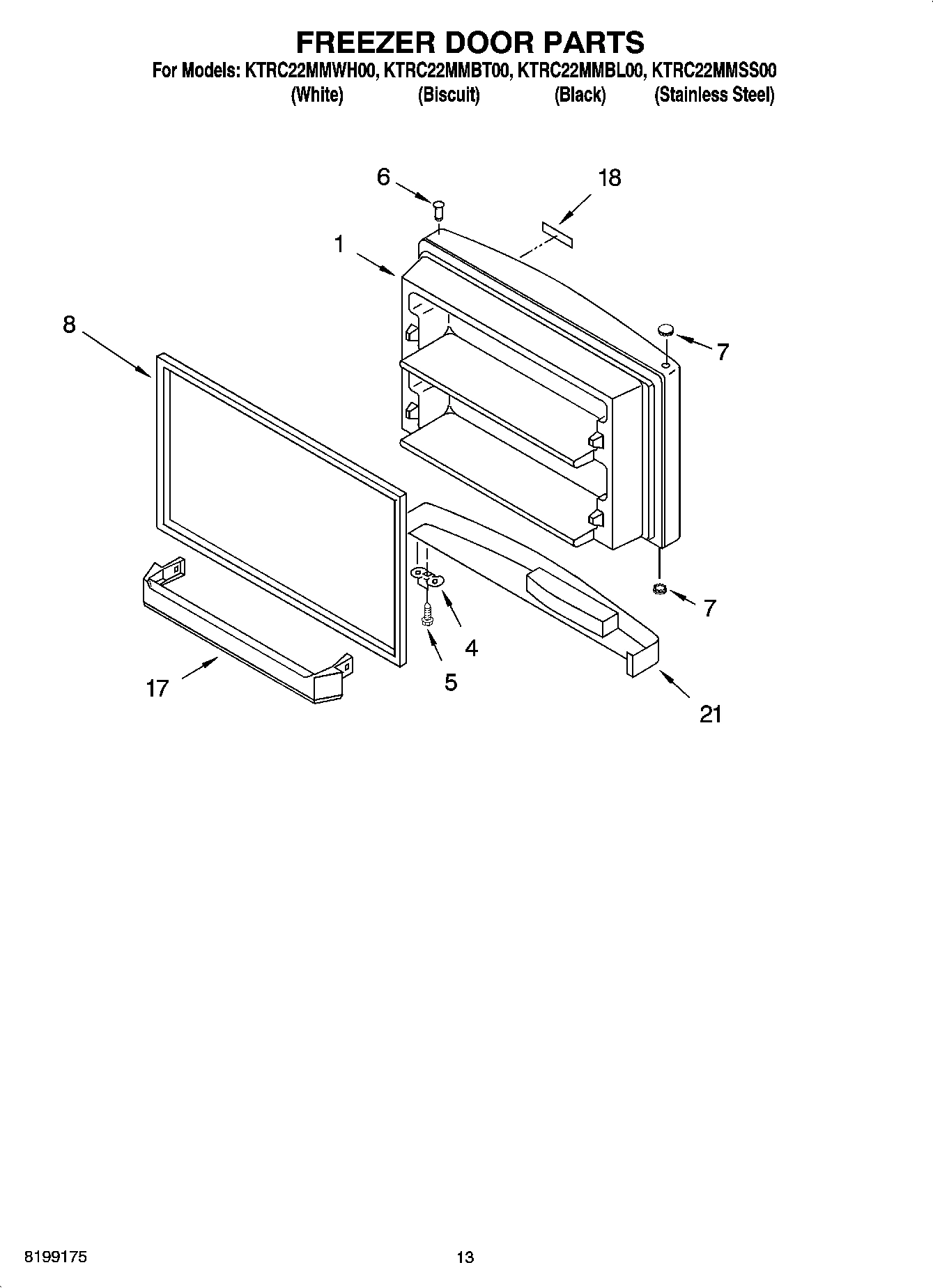

Freezer Door (Includes 6 & 8) (White) WPL 2202520 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Biscuit) WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Stainless Stee WPL 2212419 Contact Us For Availability

1

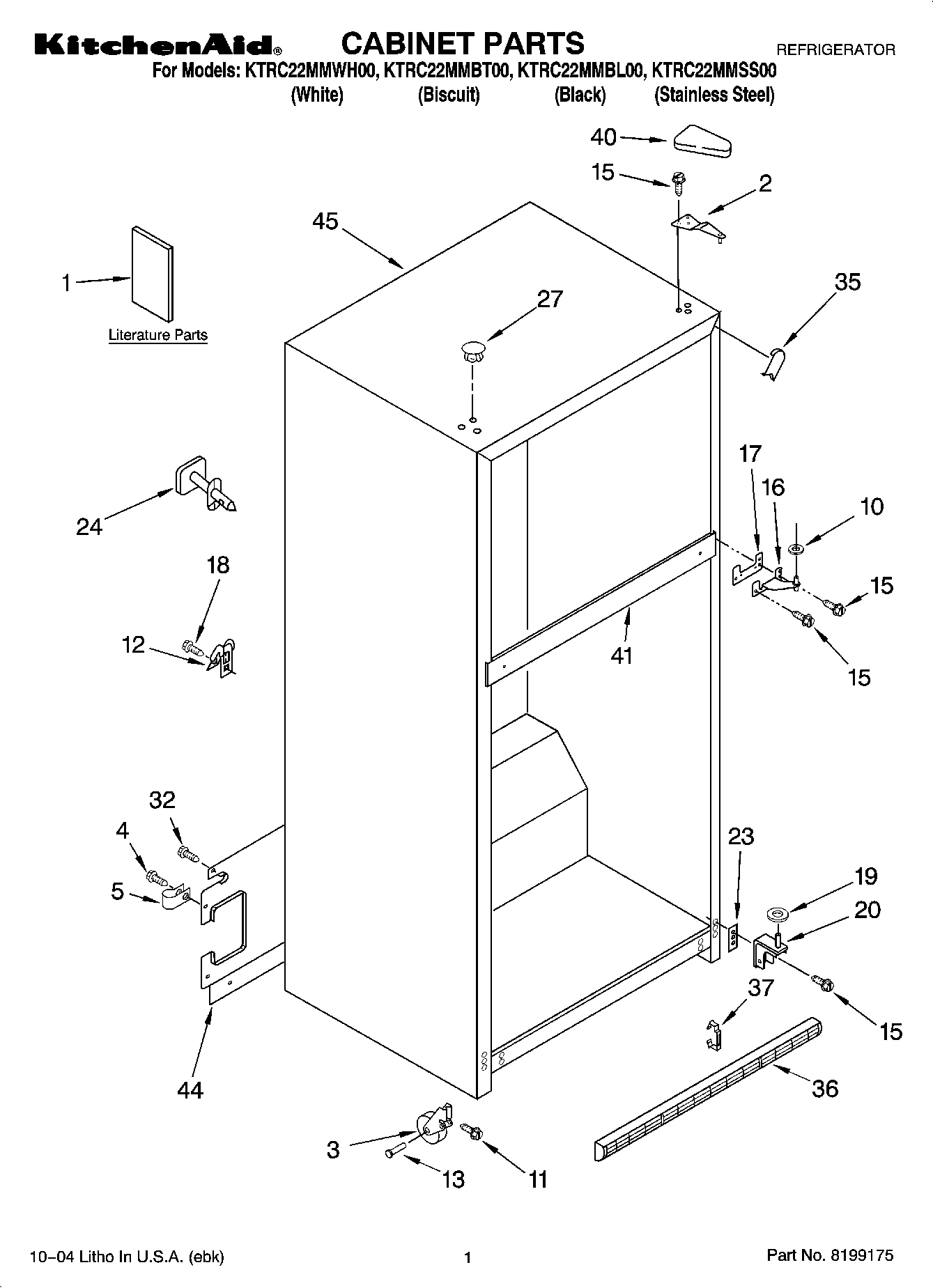

Customer Instructions WPL 2225415 Contact Us For Availability

1

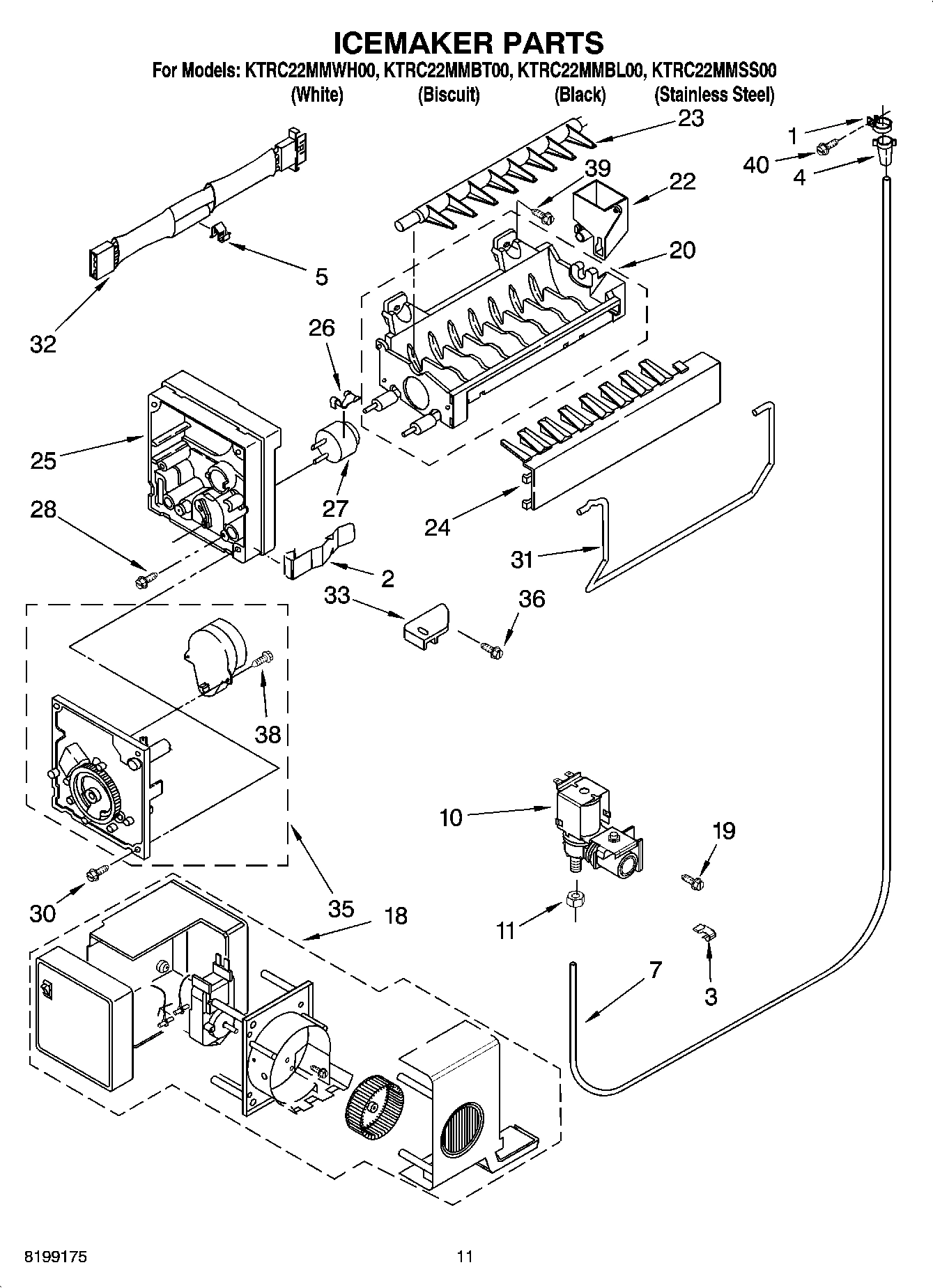

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Service & Wiring Sheet WPL 2225762 Contact Us For Availability

1

Use & Care Guide WPL 2301879 Contact Us For Availability

1

Energy Label WPL 2302430 Contact Us For Availability

1

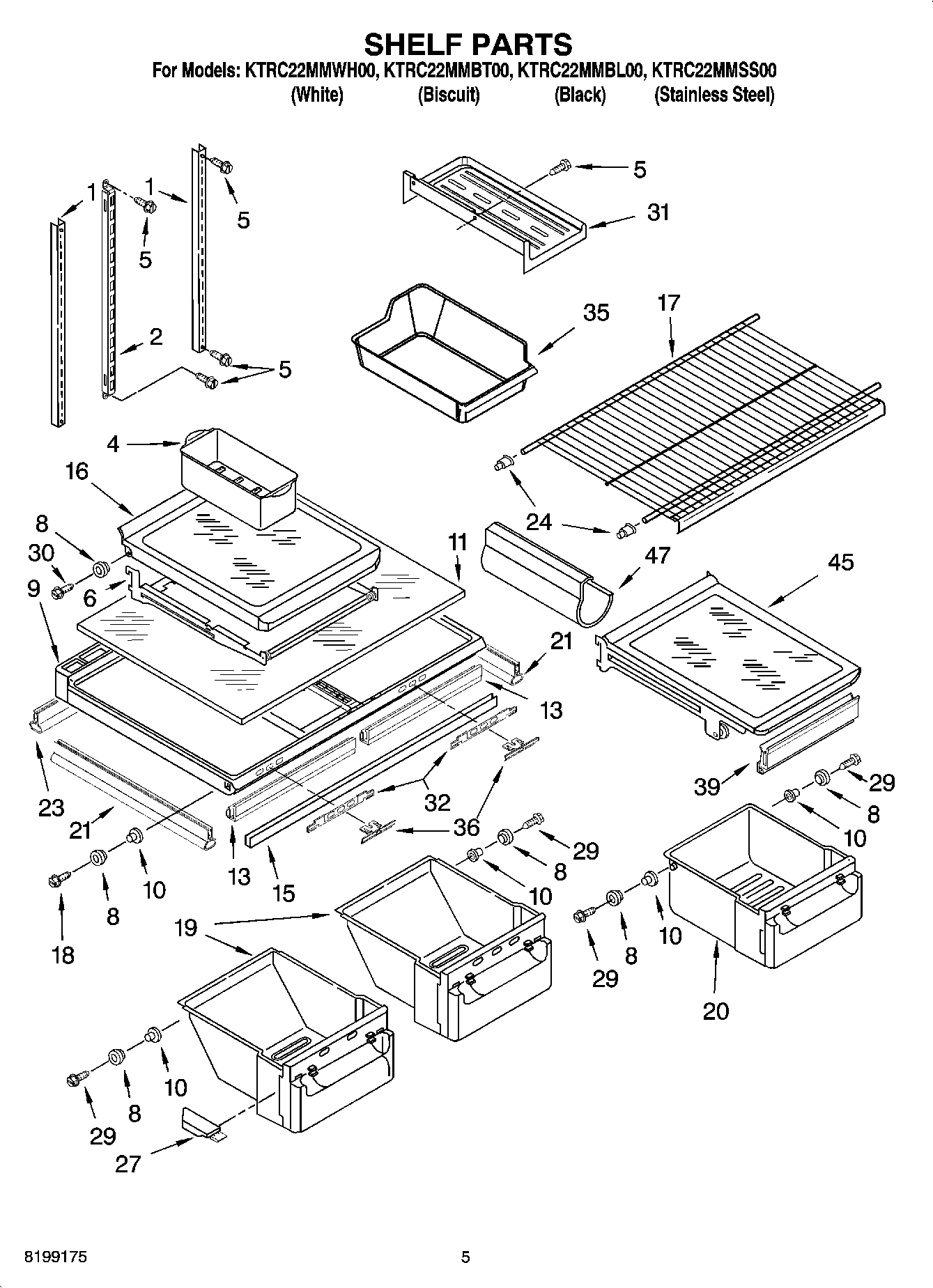

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $43.15

2

Clip, Icemaker WPL 2204881 Contact Us For Availability

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $33.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

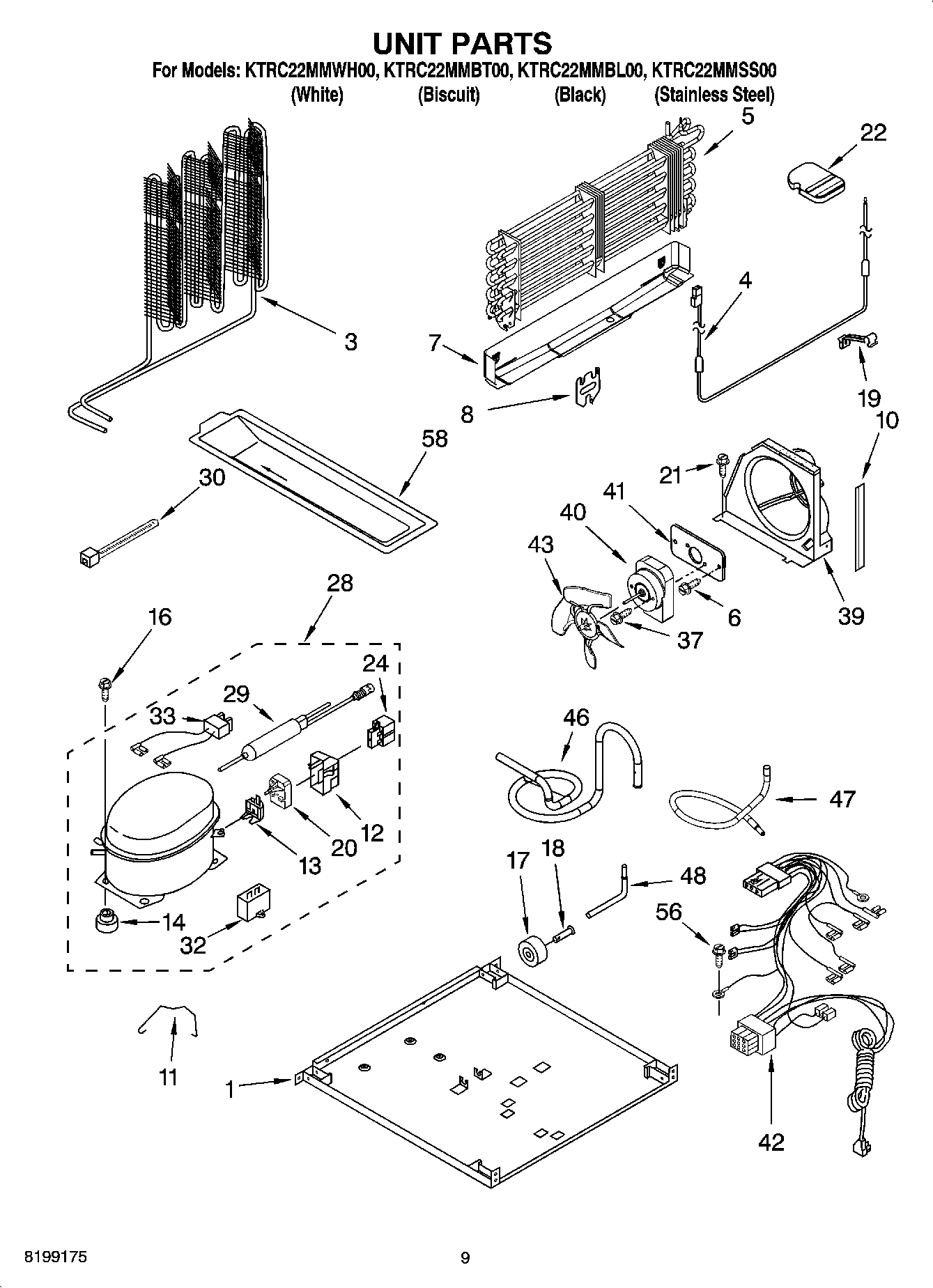

Condenser WPL 2214960 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assy. Control Box WPL 2187352 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

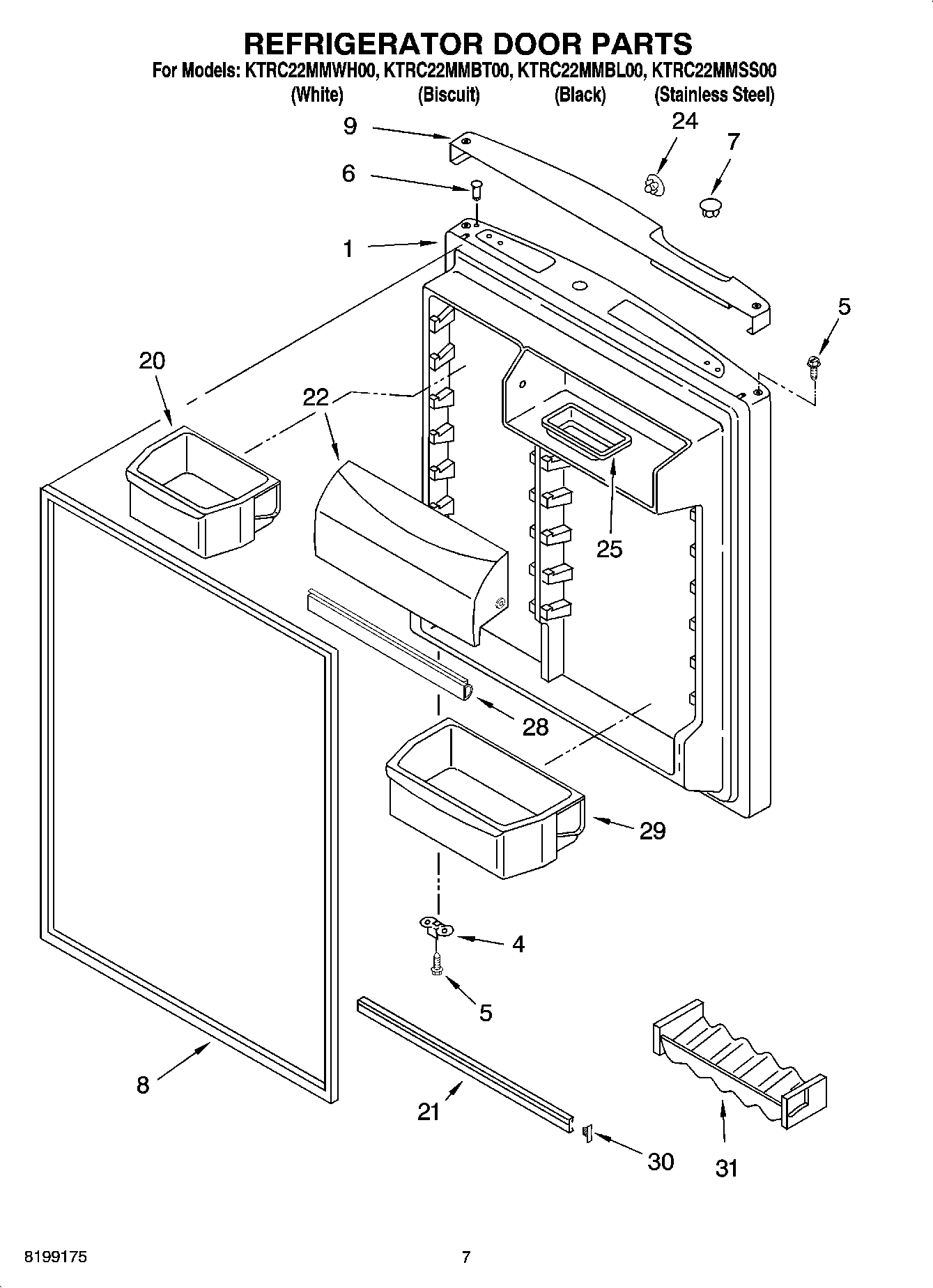

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $107.38

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

9

Crisper Cover (Includes Items 8,10,13,18,21,2 WPL 2210583 Contact Us For Availability

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

10

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Glass, Crisper Cover WPL 2210571 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

13

Thermostat Assembly WPL 2302286 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

16

Shelf Assembly, Spillguard (3) (Includes Item WPL 2174012 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Trim, Door WPL 2159292 Contact Us For Availability

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

Max-Ice Assembly WPL 2301810 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Pan, Crisper (Includes Items 8,10,27 & 29) WPL 2188816 Contact Us For Availability

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $54.64

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

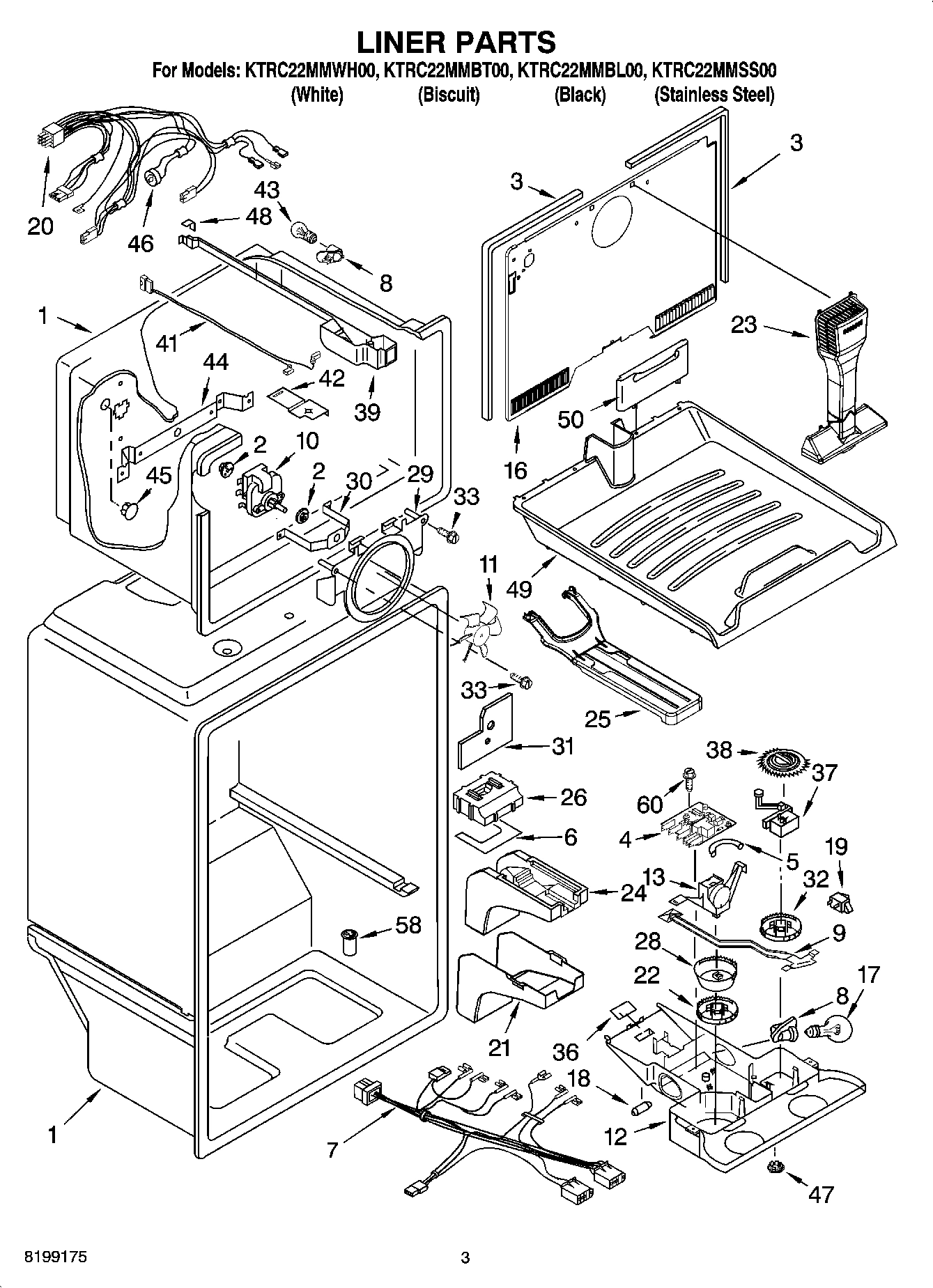

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

Pan, Meat (Includes Items 8,10 & 29) WPL 2188818 Contact Us For Availability

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

End Cap (White) WPL 2213328 Contact Us For Availability

End Cap (Biscuit) WPL 2213329 Contact Us For Availability

Endcap (Black) WPL 2221624 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

22

Support WPL 2201185 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

Fitting, Water Tube (Not Serviced) WPL ARI110519A Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $27.52

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

29

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

31

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $15.66

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Grille (White) WPL 2254313 Contact Us For Availability

Grille (Biscuit) WPL 2254316 Contact Us For Availability

Grille (Black) WPL 2254315 Contact Us For Availability

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Gasket, Front WPL 2174396 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

Plate WPL 2301979 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI110520A Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $115.98

44

Cover, Unit WPL 2302358 Contact Us For Availability

45

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

45

Cabinet (Not A Serviceable Part) WPL ARI110521A Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
