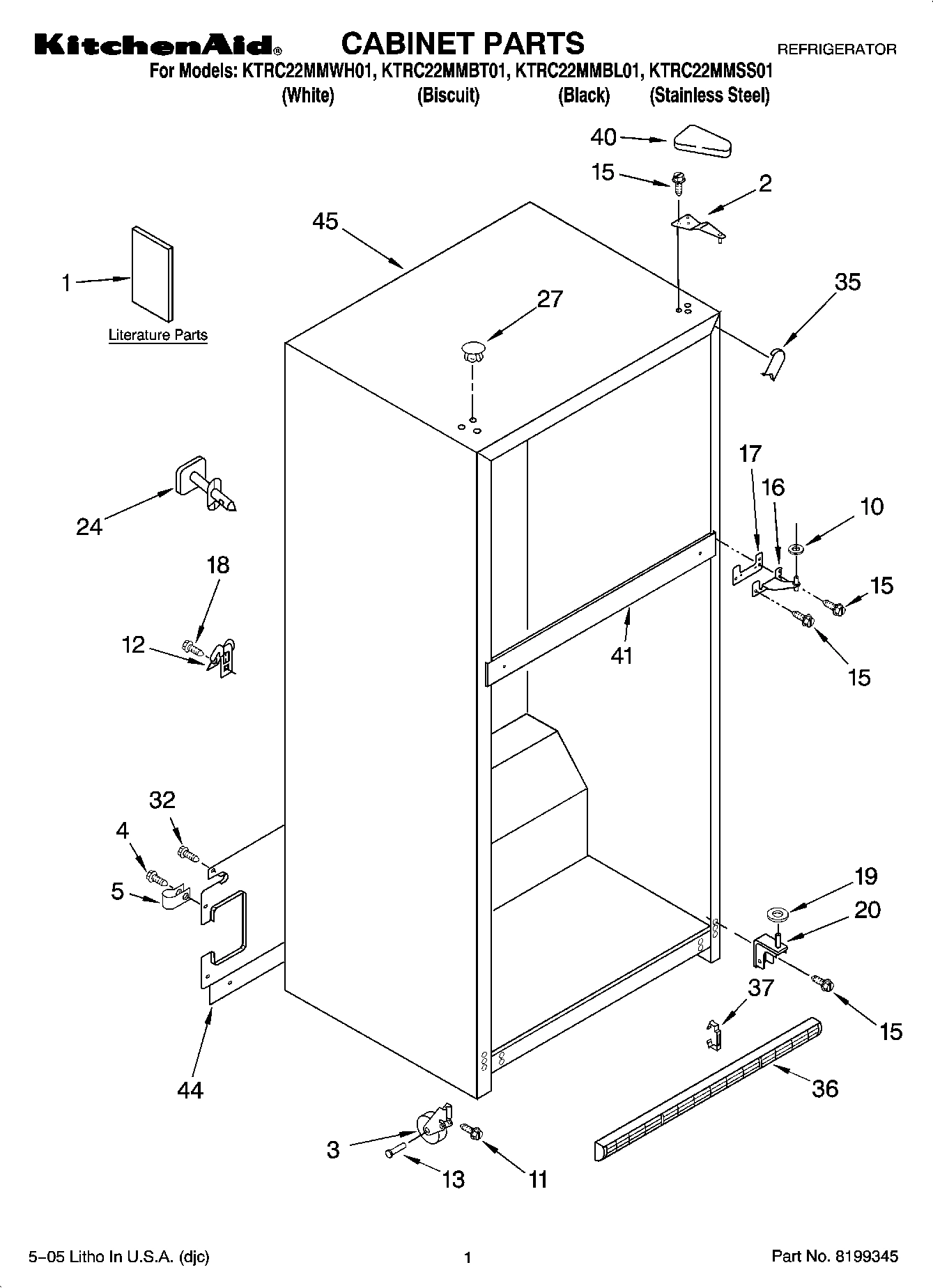

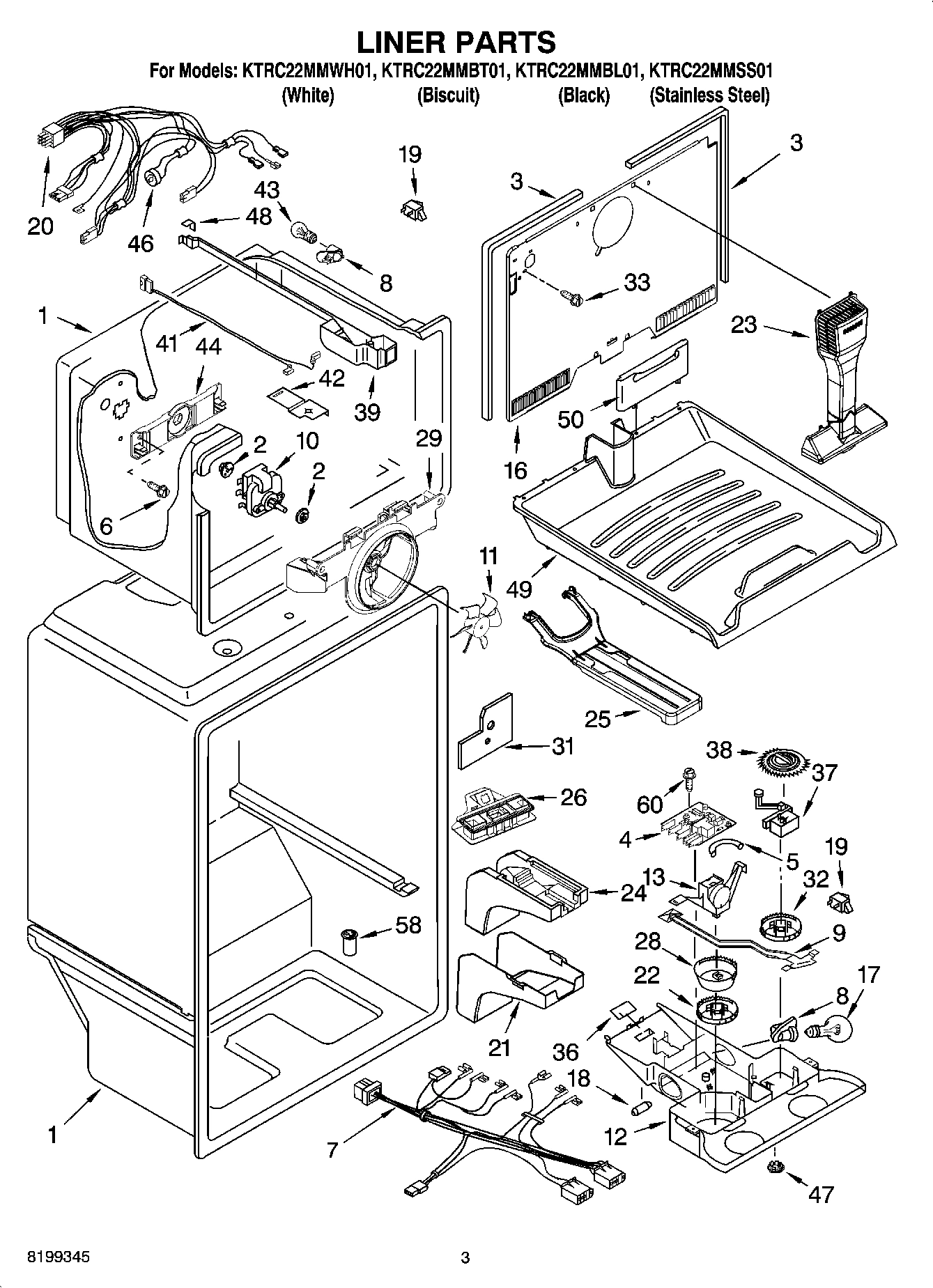

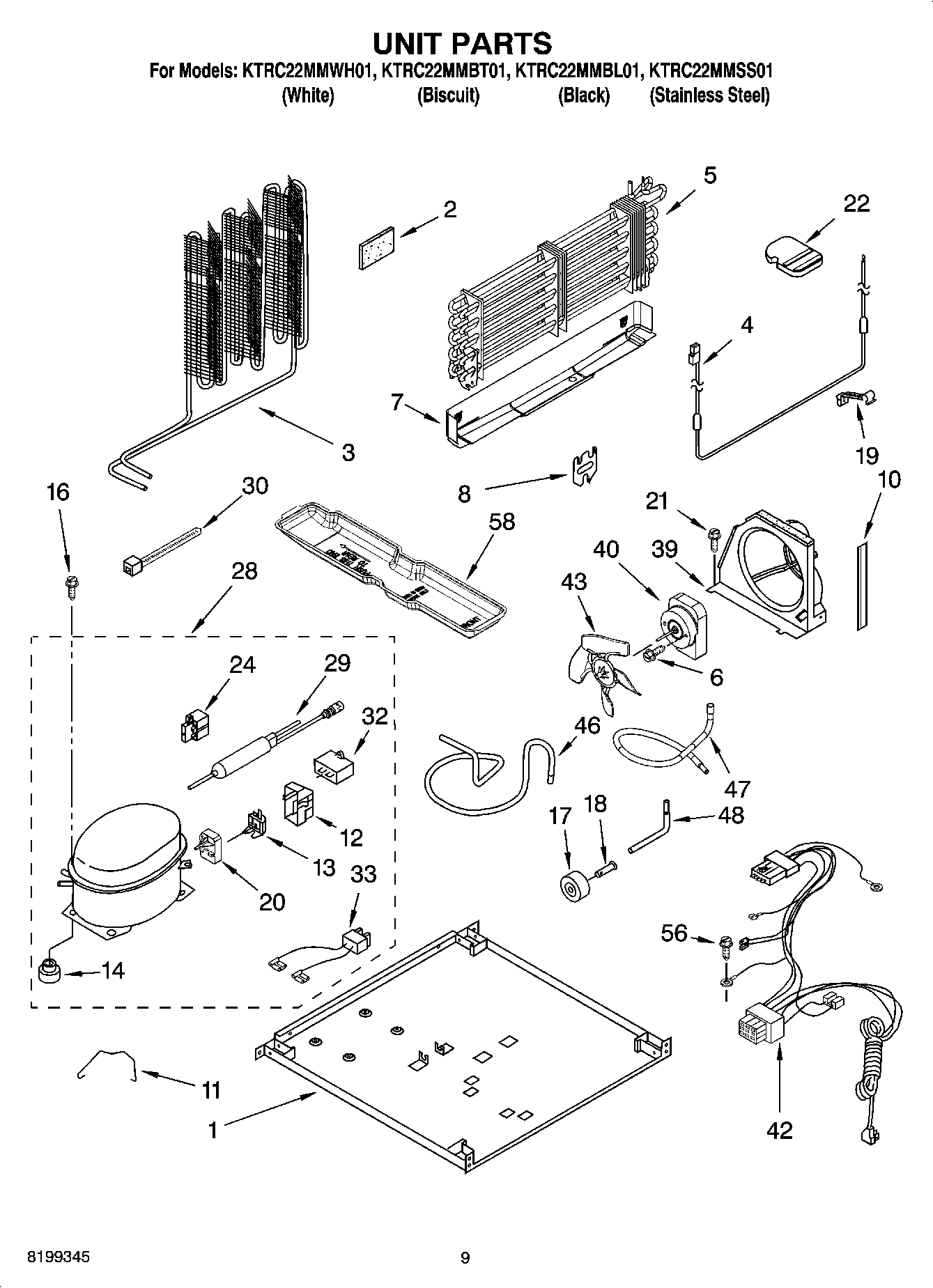

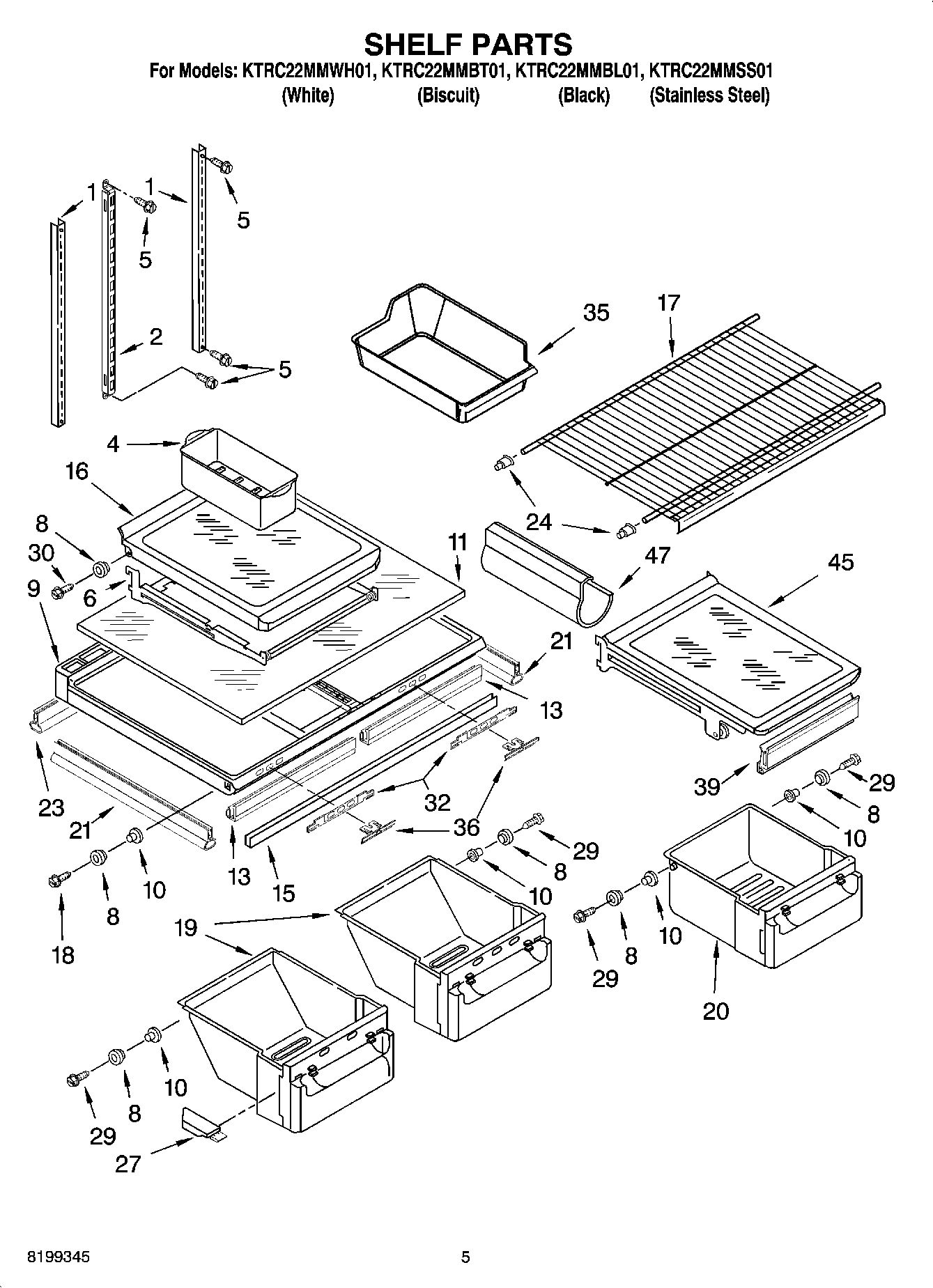

Model Whirlpool KTRC22MMSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Unc WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL ARI110515A WPL ARI110515A Contact Us For Availability

WPL ARI110516A WPL ARI110516A Contact Us For Availability

WPL ARI110517A WPL ARI110517A Contact Us For Availability

WPL ARI110518A WPL ARI110518A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

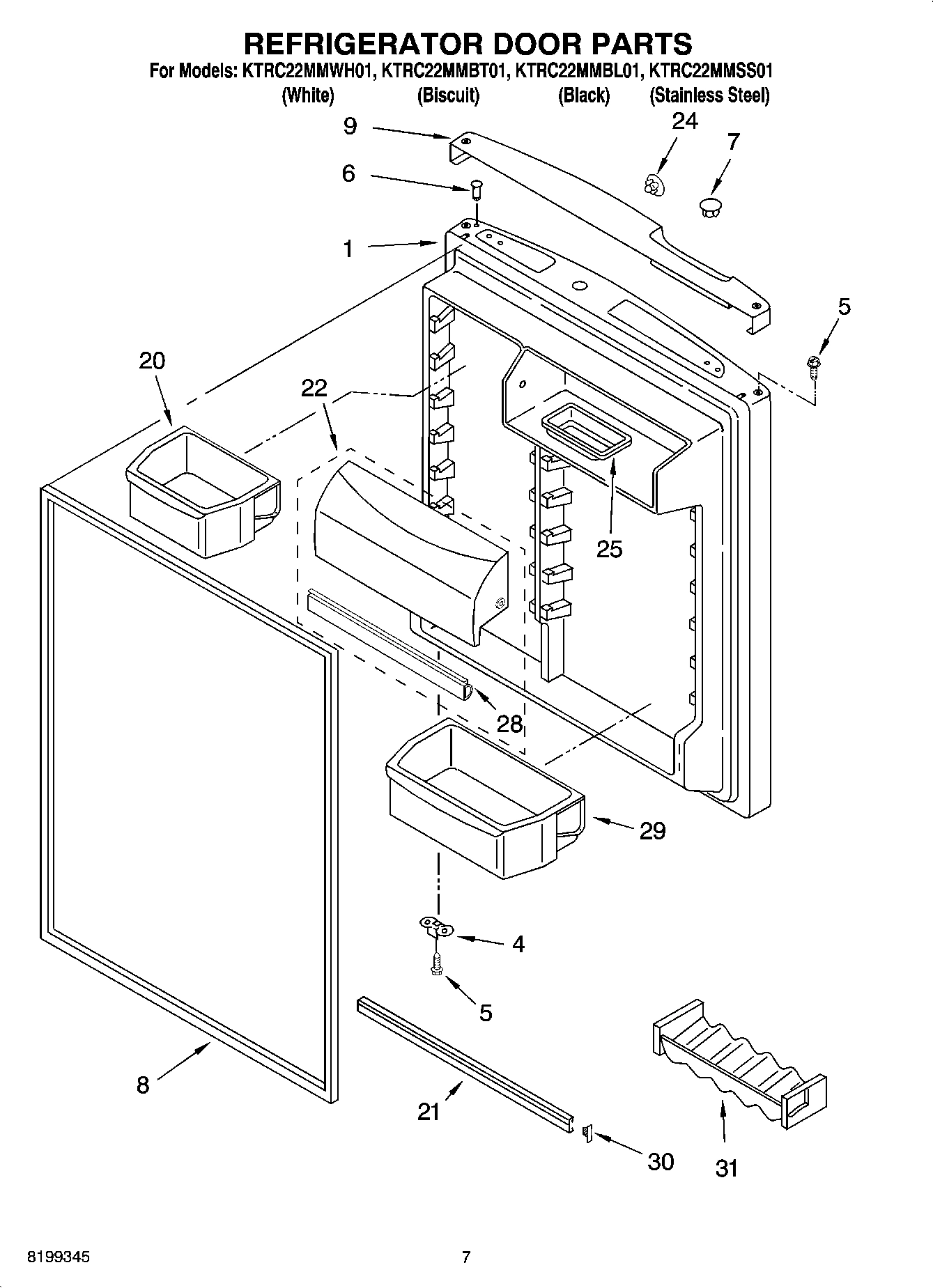

Refrigerator Door (Includes Illus. 6 & 8) (Wh WPL 2205214 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (Bi WPL 2205215 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (Bl WPL 2205217 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 6 & 8) (St WPL 2212418 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225596 Contact Us For Availability

1

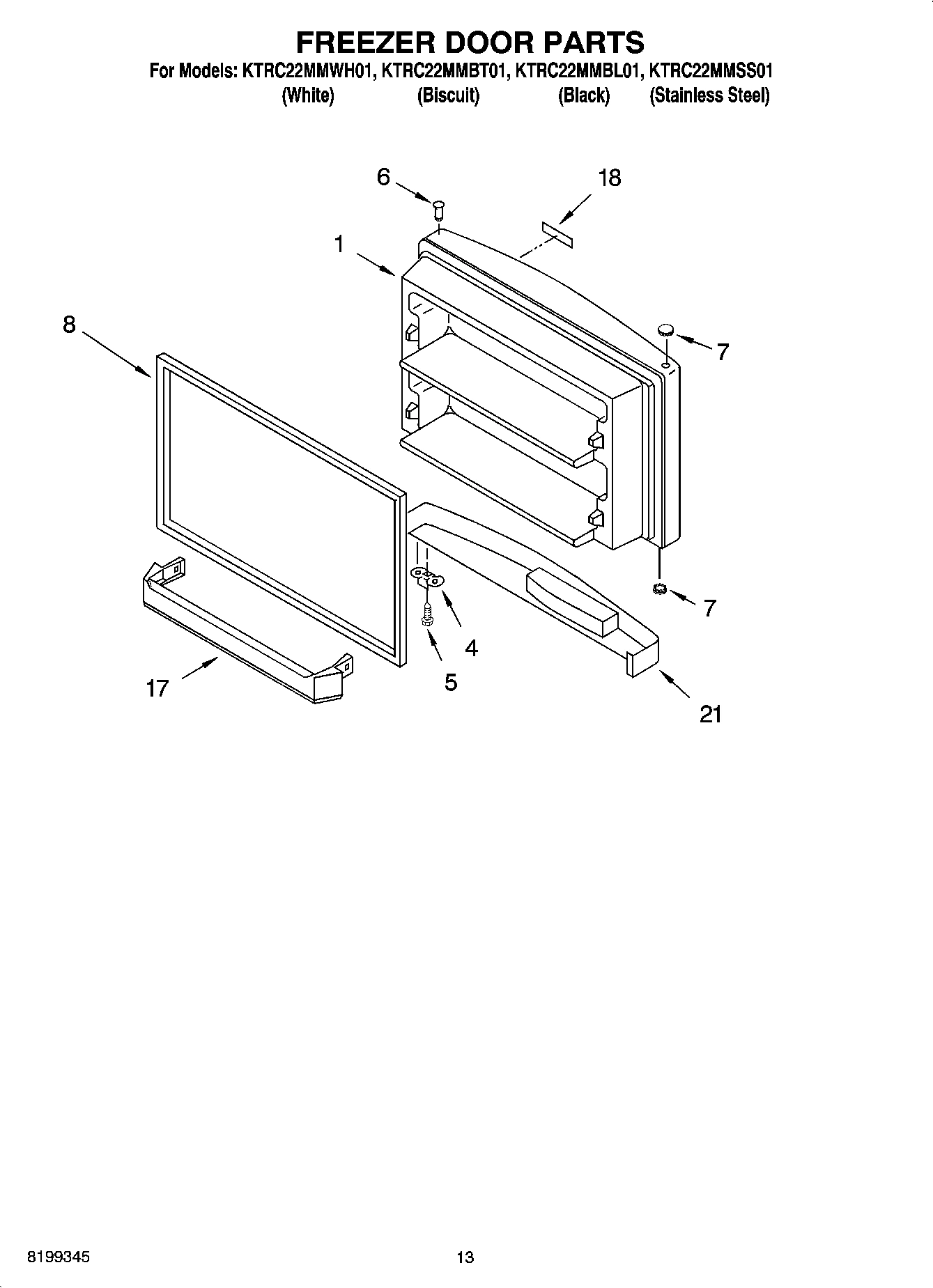

Freezer Door (Includes Illus. 6 & 8) (White) WPL 2202520 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Biscuit WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes Illus. 6 & 8) (Stainle WPL 2212419 Contact Us For Availability

2

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

3

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $31.90

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

5

Evaporator Assy. WPL 2221761 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

End Cap, Handle (White) WPL 2213333 Contact Us For Availability

9

End Cap, Handle (Biscuit) WPL 2213334 Contact Us For Availability

9

Endcap, Handle (Black) WPL 2221628 Contact Us For Availability

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

13

Thermostat Assembly WPL 2302286 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

17

Trim, Door WPL 2159292 Contact Us For Availability

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Endcap, Handle (White) WPL 2213328 Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2213329 Contact Us For Availability

Endcap, Handle (Black) WPL 2221624 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support WPL 2201185 Contact Us For Availability

22

Door Compartment WPL 2218119 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

25

Butter, Dish WPL 2165792 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

31

Beverage Holder WPL 2193409 Contact Us For Availability

32

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

36

Grille (Includes Illus. 37) (White) WPL 2254313 Contact Us For Availability

36

Grille (Includes Illus. 37) (Biscuit) WPL 2254316 Contact Us For Availability

37

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Housing Base WPL 2300418 Contact Us For Availability

39

Air Baffle WPL 2302249 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI110513A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI110514A Contact Us For Availability

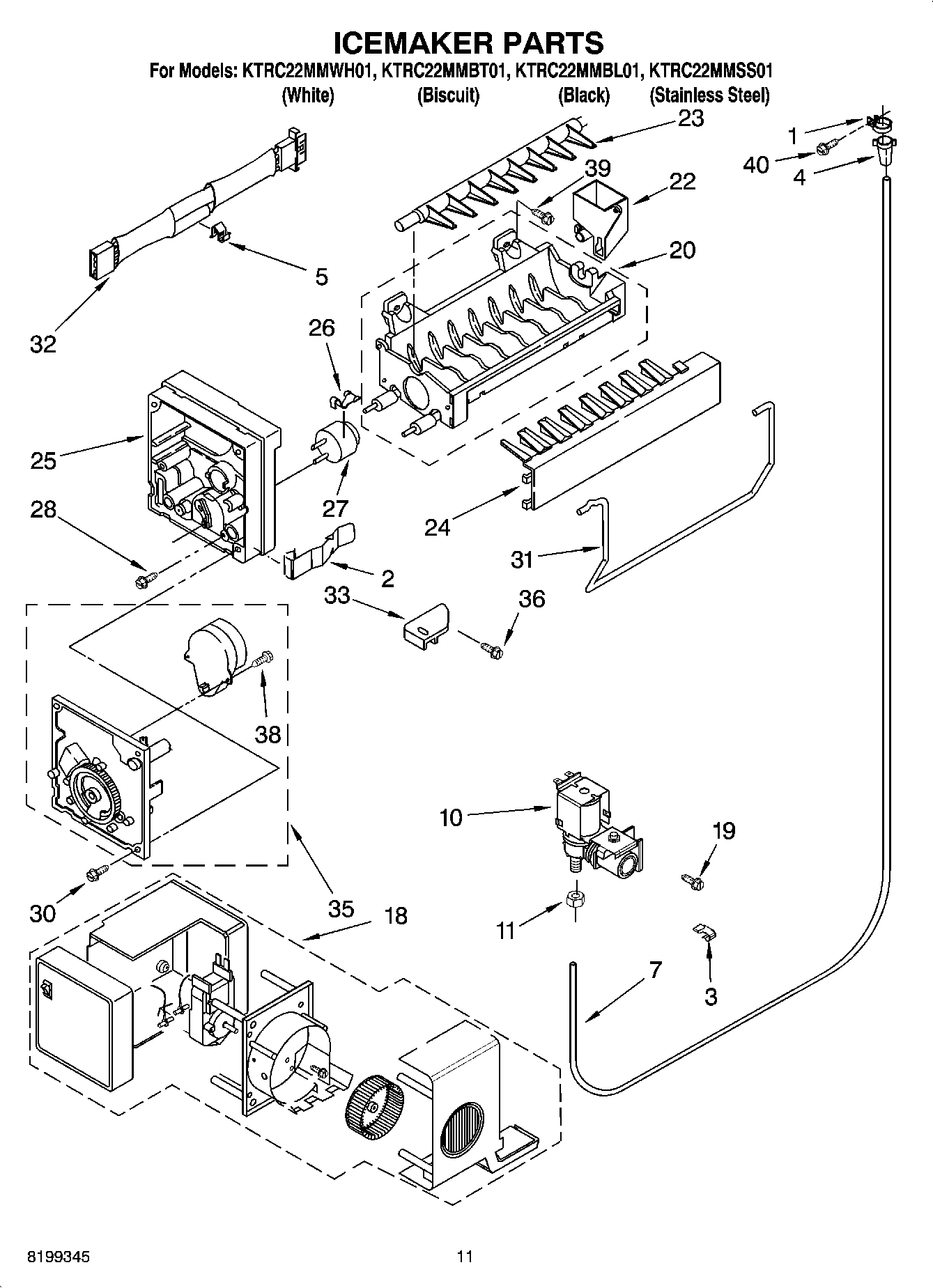

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
