Model Whirlpool KTRC22KKSS01 REFRIGERATOR – Common Parts & Diagrams

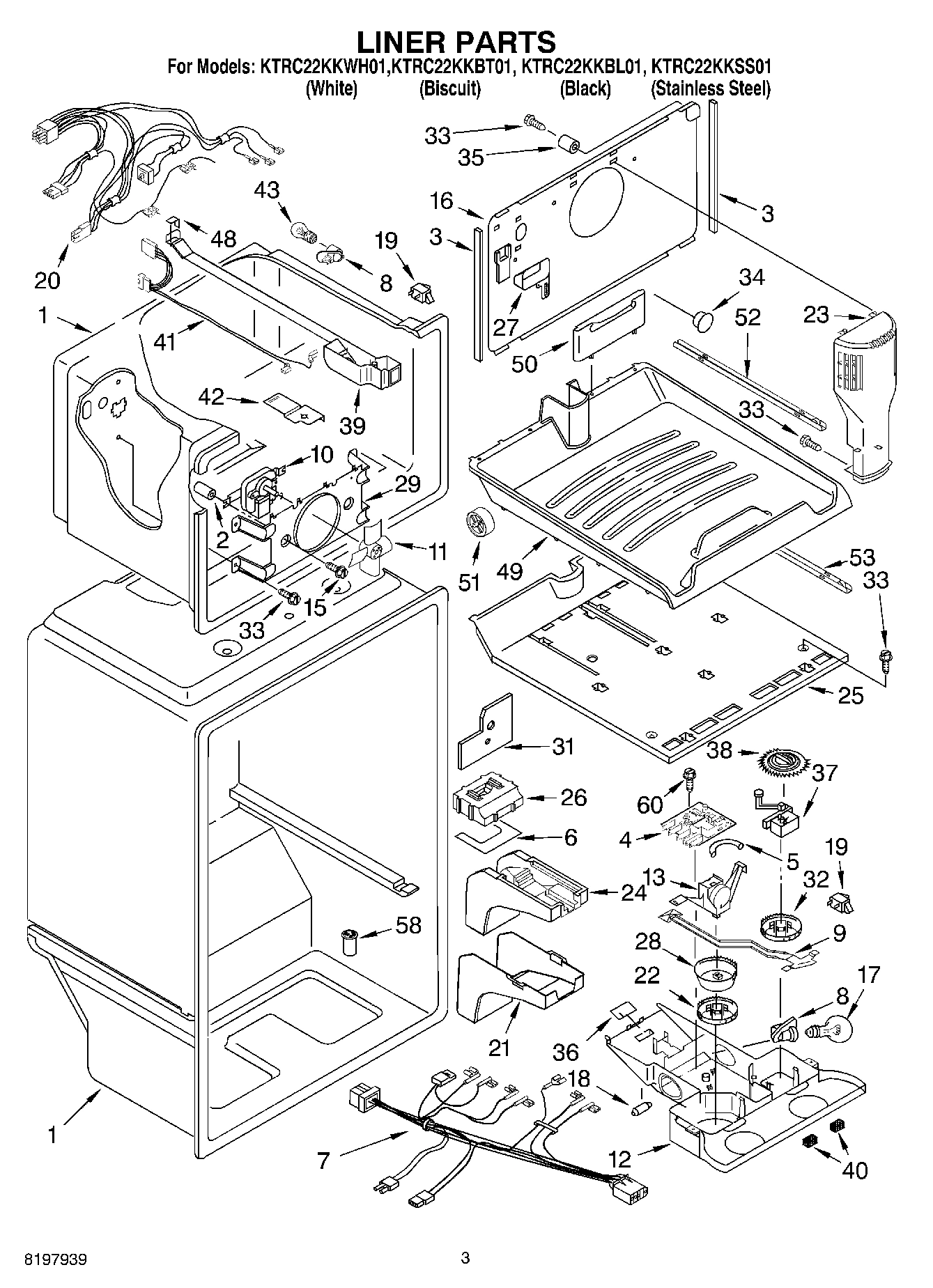

02 - LINER

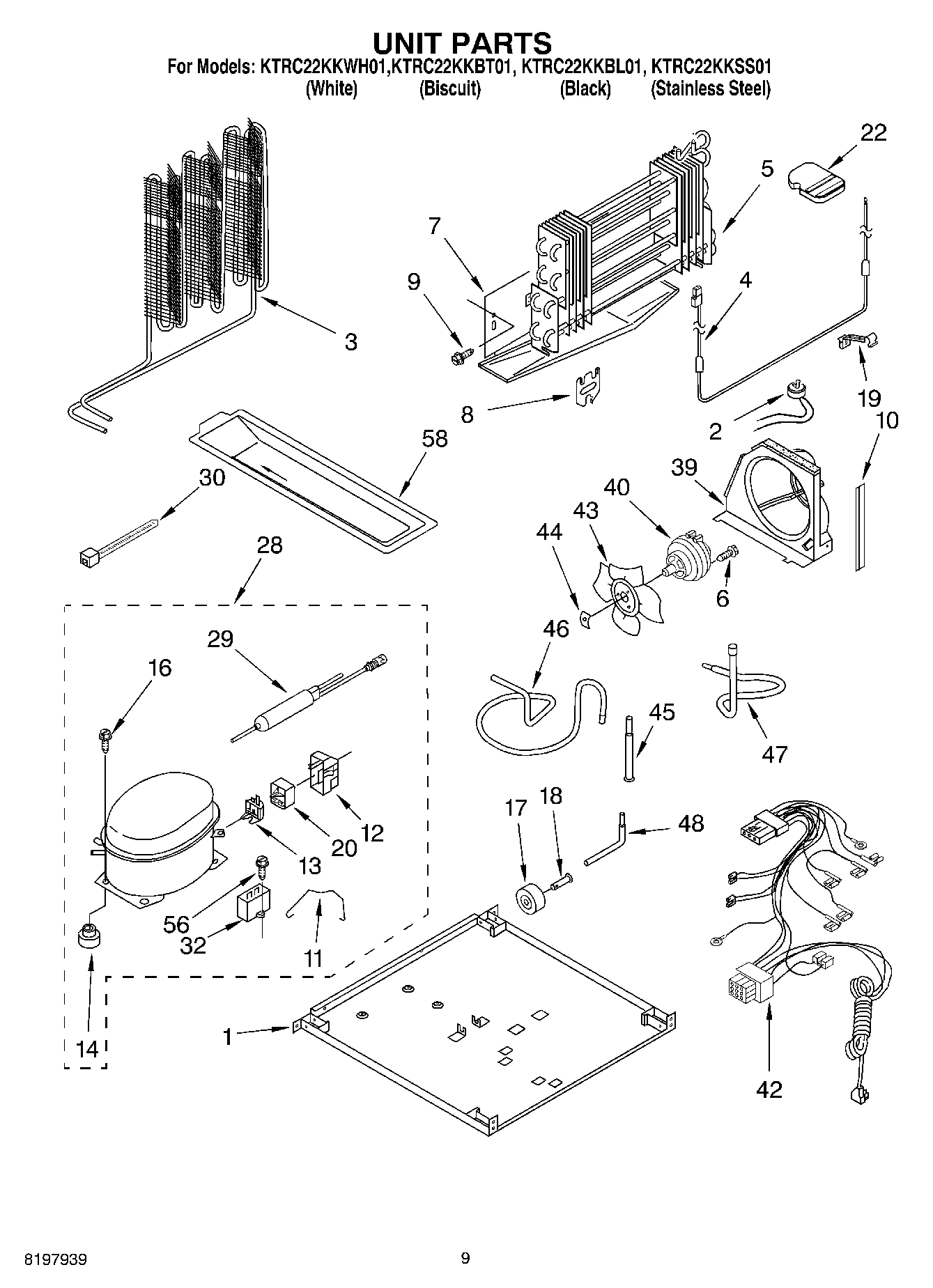

05 - UNIT
03 - SHELF
04 - REFRIGERATOR DOOR
01 - CABINET, LITERATURE
06 - FREEZER DOOR, OPTIONAL
Common parts from model Whirlpool KTRC22KKSS01 REFRIGERATOR
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205214 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205215 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205217 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2212418 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2212447 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2213196 Contact Us For Availability
1
Literature Parts (Quick Tips) WPL LIT2218345 Contact Us For Availability
1
Energy Label WPL LIT2218404 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT627370 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2202520 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Biscuit) WPL 2204854 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Black) WPL 2204856 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Stainles WPL 2212419 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
9
Endcap (White) WPL 2213333 Contact Us For Availability
9
Endcap (Biscuit) WPL 2213334 Contact Us For Availability
9
Endcap (Black) WPL 2221628 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
17
Trim, Door WPL 2159292 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Nameplate (White) WPL 2212760 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188289 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
PAINT, BULK (1 Q WPL 799344 Contact Us For Availability
21
Torx Key WPL 1117510 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
End Cap (White) WPL 2213328 Contact Us For Availability
21
End Cap (Biscuit) WPL 2213329 Contact Us For Availability
21
Endcap (Black) WPL 2221624 Contact Us For Availability
21
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
21
WPL 799832 WPL 799832 Contact Us For Availability
21
WPL 799833 WPL 799833 Contact Us For Availability
22
Support WPL 2201185 Contact Us For Availability
22
Door, Compartment WPL 2218122 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
24
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
24
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI110093A Contact Us For Availability
25
Butter, Dish WPL 2165792 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
26
Window, Crisper WPL 2188276 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
27
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
Window, Meat Pan WPL 2188278 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Shelf, Ice Tray WPL 2212770 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
36
Grille (Biscuit) WPL 2201020 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI110094A Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2210542 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI110095A Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
