Model Whirlpool KTRC22KKBT02 REFRIGERATOR – Common Parts & Diagrams

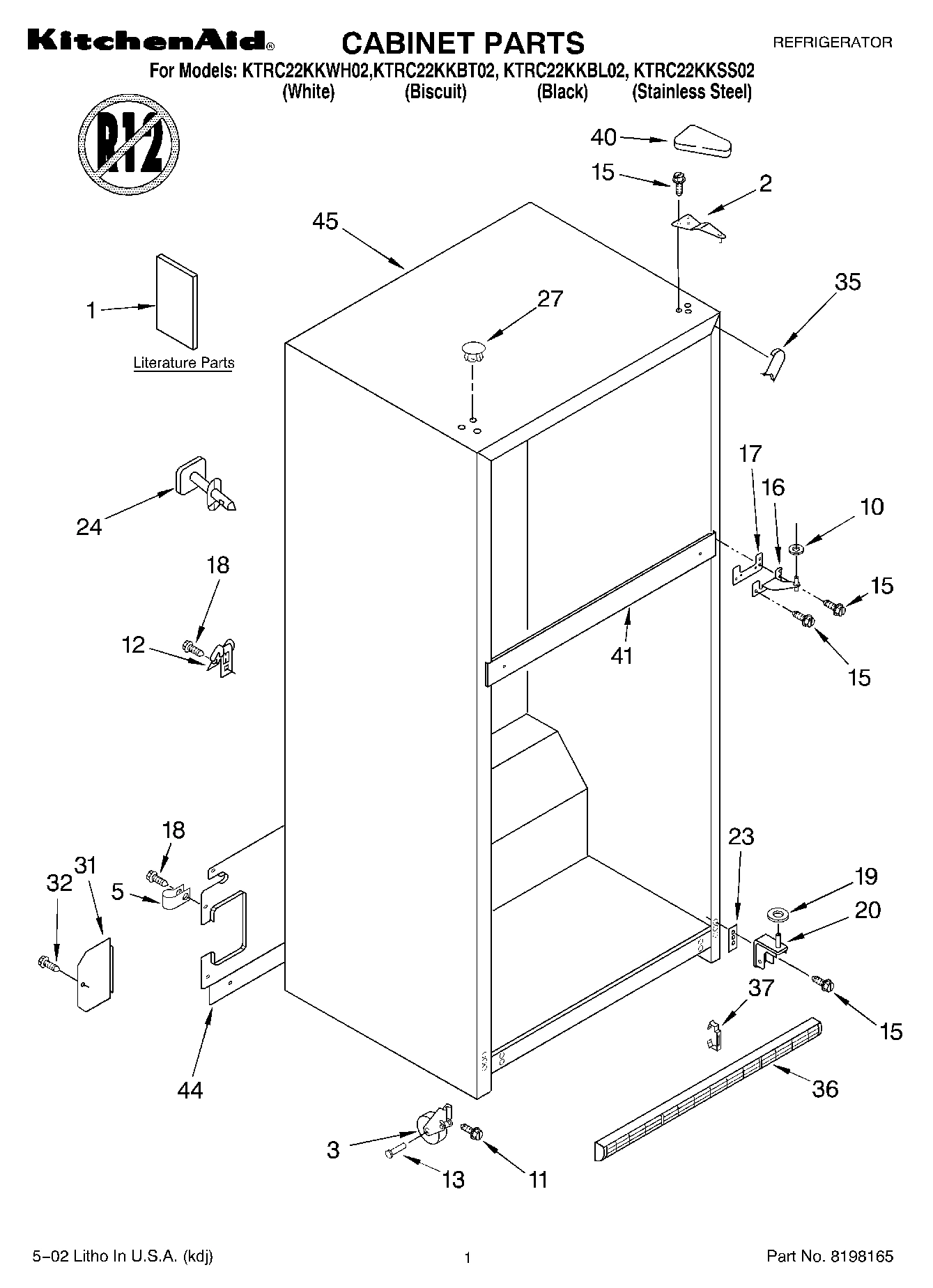

01 - CABINET, LITERATURE

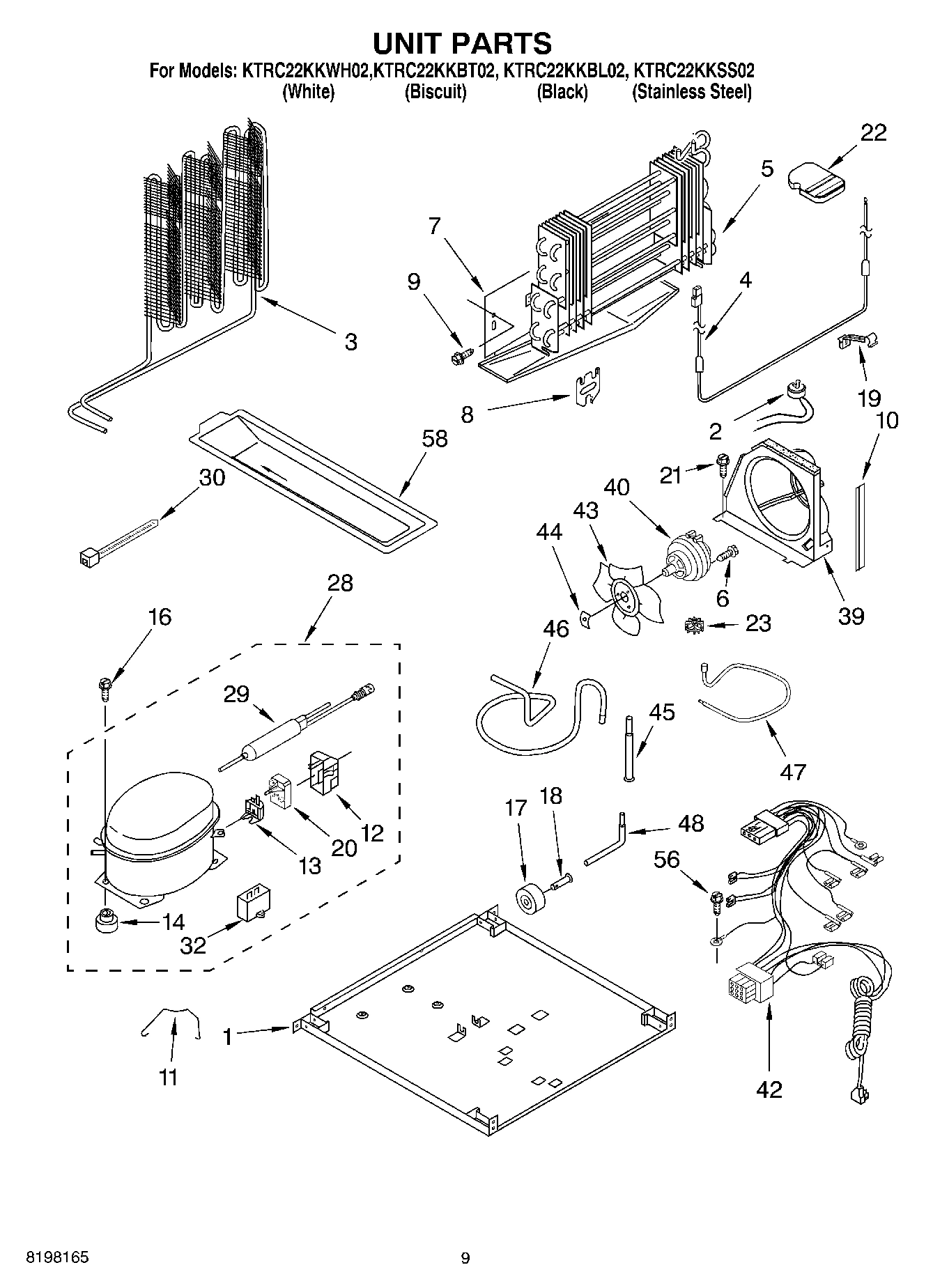

05 - UNIT

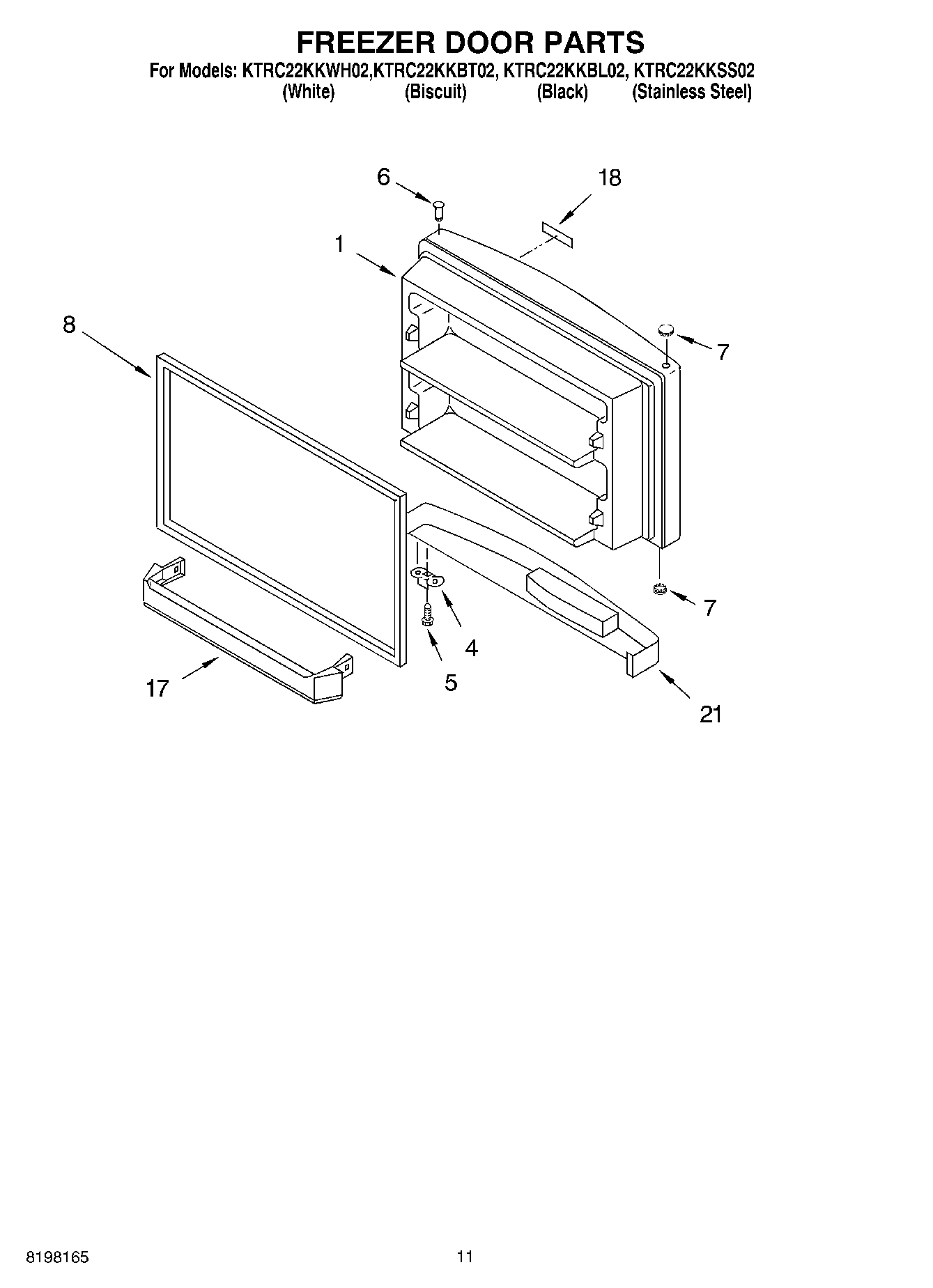

06 - FREEZER DOOR, OPTIONAL

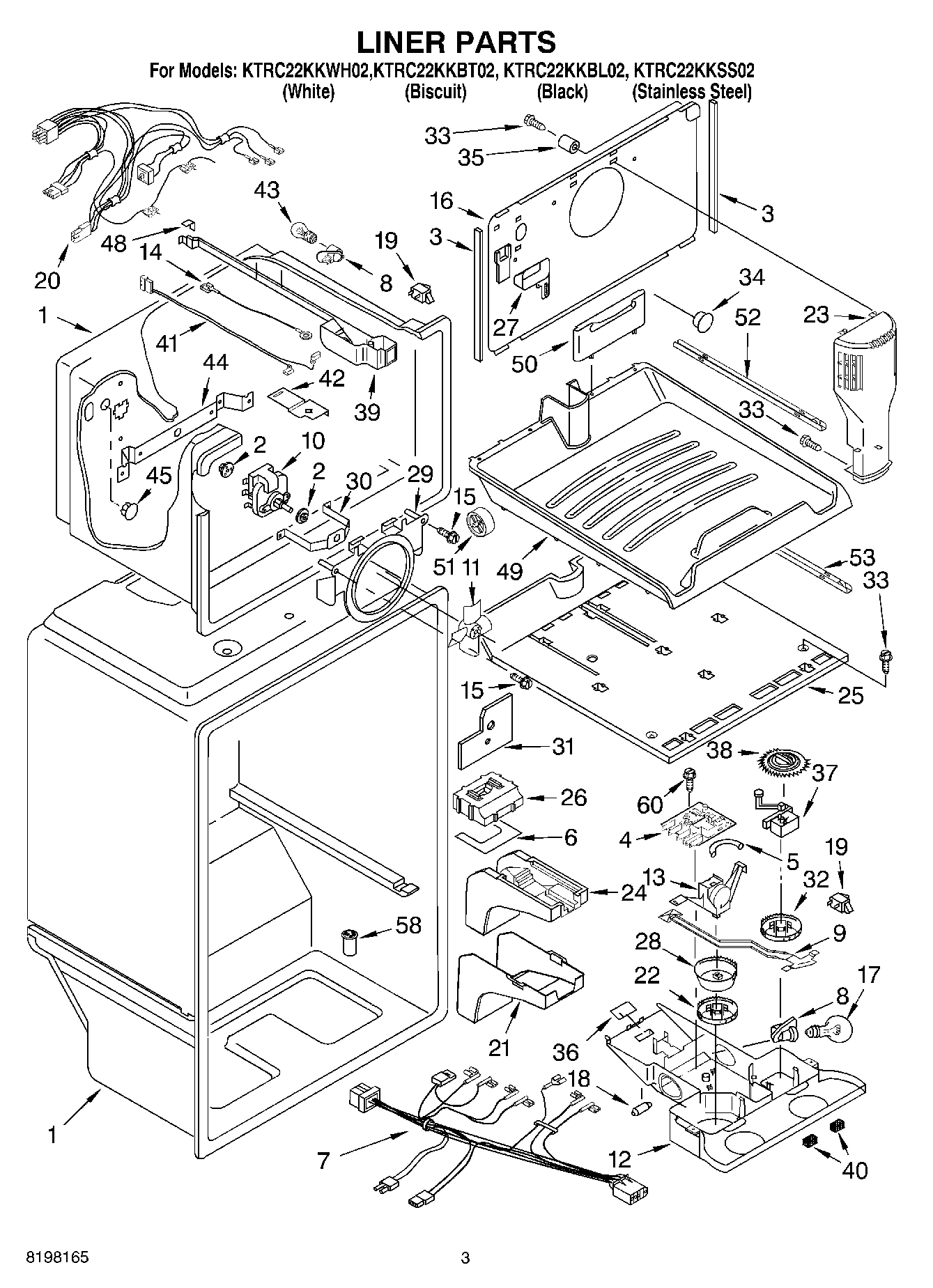

02 - LINER

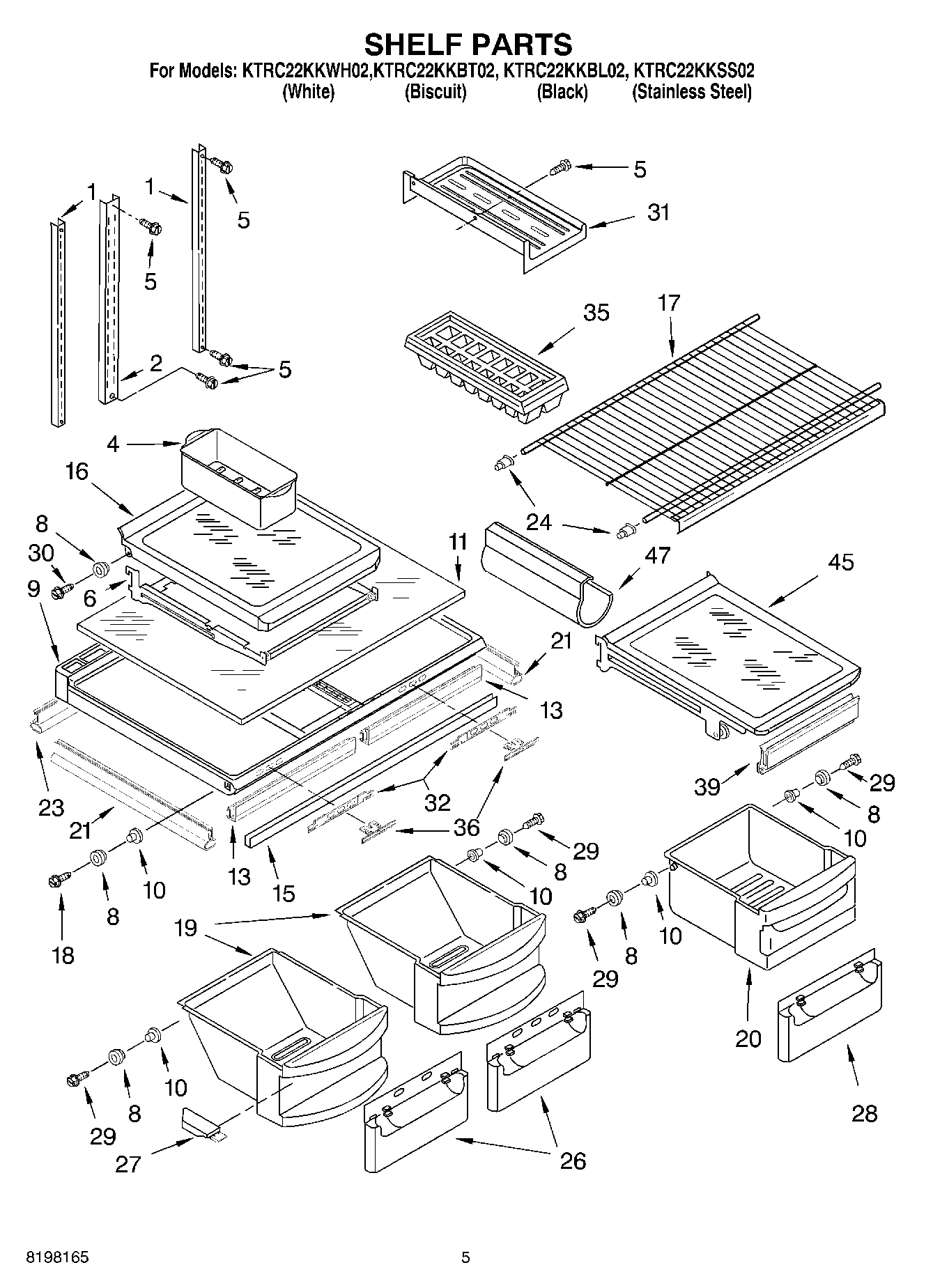

03 - SHELF

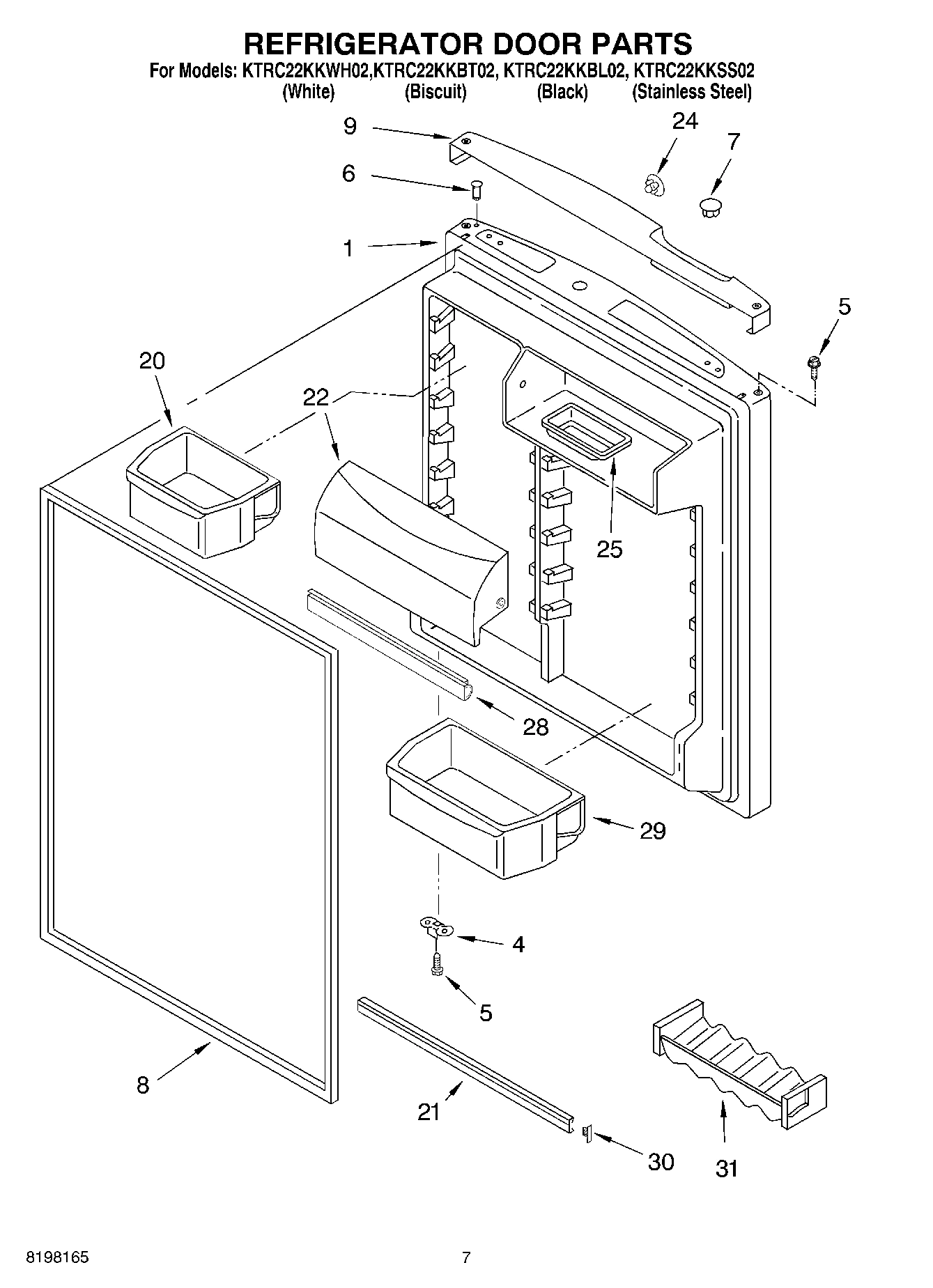

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRC22KKBT02 REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI110077A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205214 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205215 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205217 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2212418 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
5
Thermostat Tube Barrier (Freezer Control) WPL 2212485 Contact Us For Availability
6
Seal, Air Diffuser WPL 2179834 Contact Us For Availability
6
Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
9
Damper, Air (Slide) WPL 2212413 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2210583 Contact Us For Availability
9
Endcap (White) WPL 2213333 Contact Us For Availability
9
Endcap (Biscuit) WPL 2213334 Contact Us For Availability
9
Endcap (Black) WPL 2221628 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
12
Control Box WPL 2213193 Contact Us For Availability
13
Thermostat Assembly WPL 2204984 Contact Us For Availability
14
Wire Assembly, Ground WPL 2187567 Contact Us For Availability
16
Cover, Evaporator WPL 2201180 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
17
Trim, Door WPL 2159292 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Wire Assembly Freezer Compartment WPL 2219652 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188289 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
Torx Key WPL 1117510 Contact Us For Availability
21
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
21
WPL 799832 WPL 799832 Contact Us For Availability
21
WPL 799833 WPL 799833 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Support WPL 2201185 Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
22
Door, Compartment WPL 2218122 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
24
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
24
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
25
Butter, Dish WPL 2165792 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
26
Window, Crisper WPL 2188276 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
27
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
28
Window, Meat Pan WPL 2188278 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability
29
Bracket, Fan Motor WPL 2218696 Contact Us For Availability
30
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Shield, heat WPL 2204639 Contact Us For Availability
31
Shelf, Ice Tray WPL 2212770 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Knob, Damper WPL 2204951 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Control, Freezer WPL 2204991 Contact Us For Availability
38
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
39
Housing Base WPL 2201153 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2221681 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189449 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembl WPL 2179714 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
