Model Whirlpool KTRC22EKSS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

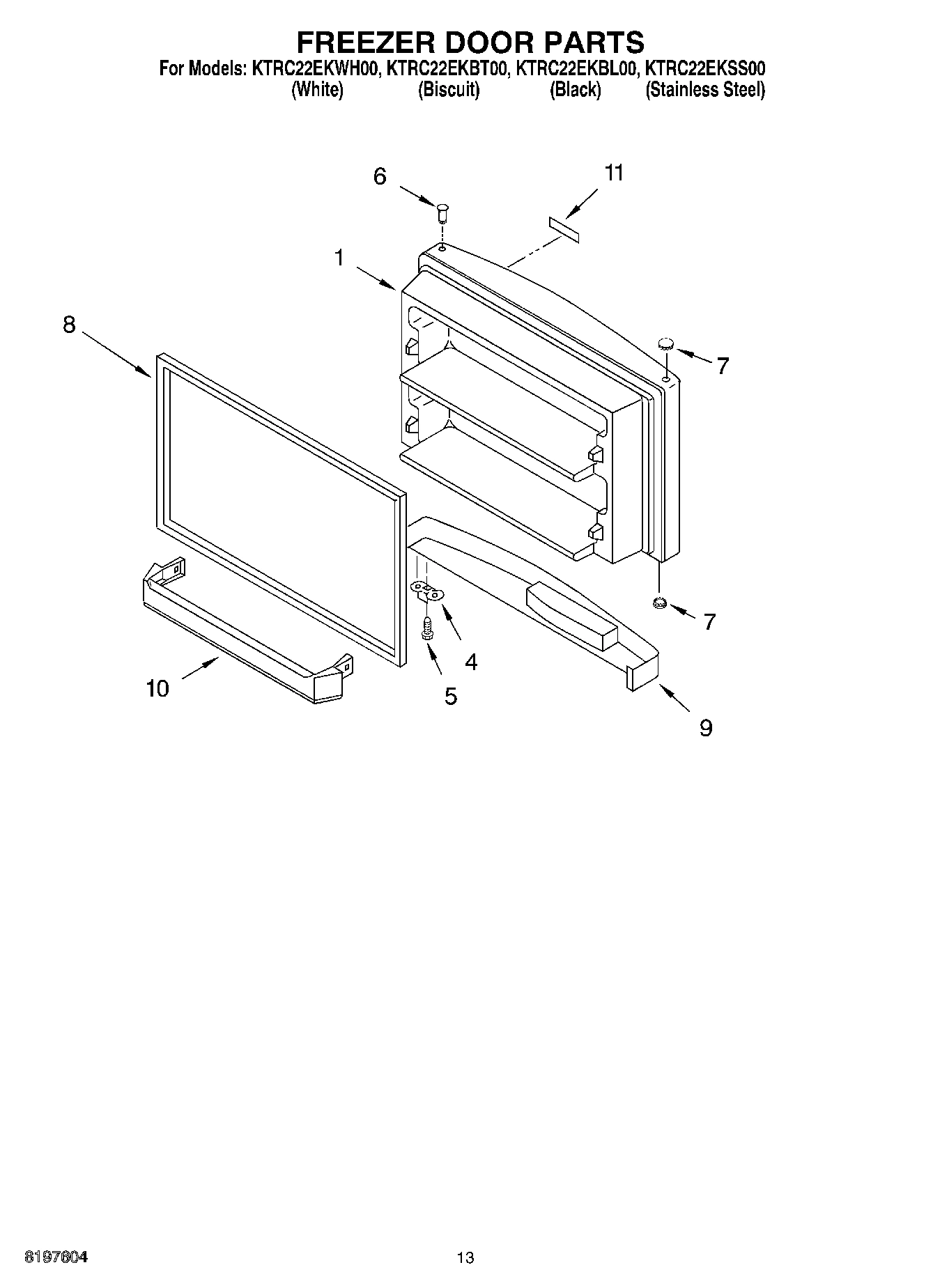

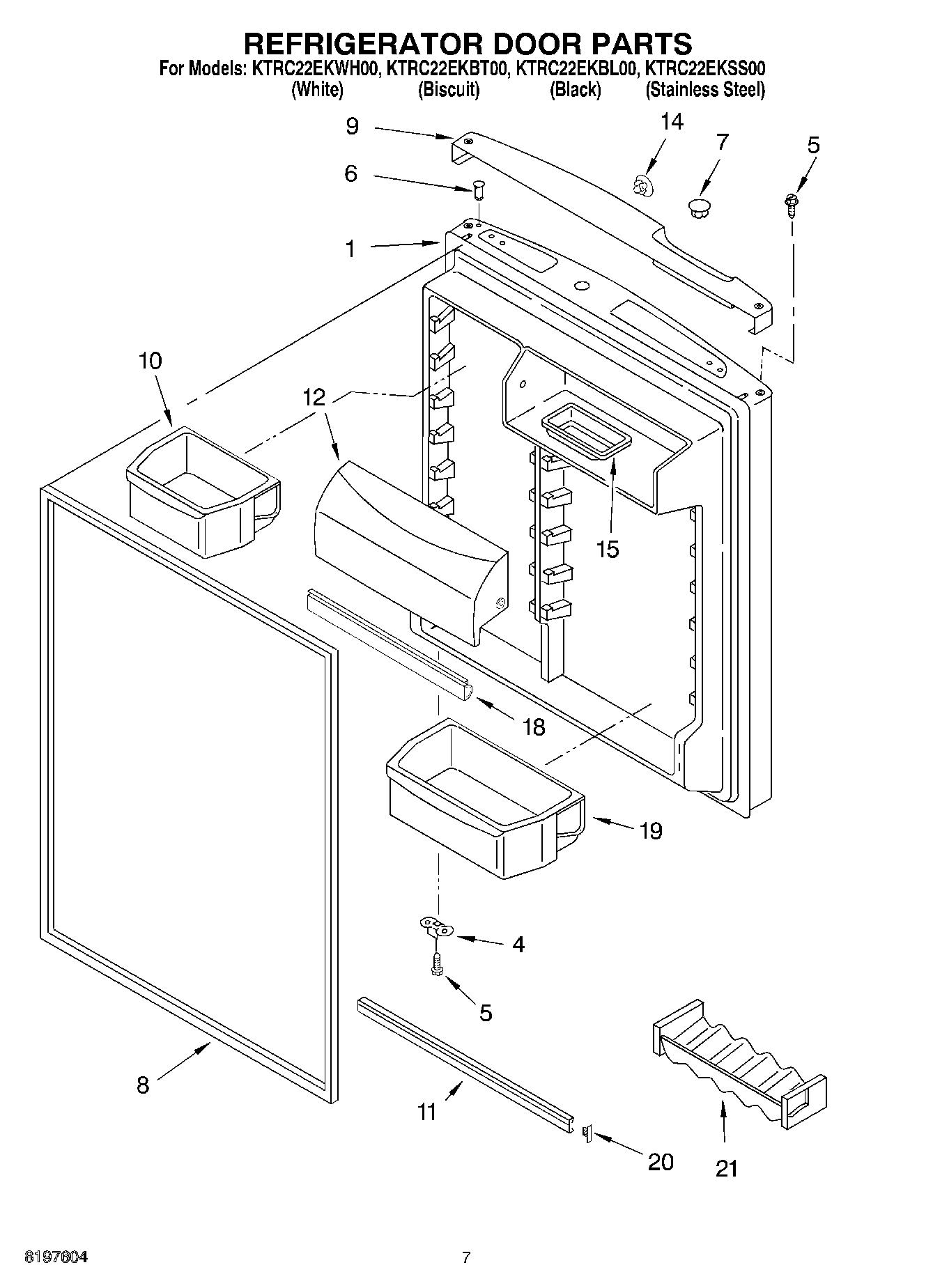

Freezer Door (Includes No.6 & No.8) (Biscuit) WPL 2204854 Contact Us For Availability

1

Freezer Door (Includes No.6 & No.8) (Black) WPL 2204856 Contact Us For Availability

1

Freezer Door (Includes No.6 & No.8) (Stainles WPL 2212419 Contact Us For Availability

1

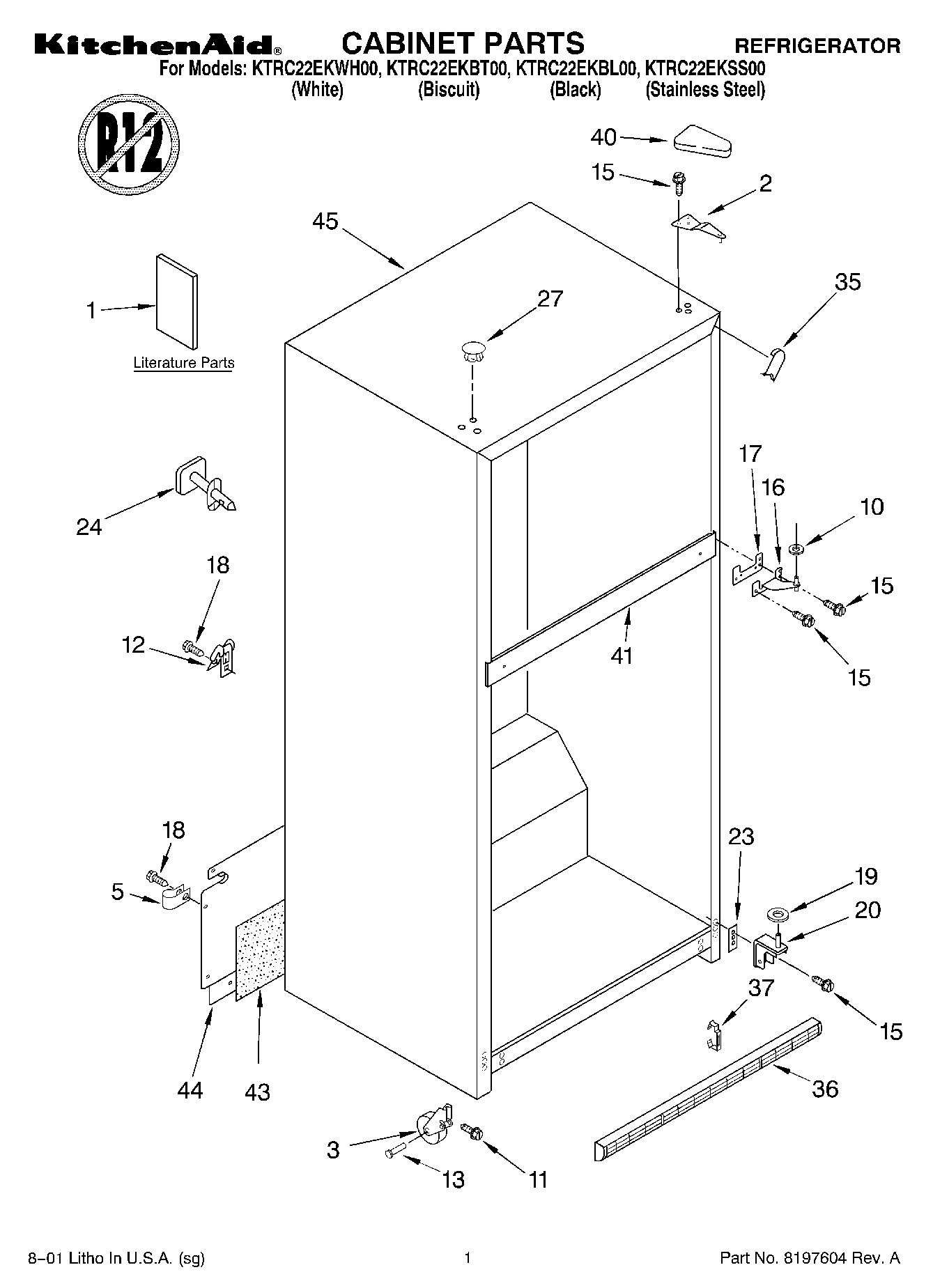

Literature Parts (Use & Care Guide) WPL LIT2212849 Contact Us For Availability

1

Energy Label WPL LIT2212851 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2213207 Contact Us For Availability

1

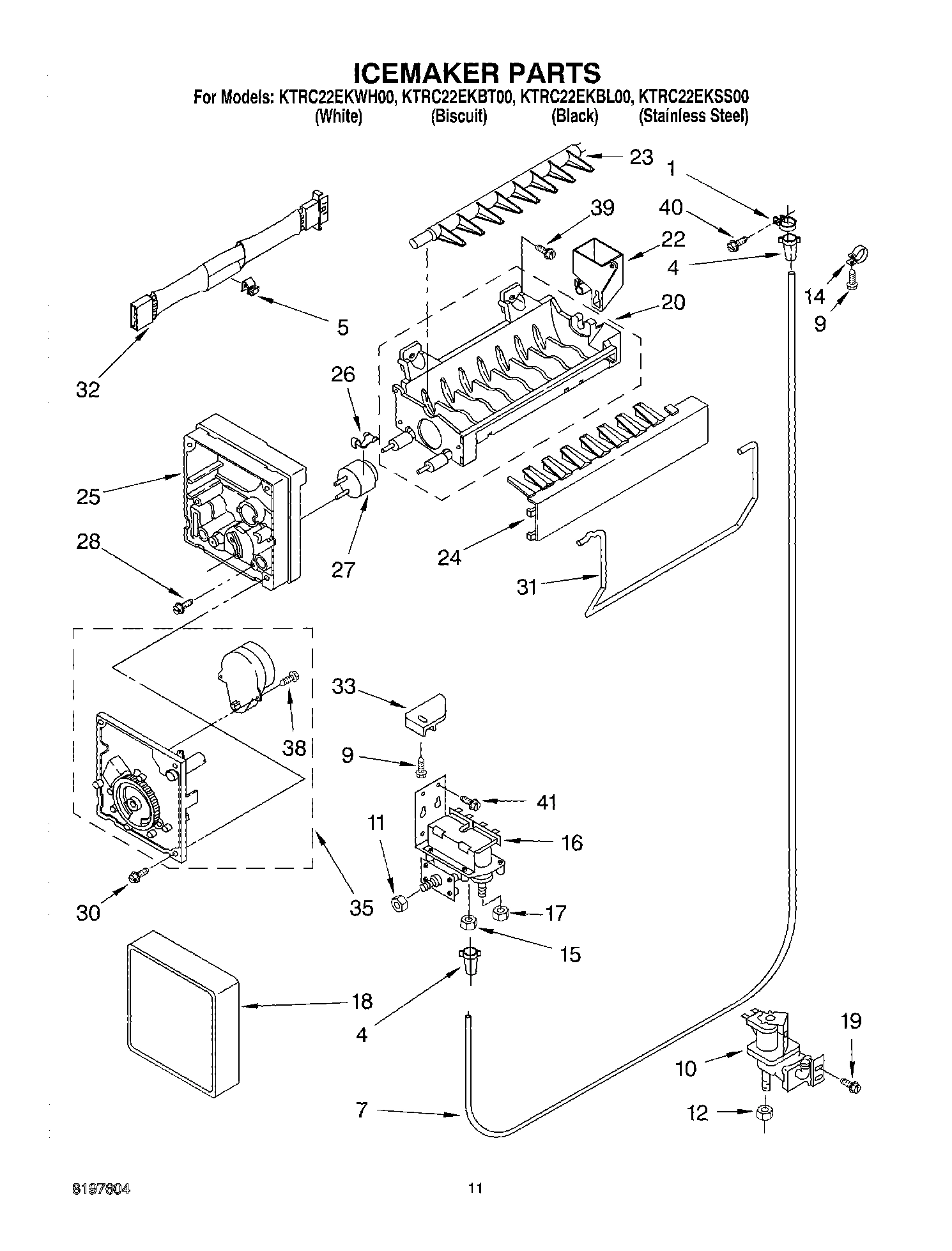

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

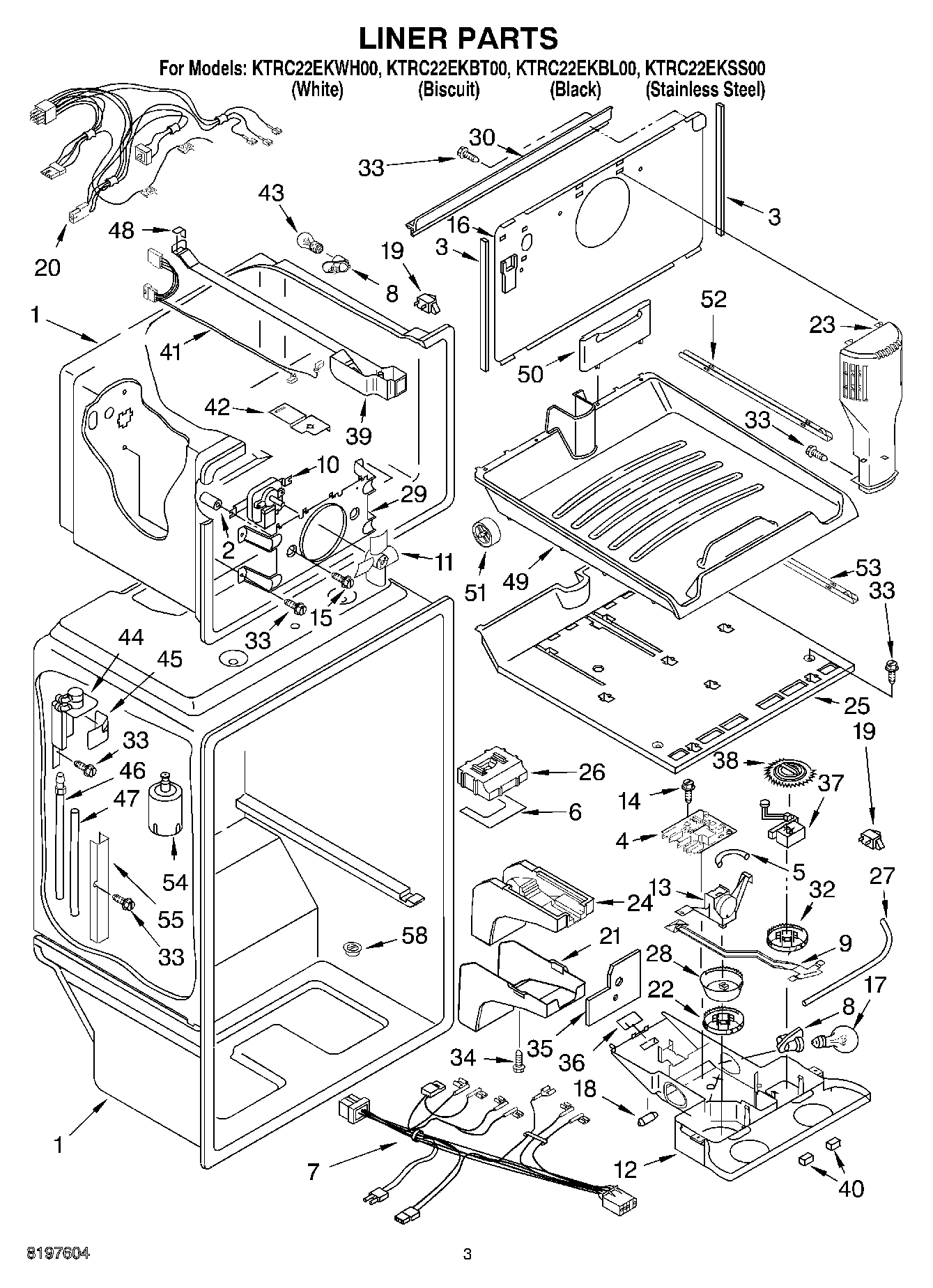

Liner (Not A Serviceable Part) WPL ARI109704A Contact Us For Availability

1

Plate, Unit Mounting WPL 2205340 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

2

Grommet (2) WPL 531933 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

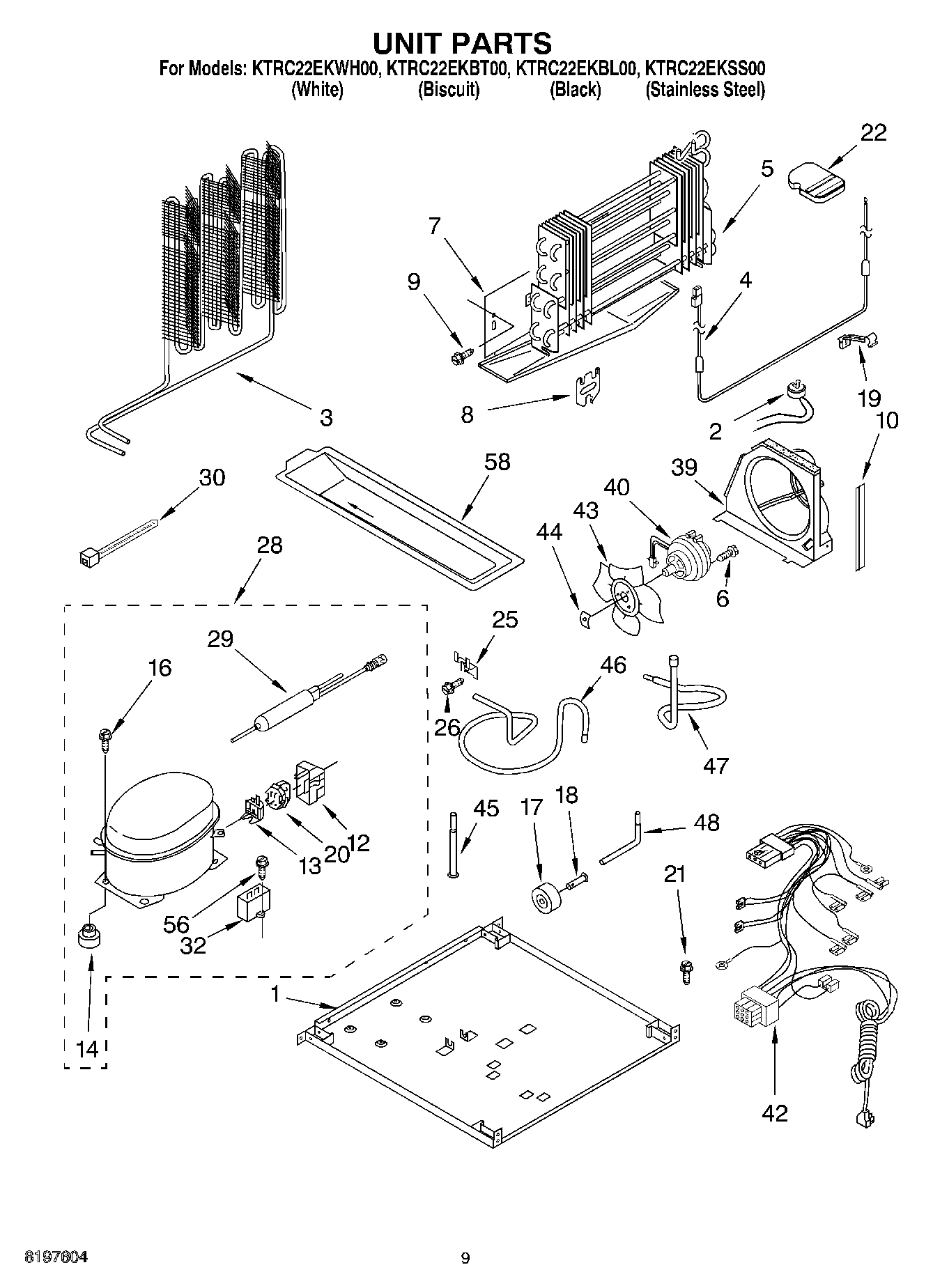

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Seal, Air Diffuser WPL 2179834 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Wire Assy. Control Box WPL 2187351 Contact Us For Availability

7

Drain Pan WPL 2172620 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

End Cap (White) WPL 2213328 Contact Us For Availability

9

End Cap (Biscuit) WPL 2213329 Contact Us For Availability

9

End Cap (Black) WPL 2213331 Contact Us For Availability

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Fan Motor WPL 2183833 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

12

Control Box WPL 2213192 Contact Us For Availability

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $33.47

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Item 5) WPL 2204984 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

14

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

15

Screw WPL 489412 Contact Us For Availability

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Cover, Evaporator WPL 2201180 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

8201769 Whirlpool Refrigerator Compressor Rel In Stock WPL 8201769 $58.17

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

Wire Assembly, Freezer Compartment WPL 2187295 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Fitting, Water Tube (Not Serviced) WPL ARI109701A Contact Us For Availability

25

Freezer Floor WPL 2190589 Contact Us For Availability

25

Clip, Capacitator WPL 2166683 Contact Us For Availability

26

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Bracket, Fan Motor WPL 2200641 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Knob, Damper WPL 2204951 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Shield, heat WPL 2204639 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

Grille (White) WPL 2201006 Contact Us For Availability

Grille (Black) WPL 2201008 Contact Us For Availability

Grille (Biscuit) WPL 2201020 Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

Air Seal, Foam WPL 2205055 Contact Us For Availability

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

41

Rail Center (Not Serviced) WPL ARI109702A Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

42

Wire Assy. Unit WPL 2187359 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

43

Fan, Blade WPL 2190685 Contact Us For Availability

43

Insulation WPL 2200778 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2210542 Contact Us For Availability

44

Bracket Assembly, Water Filter WPL 2210510 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI109703A Contact Us For Availability

45

Cover, Filter WPL 2210504 Contact Us For Availability

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

46

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $34.18

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

47

Tube, Filter Inlet WPL 2210518 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2189449 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

Roller, Slide WPL 2176246 Contact Us For Availability

52

Side Support, Floor Assembly WPL 2179713 Contact Us For Availability

53

Center Support, Floor Assembly WPL 2179714 Contact Us For Availability

54

WPL 2213384 WPL 2213384 Contact Us For Availability

55

WPL 2210521 WPL 2210521 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Tray, Evaporator WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
