Model Whirlpool KTRC19MMSS02 REFRIGERATOR – Common Parts & Diagrams

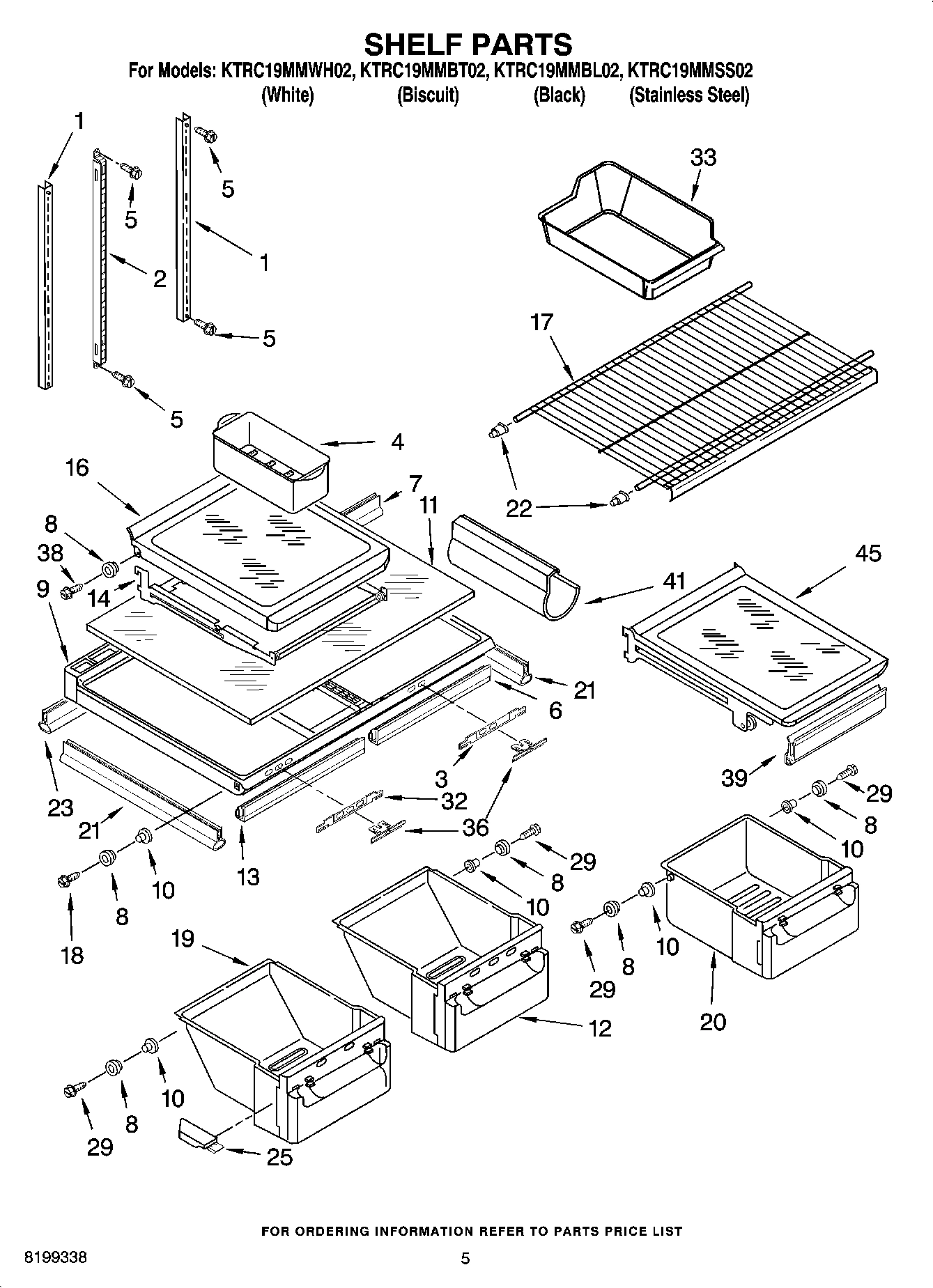

03 - SHELF PARTS

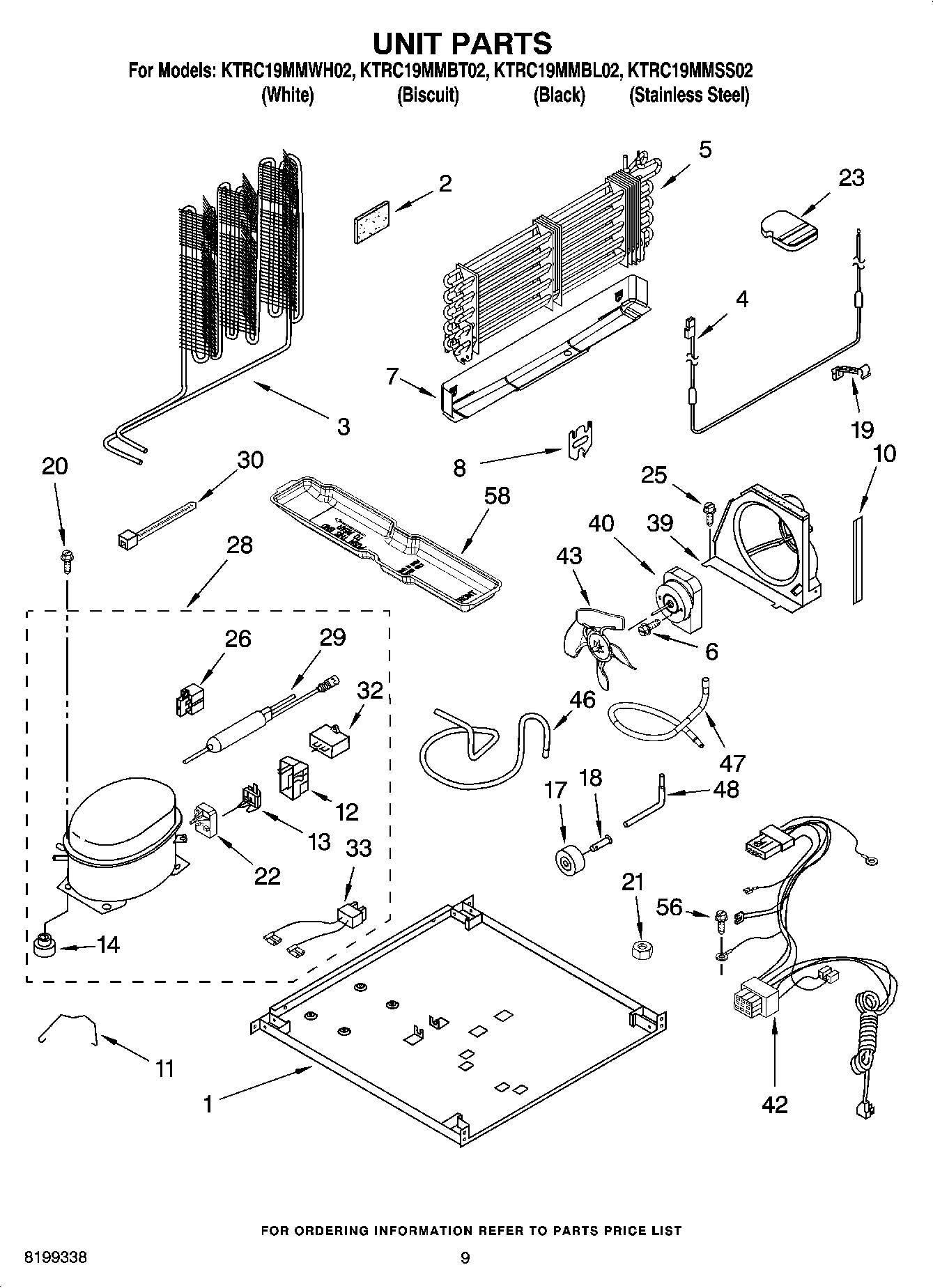

05 - UNIT PARTS
07 - FREEZER DOOR PARTS, OPTIONAL PARTS
01 - CABINET PARTS
04 - REFRIGERATOR DOOR PARTS
02 - LINER PARTS
06 - ICEMAKER PARTS
Common parts from model Whirlpool KTRC19MMSS02 REFRIGERATOR
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
WPL 876029 WPL 876029 Contact Us For Availability
WPL 833938 WPL 833938 Contact Us For Availability
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
Bag, Insulation (36-5/8`` x 4 WPL 606755 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
WPL ARI109610A WPL ARI109610A Contact Us For Availability
WPL ARI109611A WPL ARI109611A Contact Us For Availability
WPL ARI109612A WPL ARI109612A Contact Us For Availability
WPL ARI109613A WPL ARI109613A Contact Us For Availability
WPL ARI109614A WPL ARI109614A Contact Us For Availability
1
Freezer Door (Includes Illus. 6 & 8) (White) WPL 2205399 Contact Us For Availability
1
Freezer Door (Includes Illus. 6 & 8) (Biscuit WPL 2205400 Contact Us For Availability
1
Freezer Door (Includes Illus. 6 & 8) (Black) WPL 2205402 Contact Us For Availability
1
Freezer Door (Includes Illus. 6 & 8) (Stainle WPL 2212495 Contact Us For Availability
1
Use & Care Guide WPL 2225409 Contact Us For Availability
1
Customer Quick Tips WPL 2225415 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability
1
Service & Wiring Sheet WPL 2225759 Contact Us For Availability
1
Energy Label WPL 2302198 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 8) (Wh WPL 2205403 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 8) (Bi WPL 2205404 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 8) (Bl WPL 2205406 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 6 & 8) (St WPL 2212494 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI109606A Contact Us For Availability
2
Clip, Icemaker WPL 2204881 Contact Us For Availability
3
Clip, Water Valve WPL 2210495 Contact Us For Availability
3
Handle, Endcap (White) WPL 2205459 Contact Us For Availability
3
Handle, Endcap (Biscuit) WPL 2205460 Contact Us For Availability
3
Handle, Endcap (Black) WPL 2221632 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
4
CLIP, GRILLE WPL 2254385 Contact Us For Availability
4
Defrost Timer WPL 2188376 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
12
CLAMP, CORD WPL 549193 Contact Us For Availability
12
Control Box WPL 2213195 Contact Us For Availability
13
Thermostat Assembly WPL 2302286 Contact Us For Availability
13
Butter, Dish WPL 2165792 Contact Us For Availability
14
Handle, Endcap (White) WPL 2205463 Contact Us For Availability
14
Handle, Endcap (Biscuit) WPL 2205464 Contact Us For Availability
14
Handle, Endcap (Black) WPL 2221636 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
16
Cover-Evaporator WPL 2254257 Contact Us For Availability
17
Trim, Door (2) WPL 2159291 Contact Us For Availability
18
Nameplate (White) WPL 2212760 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
18
Max-Ice Assembly WPL 2301810 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Wire Assembly, Freezer Compartment (Includes WPL 2187990 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Cup, Shelf Mtg. WPL 2163762 Contact Us For Availability
22
Door Compartment (Includes Illus. 26) WPL 2218122 Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
24
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
24
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
24
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI109603A Contact Us For Availability
25
Retainer, Freezer Floor WPL 2225473 Contact Us For Availability
26
Air Separator Assembly WPL 2210390 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
29
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
34
Air Damper WPL 2212413 Contact Us For Availability
35
Shield, heat WPL 2204639 Contact Us For Availability
36
Grille (Includes Illus 4 & 37) (Black) WPL 2254388 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
SCREW 3-24 X 23/64 WPL 489136 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
39
Housing Base WPL 2300417 Contact Us For Availability
40
Cover-Hinge (Biscuit) WPL 2213364 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI109604A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability
42
Wire Assy. Unit WPL 2187382 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
44
Cover, Unit WPL 2221775 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI109605A Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
47
Barrier, Freezer Control WPL 2212485 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2225477 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
52
Hole Plug, Control Box WPL 940014 Contact Us For Availability
57
BRACKET EVAP. FAN, REAR WPL 2254454 Contact Us For Availability
58
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
58
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
58
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
× ![]()
