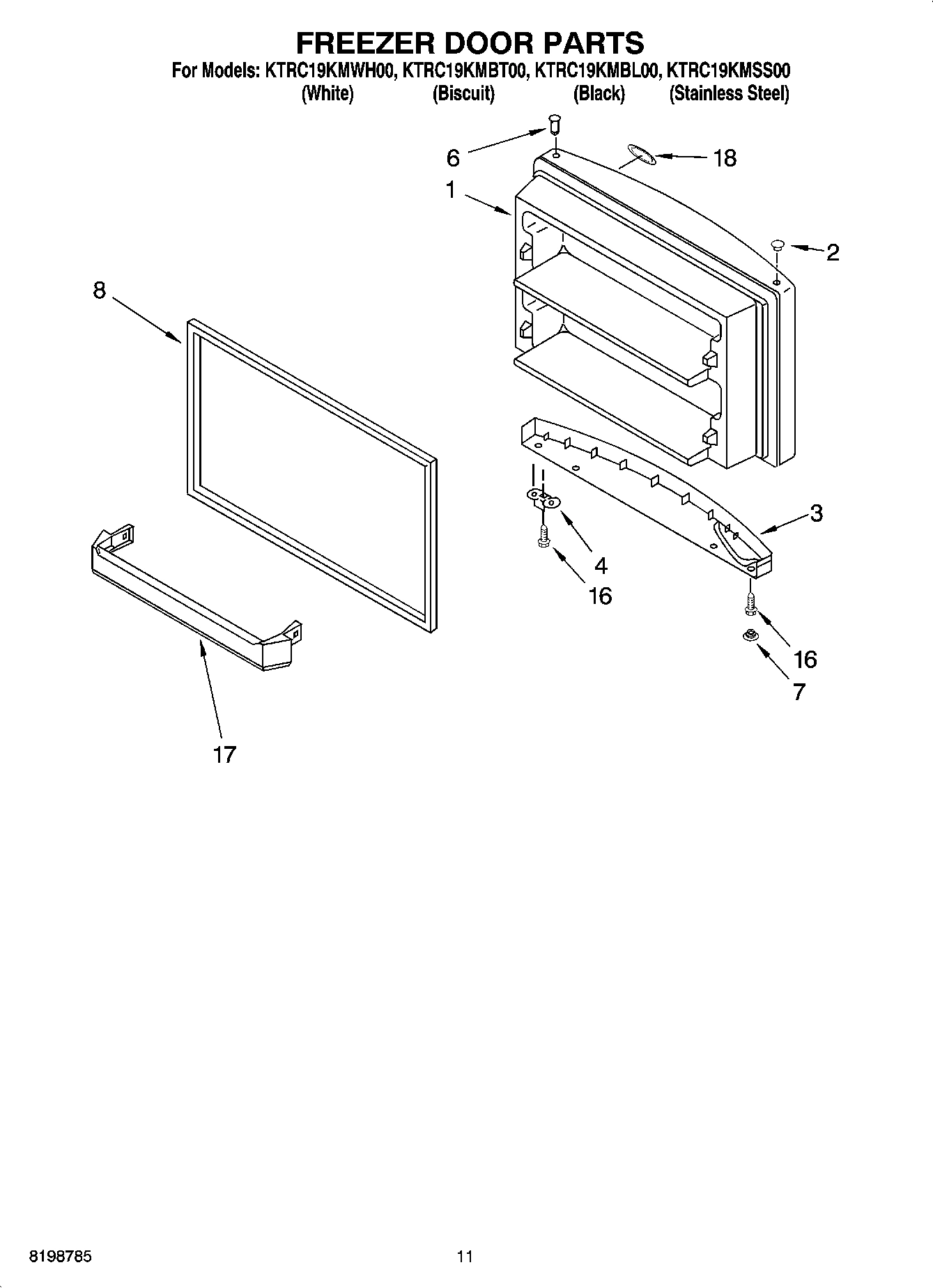

Model Whirlpool KTRC19KMBT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225597 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI109269A Contact Us For Availability

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $17.06

2

Shelf, Ladder Center WPL 2202821 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

Condenser WPL 2214960 Contact Us For Availability

3

Slide, Humidity WPL 2174256 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $66.44

4

Defrost Timer WPL 2188376 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

6

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254294 Contact Us For Availability

7

Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability

7

Wire Assy. Control Box WPL 2187306 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

Bracket, Heater WPL 2176301 Contact Us For Availability

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

9

Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

Grommet WPL 531933 Contact Us For Availability

Glass, Crisper Cover WPL 2221694 Contact Us For Availability

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

12

Pan, Crisper (Includes Rollers) WPL 2188285 Contact Us For Availability

12

Control Box WPL 2213195 Contact Us For Availability

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $53.11

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2204984 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Strap, Compressor WPL 2212997 Contact Us For Availability

16

Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability

16

Cover-Evaporator WPL 2254257 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

Clip, Heater WPL 2182338 Contact Us For Availability

19

Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability

20

Pan, Meat (Includes Rollers) WPL 2188290 Contact Us For Availability

20

Wire Assembly, Freezer Compartment WPL 2187686 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Nut (Not Serviced) WPL ARI109270A Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

22

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

22

8201647 Whirlpool Refrigerator Start Device Backorder WPL 8201647 $71.60

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

Shim WPL 2172743 Contact Us For Availability

Support Block WPL 2201184 Contact Us For Availability

Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability

24

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Window, Crisper Pan WPL 2188271 Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

Window, Crisper Pan WPL 2188276 Contact Us For Availability

26

Air Diffuser, Top WPL 2179877 Contact Us For Availability

27

Bin, Door WPL 2171062 Contact Us For Availability

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $32.89

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

30

Shelf, Ice Tray WPL 2212770 Contact Us For Availability

31

Plate, Mounting WPL 2210750 Contact Us For Availability

31

Window, Meat Pan WPL 2188277 Contact Us For Availability

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

33

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

34

Air Damper WPL 2212413 Contact Us For Availability

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Shield, heat WPL 2204639 Contact Us For Availability

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $33.18

Grille (Black) WPL 2254388 Contact Us For Availability

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $27.52

37

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

38

Screw WPL 489439 Contact Us For Availability

38

Knob, Damper WPL 2204951 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

39

Gasket, Front WPL 2174394 Contact Us For Availability

39

Housing Base WPL 2201152 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Rail Center (Not Serviced) WPL ARI109267A Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $115.98

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.28

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2221775 Contact Us For Availability

44

Control, Freezer WPL 2204991 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI109268A Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability

45

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $30.25

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $35.89

47

Barrier, Freezer Control WPL 2212485 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225477 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI109271A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI109272A Contact Us For Availability
