Model Whirlpool KTRC19KKSS00 REFRIGERATOR – Common Parts & Diagrams
05 - UNIT
02 - LINER

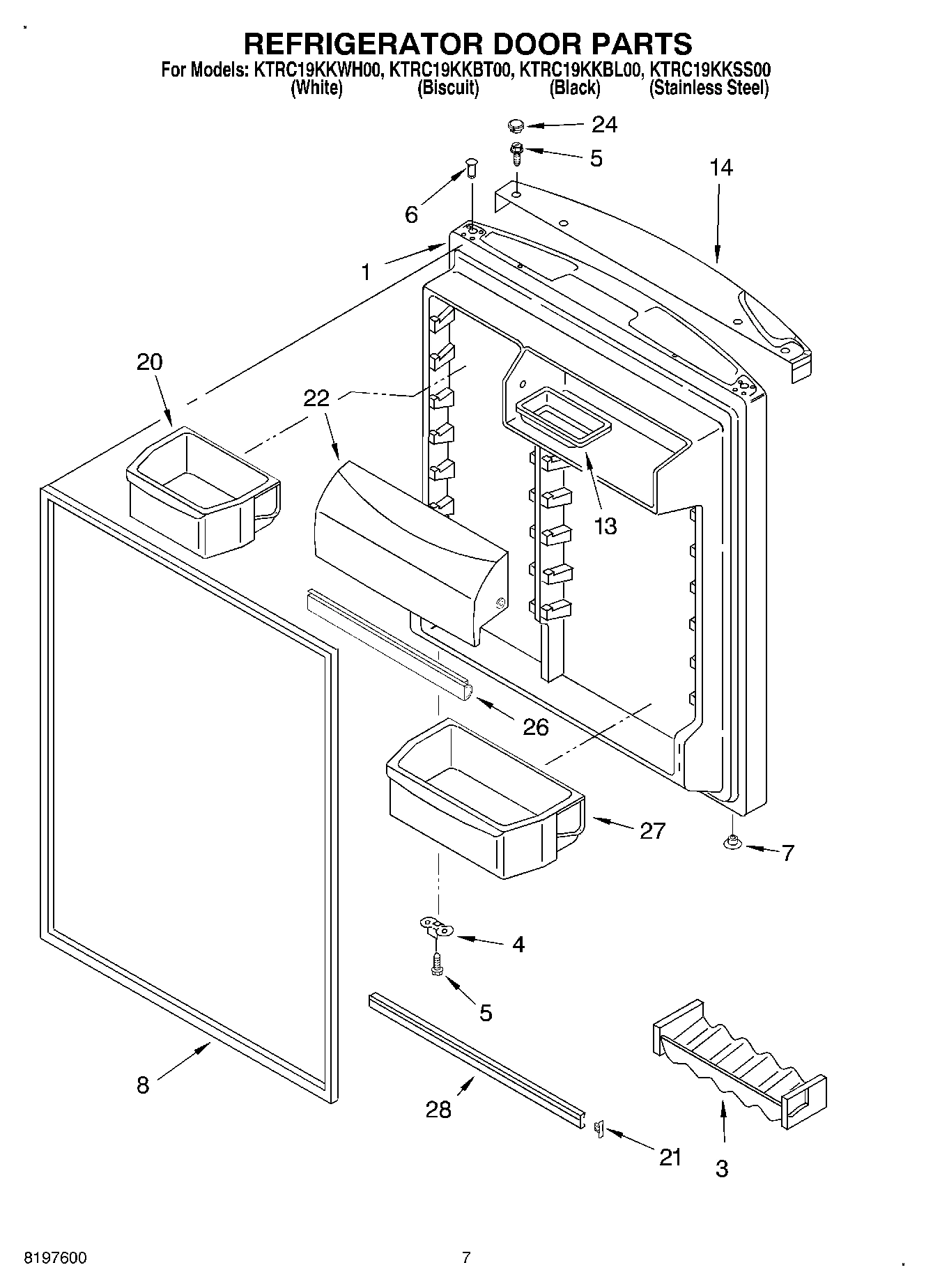

04 - REFRIGERATOR DOOR

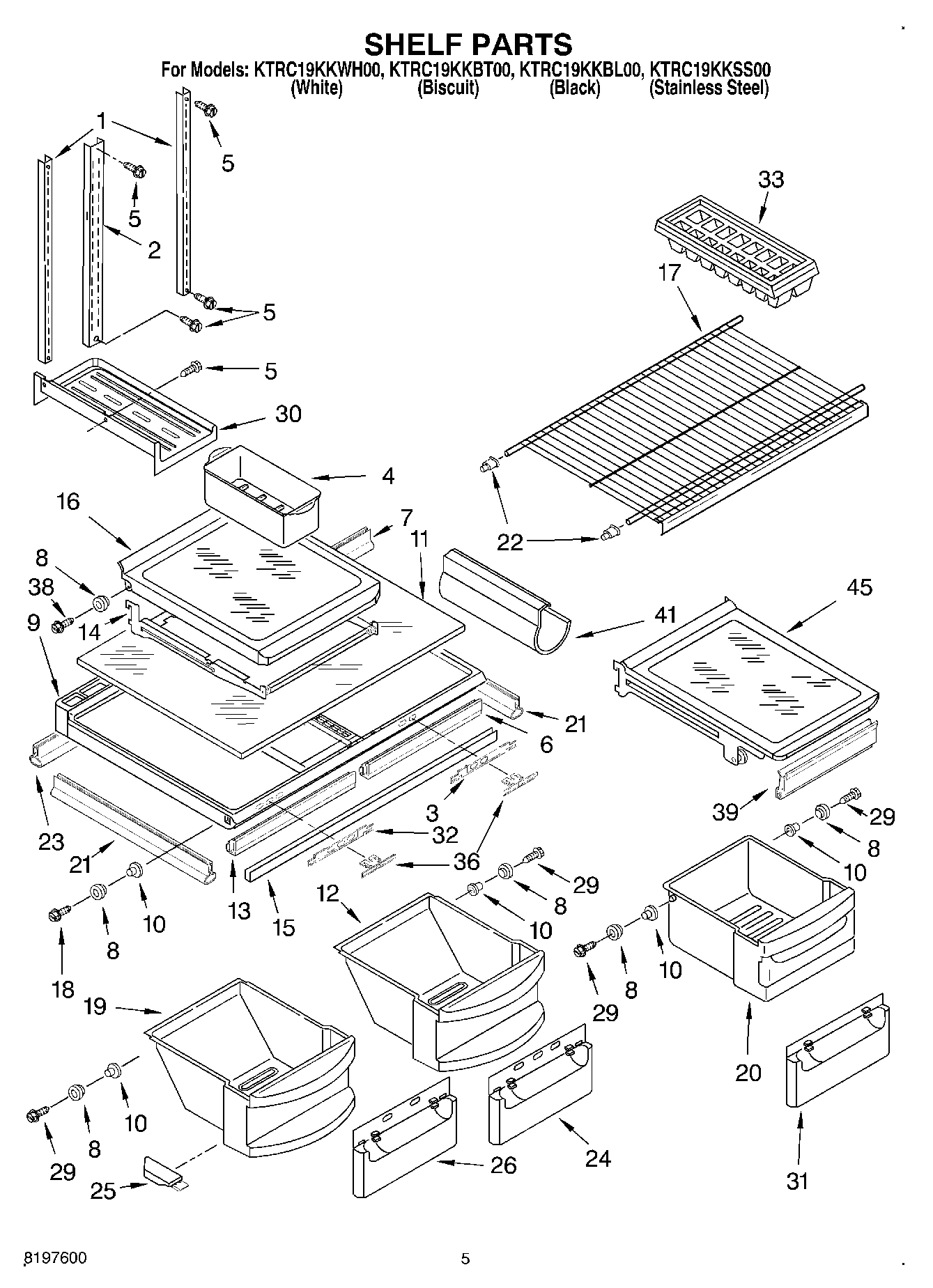

03 - SHELF

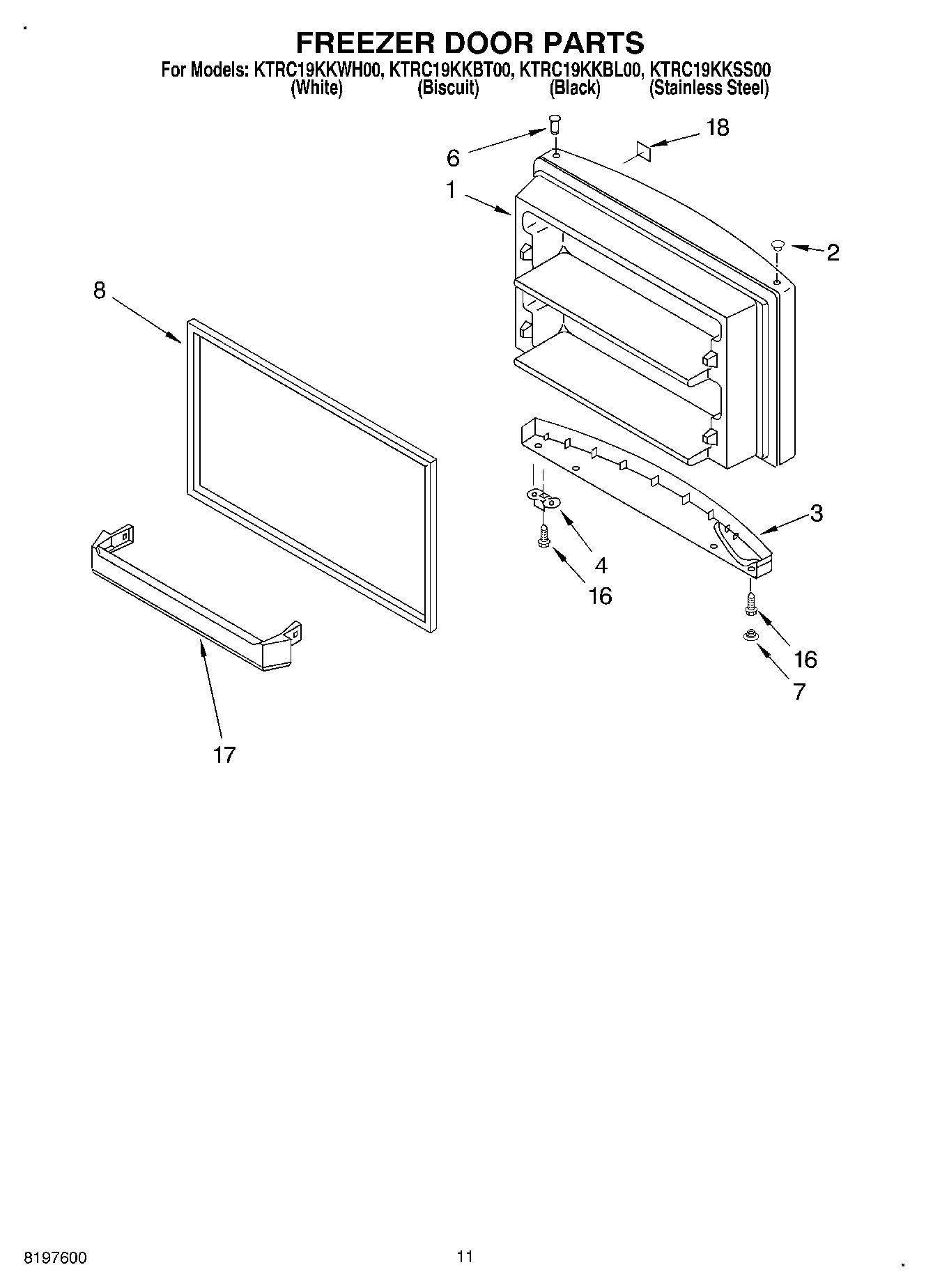

06 - FREEZER DOOR, OPTIONAL

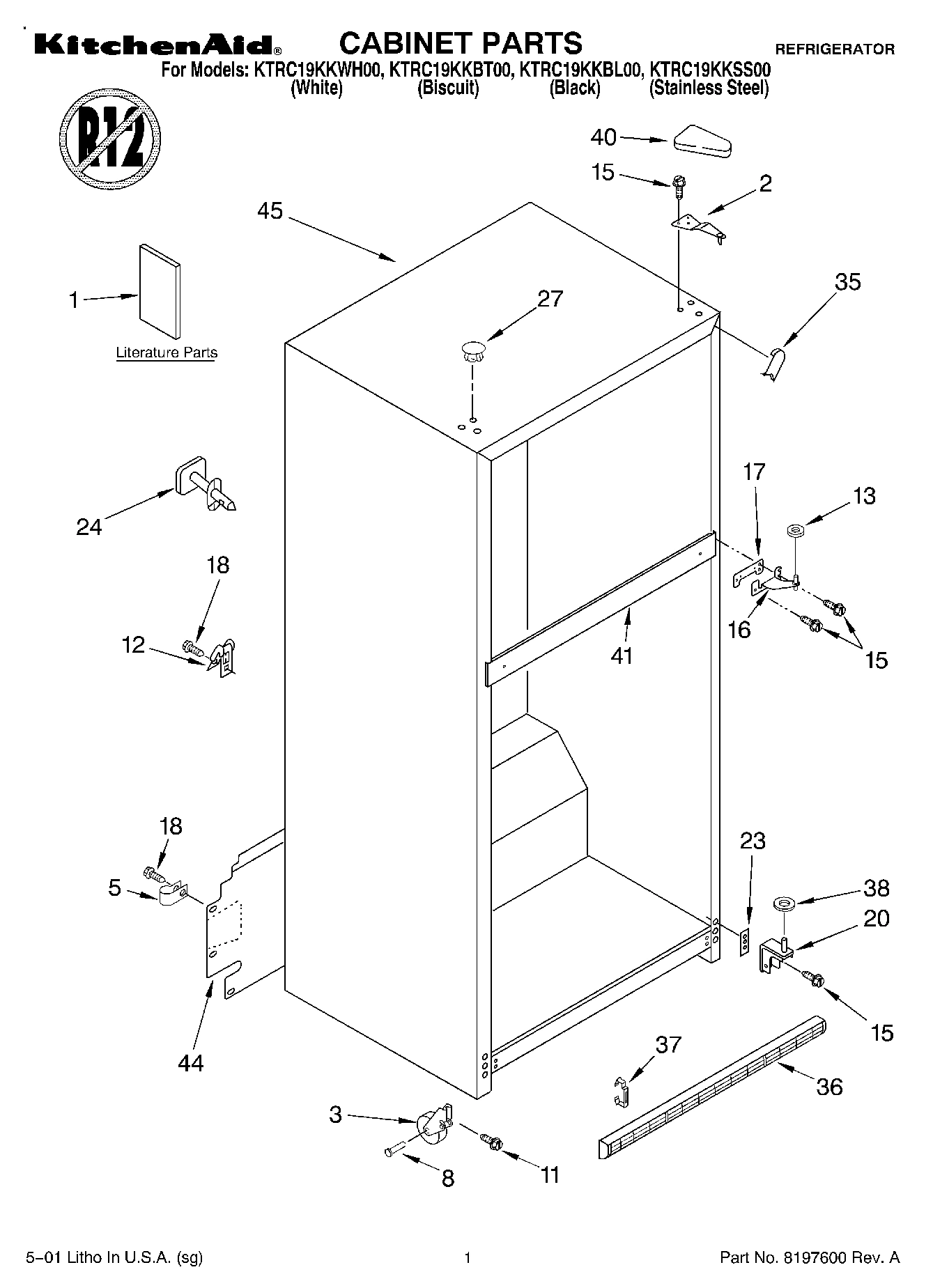

01 - CABINET, LITERATURE
Common parts from model Whirlpool KTRC19KKSS00 REFRIGERATOR
1
Refrigerator Door (Stainless Steel (Includes WPL 2212494 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Freezer Door (White) WPL 2205399 Contact Us For Availability
1
Freezer Door (Biscuit) WPL 2205400 Contact Us For Availability
1
Freezer Door (Black) WPL 2205402 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Stainles WPL 2212495 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2212447 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2213196 Contact Us For Availability
1
Energy Label WPL LIT2218071 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Handle (White) WPL 2205459 Contact Us For Availability
3
Handle (Biscuit) WPL 2205460 Contact Us For Availability
3
Handle (Black) WPL 2205462 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
7
Hole Plug (White) WPL 2204837 Contact Us For Availability
7
Hole Plug (Biscuit) WPL 2204838 Contact Us For Availability
7
Hole Plug (Black) WPL 2204840 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2188285 Contact Us For Availability
13
Tray, Butter WPL 2165792 Contact Us For Availability
14
Handle (White) WPL 2205463 Contact Us For Availability
14
Handle (Biscuit) WPL 2205464 Contact Us For Availability
14
Handle (Black) WPL 2205466 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
17
Trim, Door (2) WPL 2159291 Contact Us For Availability
18
WPL 876029 WPL 876029 Contact Us For Availability
18
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
18
Torx Key WPL 1117510 Contact Us For Availability
18
Nameplate (White) WPL 2212760 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
18
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
18
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
18
WPL 799340 WPL 799340 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 799833 WPL 799833 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188290 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Window, Crisper Pan WPL 2188271 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI109155A Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
26
Window, Crisper Pan WPL 2188276 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
30
Shelf, Ice Tray WPL 2212770 Contact Us For Availability
31
Window, Meat Pan WPL 2188277 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI109156A Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2202883 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
