Model Whirlpool KTRC19ELWH01 REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
02 - LINER
04 - REFRIGERATOR DOOR

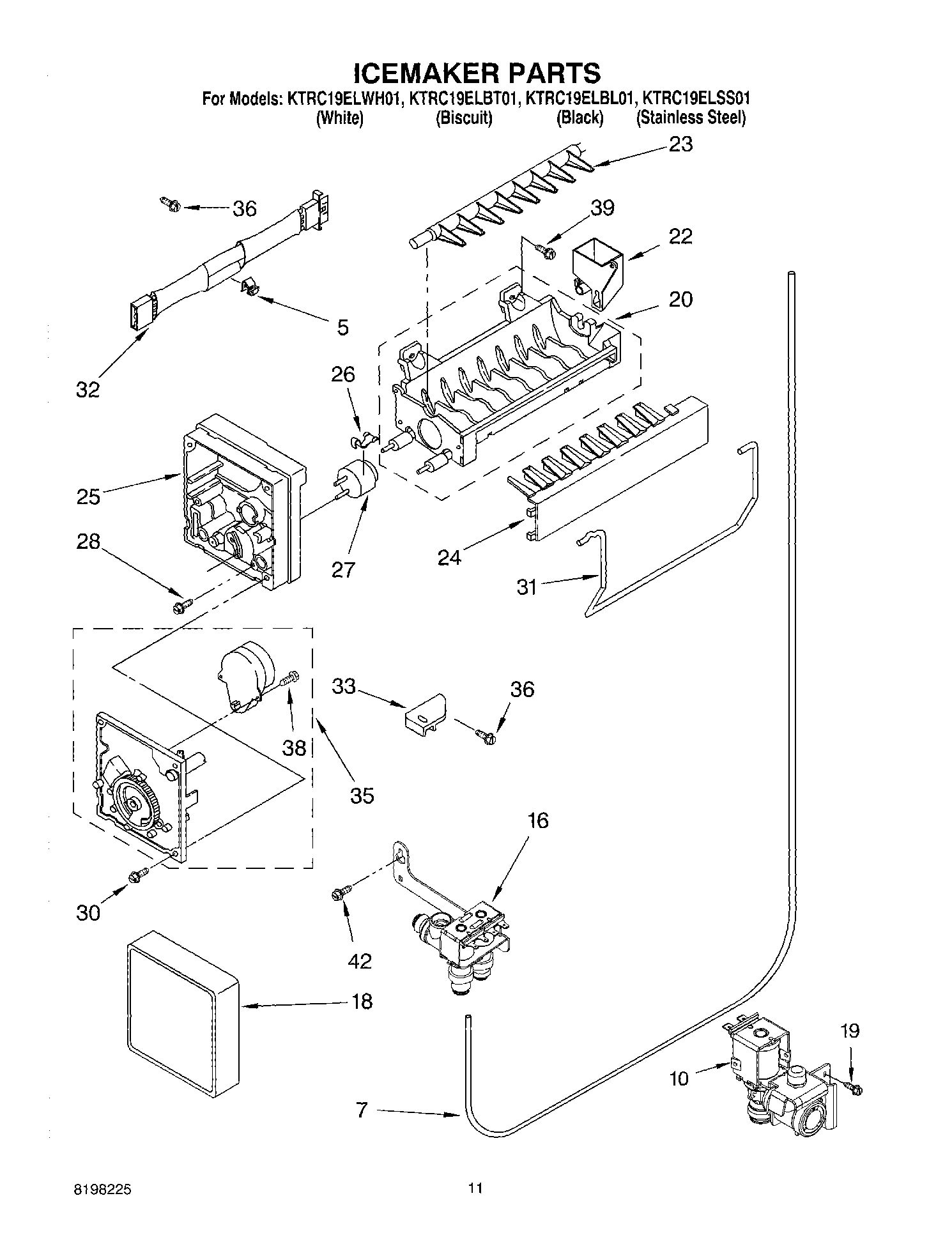

06 - ICE MAKER

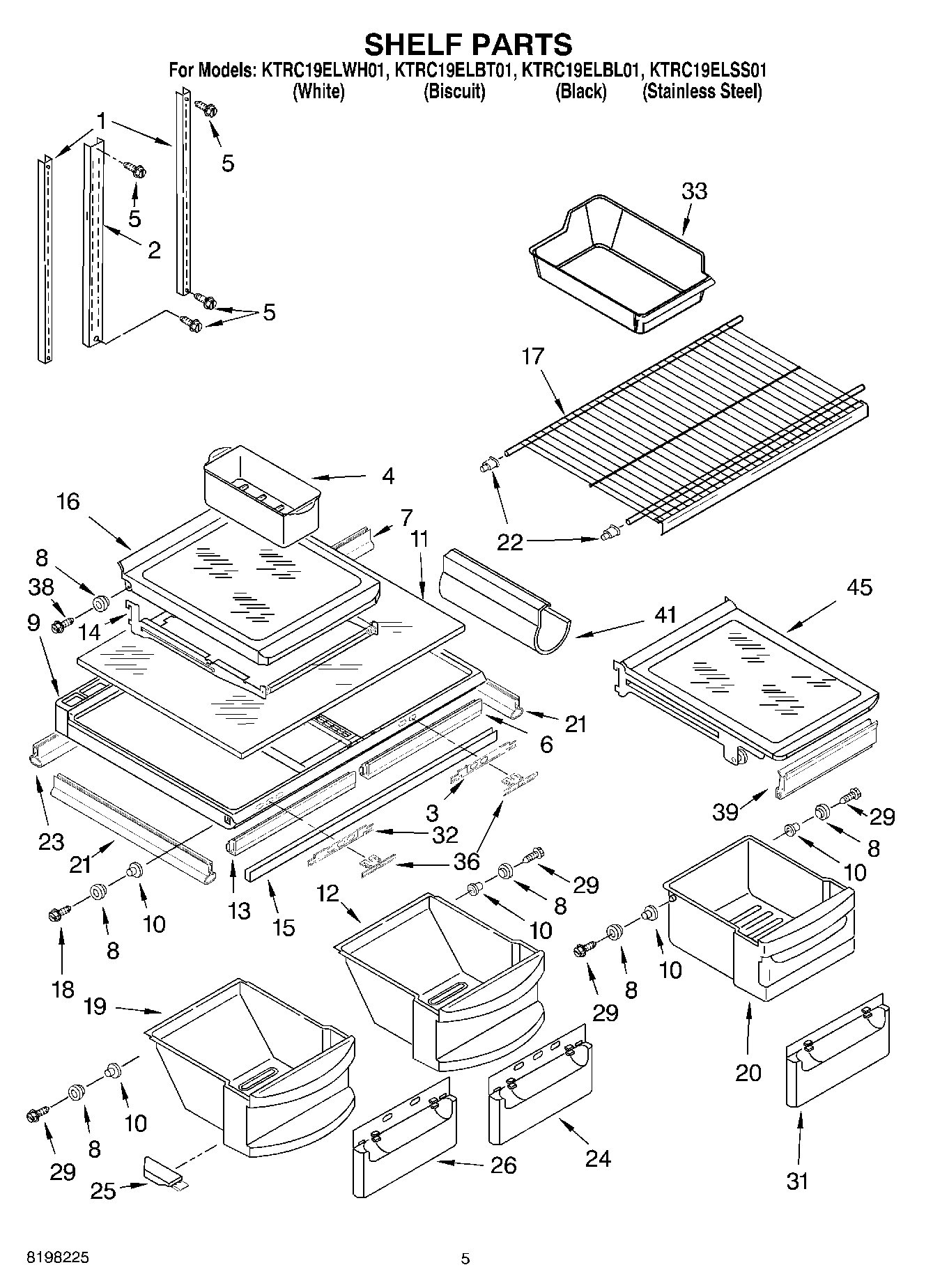

03 - SHELF

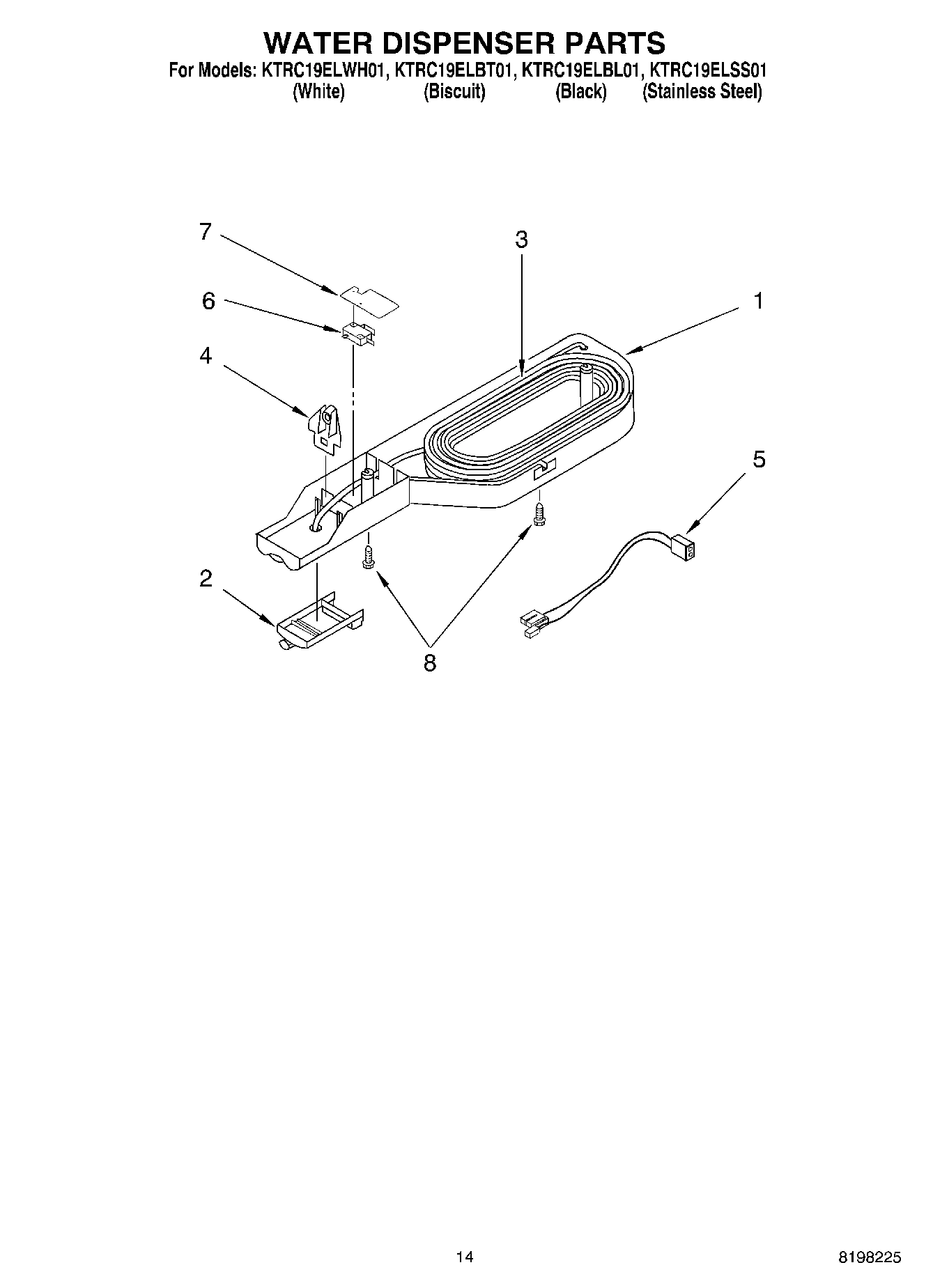

08 - WATER DISPENSER, OPTIONAL

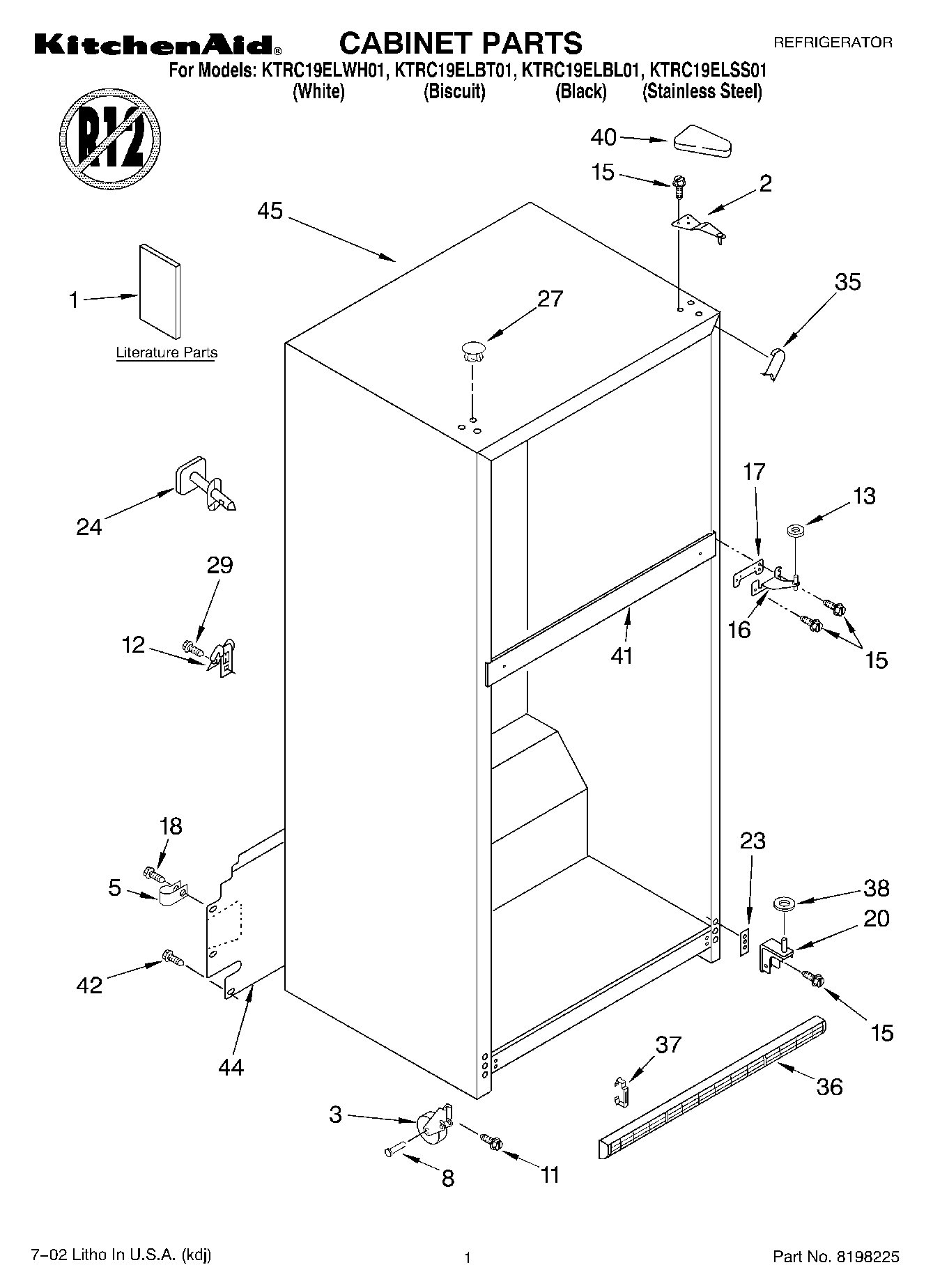

01 - CABINET, LITERATURE

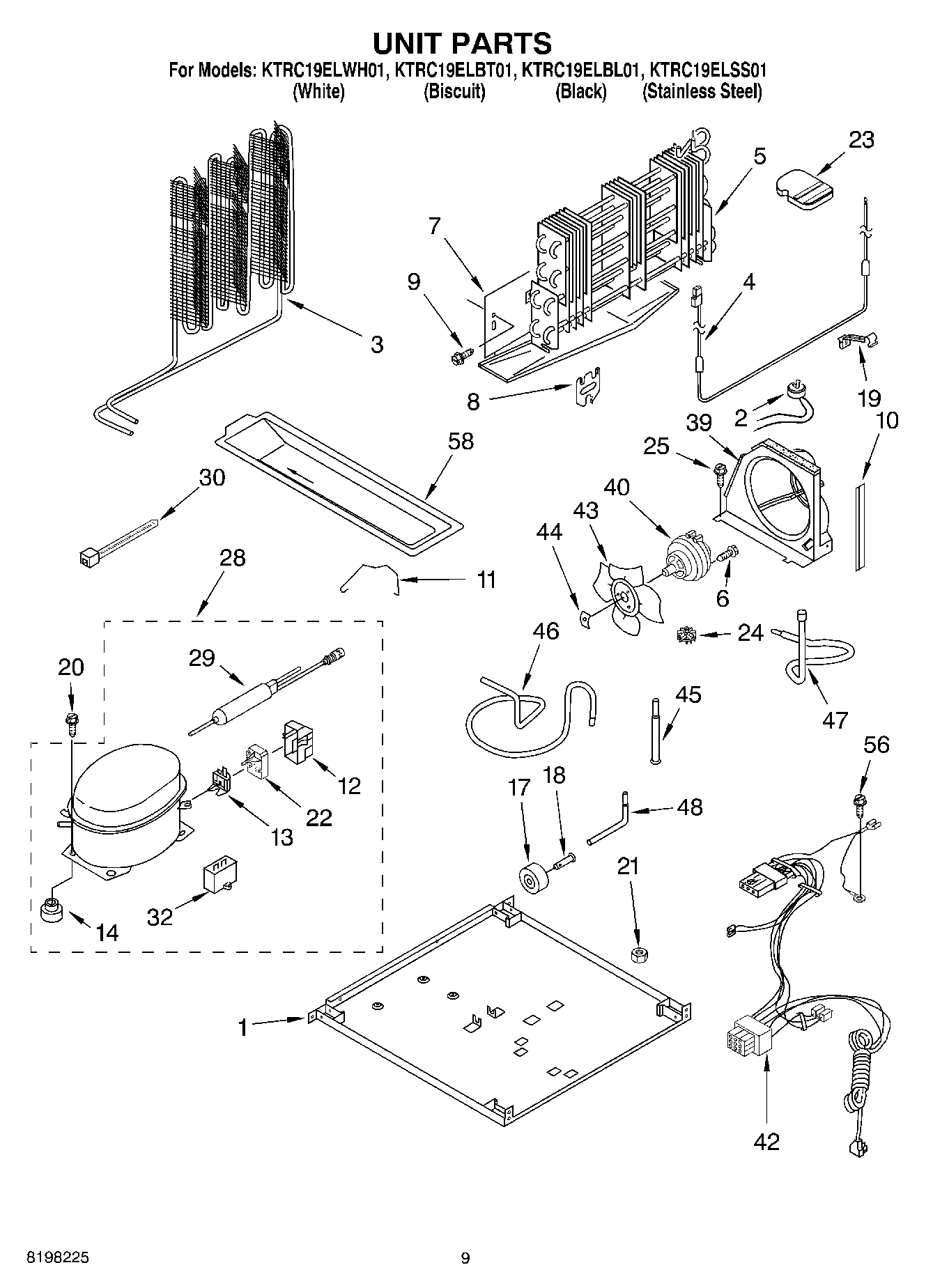

05 - UNIT
Common parts from model Whirlpool KTRC19ELWH01 REFRIGERATOR
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Housing, Dispenser WPL 2219617 Contact Us For Availability
1
Literature Parts (Instruction Sheet, Water Fi WPL LIT2210486 Contact Us For Availability
1
Literature Parts (Customer Quick Tips) WPL LIT2218345 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2218589 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2218879 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2225025 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
2
Button, Dispenser WPL 2210567 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Reservoir, Tube WPL 2210513 Contact Us For Availability
4
Flange, Tube WPL 2210523 Contact Us For Availability
5
Wire Assembly WPL 2187291 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Shield, Switch WPL 2210547 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
8
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Torx Key WPL 1117510 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
8
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
8
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2221694 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2188285 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188290 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI109090A Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Window, Crisper Pan WPL 2188271 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI109086A Contact Us For Availability
24
Grommet WPL 531933 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
26
Window, Crisper Pan WPL 2188276 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
30
Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability
31
Window, Meat Pan WPL 2188277 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI109087A Contact Us For Availability
42
Wire Assembly Unit WPL 2187385 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2221775 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI109088A Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
46
Tube, Discharge WPL 2205384 Contact Us For Availability
47
Tube, Suction WPL 2225237 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
