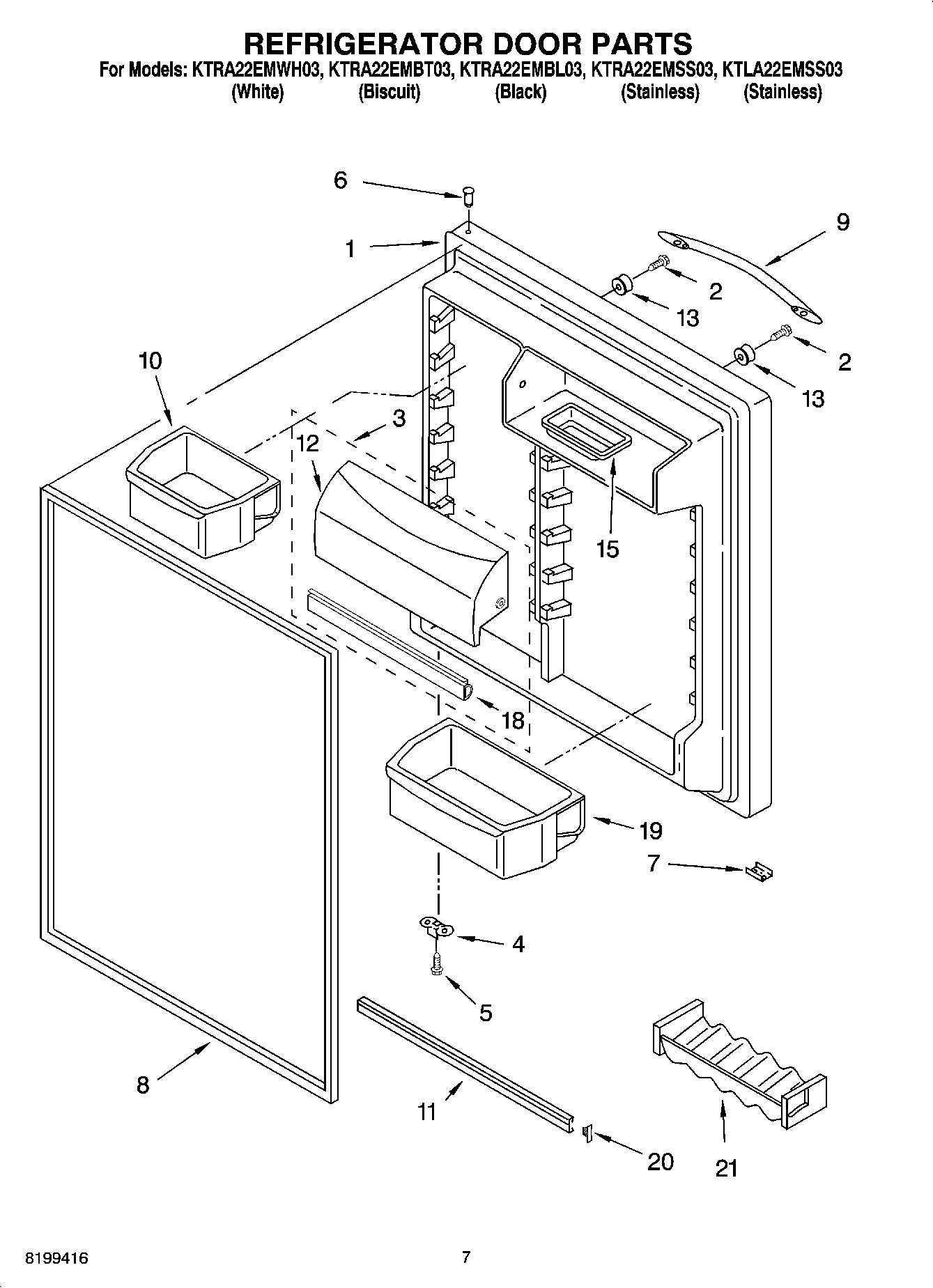

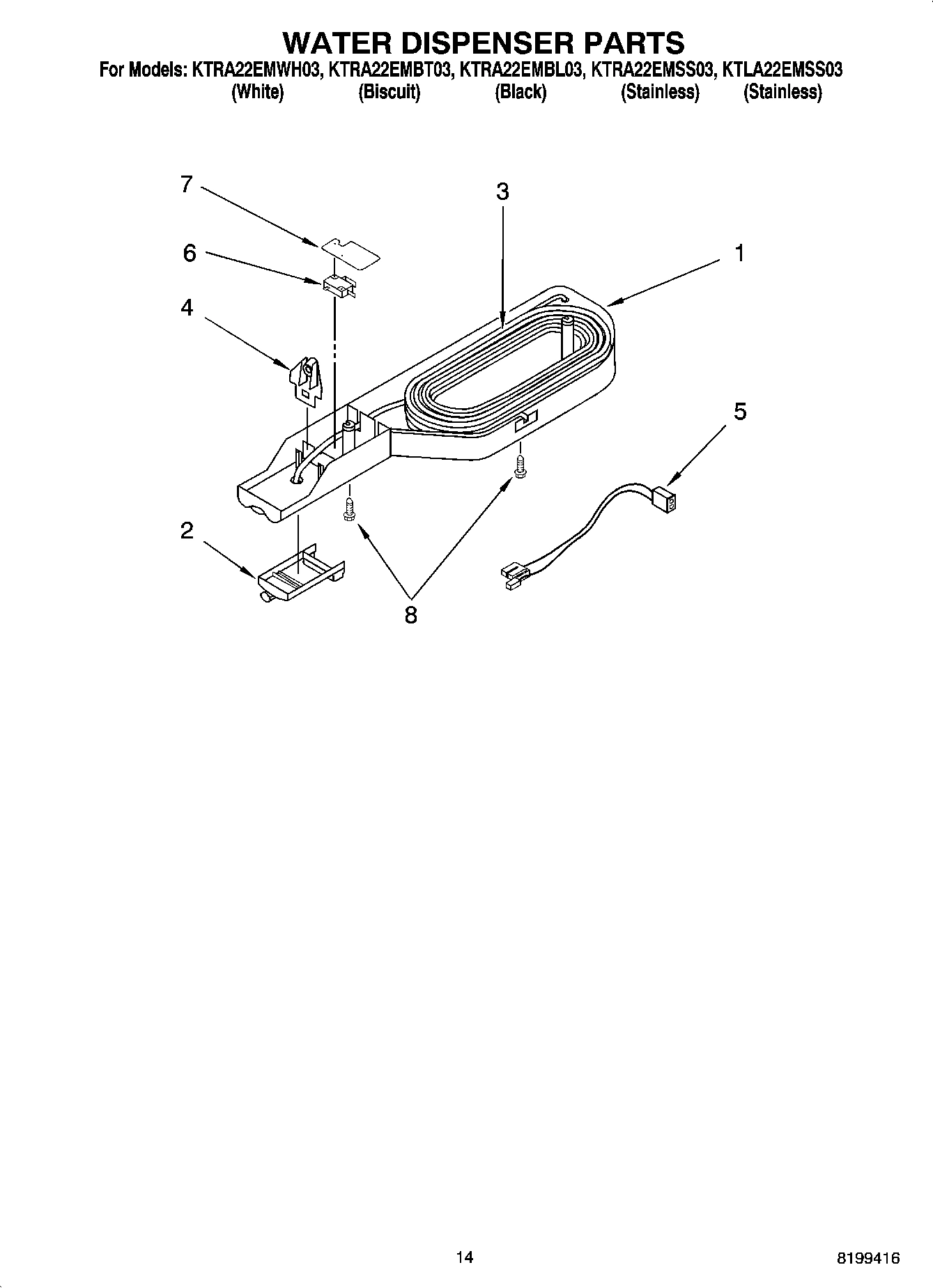

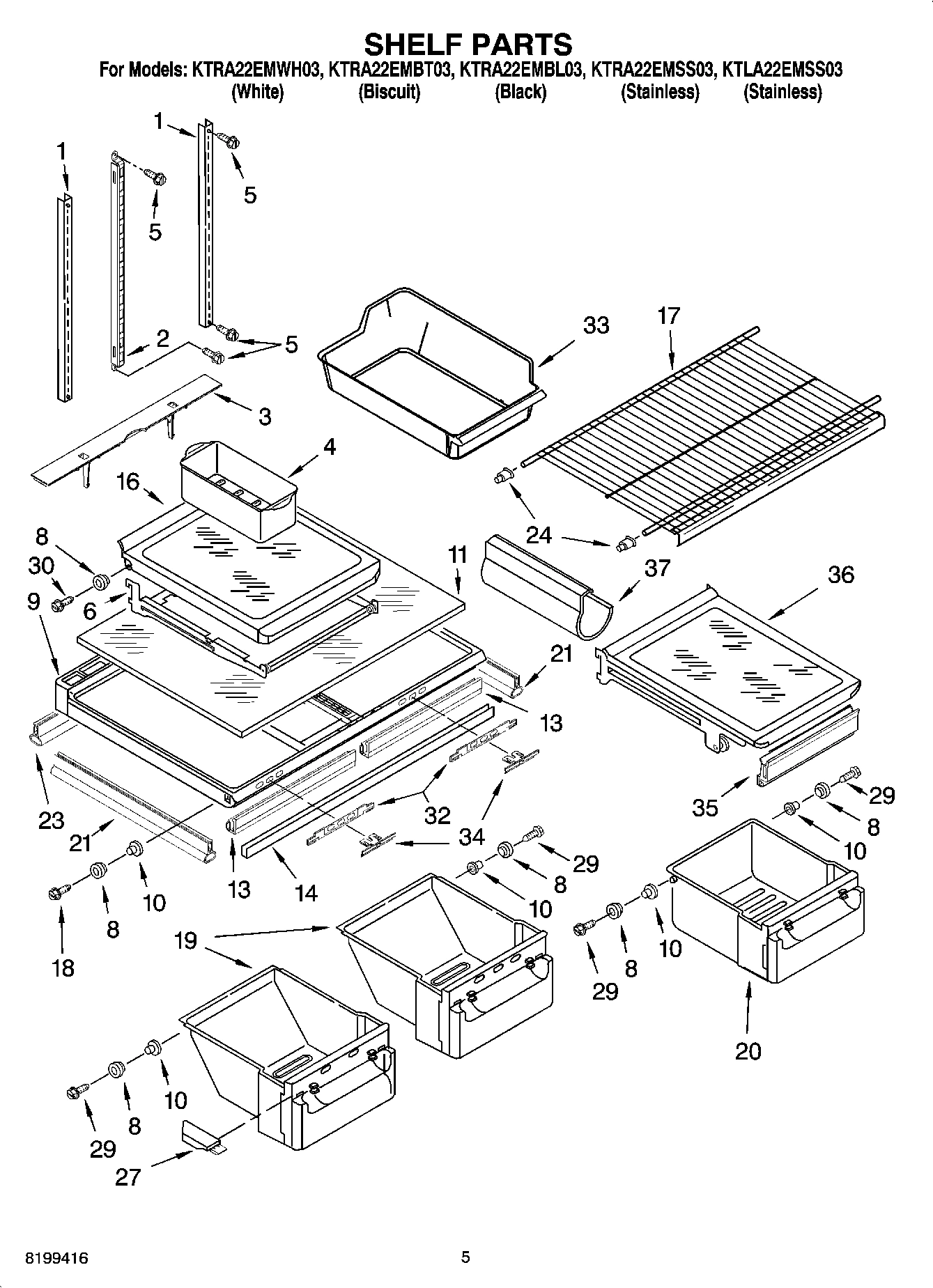

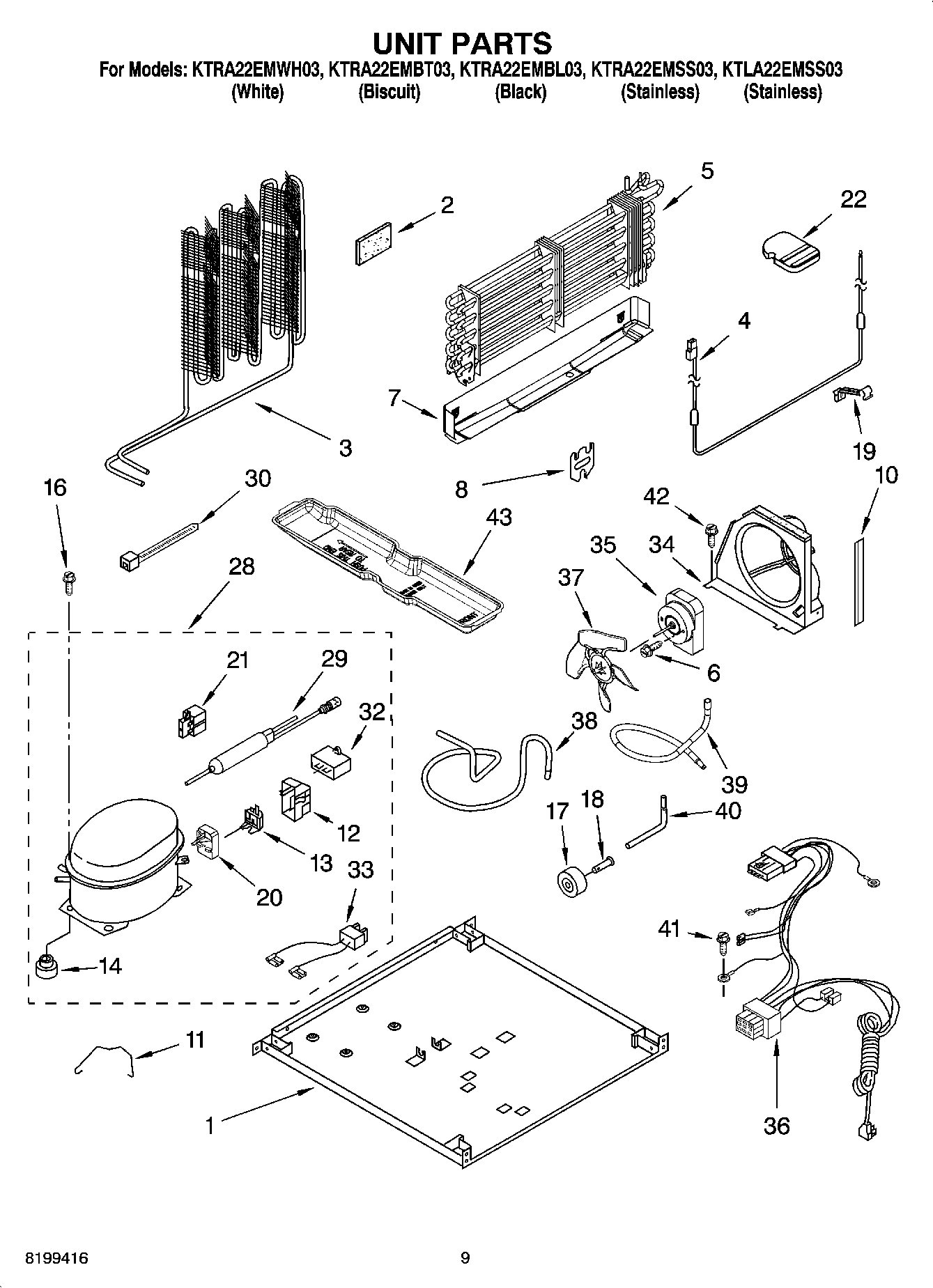

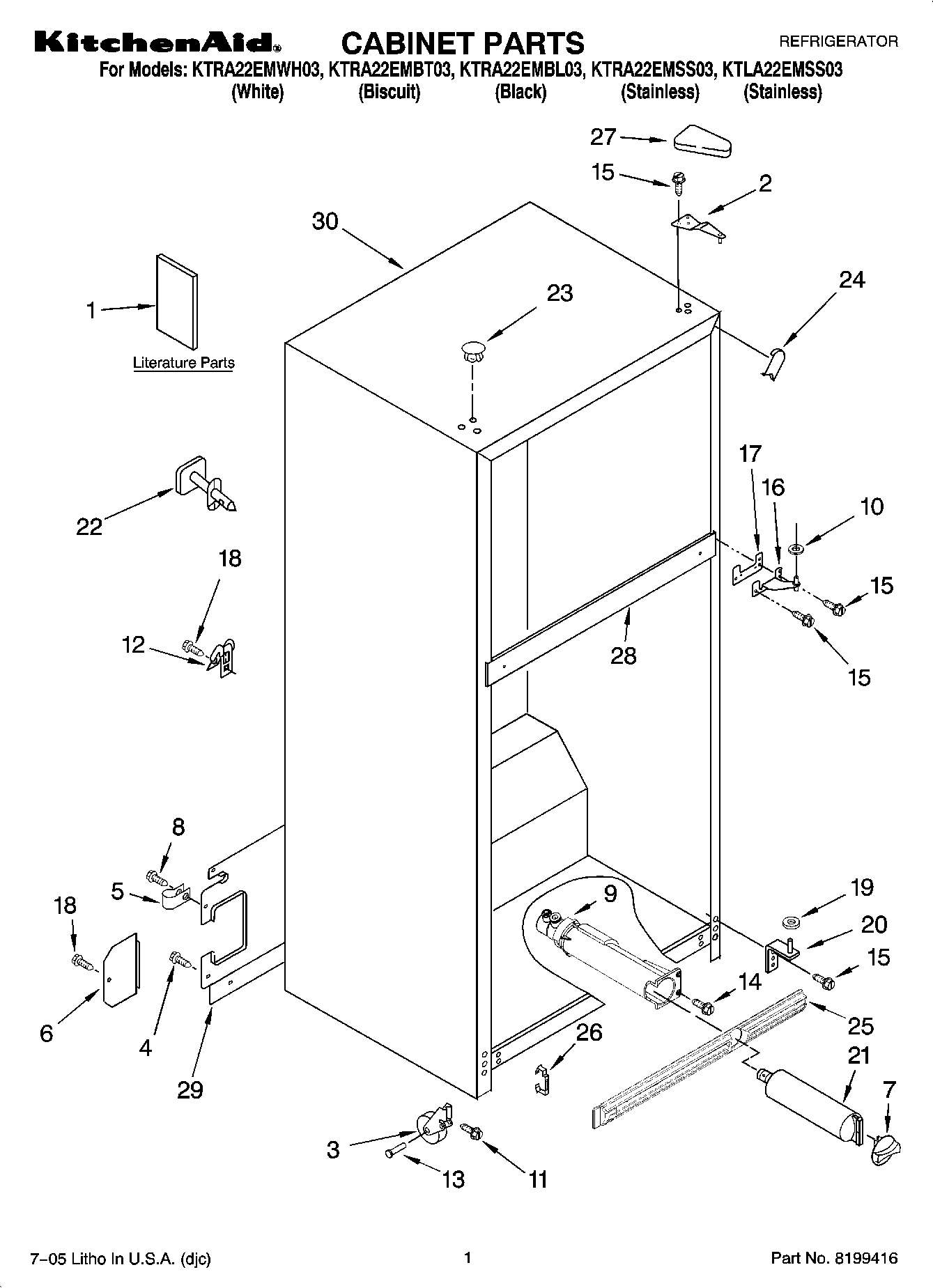

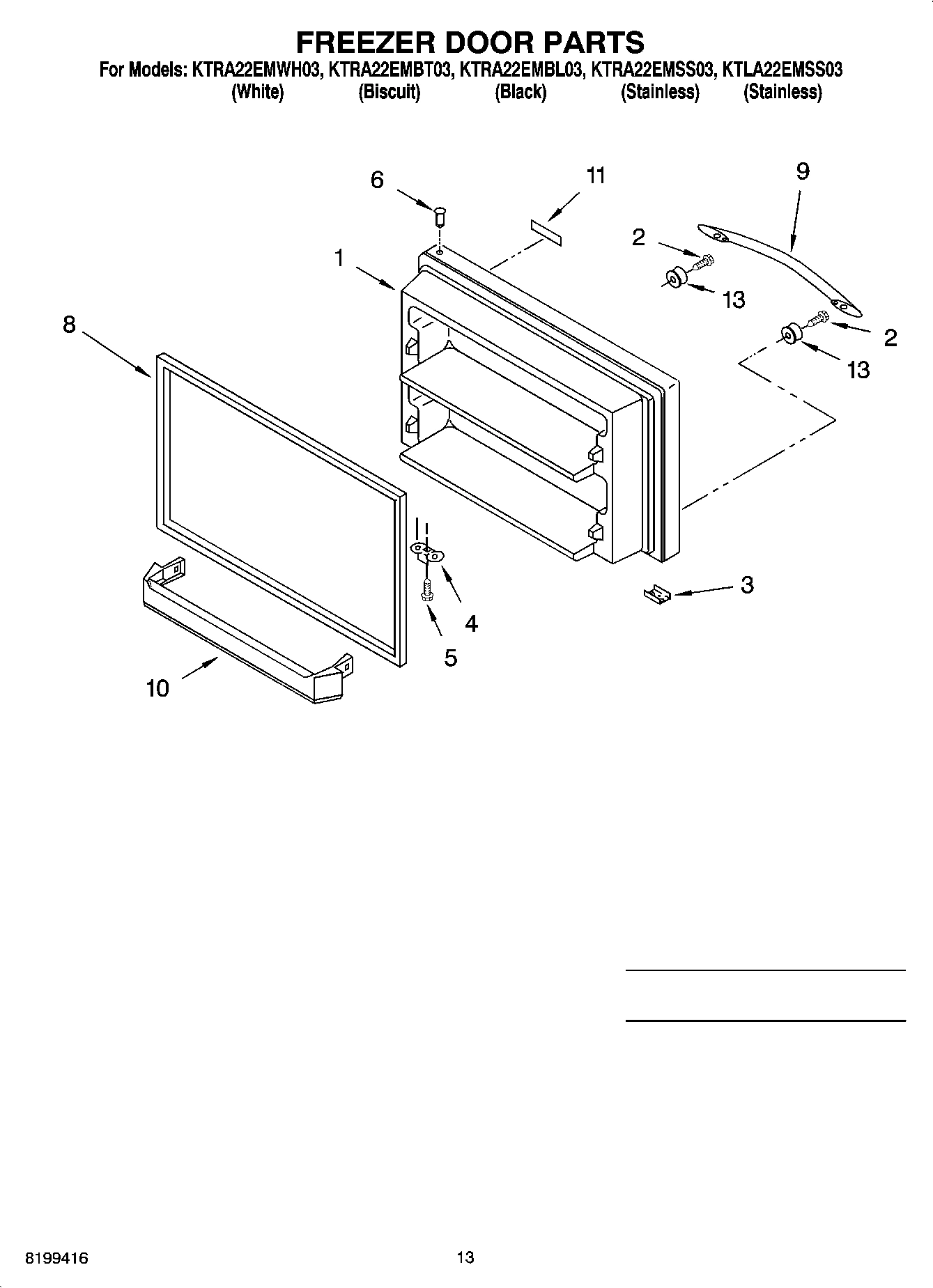

Model Whirlpool KTRA22EMWH03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Par WPL ARI108960A Contact Us For Availability

WPL ARI108961A WPL ARI108961A Contact Us For Availability

WPL ARI108962A WPL ARI108962A Contact Us For Availability

WPL ARI108963A WPL ARI108963A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Customer Instructions WPL 2225415 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Energy Label WPL 2302195 Contact Us For Availability

1

Use & Care Guide WPL 2302428 Contact Us For Availability

1

Instruction Sheet, Water Filter WPL 2302485 Contact Us For Availability

1

Service & Wiring Sheet WPL 2314275 Contact Us For Availability

1

Shelf, Ladder (2) WPL 2210522 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225596 Contact Us For Availability

2

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Button, Dispenser WPL 2210567 Contact Us For Availability

2

Shelf, Ladder Center WPL 2300520 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Tap Plate WPL 2183000 Contact Us For Availability

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

3

Deflector, Air (Crisper Pan) WPL 2254458 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

4

WPW10140847 Whirlpool Refrigerator Heater In Stock WPL WPW10140847 $66.83

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Wire Assembly WPL 2187291 Contact Us For Availability

5

Evaporator Assy. WPL 2221761 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

6

WPW10171469 Whirlpool Refrigerator Screw In Stock WPL WPW10171469 $4.58

6

Cover, Water Valve WPL 2166251 Contact Us For Availability

6

Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

8

Roller & Tread Assembly WPL 2188212 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

9

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

9

Crisper Cover (Includes Items 8,10,13,18,21,2 WPL 2210583 Contact Us For Availability

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Extension, Air Baffle WPL 2300638 Contact Us For Availability

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

Glass, Crisper Cover WPL 2210571 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

THERMOSTAT WPL 2302286 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

15

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Shelf Assembly, Spillguard (3) (Includes 8 & WPL 2174012 Contact Us For Availability

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

Pan, Crisper (Includes Items 8,10,27 & 29) WPL 2188816 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Pan, Meat (Includes Items 8,10 & 29) WPL 2188818 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

22

Support WPL 2201185 Contact Us For Availability

22

Fitting, Water Tube (Not Serviced) WPL ARI108950A Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

25

Grille (Includes Illus. 26) (White) WPL 2301618W Contact Us For Availability

25

Grille (Includes Illus. 26) (Black) WPL 2301618B Contact Us For Availability

25

Grille (Includes Illus. 26) (Biscuit) WPL 2301618T Contact Us For Availability

26

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

28

Rail Center (Not Serviced) WPL ARI108951A Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

Cover, Unit WPL 2302358 Contact Us For Availability

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Cabinet (Not A Serviceable Part) WPL ARI108952A Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

33

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

34

Button, Humidity Control WPL 2174253 Contact Us For Availability

34

Air Baffle WPL 2302249 Contact Us For Availability

35

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

35

Gasket, Front WPL 2174396 Contact Us For Availability

36

2187916 Whirlpool Refrigerator Wire Harness Backorder WPL 2187916 $86.77

36

Shelf Assembly, Spillguard (Includes Illus. 3 WPL 2190504 Contact Us For Availability

37

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

37

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

38

Tube, Discharge WPL 2205384 Contact Us For Availability

39

Housing Base WPL 2300418 Contact Us For Availability

39

Tube, Suction WPL 2225237 Contact Us For Availability

40

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

41

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

42

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI108956A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI108957A Contact Us For Availability

46

Tube, Water WPL 2301621 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

58

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

60

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
