Model Whirlpool KTRA19ELBT00 REFRIGERATOR – Common Parts & Diagrams

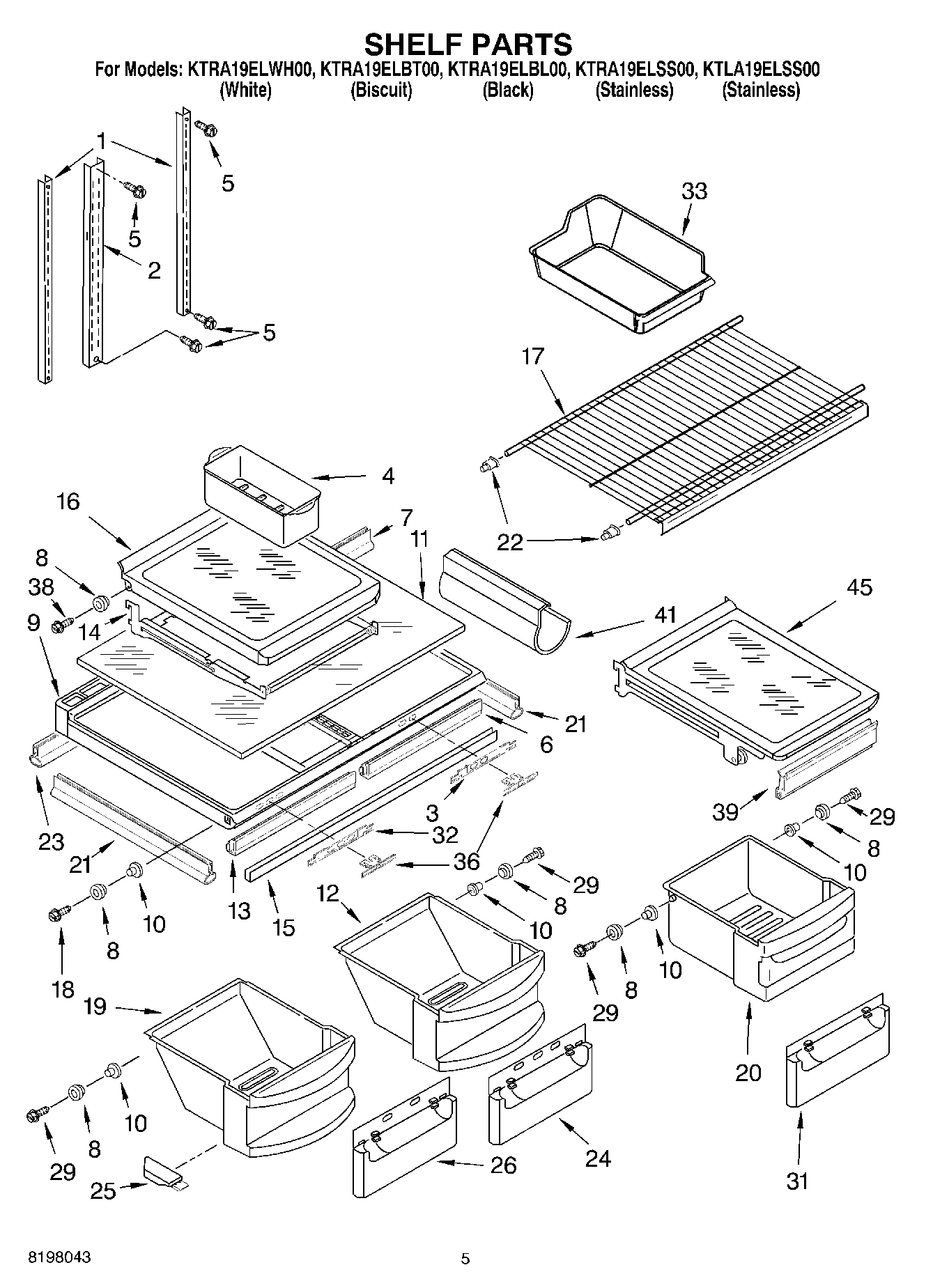

03 - SHELF

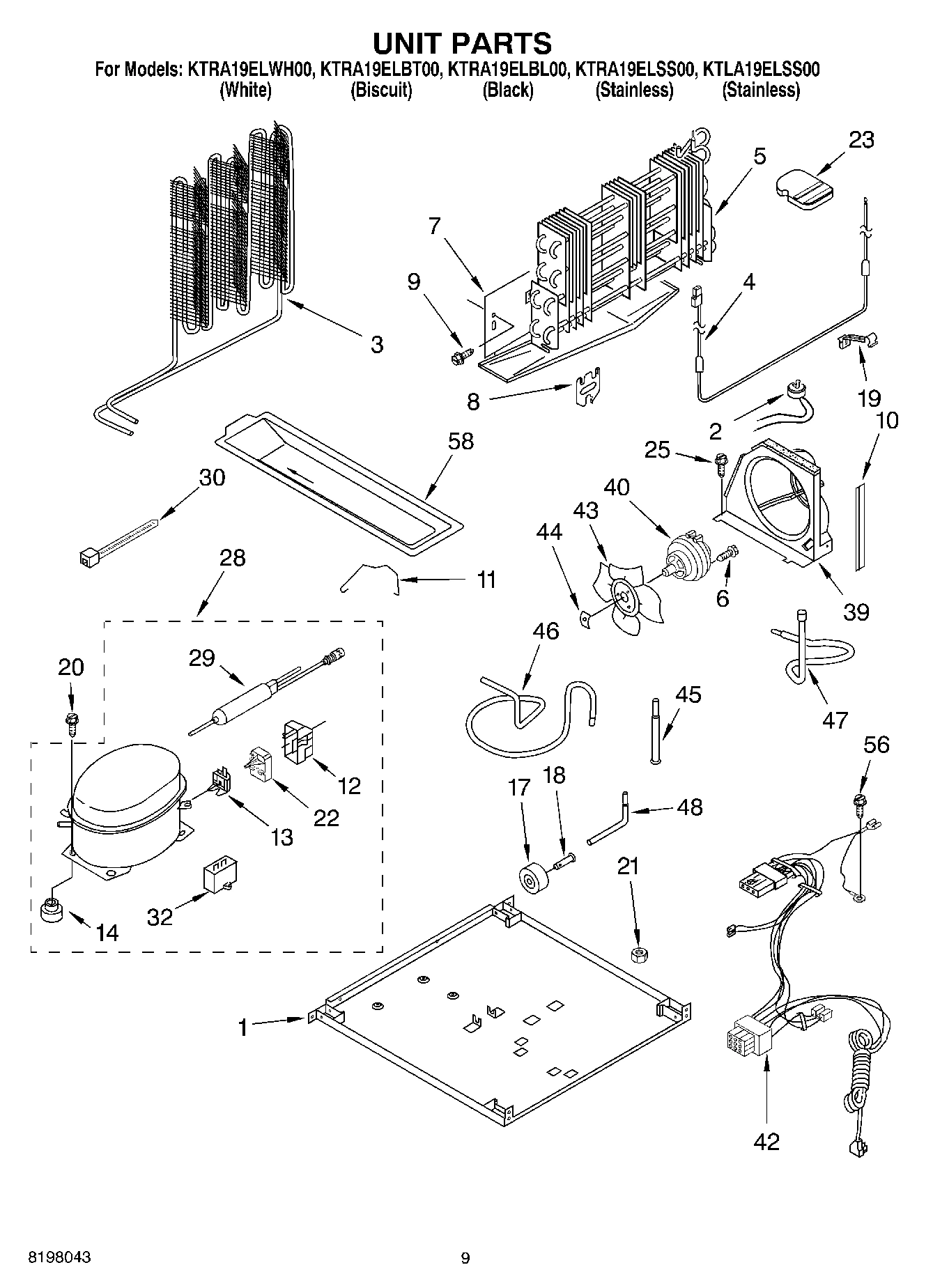

05 - UNIT

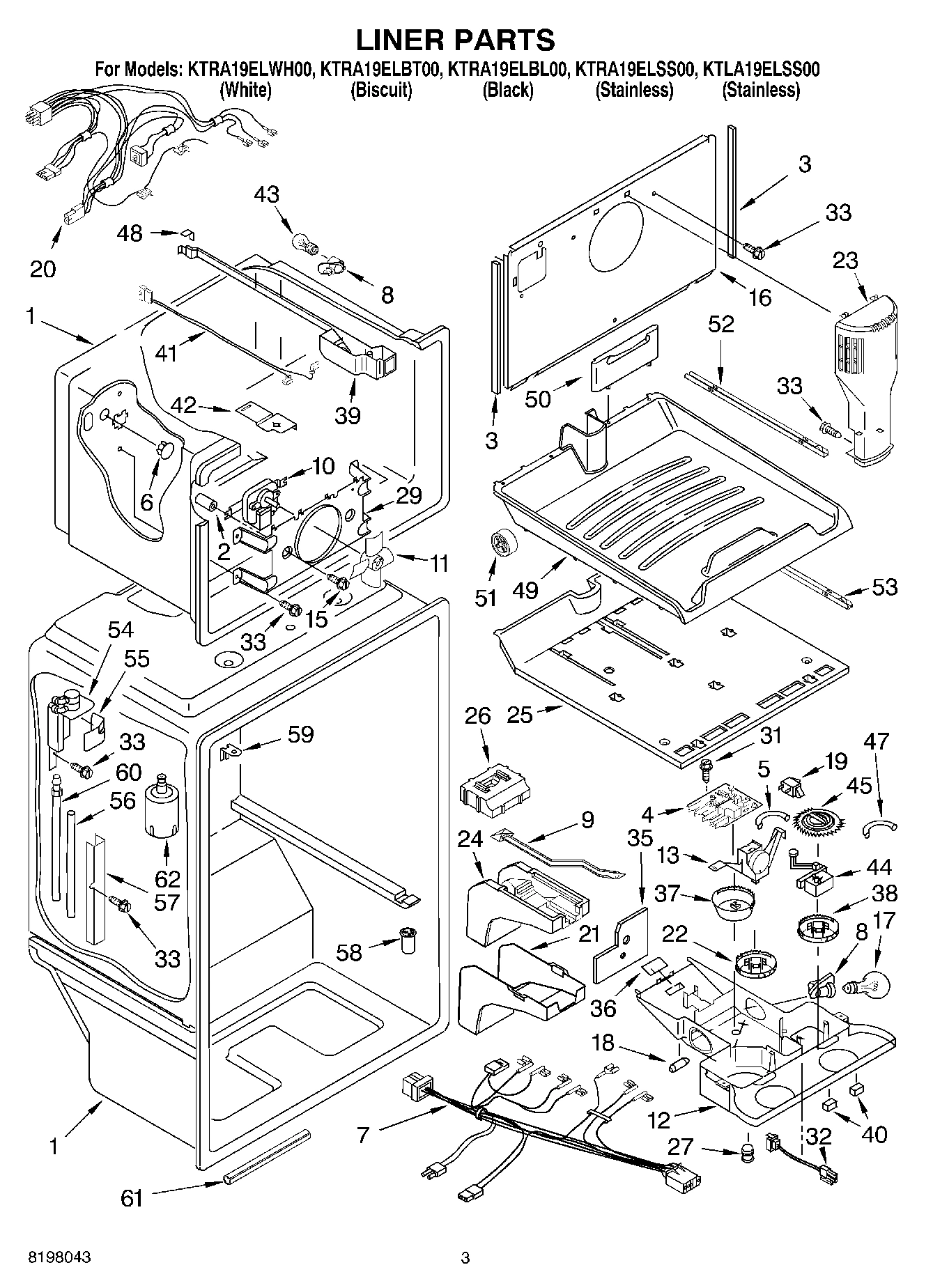

02 - LINER

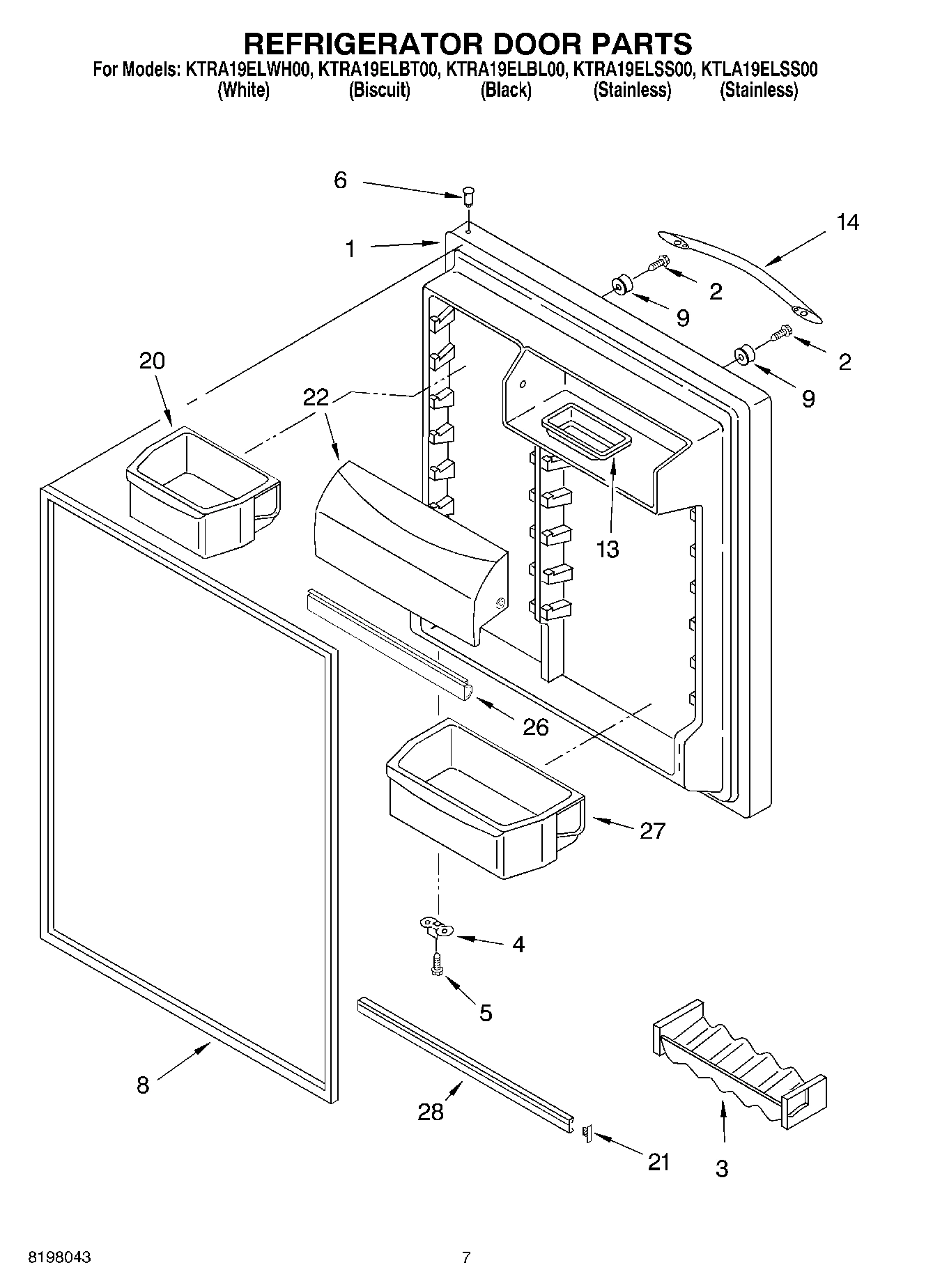

04 - REFRIGERATOR DOOR

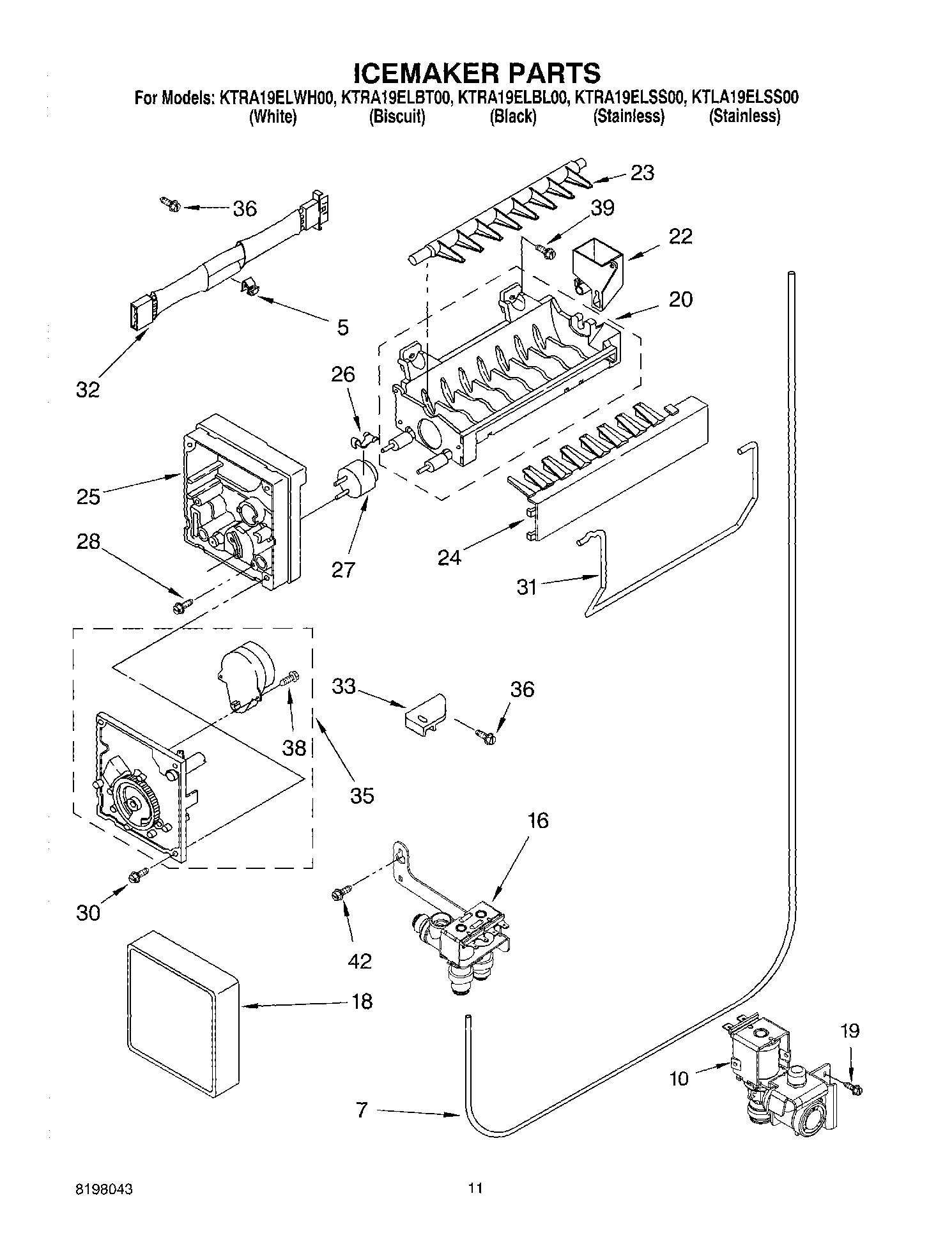

06 - ICE MAKER

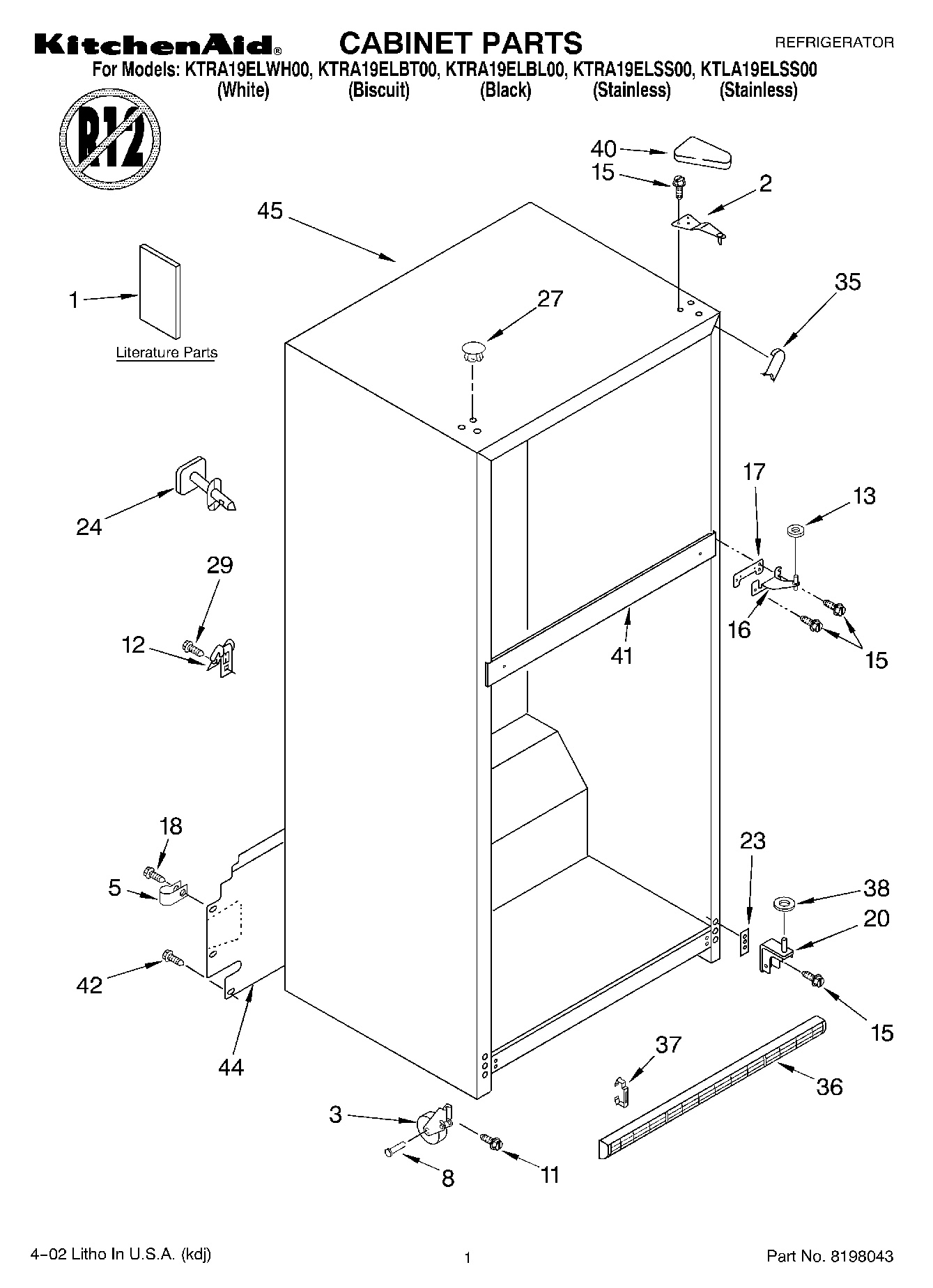

01 - CABINET, LITERATURE

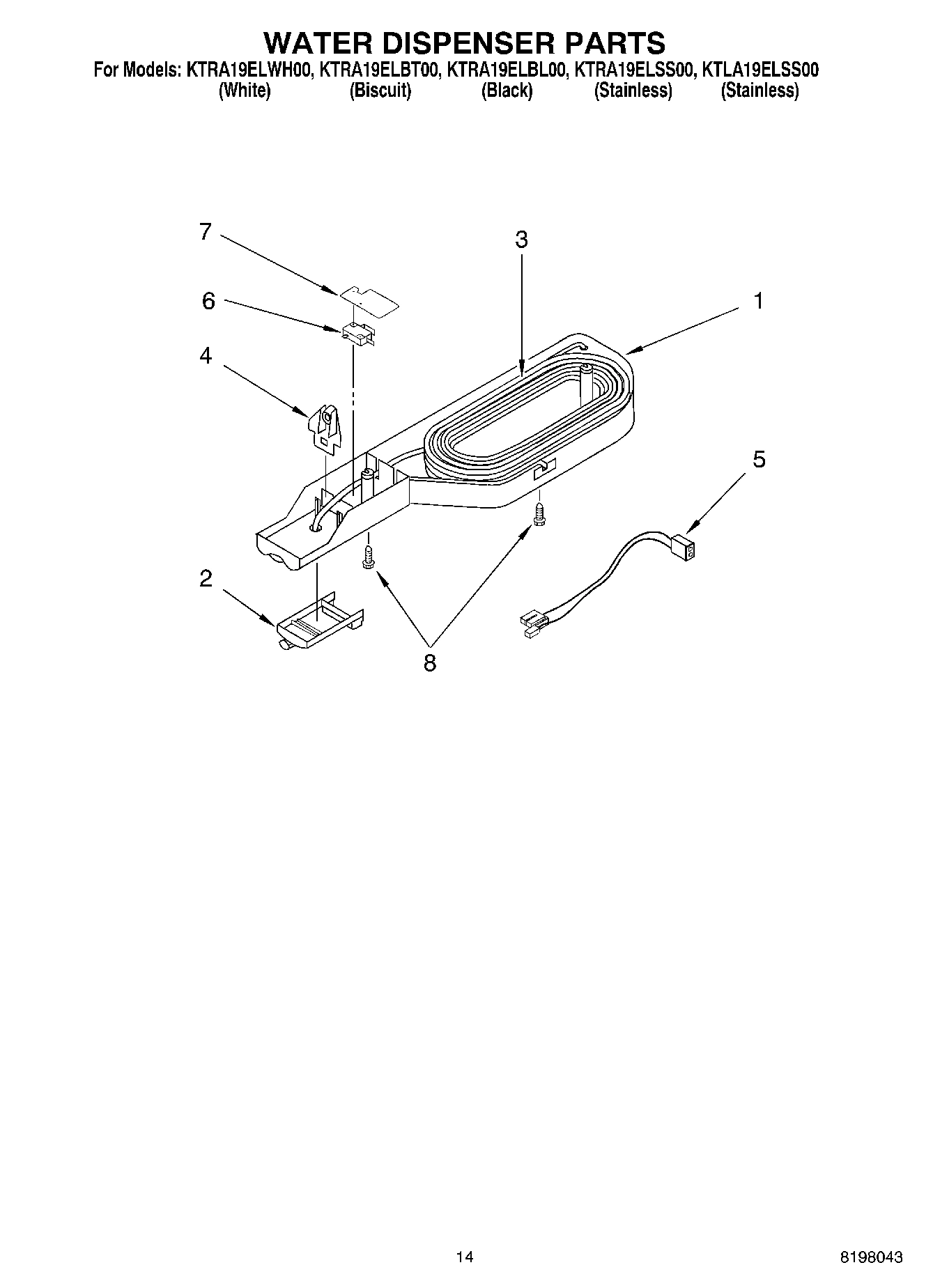

08 - WATER DISPENSER, OPTIONAL

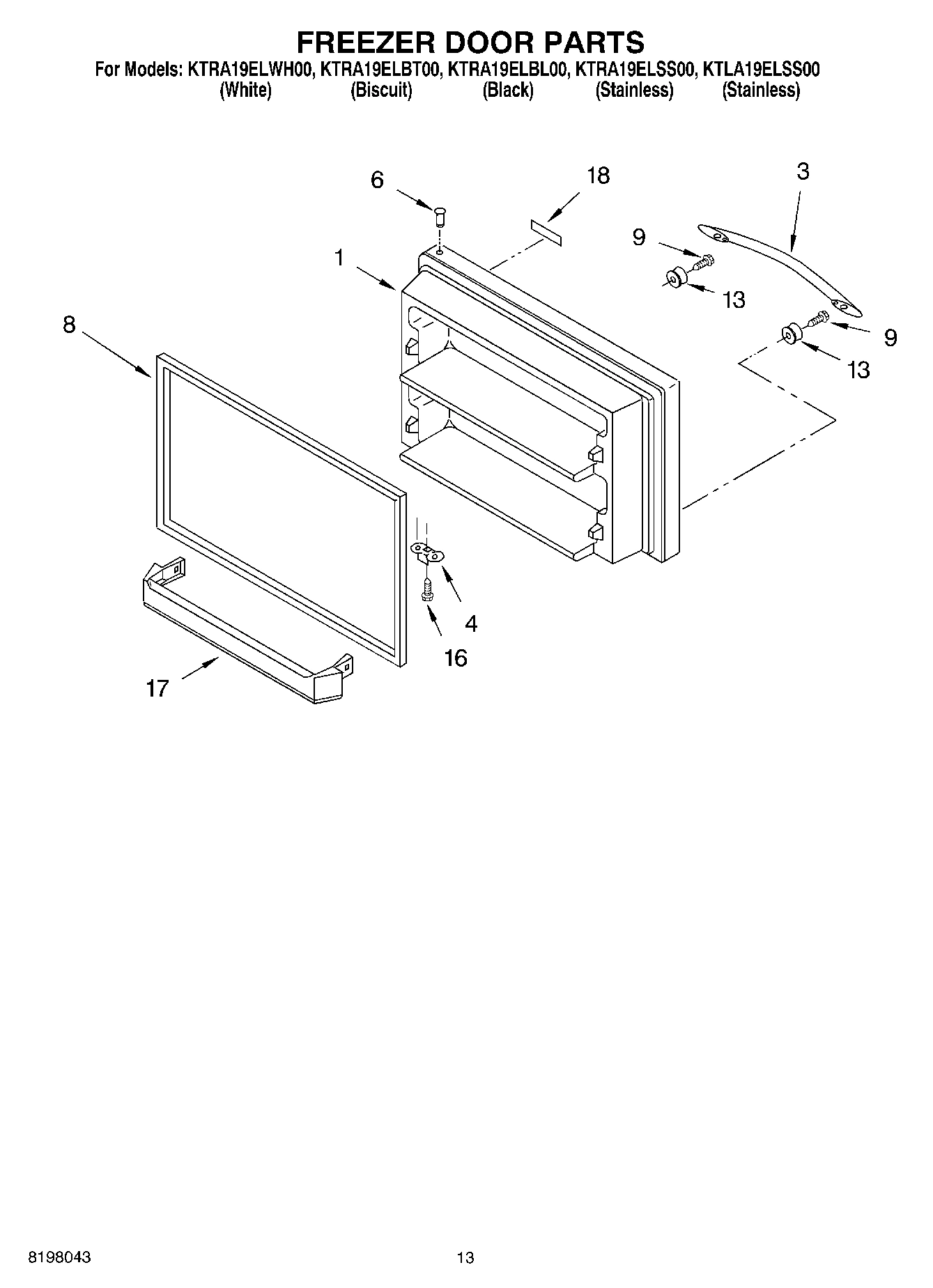

07 - FREEZER DOOR
Common parts from model Whirlpool KTRA19ELBT00 REFRIGERATOR
1
Refrigerator Door (White) WPL 2221708 Contact Us For Availability
1
Refrigerator Door (Black) WPL 2221709 Contact Us For Availability
1
Refrigerator Door (Biscuit) WPL 2221710 Contact Us For Availability
1
Refrigerator Door (Stainless, Right Hand) WPL 2221740 Contact Us For Availability
1
Refrigerator Door (Stainless, Left Hand (Incl WPL 2221741 Contact Us For Availability
1
Literature Parts (Instruction Sheet, Water Fi WPL LIT2210486 Contact Us For Availability
1
Literature Parts (Customer Quick Tips) WPL LIT2218345 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2218589 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2218668 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2225025 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Housing, Dispenser WPL 2219617 Contact Us For Availability
1
Freezer Door (White) WPL 2221714 Contact Us For Availability
1
Freezer Door (Black) WPL 2221715 Contact Us For Availability
1
Freezer Door (Biscuit) WPL 2221716 Contact Us For Availability
1
Freezer Door (Stainless, Right Hand) WPL 2221744 Contact Us For Availability
1
Freezer Door (Stainless, Left Hand (Includes WPL 2221745 Contact Us For Availability
2
Button, Dispenser WPL 2210567 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
3
Handle (Stainless) WPL 2221770 Contact Us For Availability
3
Handle (White) WPL 2221771 Contact Us For Availability
3
Handle (Black) WPL 2221772 Contact Us For Availability
3
Handle (Biscuit) WPL 2221773 Contact Us For Availability
3
Reservoir, Tube WPL 2210513 Contact Us For Availability
4
Flange, Tube WPL 2210523 Contact Us For Availability
5
Wire Assembly WPL 2187291 Contact Us For Availability
7
Shield, Switch WPL 2210547 Contact Us For Availability
8
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
8
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
8
Torx Key WPL 1117510 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
8
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
8
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Butter, Dish WPL 2165792 Contact Us For Availability
17
Trivet, Door WPL 2159291 Contact Us For Availability
18
Nameplate (White) WPL 2212760 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
18
LEFT HAND DOOR SWING (White) WPL 2221717 Contact Us For Availability
18
LEFT HAND DOOR SWING (Black) WPL 2221718 Contact Us For Availability
18
LEFT HAND DOOR SWING (Biscuit) WPL 2221719 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Door, Compartment WPL 2218122 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI108478A Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
LEFT HAND DOOR SWING (White) WPL 2221711 Contact Us For Availability
28
LEFT HAND DOOR SWING (Black) WPL 2221712 Contact Us For Availability
28
LEFT HAND DOOR SWING (Biscuit) WPL 2221713 Contact Us For Availability
36
Grille (Black) WPL 2201011 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI108479A Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
44
Cover, Unit WPL 2221775 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
45
Cabinet (Not A Serviceable Part) WPL ARI108480A Contact Us For Availability
47
Barrier, Freezer Control WPL 2212485 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Bracket Assembly, Water Filter WPL 2210510 Contact Us For Availability
55
Cover, Filter WPL 2219639 Contact Us For Availability
56
Tube, Filter Inlet WPL 2219699 Contact Us For Availability
57
Cover, T WPL 2210521 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
WPL 2210563 WPL 2210563 Contact Us For Availability
61
WPL 2214981 WPL 2214981 Contact Us For Availability
62
WPL 2213384 WPL 2213384 Contact Us For Availability
× ![]()
