Model Whirlpool KTLS25QDWH00 – Common Parts & Diagrams

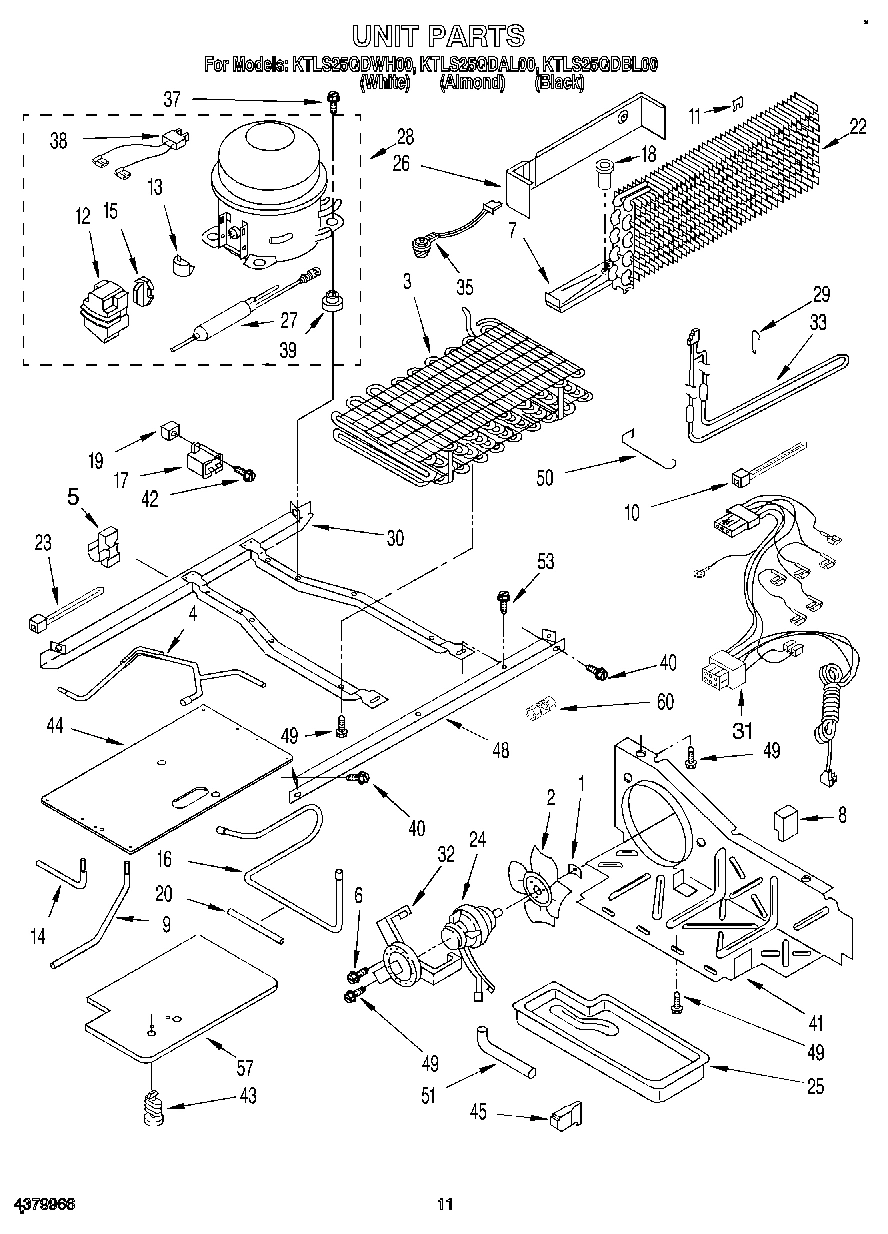

07 - UNIT

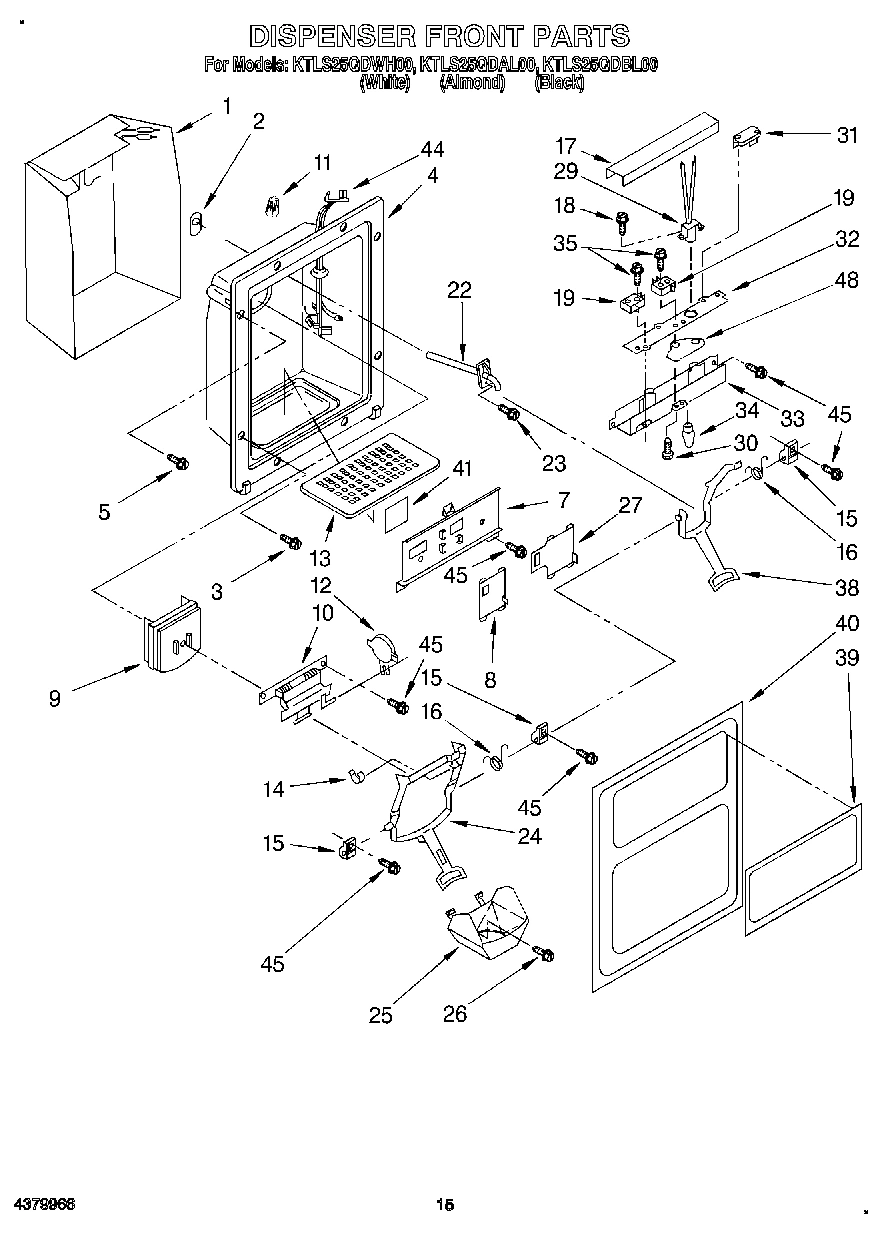

09 - DISPENSER FRONT

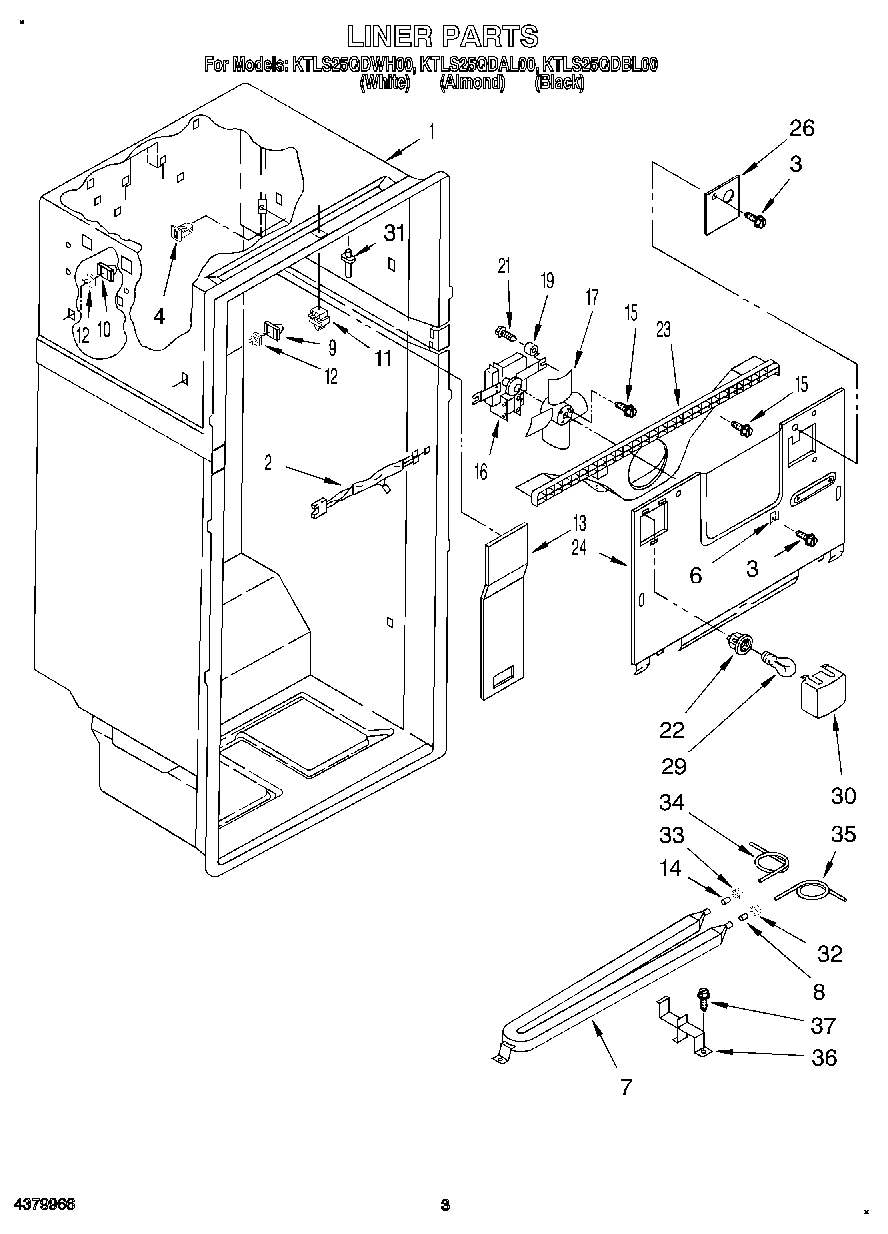

02 - LINER

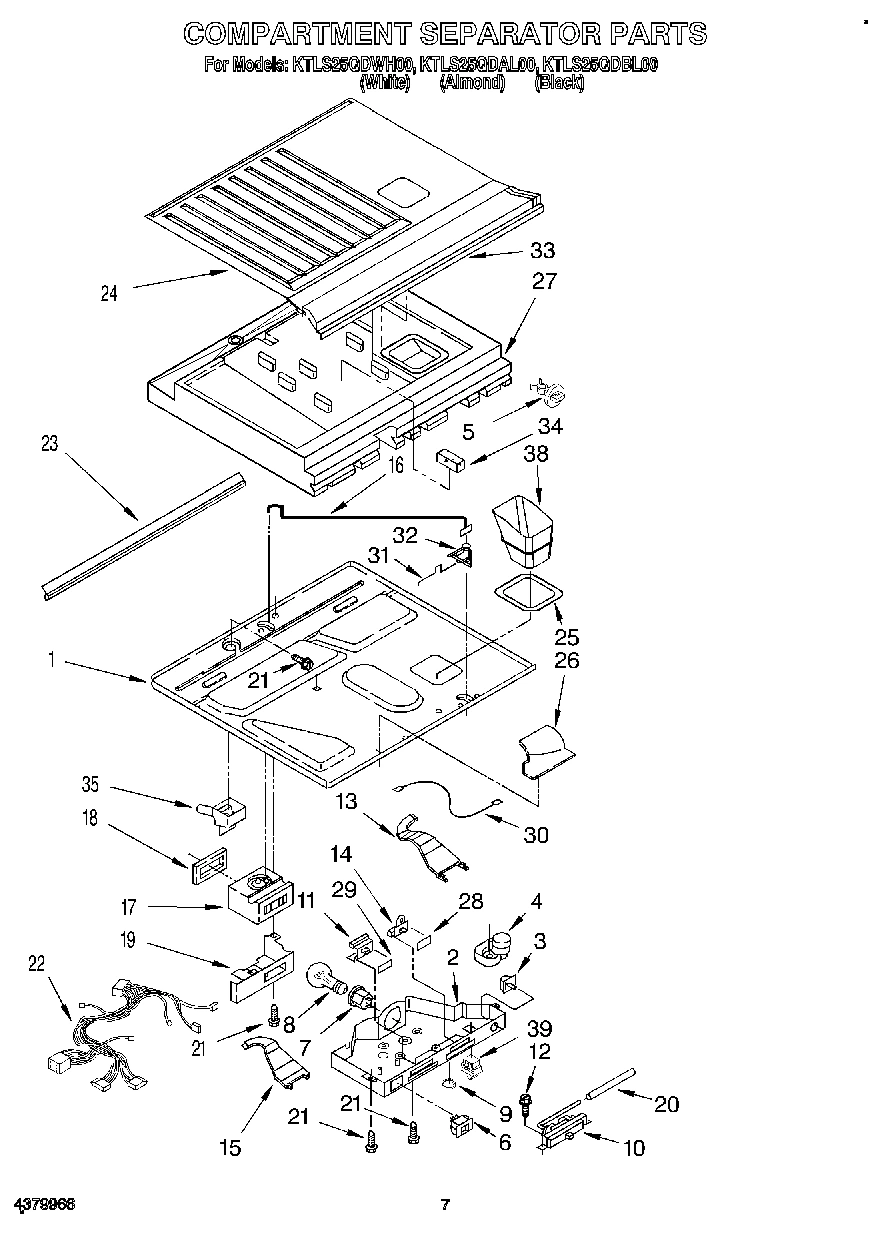

04 - COMPARTMENT SEPARATOR

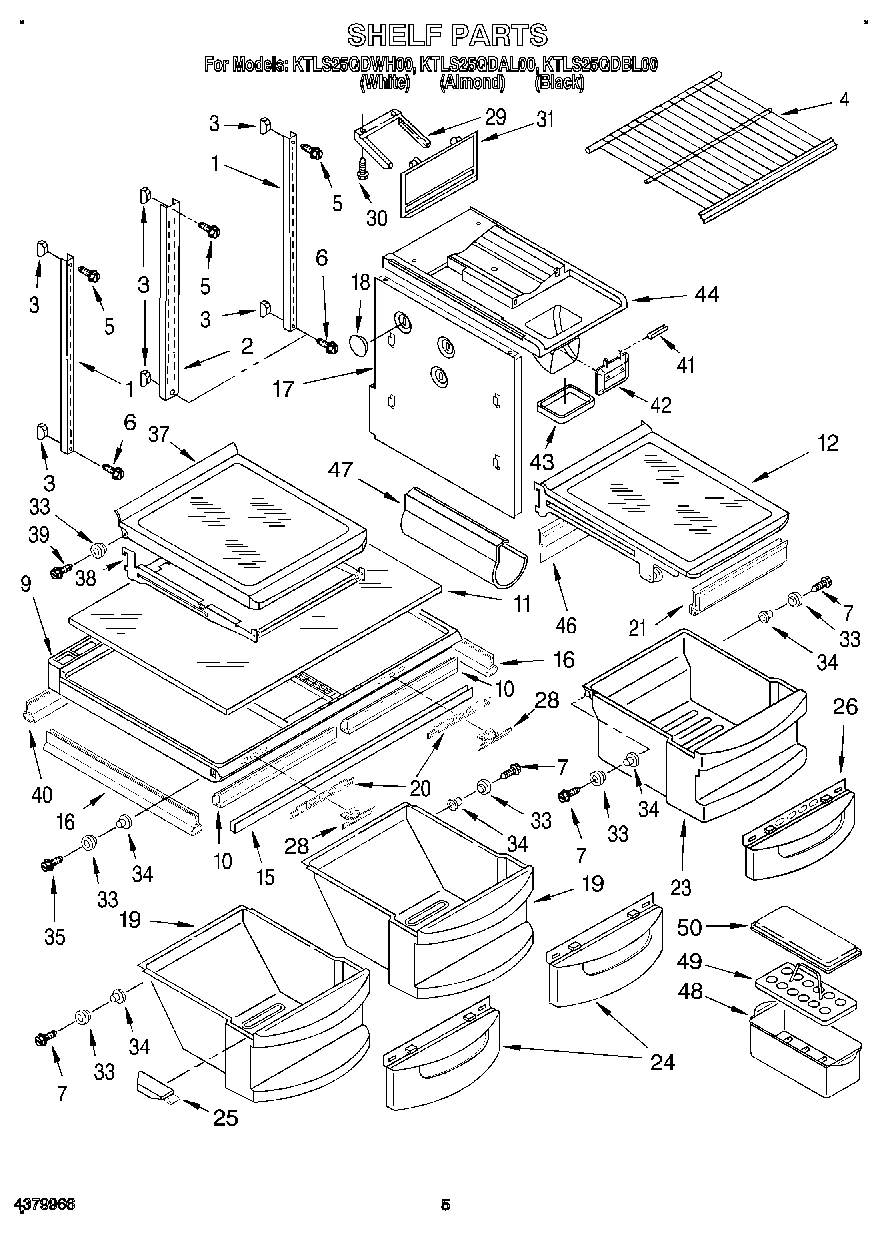

03 - SHELF

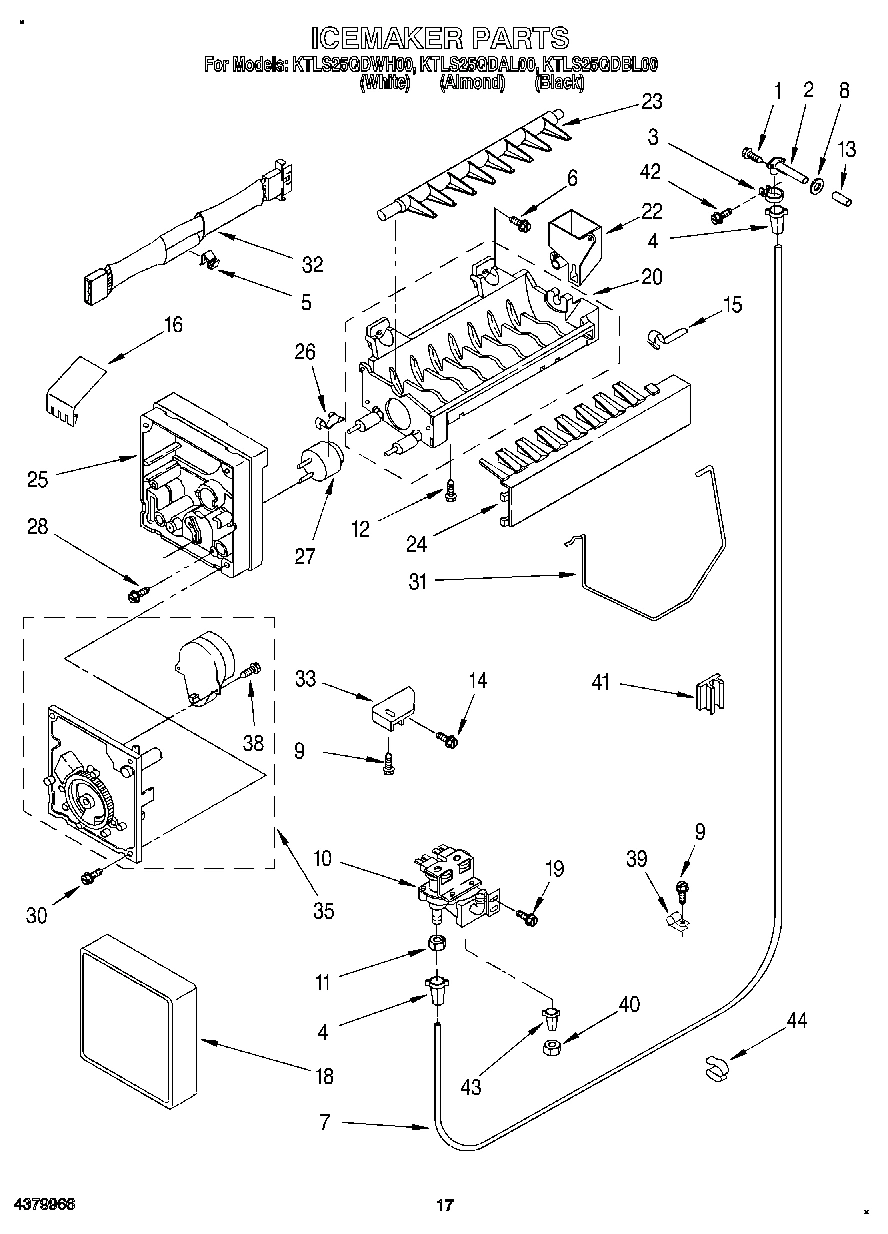

10 - ICEMAKER, LIT/OPTIONAL

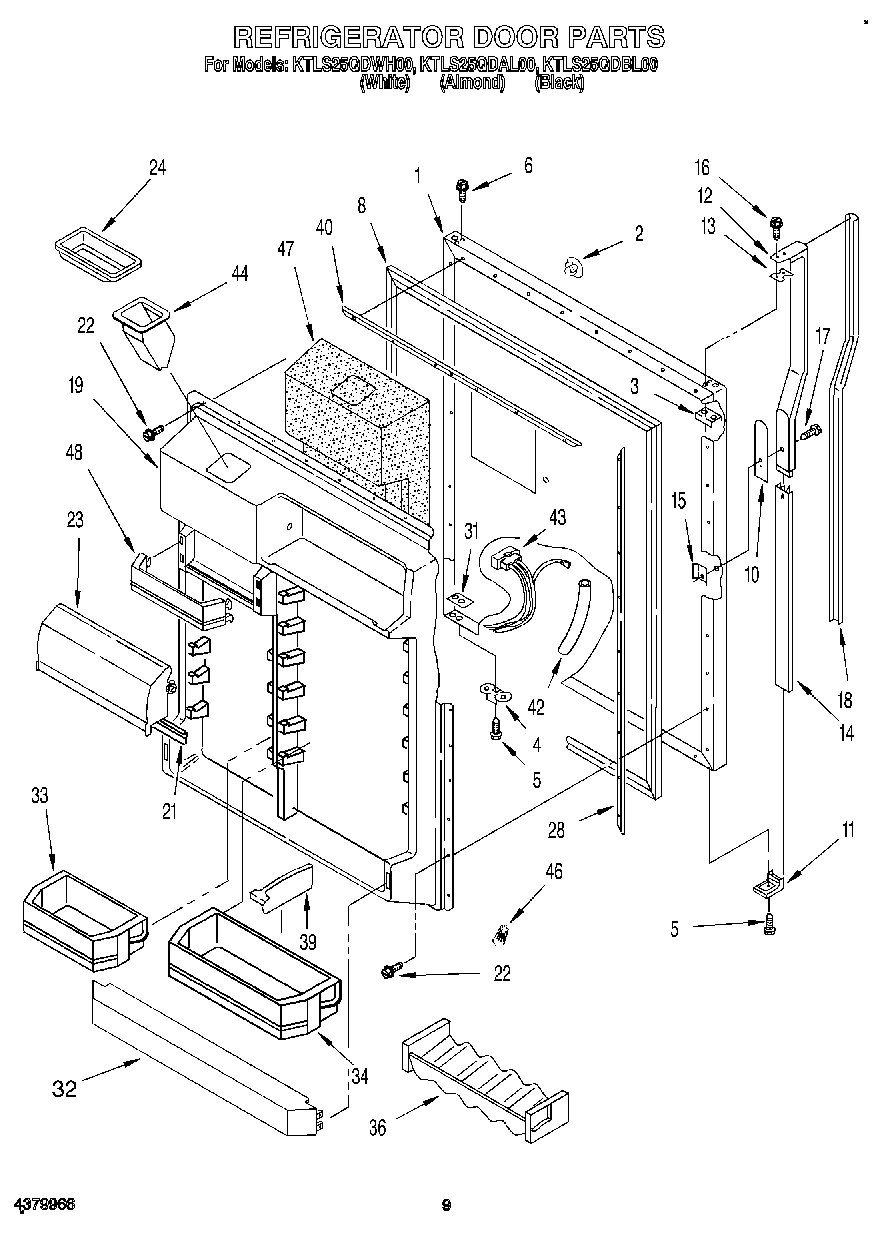

06 - REFRIGERATOR DOOR

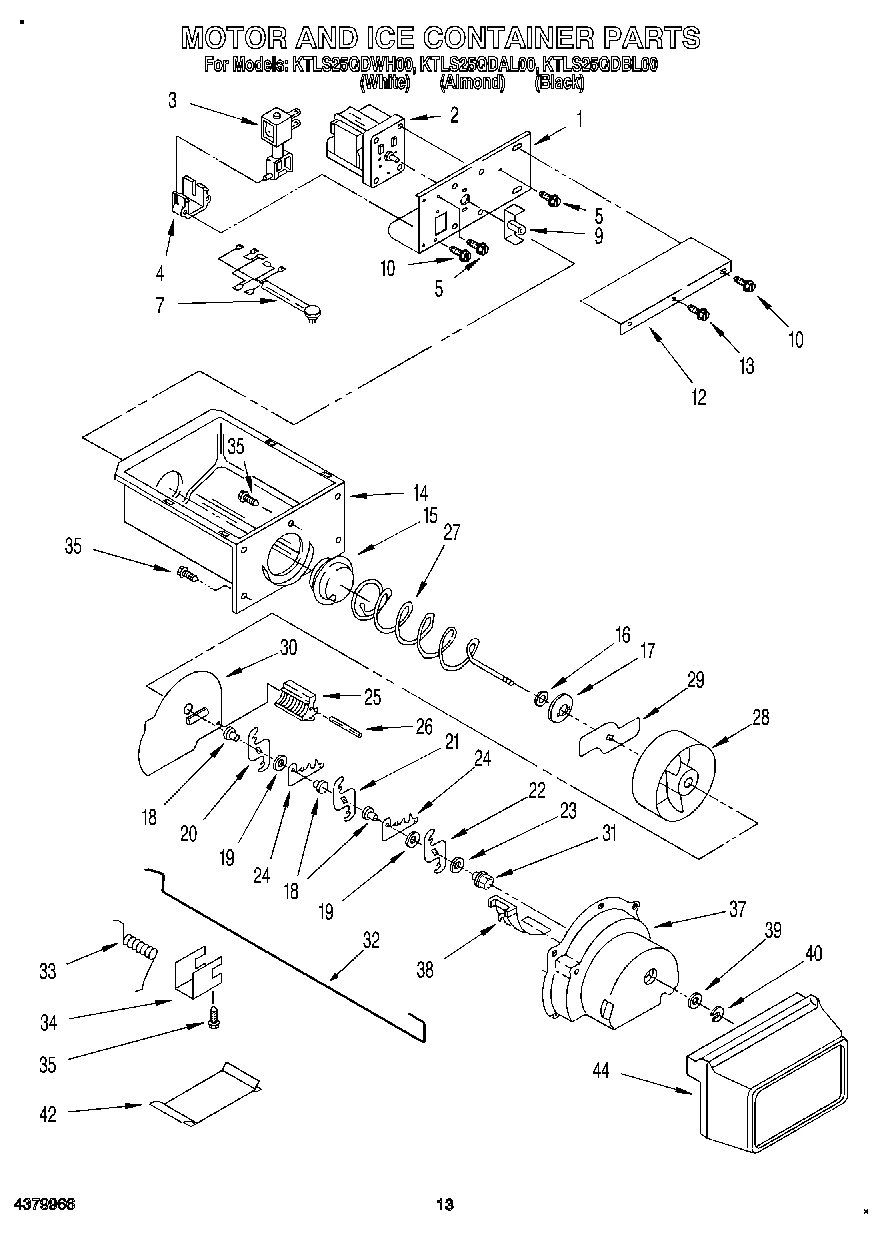

08 - MOTOR AND ICE CONTAINER

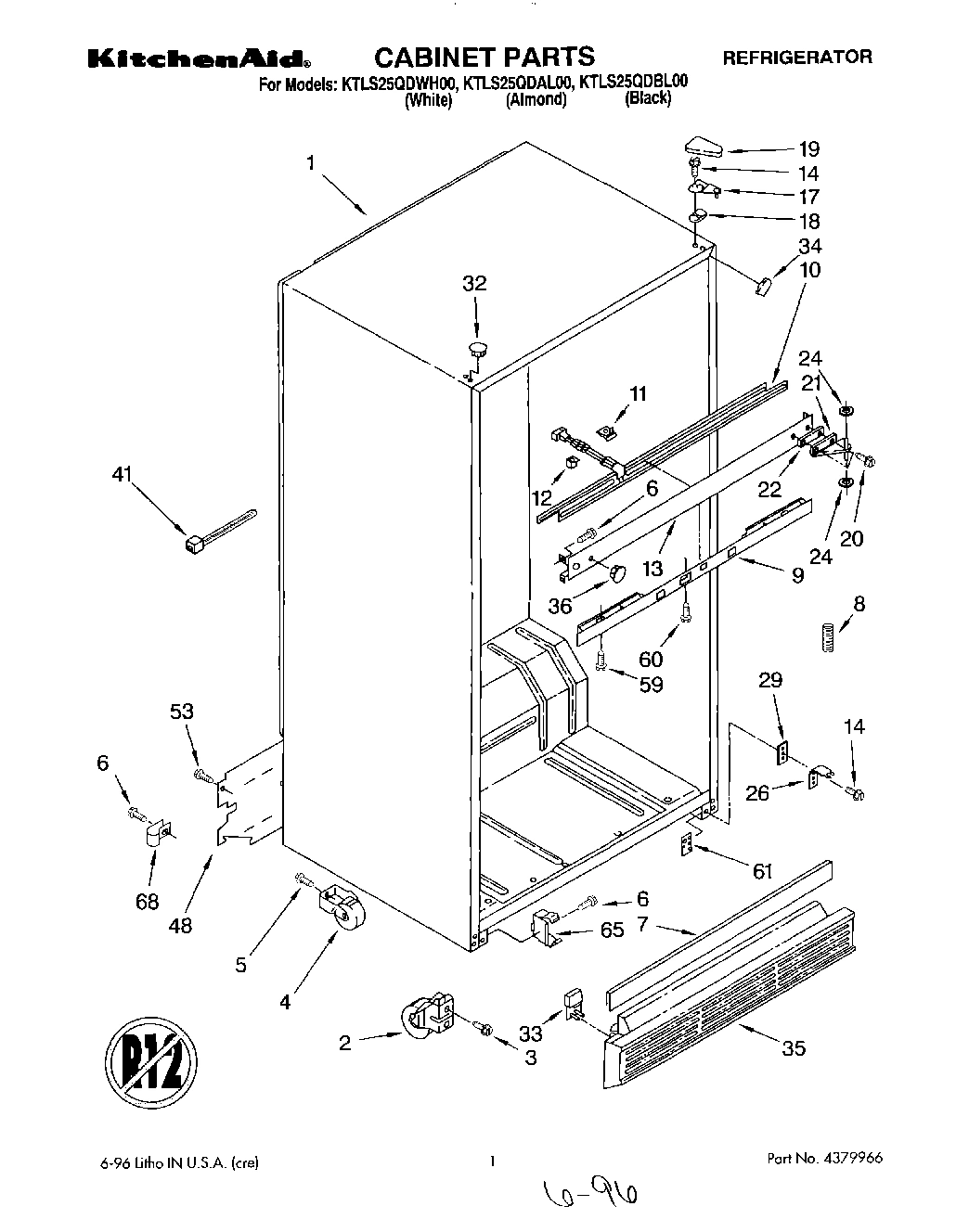

01 - CABINET

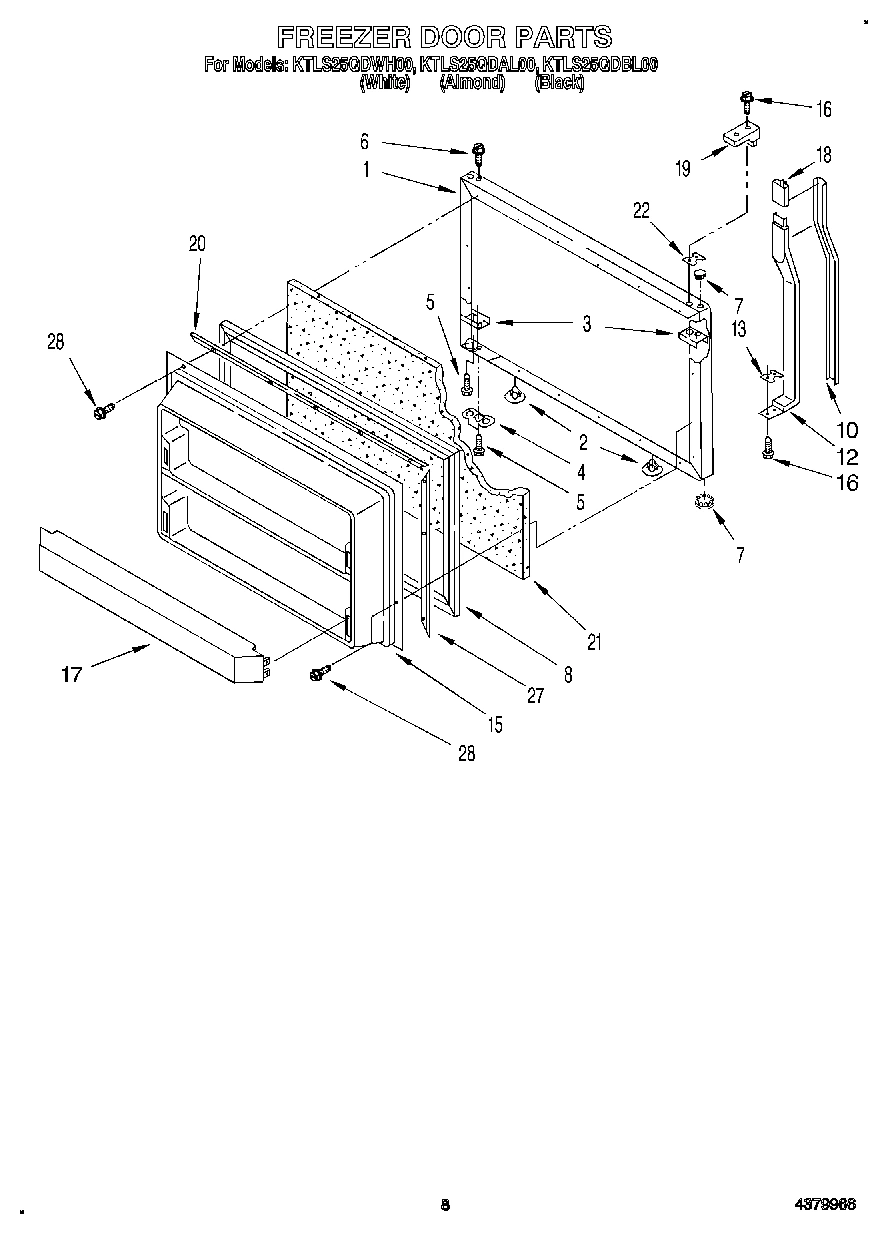

05 - FREEZER DOOR
Common parts from model Whirlpool KTLS25QDWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169005 WPL LIT2169005 Contact Us For Availability
WPL LIT2173458 WPL LIT2173458 Contact Us For Availability
WPL LIT2176905 WPL LIT2176905 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI108463A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172831 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2169042 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2169043 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Insulation WPL 2169044 Contact Us For Availability
1
Bracket, Motor WPL 2160608 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI108462A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159164 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159167 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161856 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2174828 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
2
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
4
Grommet (2) WPL 2172803 Contact Us For Availability
4
Shelf, Freezer (2) WPL 2160694 Contact Us For Availability
4
Bracket, Door Stop WPL 2155332 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Reservoir-Water WPL 2160600 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2160610 Contact Us For Availability
7
Deck Rail Cover WPL 2174745 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177233 Contact Us For Availability
8
Spring WPL 983659 Contact Us For Availability
8
Door Gasket Magnetic WPL 2177229 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2174132 Contact Us For Availability
9
Control, Front Cover WPL 2179546 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Thermostat WPL 2159753 Contact Us For Availability
10
Spacer Door WPL 1107650 Contact Us For Availability
10
Heater, Mullion WPL 2154069 Contact Us For Availability
10
Insert, Handle (White) WPL 2161568 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161569 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161853 Contact Us For Availability
11
Slide, Thermostat WPL 1125513 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174145 Contact Us For Availability
11
End Cap Bottom WPL 1107236 Contact Us For Availability
11
Clip, Rail (4) WPL 2149060 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2174386 Contact Us For Availability
12
Handle, Center WPL 2161508 Contact Us For Availability
12
Cover, Motor WPL 2160609 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center WPL 2161509 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Cover, Air Duct WPL 2168581 Contact Us For Availability
13
Light, Bar Left WPL 2160640 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Center Rail (Black) WPL 2173821 Contact Us For Availability
13
Center Rail (White) WPL 2174743 Contact Us For Availability
13
Spacer WPL 1107192 Contact Us For Availability
14
Slide, Air Control WPL 1125578 Contact Us For Availability
14
Retainer, Insert WPL 1107209 Contact Us For Availability
14
Ice Container WPL 2160601 Contact Us For Availability
15
Light, Bar Right WPL 2160641 Contact Us For Availability
15
Crisper Support WPL 2179449 Contact Us For Availability
15
Clip WPL 652604 Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
16
Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability
16
Air Deflector WPL 2160751 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Support Wall I/M WPL 2160620 Contact Us For Availability
17
Trivet, Door WPL 2171357 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
18
Insert, Handle (White) WPL 2161513 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
18
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
18
Retainer, Insert WPL 2161570 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174072 Contact Us For Availability
19
Interior Door Panel WPL 2177357 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
End Cap WPL 1125788 Contact Us For Availability
20
Slide, Humidity WPL 2174257 Contact Us For Availability
20
Retainer, Gasket WPL 1121119 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Door Utility WPL 2183037 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Gasket-Front WPL 2174400 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160637 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Spacer, Handle WPL 1125789 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159734 Contact Us For Availability
23
Meat Pan WPL 2174087 Contact Us For Availability
23
Compartment Door WPL 2183043 Contact Us For Availability
24
Evaporator Cover WPL 2160649 Contact Us For Availability
24
Separator, Compartment (Rear) WPL 2168577 Contact Us For Availability
24
Window, Crisper Pan WPL 2174073 Contact Us For Availability
24
Butter, Tray WPL 1125936 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket, Ice Chute WPL 2160616 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Window, Meat Pan WPL 2174088 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2160627 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Retainer, Gasket WPL 1121120 Contact Us For Availability
28
Window, Air Control WPL 1125579 Contact Us For Availability
28
Button, Humidity Control WPL 2174253 Contact Us For Availability
28
Retainer, Gasket WPL 1123245 Contact Us For Availability
29
Spacer, Bottom WPL 2172743 Contact Us For Availability
29
Window, Thermostat WPL 1125580 Contact Us For Availability
29
Slide, Ice Compartment WPL 1115380 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Wire Assembly WPL 2160799 Contact Us For Availability
31
Short Rod WPL 2160752 Contact Us For Availability
31
Door-Ice Compartment WPL 2180033 Contact Us For Availability
31
Tap, Plate WPL 2155335 Contact Us For Availability
32
Pivot Arm WPL 1125581 Contact Us For Availability
32
Control Arm WPL 2160775 Contact Us For Availability
32
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
33
Nut, Compression WPL 1108005 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Roller WPL 2174388 Contact Us For Availability
33
Door Bin (Narrow) WPL 2171067 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Rubber Strip WPL 2168582 Contact Us For Availability
34
Door Bin (Wide) WPL 2171063 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Tube, Water WPL 2160794 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 2169060 Contact Us For Availability
35
Grille (Almond) WPL 2169061 Contact Us For Availability
35
Grille (Black) WPL 2169062 Contact Us For Availability
36
Bracket, Water Reservoir WPL 2168550 Contact Us For Availability
36
Holder, Beverage WPL 1125981 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Shelf, Spillguard WPL 2174018 Contact Us For Availability
38
Lever, Water Dis WPL 2177148 Contact Us For Availability
38
WPL 2177151 WPL 2177151 Contact Us For Availability
38
WPL 2177152 WPL 2177152 Contact Us For Availability
38
Ice Chute, (Seperator) WPL 2160634 Contact Us For Availability
38
Frame & Roller Assembly WPL 2174020 Contact Us For Availability
39
WPL 2174336 WPL 2174336 Contact Us For Availability
39
WPL 2174337 WPL 2174337 Contact Us For Availability
39
WPL 2174338 WPL 2174338 Contact Us For Availability
39
Screw WPL 489439 Contact Us For Availability
39
Load Lock WPL 2171283 Contact Us For Availability
40
WPL 2179384 WPL 2179384 Contact Us For Availability
40
WPL 2179385 WPL 2179385 Contact Us For Availability
40
WPL 2179386 WPL 2179386 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Gasket, Pan Cover-Rear WPL 2179250 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Roll Pin WPL 489395 Contact Us For Availability
42
Door-Platform WPL 2160613 Contact Us For Availability
42
Tube-Door Wiring WPL 2160673 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Gasket-Platform WPL 2160615 Contact Us For Availability
43
Plug, Crossover WPL 2169003 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Platform-Ice Container WPL 2160612 Contact Us For Availability
44
Clip (2) WPL 934011 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
Front Cover, Ice Container WPL 2170853 Contact Us For Availability
46
Connector-Wire WPL 2160674 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
Trivet, Door WPL 2171372 Contact Us For Availability
48
Cover, Unit WPL 2183134 Contact Us For Availability
50
Cover, Egg Bin WPL 2169935 Contact Us For Availability
60
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Door Removal Instructions WPL 2168575 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
