Model Whirlpool KTLA22KRSS00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI108405A WPL ARI108405A Contact Us For Availability

WPL ARI108406A WPL ARI108406A Contact Us For Availability

WPL ARI108407A WPL ARI108407A Contact Us For Availability

WPL ARI108408A WPL ARI108408A Contact Us For Availability

WPL ARI108409A WPL ARI108409A Contact Us For Availability

1

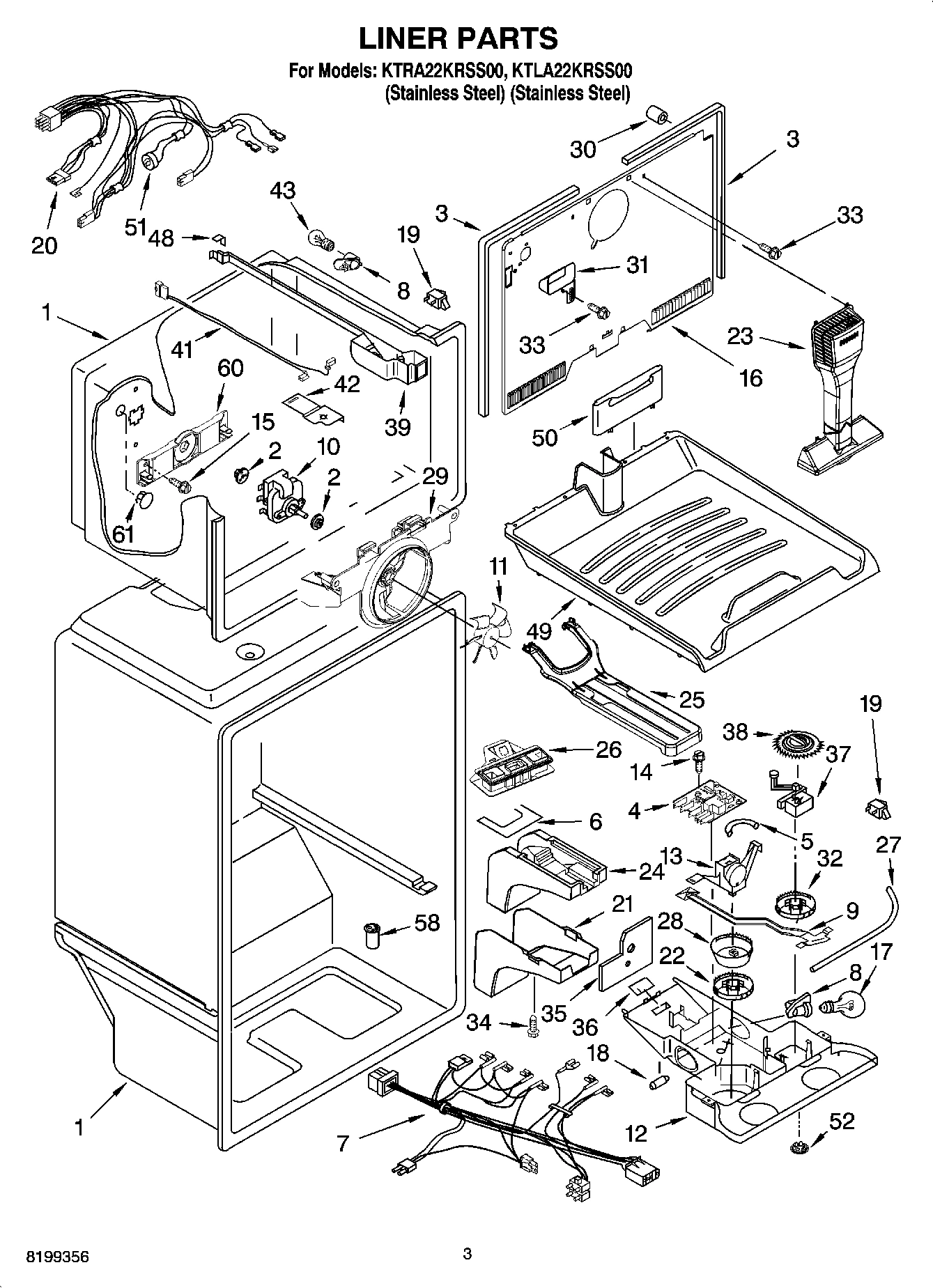

Liner (Not A Serviceable Part) WPL ARI108402A Contact Us For Availability

1

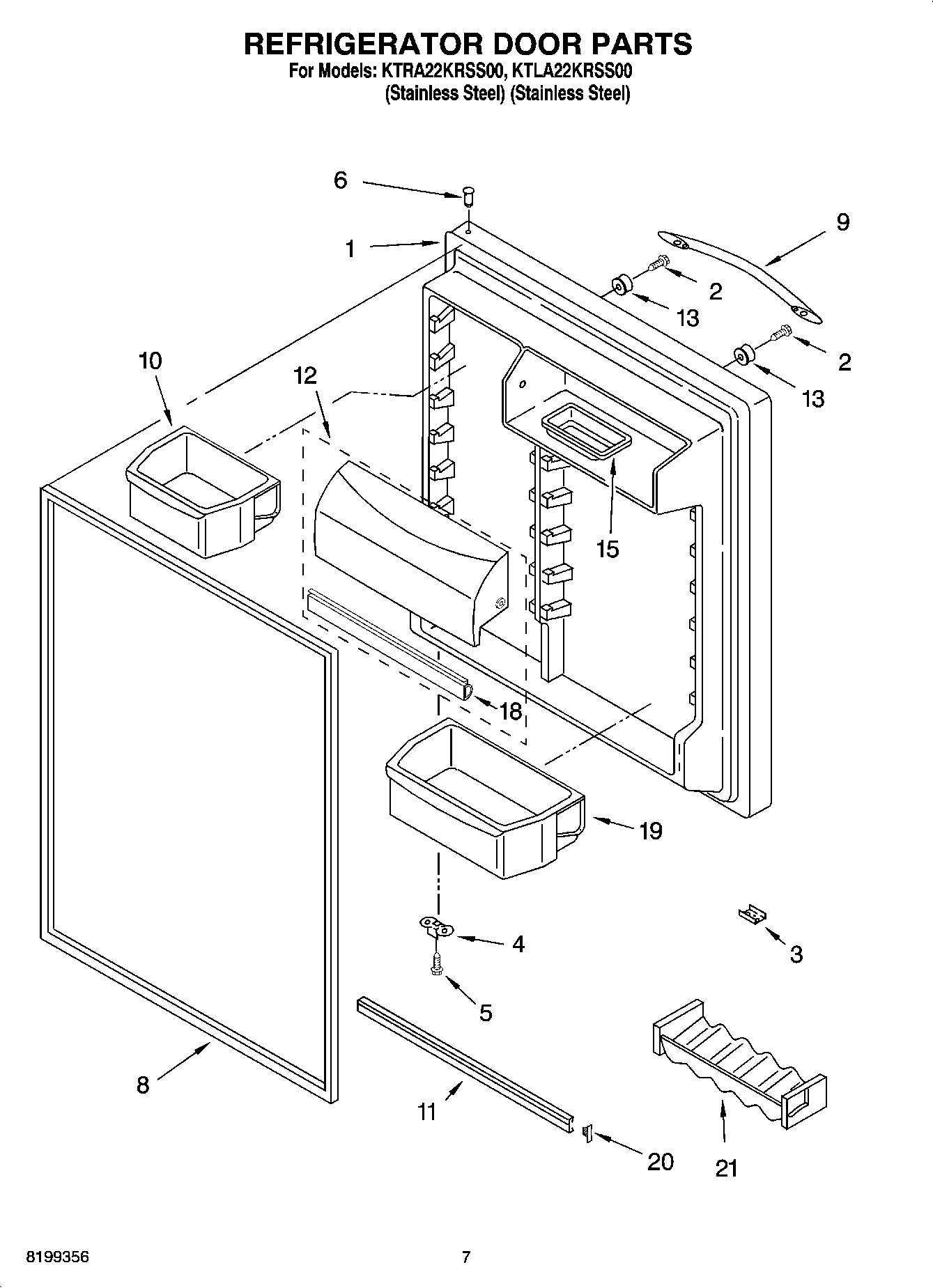

Refrigerator Door (Includes Illus. 3,6 & 8) ( WPL 2221742 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 3,6 & 8) ( WPL 2221743 Contact Us For Availability

1

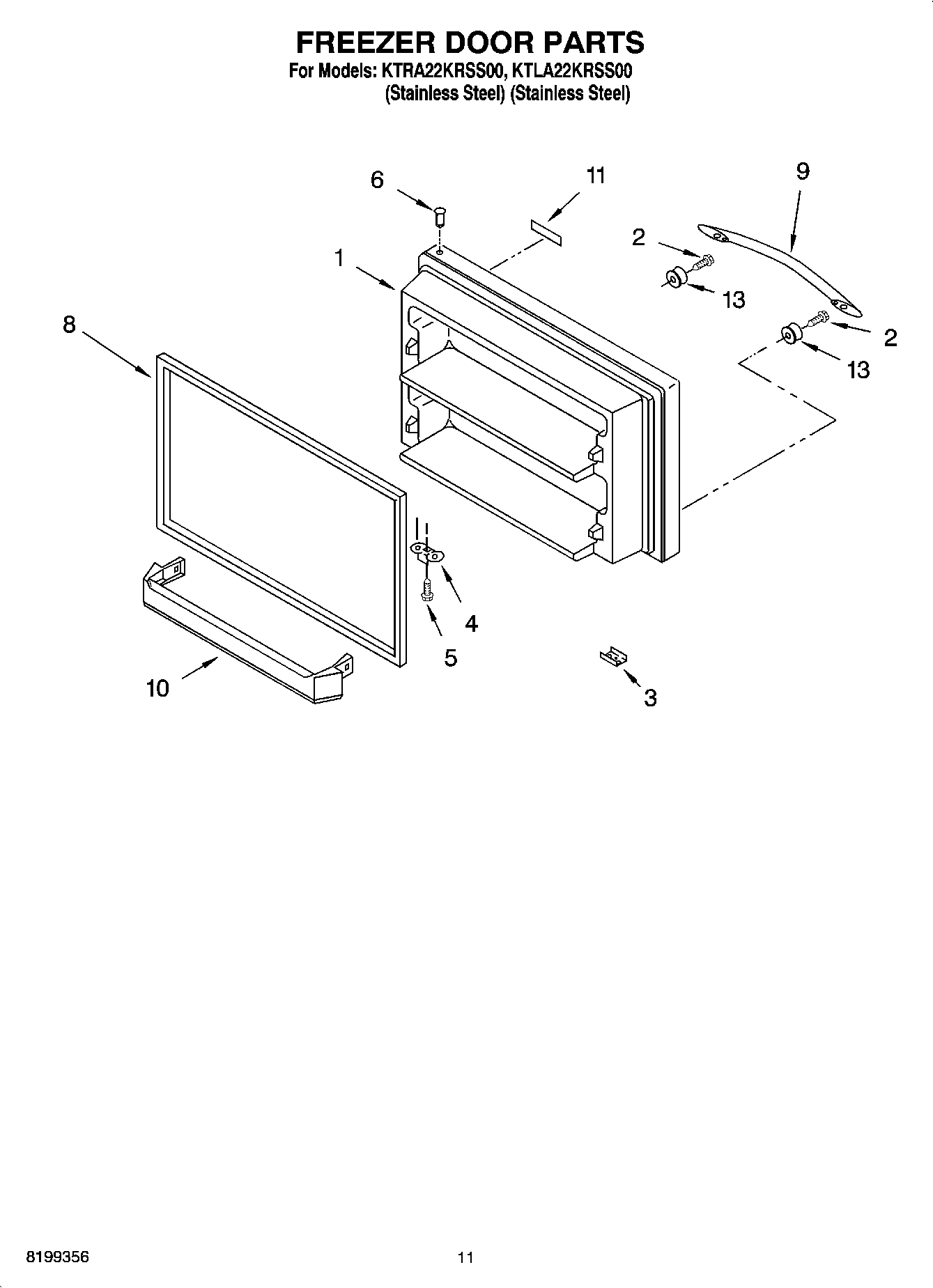

Freezer Door (Includes Illus. 3,6 & 8) (For M WPL 2221746 Contact Us For Availability

1

Freezer Door (Includes Illus. 3,6 & 8) (For M WPL 2221747 Contact Us For Availability

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

2

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

Tap Plate WPL 2183000 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Seal, Air Diffuser WPL 2179834 Contact Us For Availability

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assembly, Control Box WPL 2187882 Contact Us For Availability

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

9

Handle, Door WPL 2221770 Contact Us For Availability

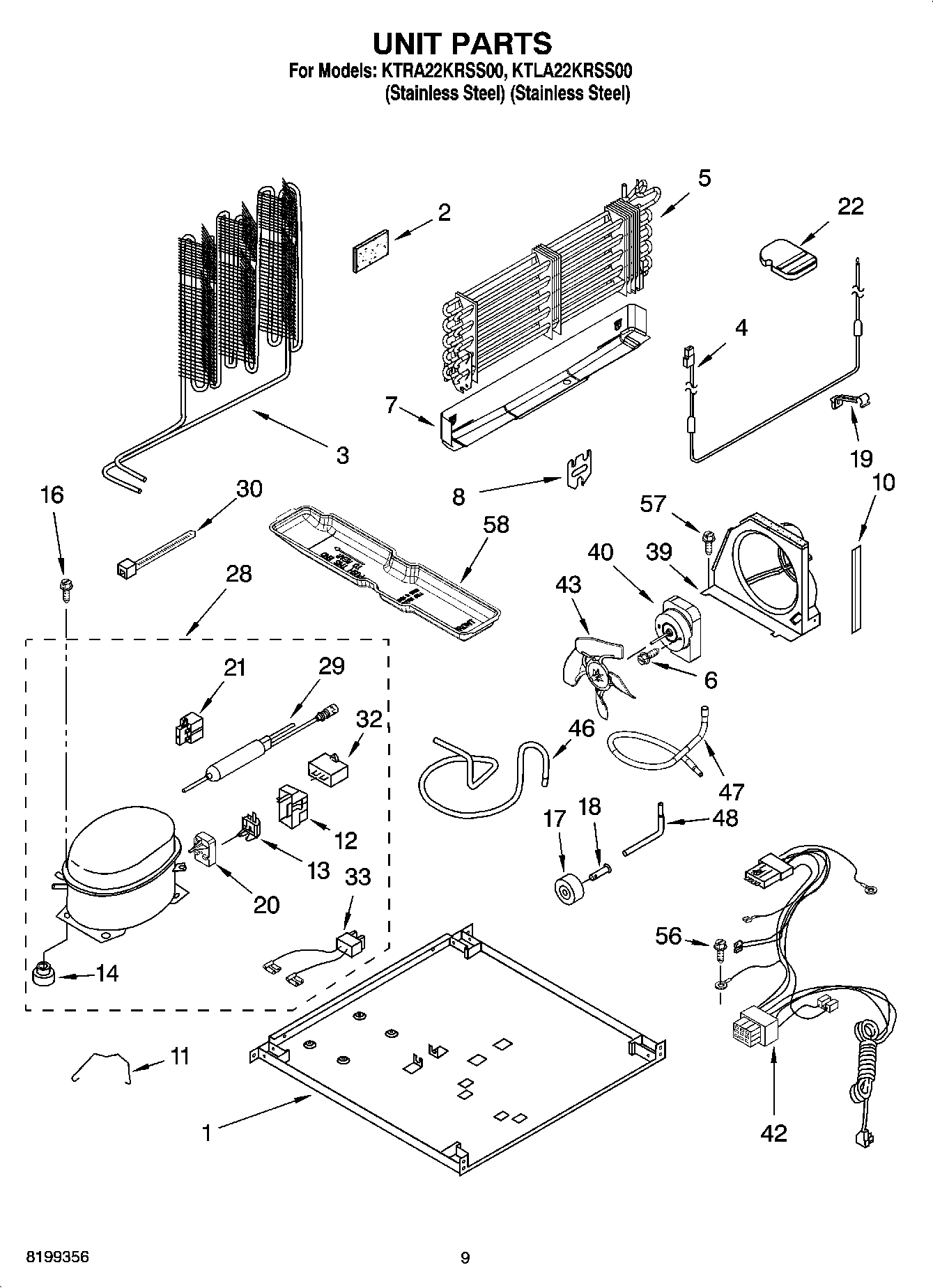

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Bin, Door Shelf WPL 2171064 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

Nameplate WPL 2212762 Contact Us For Availability

12

Control Box WPL 2213193 Contact Us For Availability

12

Door Compartment WPL 2218119 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

13

THERMOSTAT WPL 2302286 Contact Us For Availability

14

Screw WPL 8534009 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Butter, Dish WPL 2165792 Contact Us For Availability

16

Cover, Evaporator WPL 2302561 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Weight, Thermal WPL 2200831 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Wire Assembly, Freezer Compartment (Includes WPL 2187992 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Beverage Holder WPL 2193409 Contact Us For Availability

22

Support WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

24

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

Air Separator Assembly WPL 2212439 Contact Us For Availability

27

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

30

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

31

Cover, Inlet Tube WPL 2205003 Contact Us For Availability

32

Knob, Damper WPL 2204951 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

35

Shield, heat WPL 2204639 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

37

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

Housing Base WPL 2300418 Contact Us For Availability

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225476 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

52

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

60

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

61

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70
