Model Whirlpool KTLA19ELSS00 REFRIGERATOR – Common Parts & Diagrams

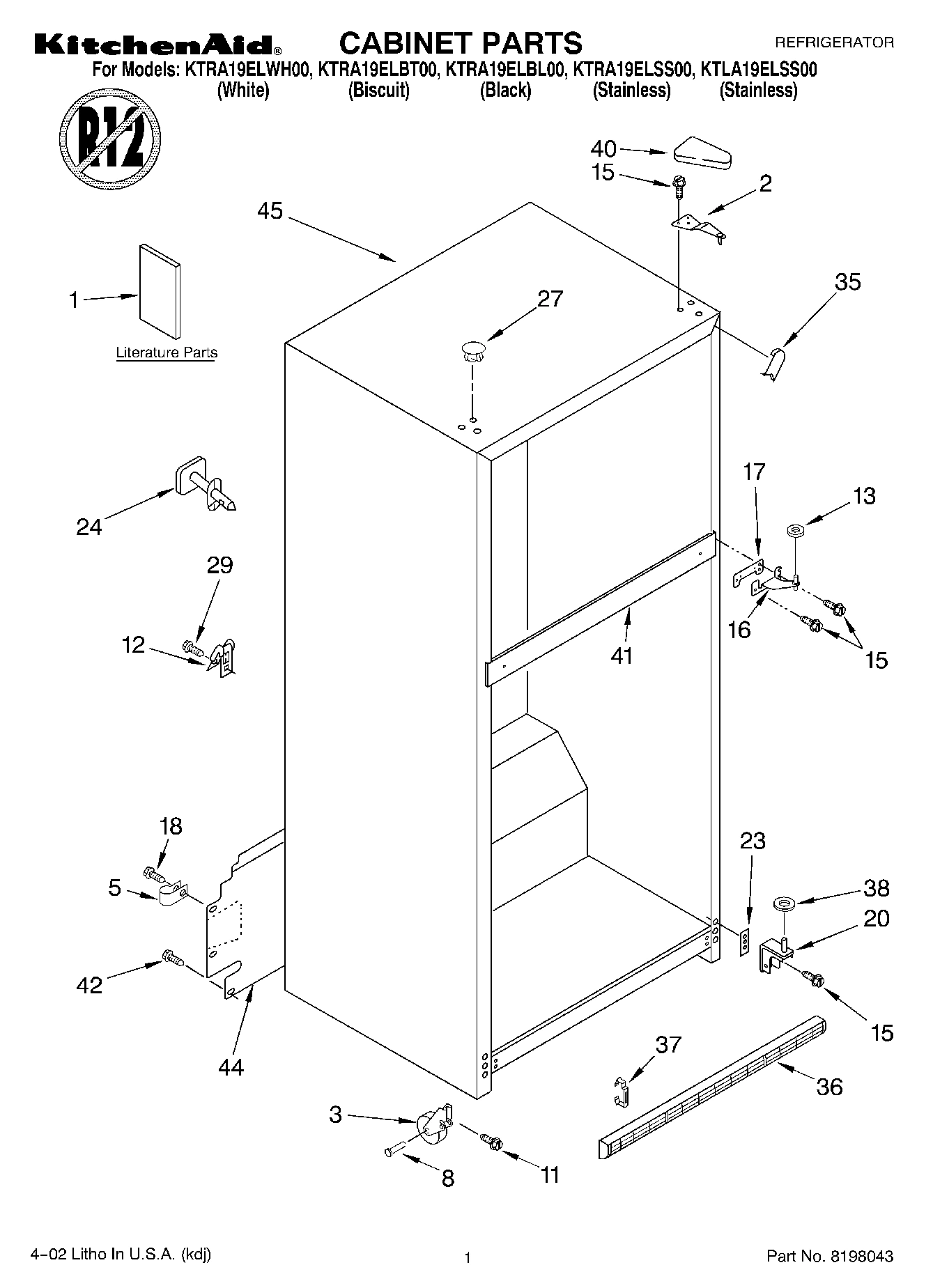

01 - CABINET, LITERATURE

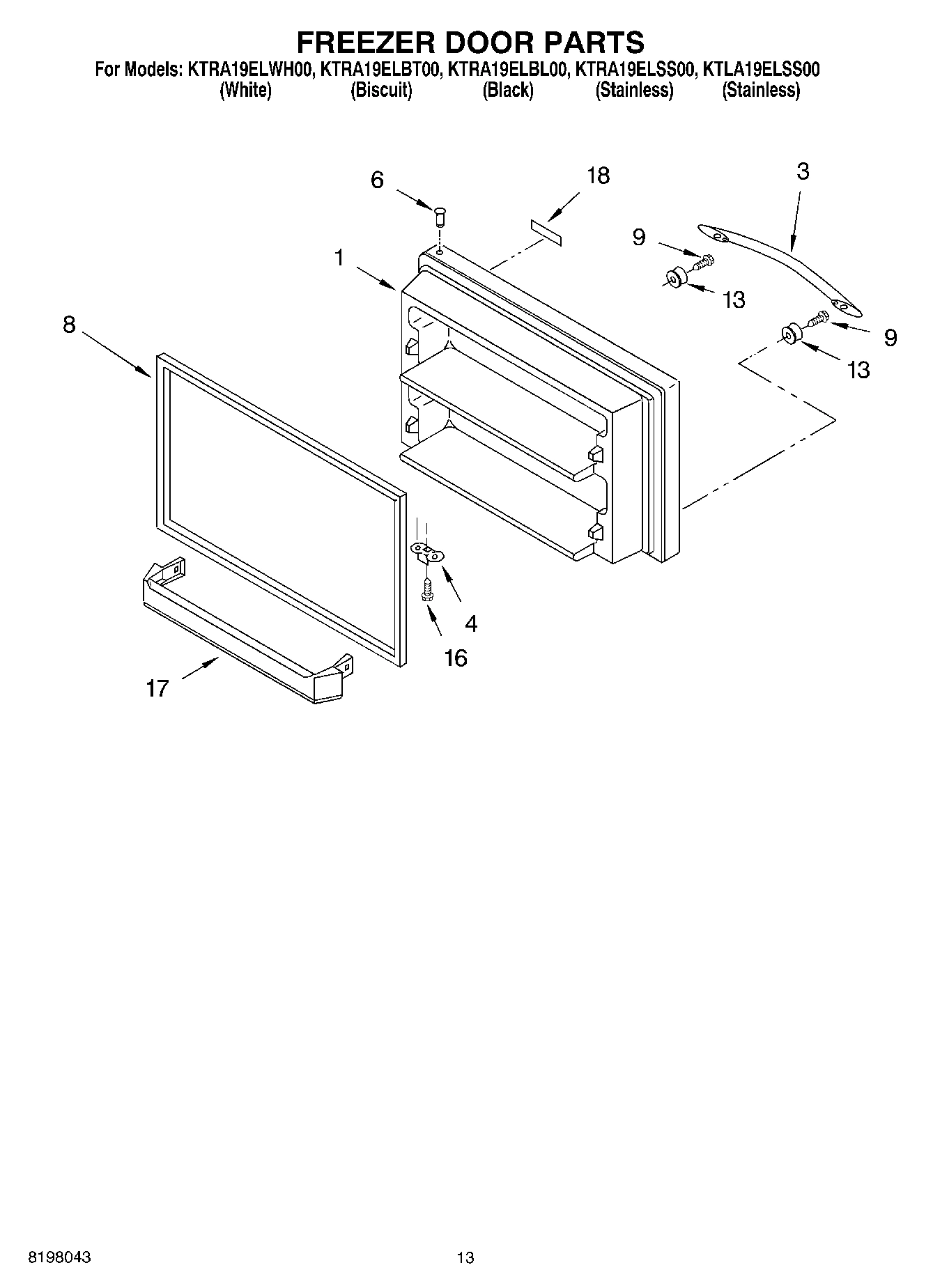

07 - FREEZER DOOR
08 - WATER DISPENSER, OPTIONAL
04 - REFRIGERATOR DOOR
06 - ICE MAKER
02 - LINER
03 - SHELF
05 - UNIT
Common parts from model Whirlpool KTLA19ELSS00 REFRIGERATOR
1
Liner (Not A Serviceable Part) WPL ARI108253A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
4
Flange, Tube WPL 2210523 Contact Us For Availability
4
Adaptive Defrost Control/P.C. Board Combinati WPL 2213493 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Wire Assembly Control Box WPL 2187448 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
8
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Torx Key WPL 1117510 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2212413 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198759 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2221694 Contact Us For Availability
11
Strap, Compressor WPL 2212997 Contact Us For Availability
12
Control Box WPL 2218670 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2188285 Contact Us For Availability
13
Thermostat Assembly (Includes Item 5) WPL 2204984 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2201173 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187301 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188290 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI108254A Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Window, Crisper Pan WPL 2188271 Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174259 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Window, Crisper Pan WPL 2188276 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Cover, Light Lens WPL 2213495 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
31
Window, Meat Pan WPL 2188277 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
35
Shield, heat WPL 2204639 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assembly Unit WPL 2187385 Contact Us For Availability
43
Fan, Blade WPL 2190685 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
47
Barrier, Freezer Control WPL 2212485 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Bracket Assembly, Water Filter WPL 2210510 Contact Us For Availability
55
Cover, Filter WPL 2219639 Contact Us For Availability
56
Tube, Filter Inlet WPL 2219699 Contact Us For Availability
57
Cover, T WPL 2210521 Contact Us For Availability
58
Evaporator Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
WPL 2210563 WPL 2210563 Contact Us For Availability
61
WPL 2214981 WPL 2214981 Contact Us For Availability
62
WPL 2213384 WPL 2213384 Contact Us For Availability
× ![]()
