Model Whirlpool KSSS48MWX01 BUILT IN REFRIGERATOR – Common Parts & Diagrams

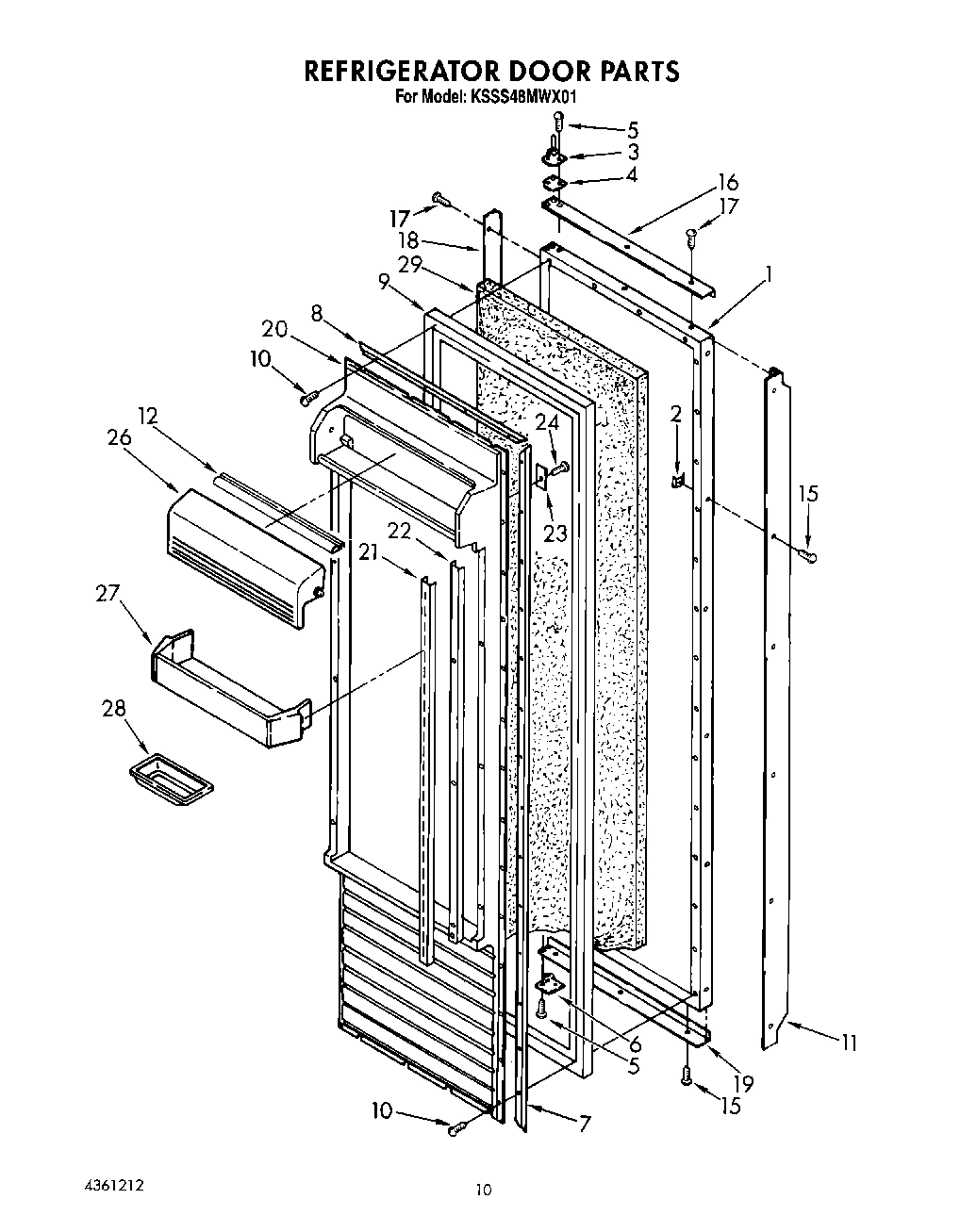

09 - REFRIGERATOR DOOR

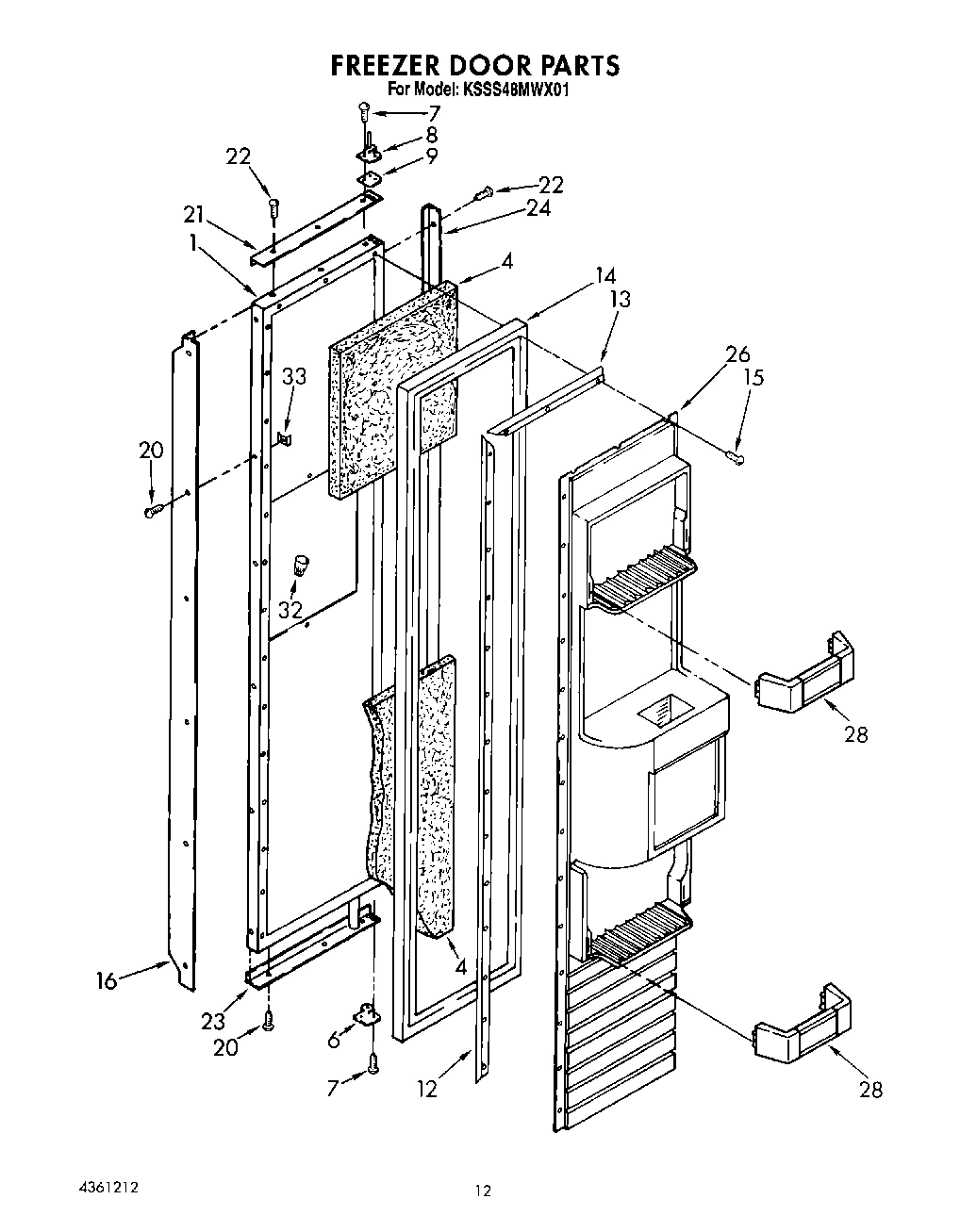

11 - FREEZER DOOR

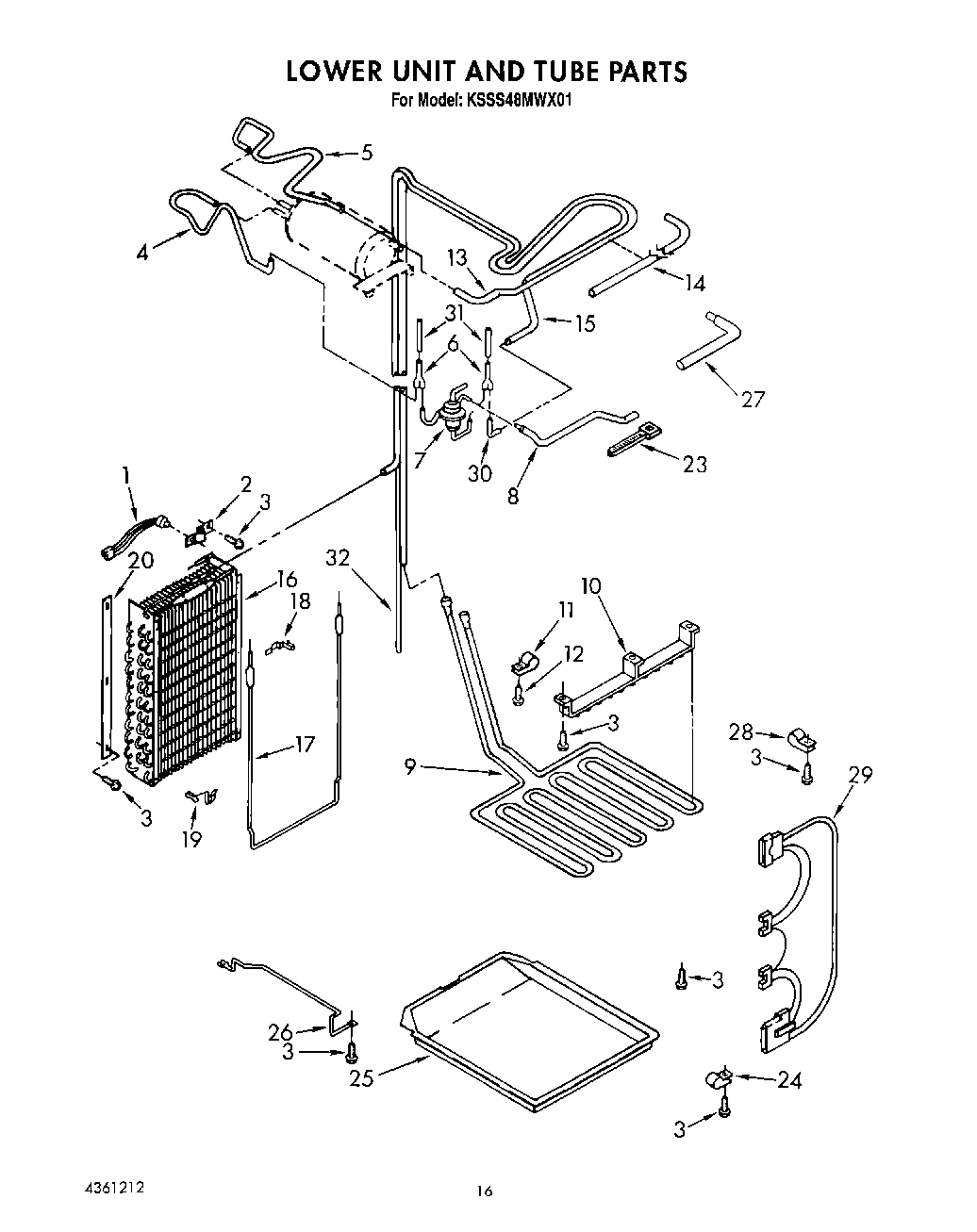

14 - LOWER UNIT AND TUBE

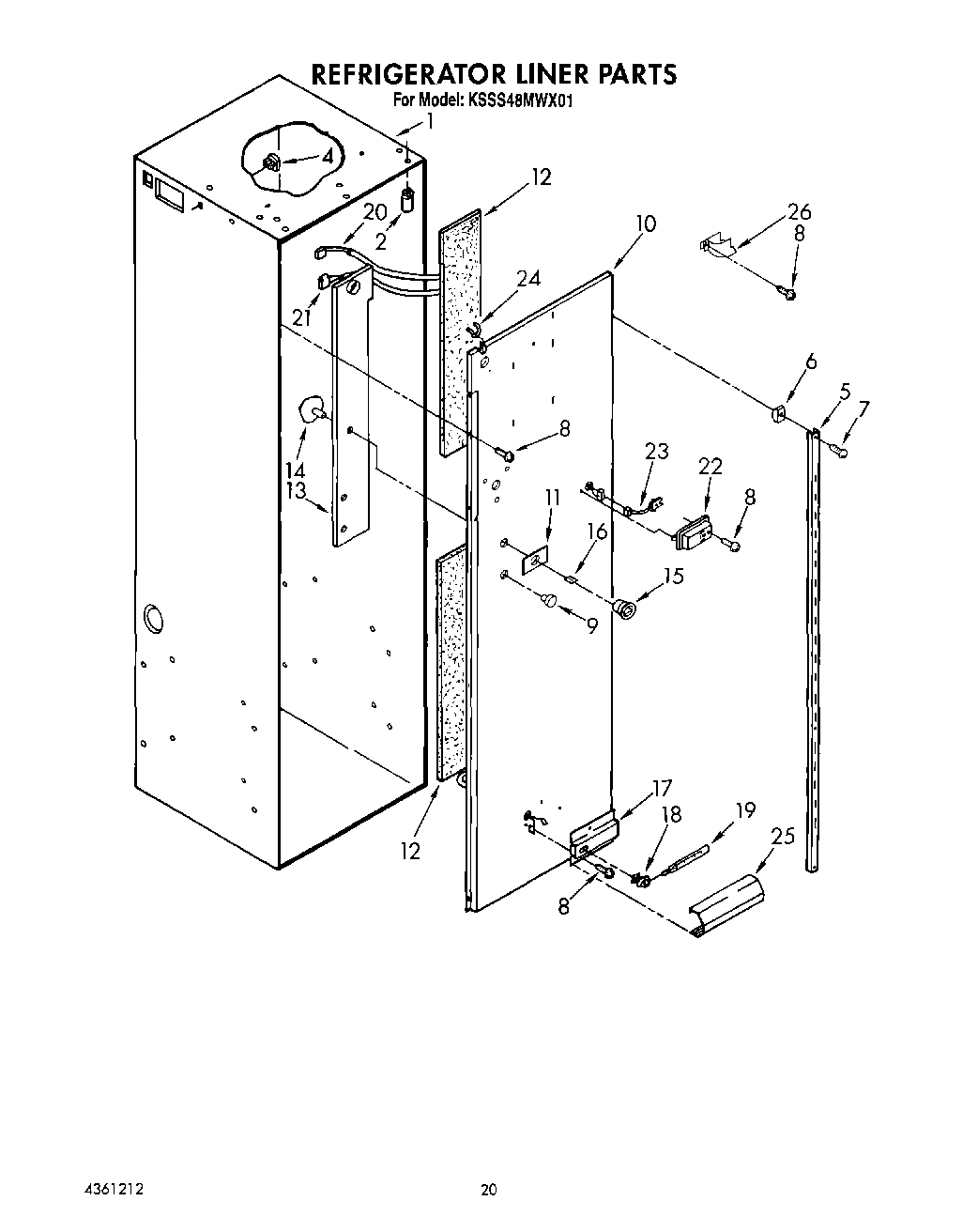

16 - REFRIGERATOR LINER

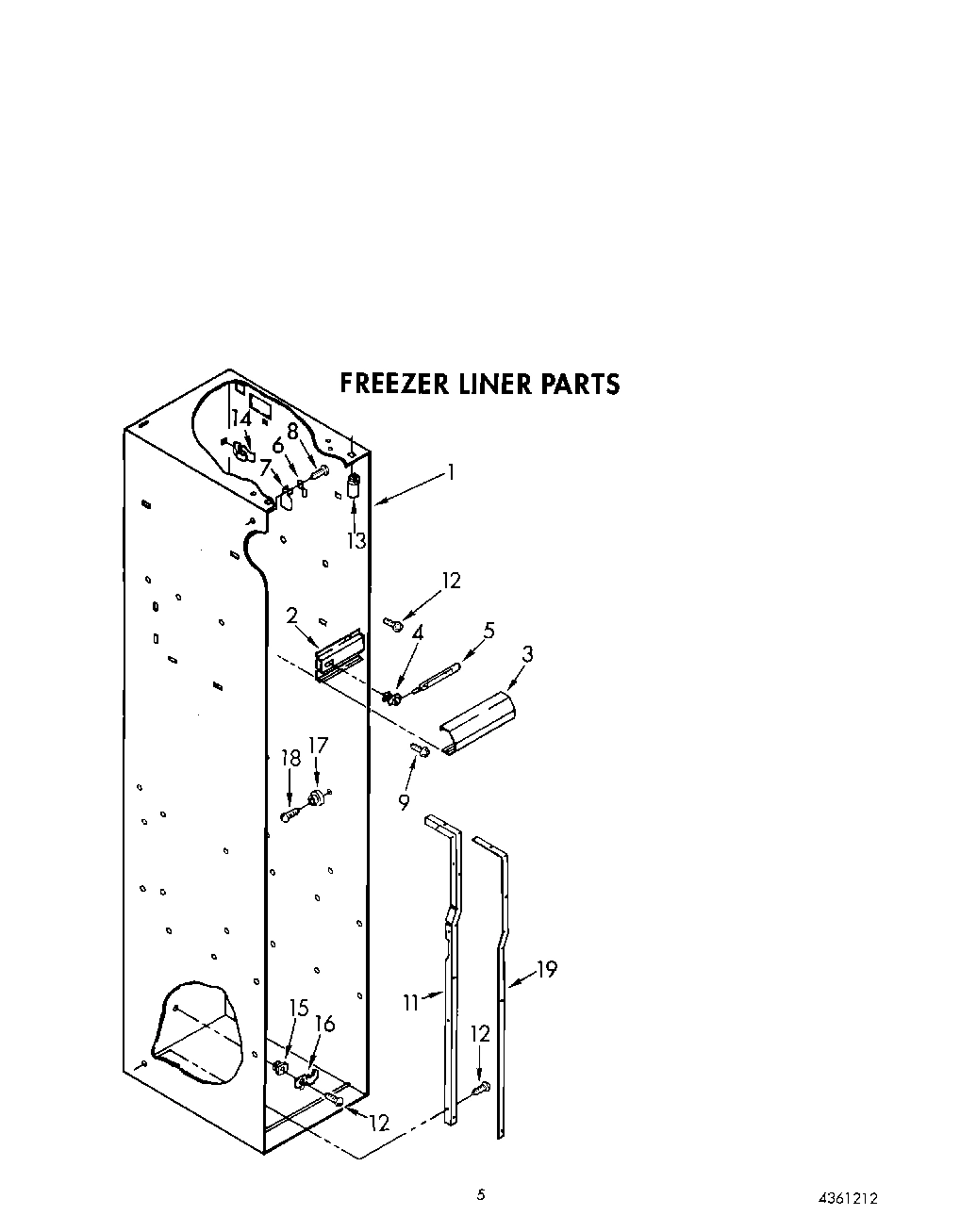

04 - FREEZER LINER

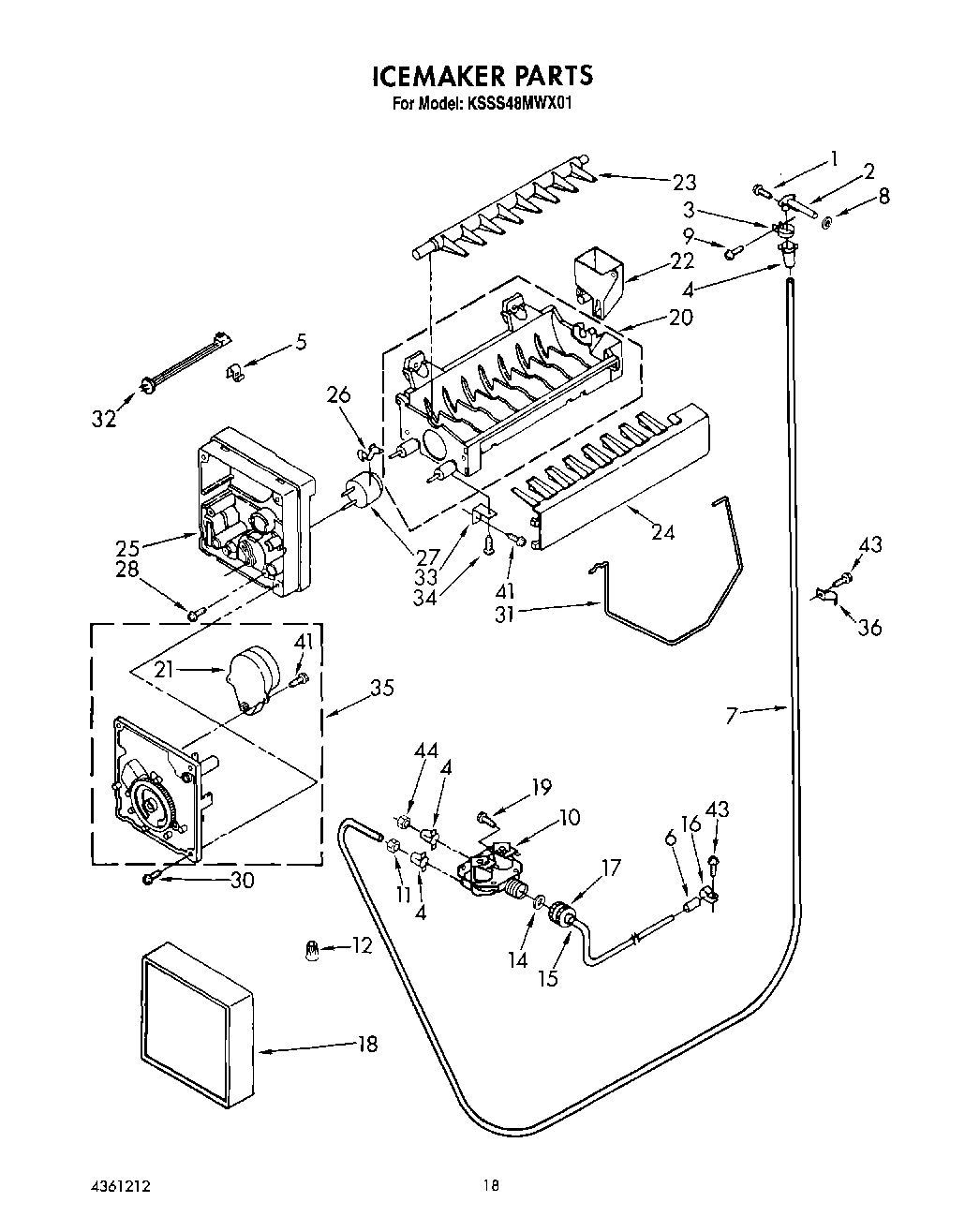

15 - ICEMAKER

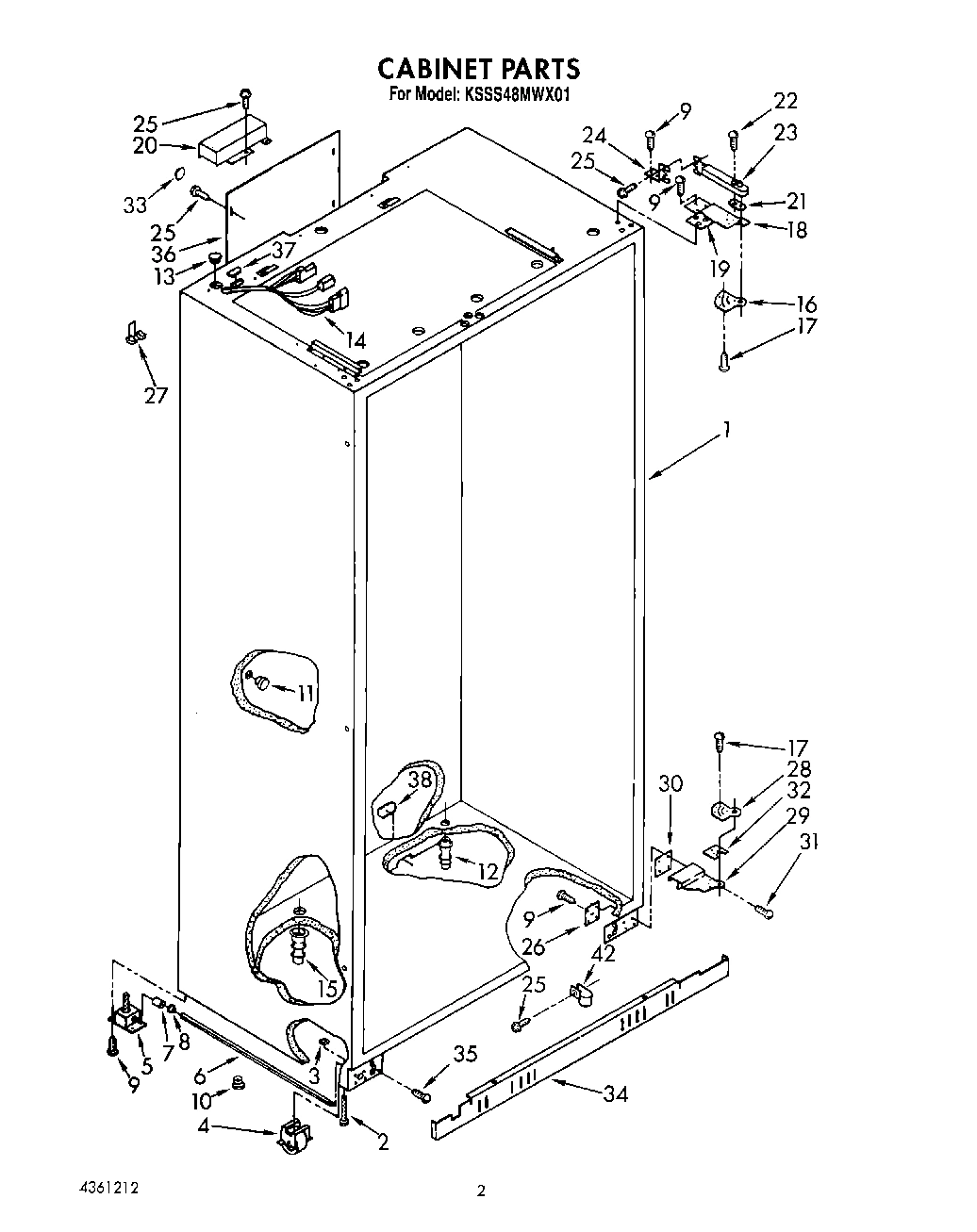

02 - CABINET

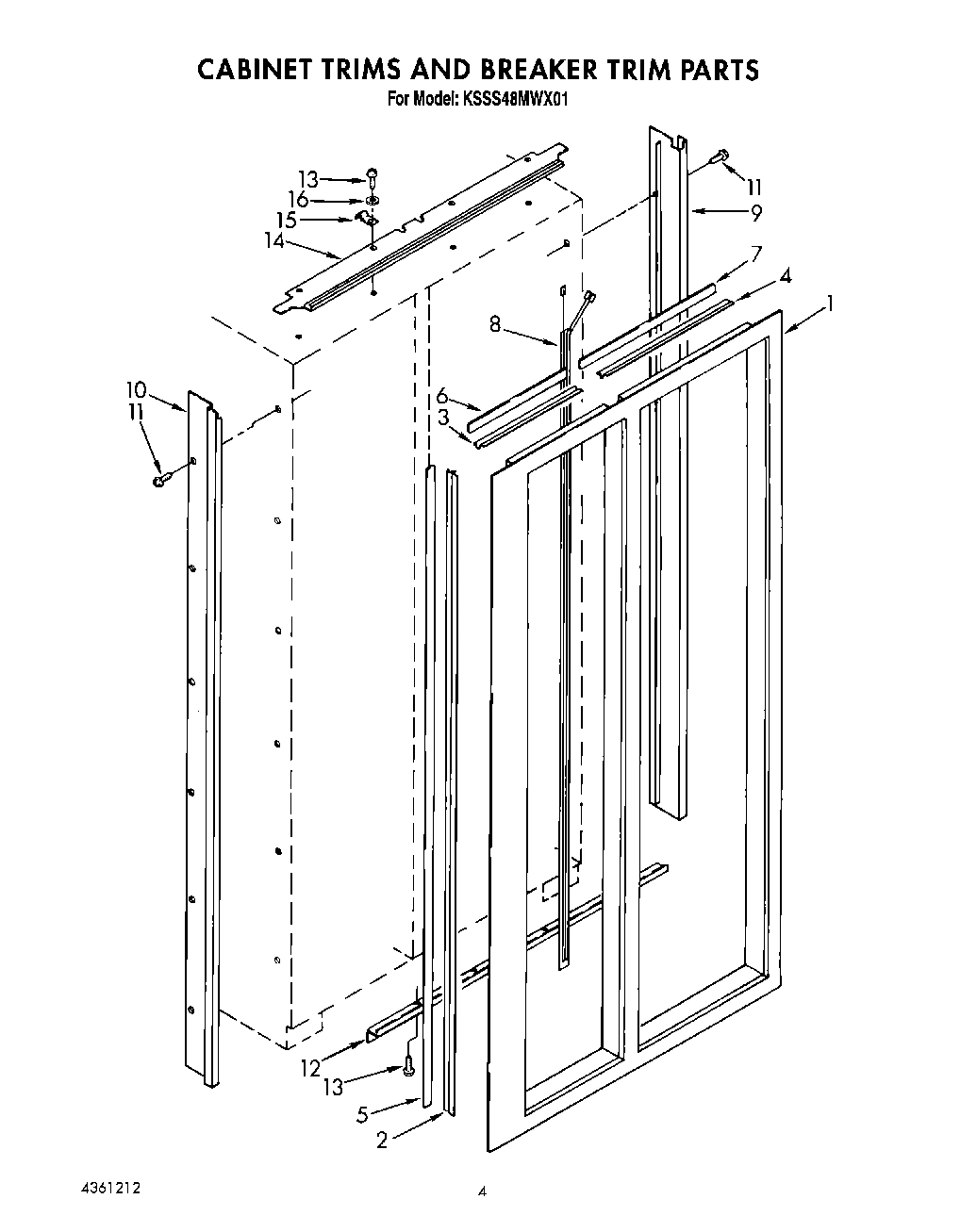

03 - CABINET TRIMS AND BREAKER TRIM

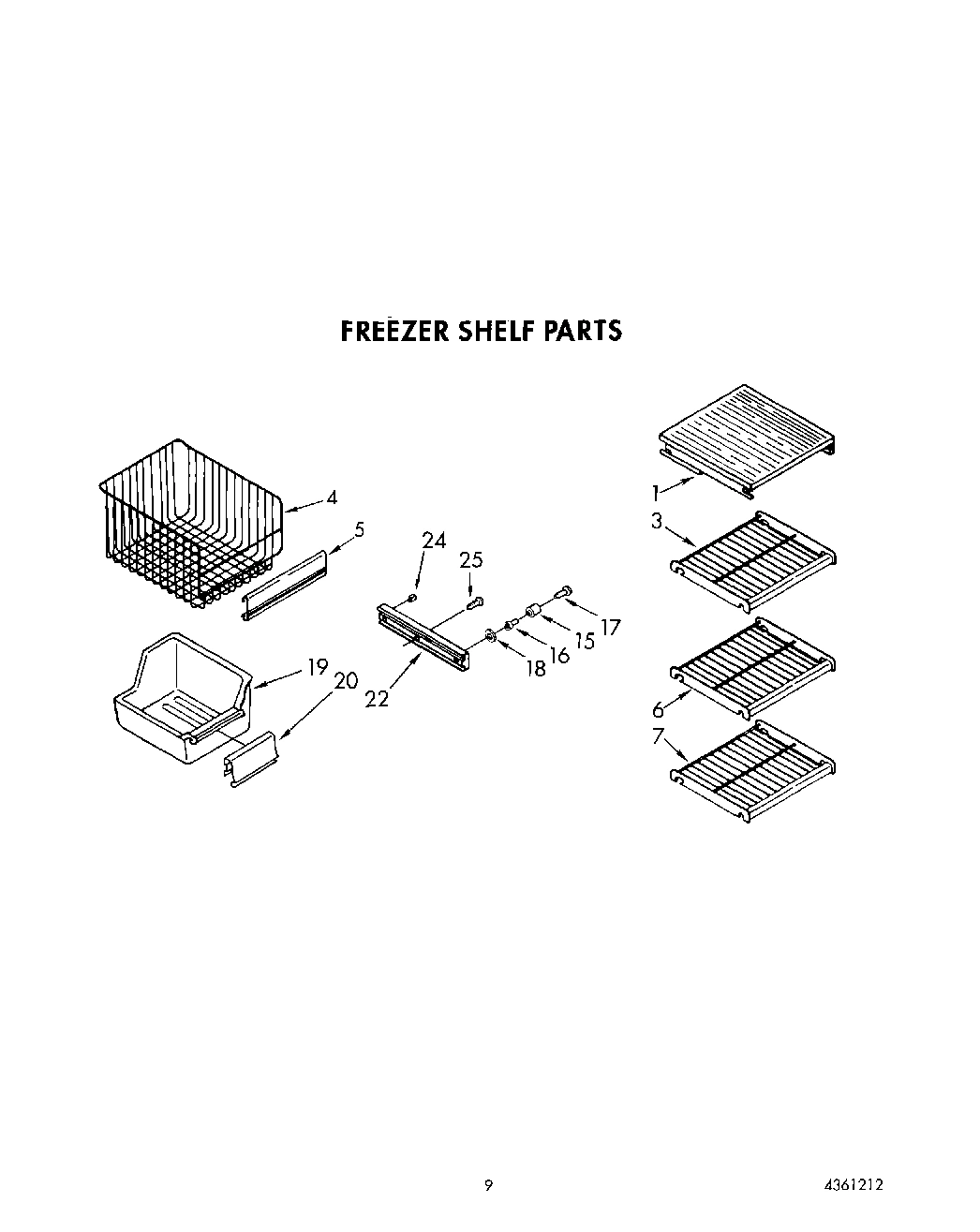

08 - FREEZER SHELF

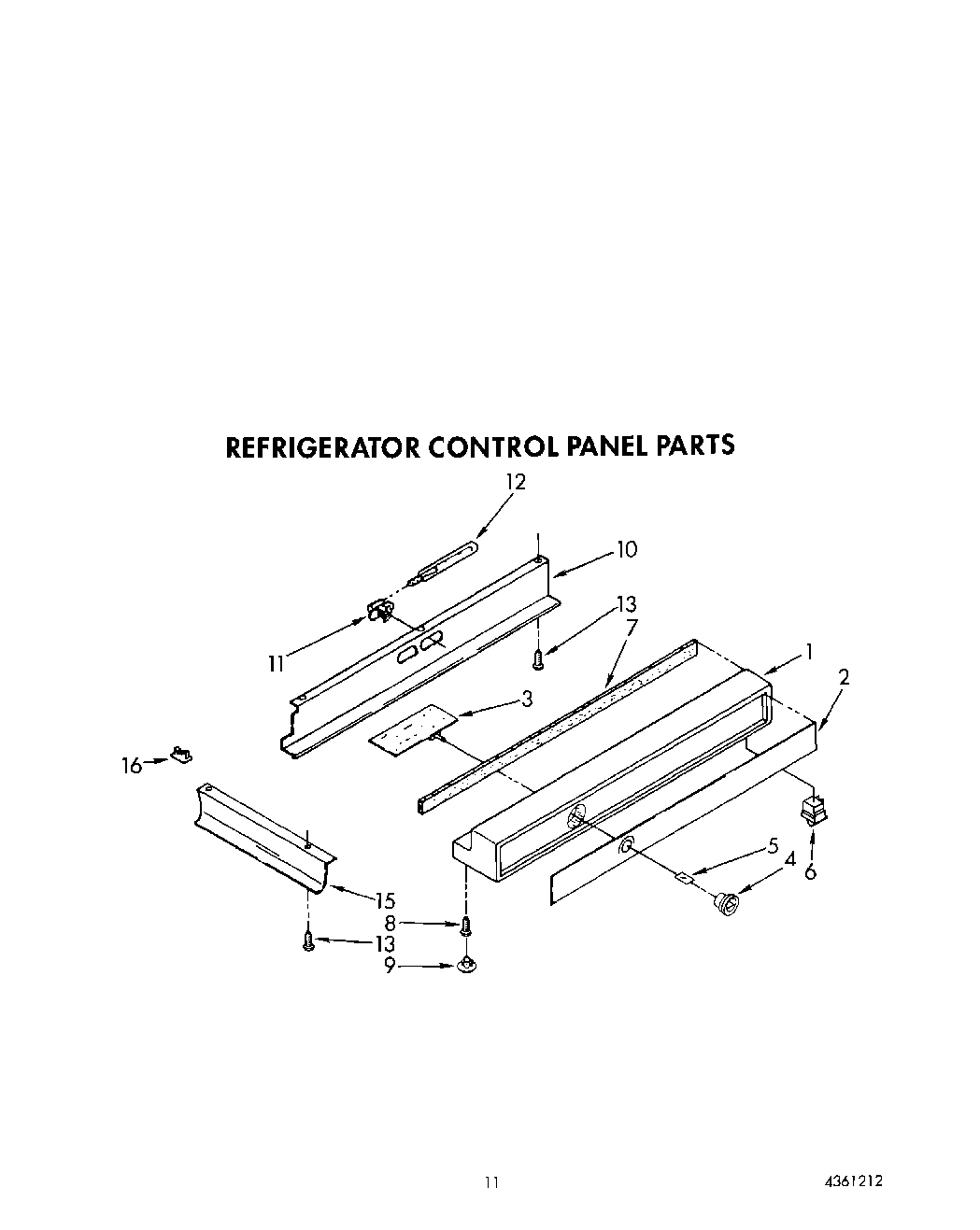

10 - REFRIGERATOR CONTROL PANEL

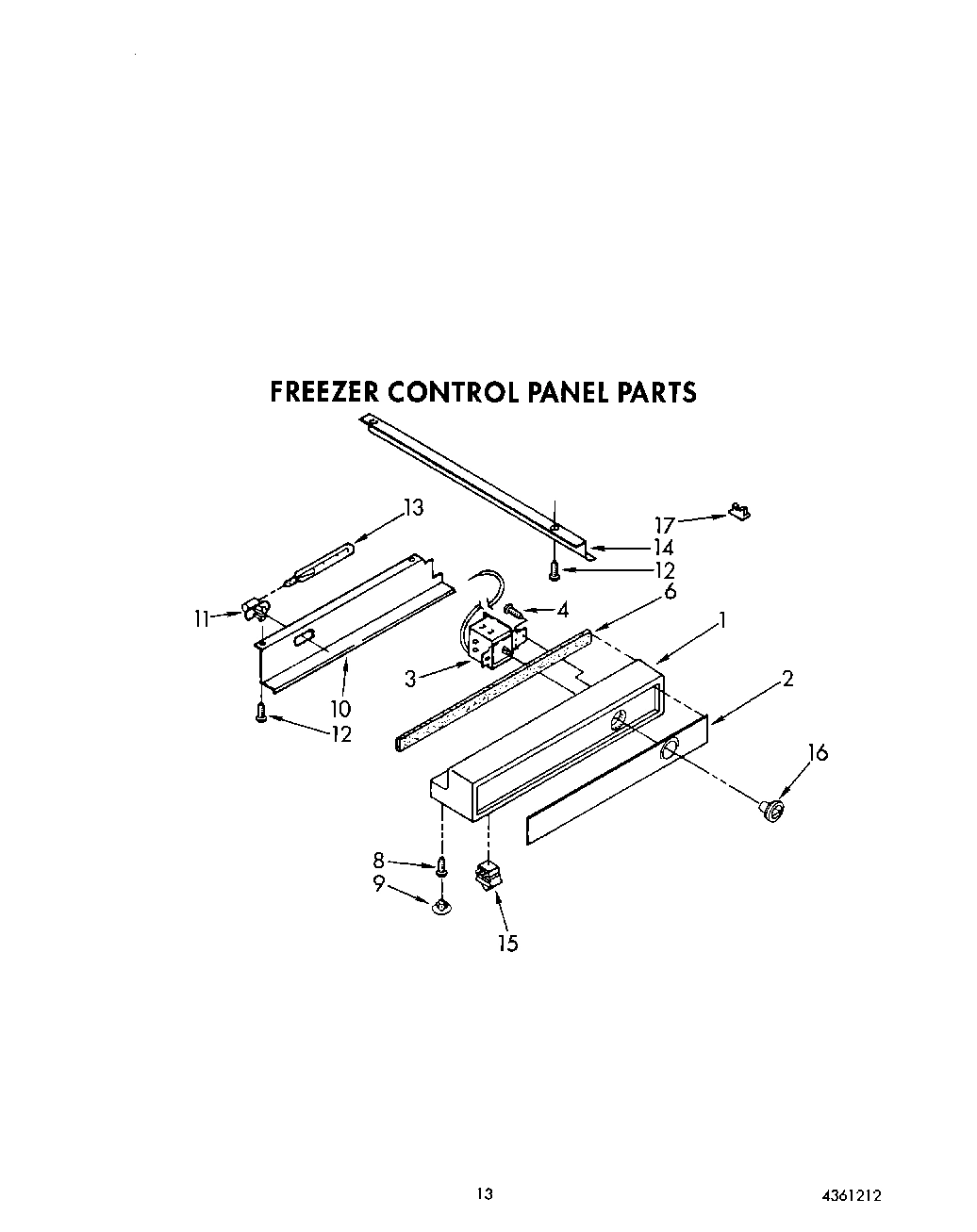

12 - FREEZER CONTROL PANEL

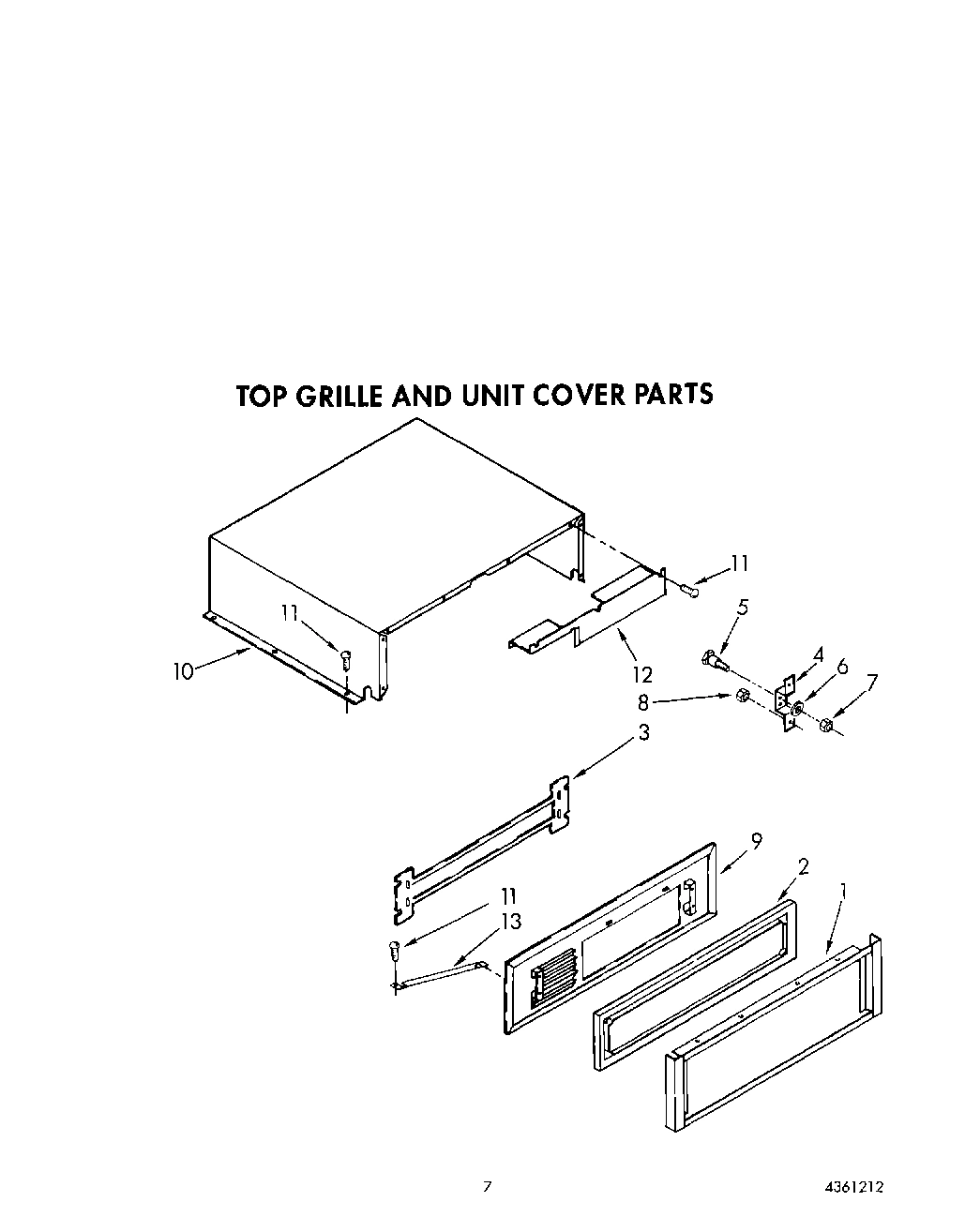

06 - TOP GRILLE AND UNIT COVER

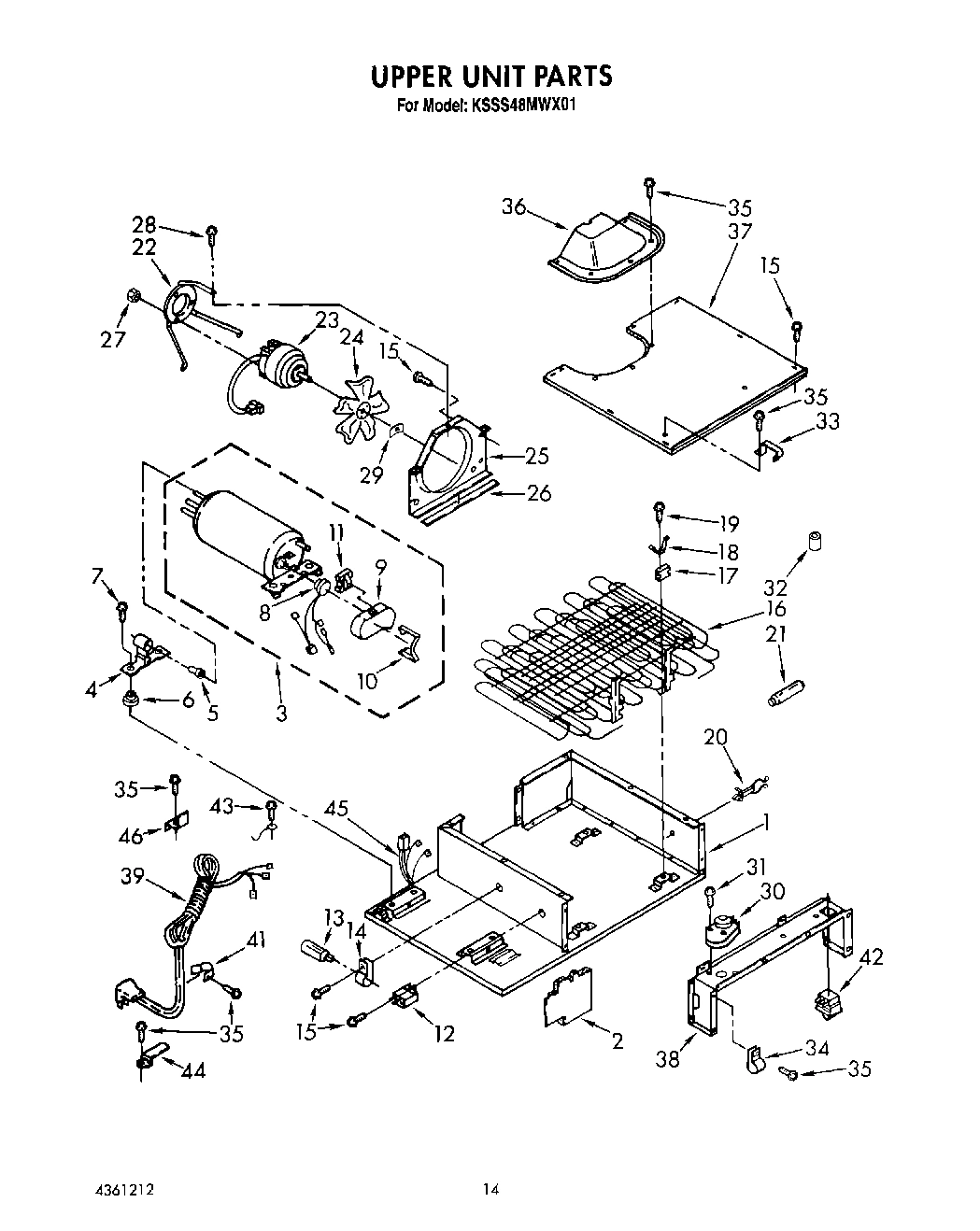

13 - UPPER UNIT, LIT/OPTIONAL

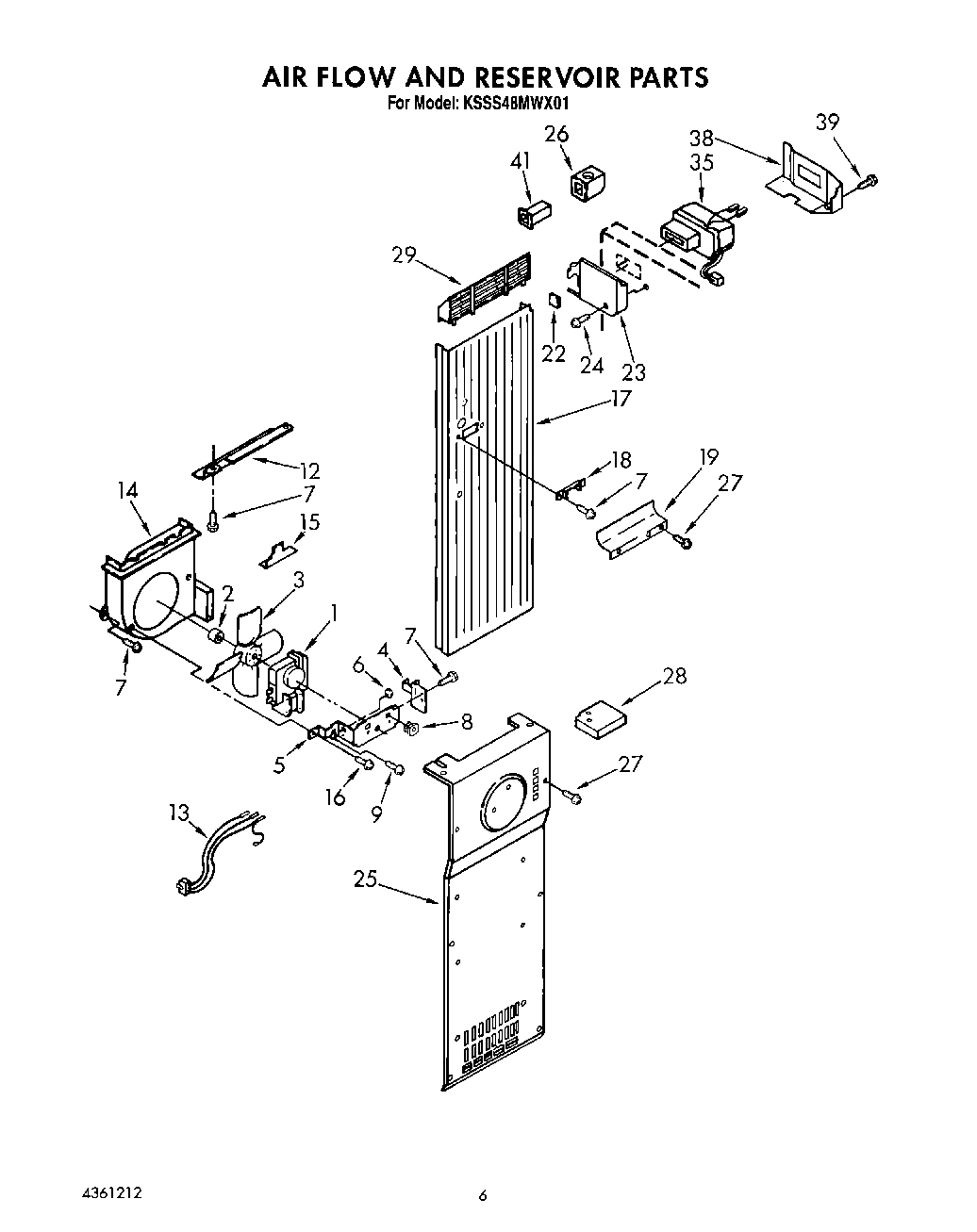

05 - AIR FLOW AND RESERVOIR

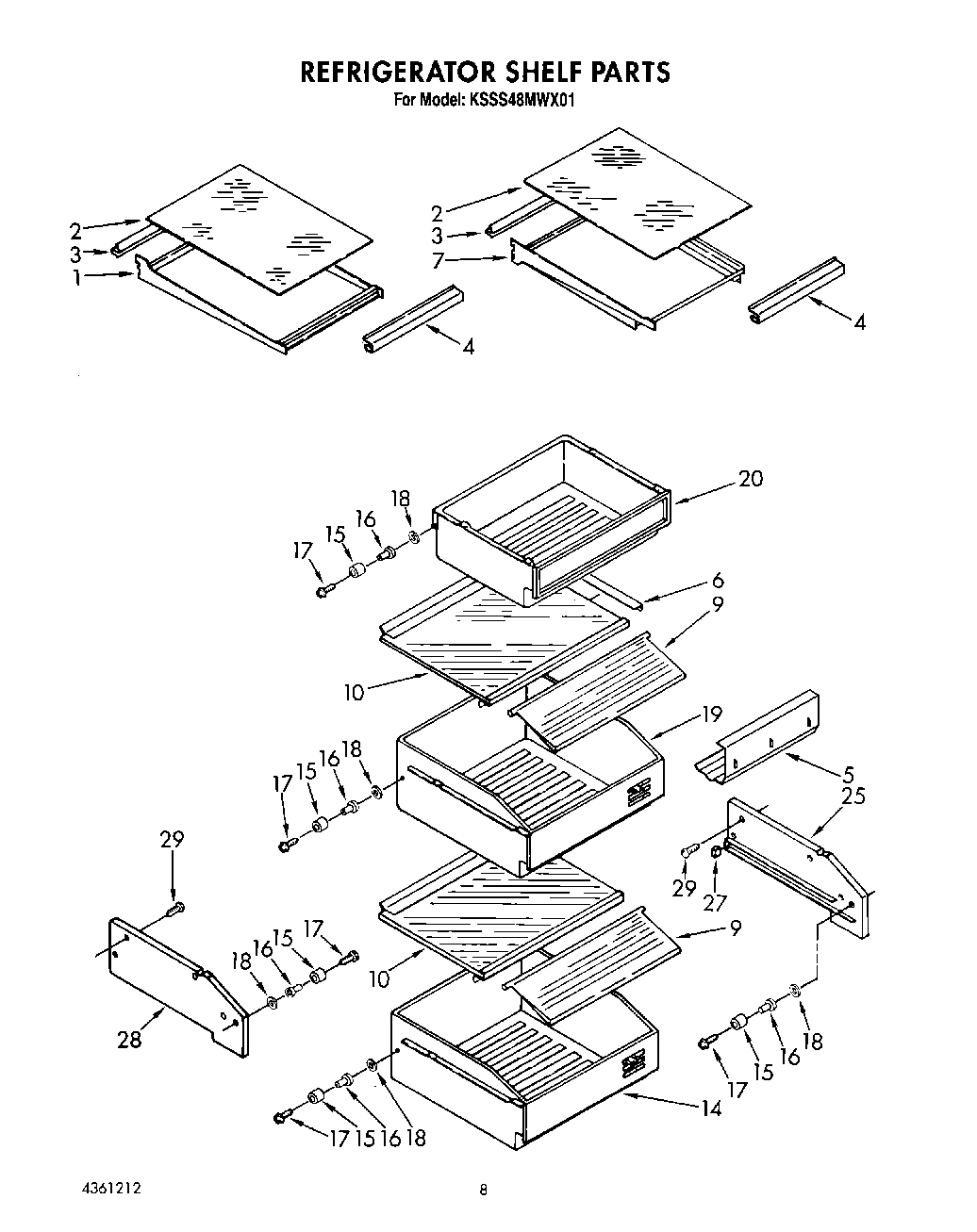

07 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSSS48MWX01 BUILT IN REFRIGERATOR
WPL LIT1113721 WPL LIT1113721 Contact Us For Availability
WPL LIT1113724 WPL LIT1113724 Contact Us For Availability
WPL LIT2000496 WPL LIT2000496 Contact Us For Availability
WPL LIT2000628 WPL LIT2000628 Contact Us For Availability
WPL LIT4361212 WPL LIT4361212 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107816A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107815A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107814A Contact Us For Availability
1
Breaker Trim, (One Piece) WPL 1112667 Contact Us For Availability
1
Solid Shelf WPL 1113630 Contact Us For Availability
1
Control Panel WPL 1112642 Contact Us For Availability
1
Control Panel WPL 1113627 Contact Us For Availability
1
Grille, Frame Assembly WPL 1113868 Contact Us For Availability
1
Assembly, Unit Base WPL 1113034 Contact Us For Availability
1
Frame, Shelf WPL 1112004 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Retainer, Side (4) WPL 1113277 Contact Us For Availability
2
Inlay, Control Panel WPL 2000976 Contact Us For Availability
2
Inlay, Control Panel WPL 1113959 Contact Us For Availability
2
Decorative Panel Assembly WPL 1113865 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Ring, Compression WPL 992953 Contact Us For Availability
2
Glass, Shelf WPL 1113956 Contact Us For Availability
3
Blade, Fan WPL 992920 Contact Us For Availability
3
Lens, Light-Lower WPL 1113650 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Retainer Trim Freezer (2) WPL 1112754 Contact Us For Availability
3
Shelf, Fixed (2) WPL 1112052 Contact Us For Availability
3
Circuit Board WPL 1113390 Contact Us For Availability
3
Back Up Panel WPL 1113356 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10 & 11) (Al WPL 4318070 Contact Us For Availability
3
Reflector, Shelf WPL 1112006 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113055 Contact Us For Availability
4
Retainer Trim Refrigerator (2) WPL 1112687 Contact Us For Availability
4
Basket, Freezer WPL 1113641 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Bracket, Keyhole WPL 1113324 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113792 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Ladder, Shelf (2) WPL 1112115 Contact Us For Availability
5
Knob, Retainer WPL 837444 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Trim, Basket WPL 1113644 Contact Us For Availability
5
Shoulder Screw WPL 1113326 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Adjusting Rod (2) WPL 1112936 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112679 Contact Us For Availability
6
Shelf, Assembly WPL 1113635 Contact Us For Availability
6
Seal, Control Panel WPL 1113136 Contact Us For Availability
6
Spring Washer WPL 489232 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Retainer, Glass WPL 1112324 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112681 Contact Us For Availability
7
Shelf, Assembly WPL 1113638 Contact Us For Availability
7
Seal, Control Panel WPL 1113137 Contact Us For Availability
7
Frame Assembly WPL 1112014 Contact Us For Availability
8
Tube, Connect (Drier) WPL 1113294 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Heater, Mullion WPL 1112712 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Nut (8) WPL 489172 Contact Us For Availability
8
Overload WPL 2149697 Contact Us For Availability
8
Overload Production Only WPL 2154947 Contact Us For Availability
8
Grommet, Screw WPL 538449 Contact Us For Availability
9
Heater, Drain Pan WPL 1113061 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
9
Screw, 10-32 x 5/8 WPL 2000489 Contact Us For Availability
9
Trim (R.S.) WPL 1113836 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Top Grille Assembly WPL 2000627 Contact Us For Availability
9
Terminal Cover WPL 1105221 Contact Us For Availability
9
For Service Compressor Only WPL 2154452 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Cover, Liner Back WPL 2000952 Contact Us For Availability
10
Valve, Solenoid WPL 1113103 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Trim (L.S.) WPL 1113835 Contact Us For Availability
10
Shield, Control Panel WPL 1113775 Contact Us For Availability
10
Shield, Control Panel WPL 1113769 Contact Us For Availability
10
Cover, Unit WPL 1113490 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Glass, Crisper WPL 1113238 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Control Panel Assembly (Meat) WPL 1112219 Contact Us For Availability
11
Socket, Light WPL 1112613 Contact Us For Availability
11
Rail, Evaporator Cover (Left Side) WPL 2000956 Contact Us For Availability
11
Rail, Evaporator Cover (Right Side) WPL 2000957 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Screw (12) WPL 489238 Contact Us For Availability
11
Screw, (Repair) WPL 487246 Contact Us For Availability
11
Relay WPL 1108066 Contact Us For Availability
11
For Service Compressor Only WPL 1118797 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Insulation, Liner Back Cover WPL 1112125 Contact Us For Availability
12
Grommet, Water Tube WPL 1112970 Contact Us For Availability
12
Trim (Bottom) WPL 1112802 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
12
Running Capacitor WPL 2149684 Contact Us For Availability
12
Channel, Wiring WPL 1112707 Contact Us For Availability
13
Tube, Discharge WPL 1113256 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Duct, Meat Pan WPL 1112132 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Brace, Panel WPL 1113317 Contact Us For Availability
13
Starting Capacitor WPL 1118796 Contact Us For Availability
13
Wiring Harness, Fan Motor WPL 2000618 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000617 Contact Us For Availability
14
Spacer Trim, Grille WPL 1113844 Contact Us For Availability
14
Channel, Wiring WPL 2000113 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Scroll, Fan (Also Order Item 15) WPL 1111212 Contact Us For Availability
14
Pan, Crisper WPL 2000554 Contact Us For Availability
15
Heat Exchanger WPL 1113475 Contact Us For Availability
15
Grommet (15) WPL 842339 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
15
Tube, Inlet Valve WPL 1113106 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 1113604 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Channel, Wiring WPL 1112708 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 489368 Contact Us For Availability
15
Shield, Electric WPL 1112976 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
17
Heater, Defrost WPL 2000563 Contact Us For Availability
17
Bracket, Light WPL 1112789 Contact Us For Availability
17
Stud, Shelf (8) WPL 658944 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shoulder, Screw WPL 1112906 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Assembly, Air Duct WPL 2000060 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
18
Cover WPL 1113703 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 1112901 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 1112912 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Clamp, Heater (2) WPL 549419 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1112843 Contact Us For Availability
19
Shim, Hinge Top (4) WPL 1112988 Contact Us For Availability
19
Baffle, Evap. Cover WPL 1112529 Contact Us For Availability
19
Utility Pan WPL 2000557 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 1112995 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Trim, Ice Pan WPL 1122530 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Meat Pan WPL 2000560 Contact Us For Availability
21
Wiring Harness, Light Socket WPL 1112709 Contact Us For Availability
21
Door Closer, Fixed Cam WPL 1112907 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
22
Slide, Basket R.S. WPL 2000061 Contact Us For Availability
22
Slide, Basket L.S. WPL 2000062 Contact Us For Availability
22
Mounting Bracket, Motor WPL 1113083 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
24
Trim (Side) WPL 1113820 Contact Us For Availability
24
Flexible Grommet WPL 2000530 Contact Us For Availability
24
Bracket, Door Closer (Left Side) WPL 1112947 Contact Us For Availability
24
Bracket, Door Closer (Right Side) WPL 1112948 Contact Us For Availability
24
Blade, Fan WPL 1113082 Contact Us For Availability
24
Screw, 8-32 x 1-1/2 WPL 488748 Contact Us For Availability
25
Shield, Light WPL 1112788 Contact Us For Availability
25
Orifice, Fan WPL 2000190 Contact Us For Availability
25
Cover, Evaporator WPL 2000487 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
26
Panel, Interior Door WPL 2000179 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 1112565 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Process, Tube WPL 1113059 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Door Shelf, Assembly WPL 2000606 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Wiring Harness, Water Valve WPL 1113749 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 1112919 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 1112923 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112853 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
30
Shim, Hinge (1 Each) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2 Each) WPL 1112943 Contact Us For Availability
30
Defrost Timer (10 Hour) WPL 1127570 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
31
Screw WPL 2000490 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Spacer, Lower Door Hinge WPL 1113809 Contact Us For Availability
32
Sleeve, Mounting Condenser WPL 2000645 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
33
Seal, Hole WPL 1105408 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Grille Base, Front WPL 1112139 Contact Us For Availability
35
Assembly, Air Baffle WPL 1113590 Contact Us For Availability
36
Tube Clamp (4) WPL 1112847 Contact Us For Availability
36
Cover, Rear WPL 1112835 Contact Us For Availability
36
Cover, Fan WPL 1113075 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Cover, Air Diffuser WPL 1113940 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Tube, Meat Pan WPL 1112265 Contact Us For Availability
42
Clamp, Tube WPL 1113067 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 1113748 Contact Us For Availability
46
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
46
Stop WPL 1113039 Contact Us For Availability
46
Top Grille Trim Kit (7-1/2``) WPL 4318418 Contact Us For Availability
46
Top Grille Trim Kit (8``) WPL 4318419 Contact Us For Availability
46
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
46
WPL 978849 WPL 978849 Contact Us For Availability
× ![]()
