Model Whirlpool KSSS42MAX03 BUILT IN REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR CONTROL PANEL
08 - FREEZER SHELF
13 - AIR FLOW

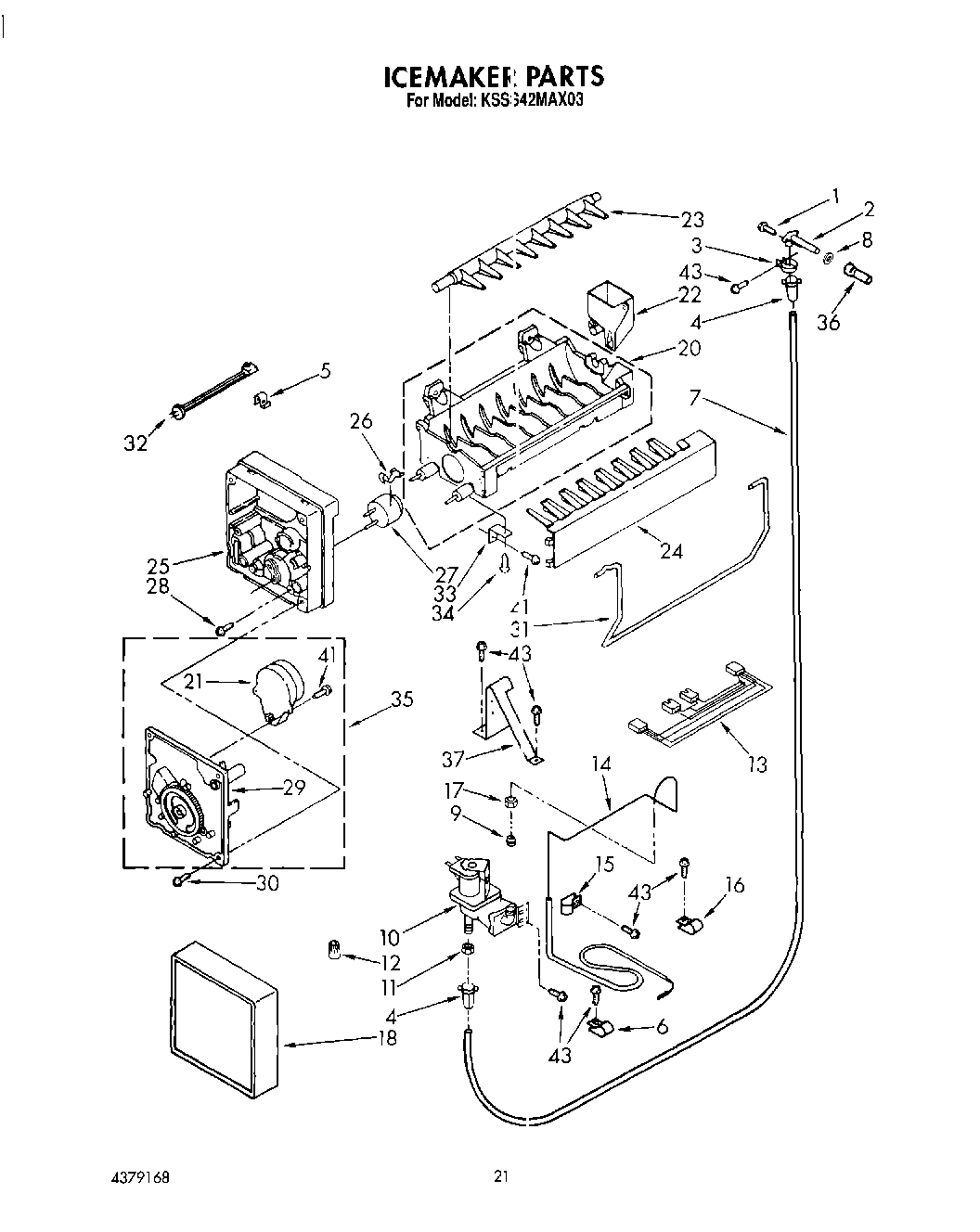

14 - ICEMAKER, LIT/OPTIONAL

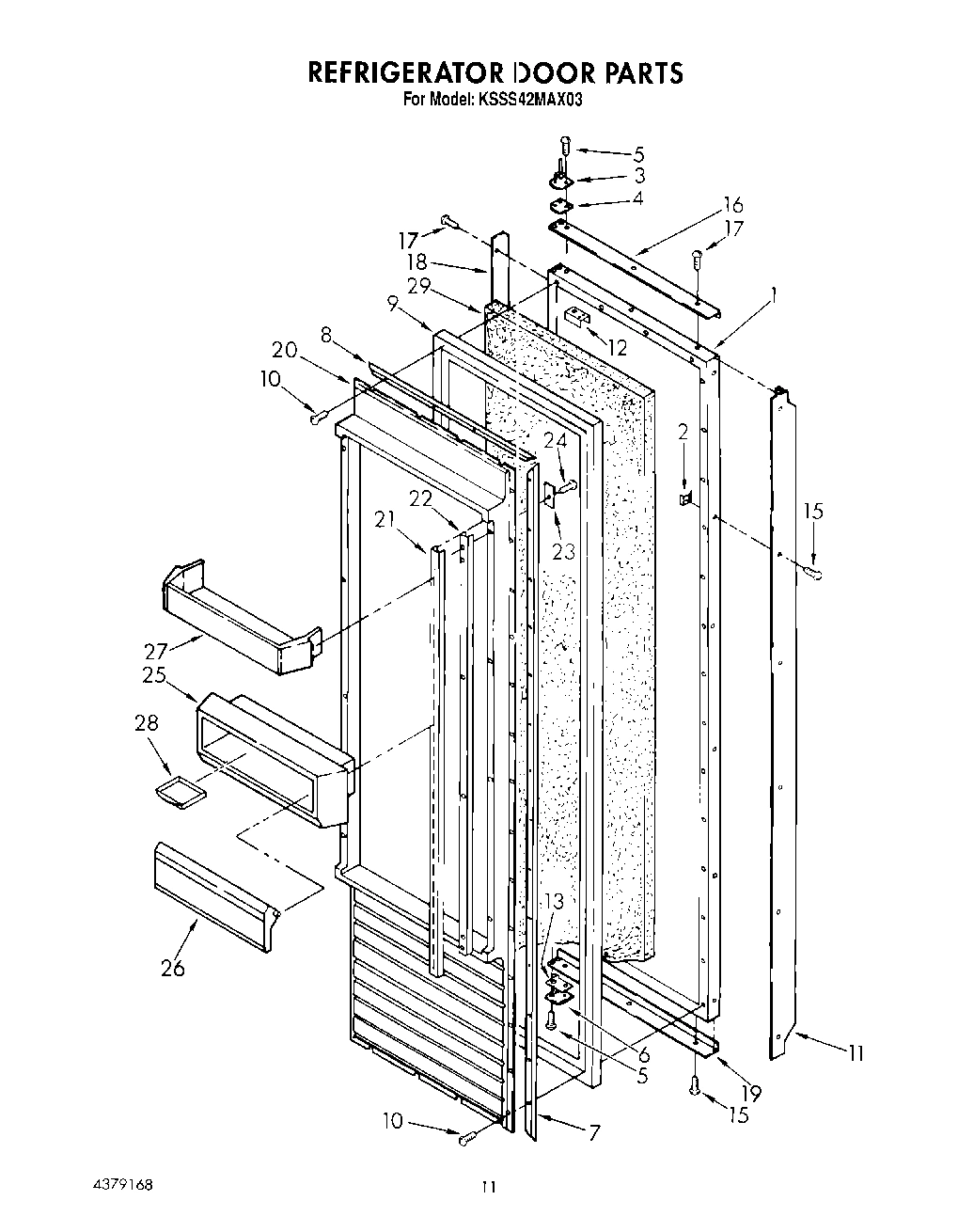

09 - REFRIGERATOR DOOR

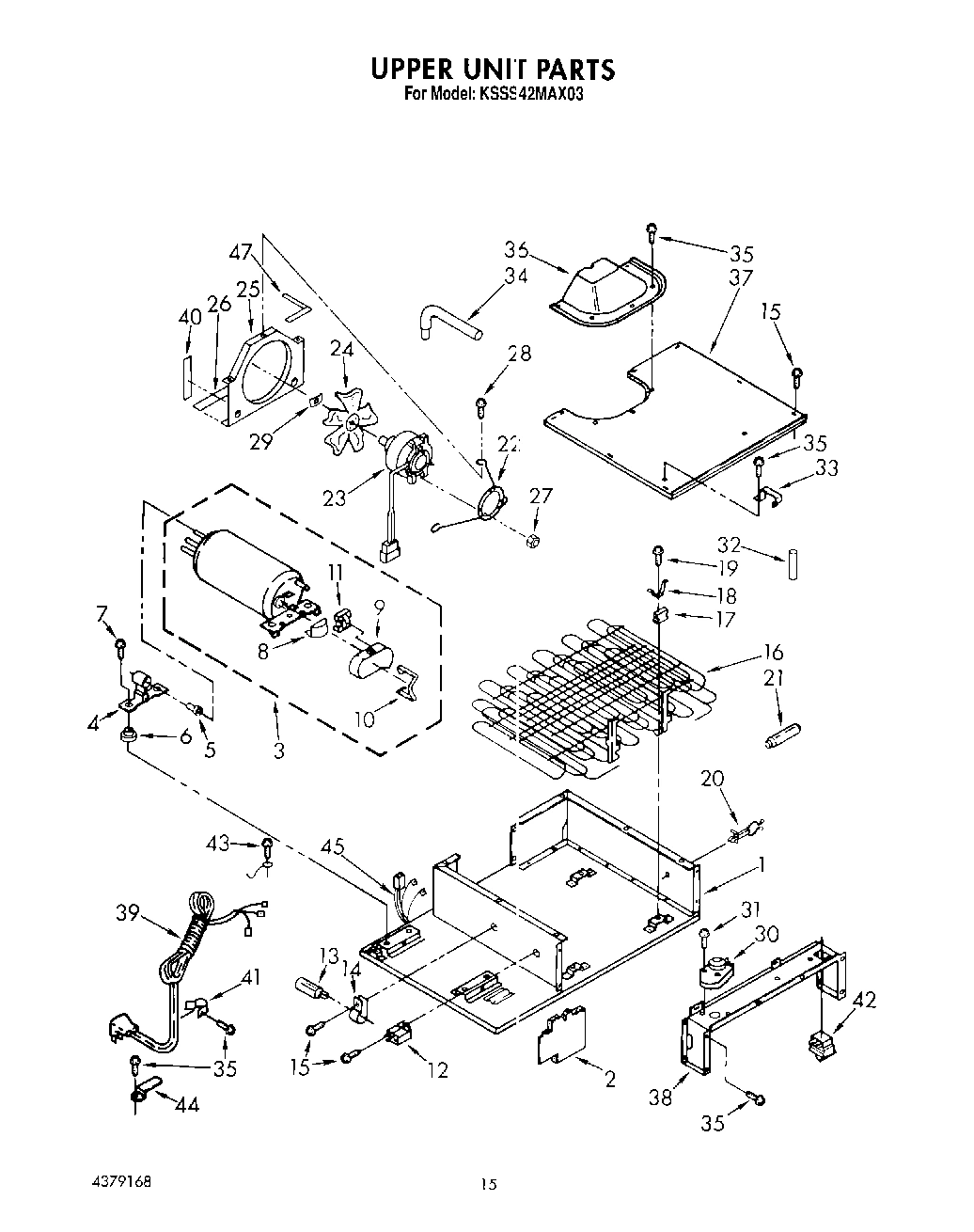

11 - UPPER UNIT

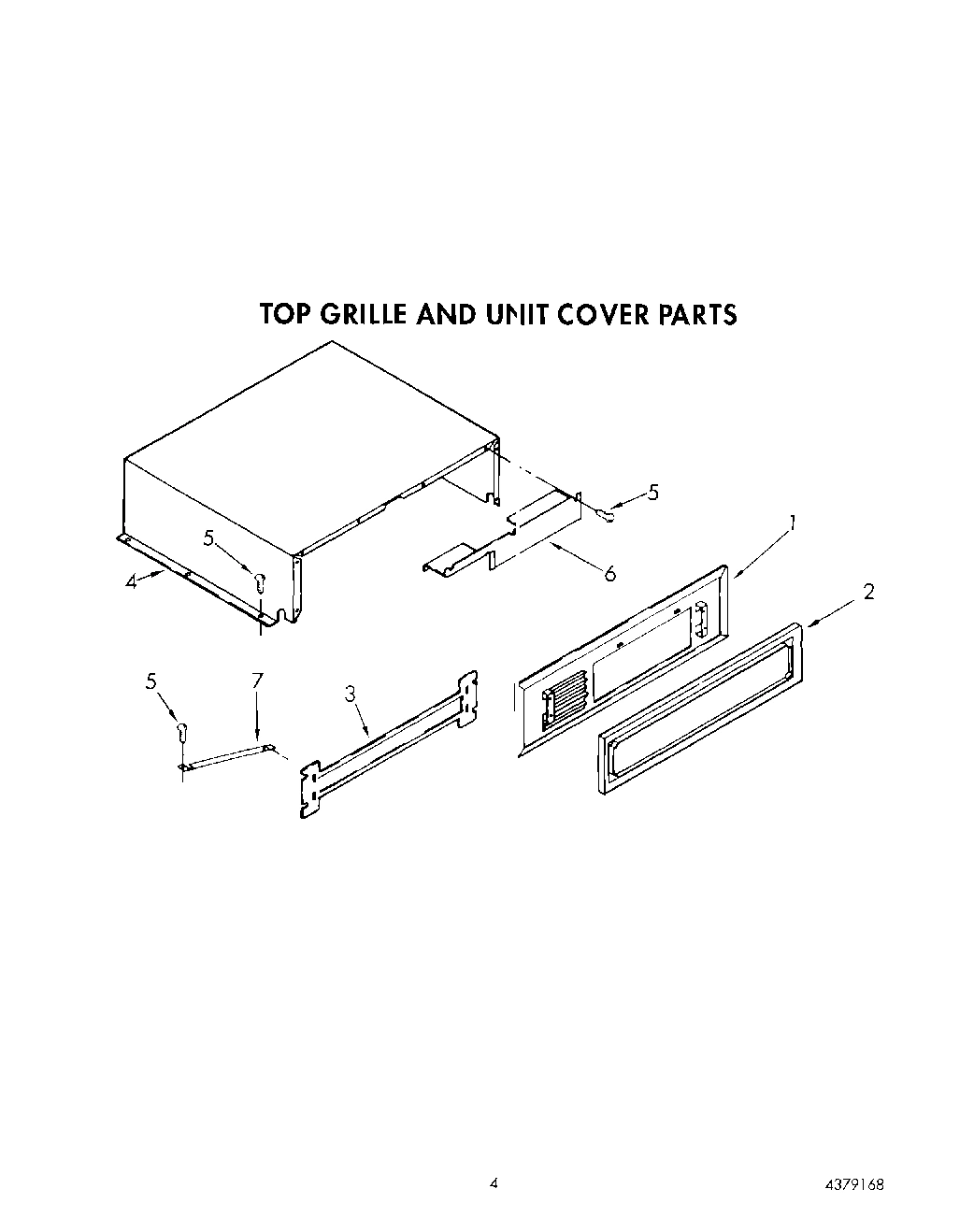

03 - TOP GRILLE AND UNIT COVER

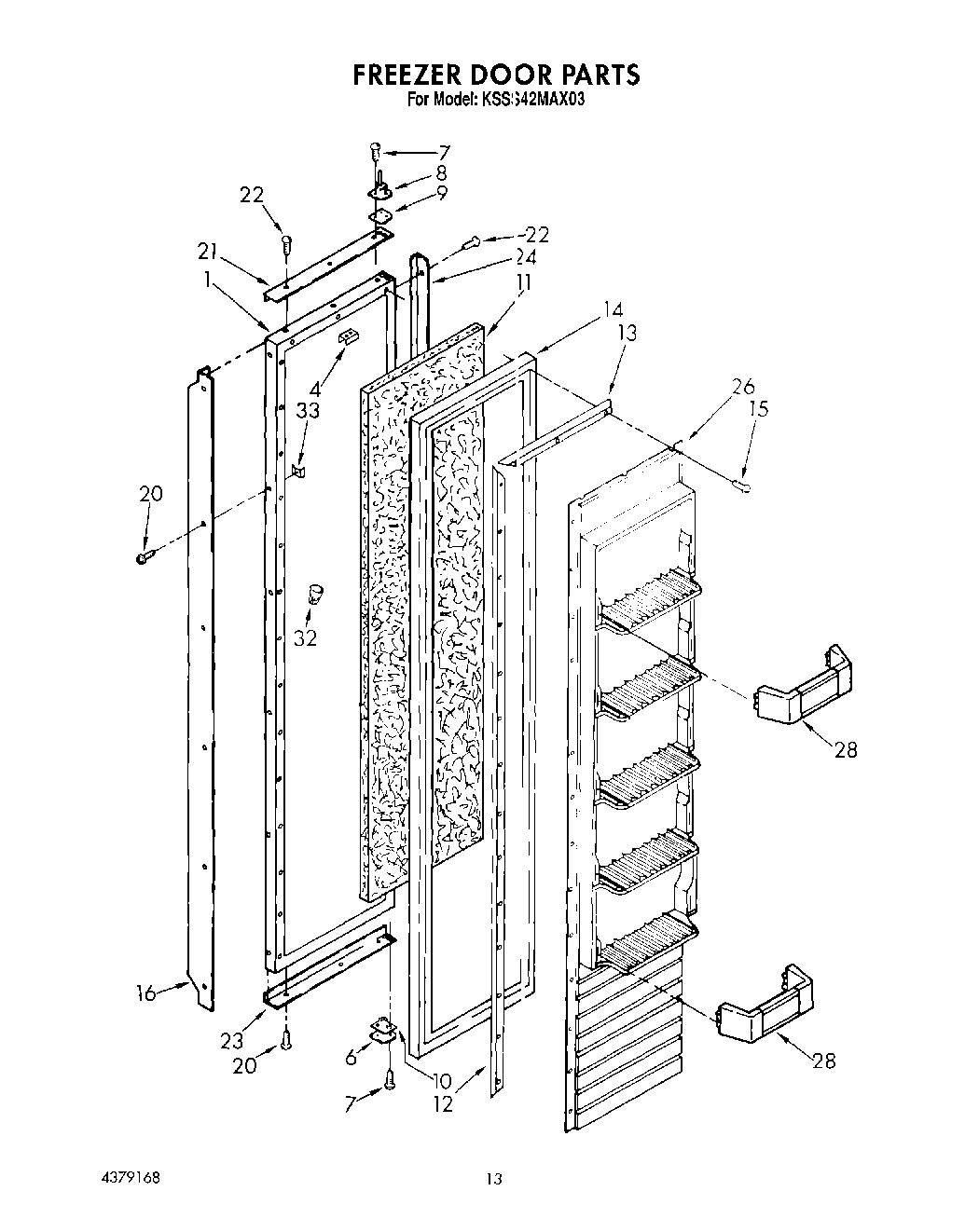

10 - FREEZER DOOR

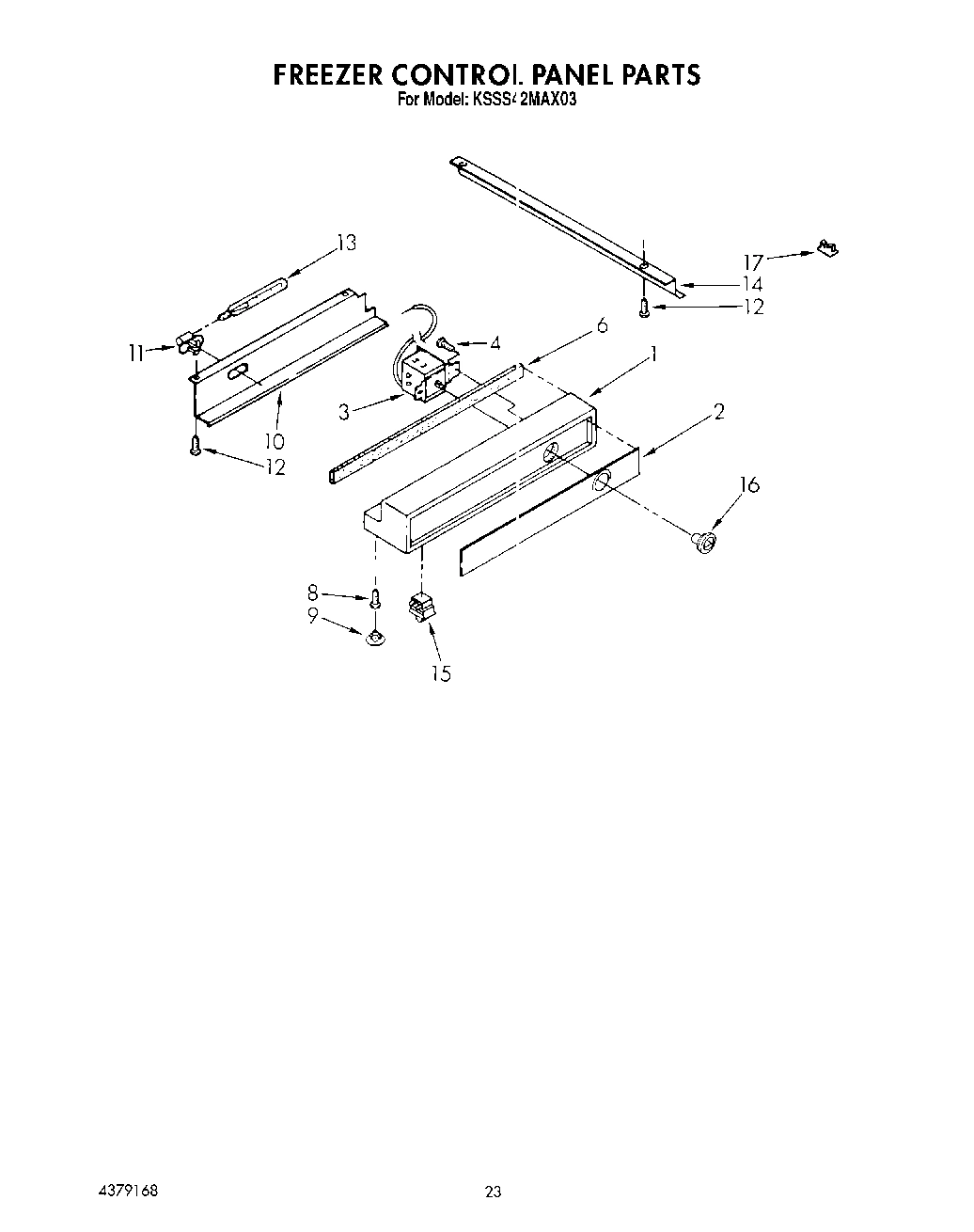

15 - FREEZER CONTROL PANEL

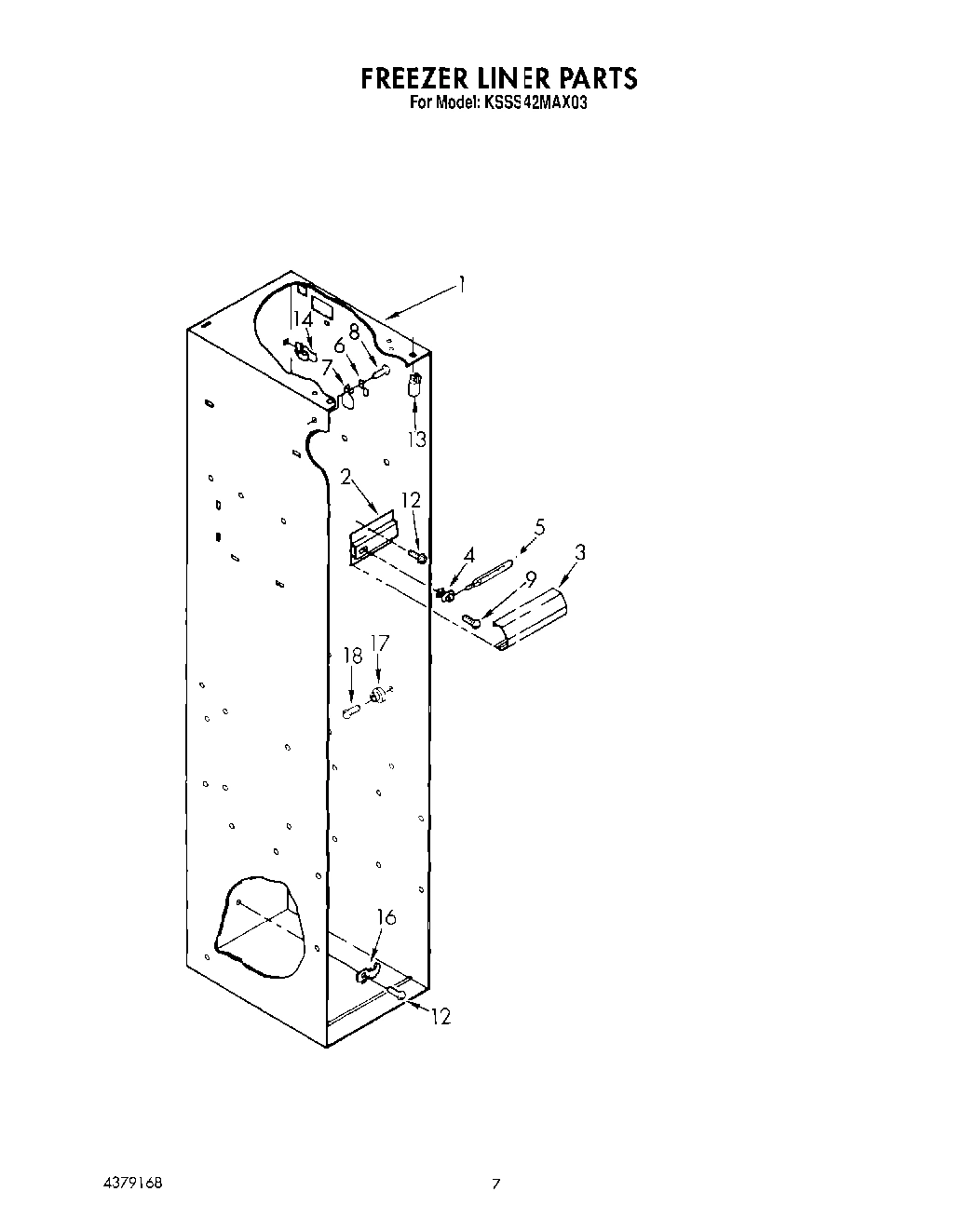

05 - FREEZER LINER

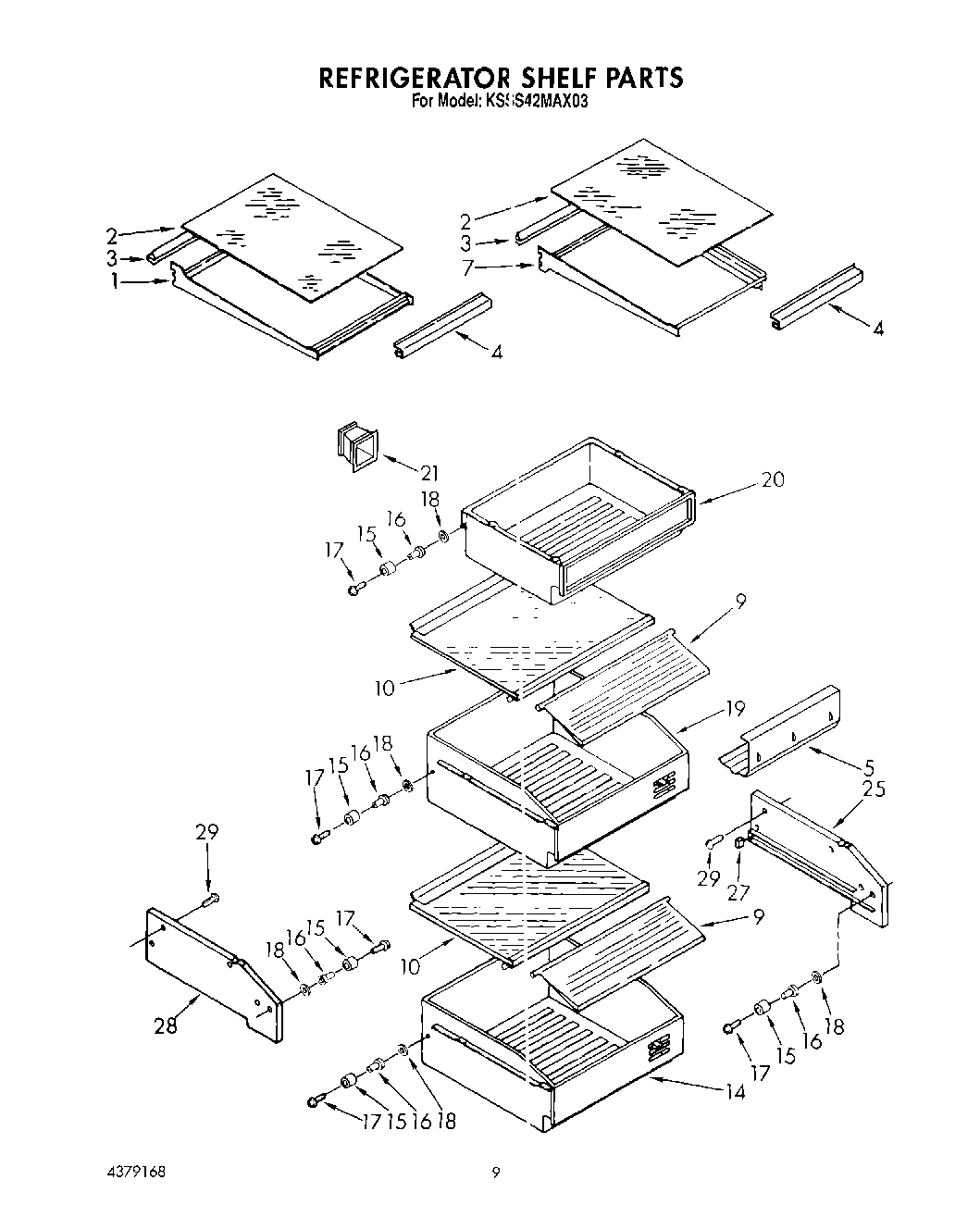

07 - REFRIGERATOR SHELF

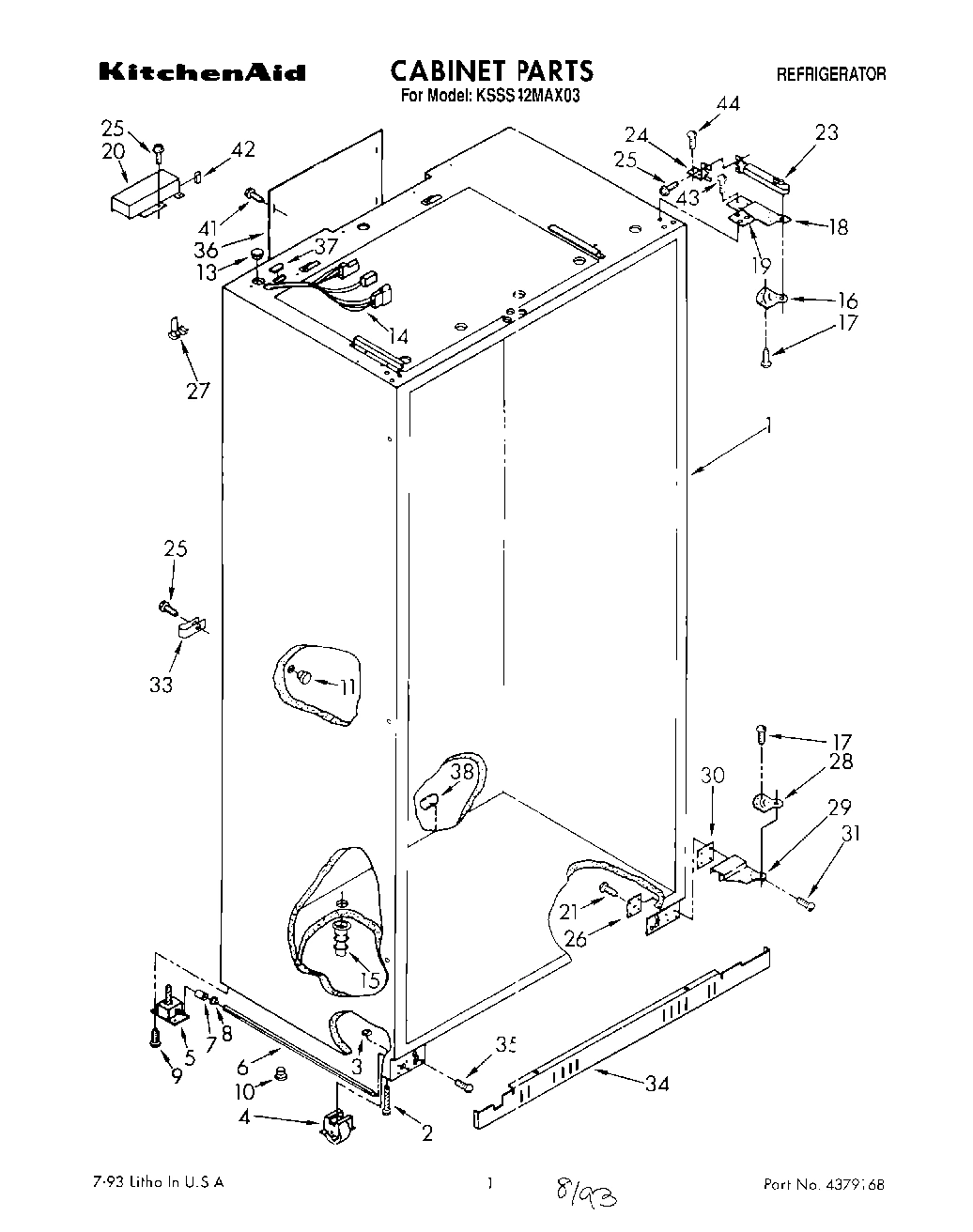

01 - CABINET

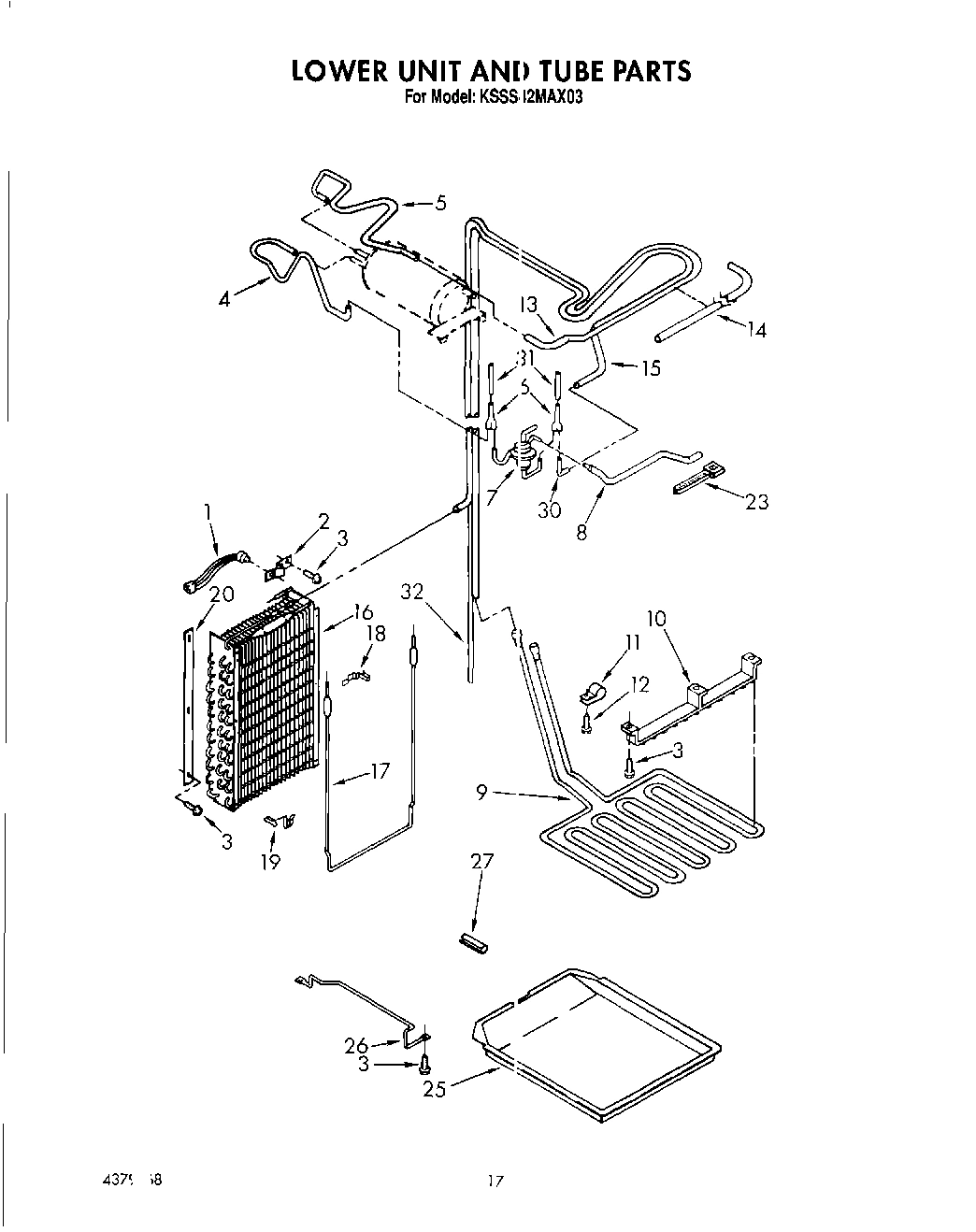

12 - LOWER UNIT AND TUBE

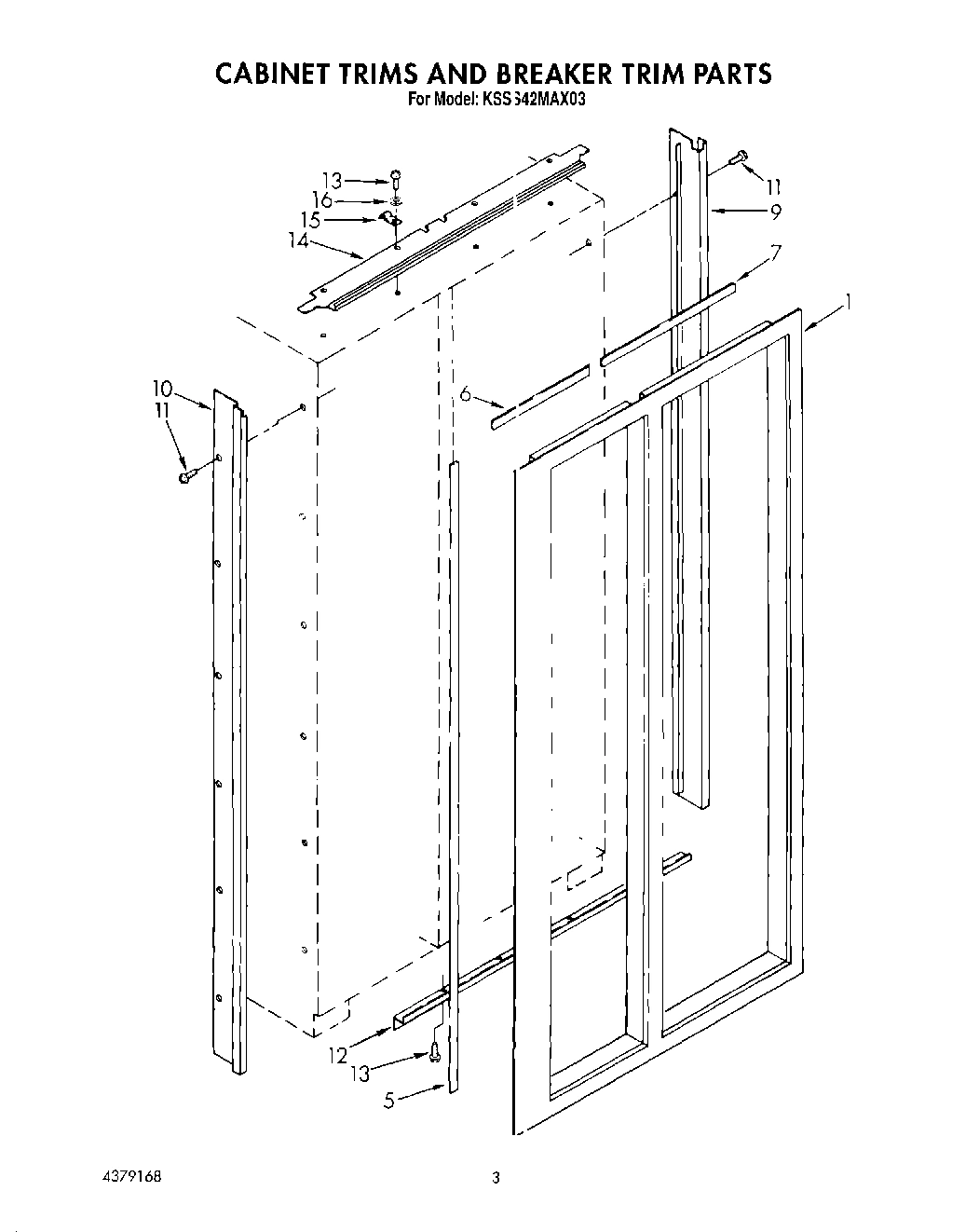

02 - CABINET TRIMS AND BREAKER TRIM
04 - REFRIGERATOR LINER
Common parts from model Whirlpool KSSS42MAX03 BUILT IN REFRIGERATOR
Service & Wiring Sheet WPL LIT2000850 Contact Us For Availability
Installation Instructions WPL LIT2001094 Contact Us For Availability
Use & Care Guide WPL LIT2001362 Contact Us For Availability
Energy Label WPL LIT2001674 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Door Panel, Refrigerator (Also Order Item 29) WPL 2000694 Contact Us For Availability
1
Assembly, Unit Base WPL 2001127 Contact Us For Availability
1
Top Grille Assembly WPL 2001578 Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 2000715 Contact Us For Availability
1
Control Panel WPL 1112596 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107296A Contact Us For Availability
1
Frame, Shelf WPL 1113543 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107294A Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 2000651 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107295A Contact Us For Availability
2
Fitting, Water Tube WPL 2000829 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Decorative Panel Assembly WPL 2001316 Contact Us For Availability
2
Inlay, Control Panel WPL 1113964 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Glass, Shelf WPL 1112318 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
3
Hinge Assembly, Top WPL 2000696 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10, 11, 13) WPL 2154922 Contact Us For Availability
3
Back Up Panel WPL 1113355 Contact Us For Availability
3
Light, Lens WPL 1113650 Contact Us For Availability
3
Reflector, Shelf WPL 1113547 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
4
Tap, Plate WPL 2000349 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Cover, Unit WPL 2001088 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Light, Socket WPL 1112613 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113791 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Screw, 8 x 1/2 WPL 481694 Contact Us For Availability
5
Rack, Wine WPL 1125913 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Ladder, Shelf (2) WPL 2001117 Contact Us For Availability
6
Wire Clip WPL 2000392 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2000698 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Cover, Component Assembly WPL 1113300 Contact Us For Availability
6
Hinge, Bottom WPL 2000720 Contact Us For Availability
6
Seal, Control Panel WPL 1113134 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Adjusting Rod (2) WPL 2000670 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112684 Contact Us For Availability
7
Tube, Water (To Ice Maker) WPL 2001336 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
7
Brace WPL 1113317 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Frame Assembly WPL 1113551 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112680 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112541 Contact Us For Availability
8
Overload WPL 2154947 Contact Us For Availability
8
Hinge, Top WPL 2000721 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2001727 Contact Us For Availability
9
Spacer Plate WPL 2000303 Contact Us For Availability
9
Terminal Cover WPL 2154452 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Heater, Drain Pan WPL 2000755 Contact Us For Availability
9
Cabinet, Trim R.S WPL 2000321 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
10
Spacer, Bottom WPL 2000697 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Shield, Control Panel WPL 1113768 Contact Us For Availability
10
Glass, Crisper WPL 2000155 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Cabinet, Trim L.S WPL 2000322 Contact Us For Availability
10
Meat Pan, Air Duct Cover (Also Order 12) WPL 2000740 Contact Us For Availability
11
Handle, Door WPL 2000323 Contact Us For Availability
11
Relay WPL 1118797 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Screw WPL 2001297 Contact Us For Availability
11
Meat Pan, Air Duct WPL 2000337 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Running Capacitor WPL 2149684 Contact Us For Availability
12
Cabinet, Trim (Bottom) WPL 1112801 Contact Us For Availability
12
Inlay, Control Meat Pan WPL 2001302 Contact Us For Availability
13
Water Valve, Harness WPL 2000837 Contact Us For Availability
13
Starting Capacitor WPL 2154949 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112540 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Tube, Discharge WPL 2000857 Contact Us For Availability
13
Seal, Air Duct WPL 2001326 Contact Us For Availability
14
Copper, Water Line WPL 2001354 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Pan, Crisper WPL 2000888 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 2000834 Contact Us For Availability
14
Cabinet, Trim Top WPL 2001310 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Heat Exchanger WPL 2000723 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 2000007 Contact Us For Availability
15
Control Knob, Meat Pan WPL 2001735 Contact Us For Availability
16
Trim (Top) WPL 2000316 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Handle, Door WPL 2000324 Contact Us For Availability
16
Knob, Thermostat WPL 2001737 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Right Side) WPL 2000304 Contact Us For Availability
16
Gap, Cover Assembly (Top) (Left Side) WPL 2000305 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
17
Shoulder Screw WPL 2001295 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
CLIP, WIRING WPL 1115375 Contact Us For Availability
17
Stud, Shelf (20) WPL 658944 Contact Us For Availability
17
Air Baffle Assembly WPL 2000343 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Cover WPL 1113703 Contact Us For Availability
18
Trim (Side) WPL 2000314 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (20) WPL 487559 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 2000306 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 2000307 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Trim (Bottom) WPL 2000319 Contact Us For Availability
19
Utility Pan WPL 2000892 Contact Us For Availability
19
Shim, Hinge Top WPL 2000770 Contact Us For Availability
19
Clamp, Heater (2) WPL 1108431 Contact Us For Availability
20
Panel, Interior Door WPL 1113953 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Meat Pan WPL 2000816 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Trim (Top) WPL 2000327 Contact Us For Availability
21
Meat Pan, Connector WPL 2000742 Contact Us For Availability
21
Seal WPL 2001146 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Mounting Bracket, Motor WPL 2000358 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Trim (Bottom) WPL 2000330 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
24
Stop, Roller WPL 1113169 Contact Us For Availability
24
Blade, Fan WPL 2000352 Contact Us For Availability
24
Trim (Side) WPL 2000325 Contact Us For Availability
24
Bracket, Door Closer WPL 2000333 Contact Us For Availability
25
Cover, Evaporator WPL 2000341 Contact Us For Availability
25
Bin, Utility WPL 1112721 Contact Us For Availability
25
Orifice, Fan WPL 2000351 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 1112165 Contact Us For Availability
25
Air Baffle Cover WPL 2000736 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000795 Contact Us For Availability
26
Door, Utility Bin WPL 1112736 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Panel, Interior Door WPL 2000178 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Door Shelf (4) WPL 2000912 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Screw, 8 x 1/2 (3) WPL 489368 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 1113890 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 2001199 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 2001200 Contact Us For Availability
29
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112852 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 2001732 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 2001733 Contact Us For Availability
30
Shim, Hinge (1) WPL 1112942 Contact Us For Availability
30
Shim, Hinge (2) Bottom (4) WPL 1112943 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
33
Clamp, Tube (2) WPL 1113066 Contact Us For Availability
33
Tube clamp WPL 2001266 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Process, Tube WPL 1113059 Contact Us For Availability
34
Grille Base, Front WPL 2001963 Contact Us For Availability
35
Screw (6) WPL 489238 Contact Us For Availability
36
Water Inlet Tube WPL 2001098 Contact Us For Availability
36
Cover, Fan WPL 2000853 Contact Us For Availability
36
Cover, Rear WPL 2000684 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2000803 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
40
Seal Strip (2) WPL 2001503 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Screw WPL 2001377 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
42
Grommet WPL 2000530 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Screw WPL 489359 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2001077 Contact Us For Availability
47
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
47
Gasket (2) WPL 2001079 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
47
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318633 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318636 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318639 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4318642 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
