Model Whirlpool KSSS36MWX00 BUILT IN REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR SHELF
08 - REFRIGERATOR DOOR

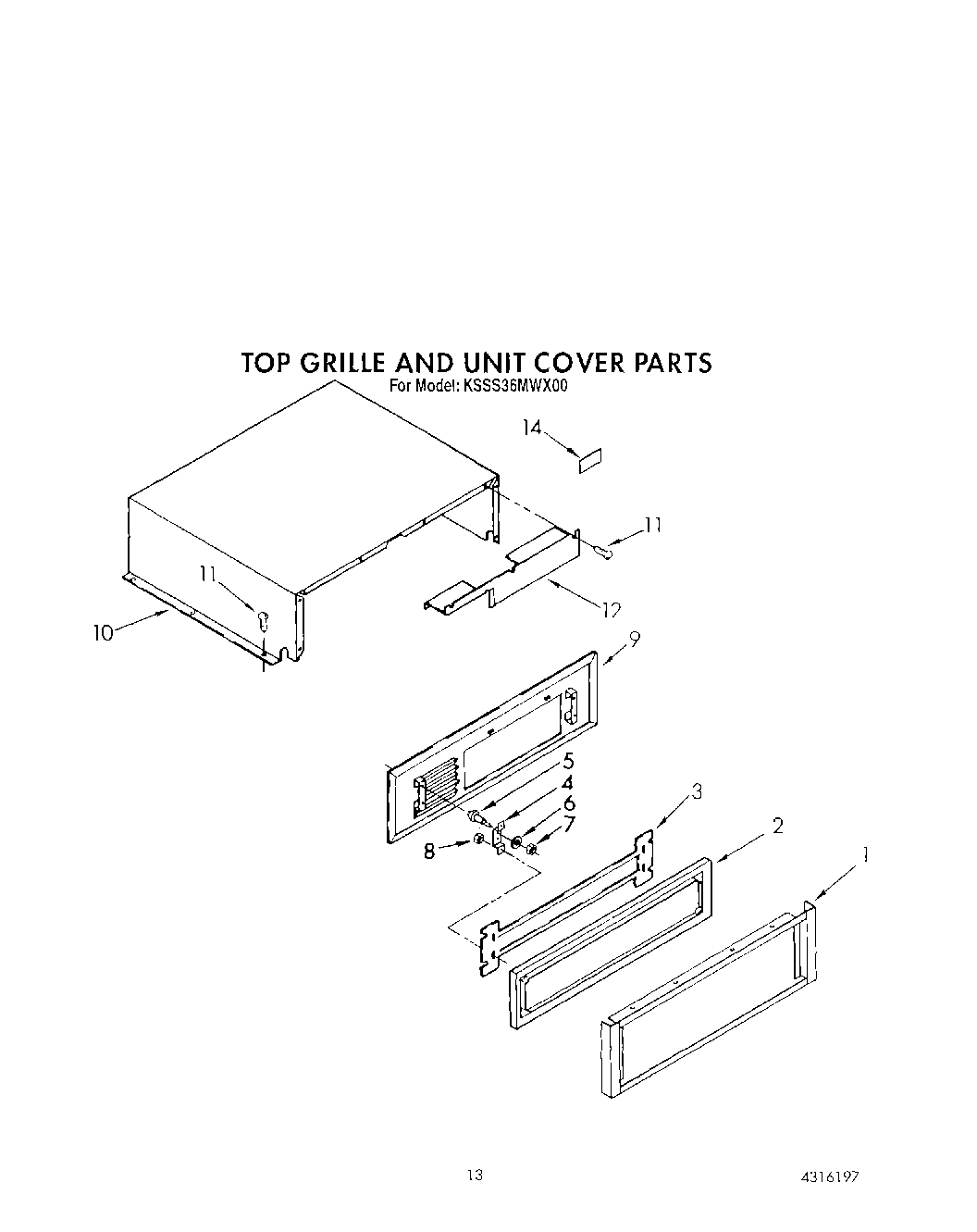

10 - TOP GRILLE AND UNIT COVER
11 - UPPER UNIT

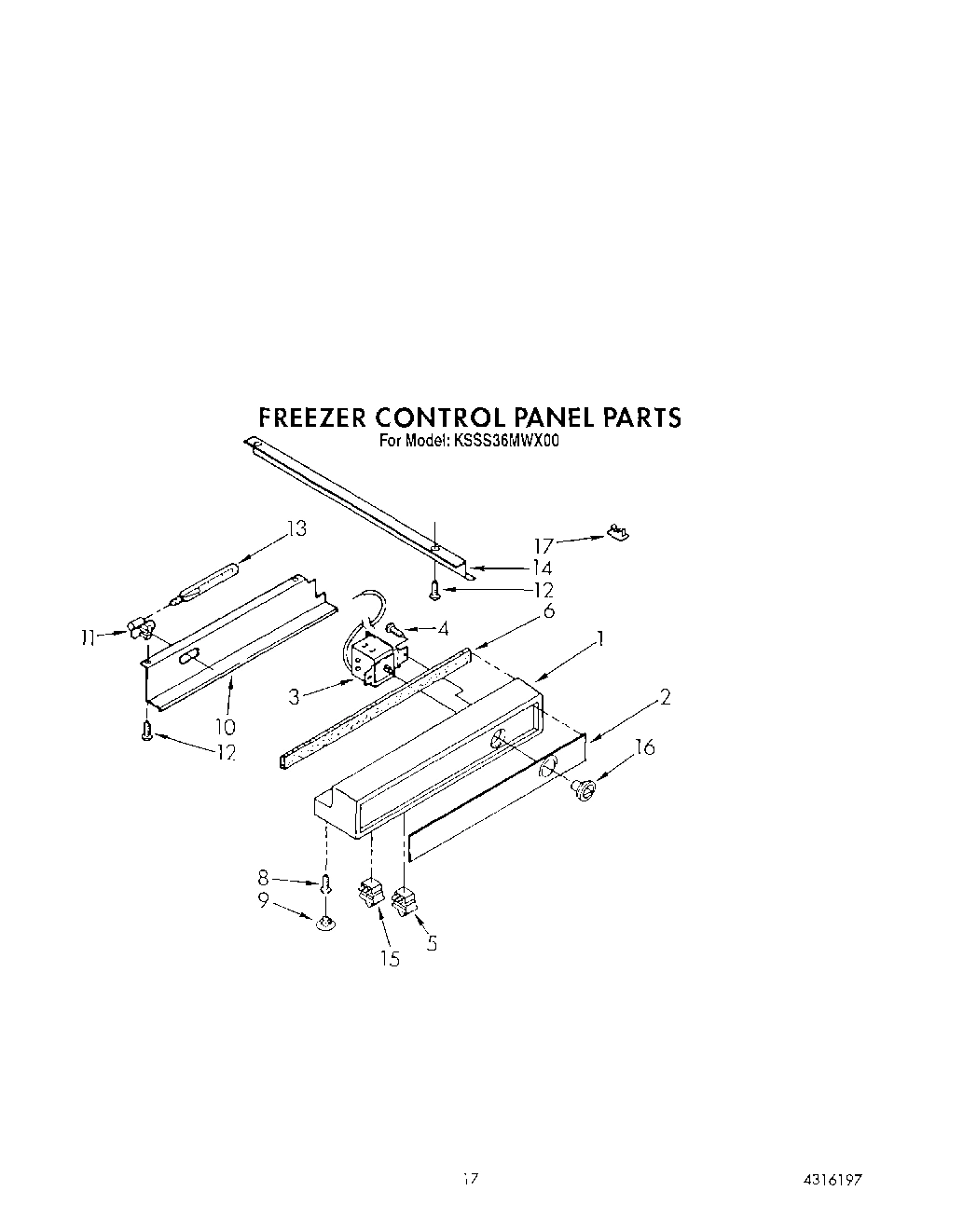

13 - FREEZER CONTROL PANEL

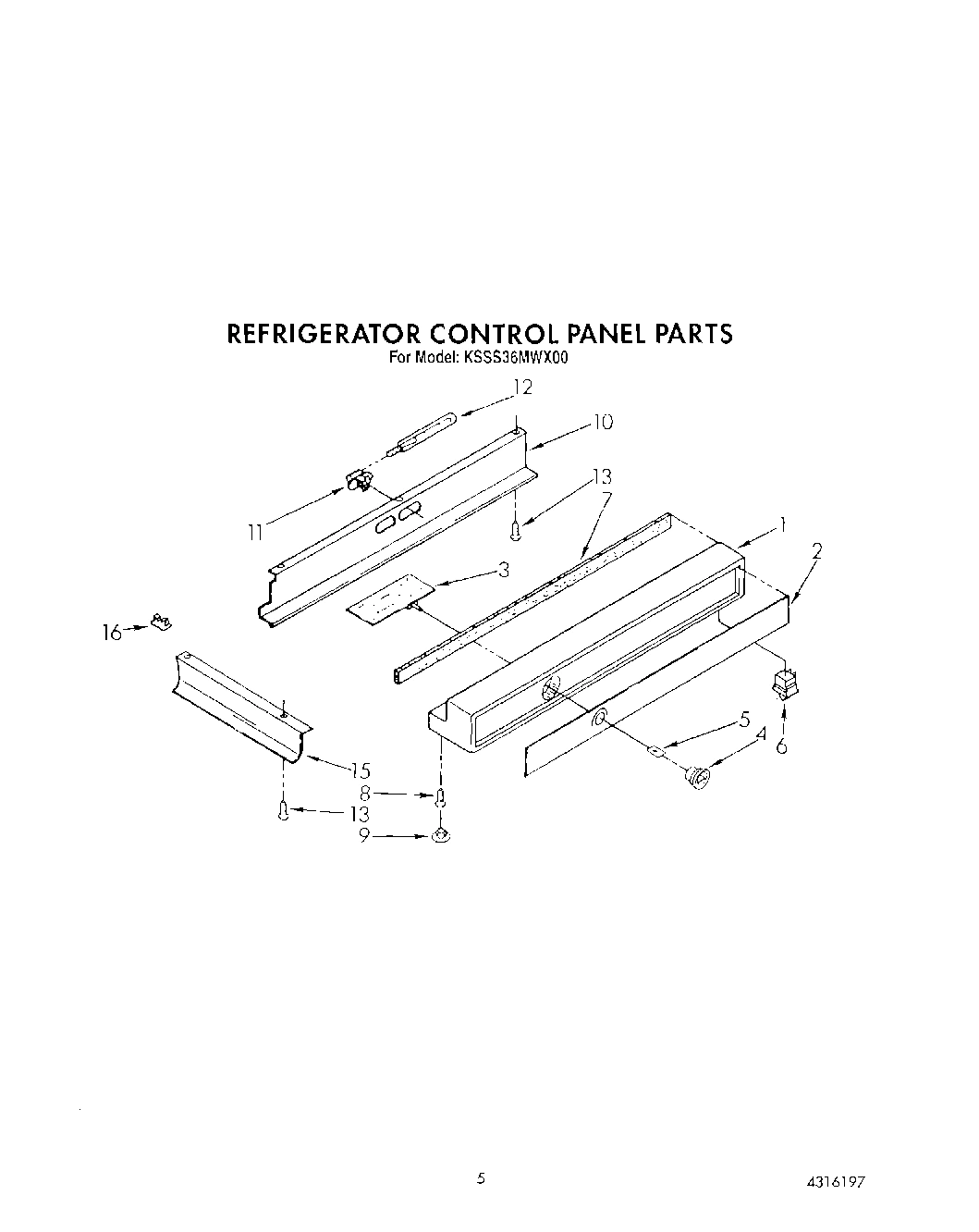

03 - REFRIGERATOR CONTROL PANEL

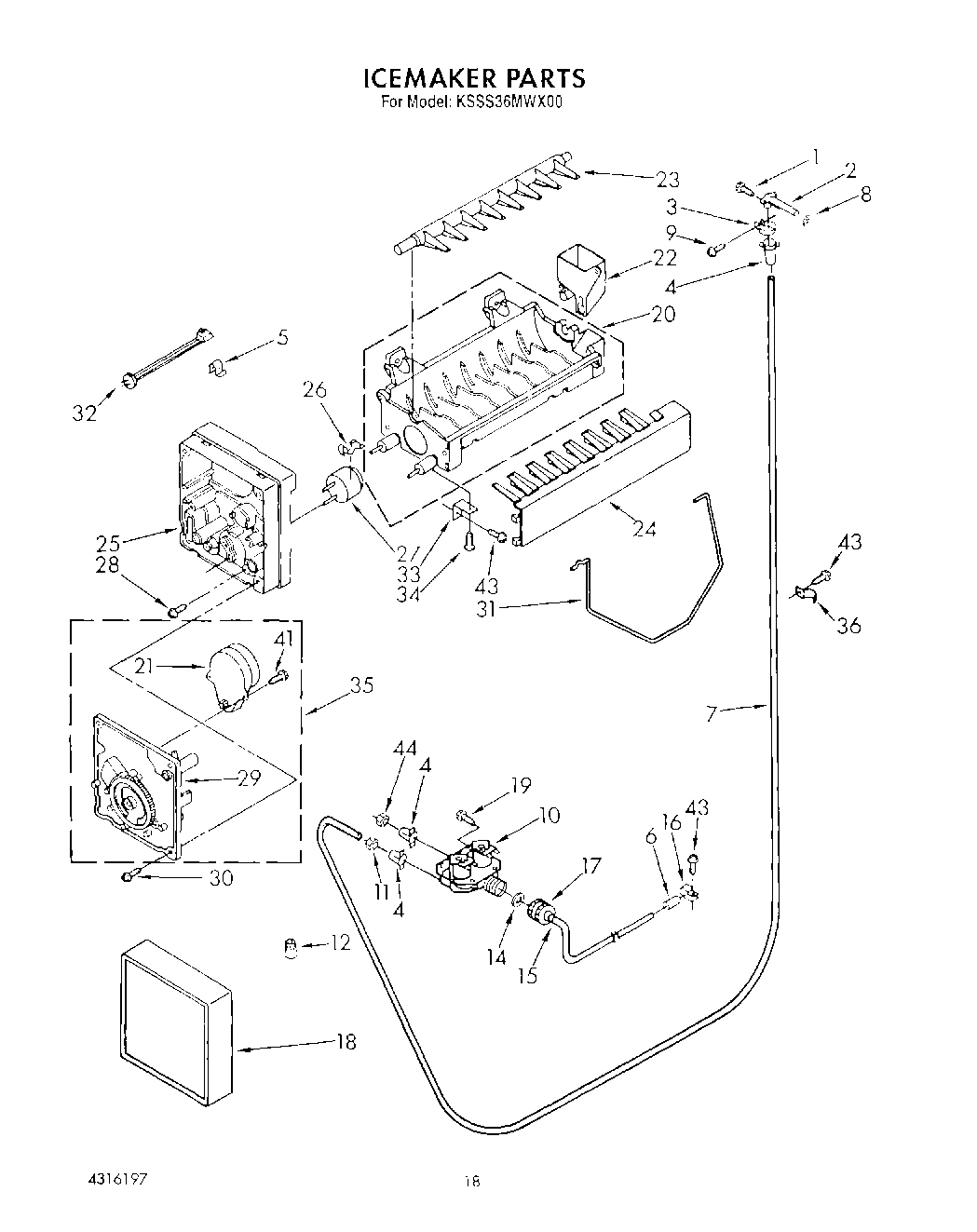

14 - ICEMAKER, LIT/OPTIONAL
01 - CABINET

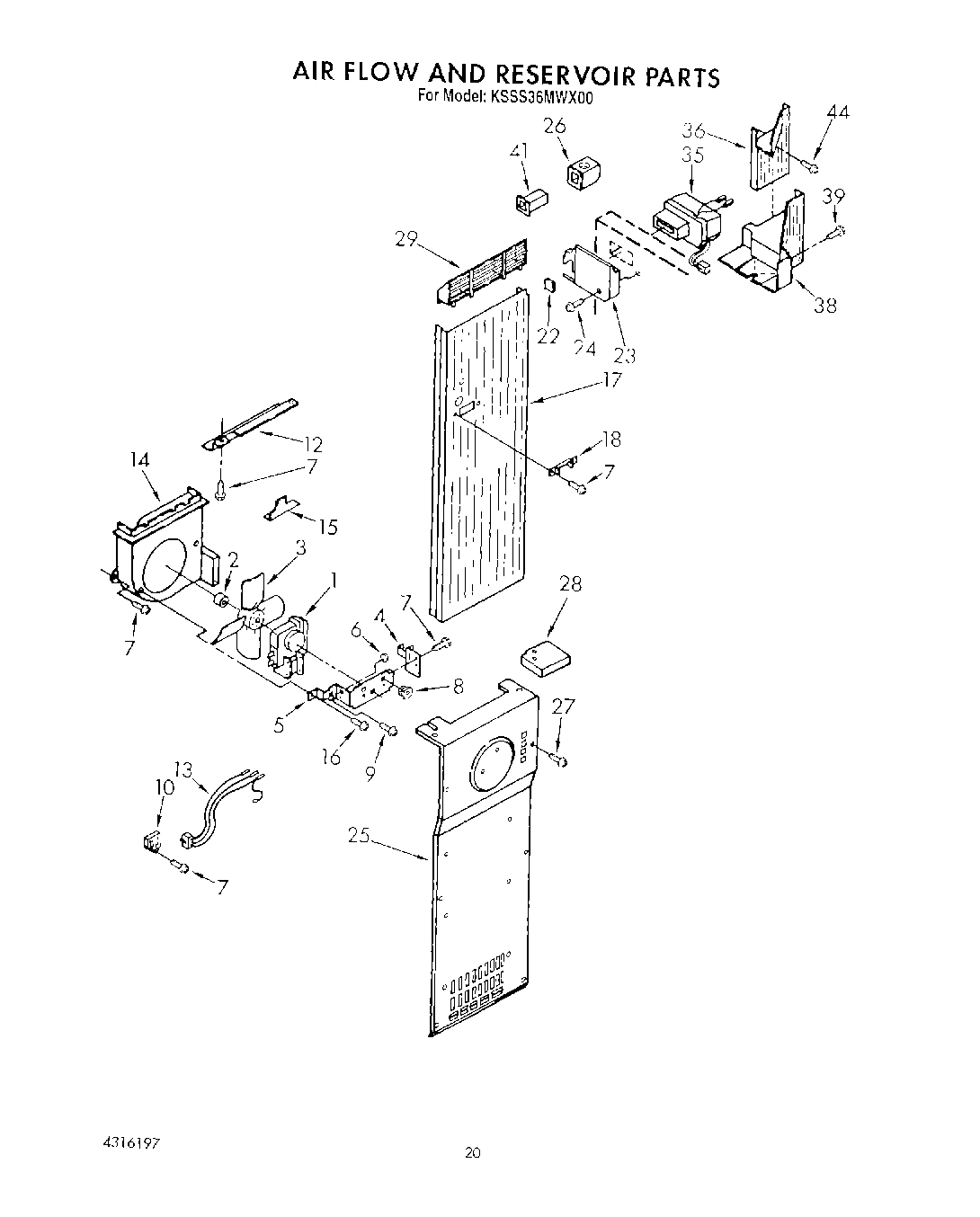

15 - AIR FLOW AND RESERVOIR

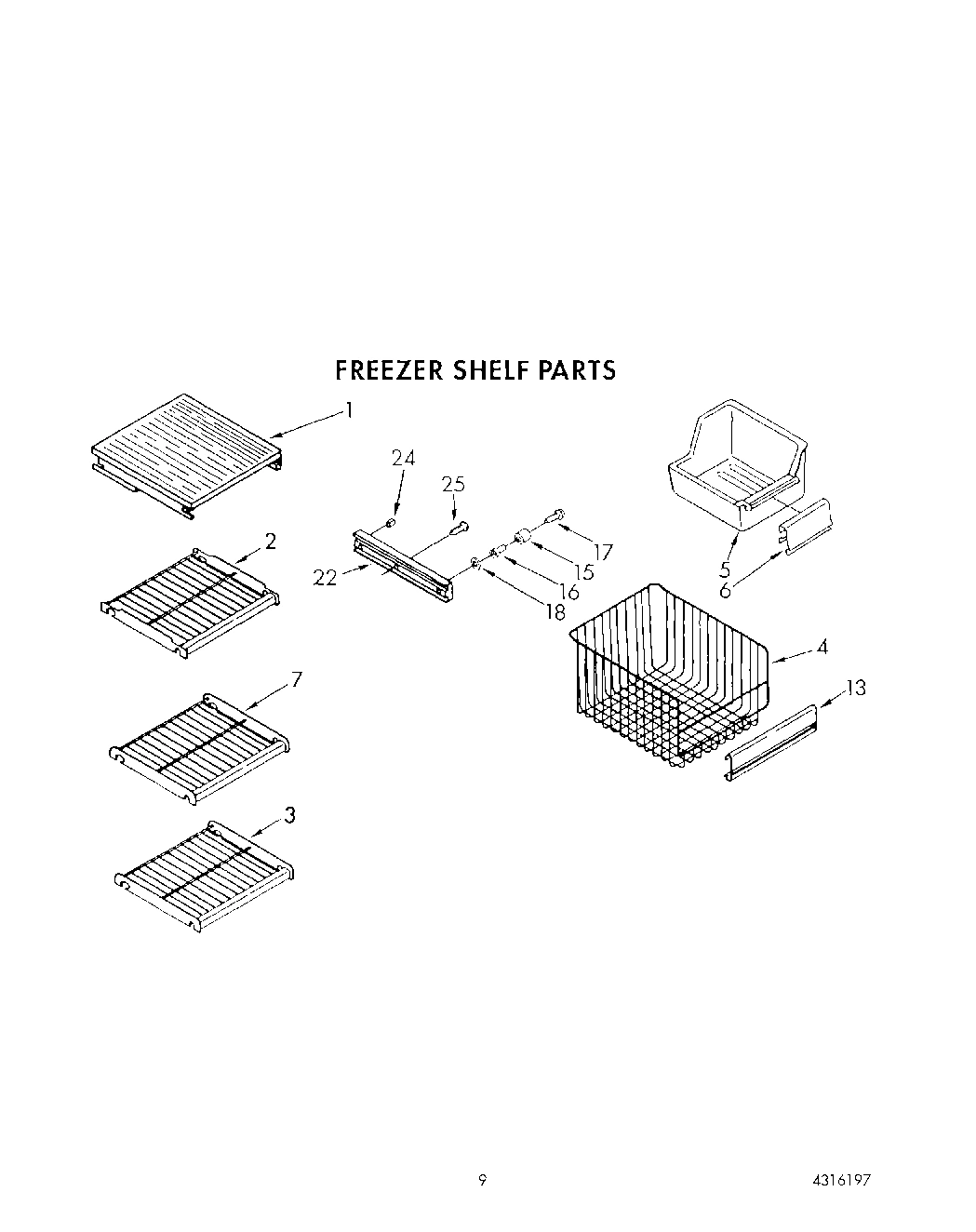

07 - FREEZER SHELF

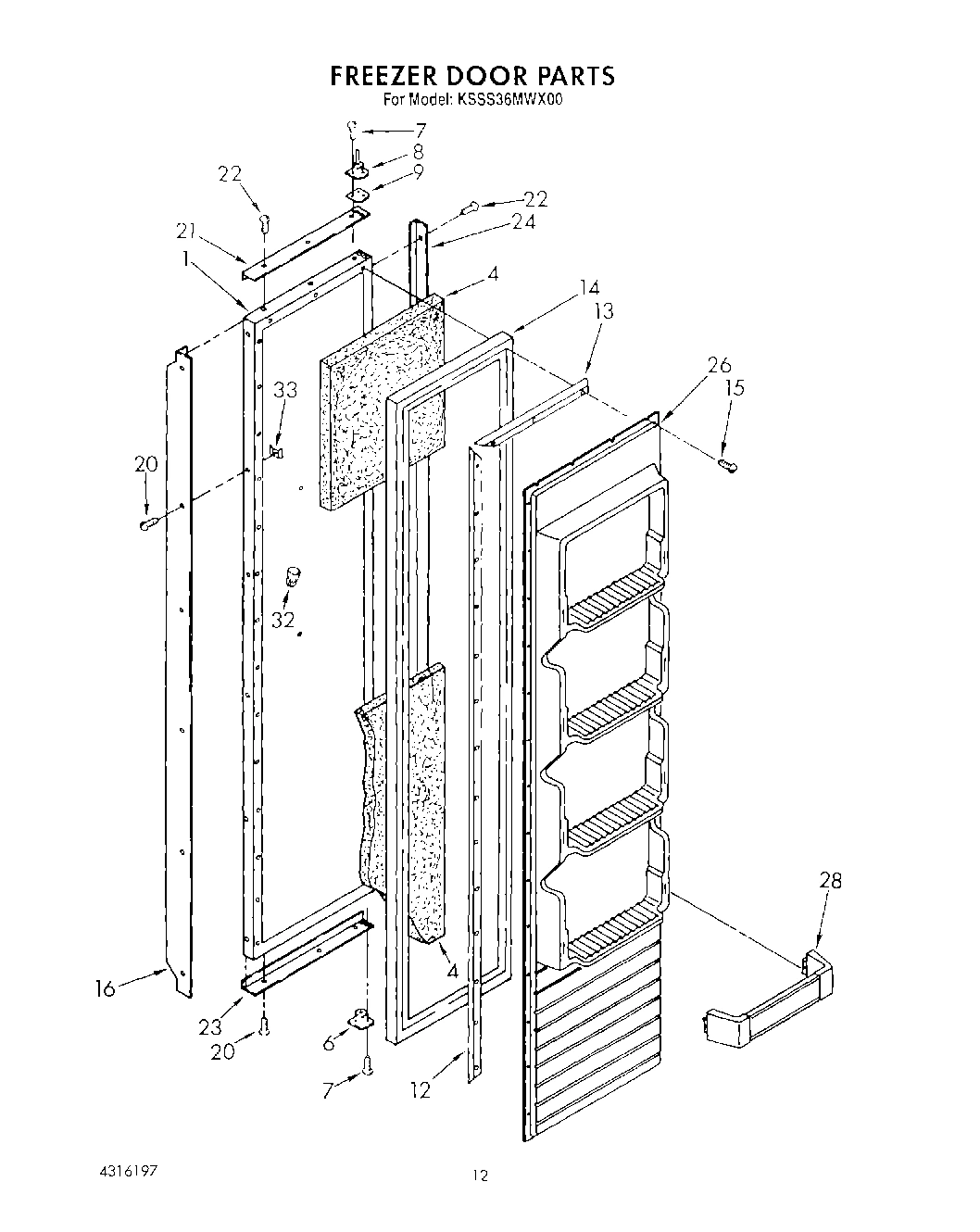

09 - FREEZER DOOR

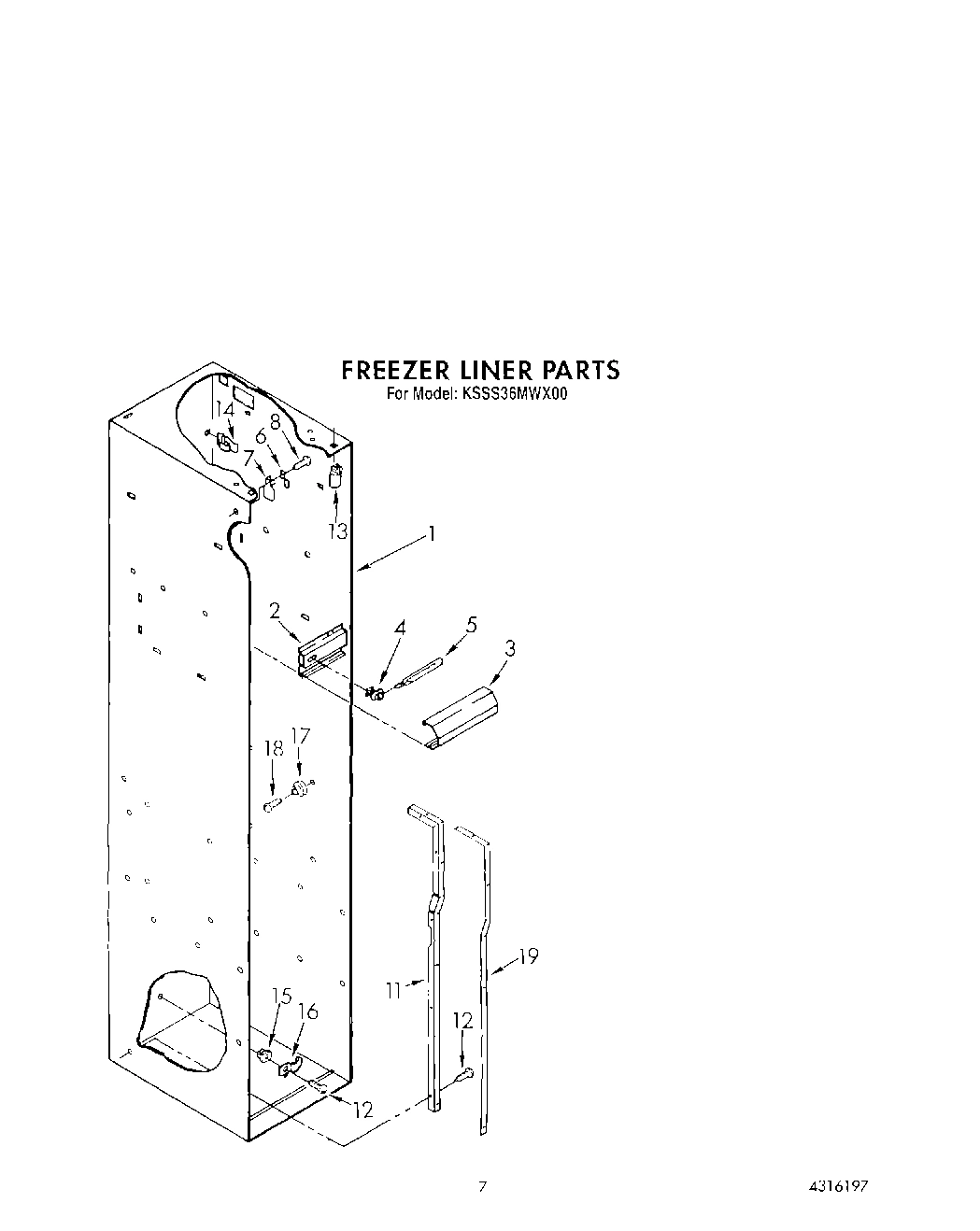

05 - FREEZER LINER

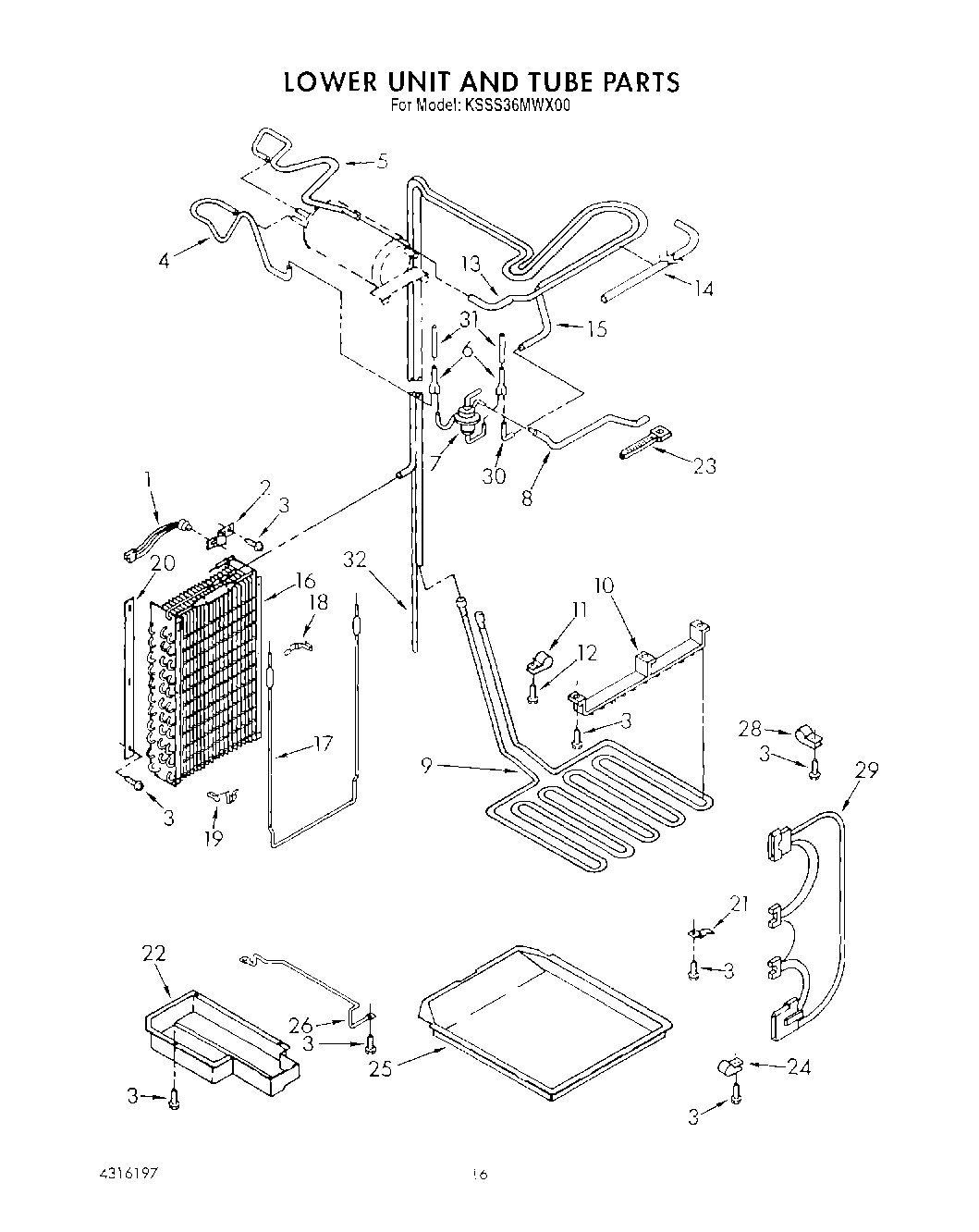

12 - LOWER UNIT AND TUBE

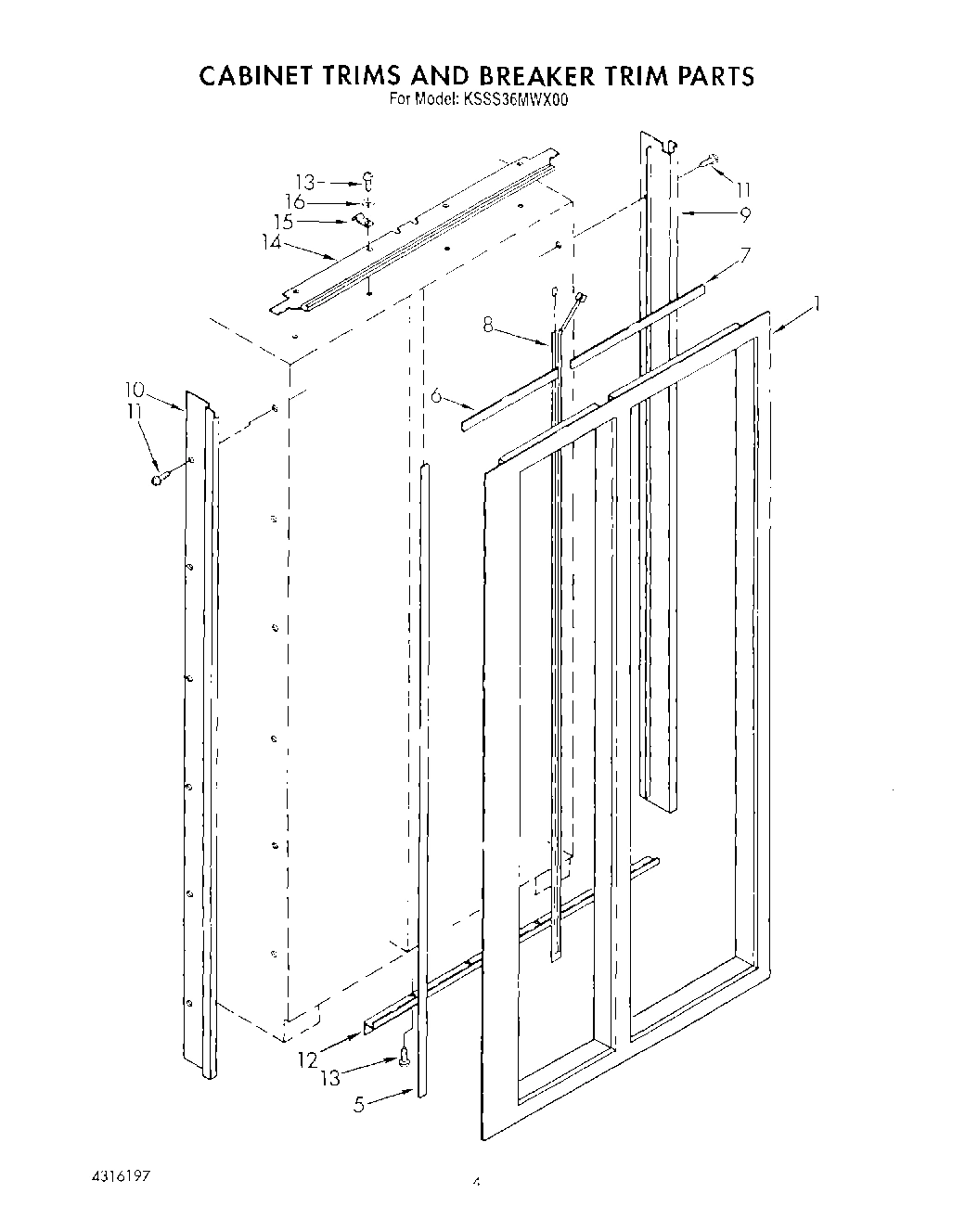

02 - CABINET TRIMS AND BREAKER TRIM
04 - REFRIGERATOR LINER
Common parts from model Whirlpool KSSS36MWX00 BUILT IN REFRIGERATOR
Use & Care Guide WPL LIT1113719 Contact Us For Availability
Service & Wiring Sheet WPL LIT2000120 Contact Us For Availability
Energy Label WPL LIT2000143 Contact Us For Availability
Installation Instructions WPL LIT2000494 Contact Us For Availability
Parts List Rev. A WPL LIT4316197 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628107 Contact Us For Availability
1
Grille, Frame Assembly WPL 1113866 Contact Us For Availability
1
Assembly, Unit Base WPL 1113005 Contact Us For Availability
1
Control Panel WPL 1113625 Contact Us For Availability
1
Control Panel WPL 1112640 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI106687A Contact Us For Availability
1
Solid Shelf WPL 1113628 Contact Us For Availability
1
Exterior Door Panel, Freezer (Also Order Item WPL 1113616 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106689A Contact Us For Availability
1
Breaker Trim & Retainer Assembly WPL 1112665 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106688A Contact Us For Availability
2
Decorative Panel Assembly WPL 1113863 Contact Us For Availability
2
Assembly, Sound Barrier WPL 1113386 Contact Us For Availability
2
Inlay, Control Panel WPL 1113963 Contact Us For Availability
2
Inlay, Control Panel WPL 1113961 Contact Us For Availability
2
Leveler, Front (2) WPL 1112019 Contact Us For Availability
2
Ring, Compression WPL 992953 Contact Us For Availability
2
Shelf, Fixed (2) WPL 1113564 Contact Us For Availability
2
Bracket, Light WPL 1113649 Contact Us For Availability
2
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
2
Clamp, Bi-Metal WPL 1113043 Contact Us For Availability
3
Blade, Fan WPL 992920 Contact Us For Availability
3
Back Up Panel WPL 1113313 Contact Us For Availability
3
Compressor (Includes Items 8, 9, 10, 11, 12, WPL 4318252 Contact Us For Availability
3
Circuit Board WPL 1113226 Contact Us For Availability
3
Retainer (2) WPL 1113249 Contact Us For Availability
3
Shelf, Fixed WPL 1113636 Contact Us For Availability
3
Lens, Light-Lower WPL 1113650 Contact Us For Availability
3
Grommet, Screw (3) WPL 502037 Contact Us For Availability
4
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
4
Bracket, Keyhole Mounting WPL 1113324 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Screw (2) WPL 488974 Contact Us For Availability
4
Knob, Air Control WPL 1116853 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Basket WPL 1113639 Contact Us For Availability
4
Grommet WPL 842339 Contact Us For Availability
4
Tube, Connect (Suction) WPL 1113293 Contact Us For Availability
5
Shoulder Screw (4) WPL 1113326 Contact Us For Availability
5
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Tube, Connect (Discharge) WPL 1113209 Contact Us For Availability
5
Magnet, Side (4) WPL 1112682 Contact Us For Availability
5
Ladder, Shelf (2) WPL 1112115 Contact Us For Availability
6
Spring Washer (4) WPL 489232 Contact Us For Availability
6
Grommet, Mounting WPL 1105200 Contact Us For Availability
6
Seal, Control Panel WPL 1113132 Contact Us For Availability
6
Adjusting Rod (2) WPL 1112936 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Trim, Ice Pan WPL 1122530 Contact Us For Availability
6
Hinge, Bottom WPL 1112916 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Tube, Flow Divider (2) WPL 1113296 Contact Us For Availability
6
Magnet, Freezer (2) WPL 1112683 Contact Us For Availability
7
Screw WPL 489334 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Sleeve, Retainer (2) WPL 1113250 Contact Us For Availability
7
Shelf, Fixed WPL 1113633 Contact Us For Availability
7
Grommet, Screw (2) WPL 538532 Contact Us For Availability
7
Valve, Fluid Control WPL 1113292 Contact Us For Availability
7
Magnet, Refrigerator (2) WPL 1112679 Contact Us For Availability
7
Screw, 8 x 1-1/4 (8) WPL 488357 Contact Us For Availability
8
Nut (8) WPL 489172 Contact Us For Availability
8
Overload (Service) (Includes Relay) WPL 1101000 Contact Us For Availability
8
Overload (Production) (Includes Relay) WPL 1112956 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Bushing, Rod (2) WPL 1112937 Contact Us For Availability
8
Grommet, Screw WPL 538449 Contact Us For Availability
8
Hinge, Top WPL 1112944 Contact Us For Availability
8
Tube, Connect (Drier) WPL 1113294 Contact Us For Availability
8
Heater, Mullion WPL 1112710 Contact Us For Availability
9
Top Grille Assembly WPL 2000123 Contact Us For Availability
9
Terminal Cover (Production) WPL 1105221 Contact Us For Availability
9
Terminal Cover (Service) WPL 2154452 Contact Us For Availability
9
Hole Plug (3) WPL 534927 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Screw, 10-32 x 5/8 WPL 2000489 Contact Us For Availability
9
Spacer Plate Expansion (2) WPL 1112940 Contact Us For Availability
9
Heater, Drain Pan WPL 1113061 Contact Us For Availability
9
Trim (R.S.) WPL 1113836 Contact Us For Availability
9
Hole Plug WPL 1112257 Contact Us For Availability
10
Cover, Unit WPL 1113490 Contact Us For Availability
10
Strap, Cover WPL 1105222 Contact Us For Availability
10
Shield, Control Panel WPL 1113767 Contact Us For Availability
10
Shield, Control Panel WPL 1113773 Contact Us For Availability
10
Valve, Solenoid WPL 1113103 Contact Us For Availability
10
Hole Plug, Leveler WPL 1112939 Contact Us For Availability
10
Terminal Block WPL 942842 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
10
Trim (L.S.) WPL 1113835 Contact Us For Availability
10
Cover, Liner Back WPL 1112126 Contact Us For Availability
11
Relay (See Overload) WPL ARI106690A Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Screw (12) WPL 489238 Contact Us For Availability
11
Rail, Evaporator Cover (Left Side) WPL 1112841 Contact Us For Availability
11
Rail, Evaporator Cover (Right Side) WPL 1112842 Contact Us For Availability
11
Bracket, Heater WPL 1113105 Contact Us For Availability
11
Screw, (Repair) WPL 487246 Contact Us For Availability
11
Control Panel Assembly (Meat) WPL 1112219 Contact Us For Availability
12
Cover, Component Assembly WPL 1113300 Contact Us For Availability
12
Running Capacitor (Service) WPL 1105212 Contact Us For Availability
12
Seal, Hole WPL 1105408 Contact Us For Availability
12
Channel, Wiring WPL 1112729 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Trim (Bottom) WPL 1112800 Contact Us For Availability
12
Insulation, Liner Back Cover WPL 1112133 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
13
Grommet, Wiring WPL 1113122 Contact Us For Availability
13
Wiring Harness, Fan Motor WPL 1112703 Contact Us For Availability
13
Trim, Basket WPL 1113642 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Tube, Discharge WPL 1113256 Contact Us For Availability
13
Duct, Meat Pan WPL 1112132 Contact Us For Availability
14
Nameplate WPL 2000065 Contact Us For Availability
14
Clamp WPL 1108033 Contact Us For Availability
14
Channel, Wiring WPL 1112707 Contact Us For Availability
14
Wiring Harness, Cabinet WPL 1113707 Contact Us For Availability
14
Scroll, Fan (Also Order Item 15) WPL 1111212 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2000443 Contact Us For Availability
14
Spacer Trim, Grille WPL 1113842 Contact Us For Availability
14
Damper Control, Meat Pan WPL 1112218 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 489368 Contact Us For Availability
15
Channel, Wiring WPL 1112708 Contact Us For Availability
15
Tube, Inlet Valve WPL 1113106 Contact Us For Availability
15
Drain Fitting WPL 1112848 Contact Us For Availability
15
Shield, Scroll WPL 1112976 Contact Us For Availability
15
Roller WPL 1113870 Contact Us For Availability
15
Heat Exchanger WPL 1113572 Contact Us For Availability
15
Retainer, Unit Base (2) WPL 1113604 Contact Us For Availability
15
Control Knob, Meat Pan WPL 1112258 Contact Us For Availability
16
Condenser WPL 1113015 Contact Us For Availability
16
Clamp Tube WPL 1113066 Contact Us For Availability
16
Knob, Thermostat WPL 1112592 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
16
Knob, Retainer WPL 837444 Contact Us For Availability
16
Eyelet, Roller WPL 1113871 Contact Us For Availability
16
Handle, Door WPL 2000076 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shoulder, Screw WPL 1112906 Contact Us For Availability
17
Assembly, Air Duct WPL 2000058 Contact Us For Availability
17
Stud, Shelf WPL 658944 Contact Us For Availability
17
Heater, Defrost WPL 1113045 Contact Us For Availability
17
Bracket, Light WPL 1112789 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Socket, Light WPL 1112613 Contact Us For Availability
18
Cover WPL 1113703 Contact Us For Availability
18
Hinge (Top) (Left Side) WPL 1112901 Contact Us For Availability
18
Hinge (Top) (Right Side) WPL 1112912 Contact Us For Availability
18
Air Deflector, Icemaker WPL 2000048 Contact Us For Availability
18
Washer WPL 488307 Contact Us For Availability
18
Screw, 8-15 x 1-1/4 (8) WPL 487559 Contact Us For Availability
19
Screw, 8-32 x 5/8 (4) WPL 487522 Contact Us For Availability
19
Shim, Hinge Top (4) WPL 1112988 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1112843 Contact Us For Availability
19
Clamp, Heater (2) WPL 549419 Contact Us For Availability
20
Wire Tie (2) WPL 1113228 Contact Us For Availability
20
Guard, Wiring WPL 1112805 Contact Us For Availability
20
Gasket, Evaporator WPL 1112844 Contact Us For Availability
20
Wiring Harness, Air Baffle WPL 1112993 Contact Us For Availability
21
Drier WPL 1108023 Contact Us For Availability
21
Door Closer, Fixed Cam WPL 1112907 Contact Us For Availability
21
Trim (Top) WPL 2000077 Contact Us For Availability
21
Clip, Connector WPL 1112713 Contact Us For Availability
21
Wiring Harness, Light Socket WPL 1112709 Contact Us For Availability
22
Mounting Bracket, Motor WPL 1113083 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
22
Basket Slide (Right Side) WPL 2000061 Contact Us For Availability
22
Basket Slide (Left Side Right Side (2)) WPL 2000062 Contact Us For Availability
22
Screw, 6-32 x 1/2 WPL 489112 Contact Us For Availability
22
Guard, Hook-Up WPL 1113070 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Motor, Fan WPL 1113081 Contact Us For Availability
23
Door Closer Assembly (2) WPL 1112992 Contact Us For Availability
23
Cover, Air Outlet WPL 1113942 Contact Us For Availability
23
Trim (Bottom) WPL 2000084 Contact Us For Availability
23
Strap (7) WPL 851095 Contact Us For Availability
24
Blade, Fan WPL 1113082 Contact Us For Availability
24
Bracket, Door Closer (Left Side) WPL 1112947 Contact Us For Availability
24
Bracket, Door Closer (Right Side) WPL 1112948 Contact Us For Availability
24
Screw, 8-32 x 1-1/2 WPL 488748 Contact Us For Availability
24
Trim (Side) WPL 1113820 Contact Us For Availability
24
Flexible Grommet WPL 1113078 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Orifice, Fan WPL 2000190 Contact Us For Availability
25
Cover, Evaporator WPL 1112275 Contact Us For Availability
25
Shield, Light WPL 1112788 Contact Us For Availability
26
Door, Utility Bin WPL 1112735 Contact Us For Availability
26
Gasket, Orifice WPL 1113303 Contact Us For Availability
26
Tap Plate, Hinge Butt (2) WPL 1112973 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 1112565 Contact Us For Availability
26
Panel, Interior Door WPL 2000177 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Stop, Roller WPL 1113169 Contact Us For Availability
27
Door Shelf (4) WPL 1112740 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
28
Butter, Tray WPL 1125936 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Right Side) WPL 1113216 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) (Left Side) WPL 1113217 Contact Us For Availability
28
Baffle, Evaporator WPL 1112529 Contact Us For Availability
28
Door Shelf Assembly WPL 1112760 Contact Us For Availability
28
Clip, Water Tube WPL 934011 Contact Us For Availability
29
Hinge (Bottom) (Left Side) WPL 1112919 Contact Us For Availability
29
Hinge (Bottom) (Right Side) WPL 1112923 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
29
Wiring Harness, Water Valve WPL 1113749 Contact Us For Availability
30
Defrost Timer (10 Hour) WPL 1127570 Contact Us For Availability
30
Shim, Hinge Bottom (4) WPL 1112943 Contact Us For Availability
30
Tube, Connect (Suction) WPL 1113384 Contact Us For Availability
31
Screw, 1/4-28 x 3/4 WPL 2000490 Contact Us For Availability
31
Tube (2) WPL 1113297 Contact Us For Availability
32
Mounting Sleeve Condenser WPL 2000645 Contact Us For Availability
32
Wire Connector WPL 227991 Contact Us For Availability
32
Harness, Wiring WPL 1113403 Contact Us For Availability
32
Spacer, Lower Door Hinge WPL 1113809 Contact Us For Availability
32
Tube, Condenser Inlet WPL 1113096 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Grille Base, Front WPL 1112137 Contact Us For Availability
35
Assembly, Air Baffle WPL 1112875 Contact Us For Availability
36
Cover, Fan WPL 1113075 Contact Us For Availability
36
Tube Clamp (4) WPL 1112847 Contact Us For Availability
36
Cover, Rear WPL 1112835 Contact Us For Availability
36
Insulation, Air Diffuser WPL 1113147 Contact Us For Availability
37
Cover, Condenser WPL 1113028 Contact Us For Availability
37
Grommet, Wiring WPL 1113123 Contact Us For Availability
38
Extension, Housing WPL 1113076 Contact Us For Availability
38
Grommet, Flexible WPL 1113079 Contact Us For Availability
38
Cover, Air Diffuser WPL 1112878 Contact Us For Availability
39
Cord, Service WPL 937360 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Tube, Meat Pan WPL 1112265 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compression Nut WPL 1113996 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 1113748 Contact Us For Availability
46
WPL 978029 WPL 978029 Contact Us For Availability
46
Stop WPL 1113039 Contact Us For Availability
46
VALVE, ACCESS (1/2` WPL 978028 Contact Us For Availability
100
Top Grille Trim Kit (8``) WPL 4318418 Contact Us For Availability
100
Top Grille Trim Kit (7-1/2``) WPL 4318419 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4318632 Contact Us For Availability
100
Front Panel Kit (White) WPL 4318635 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4318638 Contact Us For Availability
100
FRONT PANEL KIT (STAINLESS STEEL) WPL 4318641 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
