Model Whirlpool KSSS36MDX05 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

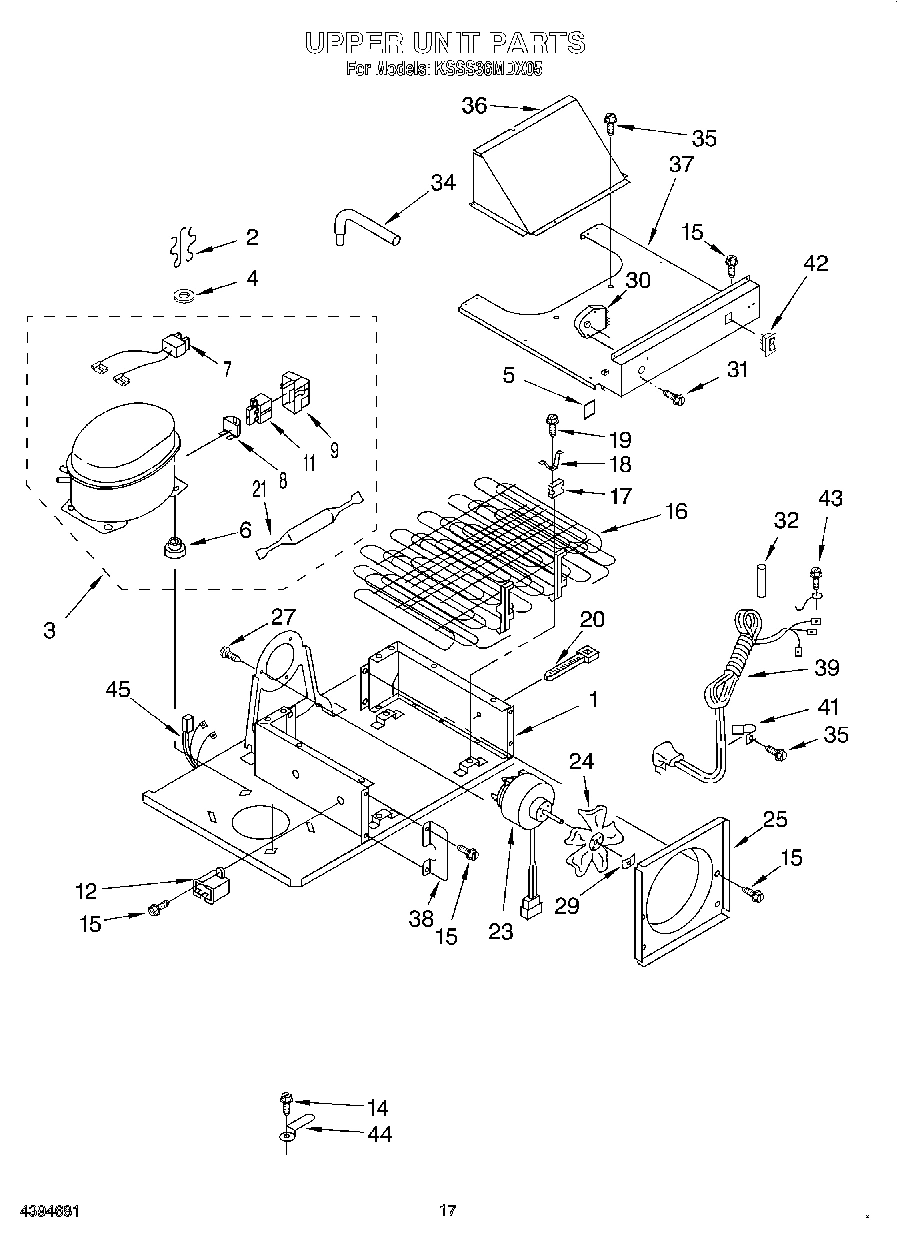

WP4389155 Whirlpool Refrigerator Evaporator M In Stock WPL WP4389155 $102.45

1

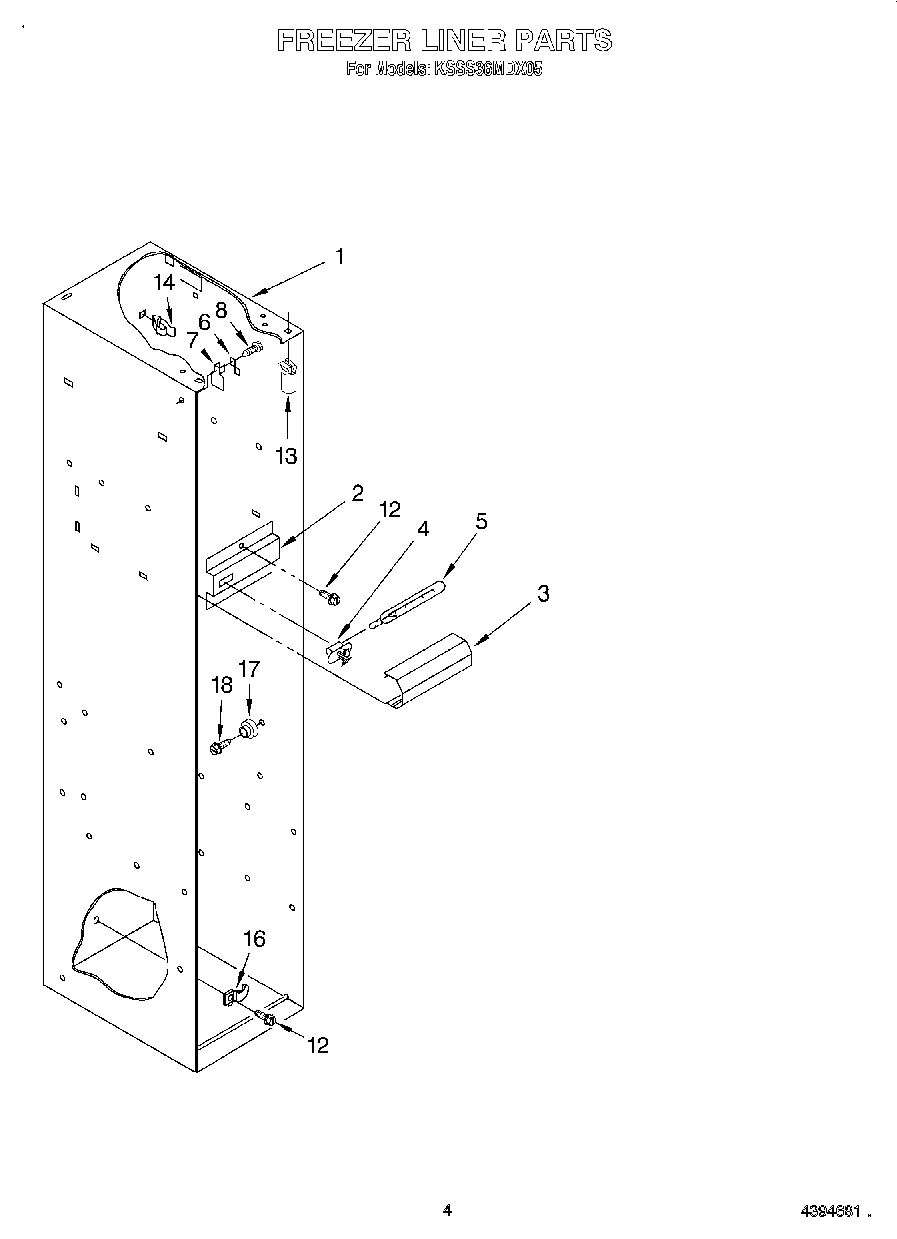

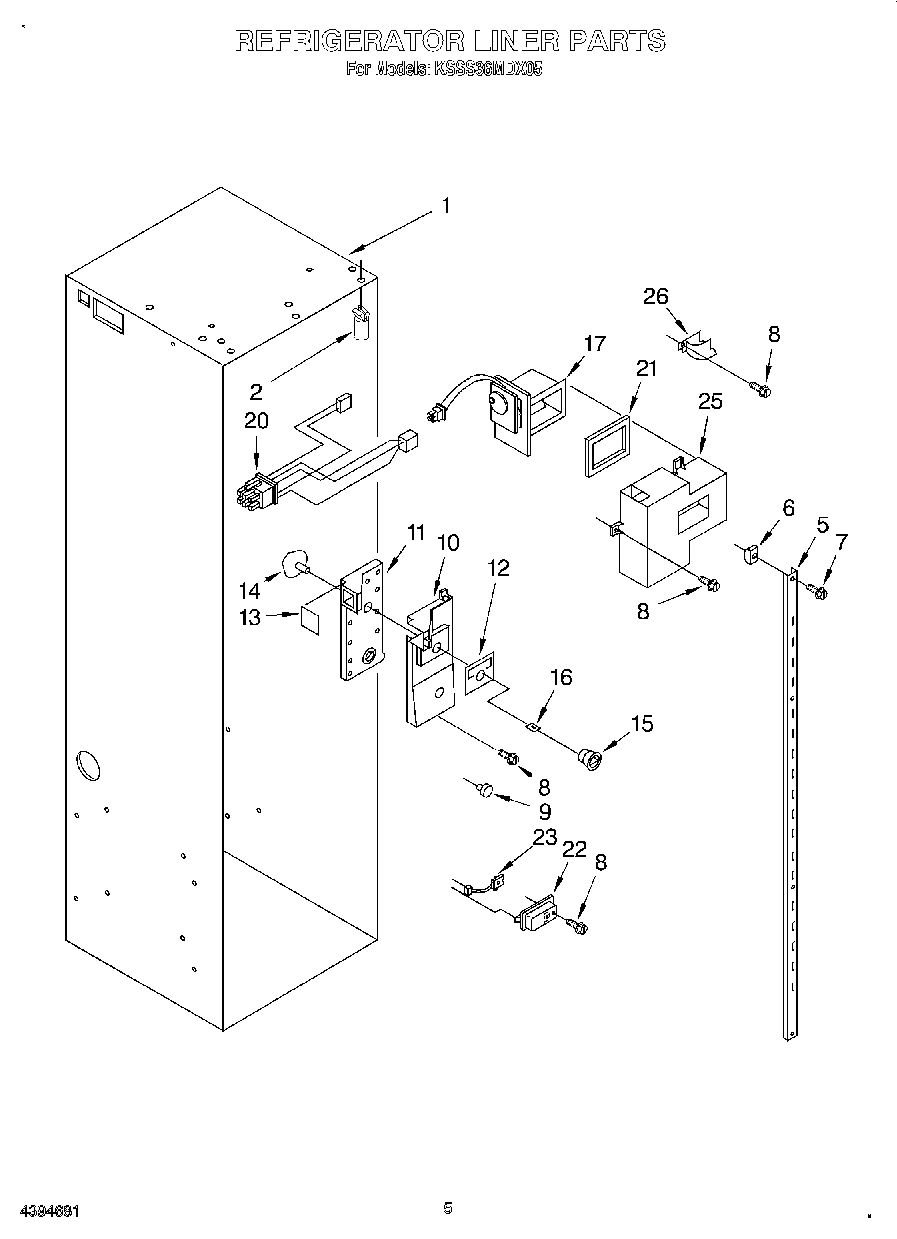

Liner (Not A Serviceable Part) WPL ARI106672A Contact Us For Availability

1

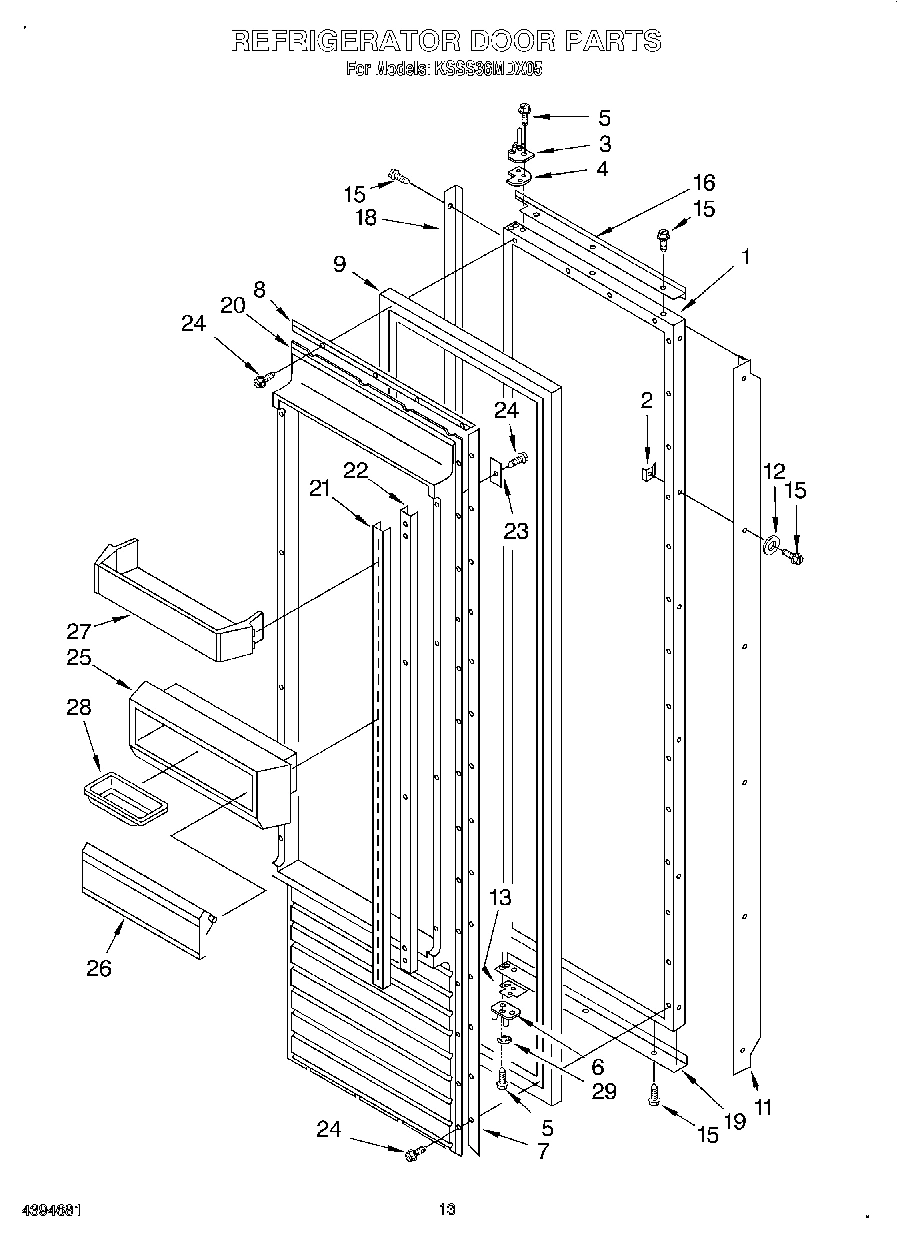

Refrigerator Door Panel (Includes Insulation) WPL 2003870 Contact Us For Availability

1

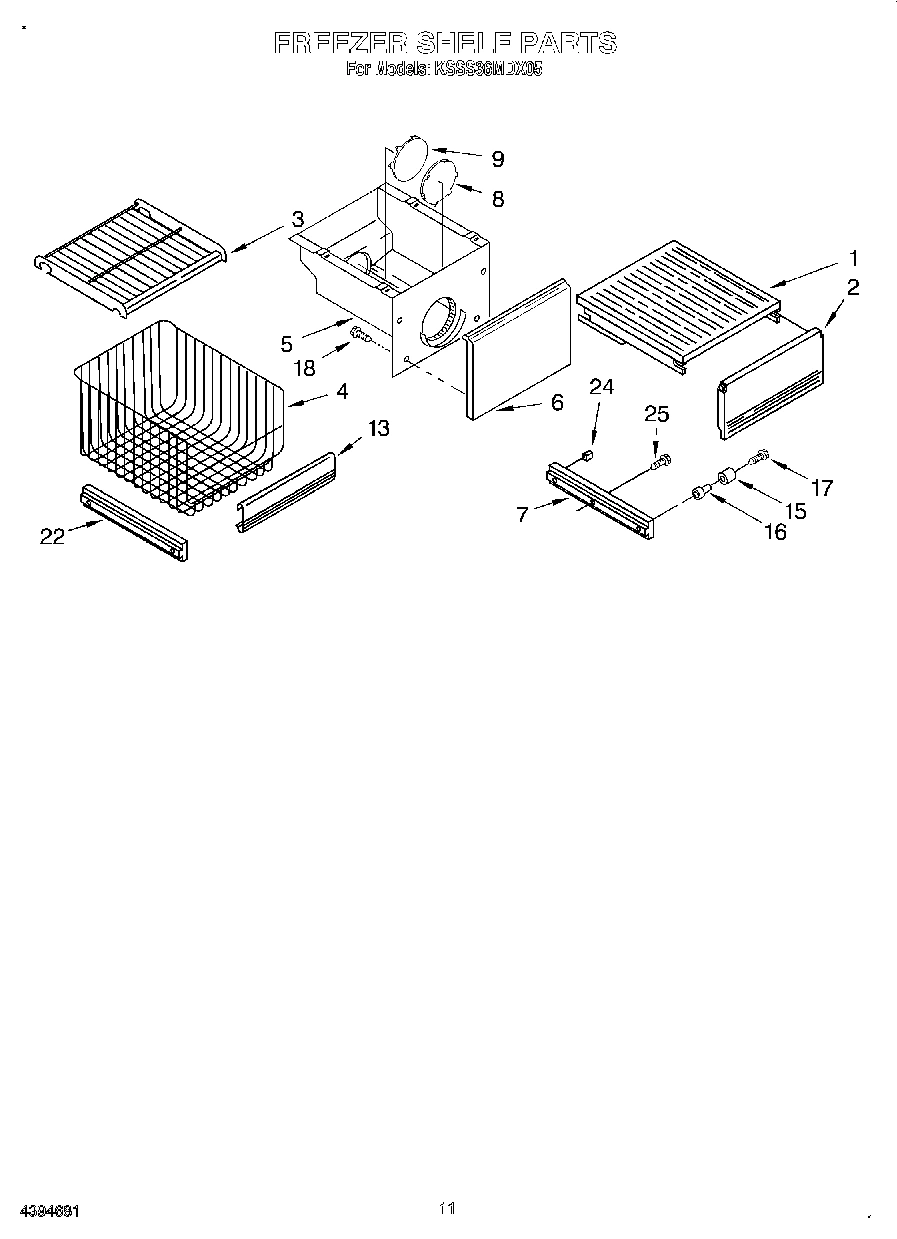

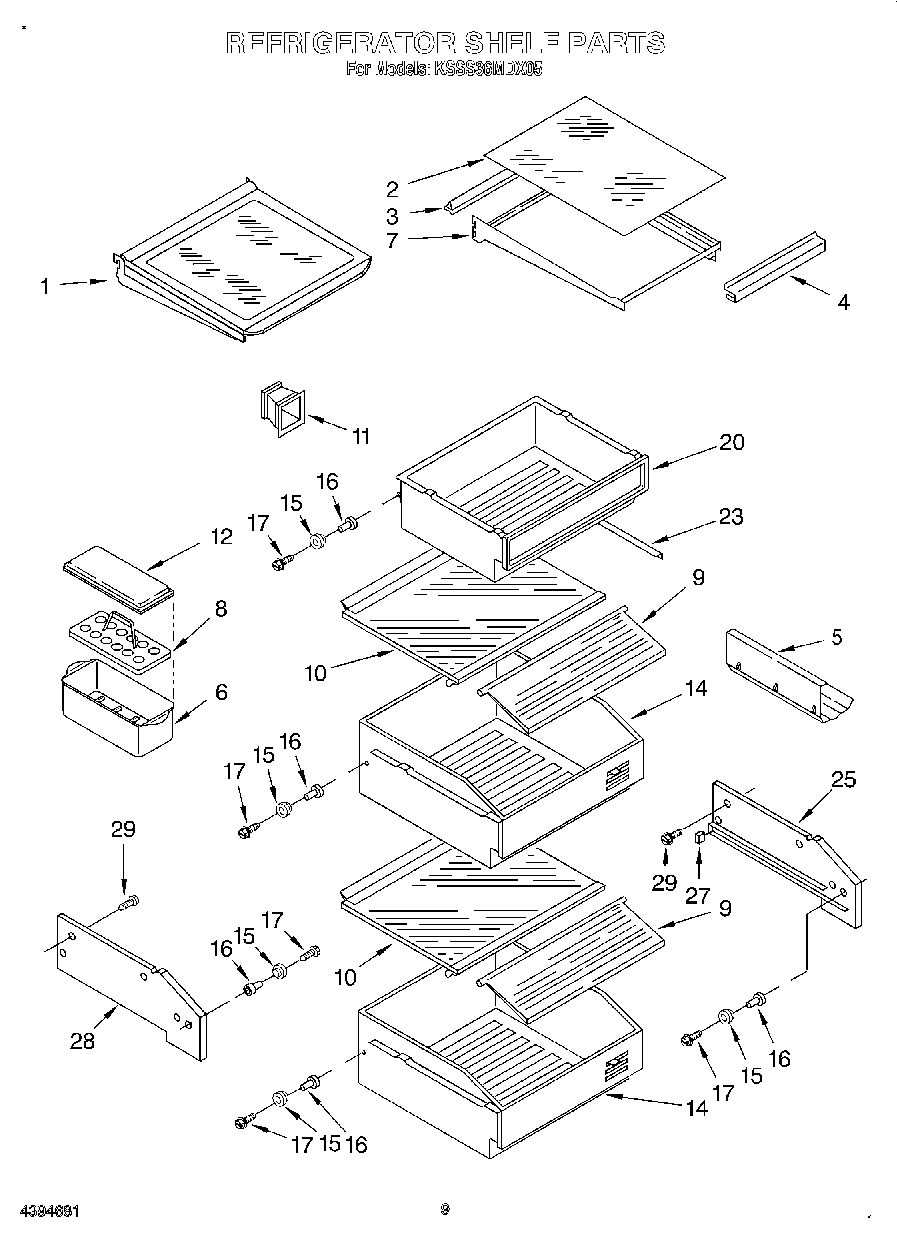

Solid Shelf WPL 2003142 Contact Us For Availability

1

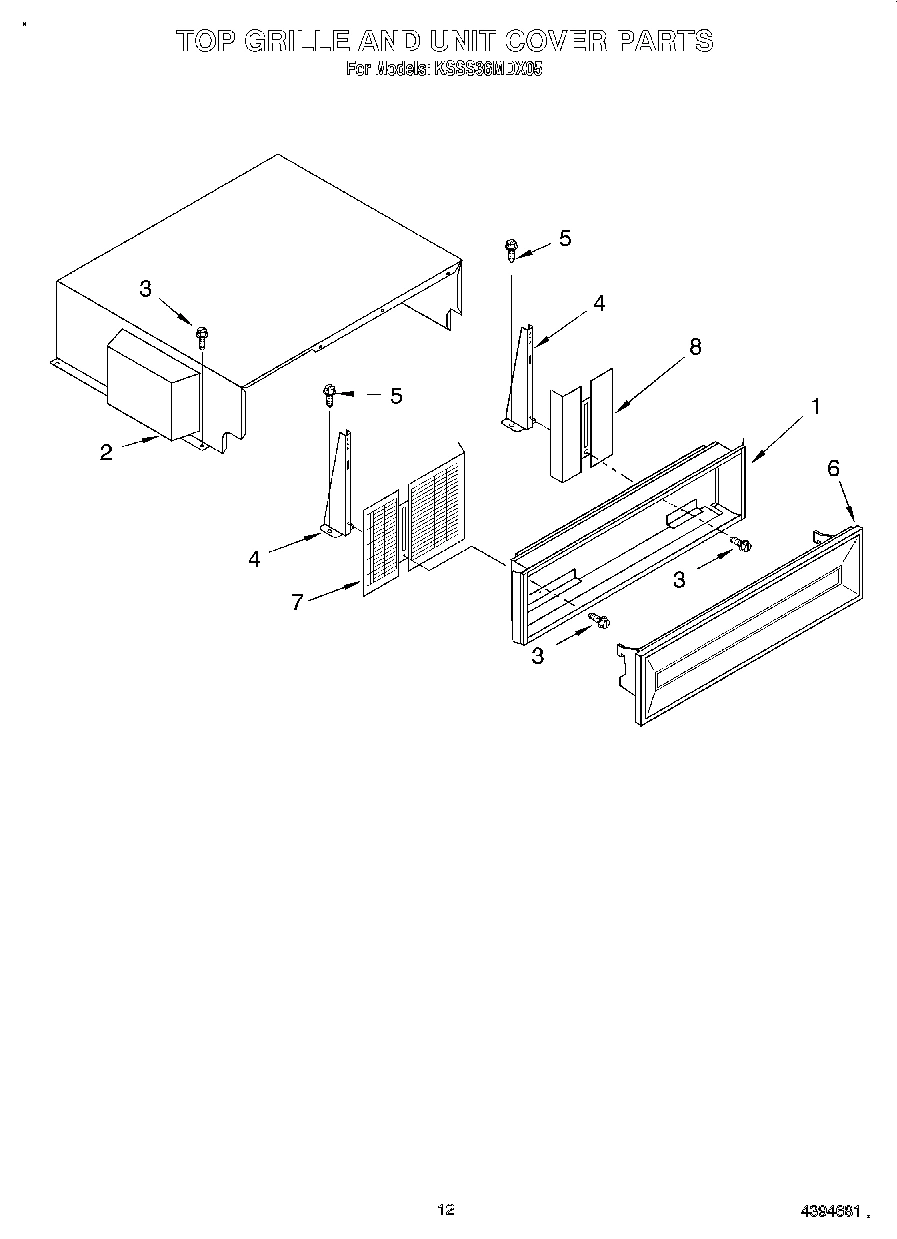

Top Grille Assembly WPL 2003713 Contact Us For Availability

1

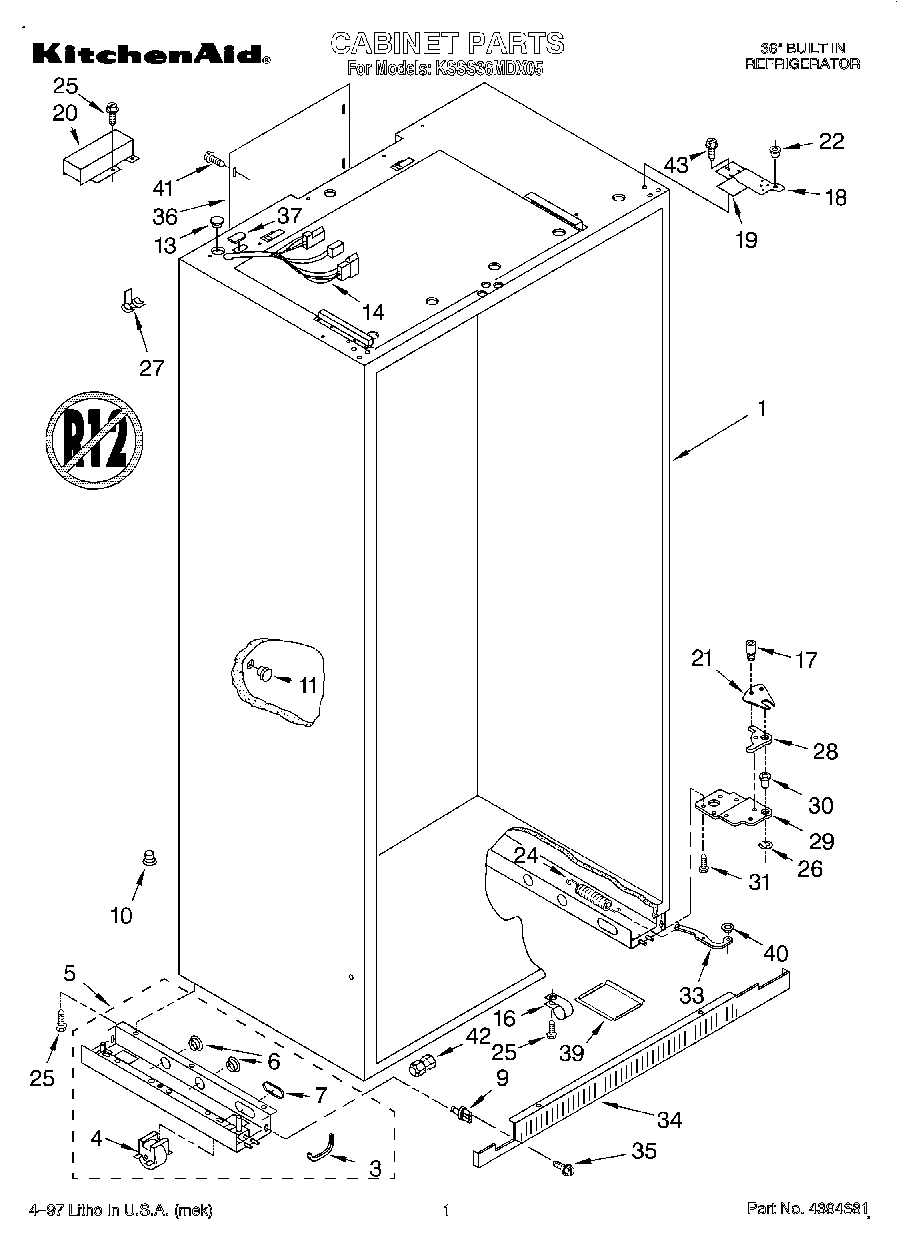

Cabinet (Not A Serviceable Part) WPL ARI106671A Contact Us For Availability

1

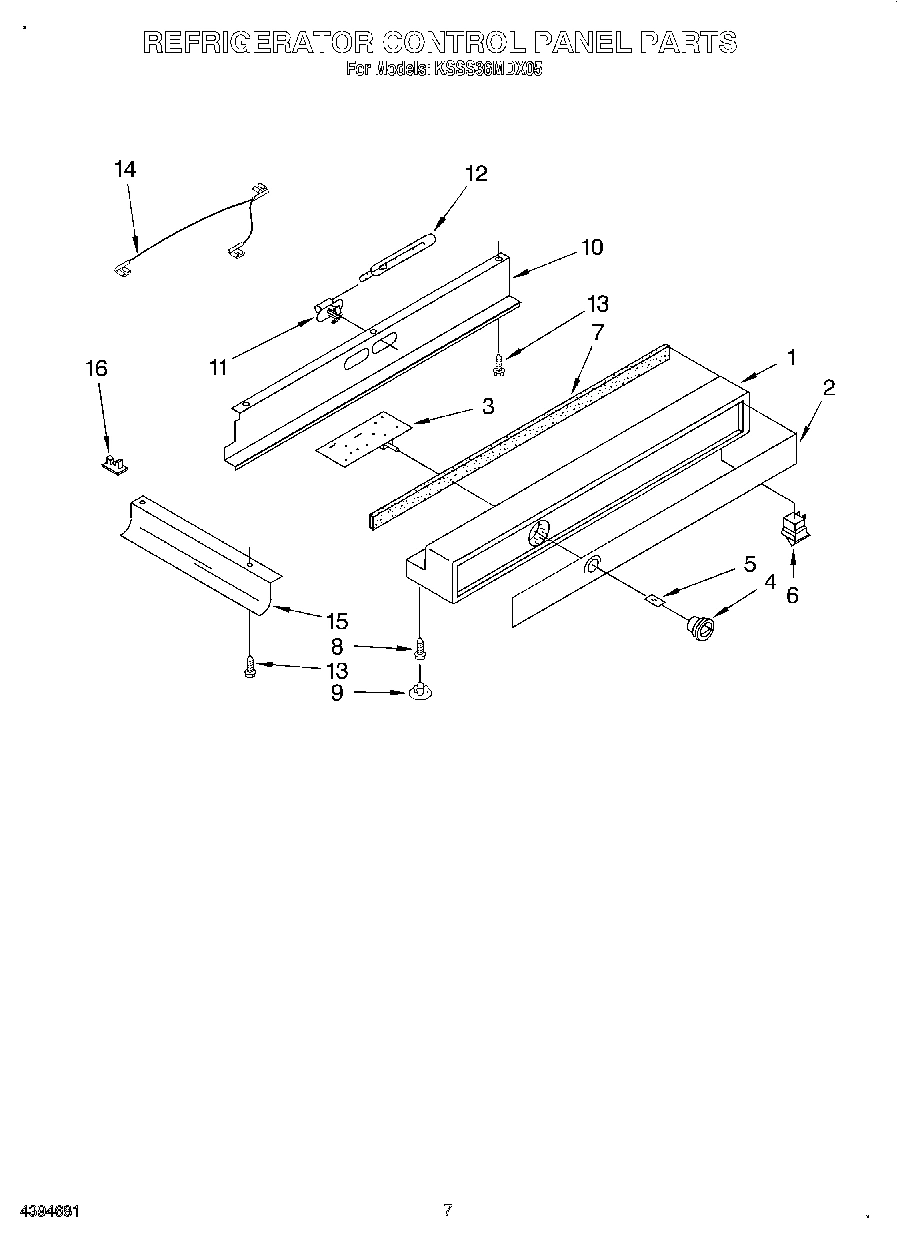

Control Panel WPL 1112640 Contact Us For Availability

1

Assembly, Unit Base WPL 2003398 Contact Us For Availability

1

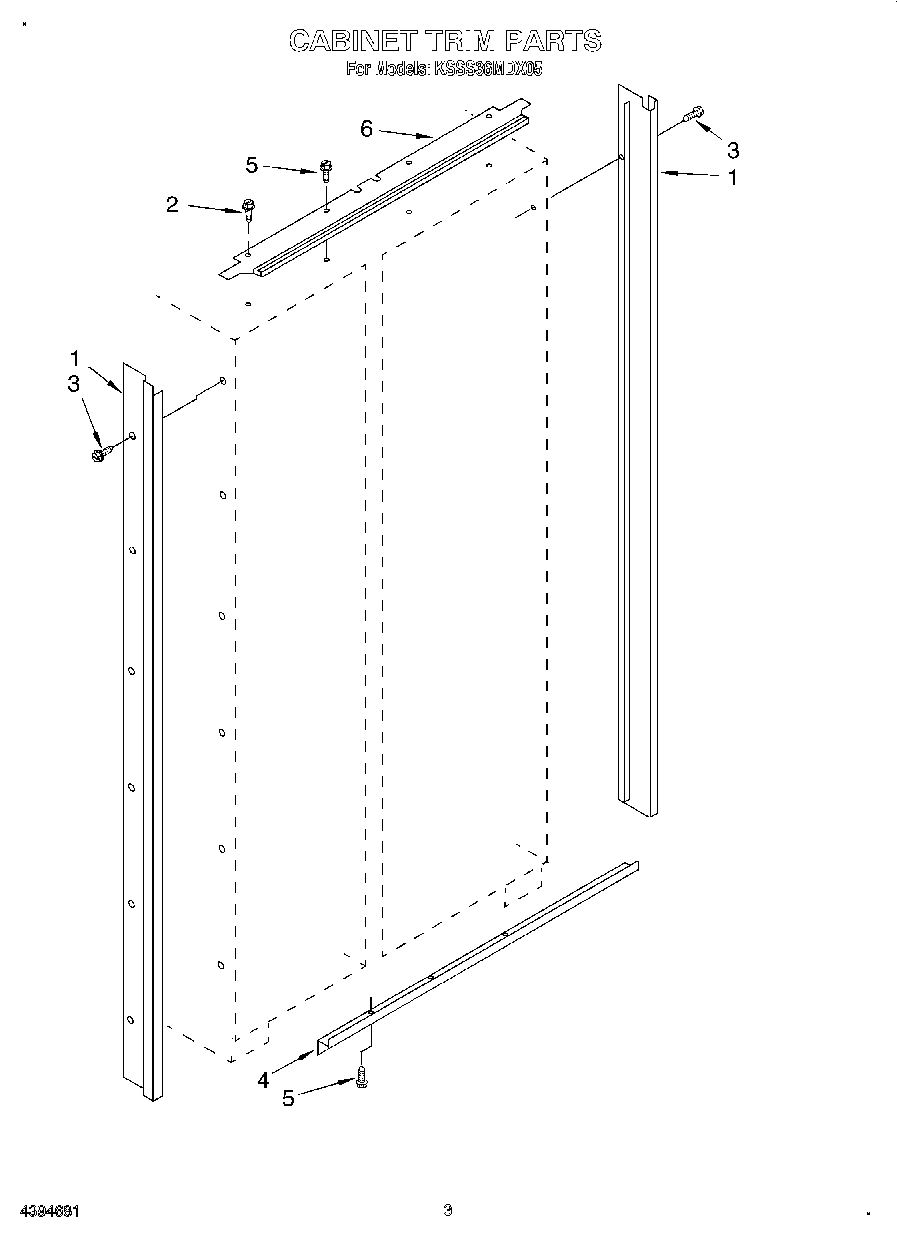

Cabinet, Trim (2) (Stainless Steel) WPL 2004553 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI106673A Contact Us For Availability

1

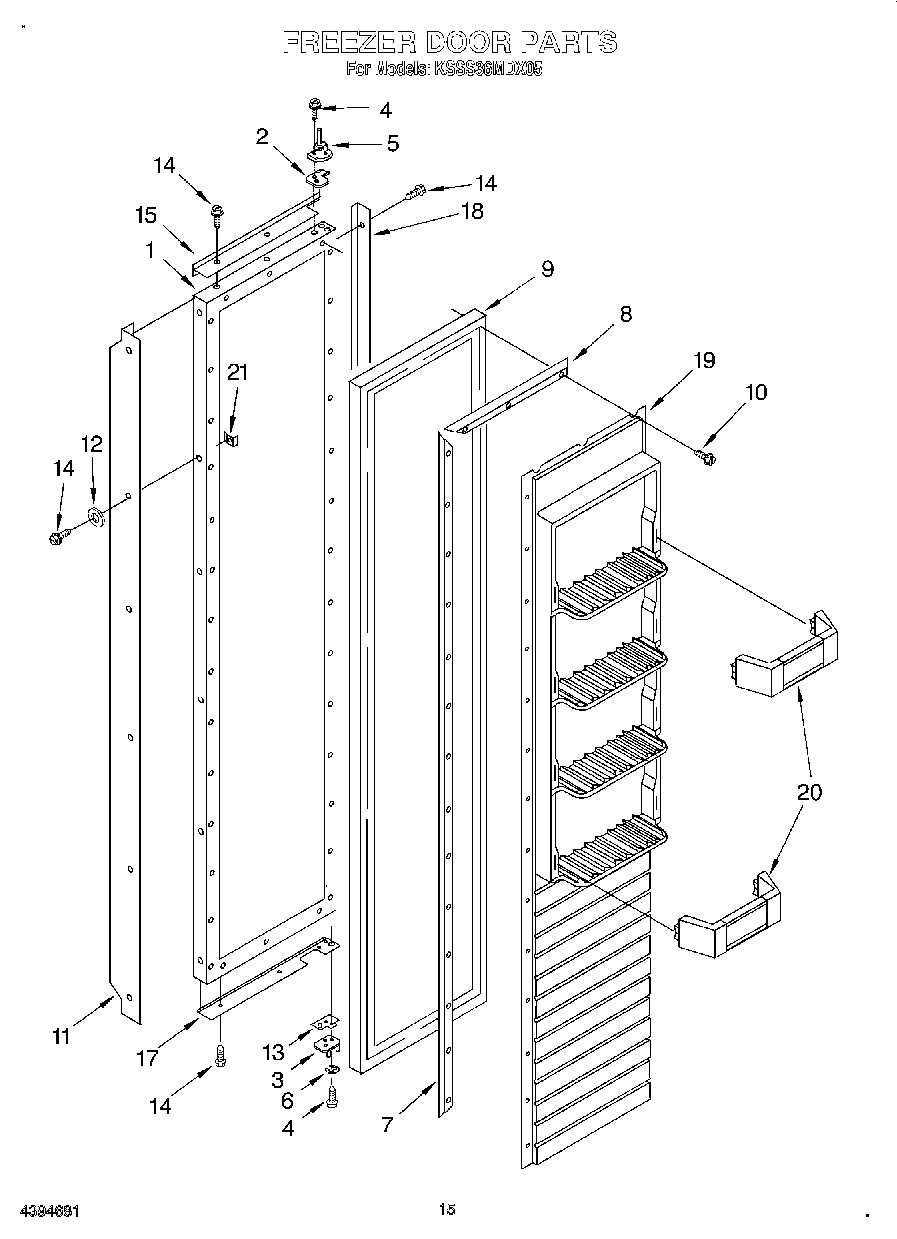

Freezer Door Panel (Includes Insulation) WPL 2003876 Contact Us For Availability

2

Bracket, Light WPL 1113649 Contact Us For Availability

2

Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability

2

Spacer-Door, Top WPL 2004520 Contact Us For Availability

2

Front, Ice Compartment WPL 2003133 Contact Us For Availability

2

Cover, Unit WPL 2004946 Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Inlay, Control Panel WPL 2003301 Contact Us For Availability

2

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

2

Screw WPL 2003857 Contact Us For Availability

2

Clamp, Bi-Metal WPL 1113043 Contact Us For Availability

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP1113466 Whirlpool Refrigerator Thermostat Backorder WPL WP1113466 $125.12

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Lens WPL 1113650 Contact Us For Availability

3

Shelf, Fixed (2) WPL 1113564 Contact Us For Availability

3

Shelf, Fixed-Deep WPL 1113636 Contact Us For Availability

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

3

Screw WPL 1161561 Contact Us For Availability

3

Circuit Board WPL 2004005 Contact Us For Availability

3

Hinge, Bottom WPL 2004524 Contact Us For Availability

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Basket (2) WPL 2001551 Contact Us For Availability

4

Grille, Bracket WPL 2002484 Contact Us For Availability

4

Bracket (Double) WPL 548263 Contact Us For Availability

4

Control Knob WPL 2003842 Contact Us For Availability

4

Washer WPL 680975 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2004536 Contact Us For Availability

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

5

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Hinge, Top WPL 2004521 Contact Us For Availability

5

Ice Container WPL 2002725 Contact Us For Availability

5

Bracket (Single) WPL 938224 Contact Us For Availability

5

Bushing, Foam WPL 2003389 Contact Us For Availability

5

Ladder, Shelf (2) WPL 2001117 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2004523 Whirlpool Refrigerator Door Hinge Backorder WPL WP2004523 $28.51

6

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

6

Condenser Inlet Tube WPL 2002999 Contact Us For Availability

6

Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability

6

Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability

6

Front Cover WPL 2003043 Contact Us For Availability

6

Decortive Panel Assembly WPL 2003722 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Grommet WPL 548268 Contact Us For Availability

6

Cabinet, Trim Top WPL 2003645 Contact Us For Availability

7

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

7

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

7

Grommet, Screw (2) WPL 2000193 Contact Us For Availability

7

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

7

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

7

Guard, Compressor Wiring WPL 2003480 Contact Us For Availability

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Seal, Control Panel WPL 1113133 Contact Us For Availability

7

Screw WPL 488357 Contact Us For Availability

8

2003046 Whirlpool Refrigerator Plug Backorder WPL 2003046 $26.75

8

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

8

Tube, Connect (Drier) WPL 2003015 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability

8

Guard, Water Valve Wiring WPL 2003481 Contact Us For Availability

8

Deflector, Air Duct WPL 2003924 Contact Us For Availability

8

Screw (3) WPL 489260 Contact Us For Availability

8

Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability

9

2003047 Whirlpool Refrigerator Plug Backorder WPL 2003047 $12.81

9

2188319A Whirlpool Refrigerator Door Gasket In Stock WPL 2188319A $140.01

9

WP2004545 Whirlpool Refrigerator Heater Pan In Stock WPL WP2004545 $177.02

9

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

Mounting Stud, Grill WPL 2004852 Contact Us For Availability

9

Hole Plug (3) WPL 2000153 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Door Gasket, Magnetic WPL 2000877 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Hole Plug, Leveler WPL 1112939 Contact Us For Availability

Shield, Control Panel WPL 1113773 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2003579 Contact Us For Availability

Hanger, Heater WPL 1113062 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Socket, Light (2) WPL 1112613 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2003679 Contact Us For Availability

Cap, Grommet WPL 1112849 Contact Us For Availability

Relay (See Overload) WPL ARI106674A Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Handle, Door WPL 2003681 Contact Us For Availability

Washer WPL 2001230 Contact Us For Availability

Channel, Wiring WPL 2001145 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

Inlay, Control Meat Pan WPL 2003299 Contact Us For Availability

Sleeve WPL 2002448 Contact Us For Availability

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $26.21

Door, Spacer WPL 2004549 Contact Us For Availability

Trim, Basket WPL 2003112 Contact Us For Availability

Grommet, Wiring WPL 1113122 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

Seal, Air Duct WPL 2001326 Contact Us For Availability

Tube, Discharge WPL 2002995 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Wiring Harness, Cabinet WPL 2004911 Contact Us For Availability

Scroll, Fan WPL 2000783 Contact Us For Availability

Wire, Light WPL 2003758 Contact Us For Availability

Screw WPL 486899 Contact Us For Availability

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2003001 Whirlpool Refrigerator Exchanger Backorder WPL WP2003001 $182.46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Roller WPL 2174388 Contact Us For Availability

Deflector, Air Duct WPL 2003927 Contact Us For Availability

Channel, Wiring WPL 2001141 Contact Us For Availability

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Trim (Top) WPL 2005019 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WPW10122127 Whirlpool Refrigerator Evaporator Backorder WPL WPW10122127 $200.73

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim (Top) (Stainless Steel) WPL 2005010 Contact Us For Availability

Retainer, Knob WPL 2003841 Contact Us For Availability

Clip, Wiring (2) WPL 1115375 Contact Us For Availability

Condenser WPL 2003392 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Heater, Defrost WPL 2000630 Contact Us For Availability

Stud, Shelf (20) WPL 2004068 Contact Us For Availability

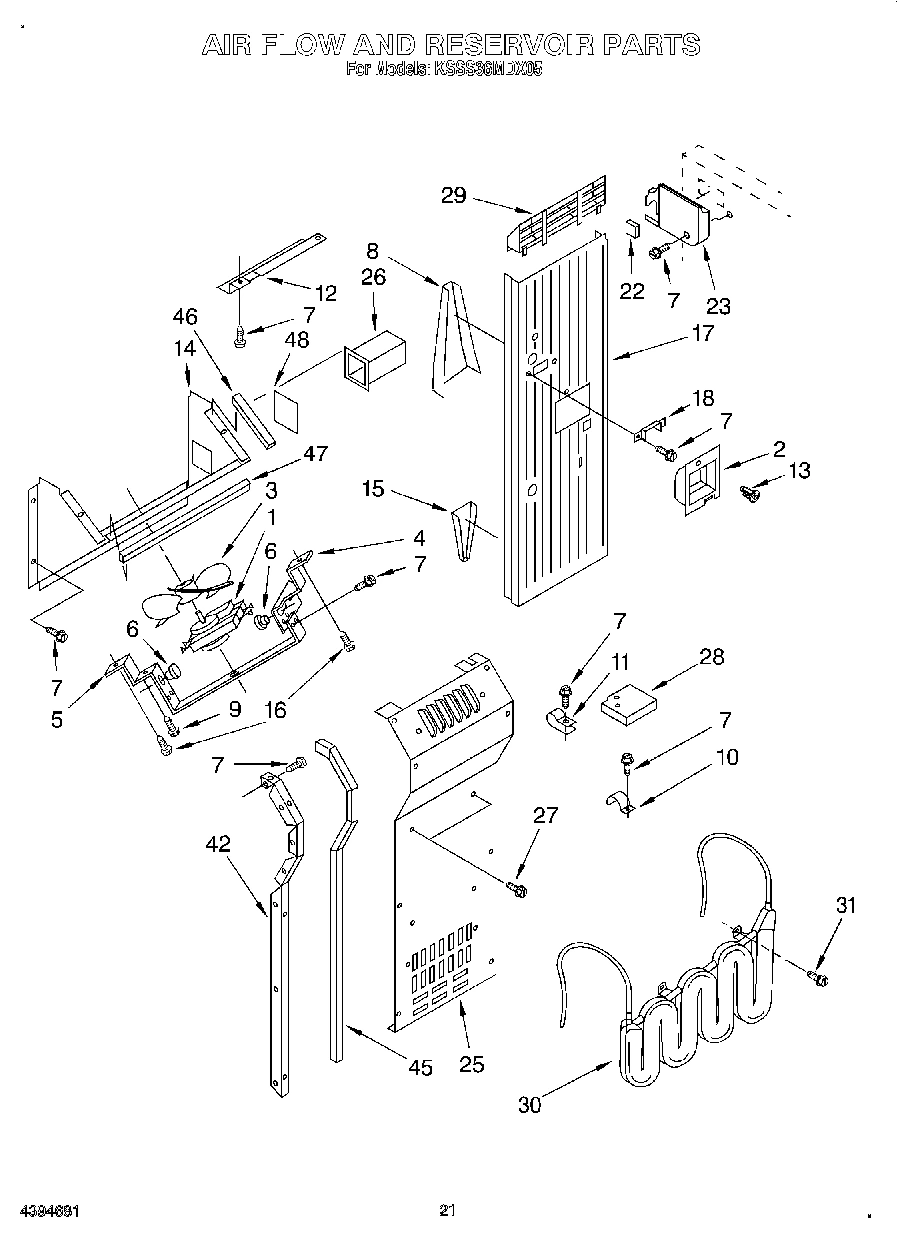

Assembly, Air Duct (Also Order Items 8 & 15) WPL 2004905 Contact Us For Availability

Grommet (4) WPL 943447 Contact Us For Availability

Air Baffle Assembly WPL 2000343 Contact Us For Availability

Trim (Bottom) WPL 2004560 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Screw WPL 487559 Contact Us For Availability

Trim (Side) (Stainless Steel) WPL 2003675 Contact Us For Availability

Hinge (Top) (Right Side) WPL 2001975 Contact Us For Availability

Hinge (Top) (Left Side) WPL 2001976 Contact Us For Availability

Air Deflector, Icemaker WPL 2000048 Contact Us For Availability

Clamp (4) WPL 1113019 Contact Us For Availability

Trim (Side) WPL 2003677 Contact Us For Availability

Screw WPL 487522 Contact Us For Availability

Trim (Bottom) (Stainless Steel) WPL 2003663 Contact Us For Availability

Shim, Hinge Top WPL 2000770 Contact Us For Availability

Panel, Interior Door WPL 2000177 Contact Us For Availability

Clamp, Heater (2) WPL 1108431 Contact Us For Availability

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

Meat Pan WPL 2003320 Contact Us For Availability

Panel, Interior Door WPL 1113952 Contact Us For Availability

Guard, Wiring WPL 1112805 Contact Us For Availability

Wiring Harness, Air Baffle WPL 2001073 Contact Us For Availability

Shelf Bin (4) WPL 2003127 Contact Us For Availability

Gasket, Evaporator WPL 1112844 Contact Us For Availability

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Ladder, Shelf (2) WPL 1113951 Contact Us For Availability

Seal WPL 2001146 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability

Basket Slide (Right Side) WPL 2000061 Contact Us For Availability

Basket Slide (Left Side) WPL 2000062 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Motor, Fan WPL 2169135 Contact Us For Availability

Thermistor WPL 1116959 Contact Us For Availability

Retainer, Glass WPL 2002181 Contact Us For Availability

Back Up Plate (8) WPL 1112514 Contact Us For Availability

Cover, Air Outlet WPL 2003576 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

Blade, Fan WPL 1108179 Contact Us For Availability

24

Spring, Door Closure WPL 2004567 Contact Us For Availability

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability

Bin, Utility WPL 1112720 Contact Us For Availability

Cover, Evaporator WPL 2005035 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

Air Baffle Cover WPL 2003578 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Door, Utility Bin WPL 2003463 Contact Us For Availability

Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stop, Roller WPL 1113169 Contact Us For Availability

Door Shelf (4) WPL 2003130 Contact Us For Availability

Fastener (3) WPL 1113227 Contact Us For Availability

Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability

Tray, Butter WPL 2165792 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2004867 Contact Us For Availability

Baffle, Evaporator WPL 1112840 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Diffuser, Air Duct WPL 1112851 Contact Us For Availability

30

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

30

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

30

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

31

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

31

Screw WPL 488280 Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

33

Linkage, Door Closure WPL 2004516 Contact Us For Availability

34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

34

Grille Base, Front (Black) WPL 2004530 Contact Us For Availability

34

Process, Tube WPL 2003011 Contact Us For Availability

35

Screw WPL 489238 Contact Us For Availability

36

Cover, Rear WPL 2004512 Contact Us For Availability

36

Cover, Fan WPL 2003174 Contact Us For Availability

37

Grommet, Wiring WPL 1113123 Contact Us For Availability

37

Cover, Condenser WPL 2003355 Contact Us For Availability

38

Air Vane WPL 2003263 Contact Us For Availability

39

Cup, Wiring WPL 2004595 Contact Us For Availability

39

Service Cord WPL 2003381 Contact Us For Availability

40

Bushing, Door Closure WPL 2004565 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

Clamp, Cord (2) WPL 1113162 Contact Us For Availability

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

WP4211117 Whirlpool Refrigerator Connector Backorder WPL WP4211117 $5.34

Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability

Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

43

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

44

Clip, Cord Plug WPL 653035 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2003356 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

46

Gasket (2) WPL 2001079 Contact Us For Availability

47

Gasket WPL 2001080 Contact Us For Availability

48

Gasket WPL 2001081 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
