Model Whirlpool KSSC42FTS18 REFRIGERATOR – Common Parts & Diagrams

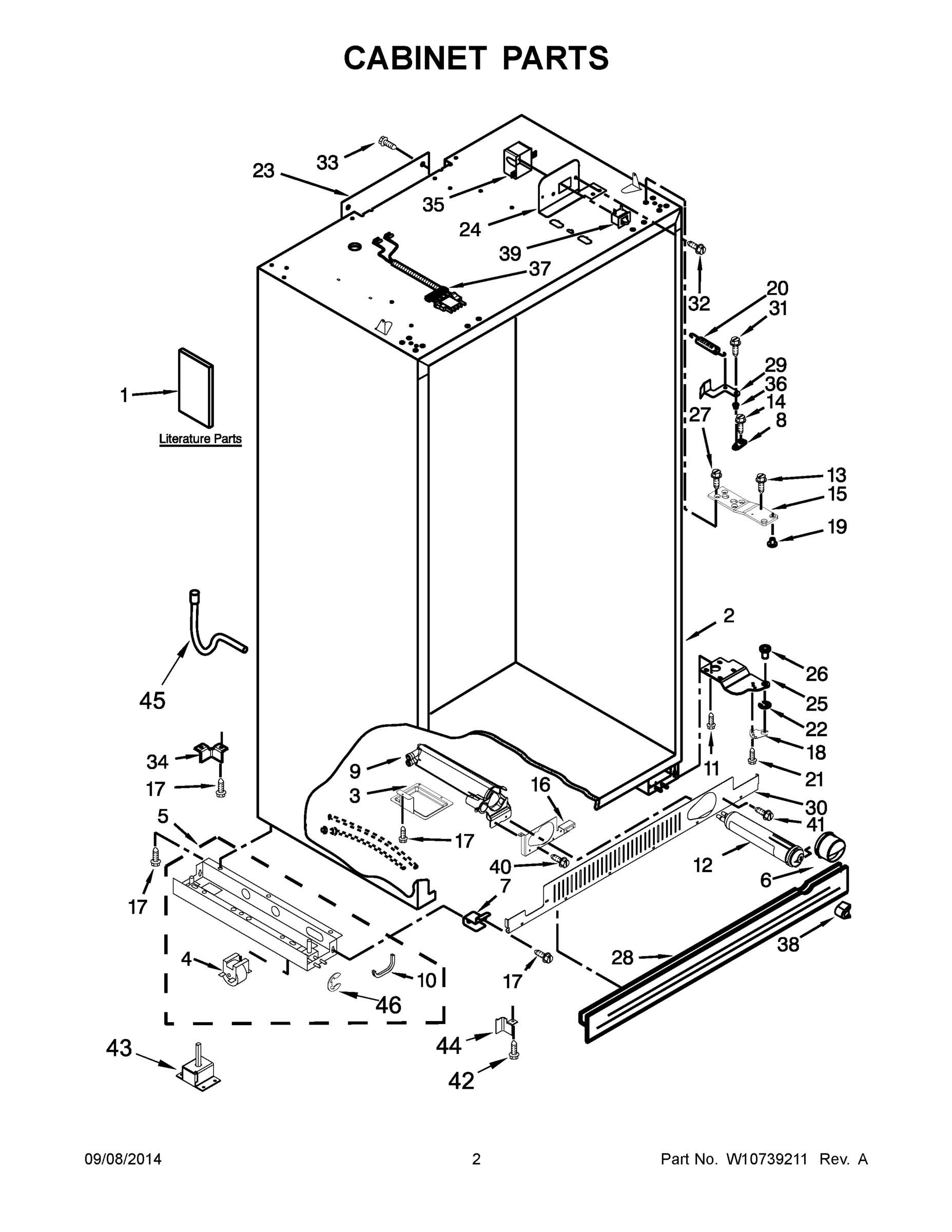

02 - CABINET PARTS

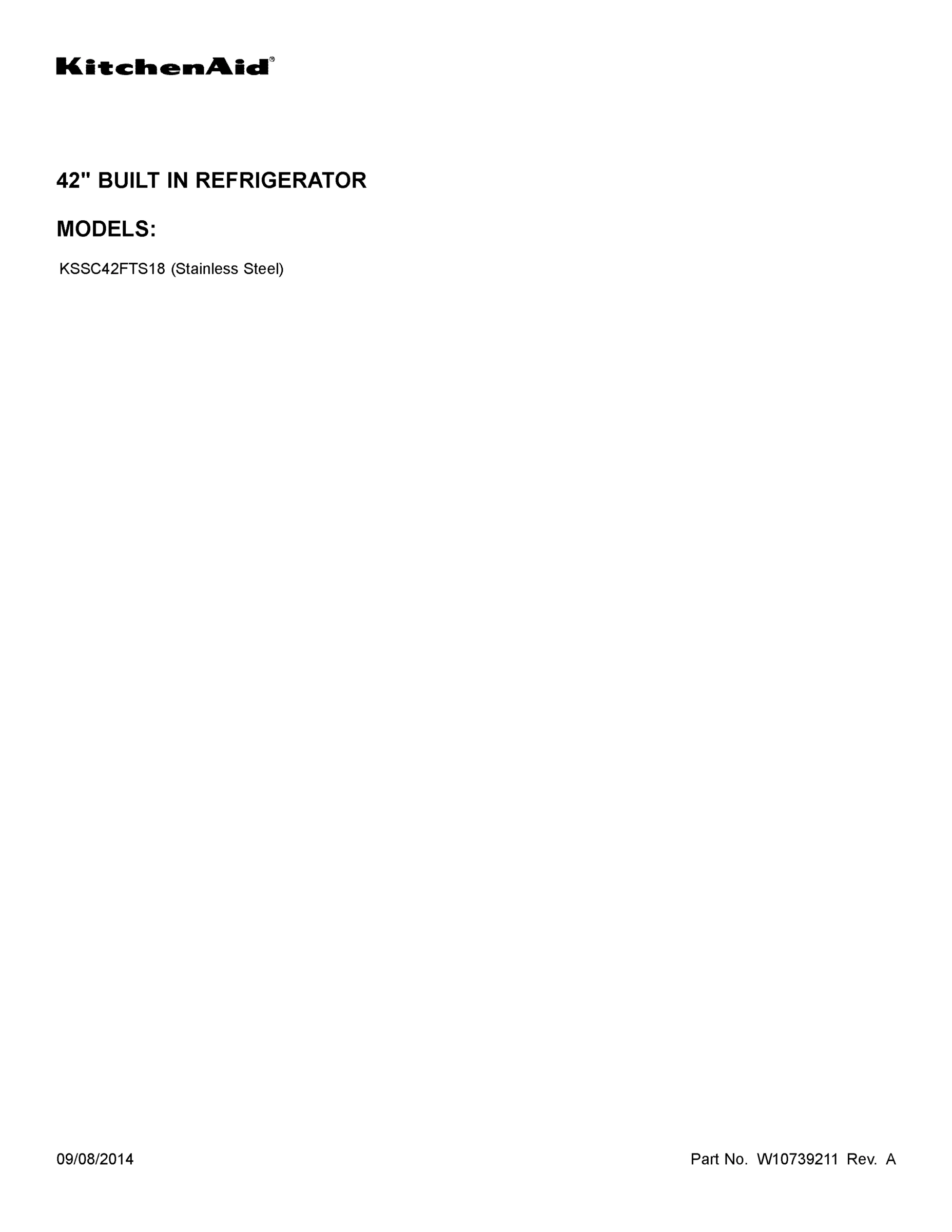

01 - COVER SHEET

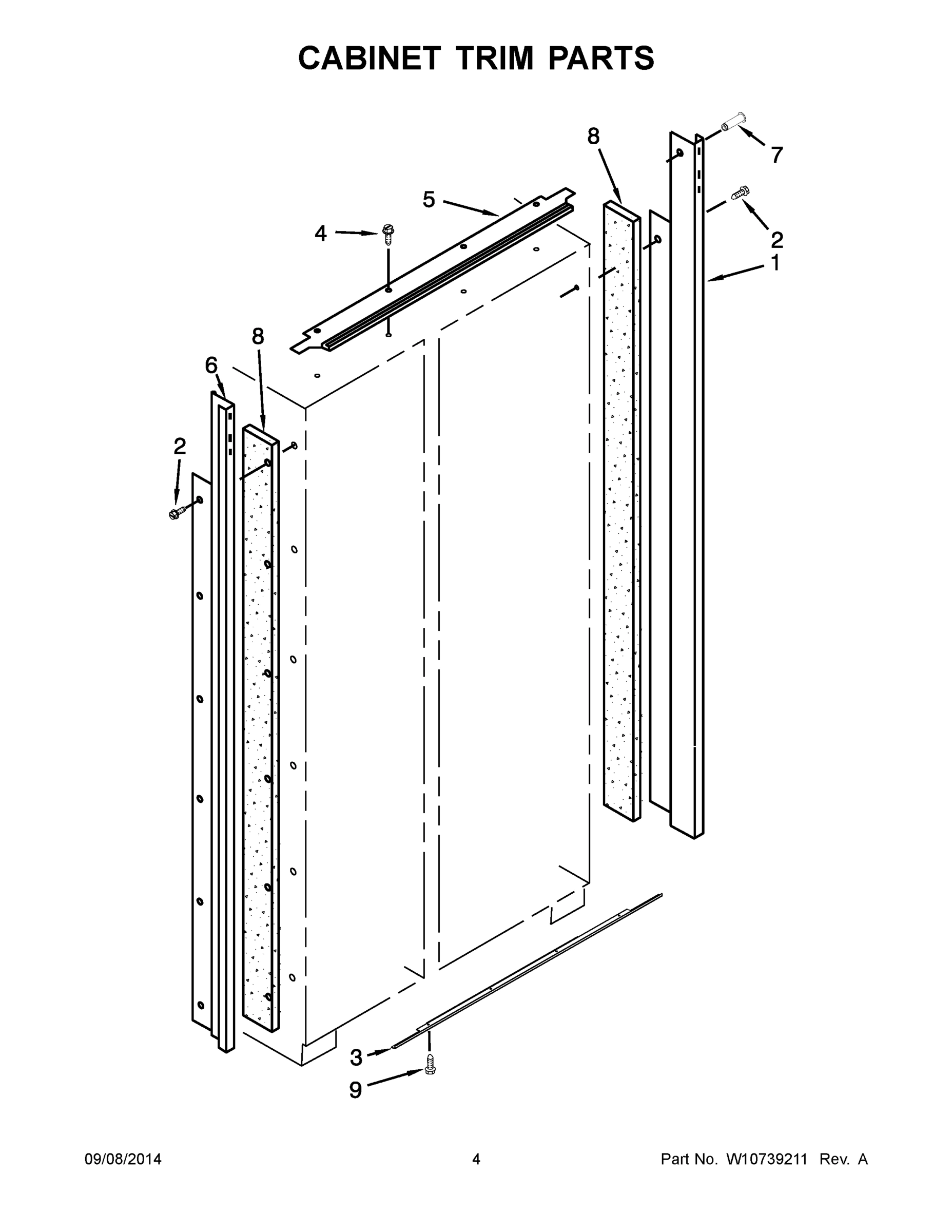

03 - CABINET TRIM PARTS

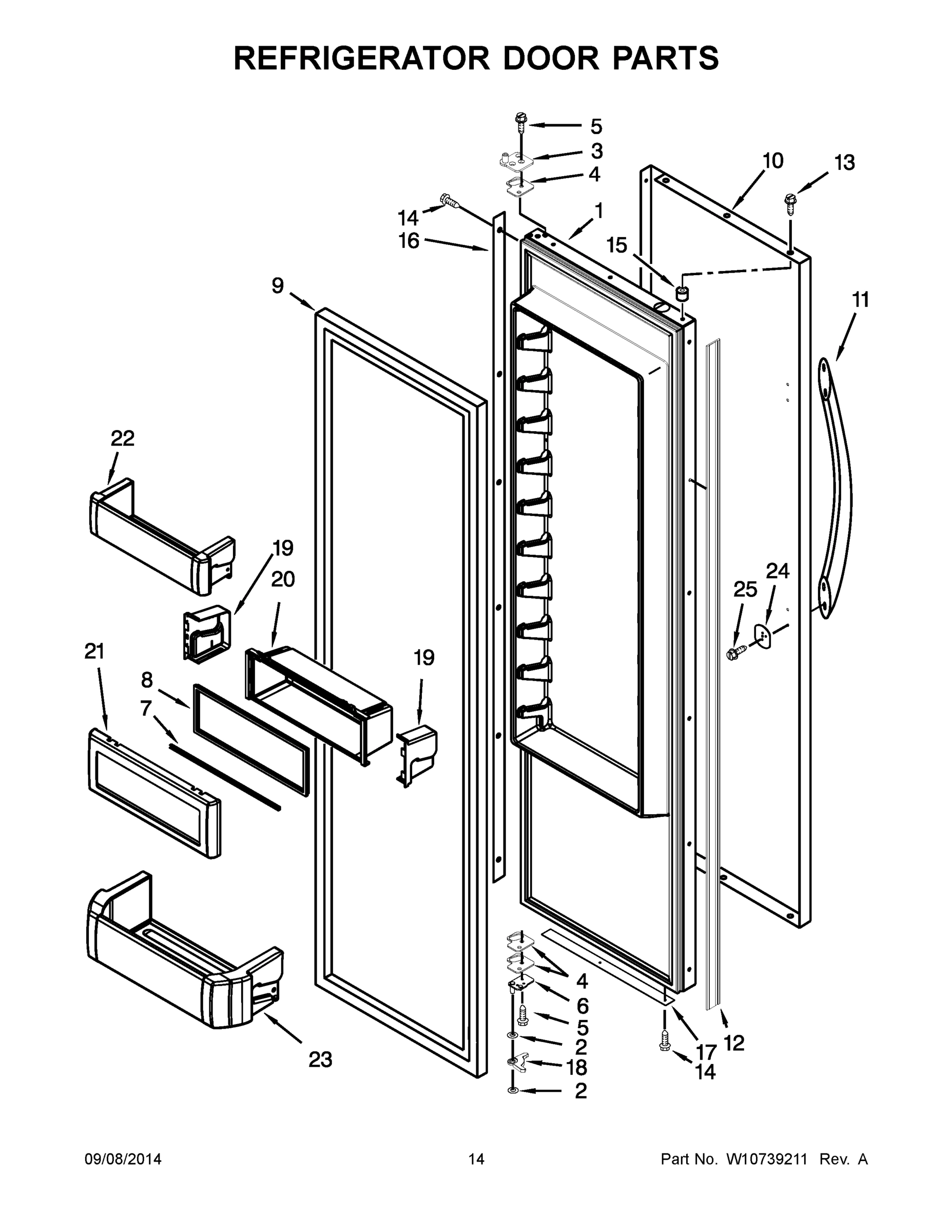

08 - REFRIGERATOR DOOR PARTS

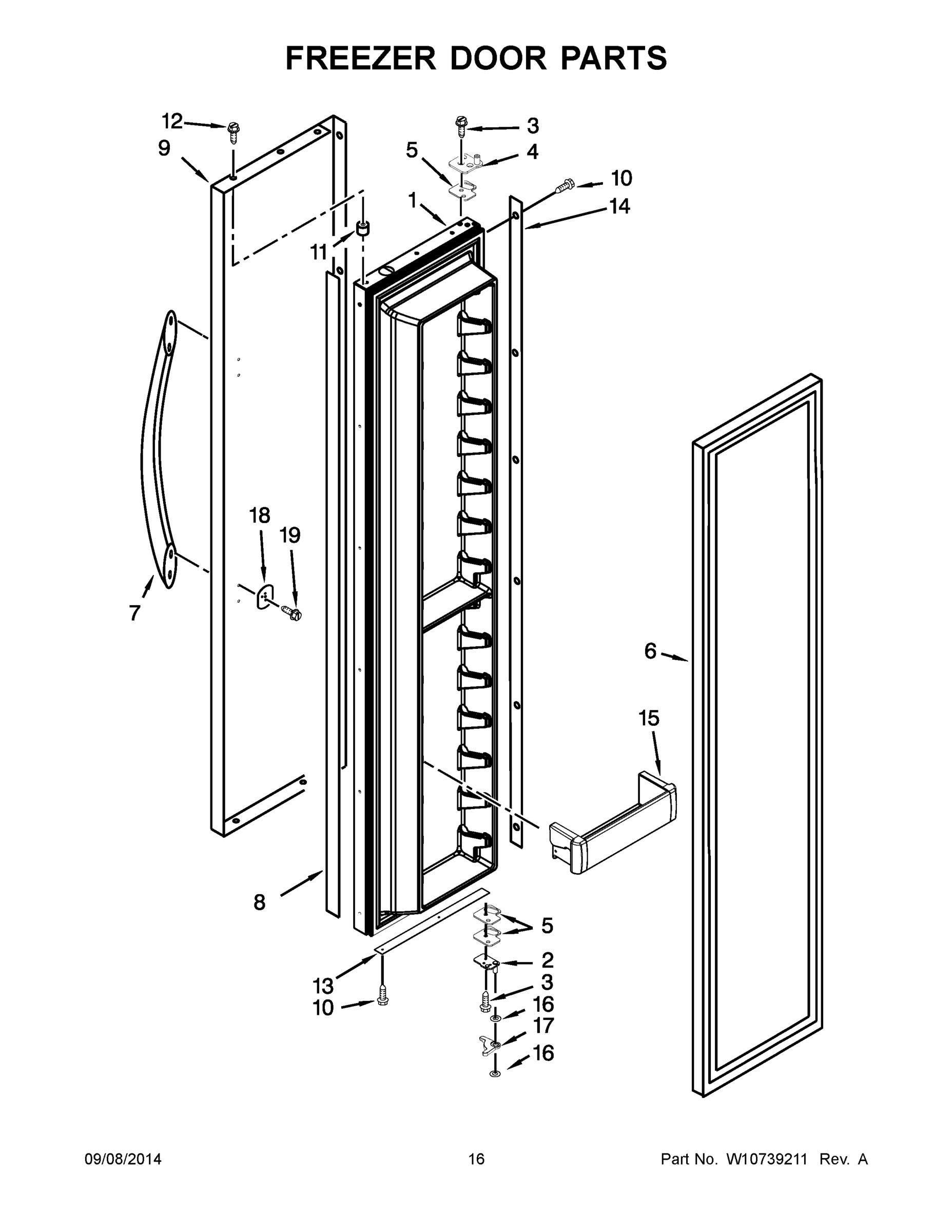

09 - FREEZER DOOR PARTS

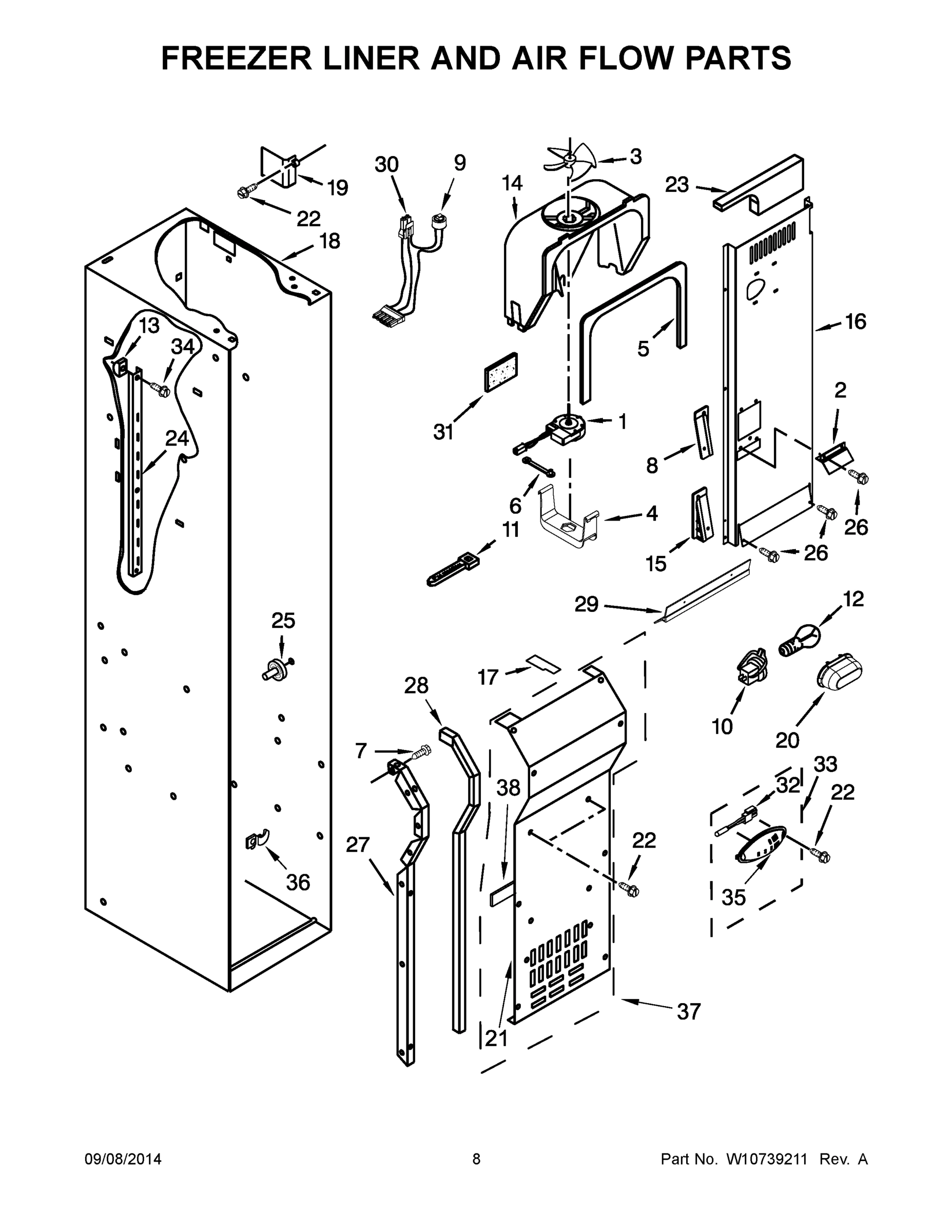

05 - FREEZER LINER AND AIR FLOW PARTS

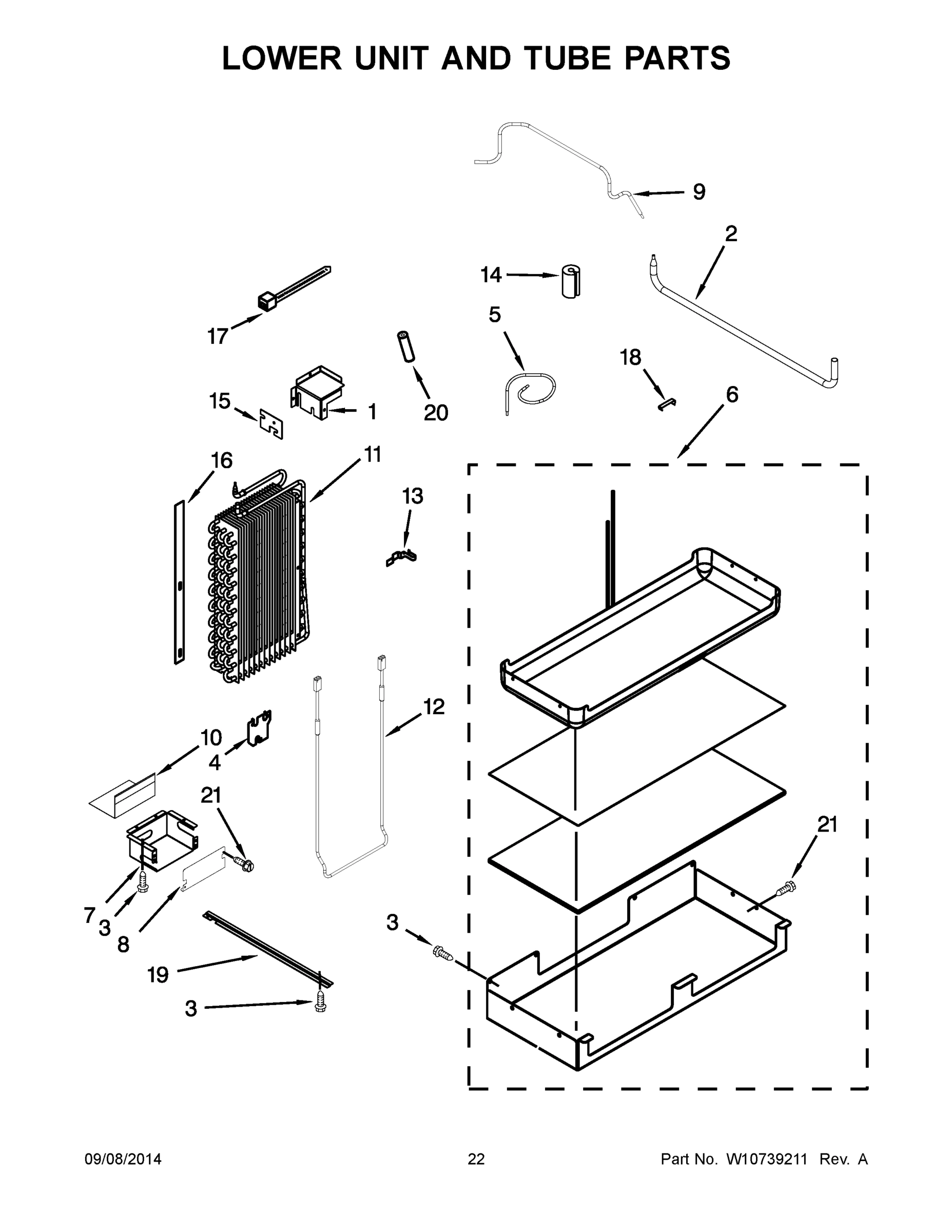

12 - LOWER UNIT AND TUBE PARTS

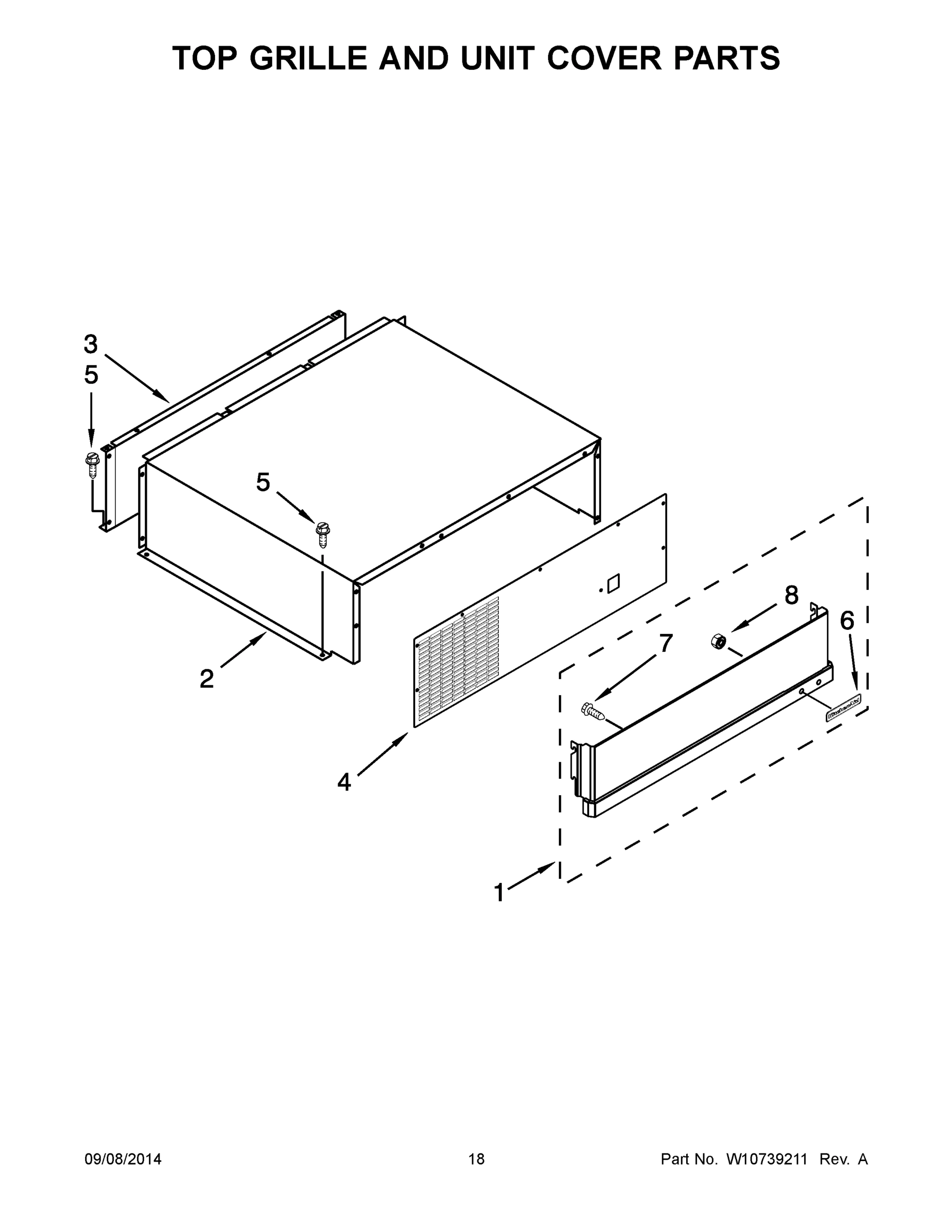

10 - TOP GRILLE AND UNIT COVER PARTS

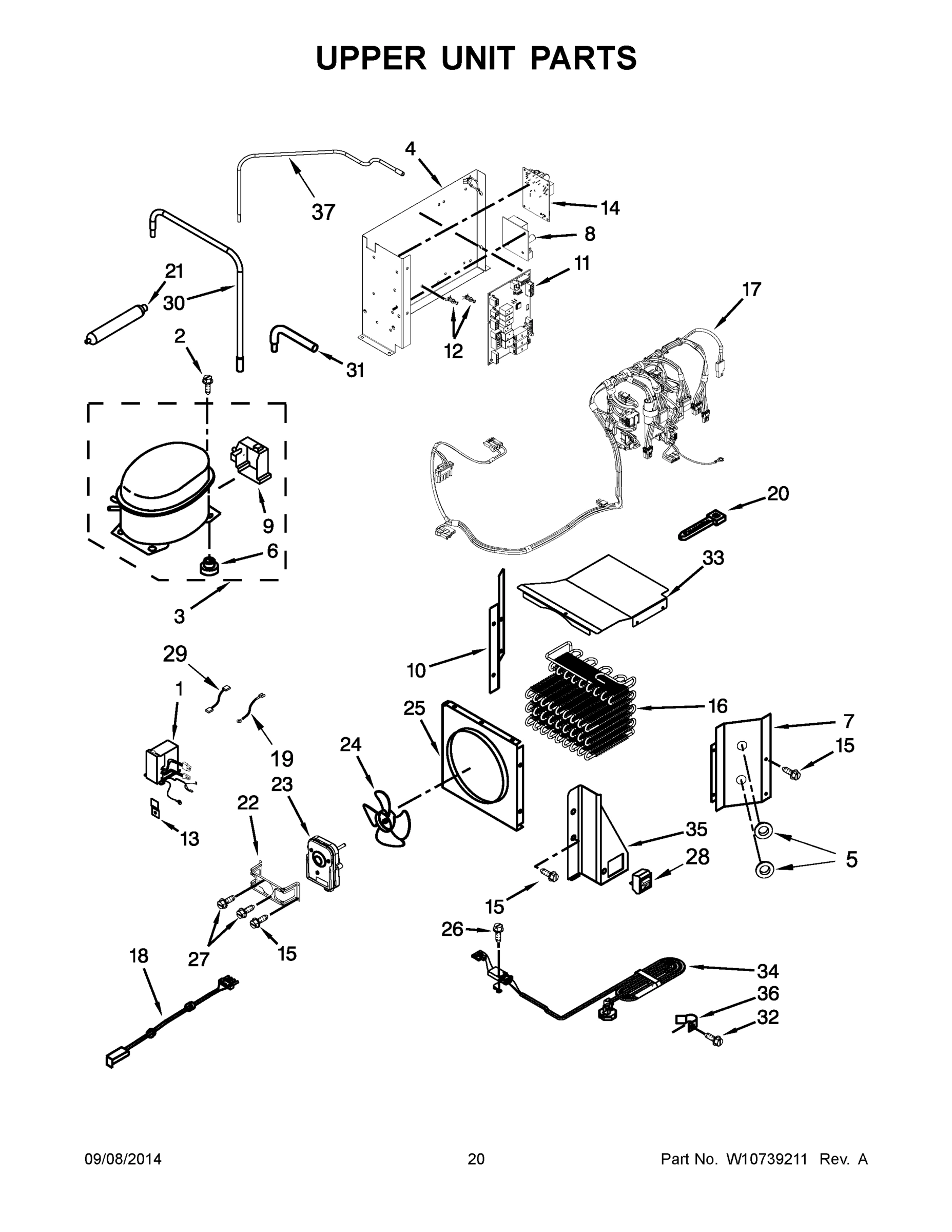

11 - UPPER UNIT PARTS

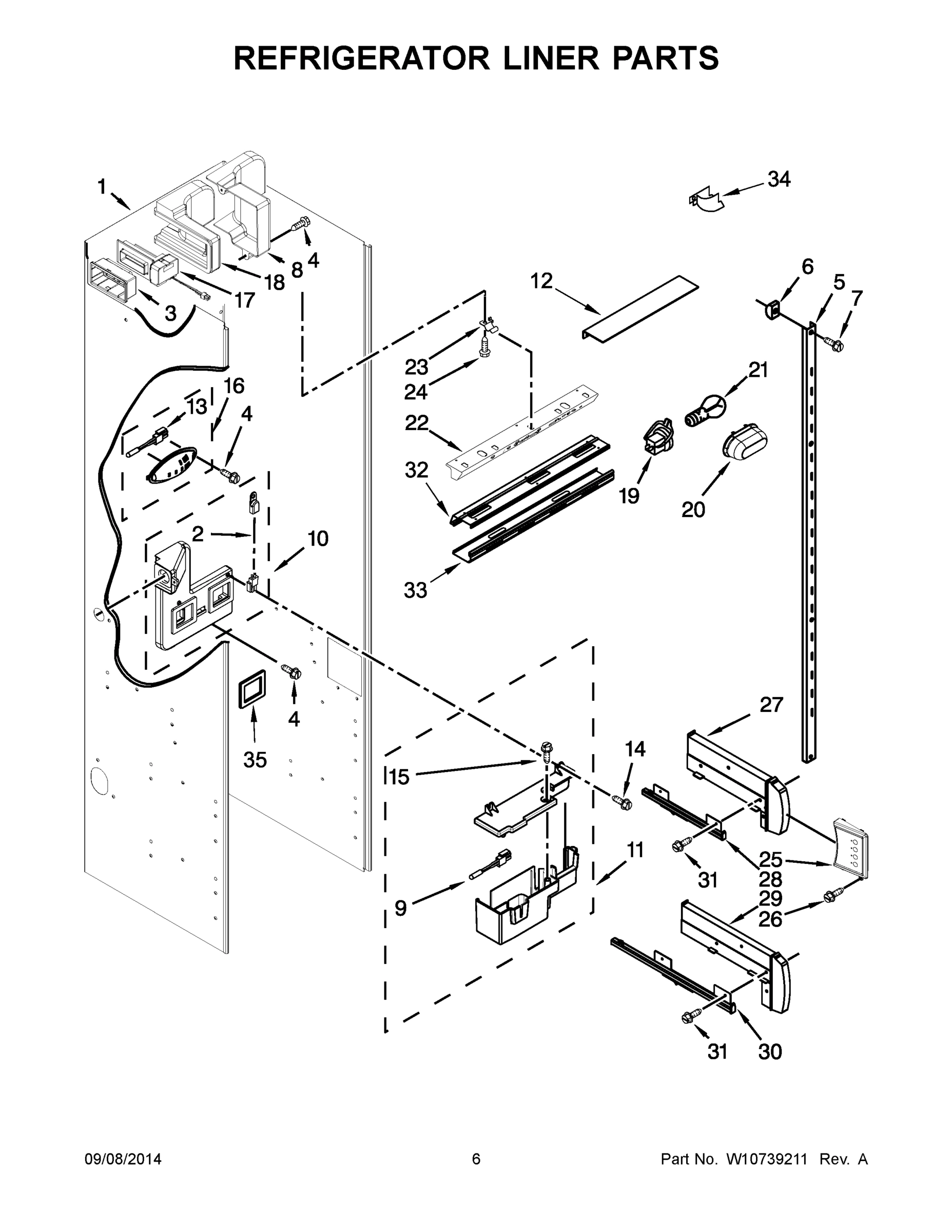

04 - REFRIGERATOR LINER PARTS

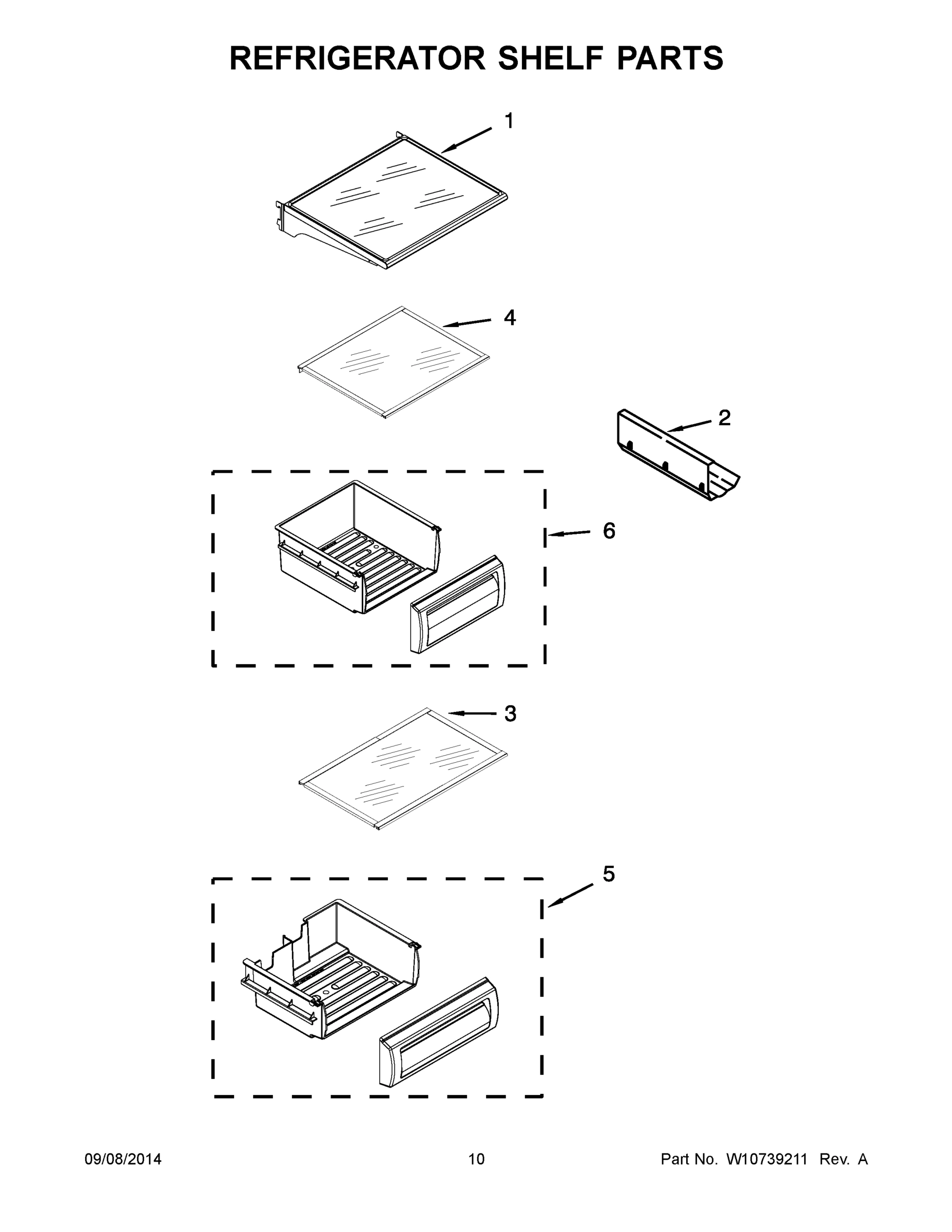

06 - REFRIGERATOR SHELF PARTS

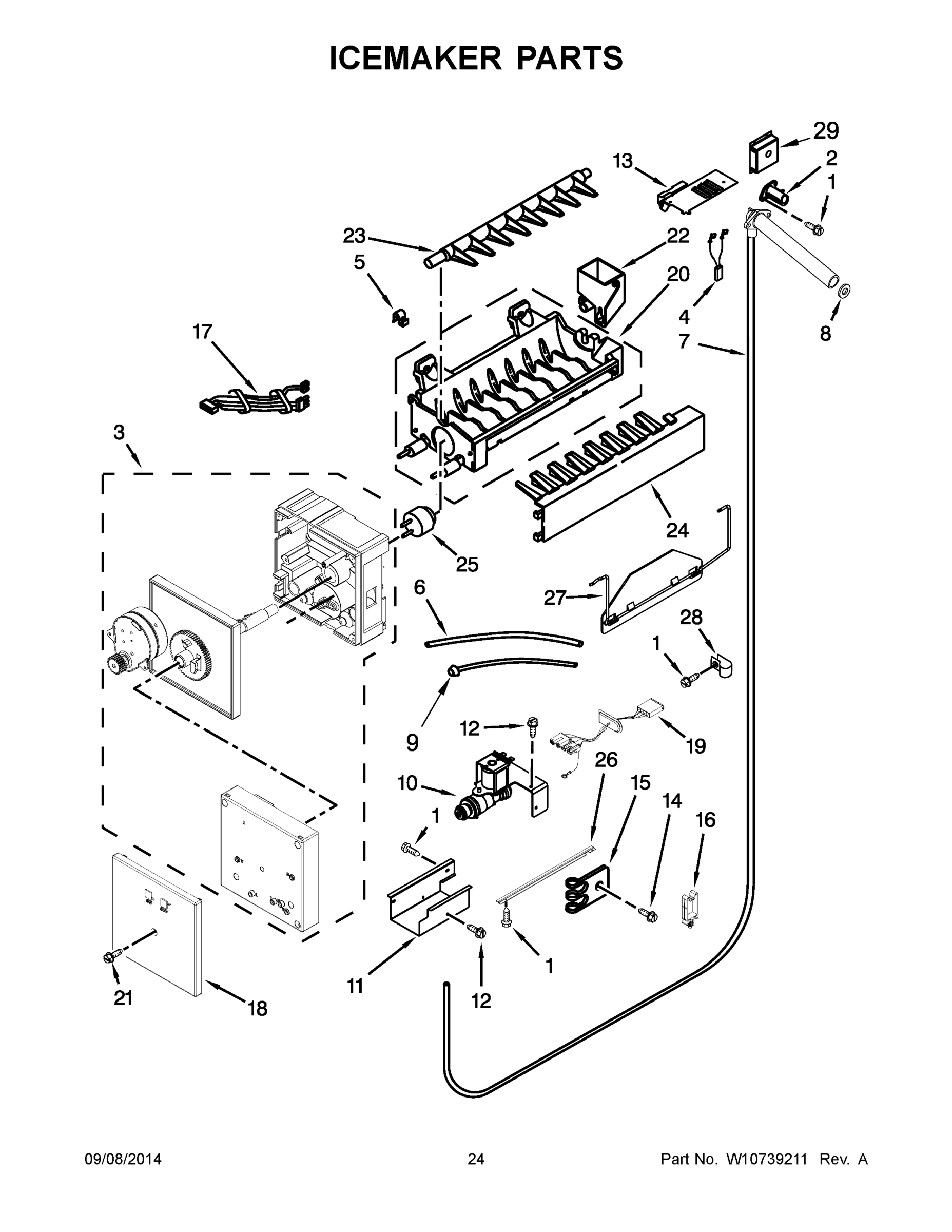

13 - ICEMAKER PARTS

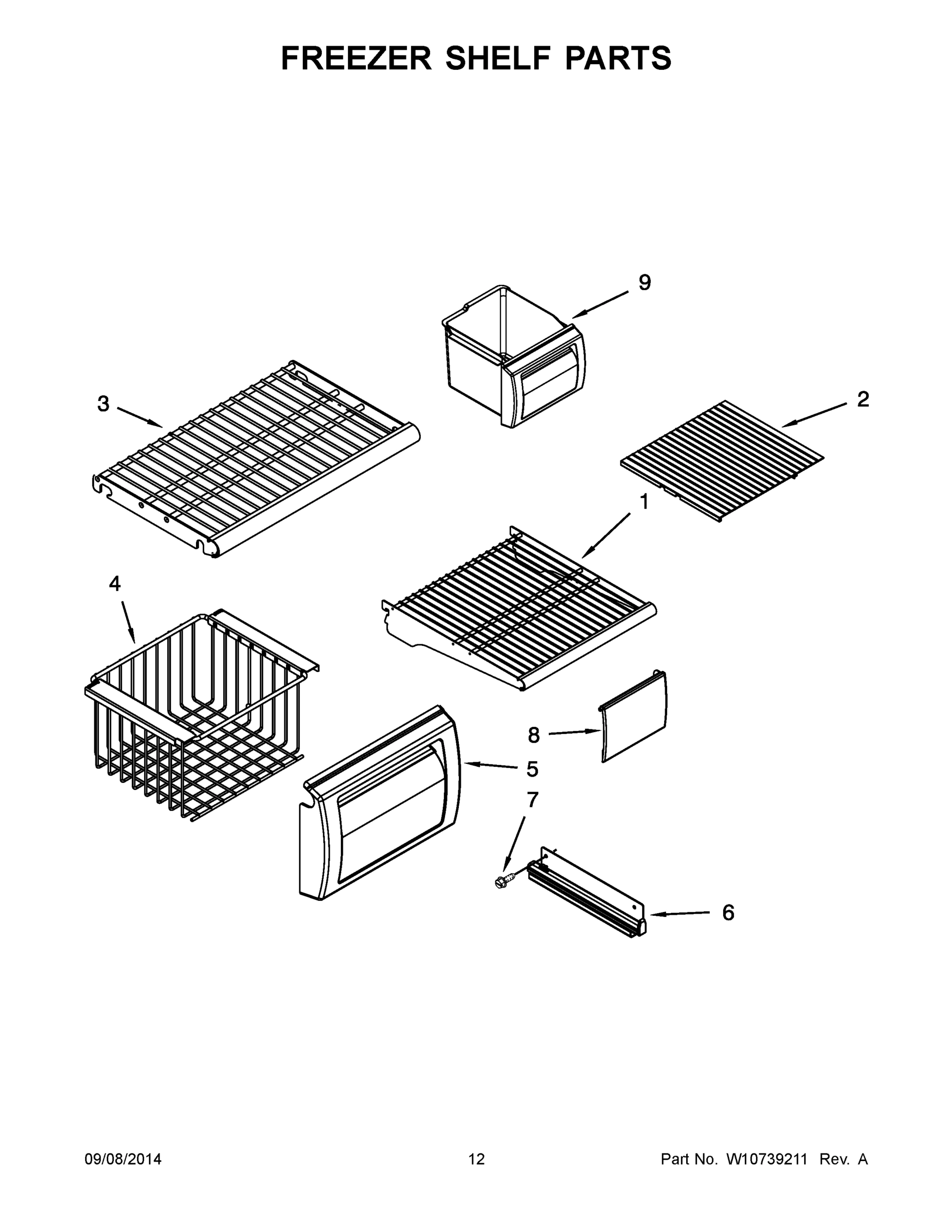

07 - FREEZER SHELF PARTS
Common parts from model Whirlpool KSSC42FTS18 REFRIGERATOR
1
TOP GRILLE ASSEMBLY (STAINLESS) WPL W10321106 Contact Us For Availability
1
ASSEMBLY, SHELF WPL 2222592 Contact Us For Availability
1
SHELF, WIRE WPL W10175905 Contact Us For Availability
2
TUBE, TRANSITION (DRIER/RESTRICTOR) WPL W10388653 Contact Us For Availability
2
COVER, SHELF WPL W10213534 Contact Us For Availability
3
TRAY, FILTER DRIP WPL 2318189 Contact Us For Availability
3
ASSEMBLY, MEAT PAN COVER WPL 2302842 Contact Us For Availability
3
SHELF, FIXED WPL 2302883 Contact Us For Availability
4
ASSEMBLY, FILL TUBE HEATER WIRE WPL W10482373 Contact Us For Availability
4
COVER, UNIT FRONT WPL W10185625 Contact Us For Availability
5
ASSEMBLY, MEAT PAN WPL W10407627 Contact Us For Availability
6
ASSEMBLY, BOTTOM HINGE WPL 2302878 Contact Us For Availability
6
PAN, CRISPER WPL W10407624 Contact Us For Availability
6
SLIDE, BASKET (RIGHT HAND) WPL 2259317 Contact Us For Availability
6
NAMEPLATE (STAINLESS) WPL 2317923S Contact Us For Availability
8
COVER, AIR DIFFUSER WPL 2309087 Contact Us For Availability
8
SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability
8
GASKET, UTILITY BIN WPL 2222982 Contact Us For Availability
8
WEDGE, RIGHT AIR DUCT WPL 2259464 Contact Us For Availability
9
COVER, TERMINAL WPL 2215676 Contact Us For Availability
10
ASSEMBLY, SPACER WPL W10475010 Contact Us For Availability
10
GROMMET, CROSSOVER TUBE WPL 2307584 Contact Us For Availability
11
SCREW WPL 3400525 Contact Us For Availability
11
SHIELD, VALVE ELECTRICAL WPL W10129653 Contact Us For Availability
12
SPACER, HANDLE SIDE DOOR WPL 2309060 Contact Us For Availability
13
CLAMP, HEATER WPL 1113048 Contact Us For Availability
15
BIN, SHALLOW WPL W10323602 Contact Us For Availability
16
CONDENSER WPL W10591457 Contact Us For Availability
16
CLIP, WIRE WPL W10129069 Contact Us For Availability
17
ASSEMBLY, ICE MAKER WIRE WPL W10508673 Contact Us For Availability
17A
BLOCK, FAN SCROLL (LEFT HAND) WPL 2209066 Contact Us For Availability
19
COVER, AIR OUTLET WPL 2259025 Contact Us For Availability
19
ASSEMBLY, WATER VALVE WIRE WPL W10279393 Contact Us For Availability
20
SHIELD, LIGHT WPL 2307751 Contact Us For Availability
20
DAMPENER WPL 2215648 Contact Us For Availability
22
BIN, SHALLOW DOOR WPL W10323599 Contact Us For Availability
22

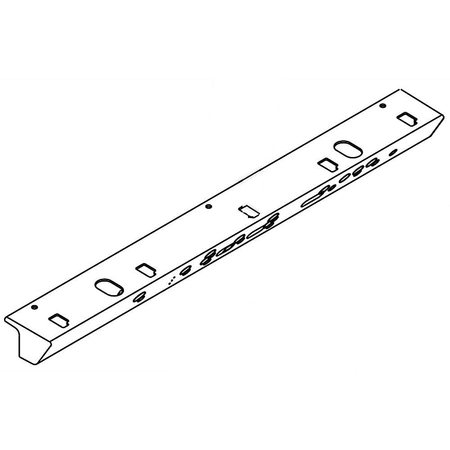

CONTROL BOX ASSEMBLY WPL W10691176 Contact Us For Availability
23
BIN, GALLON DOOR WPL W10323747 Contact Us For Availability
24
PLATE, HANDLE DOOR WPL W10127710 Contact Us For Availability
26
SUPPORT, VALVE WPL 2320559 Contact Us For Availability
28
GASKET, EVAPORATOR COVER WPL 2220904 Contact Us For Availability
29
SPACER, CRISPER (RIGHT HAND) WPL 2256222 Contact Us For Availability
29
COVER, FILL TUBE HEATER WPL 2259064 Contact Us For Availability
29A
SPACER, CRISPER (LEFT HAND) WPL 2256223 Contact Us For Availability
30
SLIDE, CRISPER (RIGHT HAND) WPL 2302957 Contact Us For Availability
30
TUBE, DRIER TRANSITION WPL W10624944 Contact Us For Availability
30A
SLIDE, CRISPER (LEFT HAND) WPL 2302956 Contact Us For Availability
31
TUBE, PROCESS WPL W10528578 Contact Us For Availability
33
SHIELD, CONTROL BOX WPL 2307595 Contact Us For Availability
34
GUARD, AIR RETURN WPL 2003577 Contact Us For Availability
34
BRACKET, BASE SUPPORT (REAR) WPL 2006617 Contact Us For Availability
35
BRACKET, CONTROL ASSEMBLY WPL W10321055 Contact Us For Availability
35
SEAL, AIR DUCT WPL 2259398 Contact Us For Availability
37
TUBE, HEAT LOOP TRANSITION WPL W10648264 Contact Us For Availability
43
WPL 2005032 WPL 2005032 Contact Us For Availability
44
WPL 2006616 WPL 2006616 Contact Us For Availability
NI
STAINLESS STEEL CLEANER WPL W10355016 Contact Us For Availability
NI
STAINLESS STEEL CLEANING WIPES WPL W10355049 Contact Us For Availability
NI
VALVE, ACCESS WPL 876764 Contact Us For Availability
NI
VALVE, ACCESS WPL 978026 Contact Us For Availability
NI
KITCHEN AND APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
VALVE, ACCESS WPL 978027 Contact Us For Availability
NI
VALVE, ACCESS WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS WPL 978030 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
× ![]()
