Model Whirlpool KSRS27QXWH00 REFRIGERATOR – Common Parts & Diagrams

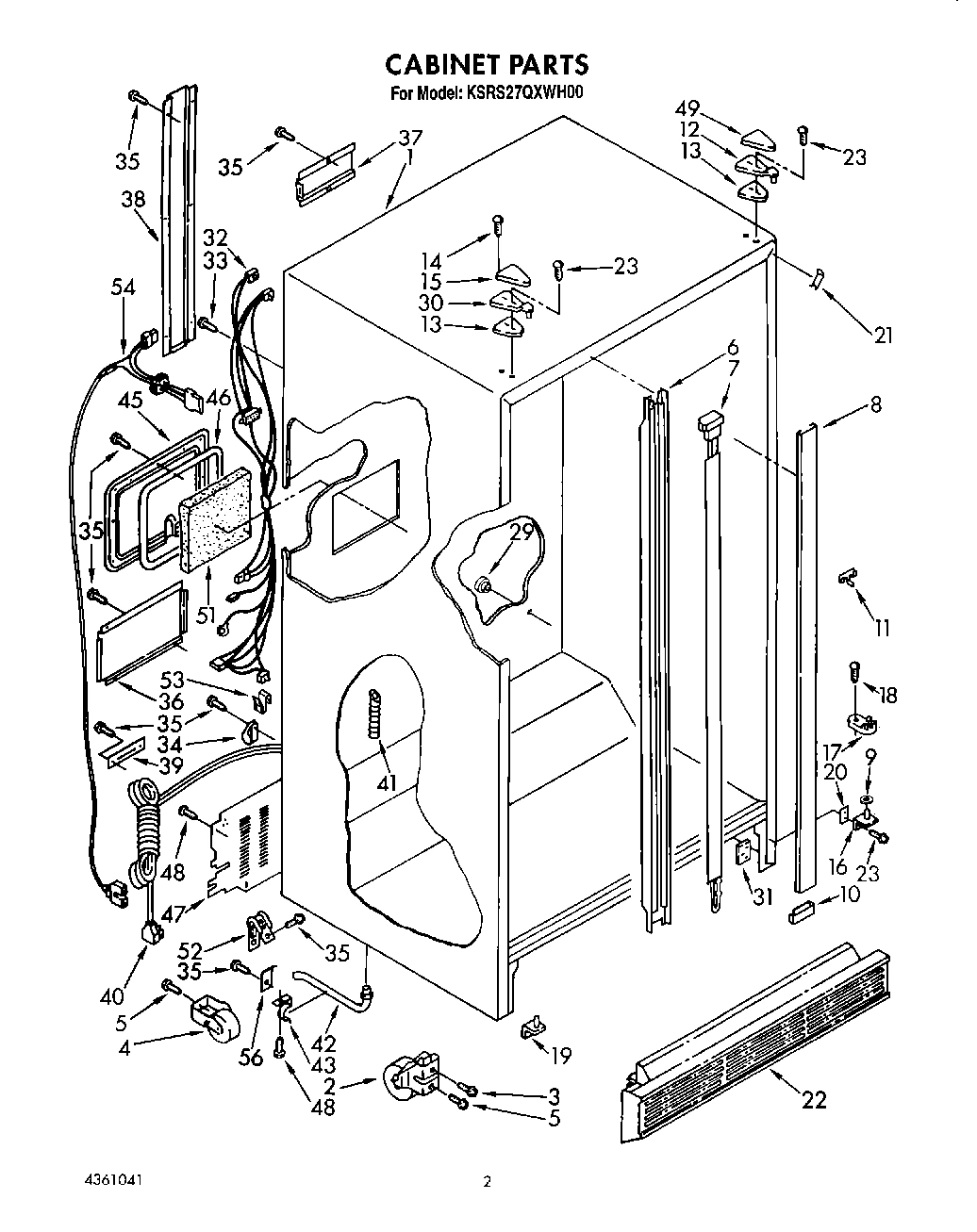

02 - CABINET

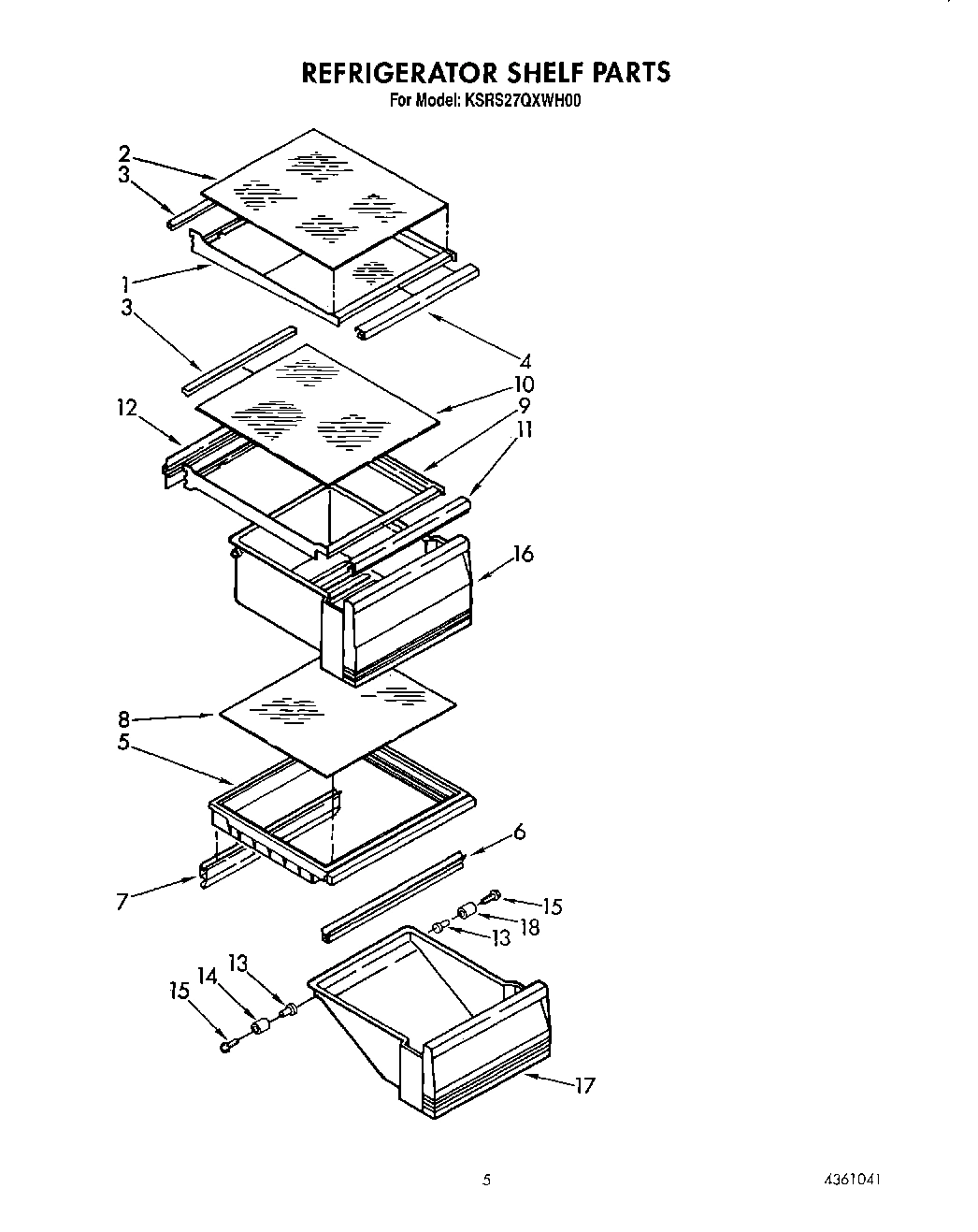

04 - REFRIGERATOR SHELF

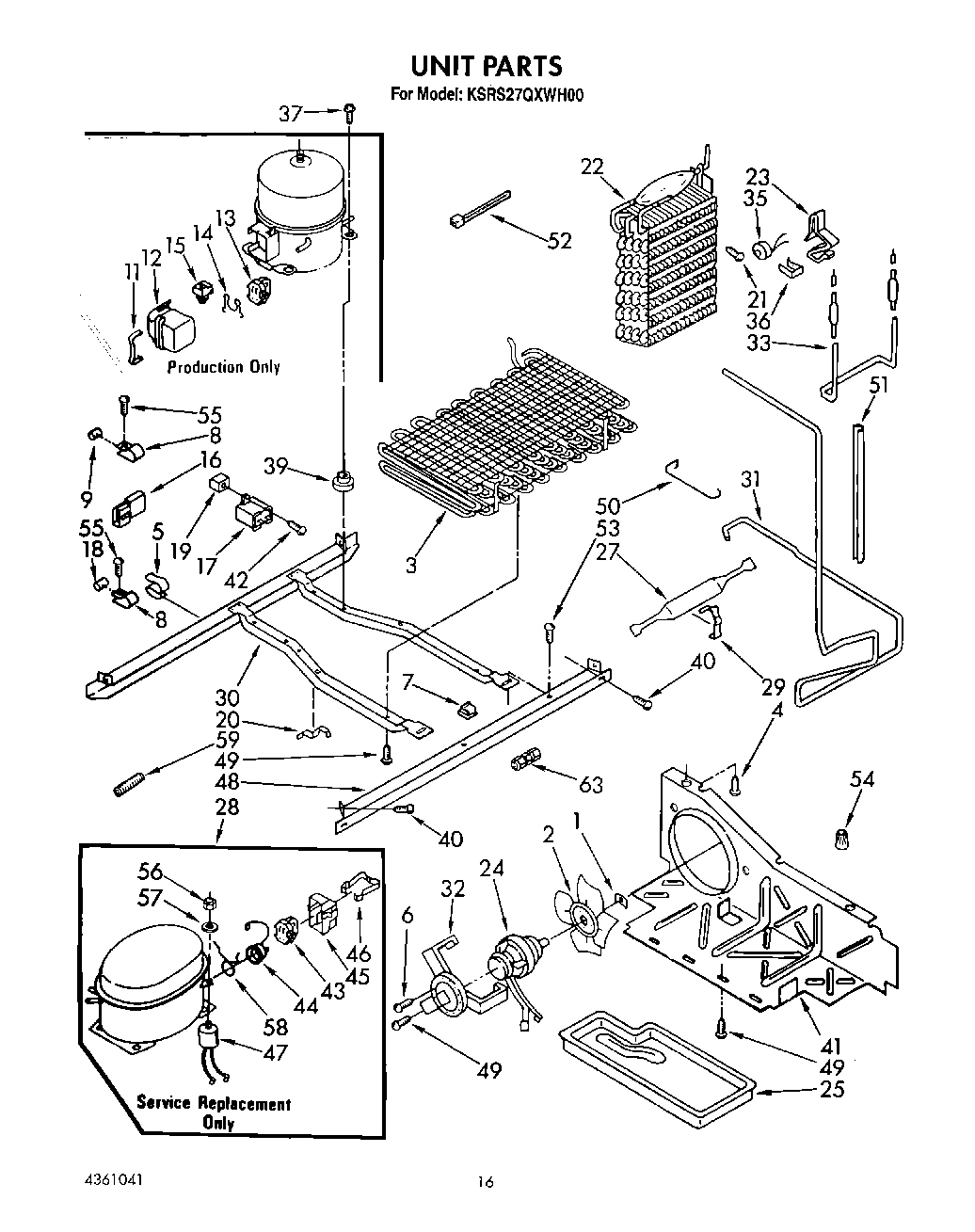

10 - UNIT

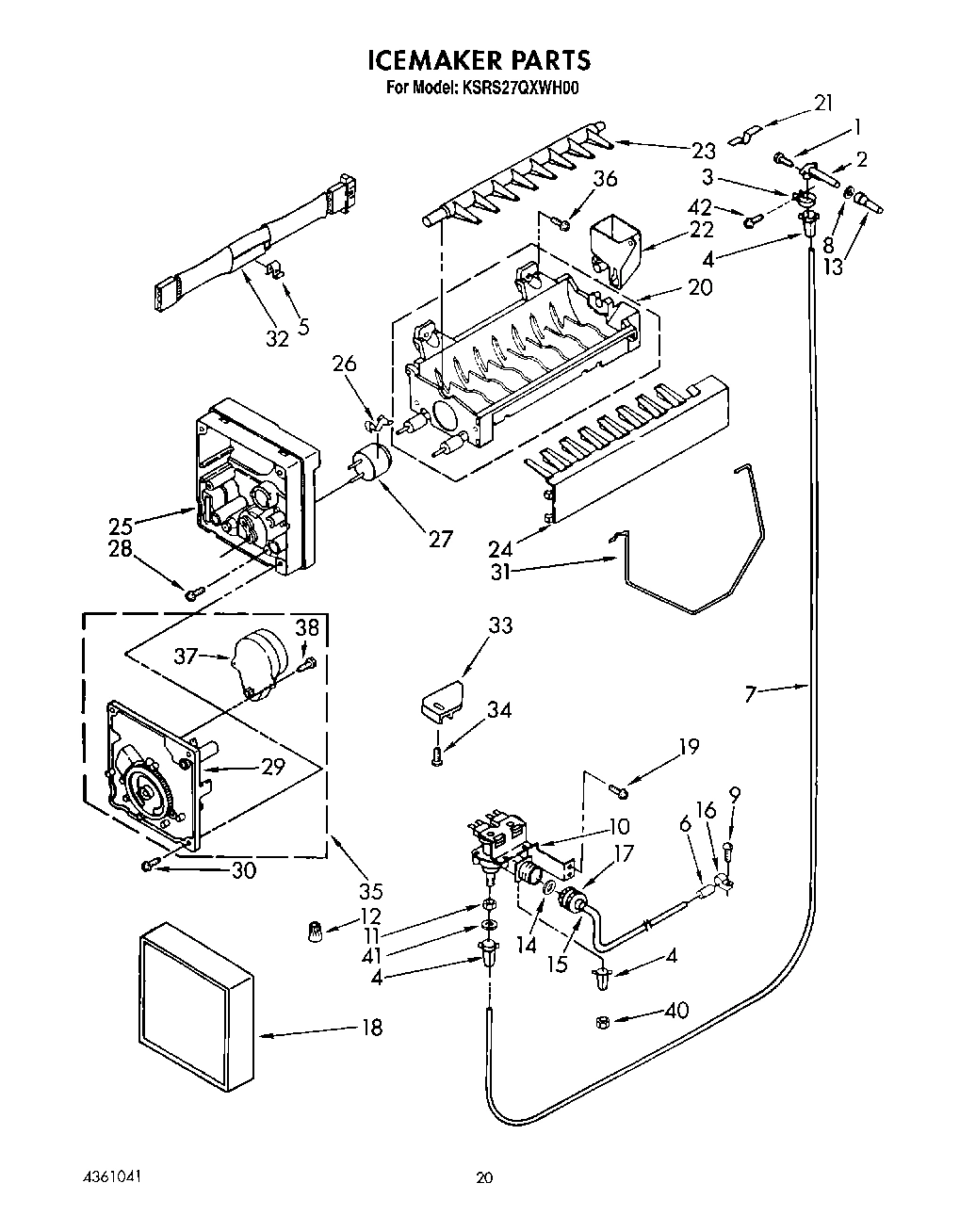

13 - ICEMAKER, LIT/OPTIONAL

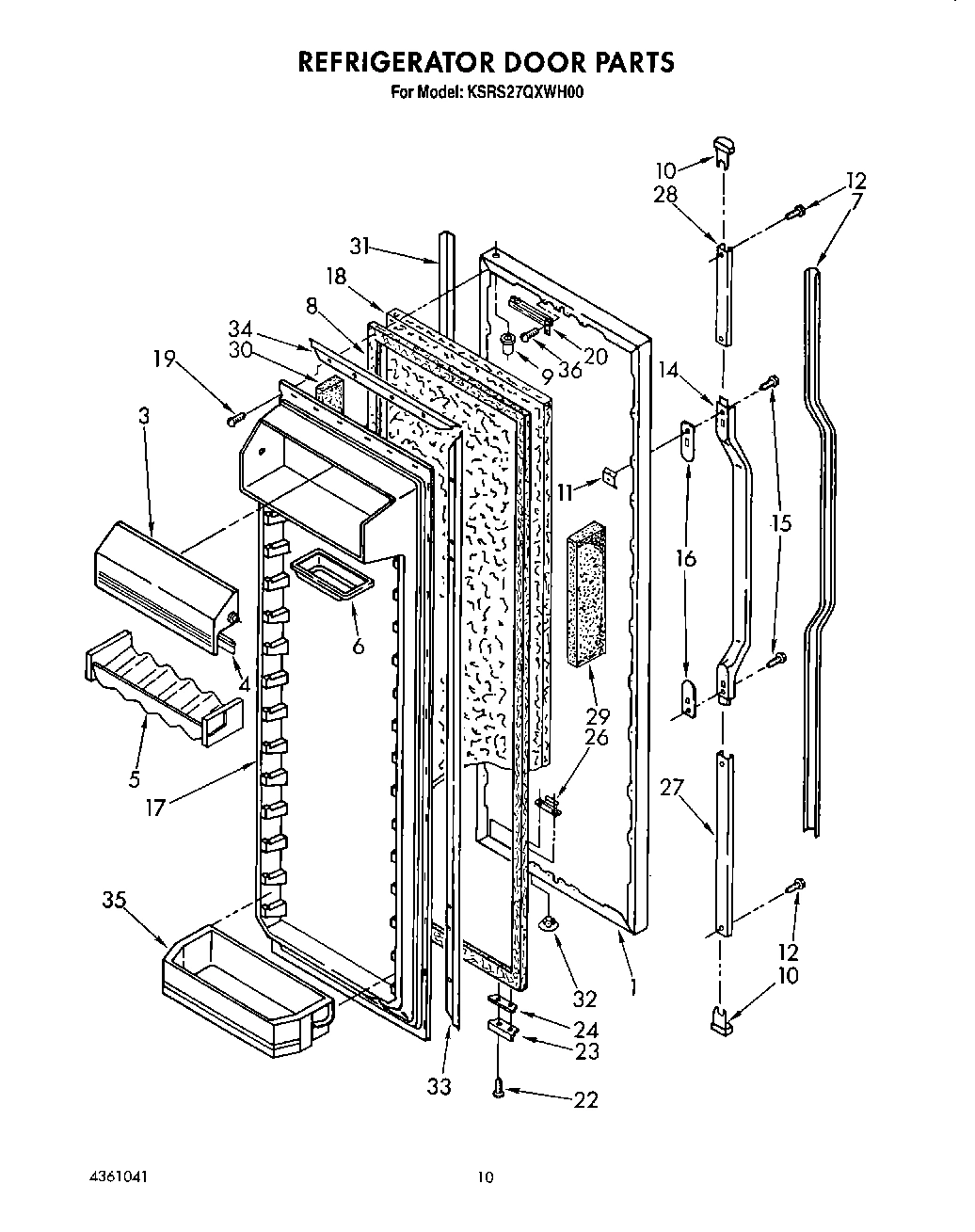

07 - REFRIGERATOR DOOR

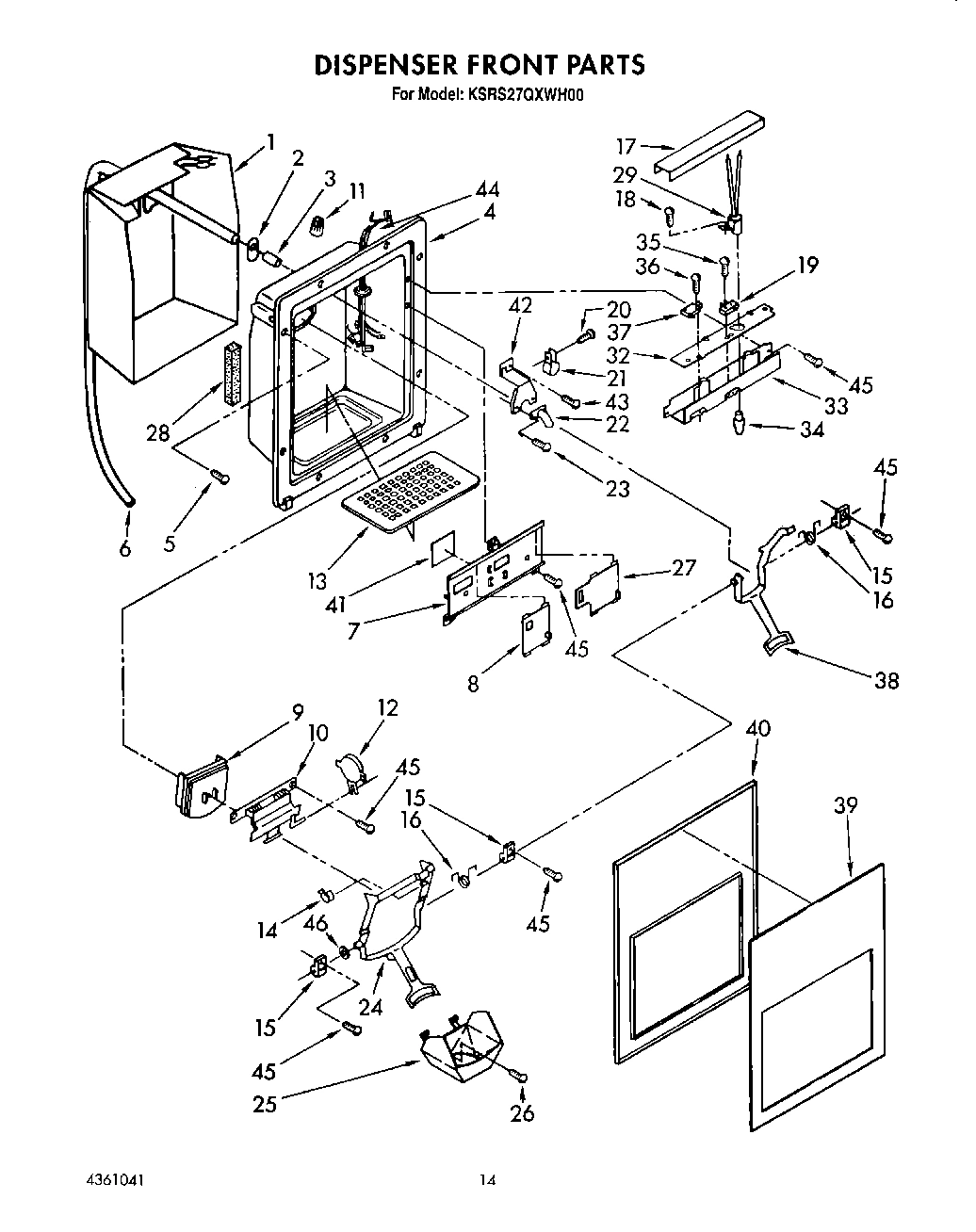

09 - DISPENSER FRONT

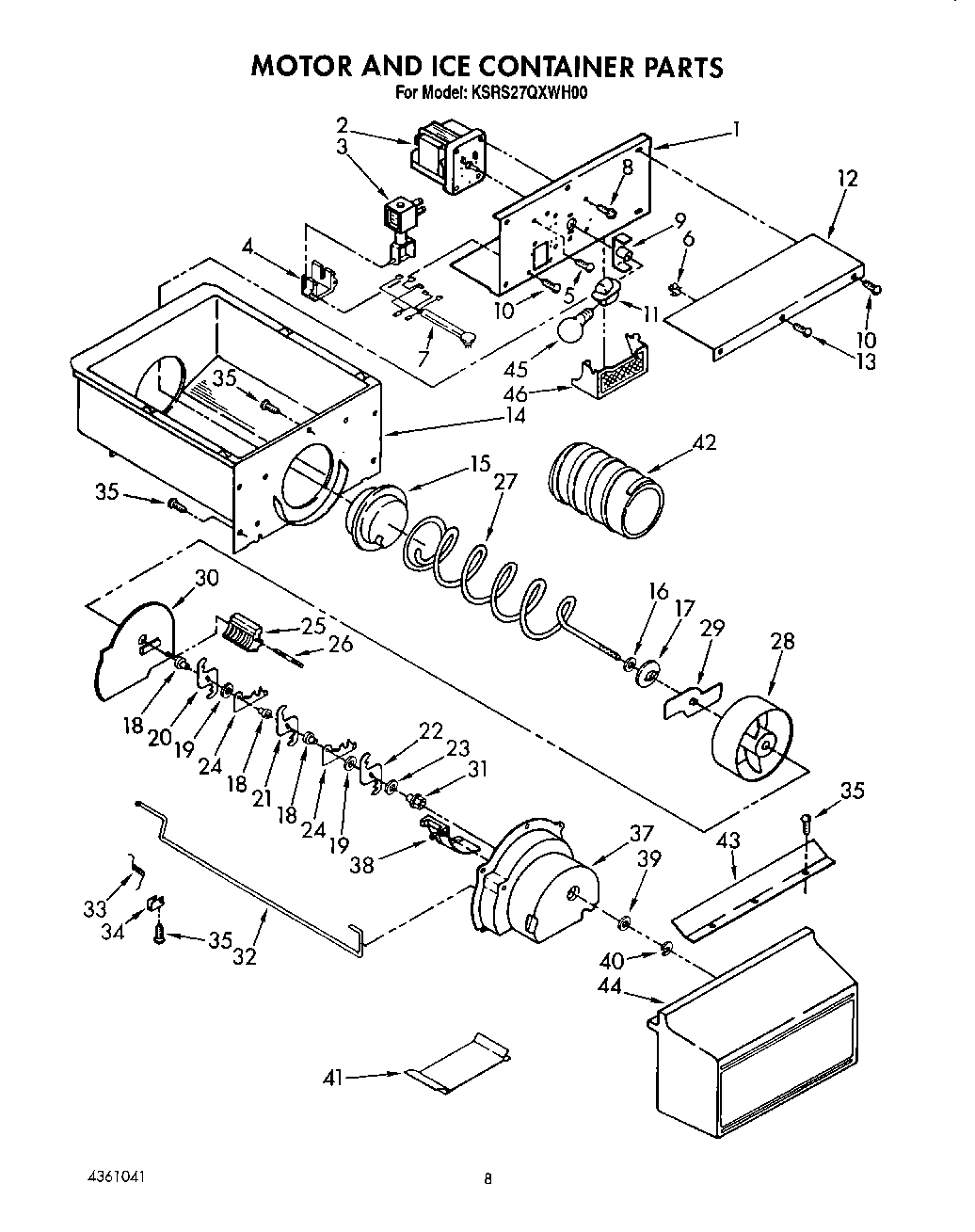

06 - MOTOR AND ICE CONTAINER

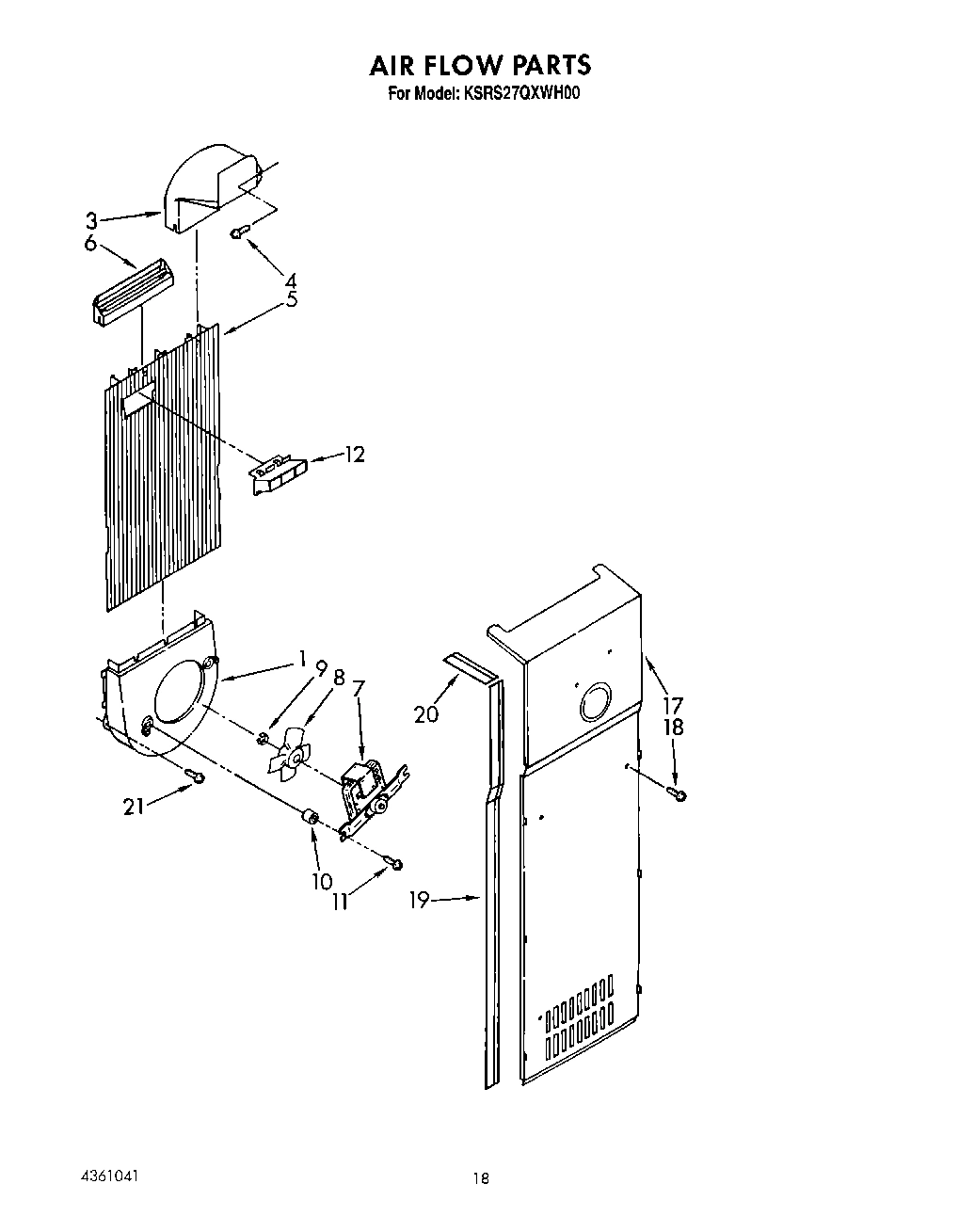

11 - AIR FLOW

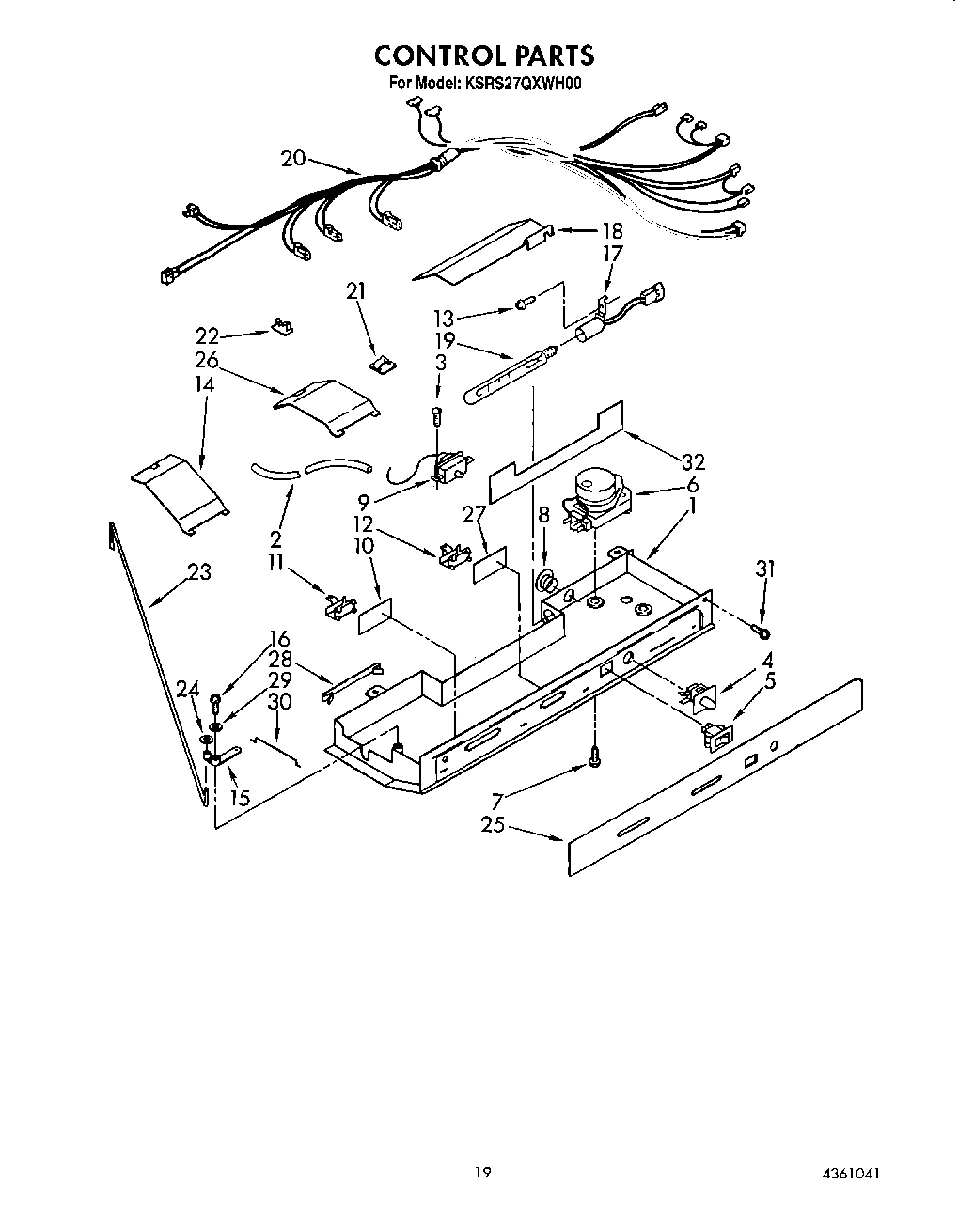

12 - CONTROL

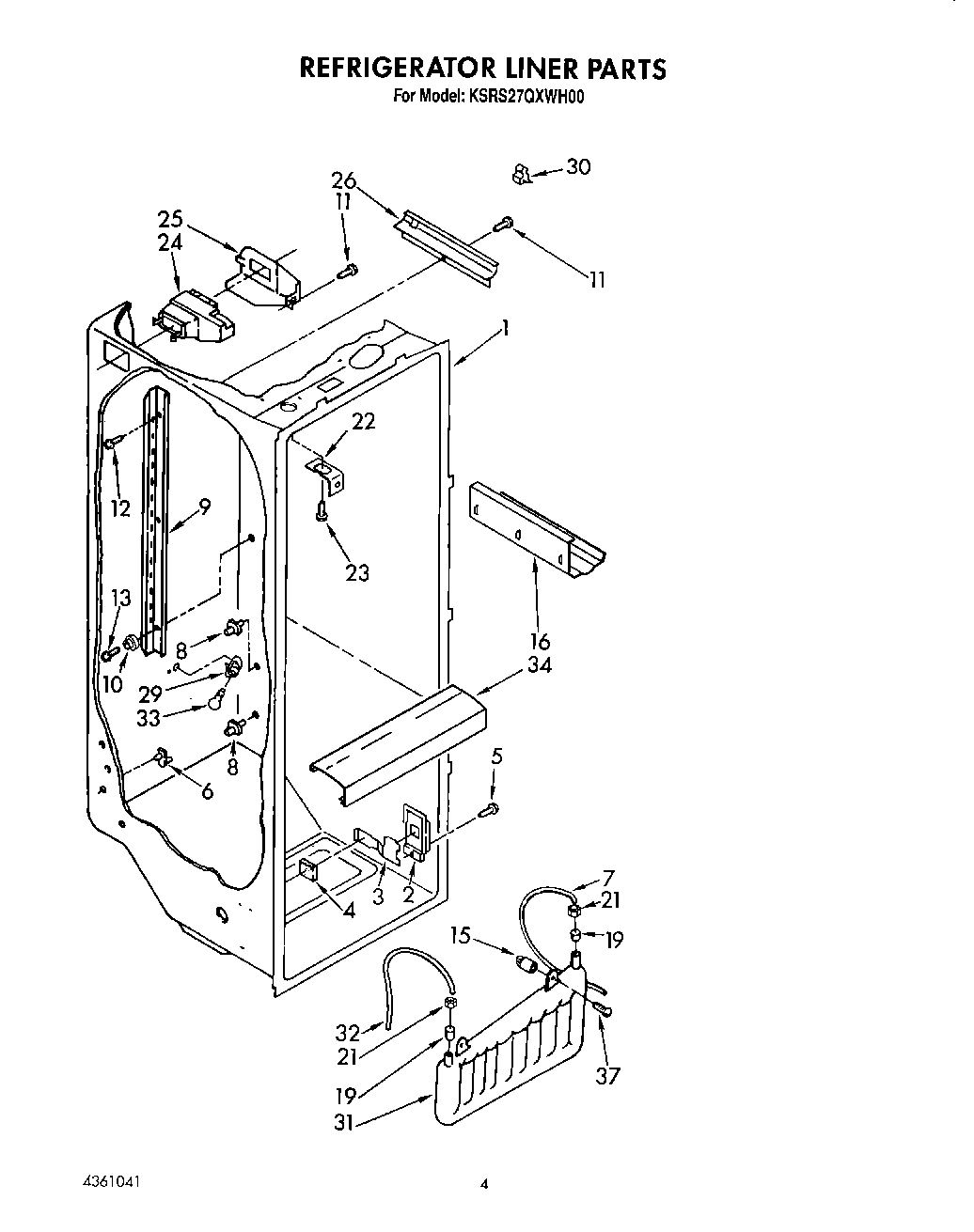

03 - REFRIGERATOR LINER

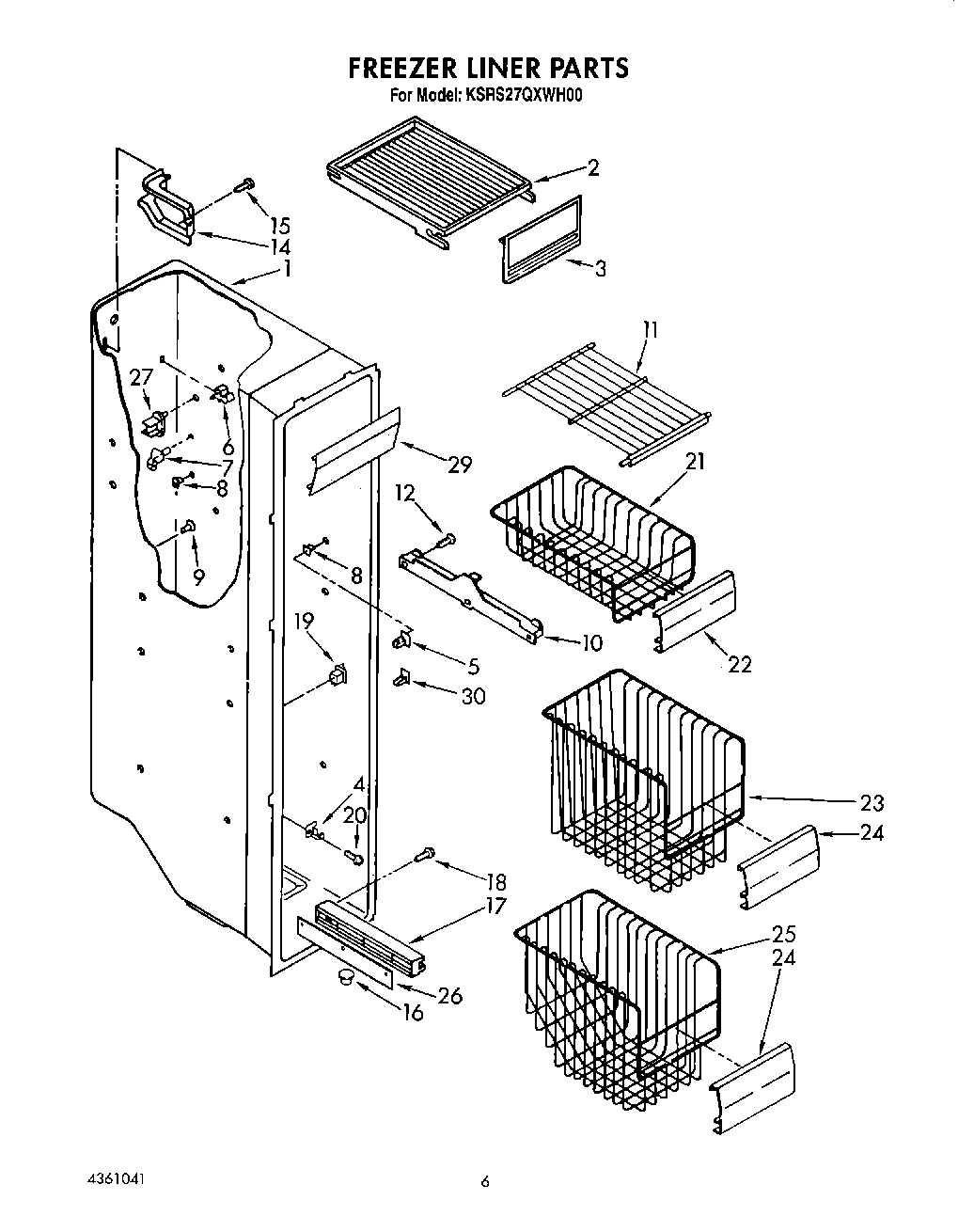

05 - FREEZER LINER

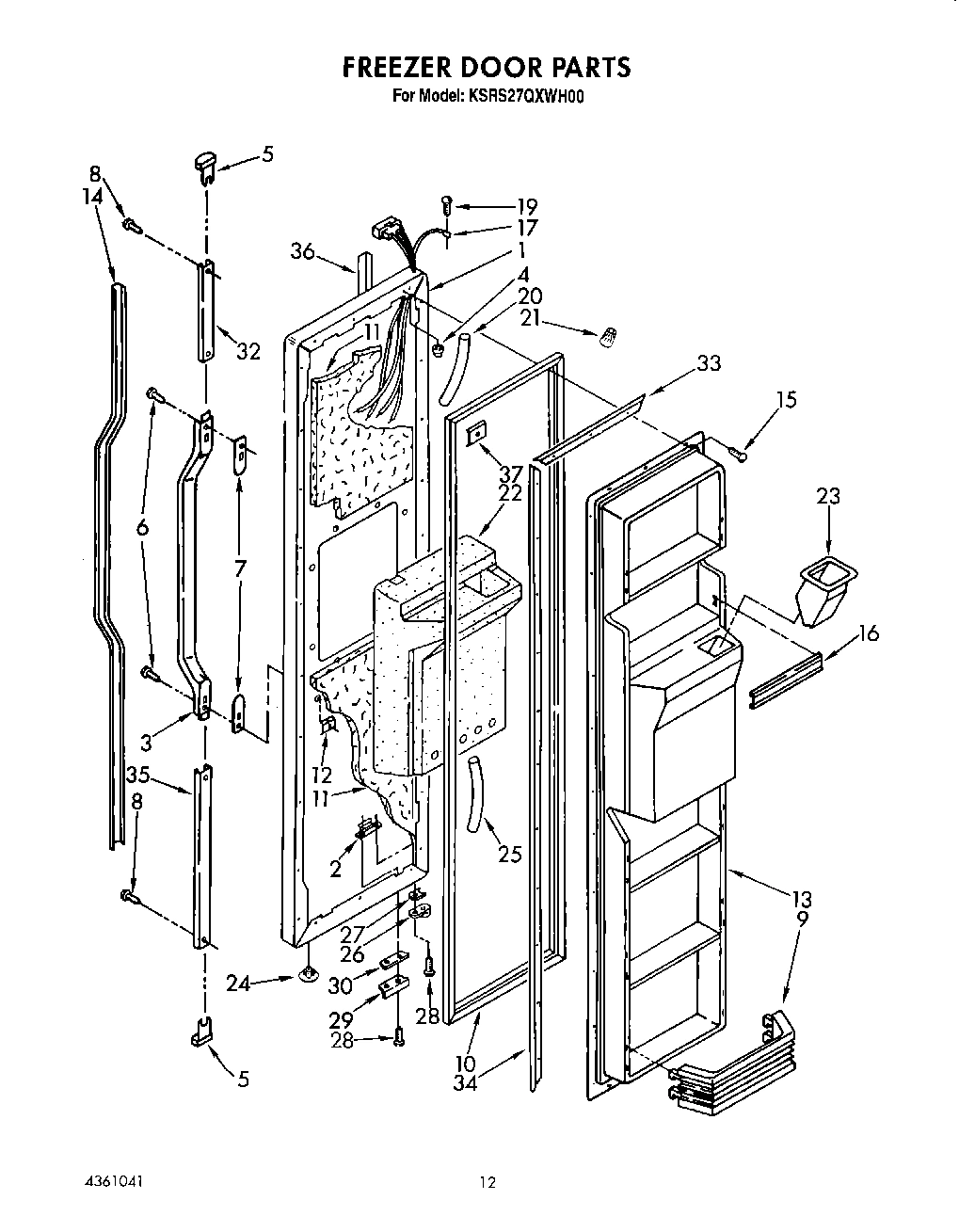

08 - FREEZER DOOR
Common parts from model Whirlpool KSRS27QXWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1126116 WPL LIT1126116 Contact Us For Availability
WPL LIT1126245 WPL LIT1126245 Contact Us For Availability
WPL LIT2149885 WPL LIT2149885 Contact Us For Availability
WPL LIT4361041 WPL LIT4361041 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Refrigerator Door (White) WPL 1117878 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1117882 Contact Us For Availability
1
Heater, Dispenser WPL 2147118 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Control Box WPL 1125614 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI103849A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI103850A Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1126043 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1126051 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Shelf, Top Compartment WPL 1125824 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Handle Assembly WPL 1107215 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
End Cap (2) WPL 1107341 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Air Duct Freezer WPL 1110621 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
7
Spacer, Handle WPL 1107651 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149943 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Screw (2) WPL 489075 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Shelf Bin (4) WPL 1125676 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Shelf WPL 1125609 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 2154408 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Panel, Interior Door WPL 1126068 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Insert, Handle (White) WPL 1125702 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1125703 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
15
Relay WPL 1101014 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Trim, Door Shelf WPL 1125686 Contact Us For Availability
17
Utility Pan WPL 1117910 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Panel, Interior Door WPL 1117906 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1113678 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1113679 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
18
Roller, R.S. WPL 1125530 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Control Box Harness WPL 2149757 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Basket, Middle WPL 2152095 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
22
Insulation, Dispenser WPL 1119037 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
23
Chute, Ice WPL 1121473 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 1124719 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 1126144 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Shim, Track WPL 1129195 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Bracket, Door Stop WPL 1127385 Contact Us For Availability
29
Dike, Door Handle Side WPL 1126151 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Dike, Door Hinge Side WPL 1126152 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer, Insert WPL 1107243 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Control Arm WPL 2147138 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Tube WPL 1129176 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
35
Retainer, Insert WPL 1107209 Contact Us For Availability
35
Shelf Bin (4) WPL 1126069 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Trim, Door WPL 1119062 Contact Us For Availability
36
Black Handle Inserts WPL 4210348 Contact Us For Availability
36
Almond WPL 4211147 Contact Us For Availability
36
White WPL 4211148 Contact Us For Availability
36
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
36
Woodgrain WPL 4318340 Contact Us For Availability
36
Black Grille Kit WPL 4318417 Contact Us For Availability
36
Trim Kit Trim Kit Panels WPL 4318526 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 1124722 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125975 Contact Us For Availability
39
Insert, Cover (White) WPL 1125798 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1125801 Contact Us For Availability
40
Nut, Compression WPL 488795 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1125673 Contact Us For Availability
40
Cover, Housing (Includes WPL 1125805 Contact Us For Availability
41
``O`` Ring WPL 488819 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
