Model Whirlpool KSRS25QAAL00 REFRIGERATOR – Common Parts & Diagrams
12 - AIR FLOW
13 - CONTROL

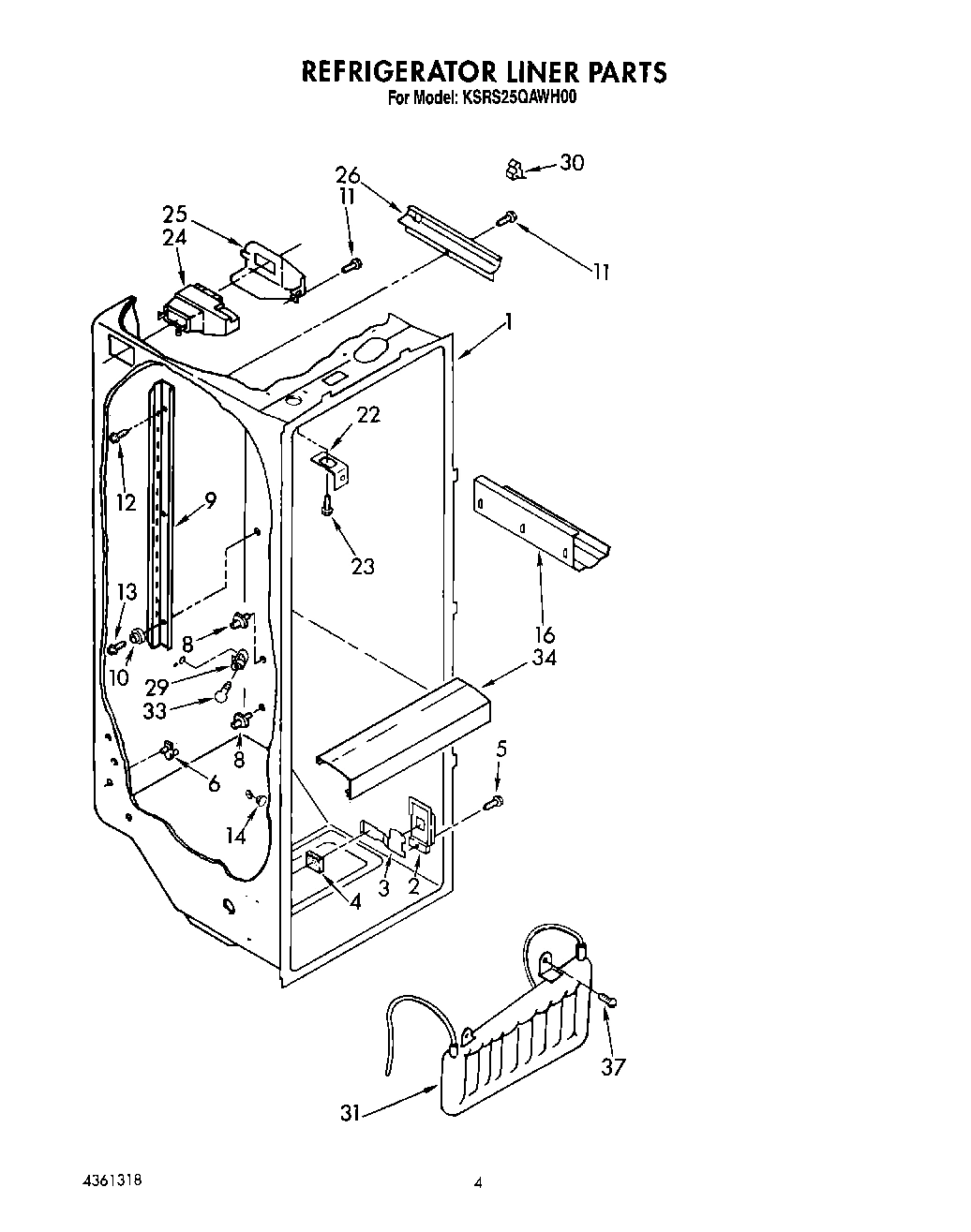

03 - REFRIGERATOR LINER

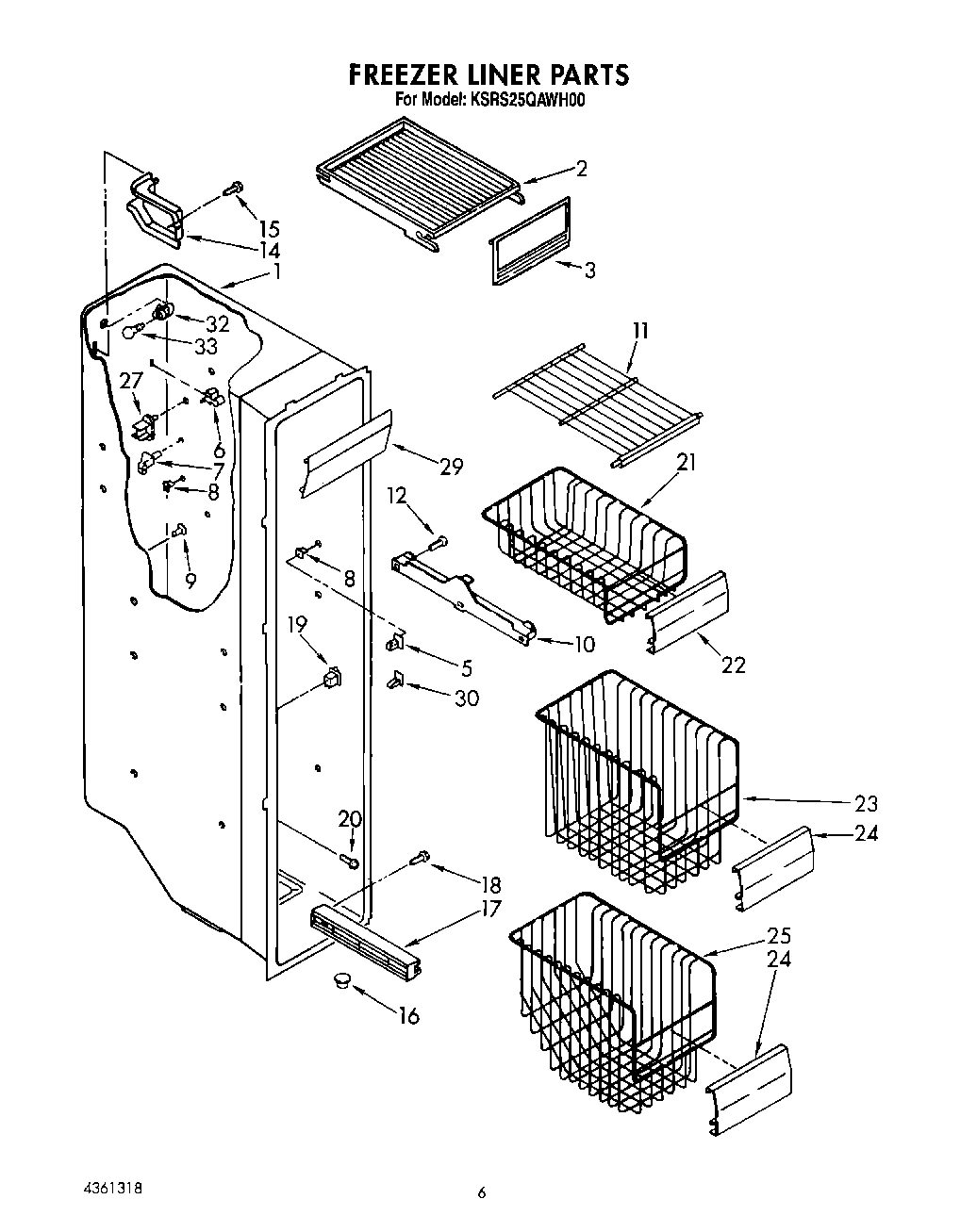

05 - FREEZER LINER

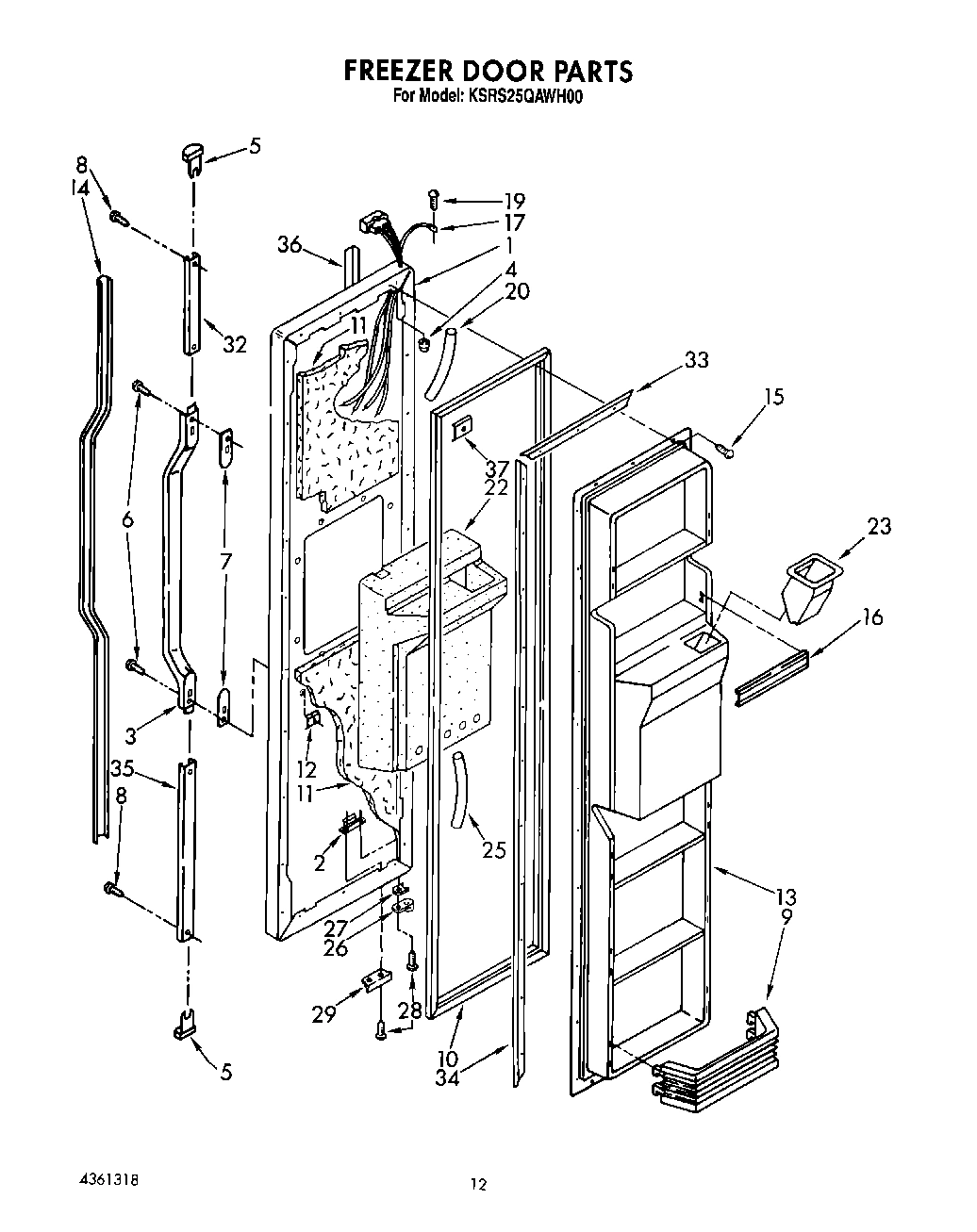

08 - FREEZER DOOR

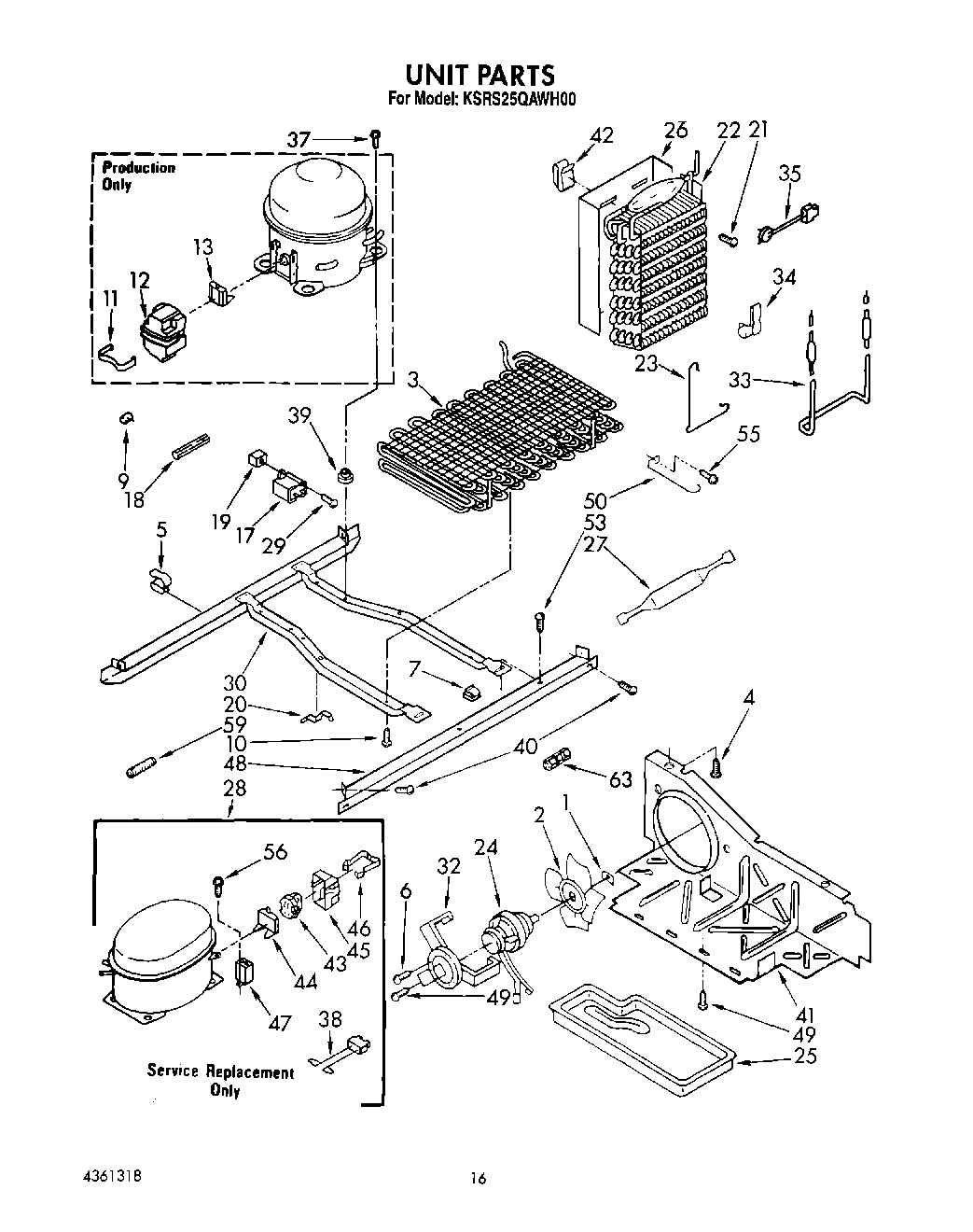

10 - UNIT

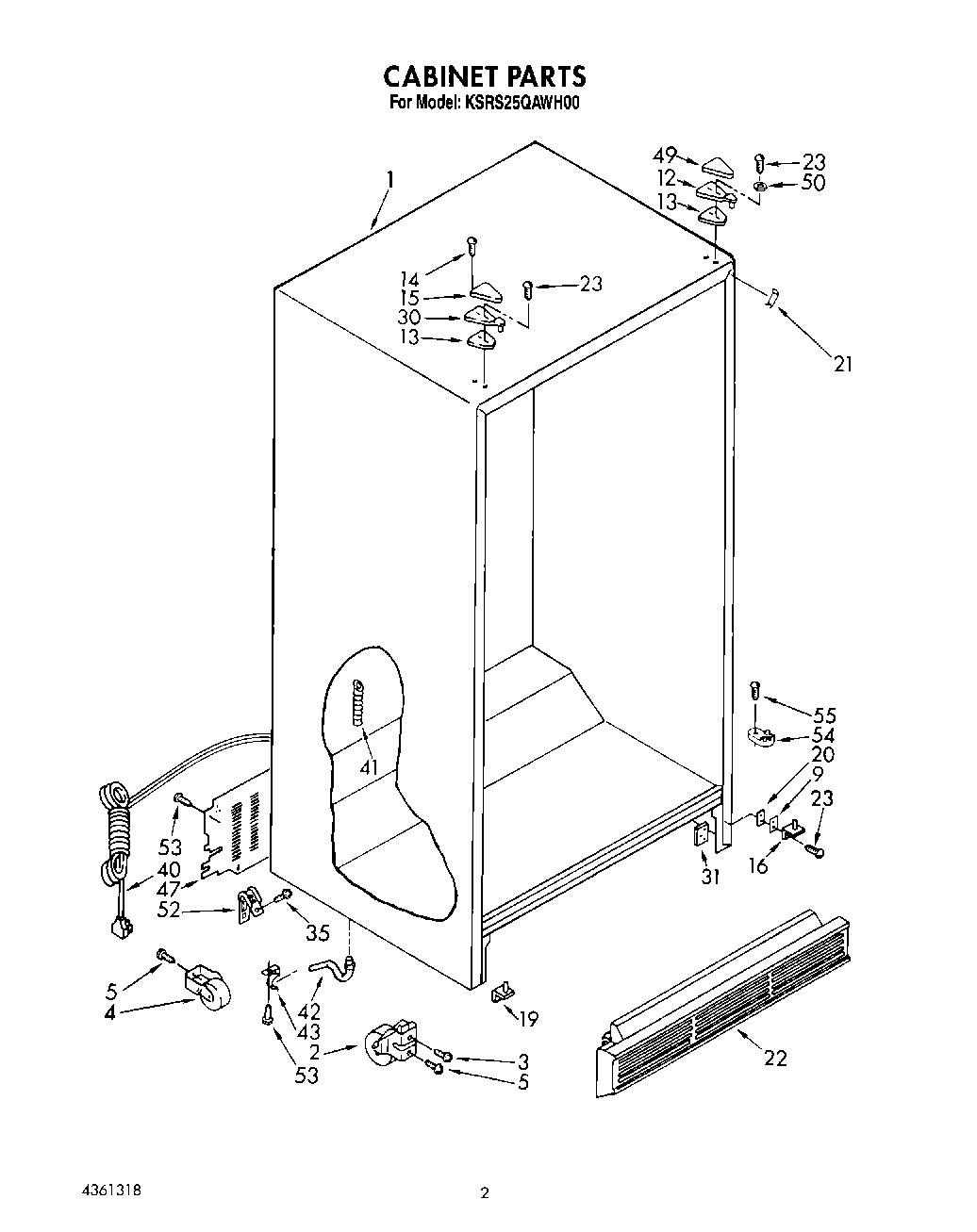

02 - CABINET

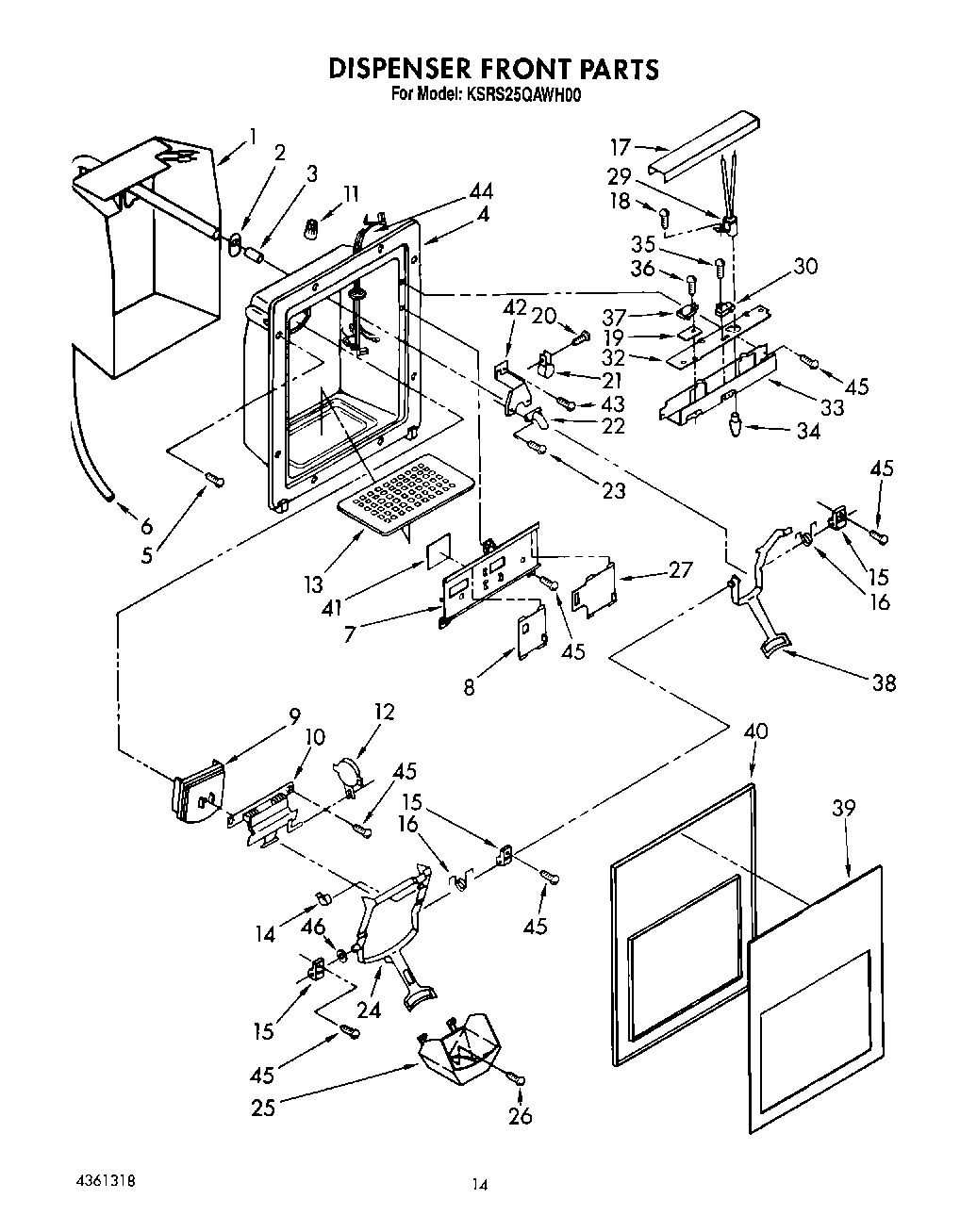

09 - DISPENSER FRONT

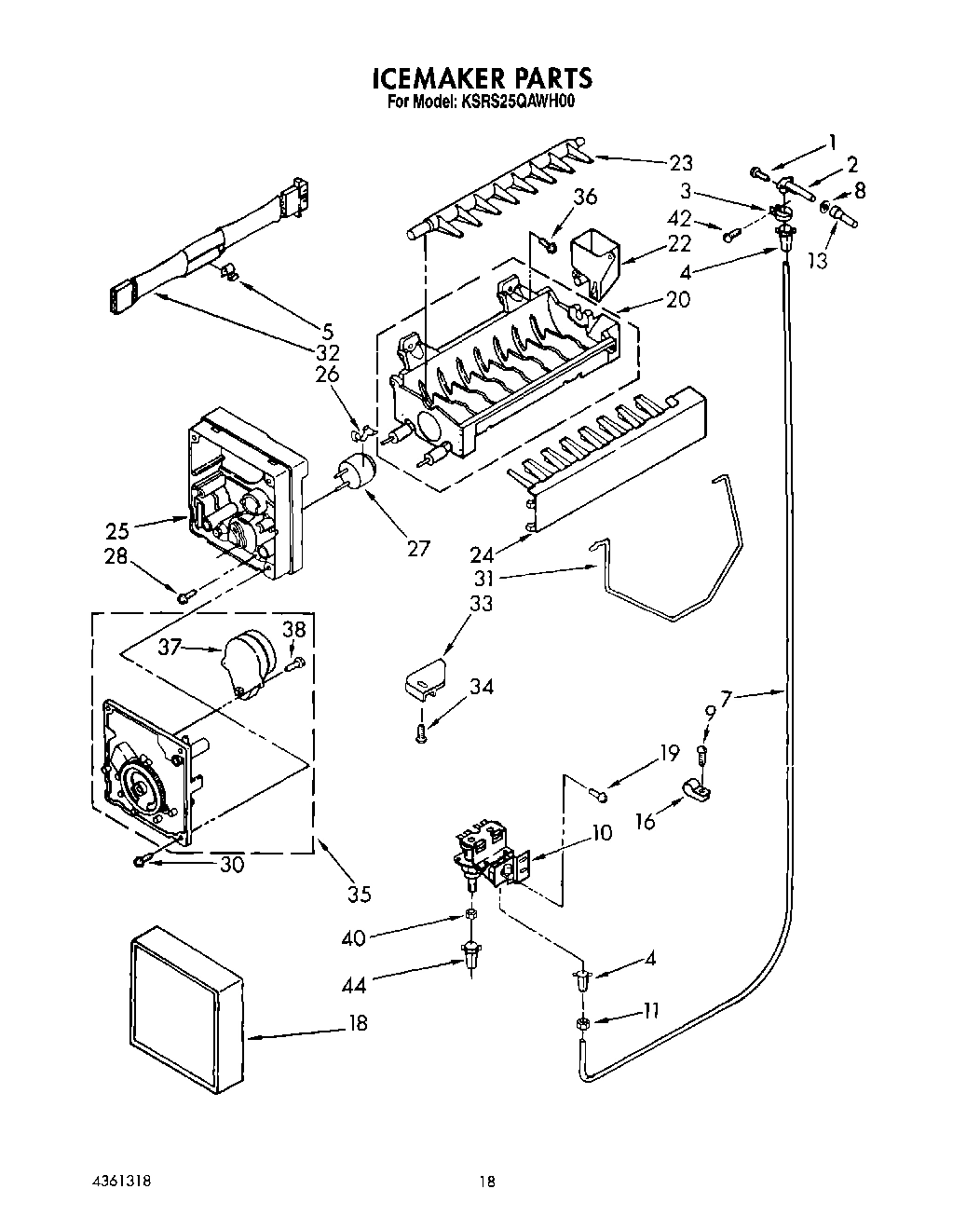

11 - ICEMAKER

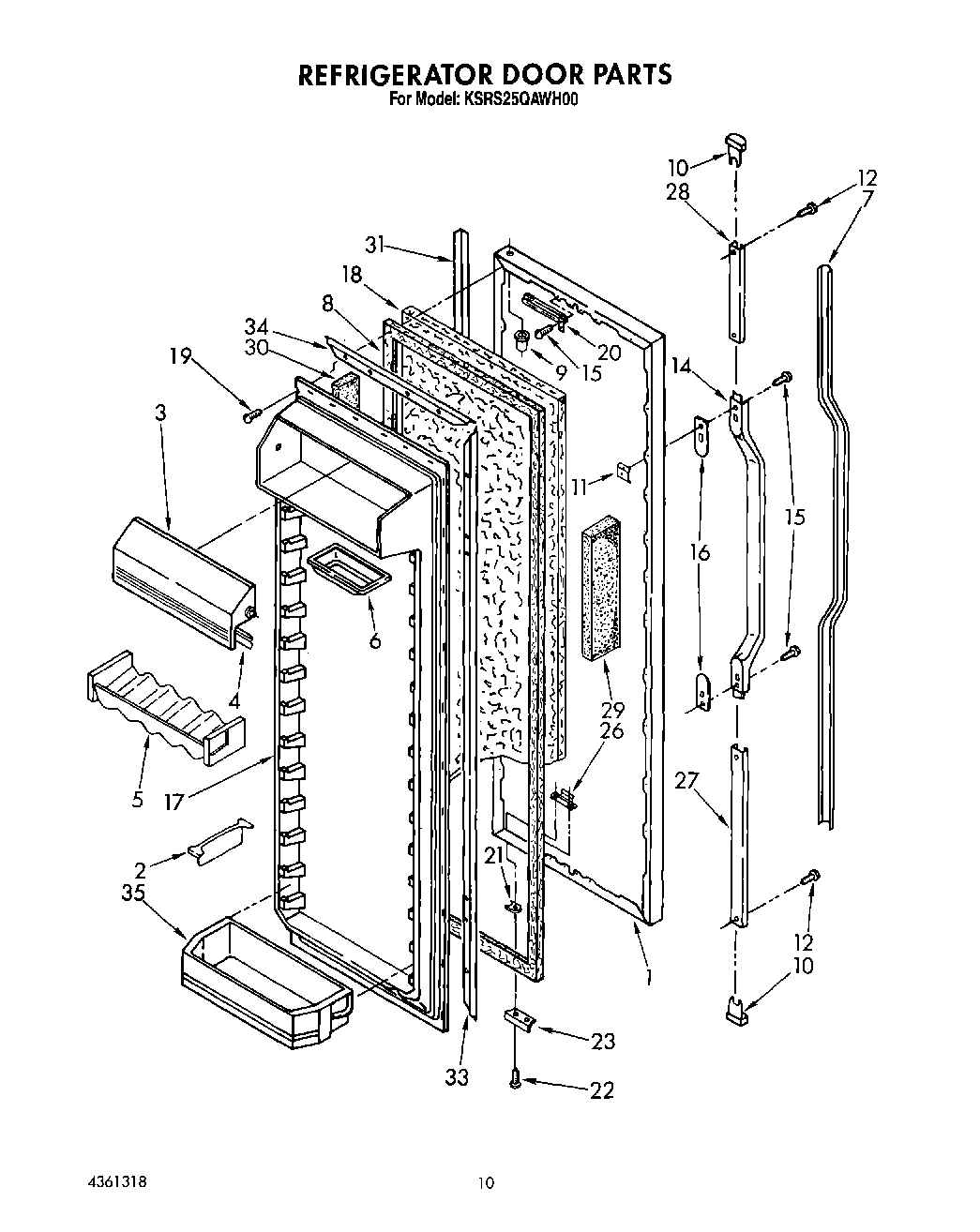

07 - REFRIGERATOR DOOR

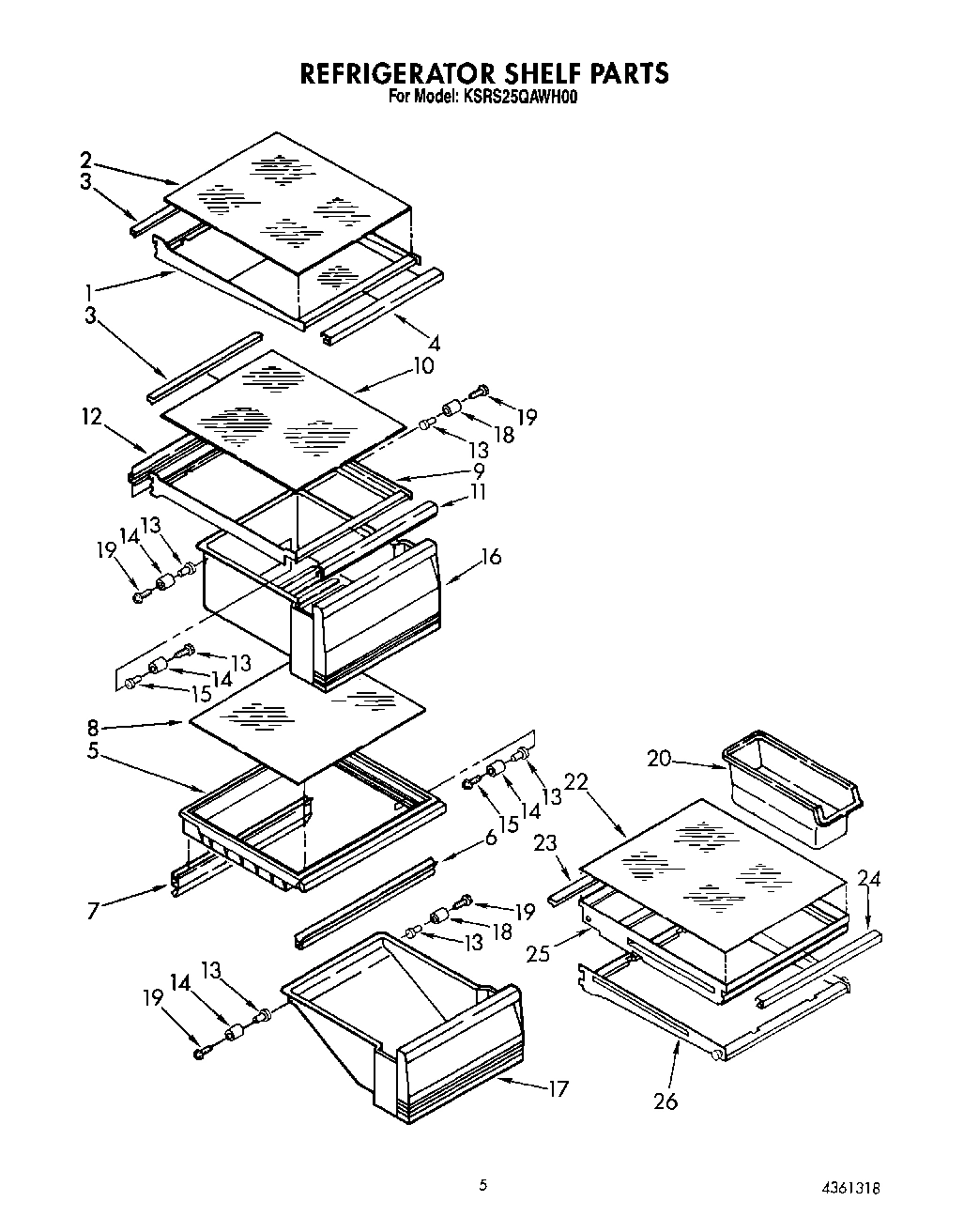

04 - REFRIGERATOR SHELF

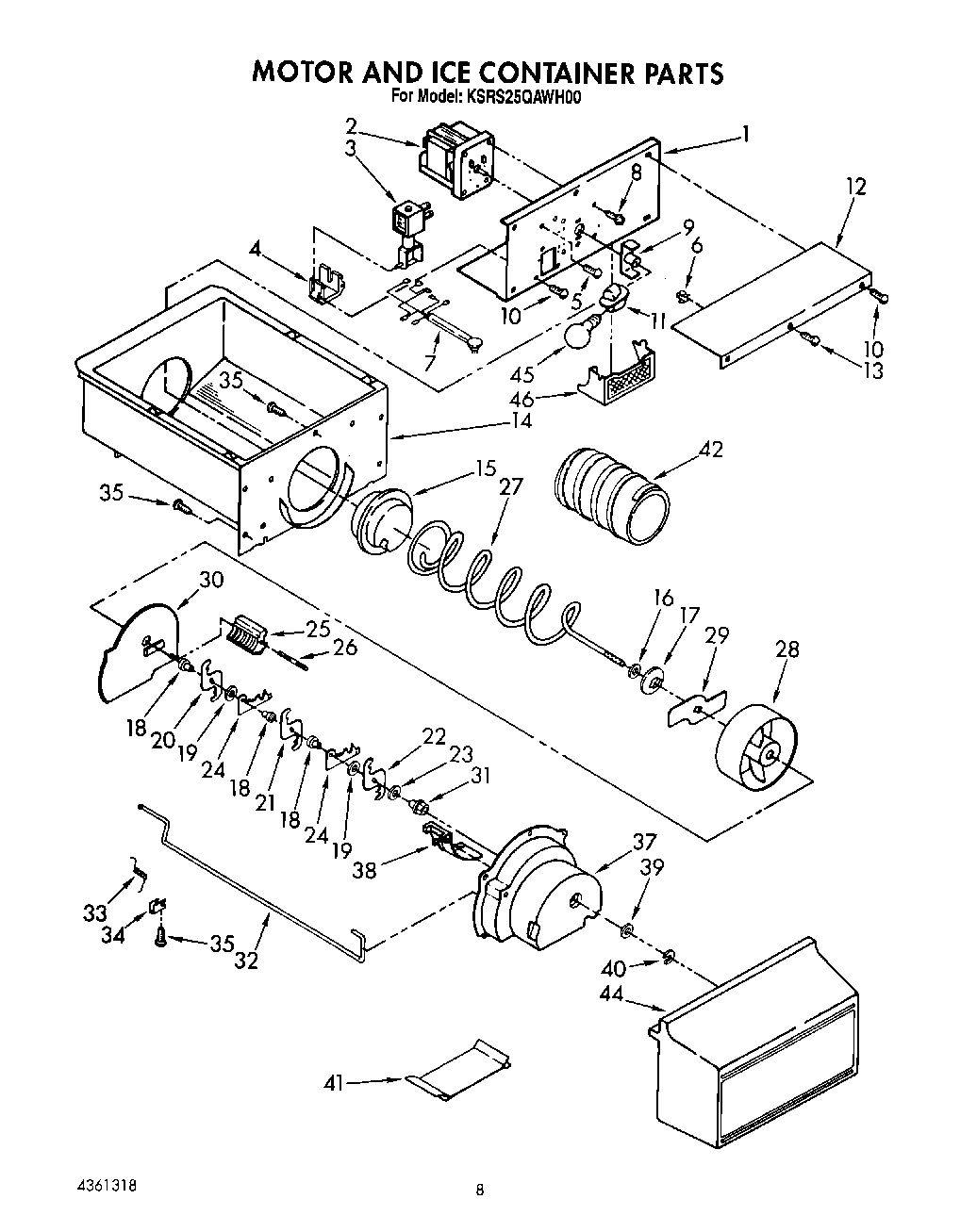

06 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL
Common parts from model Whirlpool KSRS25QAAL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155177 WPL LIT2155177 Contact Us For Availability
WPL LIT2161585 WPL LIT2161585 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT4361318 WPL LIT4361318 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
WPL LIT787808 WPL LIT787808 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125957 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125963 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI102550A Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Refrigerator Door (White) WPL 1117863 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1117867 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Insert, Handle (White) WPL 1117948 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Shelf Bin (4) WPL 1125676 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Screw, 8 x 1/2 WPL 486214 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Pan Shelf & Slide Assembly (Includes 13, 14, WPL 2161760 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
12
Screw WPL 489075 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1125608 Contact Us For Availability
13
Overload WPL 2154757 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Trim, Door Shelf WPL 1126495 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Crisper Pan (2) (Includes 13, 14, 18, & 19) WPL 2161755 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Panel, Interior Door WPL 1117905 Contact Us For Availability
17
Utility Pan WPL 2161754 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Roller WPL 2161750 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Frame And Roller Assembly (Cantilever) WPL 2161806 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Retainer, Insert WPL 1107243 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Switch WPL 1127898 Contact Us For Availability
30
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
31
Trim, Door WPL 1119062 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Trim Kit Panels (Black) WPL 4210348 Contact Us For Availability
35
Almond Handle Inserts WPL 4211147 Contact Us For Availability
35
White WPL 4211148 Contact Us For Availability
35
Trim Kit Acrylic Panel Kit WPL 4318336 Contact Us For Availability
35
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
35
Woodgrain WPL 4318340 Contact Us For Availability
35
Black Grille Kit WPL 4318417 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125974 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2155909 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Insert, Cover (White) WPL 1125798 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1125801 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1125673 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (A WPL 1125805 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Relay (Order Overload, No.44, To Obtain Relay WPL ARI102553A Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Insert, Tube WPL 1129177 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
WPL 542639 WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
47
Cover, Unit WPL 2161317 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
50
Washer WPL 489366 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
