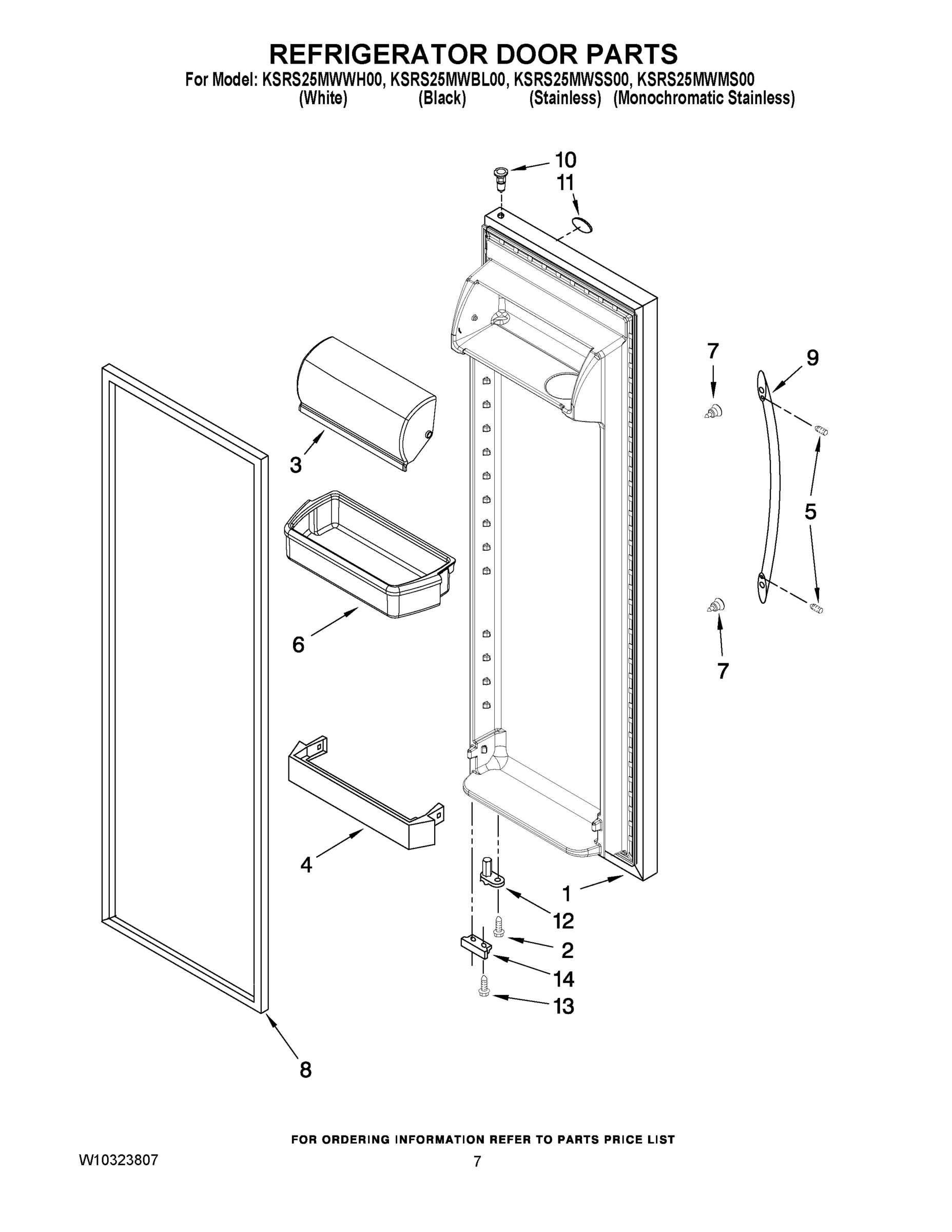

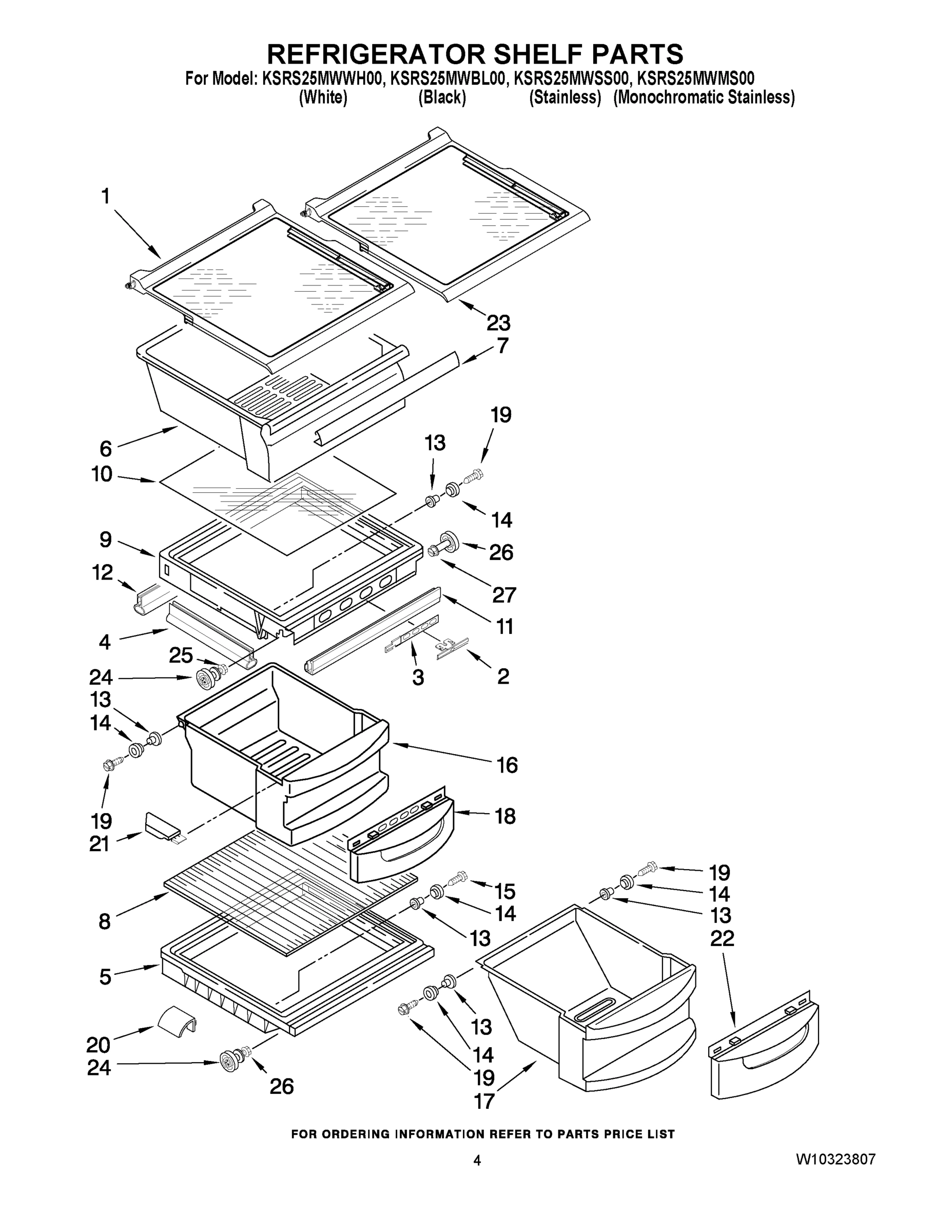

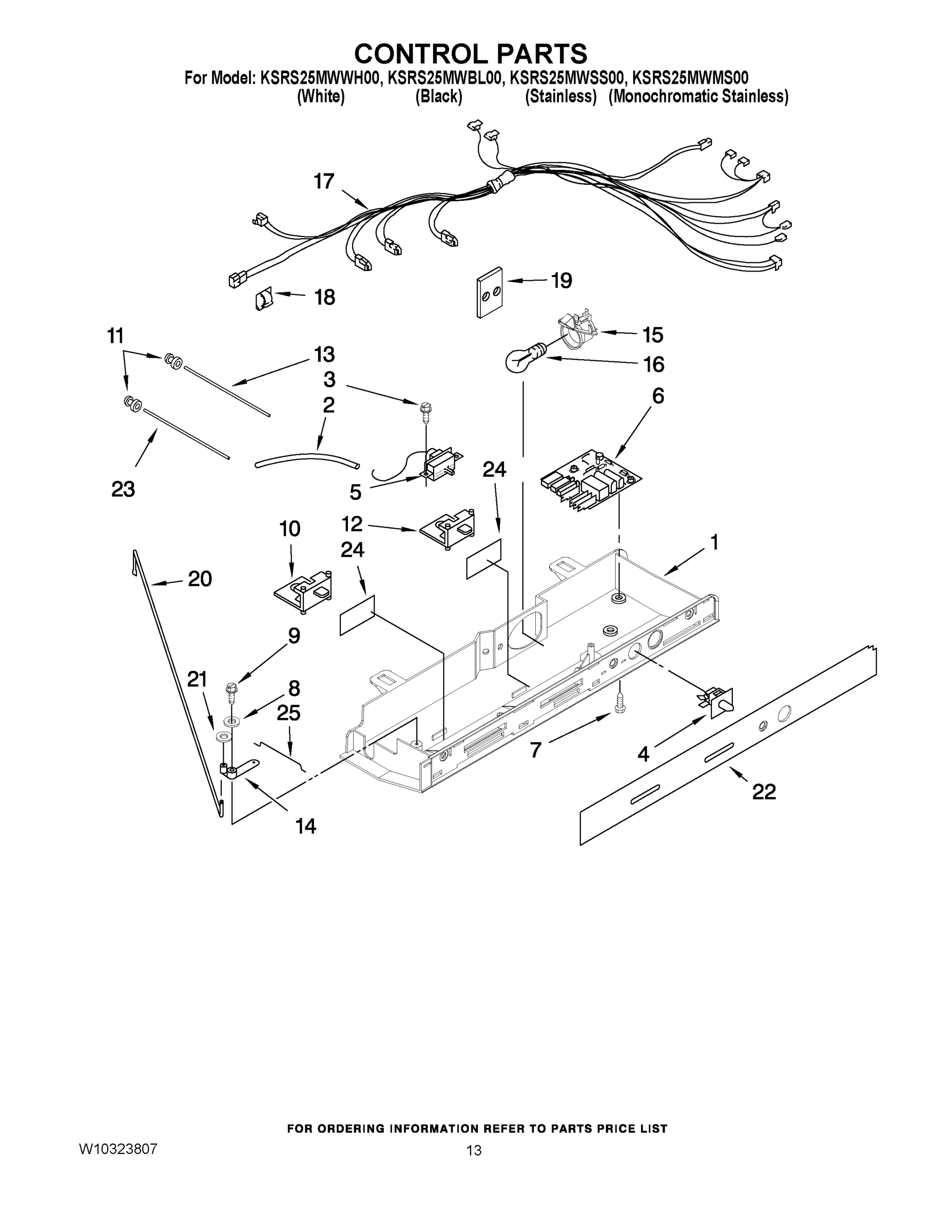

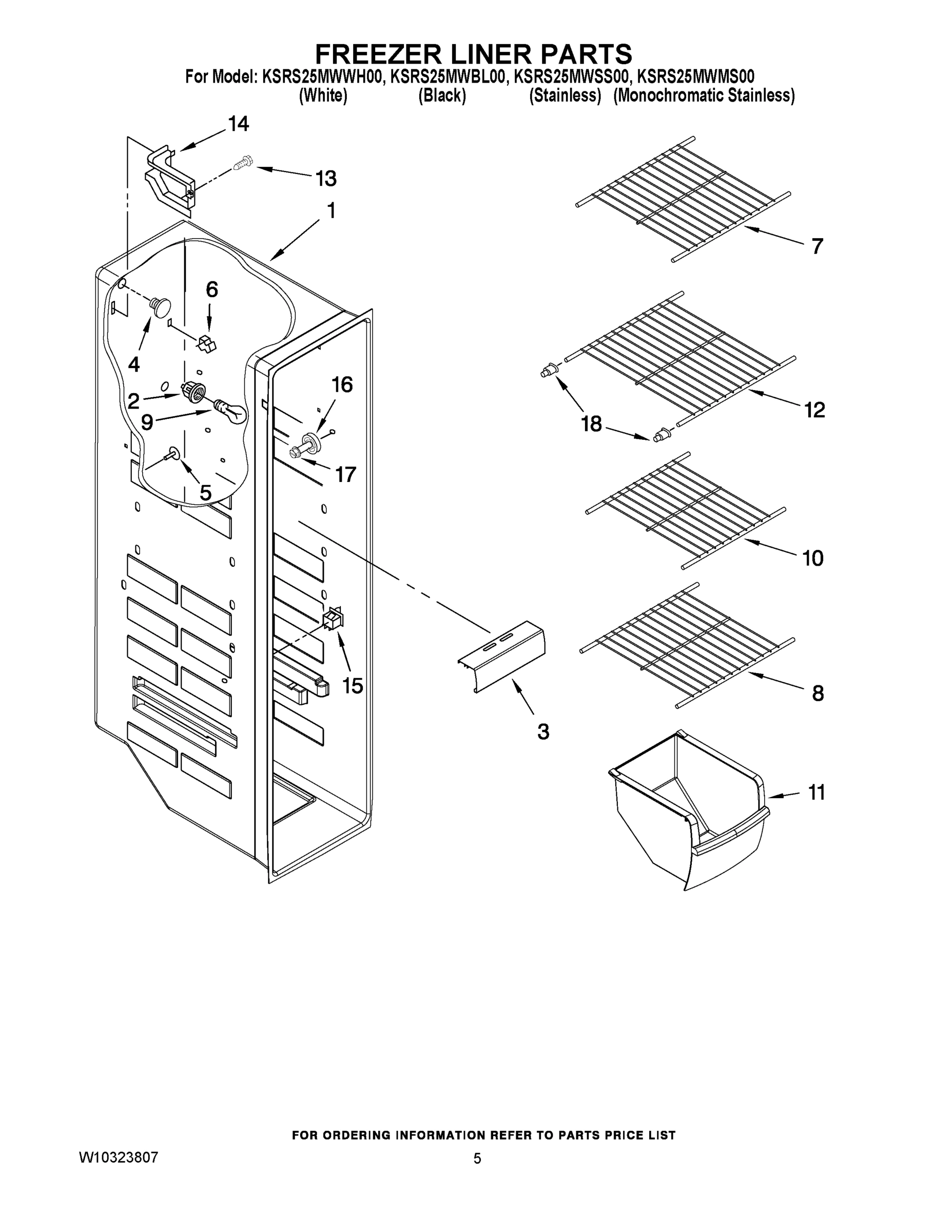

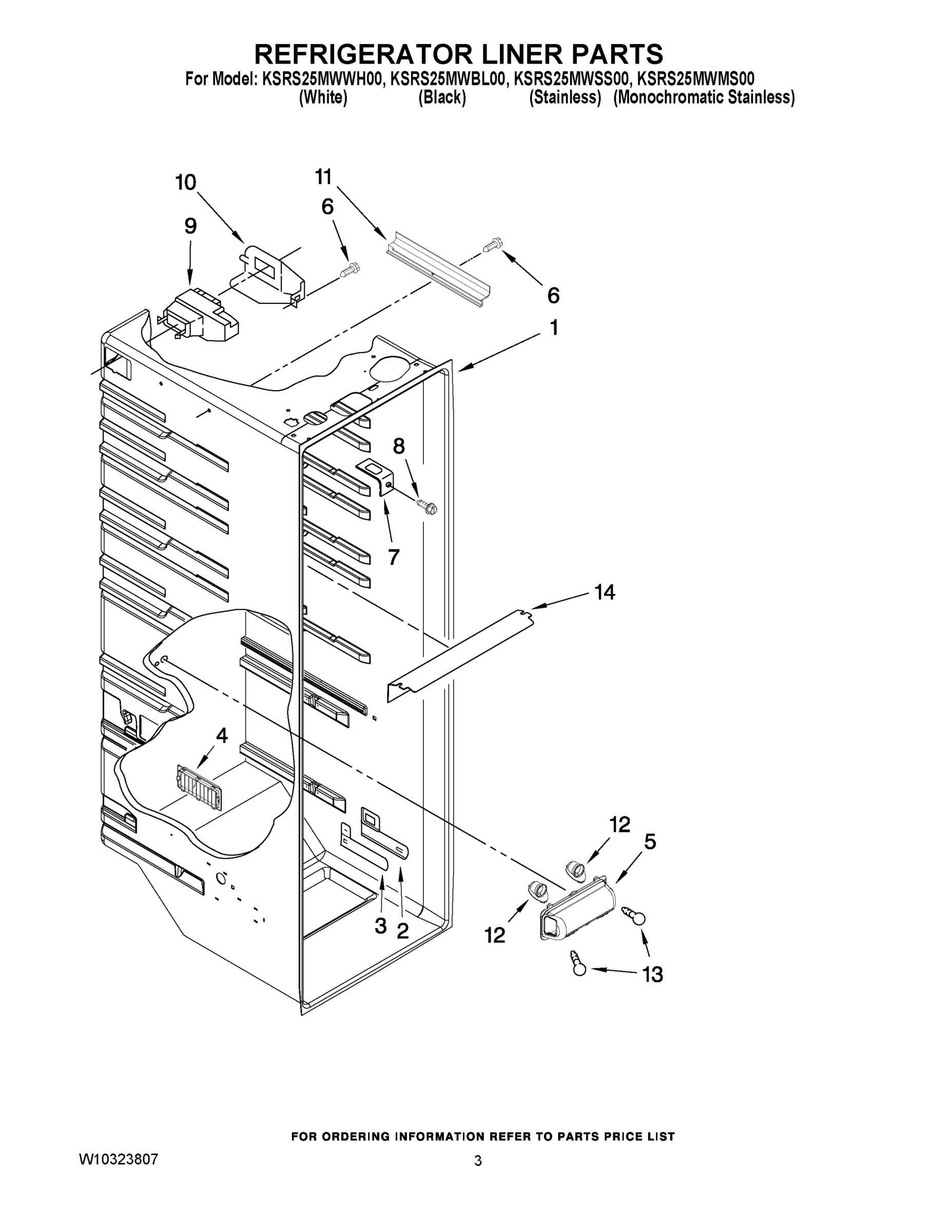

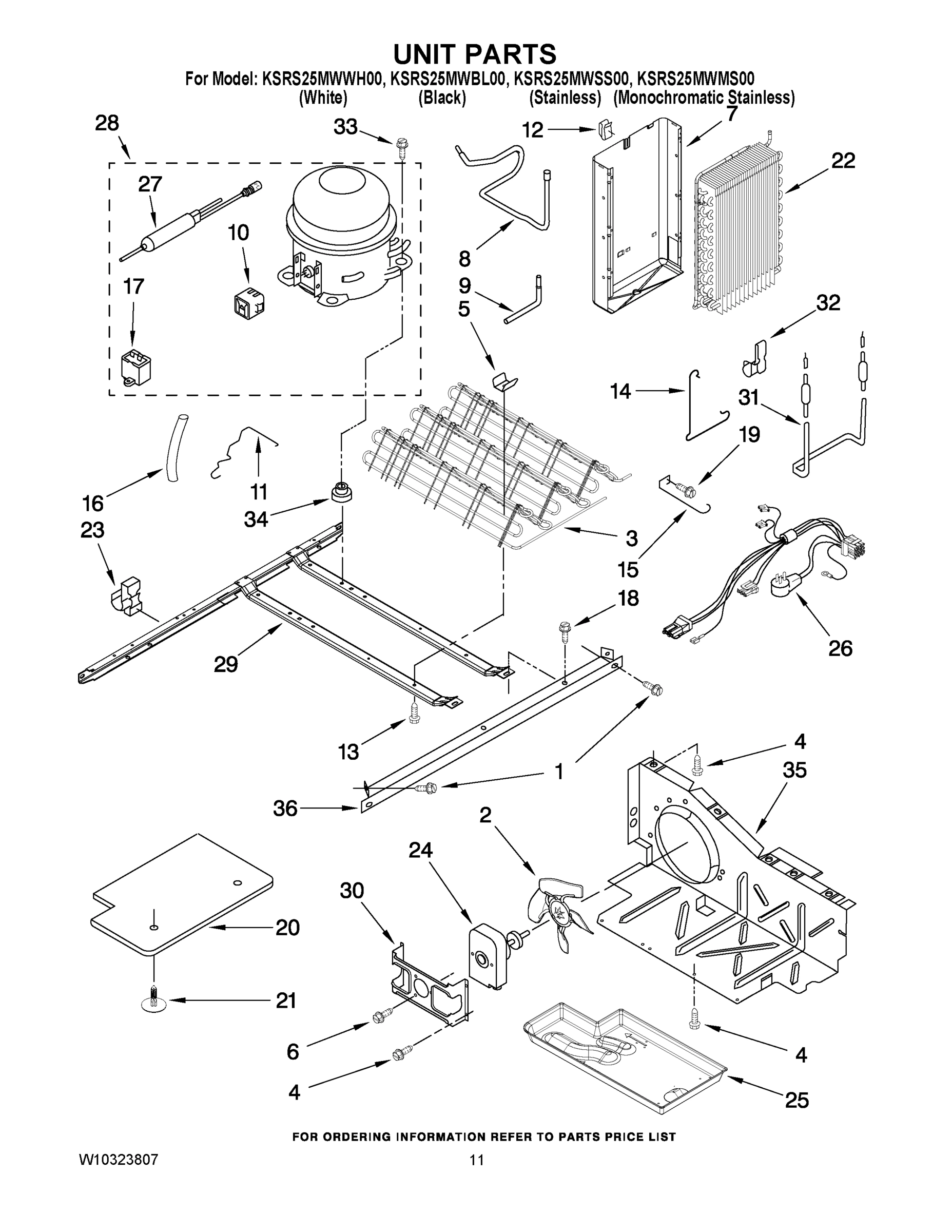

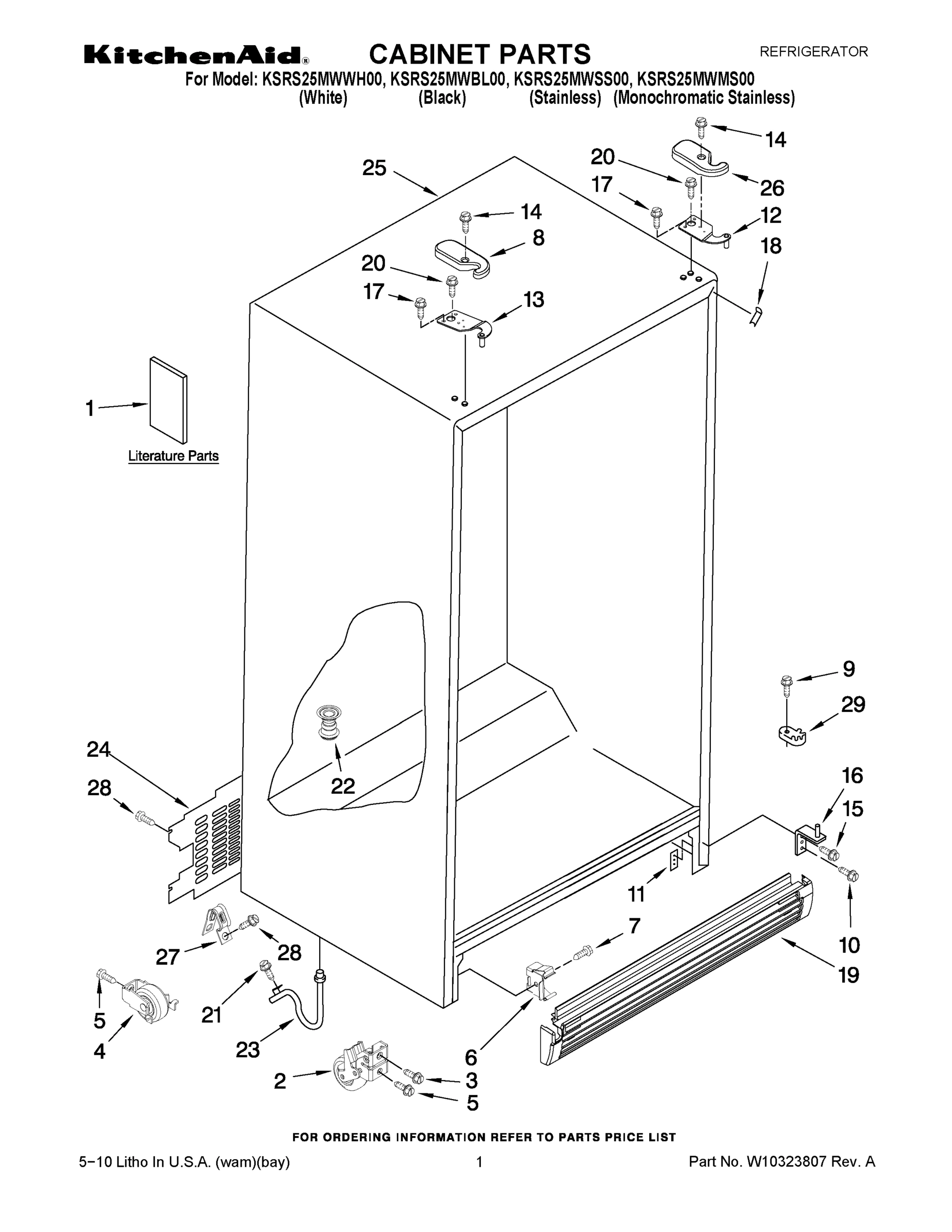

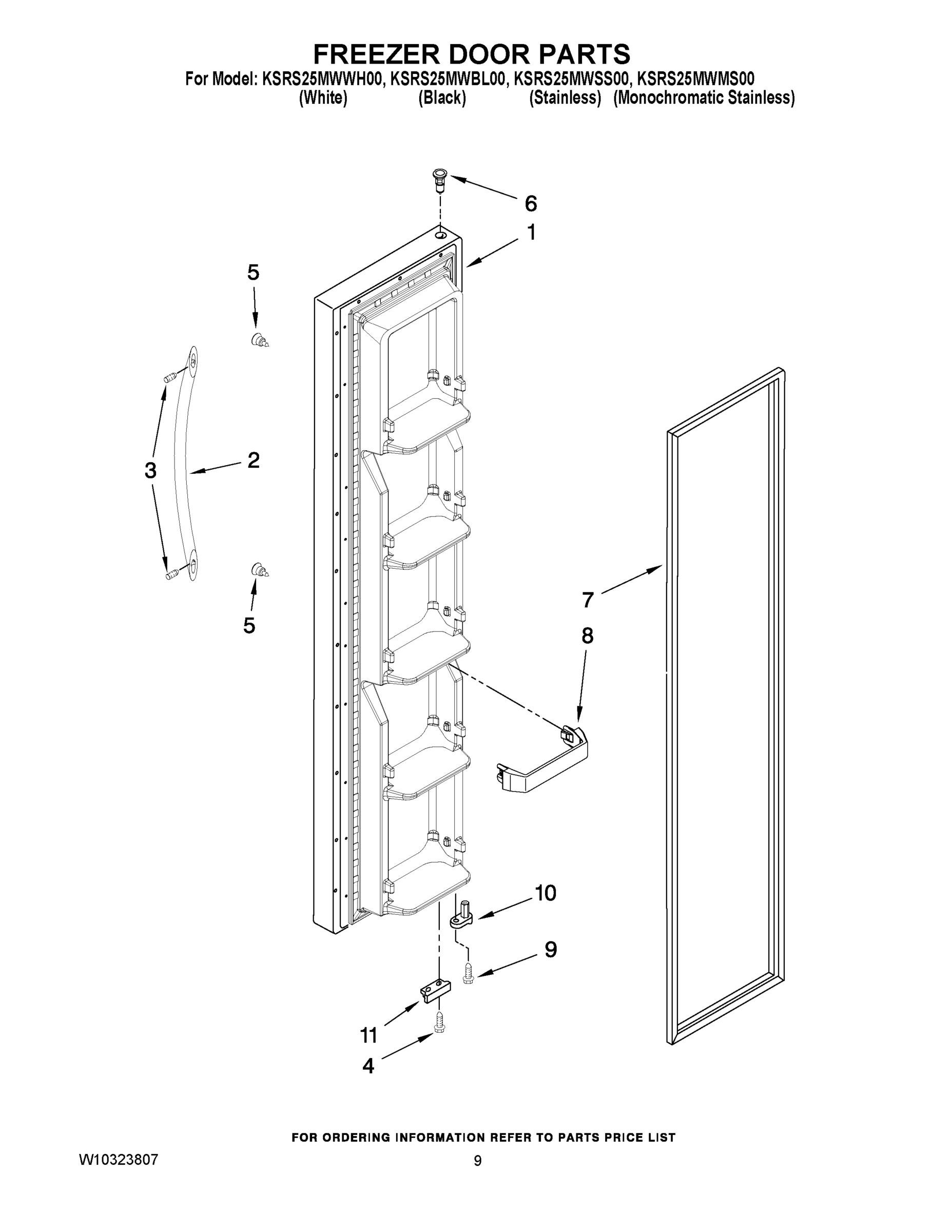

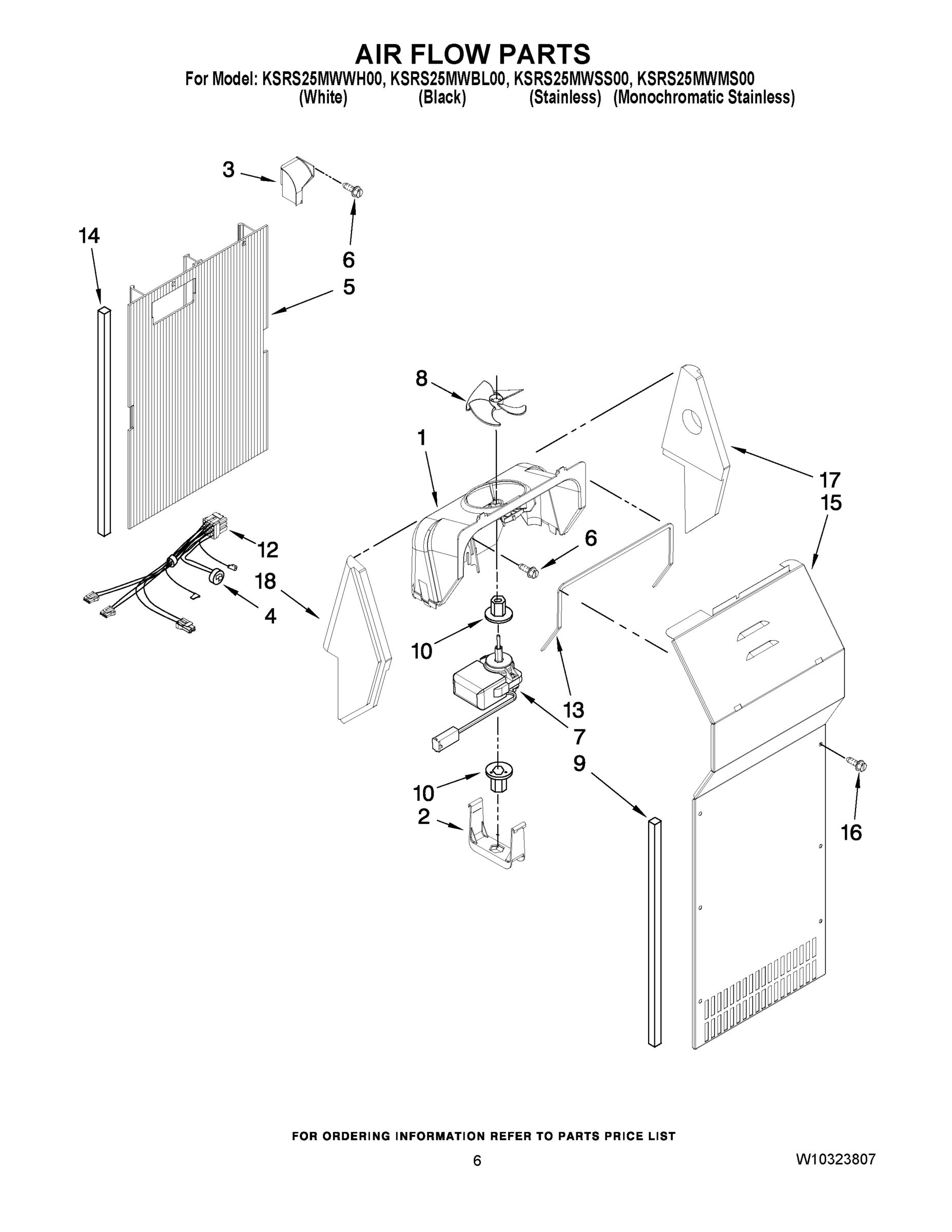

Model Whirlpool KSRS25MWMS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $135.64

1

Control Box WPL 2181738 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

HANDLE (BRUSHED ALUMINUM) WPL 2319727S Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10211163 Whirlpool Condenser Assembly Backorder WPL W10211163 $155.89

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

Air Duct Freezer WPL 2203594 No Longer Available

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

7

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

8

W10210786 Whirlpool Refrigerator Tube Backorder WPL W10210786 $31.71

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

9

W10274306 Whirlpool Refrigerator Tube Backorder WPL W10274306 $8.88

9

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $122.04

9

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

9

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

9

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL W10160317 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $27.45

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

NAMEPLATE (CULINARY GREY) WPL W10046610 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

12

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

12

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

12

Clip, Heat WPL 2155547 Contact Us For Availability

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Light Bar (RC) WPL 2179920 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

14

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

14

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

14

BRACKET, DOOR STOP (SILVER) WPL W10185570 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Guard, Fan WPL 1110663 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

CRISPER PAN WPL W10142714 Contact Us For Availability

HINGE BOTTOM (2) WPL W10251408 Contact Us For Availability

17

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $121.88

17

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $3.70

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

19

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

19

2198470AP Whirlpool Refrigerator Grille Backorder WPL 2198470AP $42.02

19

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

20

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $45.29

20

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

FRONT COVER, CONTROL BOX WPL W10242641 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WPW10276359 Whirlpool Refrigerator Cantilever Backorder WPL WPW10276359 $146.08

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

24

Window WPL 2175513 Contact Us For Availability

25

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

WP2187778 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187778 $32.98

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

27

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

28

W10233961 Whirlpool Refrigerator Compressor In Stock WPL W10233961 $307.66

29

W10196321 Whirlpool Refrigerator Frame Backorder WPL W10196321 $174.55

30

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

31

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

32

Clip WPL 2161324 Contact Us For Availability

34

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

35

Air Baffle WPL W10163483 Contact Us For Availability

36

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $51.83

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.0 OZ. (R-134)) WPL NP Contact Us For Availability
