Model Whirlpool KSRS22QXWH00 – Common Parts & Diagrams
11 - FREEZER LINER
08 - FREEZER DOOR

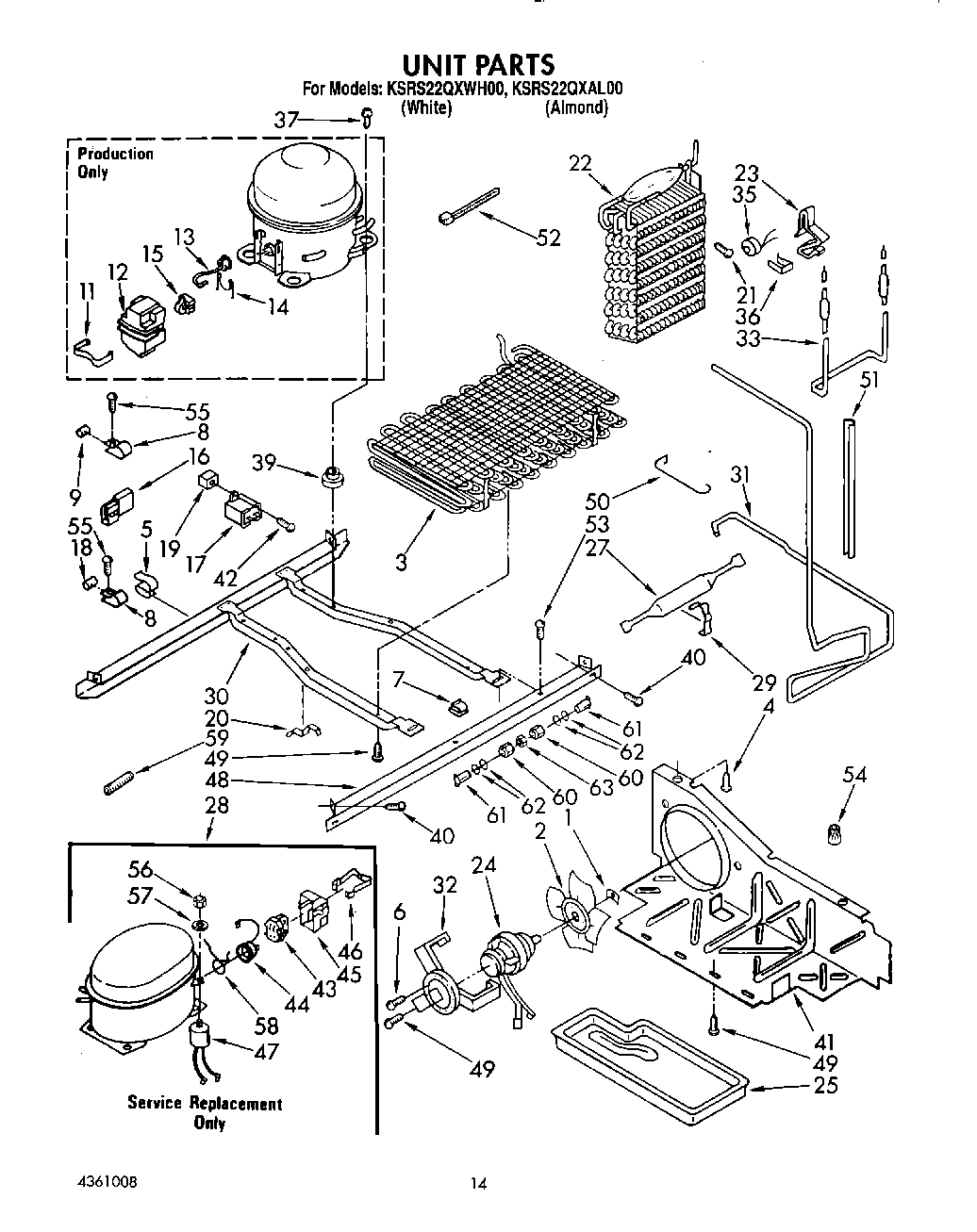

10 - UNIT

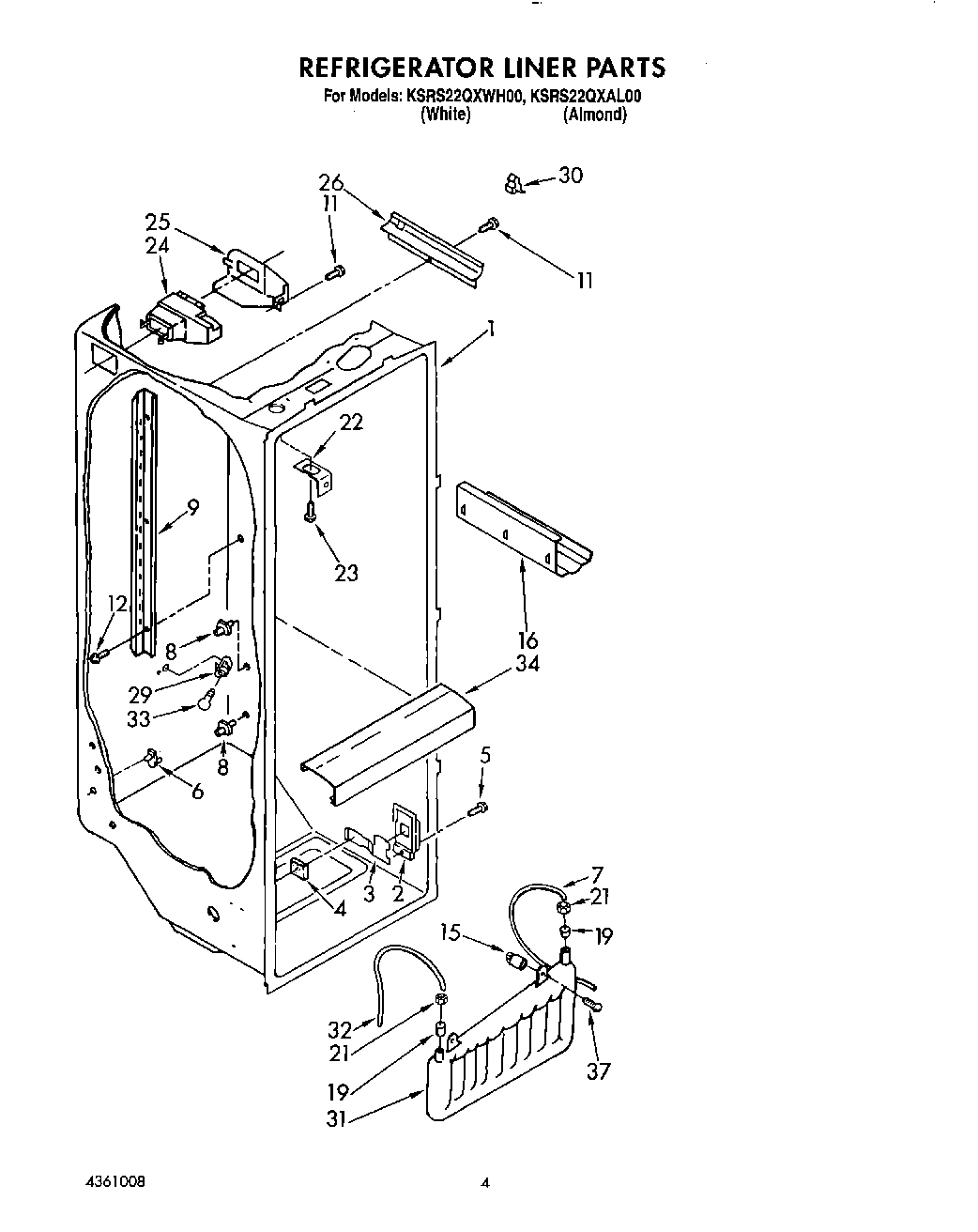

03 - REFRIGERATOR LINER

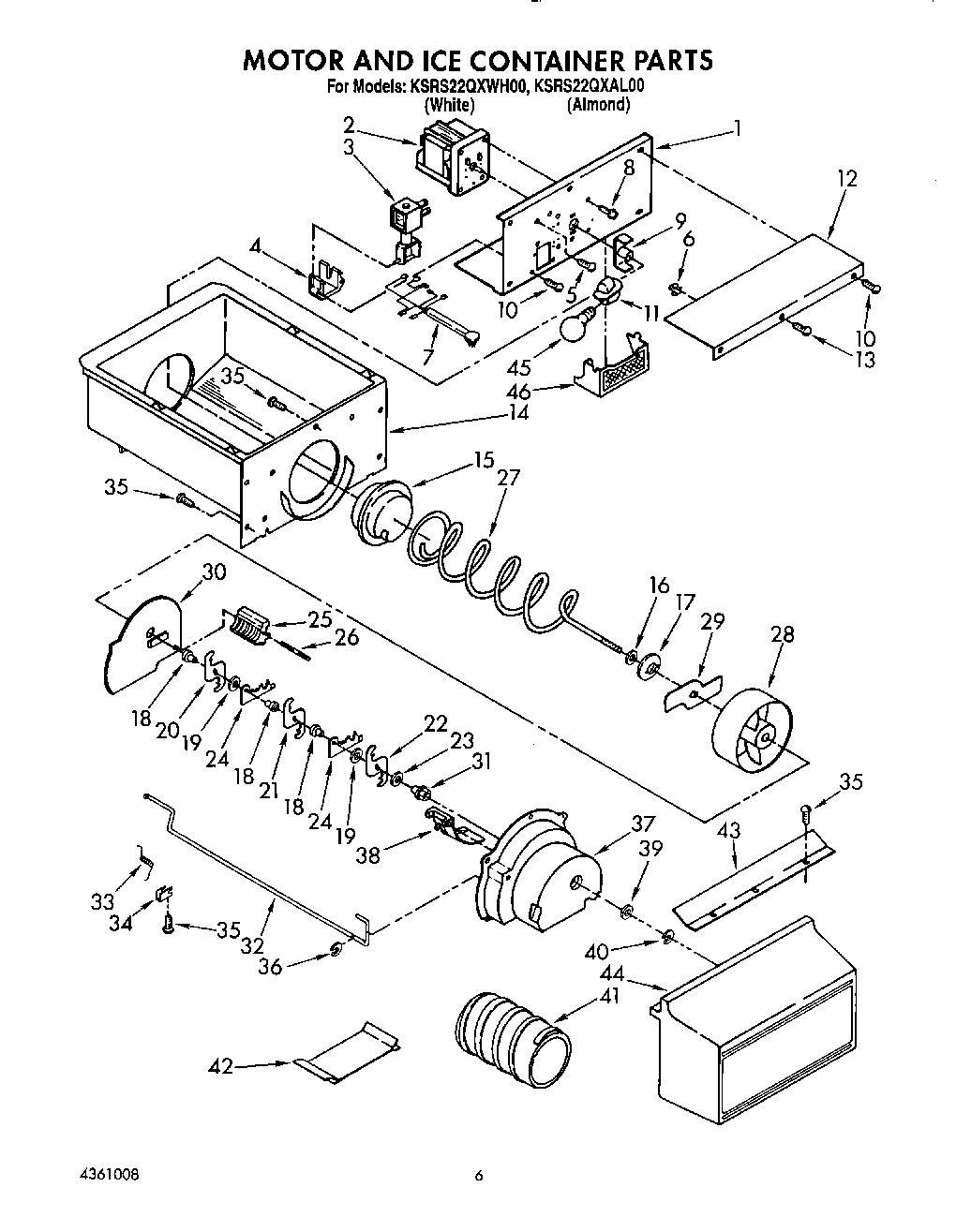

05 - MOTOR AND ICE CONTAINER

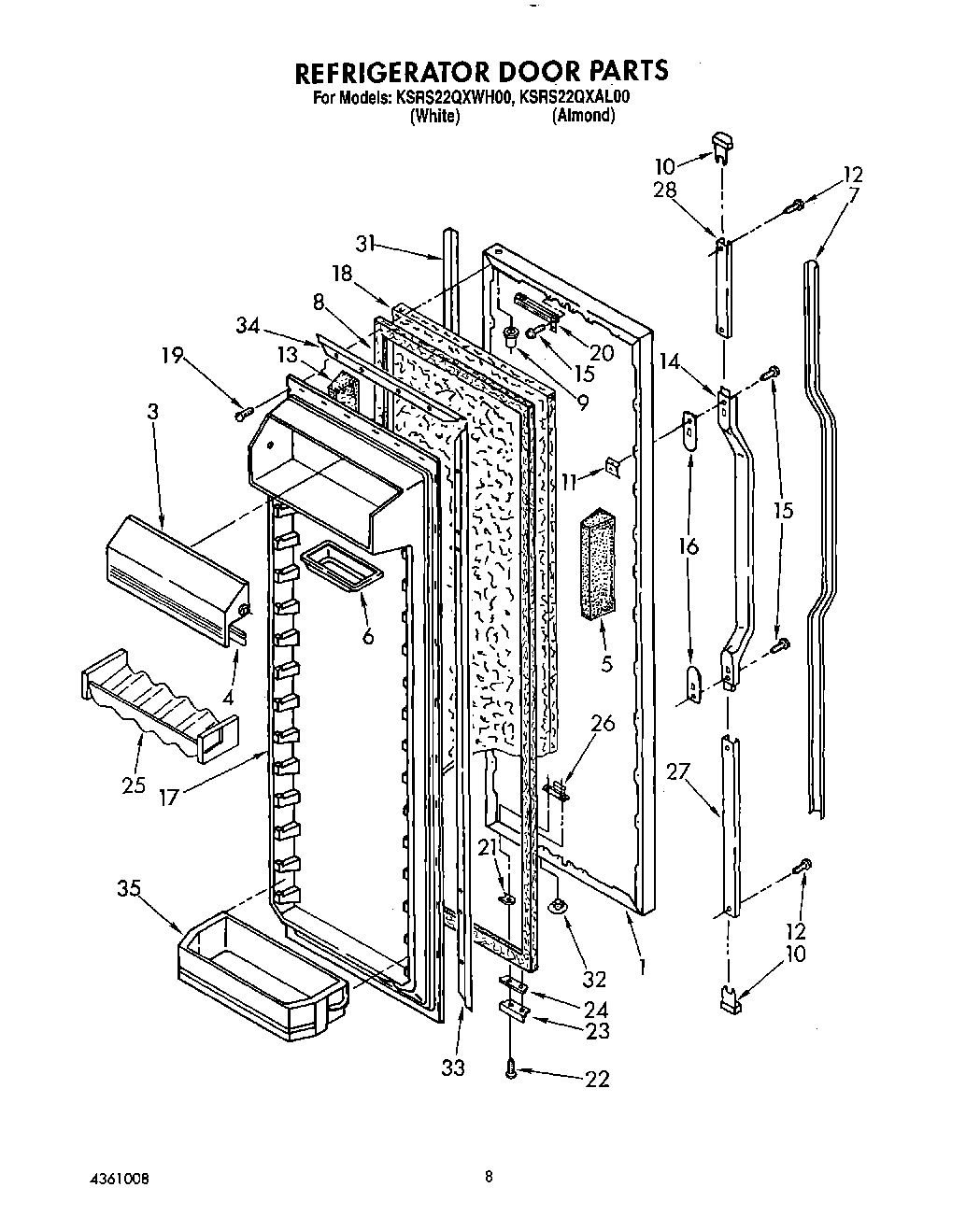

07 - REFRIGERATOR DOOR

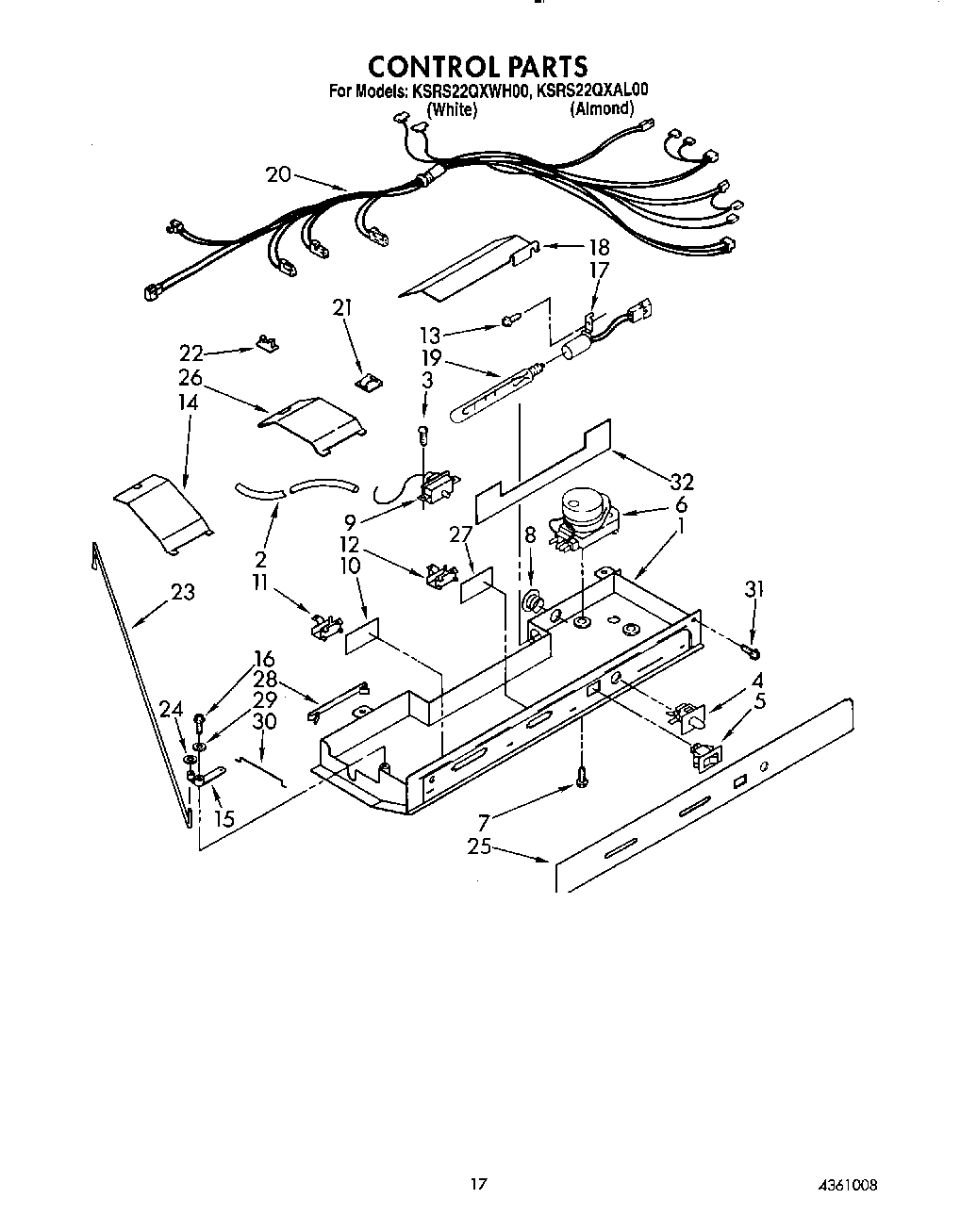

12 - CONTROL

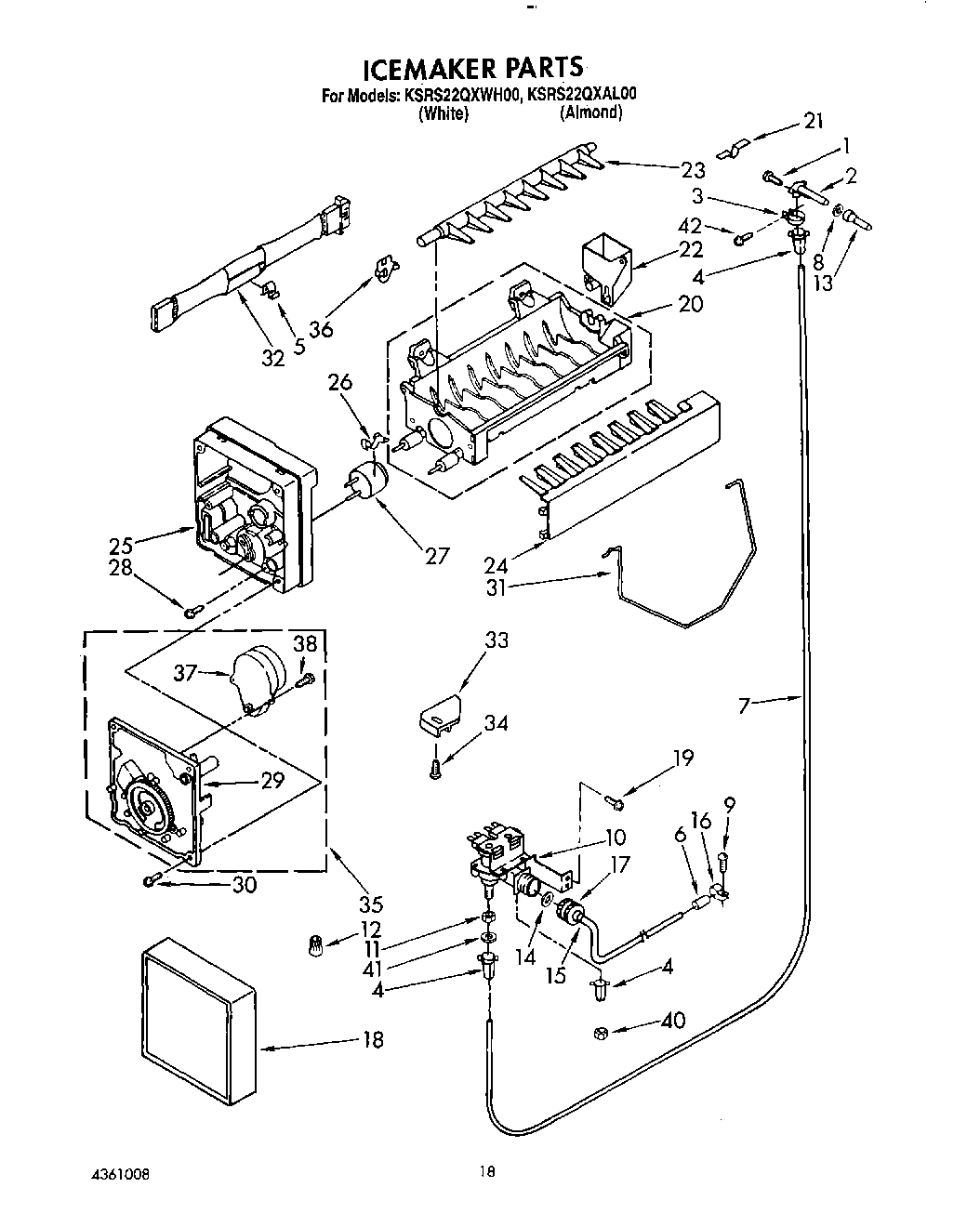

13 - ICEMAKER, LIT/OPTIONAL

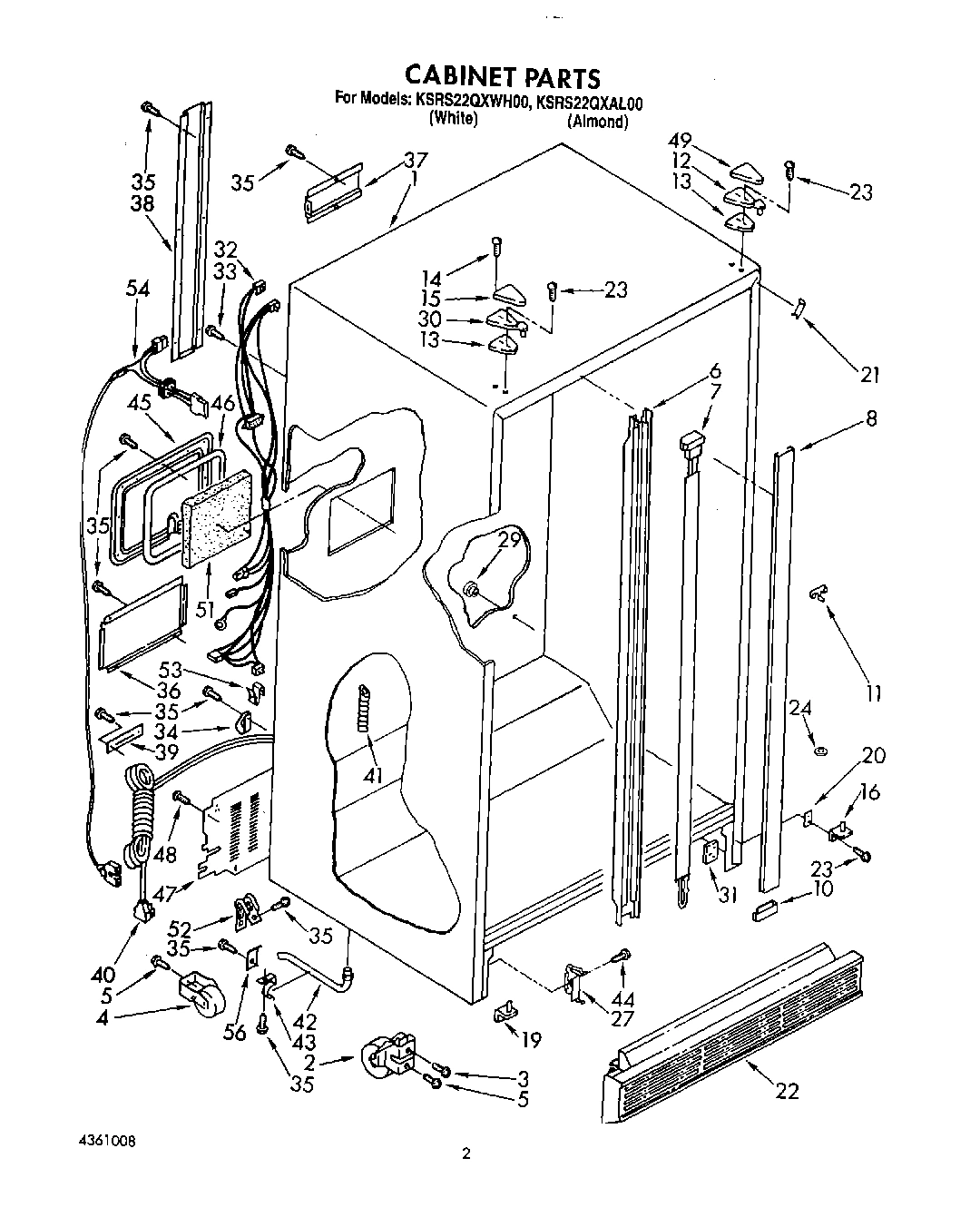

02 - CABINET

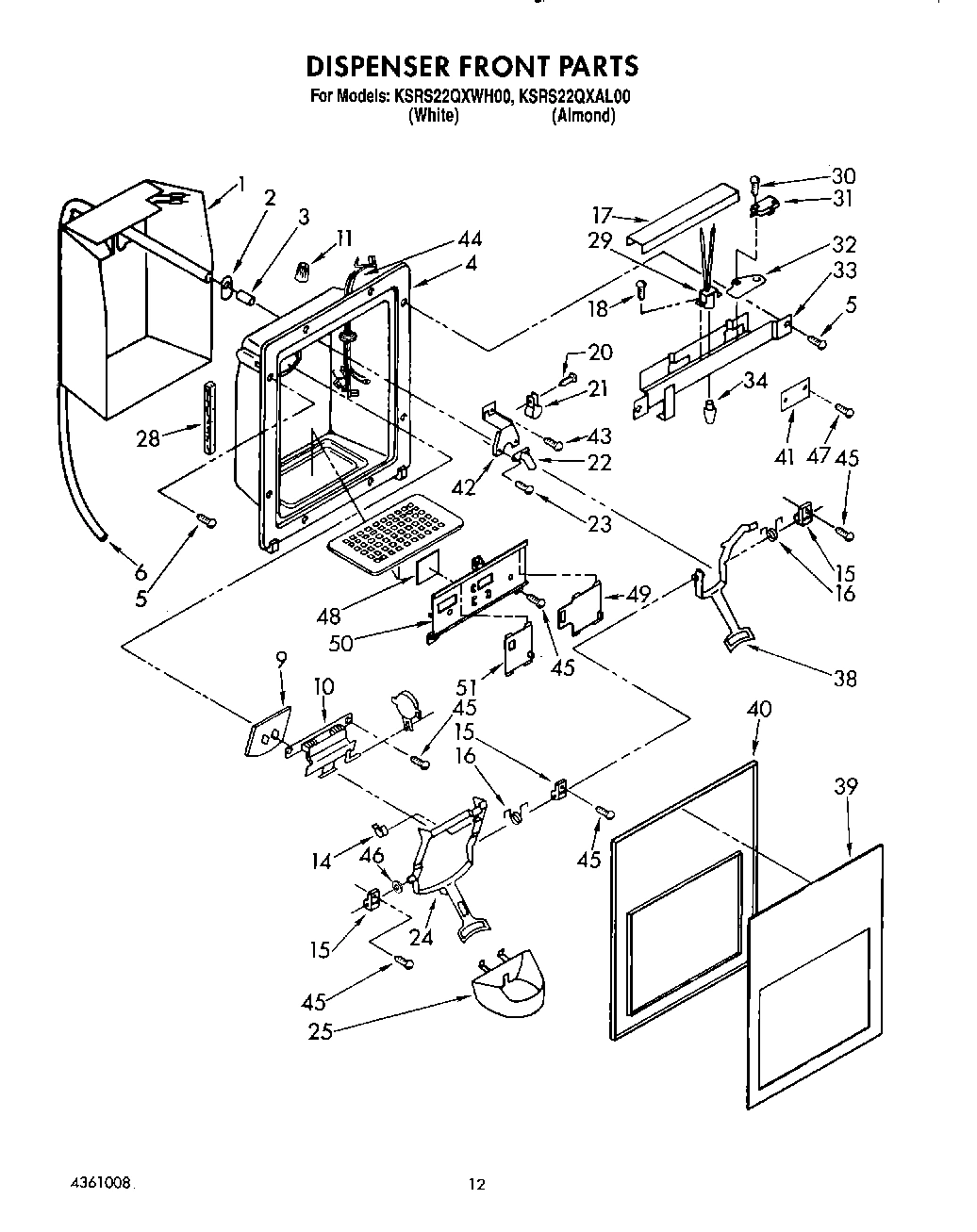

09 - DISPENSER FRONT

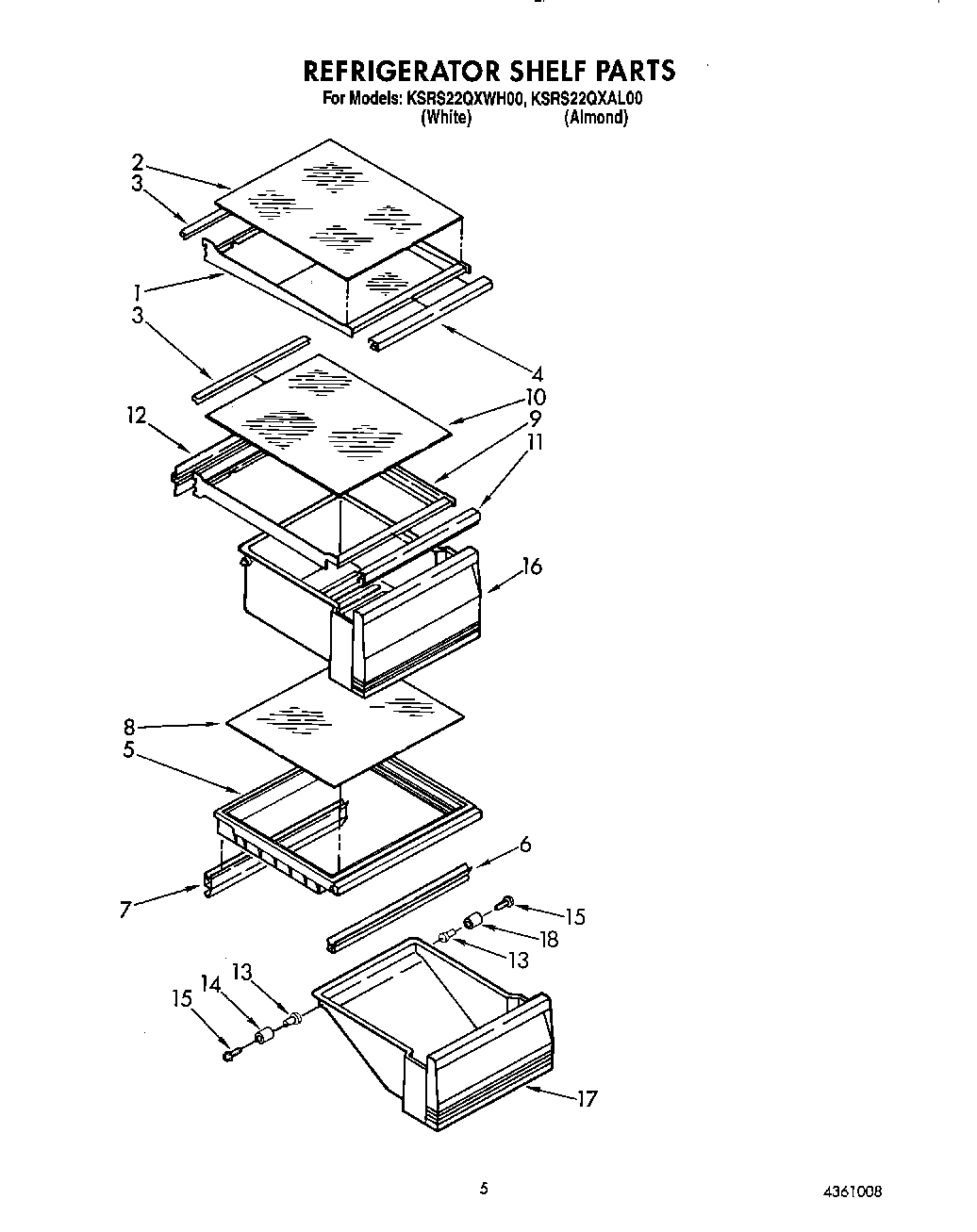

04 - REFRIGERATOR SHELF

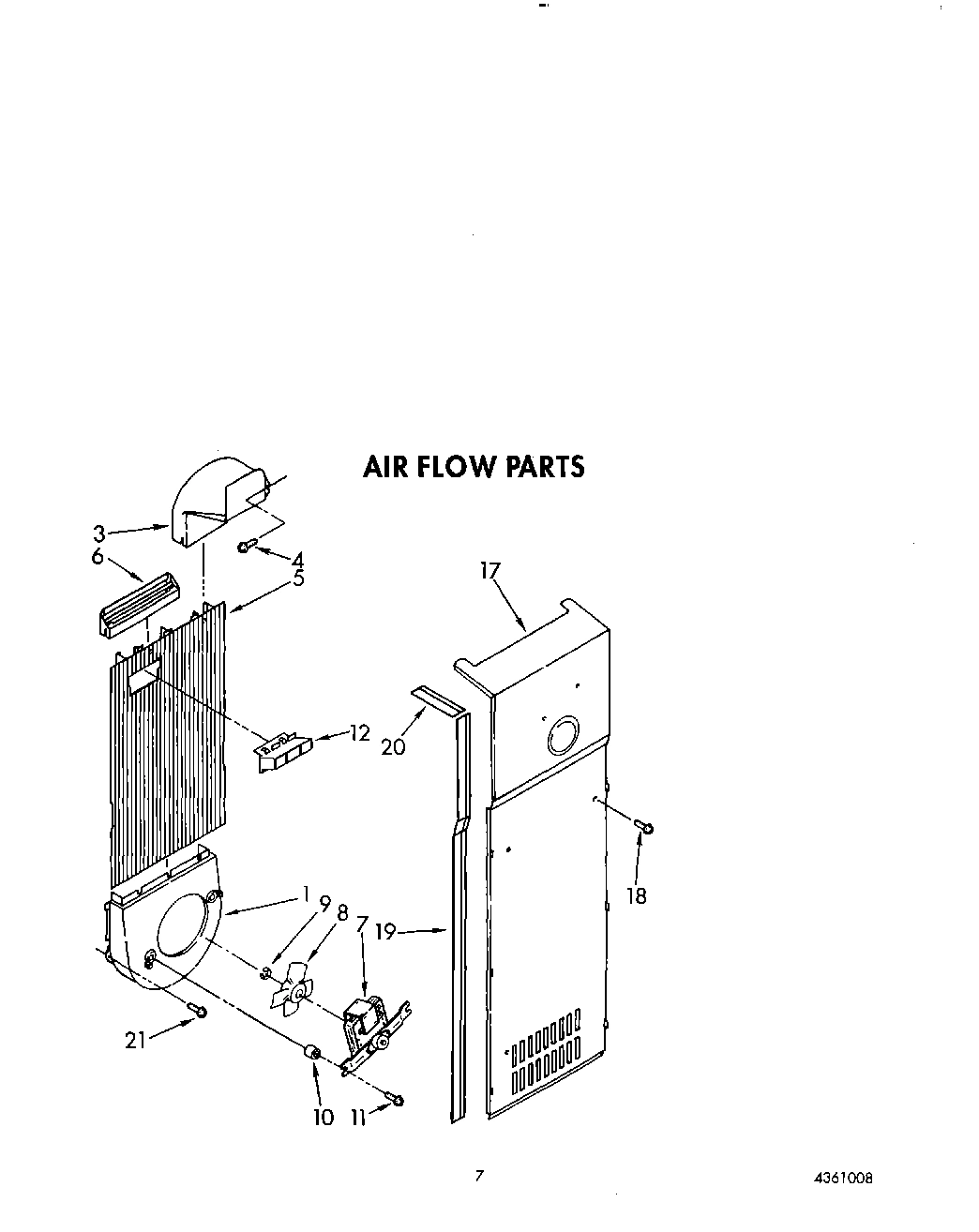

06 - AIR FLOW
Common parts from model Whirlpool KSRS22QXWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1126181 WPL LIT1126181 Contact Us For Availability
WPL LIT1126182 WPL LIT1126182 Contact Us For Availability
WPL LIT2149904 WPL LIT2149904 Contact Us For Availability
WPL LIT4361008 WPL LIT4361008 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101067A Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 1117848 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1117852 Contact Us For Availability
1
Control Box WPL 1125614 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI101066A Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 1125597 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
5
Air Duct Freezer WPL 1129253 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Mullion Rail WPL 1118354 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149943 Contact Us For Availability
7
Insert, Handle (White) WPL 1125720 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1125721 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1125599 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Screw (2) WPL 489361 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Hinge, Top WPL 1117892 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 945586 Contact Us For Availability
13
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Roller WPL 1112303 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Crisper Pan (2) WPL 1117908 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Panel, Interior Door WPL 1117904 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Utility Pan WPL 1117910 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Roller, R.S. WPL 1125530 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Control Box Harness WPL 2149752 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (Almond) WPL 1125668 Contact Us For Availability
22
Grille (White) WPL 2147467 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shim WPL 988421 Contact Us For Availability
24
Washer WPL 489366 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2147476 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Holder, Beverage WPL 1125981 Contact Us For Availability
25
Escutcheon, Control Box WPL 1126144 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1107617 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
28
Retainer, Insert WPL 1107241 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Socket, Lamp WPL 2147131 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1117936 Contact Us For Availability
30
Screw, 4-40 x 3/4 WPL 489155 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
31
Trim, Door WPL 1119061 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Tube WPL 1129175 Contact Us For Availability
32
Control Arm WPL 2147138 Contact Us For Availability
32
Hole Plug (2) WPL 534927 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Cabinet Harness WPL 2149745 Contact Us For Availability
32
Insulator, Switch (2) WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Trim Kit Panel (Black) WPL 4210350 Contact Us For Availability
35
Trim Kit Panel (Almond) WPL 4211135 Contact Us For Availability
35
Trim Kit Panel (White) WPL 4211136 Contact Us For Availability
35
Trim Kit WPL 4318331 Contact Us For Availability
35
Handle Insert (Black) WPL 4318334 Contact Us For Availability
35
Handle Insert (Woodgrain) WPL 4318335 Contact Us For Availability
35
Handle Insert (Black Grille Kit) WPL 4318416 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Retainer Ring WPL 489272 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125974 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2147478 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
Insert, Cover (White) WPL 1126176 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1126177 Contact Us For Availability
39
Insert, Cover (Black) WPL 1126178 Contact Us For Availability
40
Nut, Compression WPL 488795 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1126170 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1126171 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Black) WPL 1126172 Contact Us For Availability
41
Spacer, Holding Switch WPL 625834 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
``O`` Ring WPL 488819 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Deflector, Ice Container WPL 1127233 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126249 Contact Us For Availability
44
Wi WPL 2147166 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
Cover, Unit WPL 2147329 Contact Us For Availability
47
WPL 488361 WPL 488361 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
WPL 2147172 WPL 2147172 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
WPL 2152724 WPL 2152724 Contact Us For Availability
49
WPL 2152726 WPL 2152726 Contact Us For Availability
49
WPL 2152727 WPL 2152727 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
50
WPL 2152716 WPL 2152716 Contact Us For Availability
50
WPL 2152717 WPL 2152717 Contact Us For Availability
50
WPL 2152718 WPL 2152718 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
51
WPL 2152719 WPL 2152719 Contact Us For Availability
51
WPL 2152720 WPL 2152720 Contact Us For Availability
51
WPL 2152721 WPL 2152721 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
62
``O`` Ring Seal (4) WPL 488794 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
