Model Whirlpool KSRS22QDWH00 – Common Parts & Diagrams

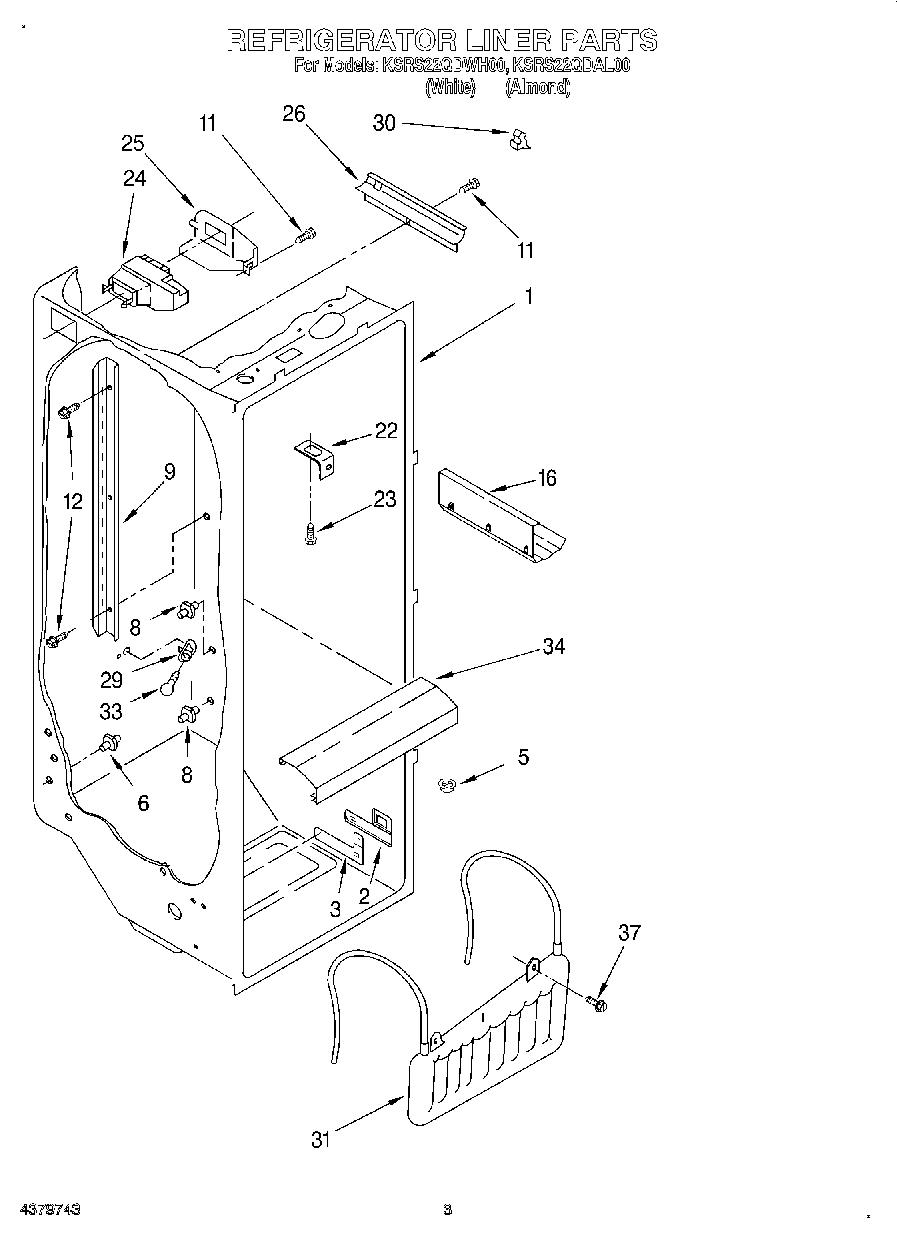

02 - REFRIGERATOR LINER
12 - ICEMAKER, LIT/OPTIONAL
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
01 - CABINET
08 - DISPENSER FRONT
03 - CONTROL
10 - FREEZER LINER
04 - REFRIGERATOR SHELF
06 - REFRIGERATOR DOOR
09 - UNIT
11 - AIR FLOW
Common parts from model Whirlpool KSRS22QDWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI100960A Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100964A Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2171090 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2171091 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI100962A Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
6
Insert, Handle (White) WPL 1117950 Contact Us For Availability
6
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 2172956 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Glass, Cover WPL 2174148 Contact Us For Availability
8
End Cap, Handle WPL 1107341 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Glass, Cover WPL 2179523 Contact Us For Availability
10
Handle Assembly WPL 1107215 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Spacer, Handle WPL 1107651 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
15
Relay (See Overload) WPL ARI100963A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Retainer, Insert (Bottom) WPL 1117953 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2171777 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2171778 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Retainer, Insert WPL 1107241 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Shelf Bin (4) WPL 2171063 Contact Us For Availability
19
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
19
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
19
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
19
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Basket, Upper WPL 2171698 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Basket, Lower WPL 2171699 Contact Us For Availability
25
Cover WPL 2164374 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2174336 Contact Us For Availability
39
Insert, Cover (White) WPL 2174338 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 2179384 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 2179386 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
