Model Whirlpool KSRS22DWWH00 – Common Parts & Diagrams

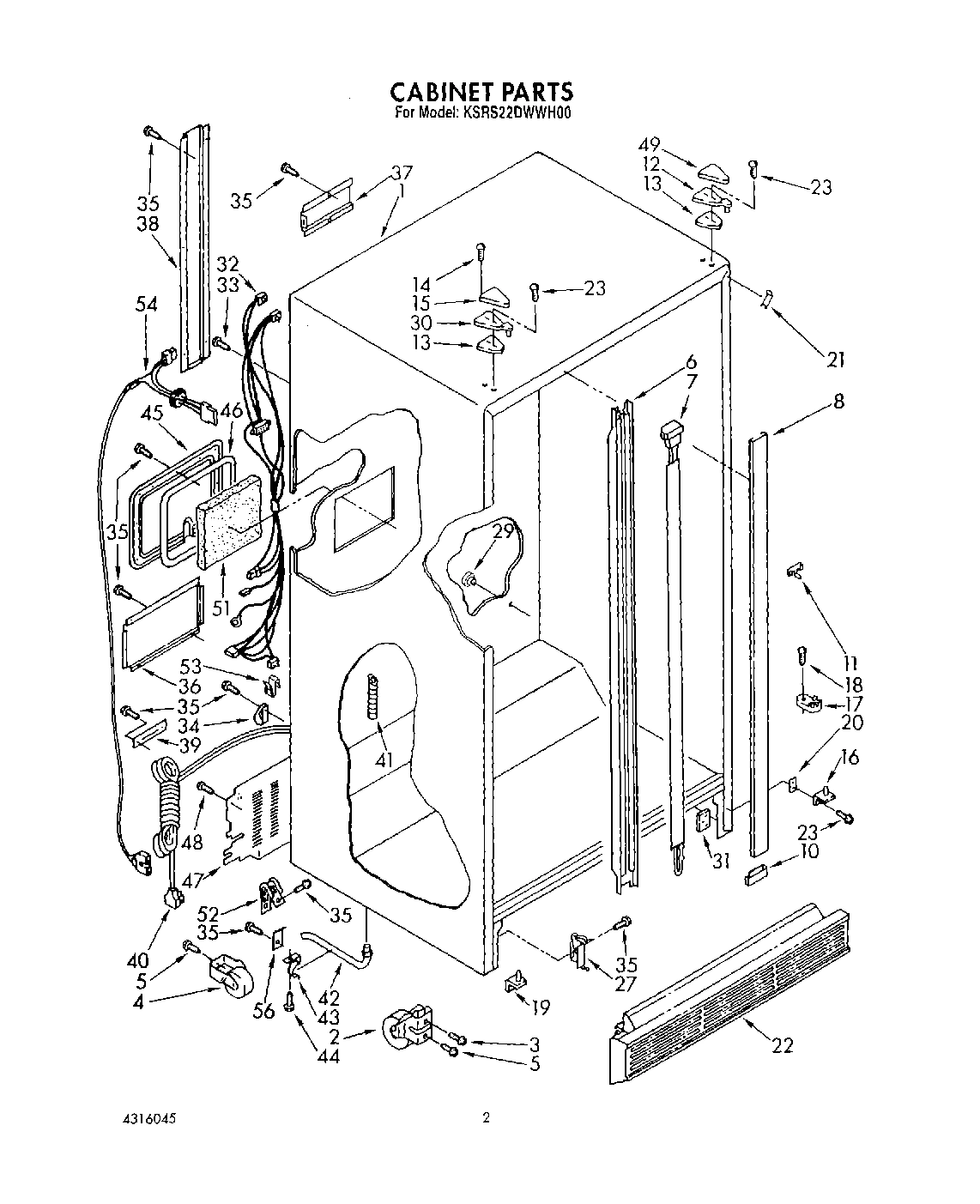

02 - CABINET

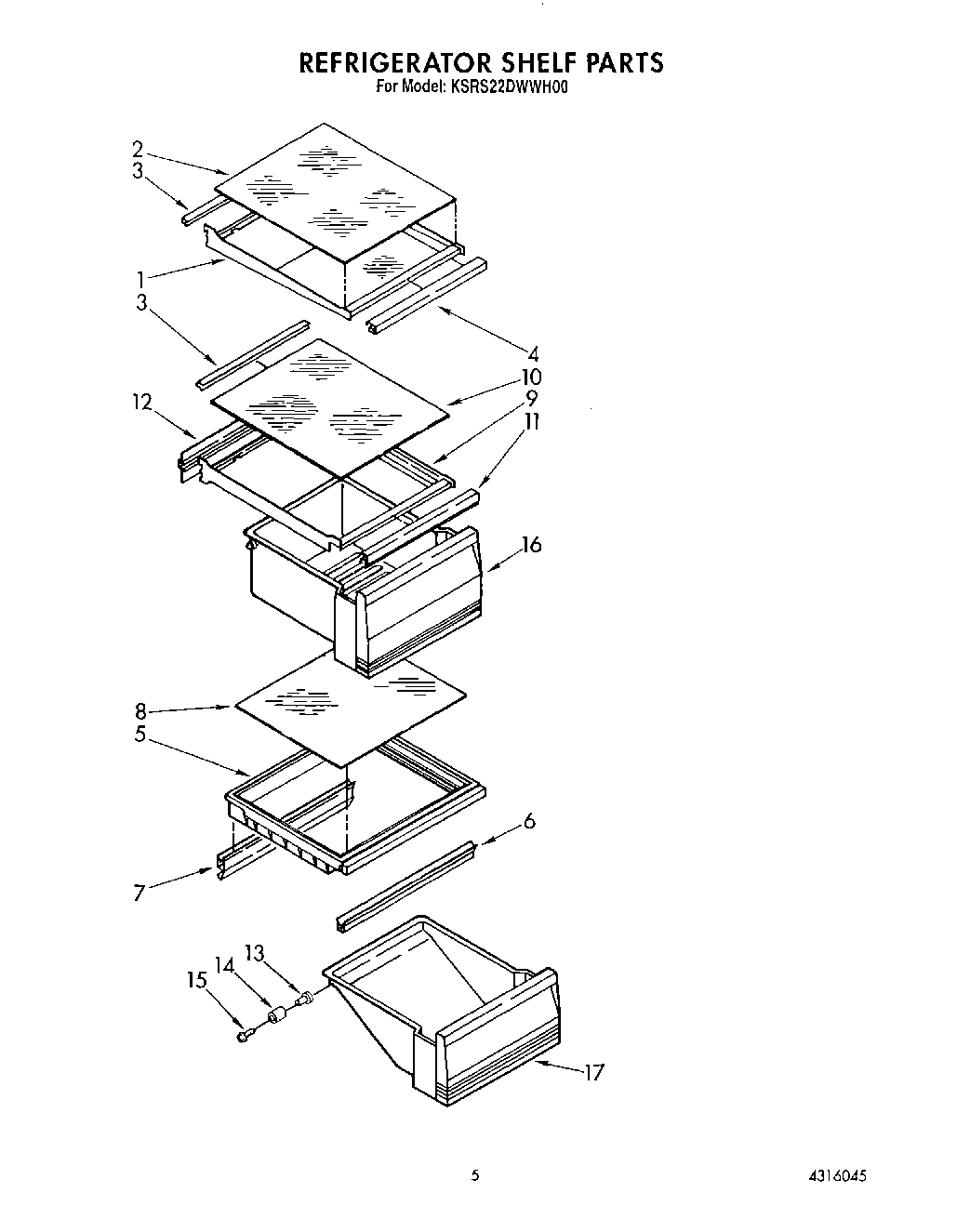

04 - REFRIGERATOR SHELF
05 - FREEZER LINER
12 - CONTROL
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT
03 - REFRIGERATOR LINER
10 - UNIT
06 - FREEZER INTERIOR
08 - FREEZER DOOR
11 - AIR FLOW
13 - ICE MAKER , LIT/OPTIONAL
Common parts from model Whirlpool KSRS22DWWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1125682 WPL LIT1125682 Contact Us For Availability
WPL LIT1126093 WPL LIT1126093 Contact Us For Availability
WPL LIT1127894 WPL LIT1127894 Contact Us For Availability
WPL LIT4316045 WPL LIT4316045 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100730A Contact Us For Availability
1
Control Box WPL 1125614 Contact Us For Availability
1
Refrigerator Door (White) WPL 1125943 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1125950 Contact Us For Availability
1
Heater, Dispenser WPL 1118039 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100729A Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125946 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125952 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Fan, Blade WPL 989524 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Ice Compartment WPL 1125821 Contact Us For Availability
3
Screw WPL 489253 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Handle Assembly WPL 1107215 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Screw WPL 489050 Contact Us For Availability
4
Motor WPL 851152 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
5
End Cap (2) WPL 1107341 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Air Duct Freezer WPL 1129253 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Spacer, Handle WPL 1107651 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
7
Fan Motor WPL 1127165 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Screw (2) WPL 489075 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1125599 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Shelf Bin (4) WPL 1125704 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Shelf WPL 1125606 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Terminal Block WPL 942842 Contact Us For Availability
13
Overload WPL 1118862 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
14
Roller WPL 1112303 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Insert, Handle (White) WPL 1125720 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1125721 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Fan Motor, Harness WPL 1114721 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Stud, Spacer (2) WPL 1115399 Contact Us For Availability
15
Relay WPL 1101014 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Crisper Pan (2) WPL 1125602 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Front Cover WPL 1126034 Contact Us For Availability
16
Trim, Door Shelf WPL 1125800 Contact Us For Availability
17
Utility Pan WPL 1125603 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1114679 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1114680 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Panel, Interior Door WPL 1125648 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 1118267 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Cover WPL 627356 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Insert, Plastic Tube WPL 1129177 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Control Box Harness WPL 1125647 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Basket, Small WPL 1125773 Contact Us For Availability
21
Nut, Compression WPL 1129179 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
22
Front, Basket WPL 1125771 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Basket, Upper WPL 1125712 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Front, Basket WPL 1125613 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2147476 Contact Us For Availability
24
Deflector, Ice Container WPL 1127233 Contact Us For Availability
25
Basket, Lower WPL 1125713 Contact Us For Availability
25
Escutcheon, Control Box WPL 1125588 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
26
Light Bar WPL 1118073 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Cover, Conduit WPL 1123926 Contact Us For Availability
26
Receptacle, Housing WPL 1103840 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Cover, Wiring WPL 1123921 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Screw, 4-40 x 3/4 WPL 488362 Contact Us For Availability
31
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
31
Switch (2) WPL 841336 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Retainer, Insert WPL 1107241 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Tube WPL 1129175 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Heater, Defrost WPL 1106969 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
35
Retainer, Insert WPL 1107617 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Almond Trim Kit Panel WPL 4211135 Contact Us For Availability
35
Trim Kit Panel (White) WPL 4211136 Contact Us For Availability
35
Trim Kit WPL 4318331 Contact Us For Availability
35
Handle Insert (Black) WPL 4318334 Contact Us For Availability
35
Woodgrain Handle Insert WPL 4318335 Contact Us For Availability
35
Black Grille Kit WPL 4318416 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Trim, Door WPL 1119061 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 1125974 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2147478 Contact Us For Availability
39
Insert, Cover (White) WPL 1125799 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1125802 Contact Us For Availability
39
Insert, Cover (Black) WPL 1125804 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1125723 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1125806 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Black) WPL 1125808 Contact Us For Availability
40
Nut, Compression WPL 1108005 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
``O`` Ring WPL 488794 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Scr WPL 488316 Contact Us For Availability
44
WPL 851384 WPL 851384 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
WPL 488307 WPL 488307 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
