Model Whirlpool KSRC22DXAL00 – Common Parts & Diagrams

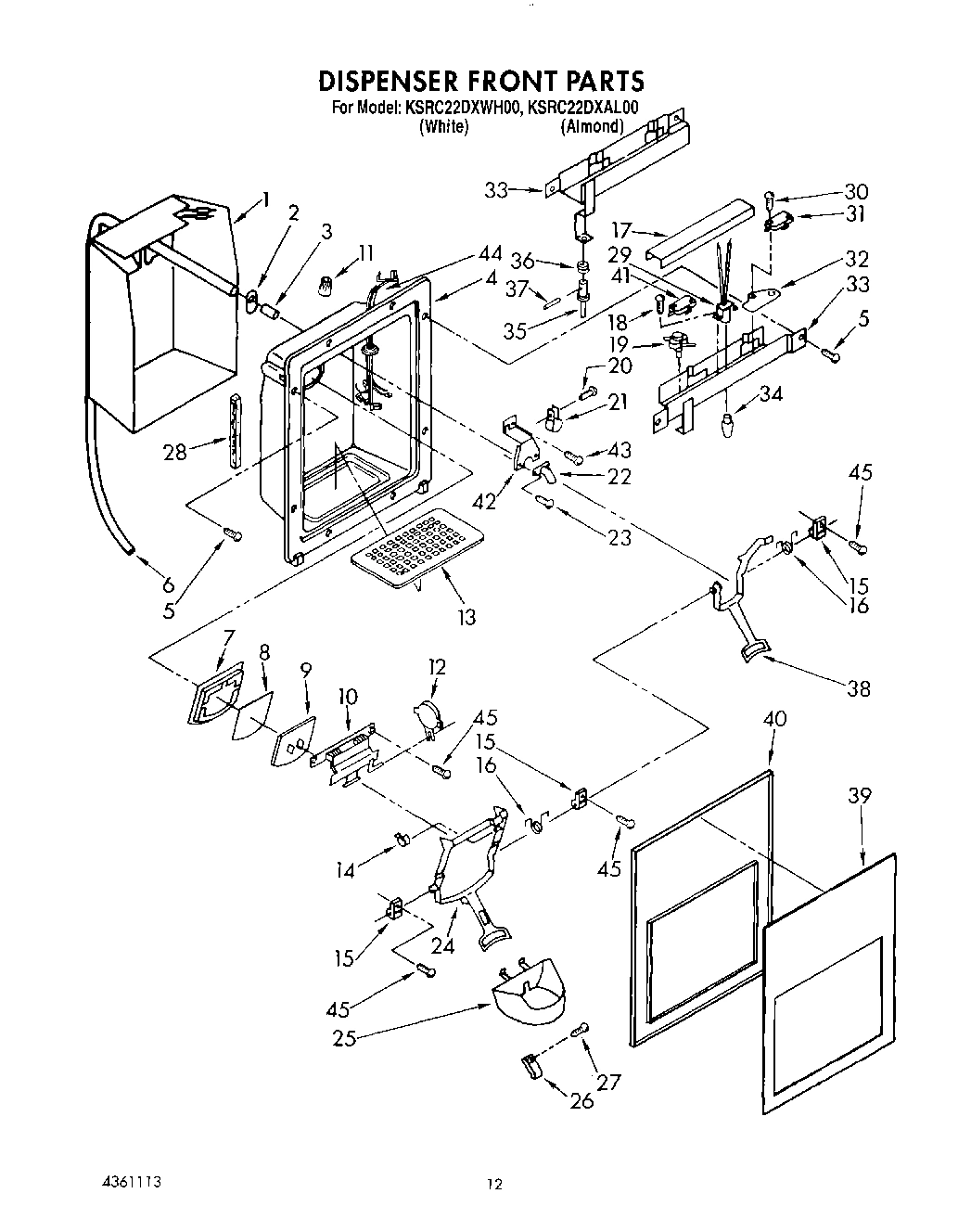

08 - DISPENSER FRONT

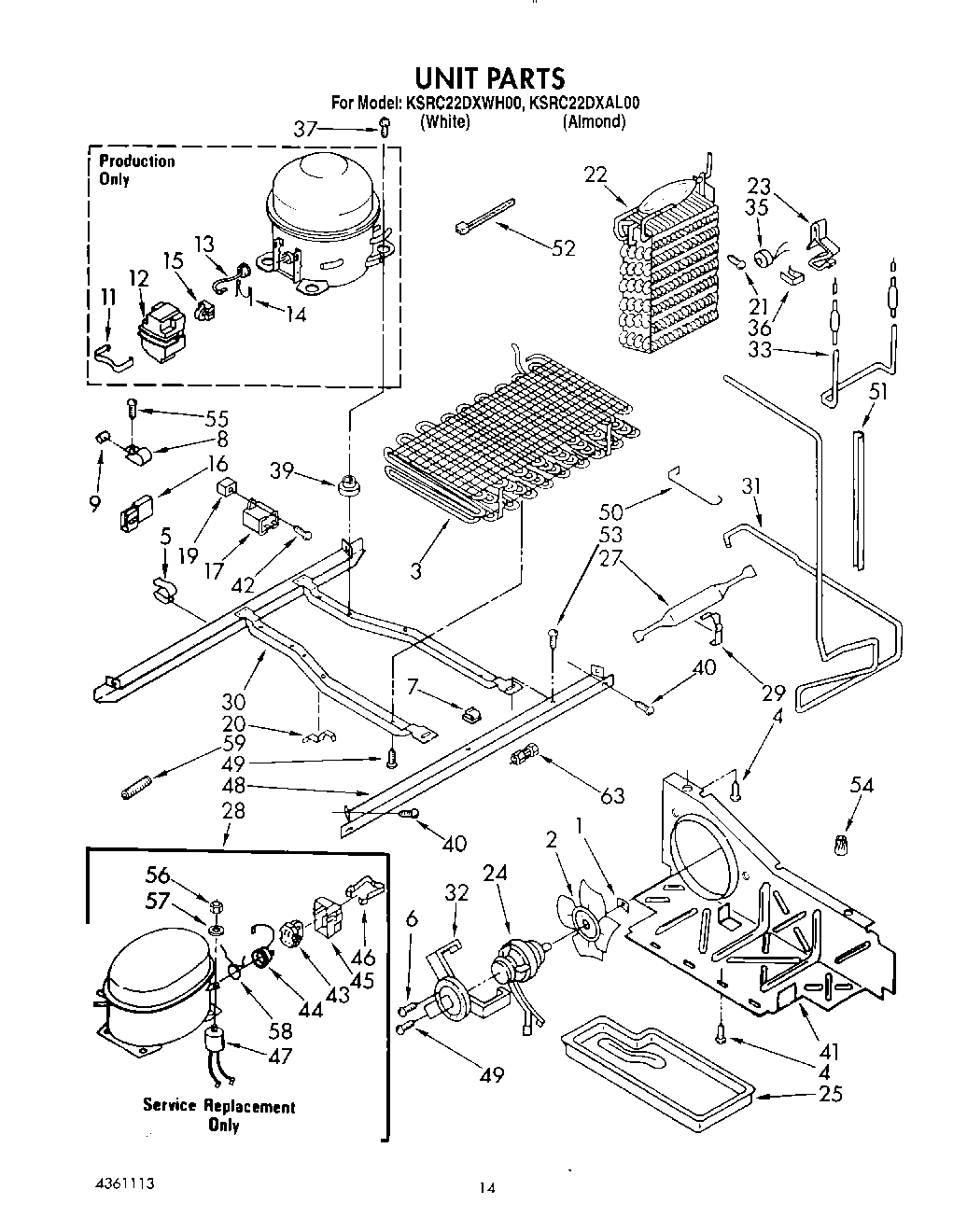

09 - UNIT
03 - REFRIGERATOR SHELF
01 - CABINET
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
10 - FREEZER LINER
05 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL
02 - REFRIGERATOR LINER
04 - FREEZER INTERIOR
11 - CONTROL
Common parts from model Whirlpool KSRC22DXAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1126347 WPL LIT1126347 Contact Us For Availability
WPL LIT1126371 WPL LIT1126371 Contact Us For Availability
WPL LIT2154812 WPL LIT2154812 Contact Us For Availability
WPL LIT4361113 WPL LIT4361113 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95202A4 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 1117848 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1117852 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125946 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125952 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95206A1 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95203A3 Contact Us For Availability
1
Control Box WPL 1125614 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Motor, Dispenser WPL 851152 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Handle Assembly WPL 1107215 Contact Us For Availability
3
Door, Ice Compartment WPL 1125821 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
End Cap (2) WPL 1107341 Contact Us For Availability
5
Air Duct Freezer WPL 2157548 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
6
Stud WPL 1115290 No Longer Available
6
Gasket, Cover (Front) WPL 1115291 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
7
Gasket WPL 983691 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1115293 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Spacer, Handle WPL 1107651 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149942 Contact Us For Availability
8
Shield, Impact WPL 987121 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Screw (2) WPL 489075 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1126272 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (4) WPL 1117928 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
10
Glass, Shelf WPL 1126279 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
11
Utility Bin WPL 1126274 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Shelf (3) WPL 1126351 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Hinge, Top WPL 1117936 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Front, Crisper WPL 1126290 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
14
Slide, Humidity WPL 1124819 Contact Us For Availability
14
Insert, Handle (White) WPL 1117950 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
14
Wiring Cover WPL 1114607 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Housing, Slide WPL 1124820 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Trim, Door Shelf WPL 1125800 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
17
Meat Pan WPL 1126288 Contact Us For Availability
17
Panel, Interior Door WPL 1126204 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1116960 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Control Box Harness WPL 2149752 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
Glass, Crisper WPL 1126293 Contact Us For Availability
22
Grille (Almond) WPL 1125668 Contact Us For Availability
22
Grille (White) WPL 2147467 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Washer WPL 489366 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Front, Basket WPL 1125613 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Basket, Lower WPL 2152103 Contact Us For Availability
25
Escutcheon, Control Box WPL 1126277 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Conveyor WPL 1115214 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
29
N/A WPL ARI95204A1 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Floating Baffle WPL 1115362 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Nut, Bearing WPL 946195 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Cabinet Harness WPL 2149745 Contact Us For Availability
32
Retainer, Insert WPL 1107241 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Retainer, Insert WPL 1117953 Contact Us For Availability
35
Shelf Bin (4) WPL 1126206 Contact Us For Availability
35
Trim Kit Panel (Almond Handle Insert) WPL 4211135 Contact Us For Availability
35
Trim Kit Panel (White) WPL 4211136 Contact Us For Availability
35
Trim Kit WPL 4318331 Contact Us For Availability
35
Trim Kit Panel (Black) WPL 4318334 Contact Us For Availability
35
Trim Kit Panel (Woodgrain) WPL 4318335 Contact Us For Availability
35
Trim Kit Panel (Black Grille Kit) WPL 4318416 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Trim, Door WPL 1119061 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
41
``O`` Ring WPL 488819 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Deflector, Ice Container WPL 1127233 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126034 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
Cover, Unit WPL 1105617 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
Clamp, Water Line (2) WPL 836472 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
