Model Whirlpool KSRC22DBWH00 – Common Parts & Diagrams
10 - ICEMAKER
12 - CONTROL, LIT/OPTIONAL

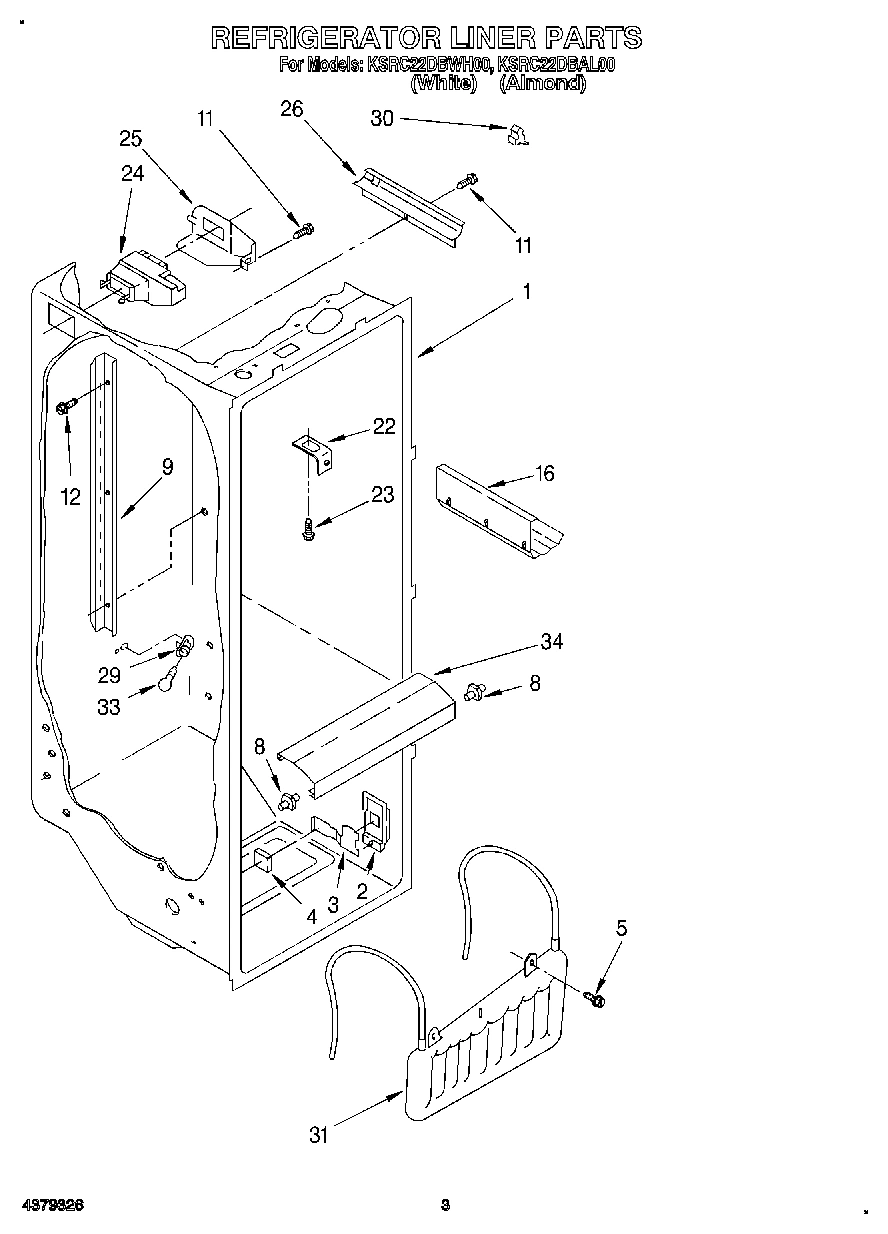

02 - REFRIGERATOR LINER

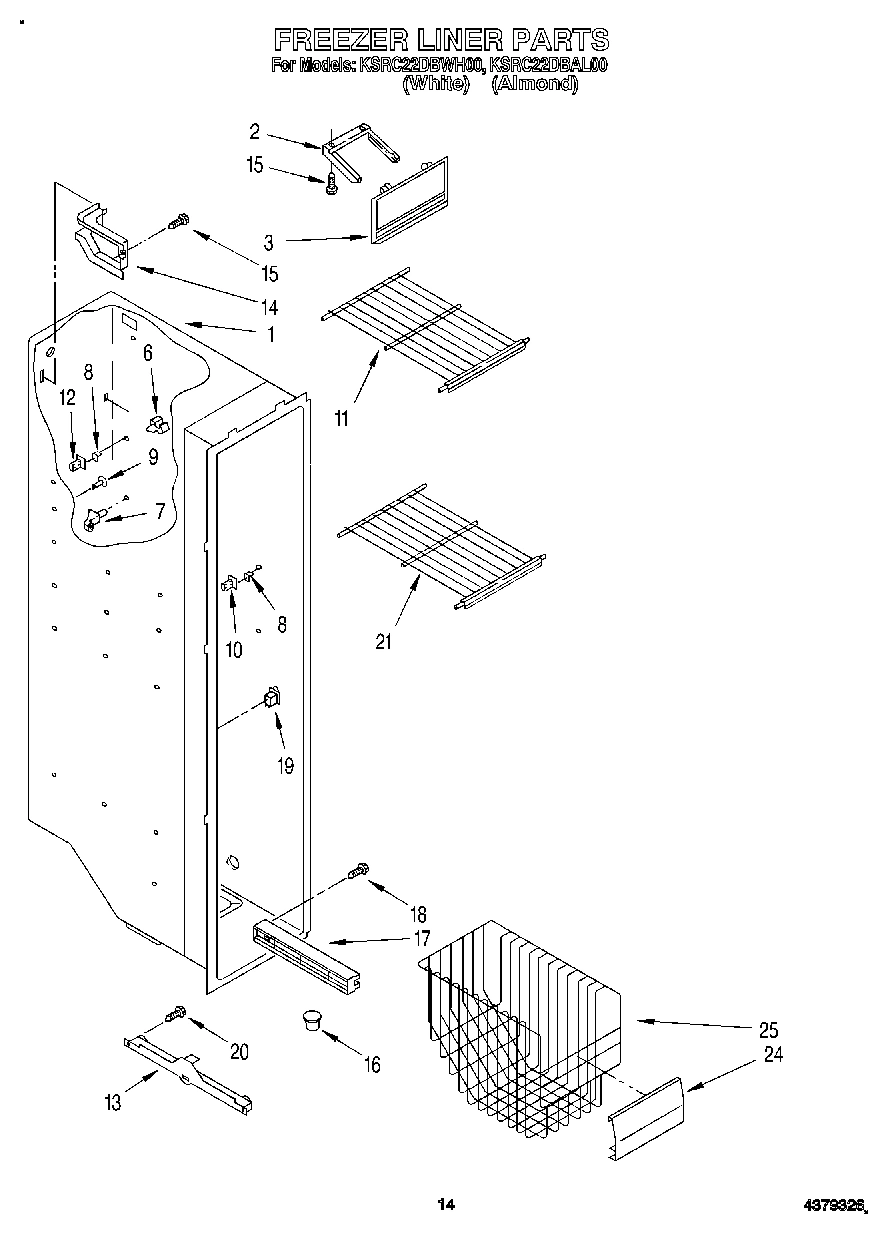

09 - FREEZER LINER

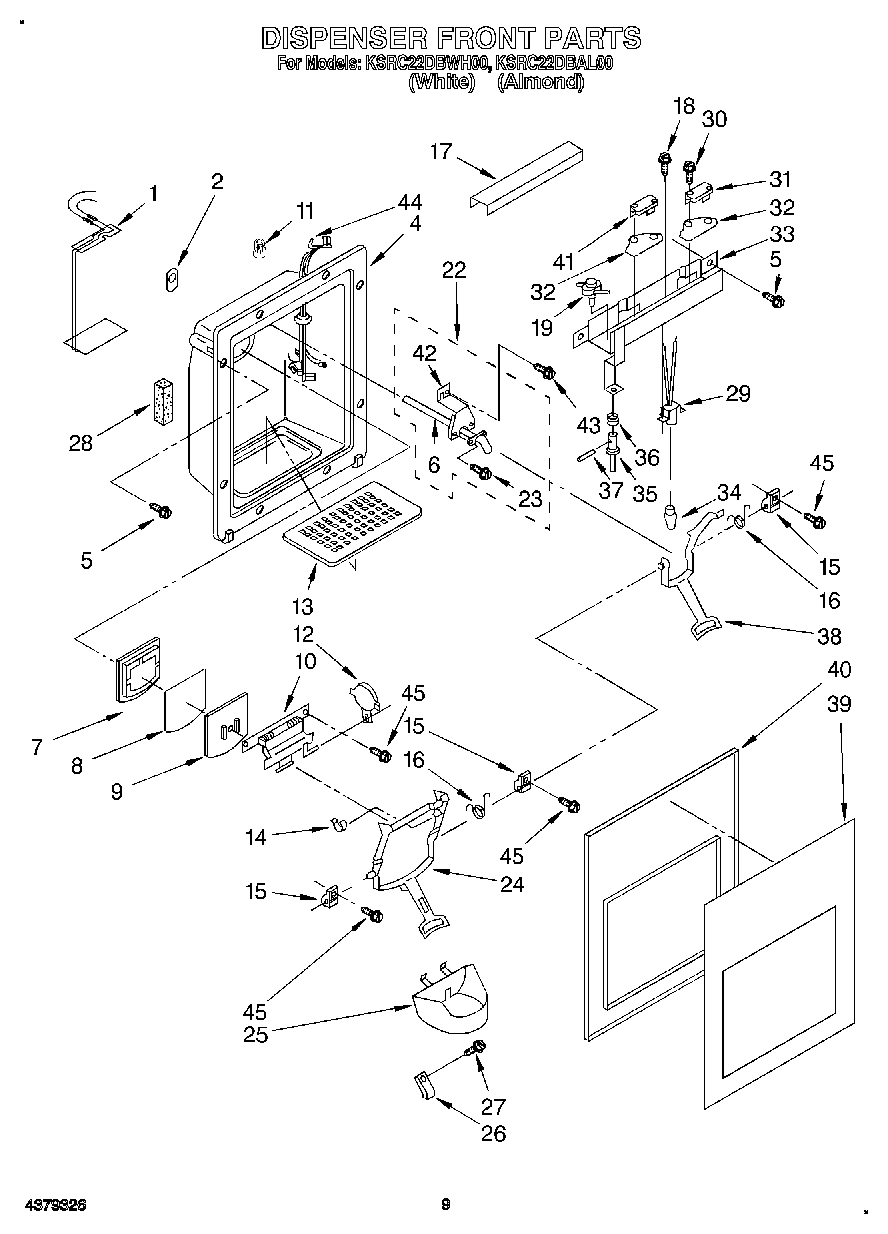

06 - DISPENSER FRONT

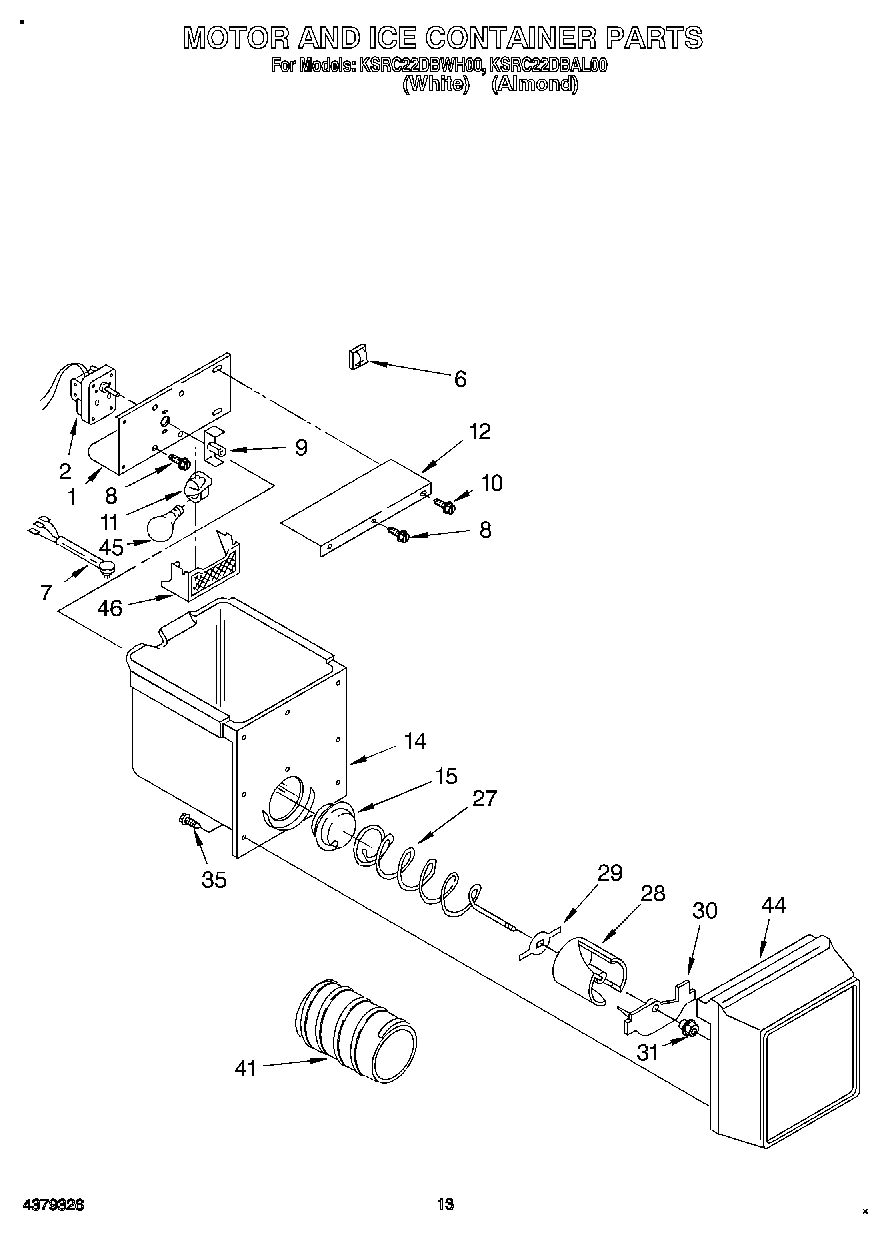

08 - MOTOR AND ICE CONTAINER

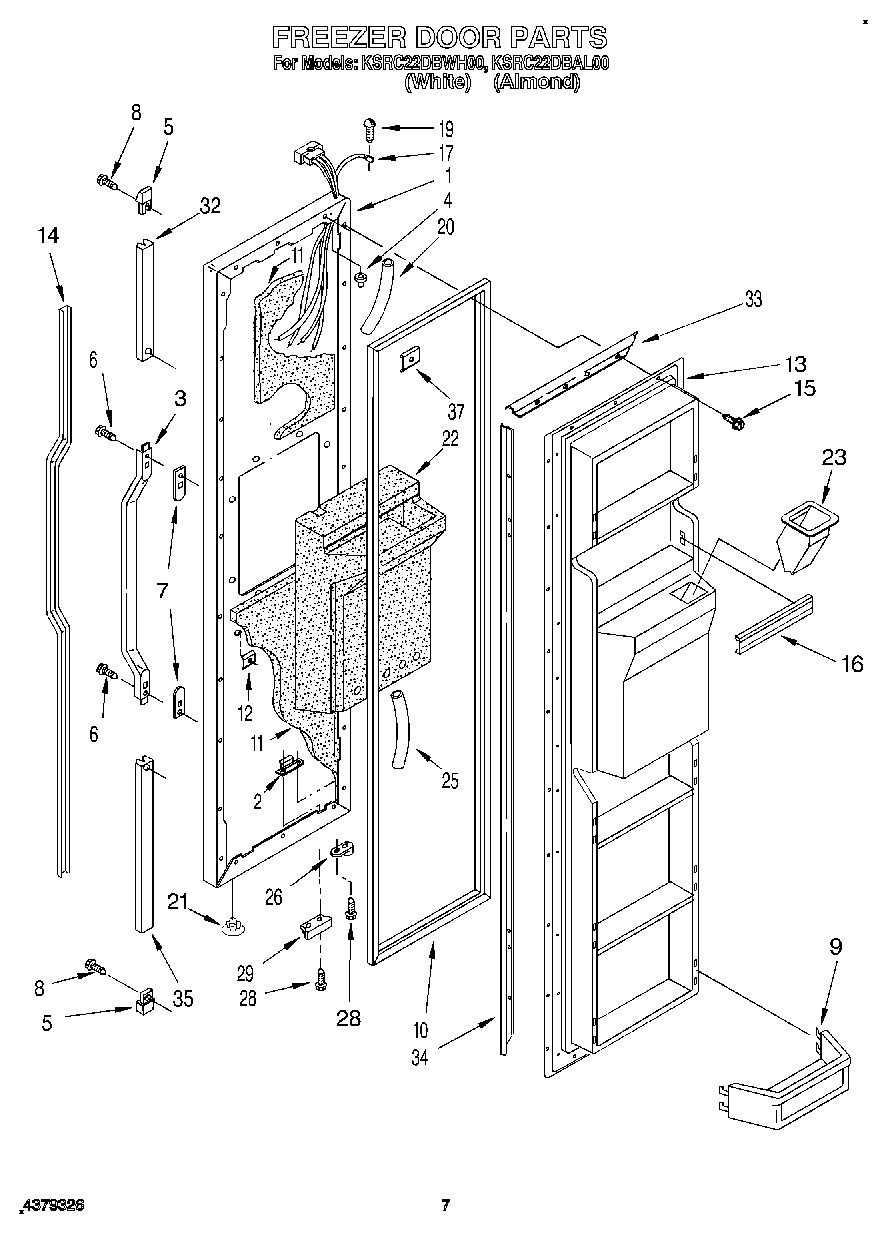

05 - FREEZER DOOR
07 - UNIT

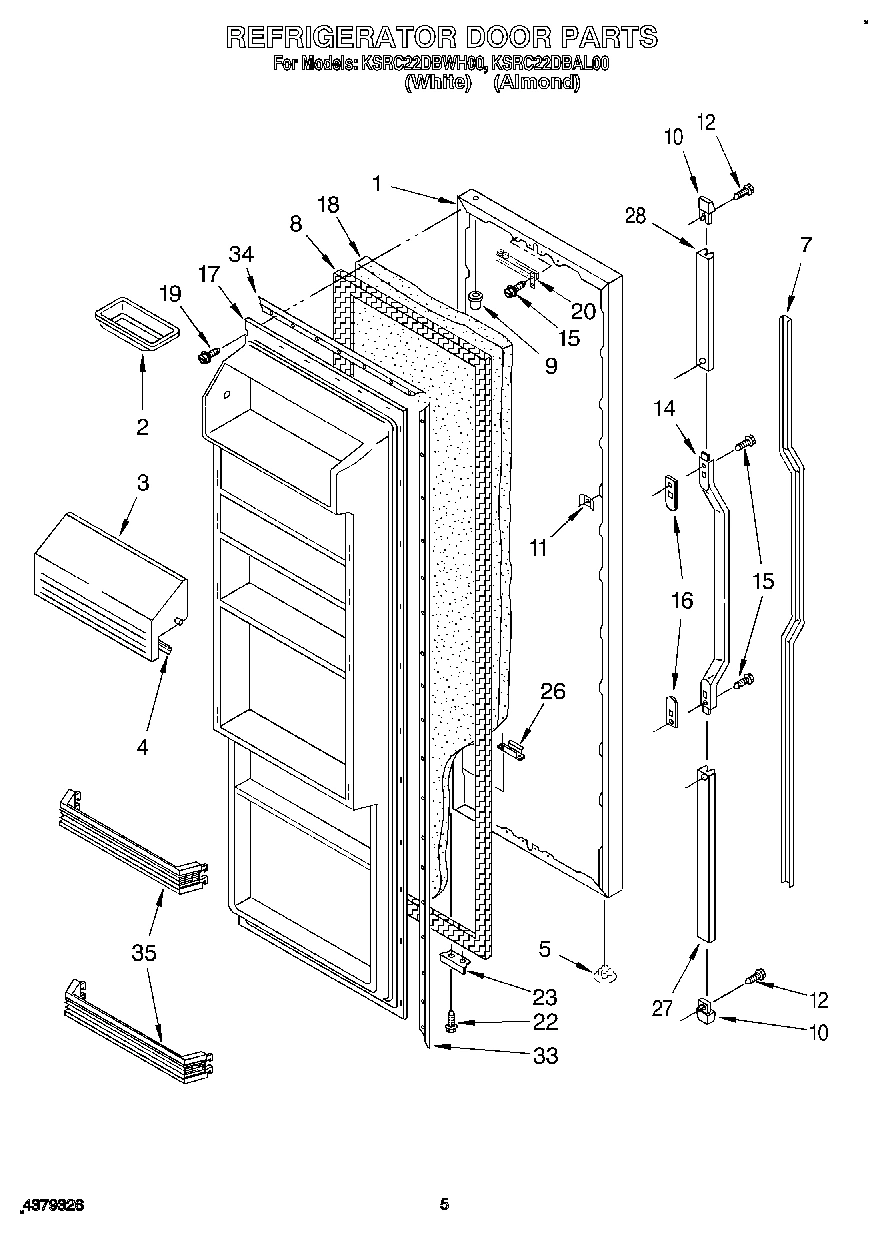

04 - REFRIGERATOR DOOR
11 - AIR FLOW

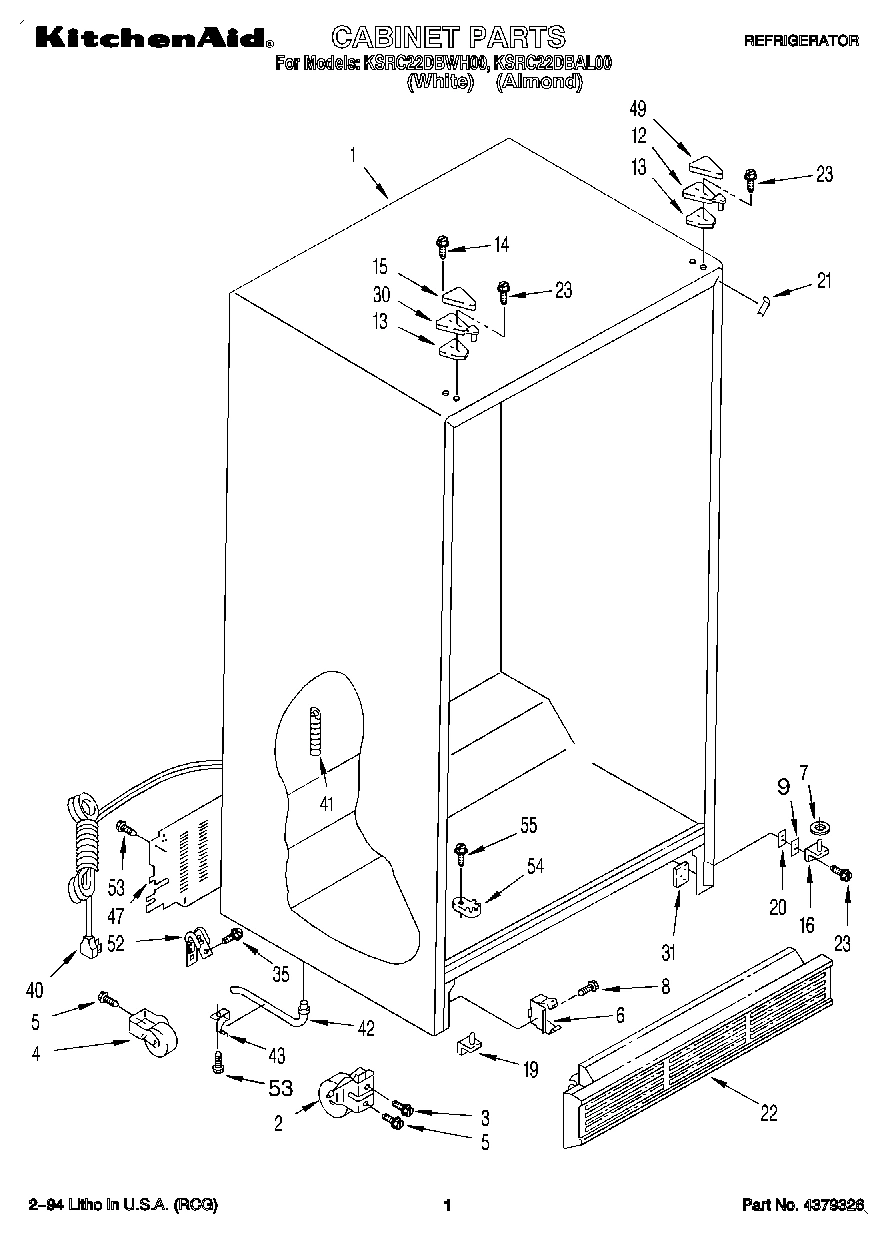

01 - CABINET

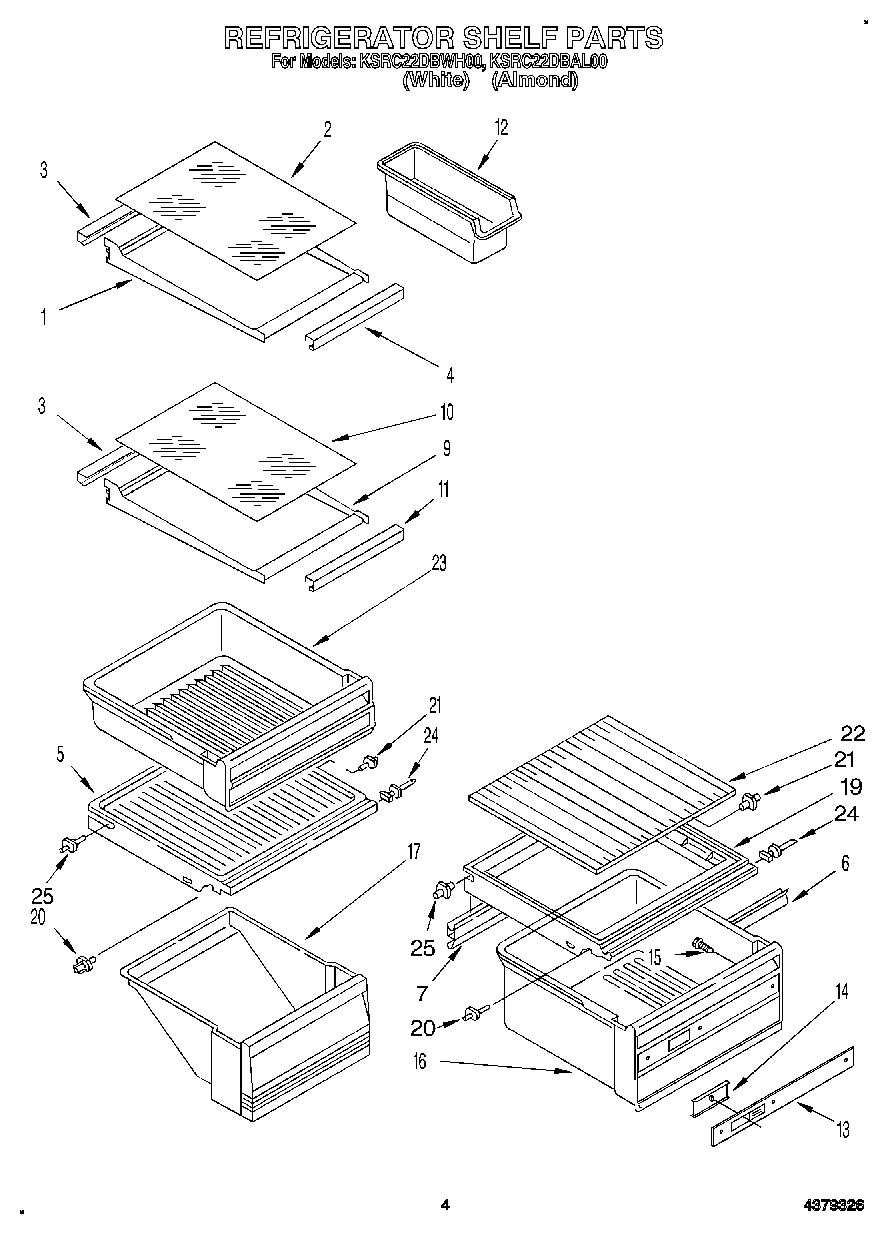

03 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSRC22DBWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95197A1 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1125946 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1125952 Contact Us For Availability
1
Refrigerator Door (White) WPL 4362044 Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 4362045 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95193A1 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Motor, Dispenser WPL 2155262 Contact Us For Availability
2
Butter, Tray WPL 1125936 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
3
Door, Ice Compartment WPL 1125821 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
5
Screw WPL 488280 Contact Us For Availability
5
Hole Plug WPL 2151653 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI95195A1 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Gasket, Cover (Front) WPL 1115291 Contact Us For Availability
7
Gasket WPL 983691 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
7
Insert, Handle (White) WPL 1117950 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1117951 Contact Us For Availability
7
Washer WPL 489366 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1121385 Contact Us For Availability
8
Shield, Impact WPL 987121 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Shelf Bin (4) WPL 1117928 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1126272 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
End Cap, Handle WPL 1107341 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Glass, Shelf WPL 1126279 Contact Us For Availability
11
Shelf WPL 1126351 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Screw Anchor WPL 941242 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Gasket (Front) WPL 1126281 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Screw WPL 489075 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Front, Crisper WPL 2168759 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Handle Assembly WPL 1107215 Contact Us For Availability
14
Insert, Handle (Almond) WPL 1125721 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Slide, Humidity WPL 1125853 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI95196A5 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Screw (3) WPL 489268 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Spacer, Handle WPL 1107651 Contact Us For Availability
16
Trim, Door Shelf WPL 1126496 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Pan, Crisper WPL 2168851 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Harness, Door WPL 1116960 Contact Us For Availability
17
Running Capacitor WPL 2154565 Contact Us For Availability
17
Panel, Interior Door WPL 1126204 Contact Us For Availability
17
Meat Pan WPL 2168884 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Shelf (2) WPL 1126350 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
Glass, Crisper WPL 1126293 Contact Us For Availability
23
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Bracket, Door Stop WPL 2155332 Contact Us For Availability
23
Bin, Utility WPL 2168885 Contact Us For Availability
24
Front, Basket WPL 1126356 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
25
Shelf Stud WPL 1115290 No Longer Available
25
Basket, Lower WPL 1126352 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
26
Stop, Glass (White) WPL 2147480 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
26
Shield, Heat WPL 2149293 Contact Us For Availability
27
Screw WPL 488892 Contact Us For Availability
27
Conveyor WPL 1115214 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1117953 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Retainer, Insert WPL 1107241 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
30
Floating Baffle WPL 1115362 Contact Us For Availability
31
Nut, Bearing WPL 946195 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
WPL 799344 WPL 799344 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Plunger, Extension WPL 1116563 Contact Us For Availability
35
Shelf Bin (4) WPL 1126206 Contact Us For Availability
35
Almond Handle Insert WPL 4211135 Contact Us For Availability
35
Trim Kit Panel (White) WPL 4211136 Contact Us For Availability
35
Trim Kit Trim Kit Panel WPL 4318331 Contact Us For Availability
35
Handle Insert (Black) WPL 4318334 Contact Us For Availability
35
Woodgrain WPL 4318335 Contact Us For Availability
35
Black Grille Kit WPL 4318416 Contact Us For Availability
36
Spring, Plunger WPL 983986 Contact Us For Availability
36
Wire Asm. Intermediate WPL 2149199 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
39
Insert, Cover (White) WPL 1126303 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1126304 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1126305 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1126306 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Switch WPL 851386 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171264 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
