Model Whirlpool KSRB27QABL05 – Common Parts & Diagrams

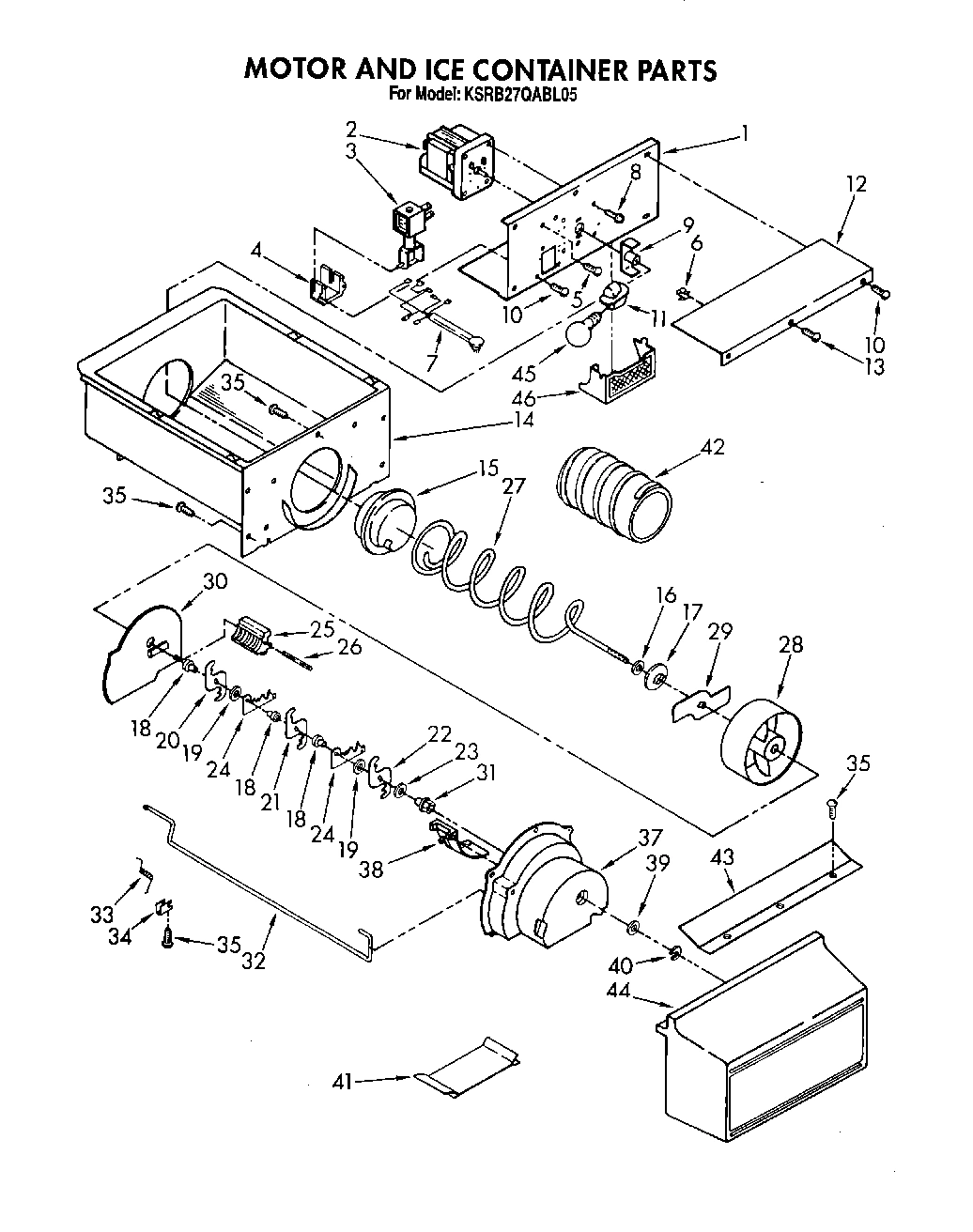

06 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL
08 - FREEZER DOOR

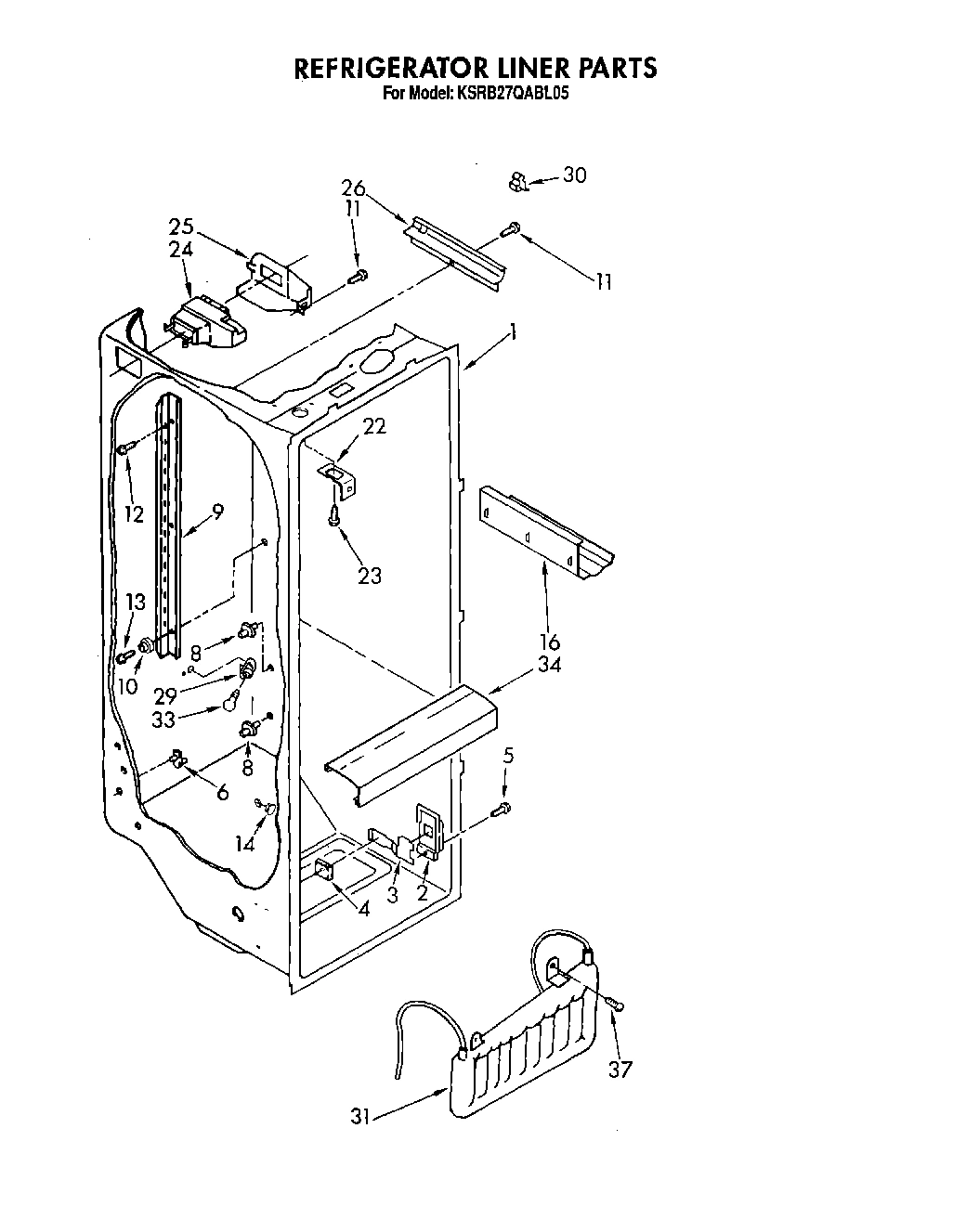

03 - REFRIGERATOR LINER
04 - REFRIGERATOR SHELF

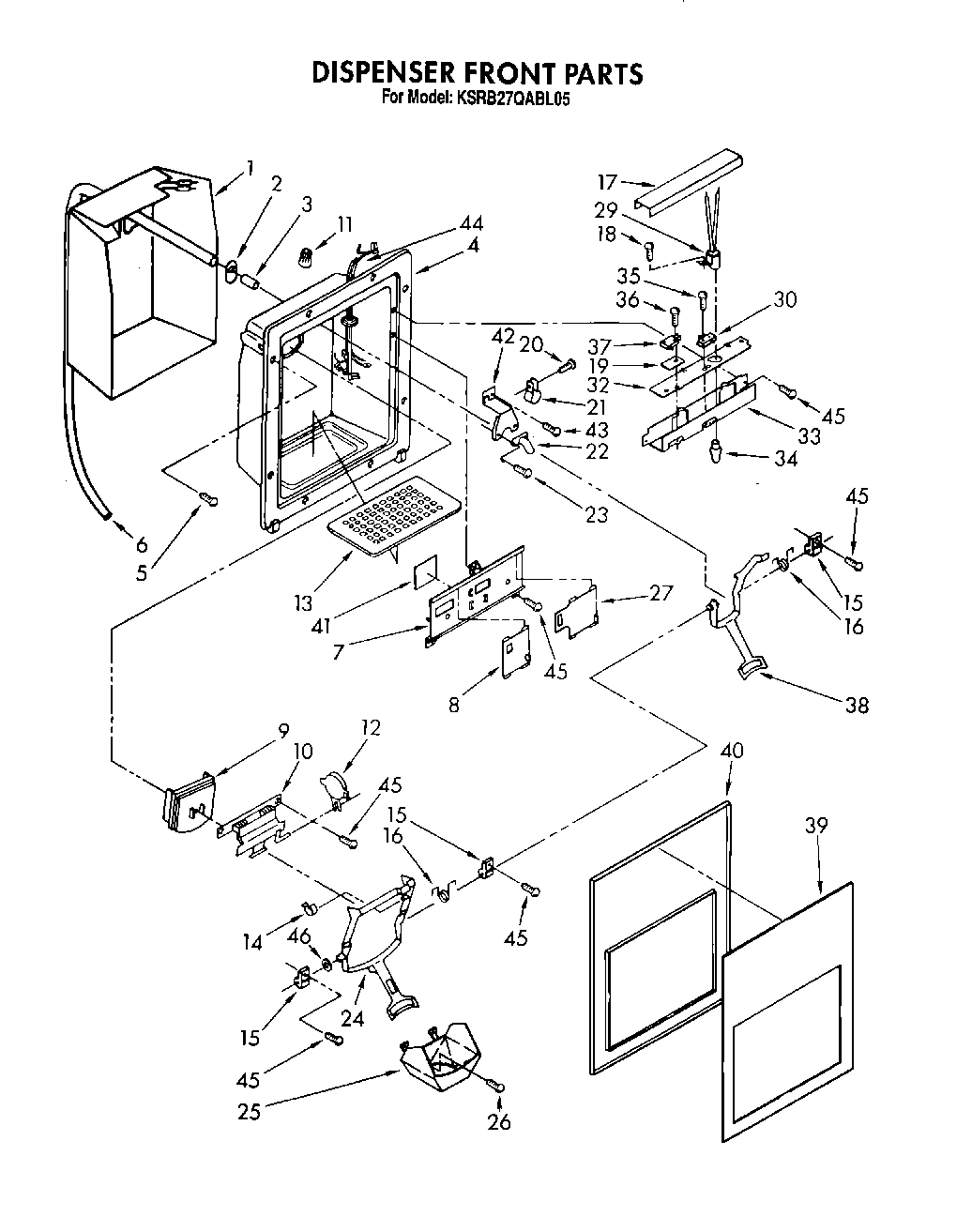

09 - DISPENSER FRONT

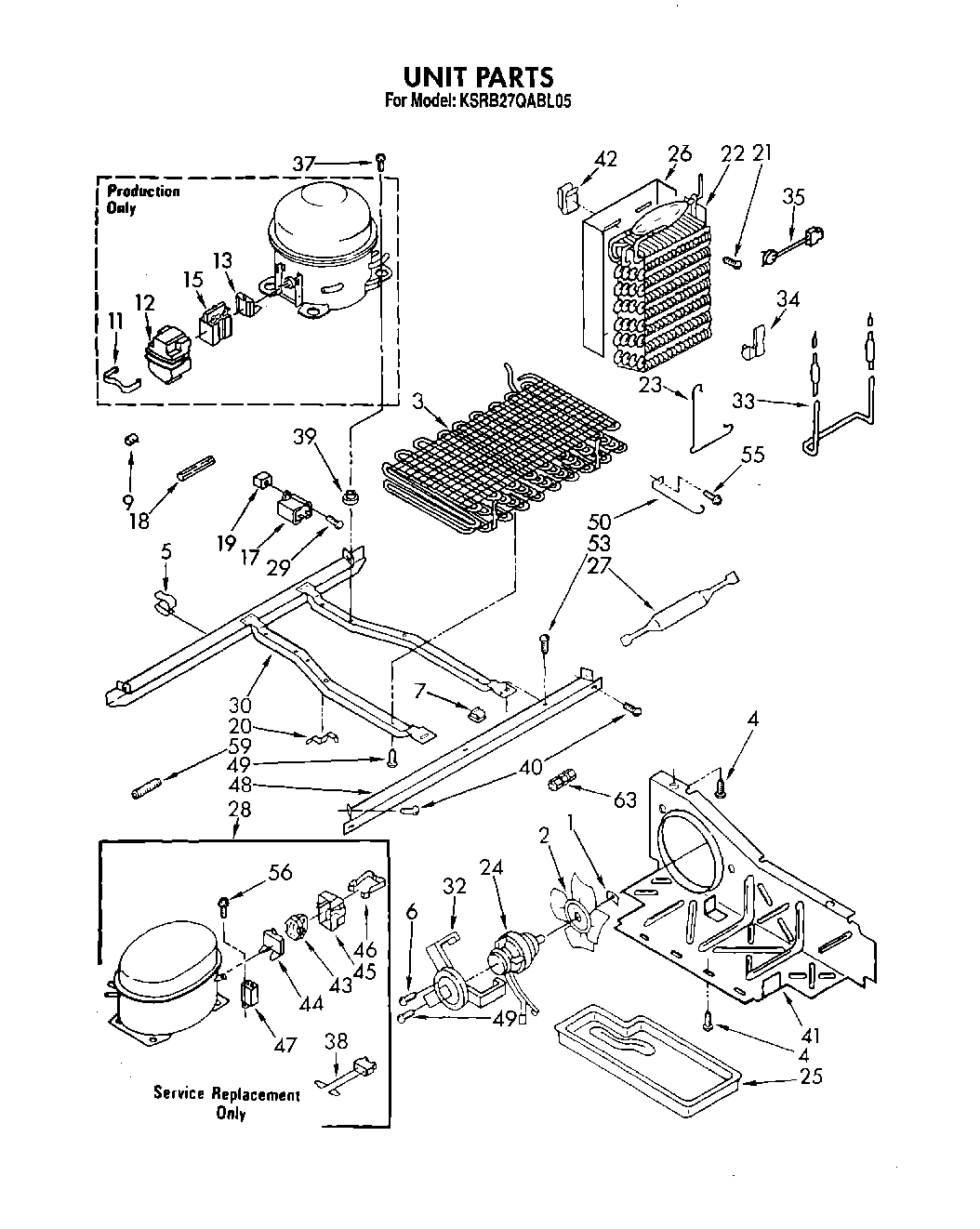

10 - UNIT

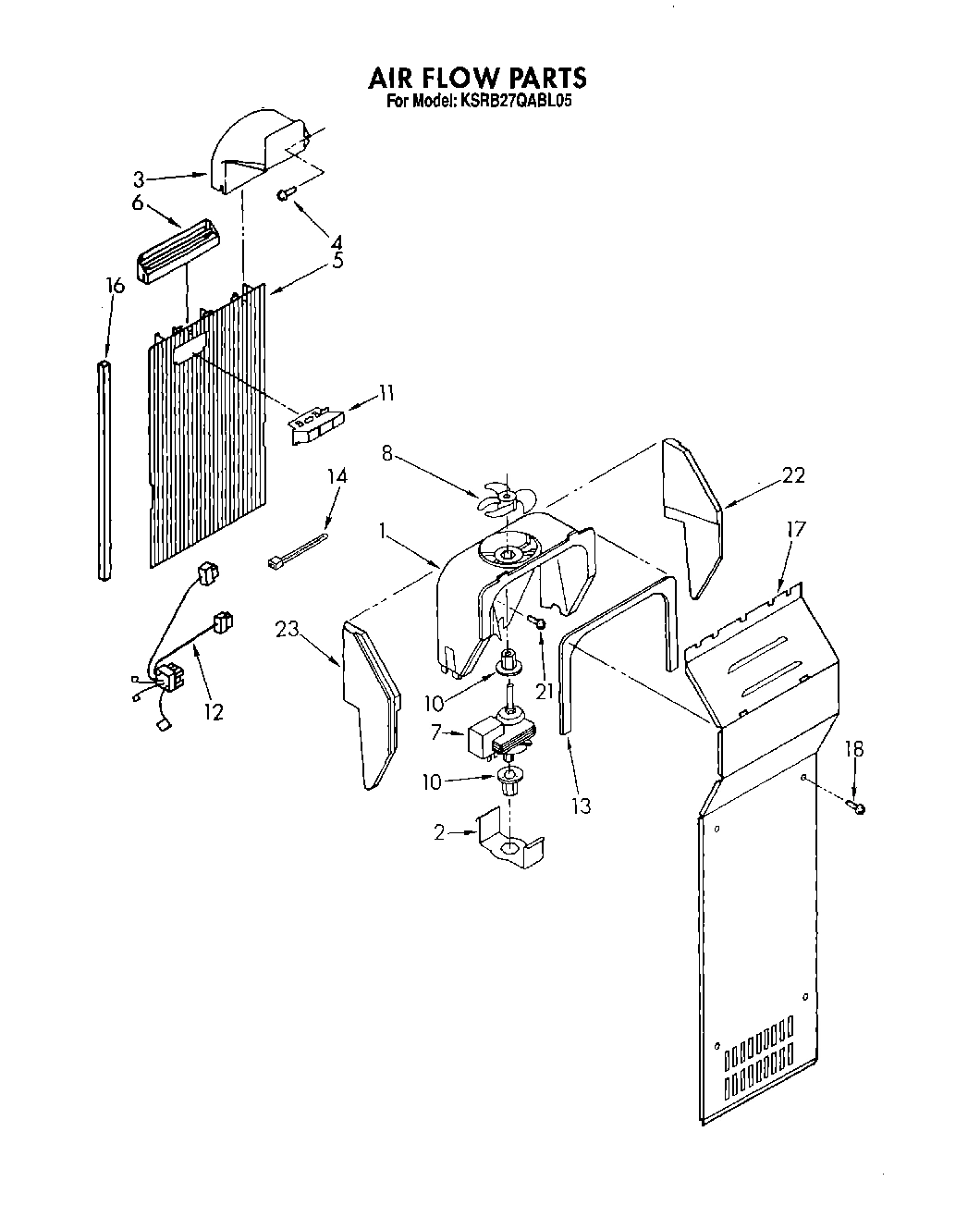

12 - AIRFLOW

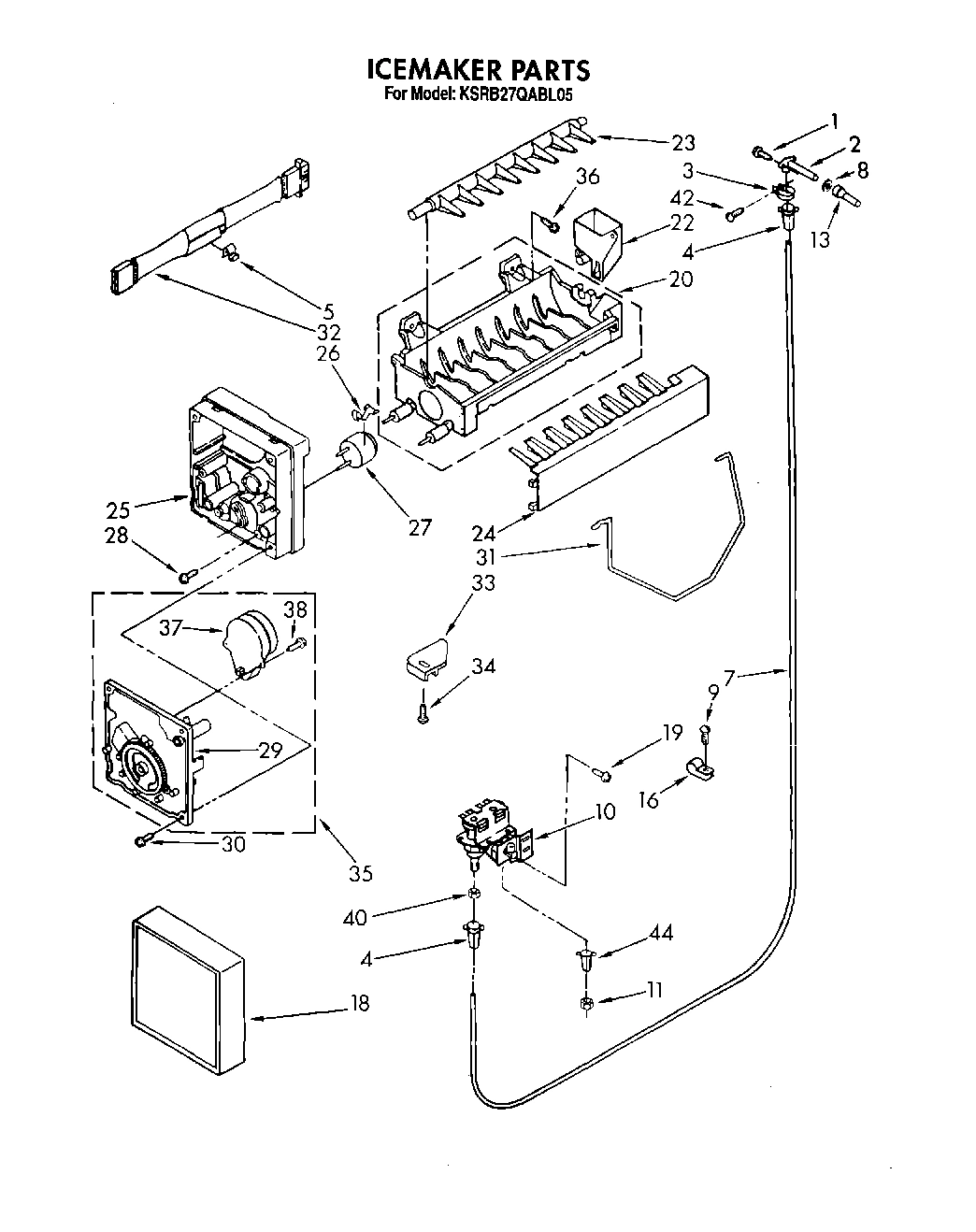

11 - ICEMAKER

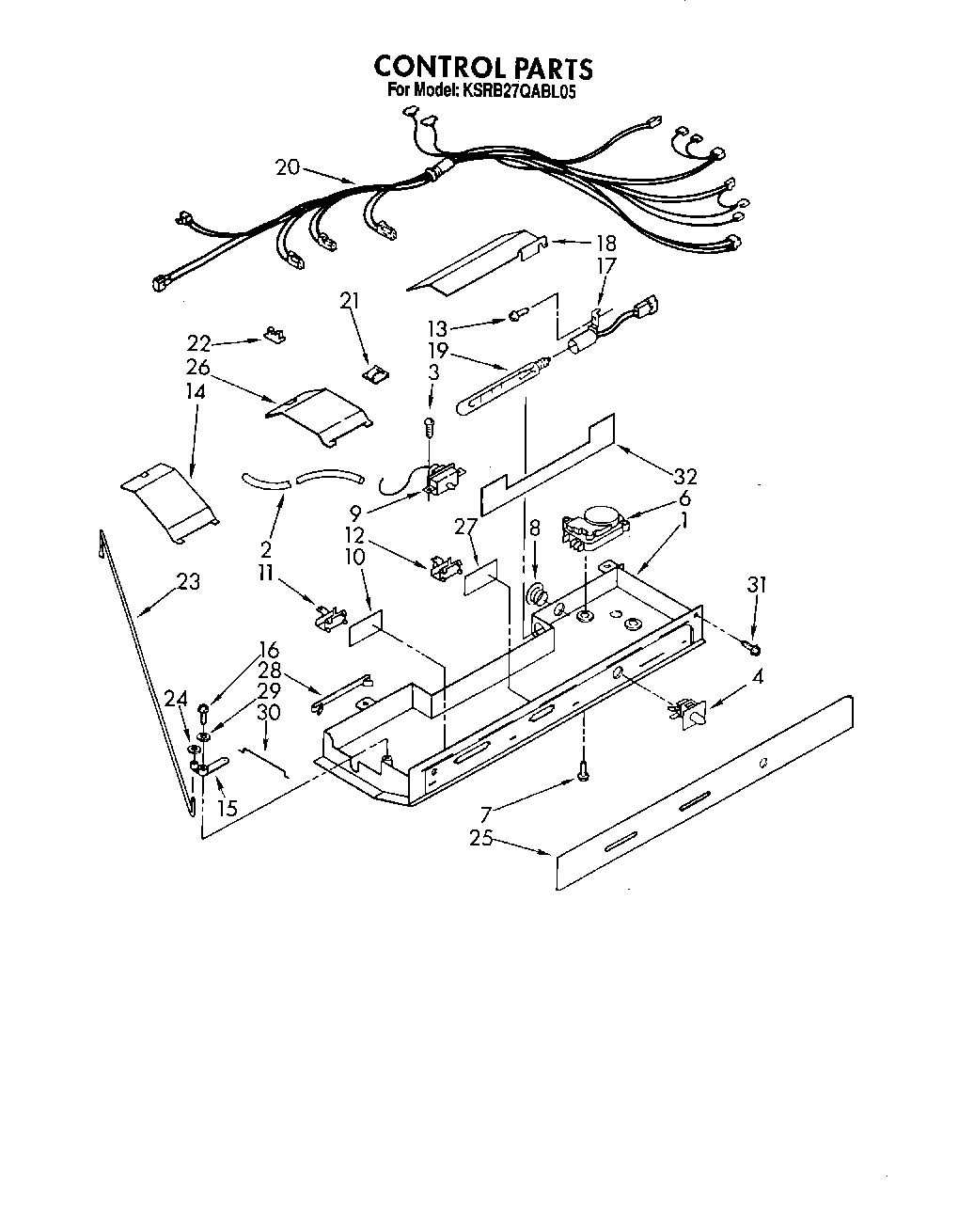

13 - CONTROL

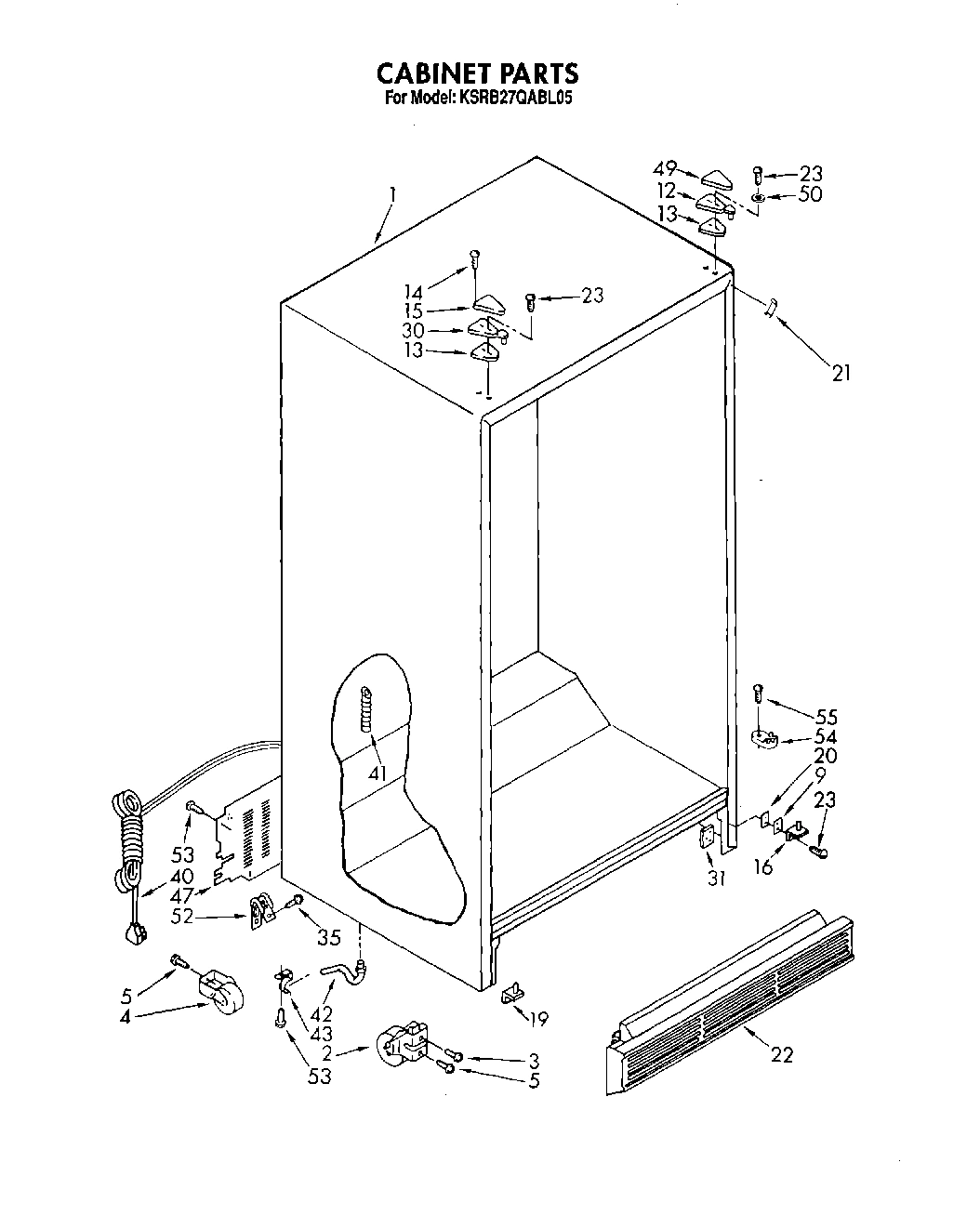

02 - CABINET

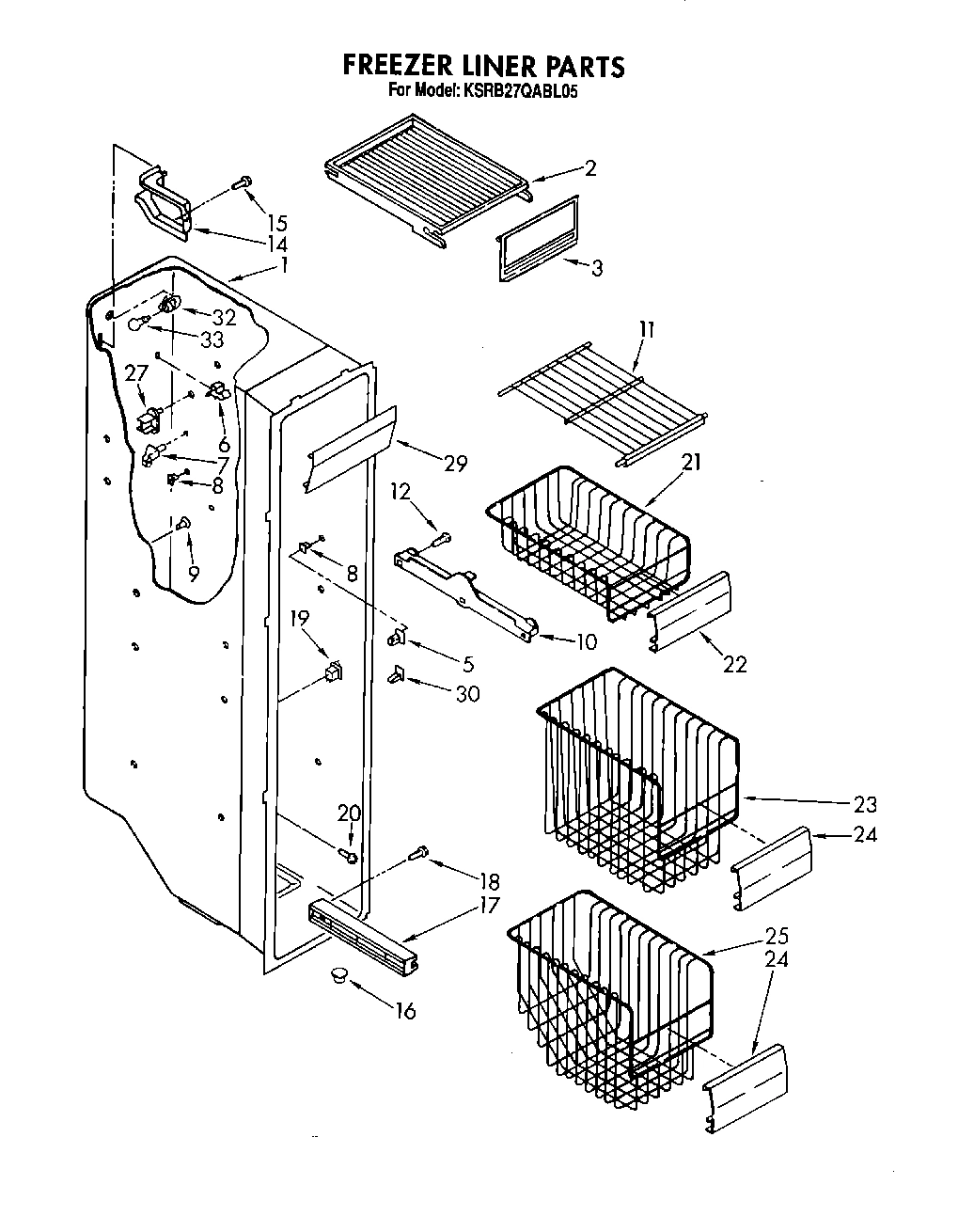

05 - FREEZER LINER

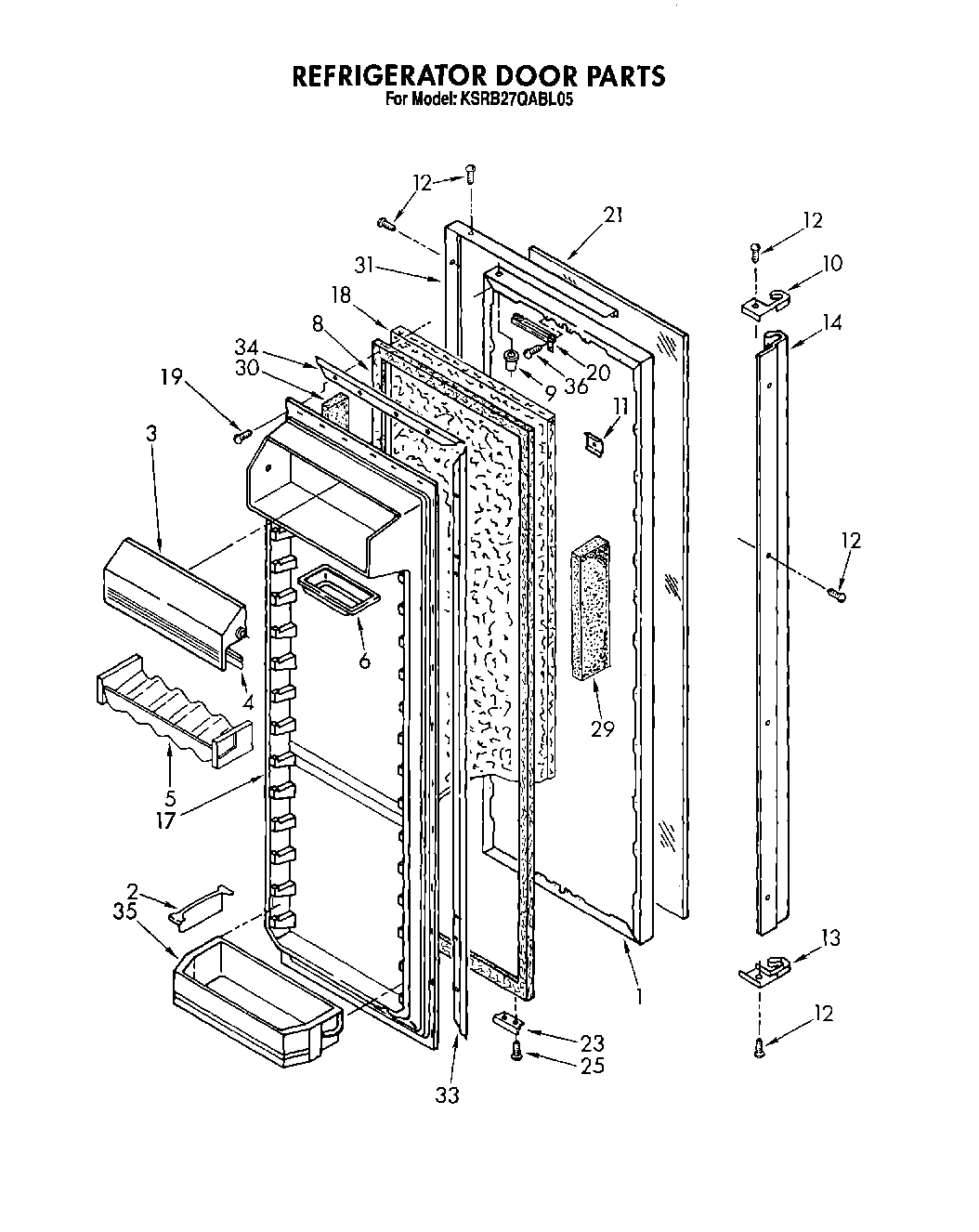

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRB27QABL05
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Control Box WPL 2155693 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95079A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95081A2 Contact Us For Availability
1
Refrigerator Door (Black (Also Order Item 18) WPL 1117983 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Shelf, Top Compartment WPL 1125824 Contact Us For Availability
2
Load Lock WPL 2161564 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Defrost Timer WPL 2162347 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Screw, 8 x 1/2 WPL 486214 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 2161760 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
End Cap, Handle WPL 1126074 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Wire Connector WPL 850145 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
11
Tap Plate WPL 1123568 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Screw WPL 489112 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154757 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Shim, Hinge Top WPL 1123518 Contact Us For Availability
13
End Cap WPL 1126073 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Handle WPL 1126070 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI95082A6 Contact Us For Availability
15
Hinge Cover WPL 1115888 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
Crisper Pan (2) WPL 2161893 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
17
Utility Pan WPL 2161892 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Panel, Interior Door WPL 1117906 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Roller WPL 2161750 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
21
Filler, Wrapper WPL 1127272 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
21
Black Glass WPL 1126015 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129054 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
23
Bracket, Door Stop WPL 2157609 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2161806 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
29
Dike, Door Handle Side WPL 1126151 Contact Us For Availability
30
Switch WPL 1127898 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Dike, Door Hinge Side WPL 1126152 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Trim, Door WPL 1117901 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Screw (2) WPL 489360 Contact Us For Availability
35
Shelf Bin (4) WPL 1126069 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
39
Insert, Cover WPL 1125803 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 1125807 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Relay (Order Overload, No.44, To Obtain Relay WPL ARI95083A1 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
44
Insert, Tube WPL 1129177 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
WPL 799344 WPL 799344 Contact Us For Availability
46
Washer (Repair) WPL 489336 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 2161317 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Washer WPL 489328 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
