Model Whirlpool KSRB25QXAL10 – Common Parts & Diagrams

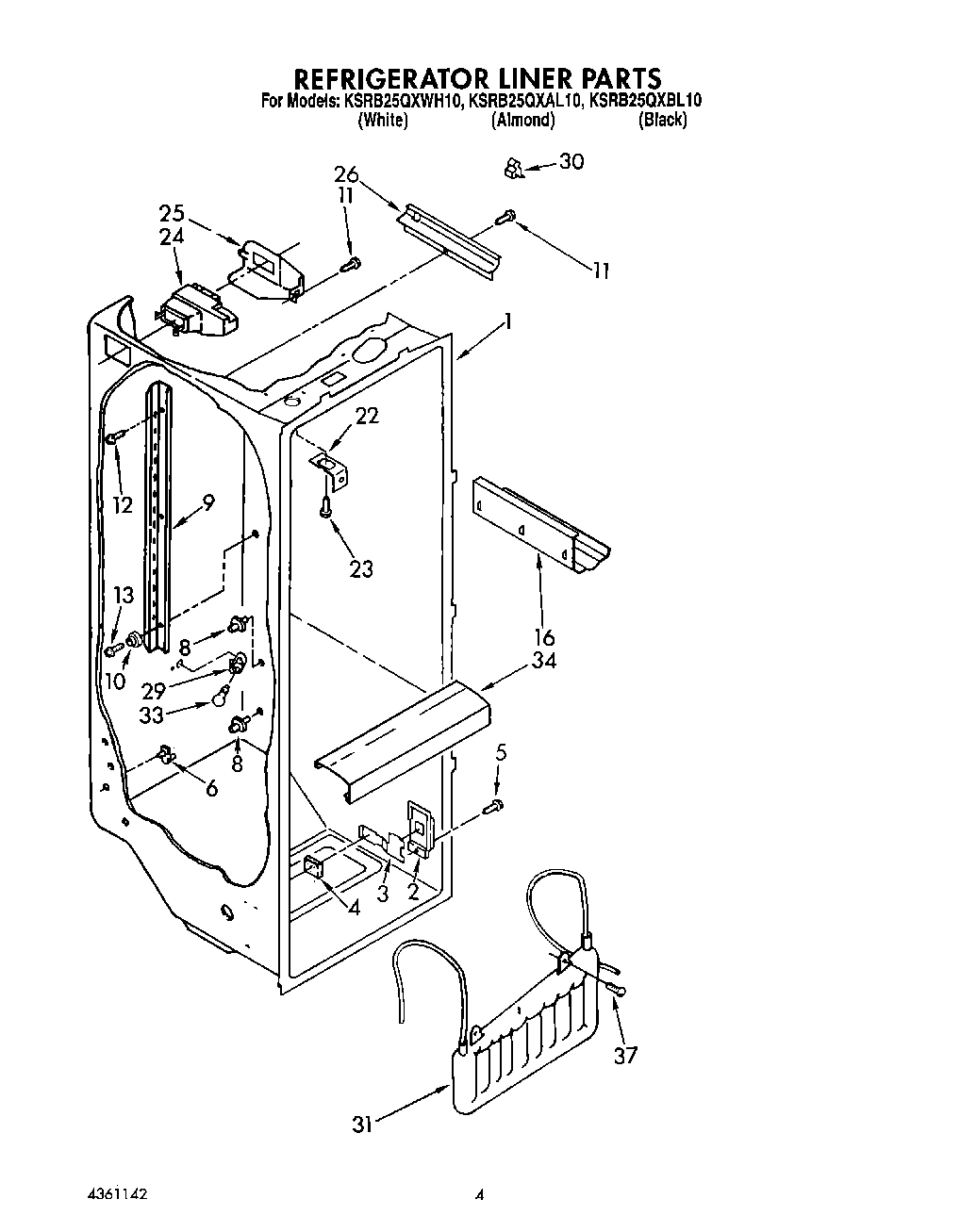

03 - REFRIGERATOR LINER

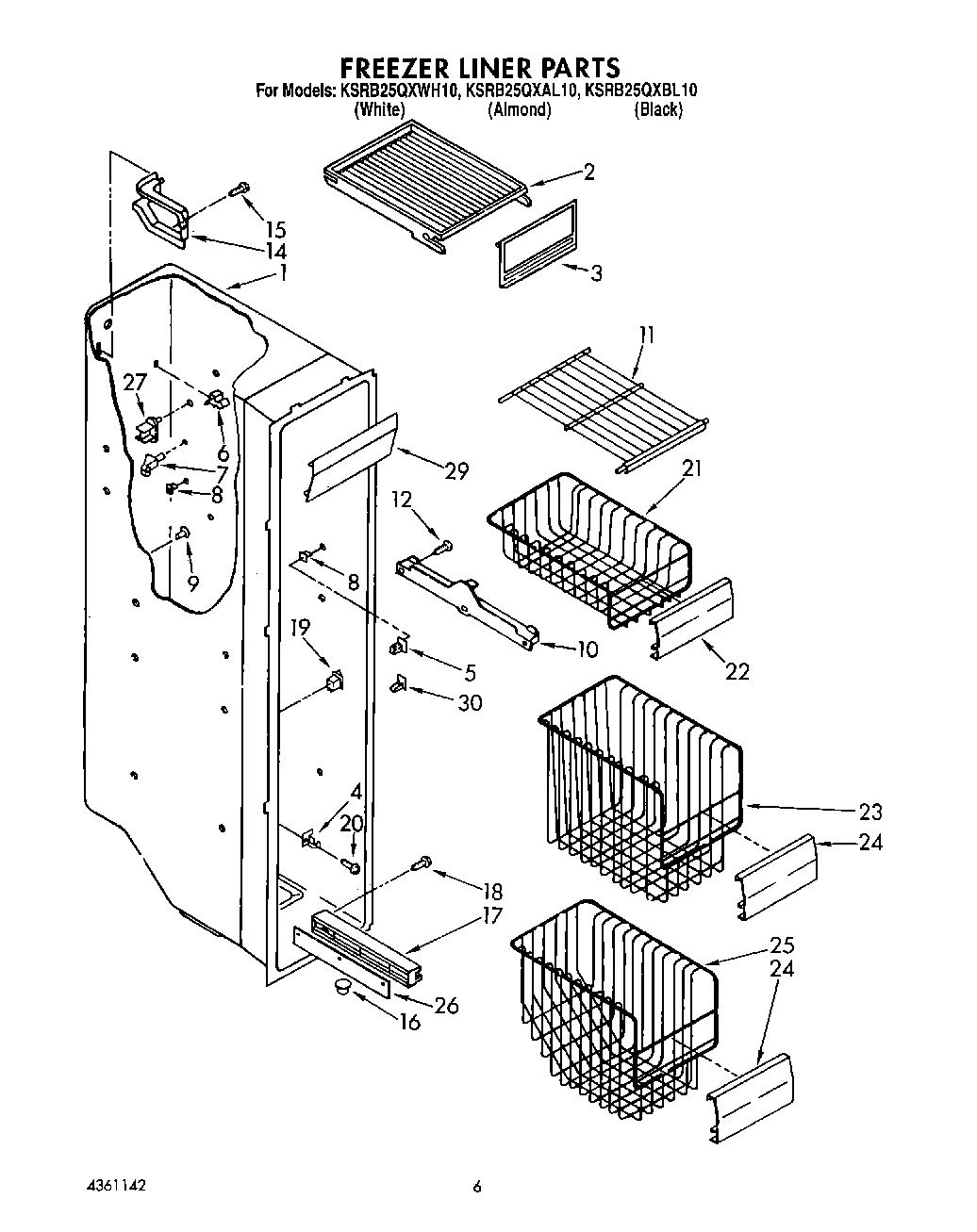

05 - FREEZER LINER

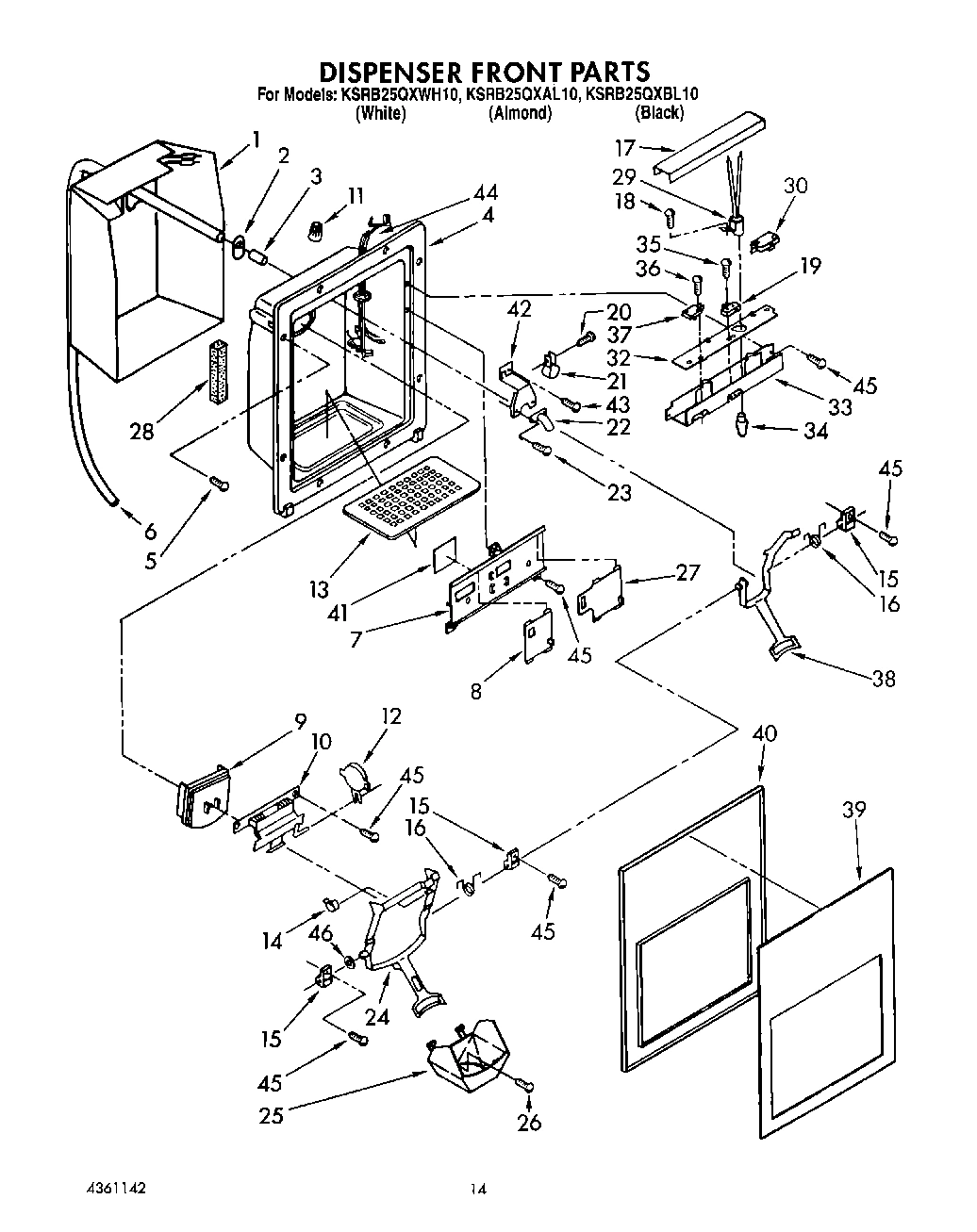

10 - DISPENSER FRONT

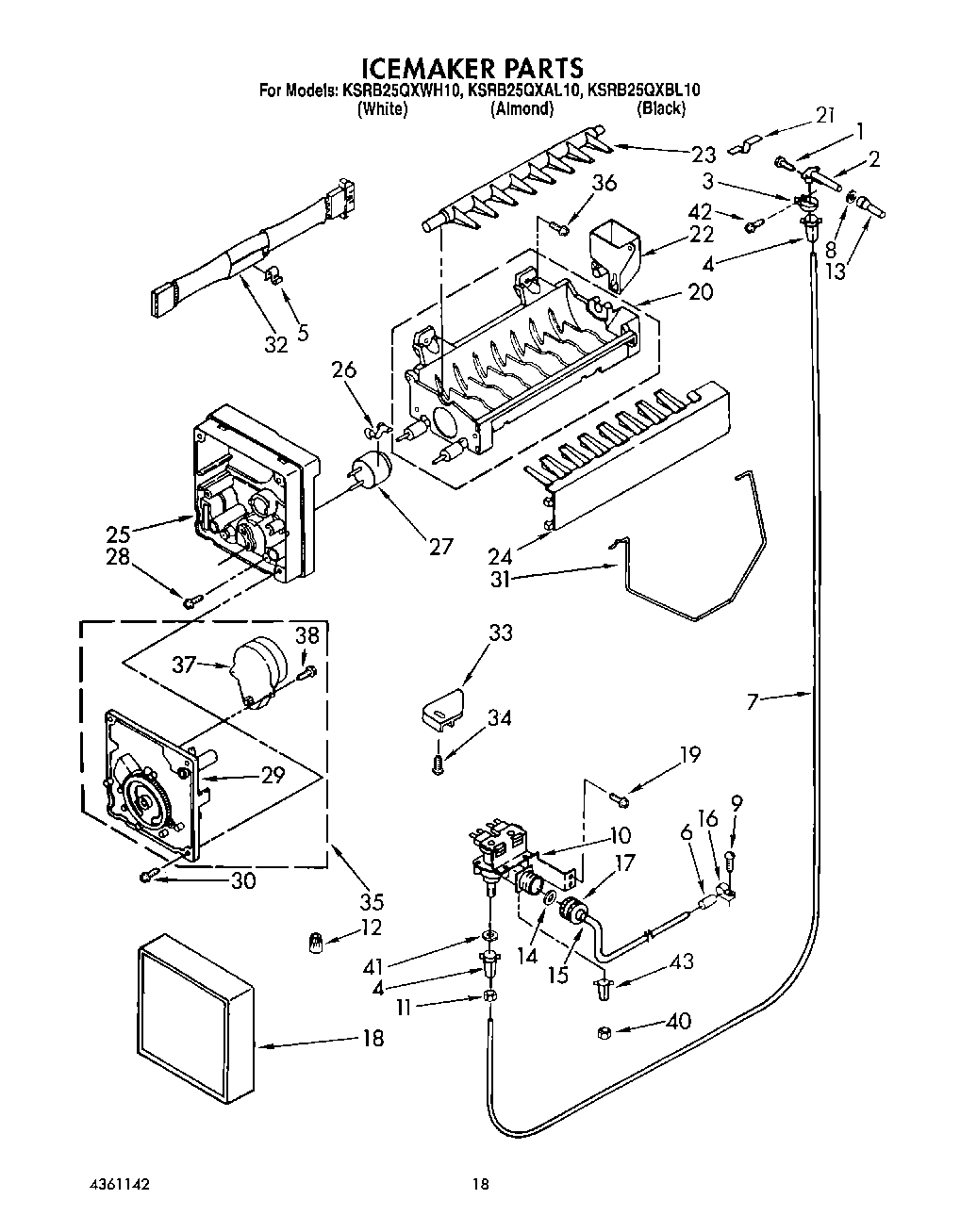

12 - ICEMAKER

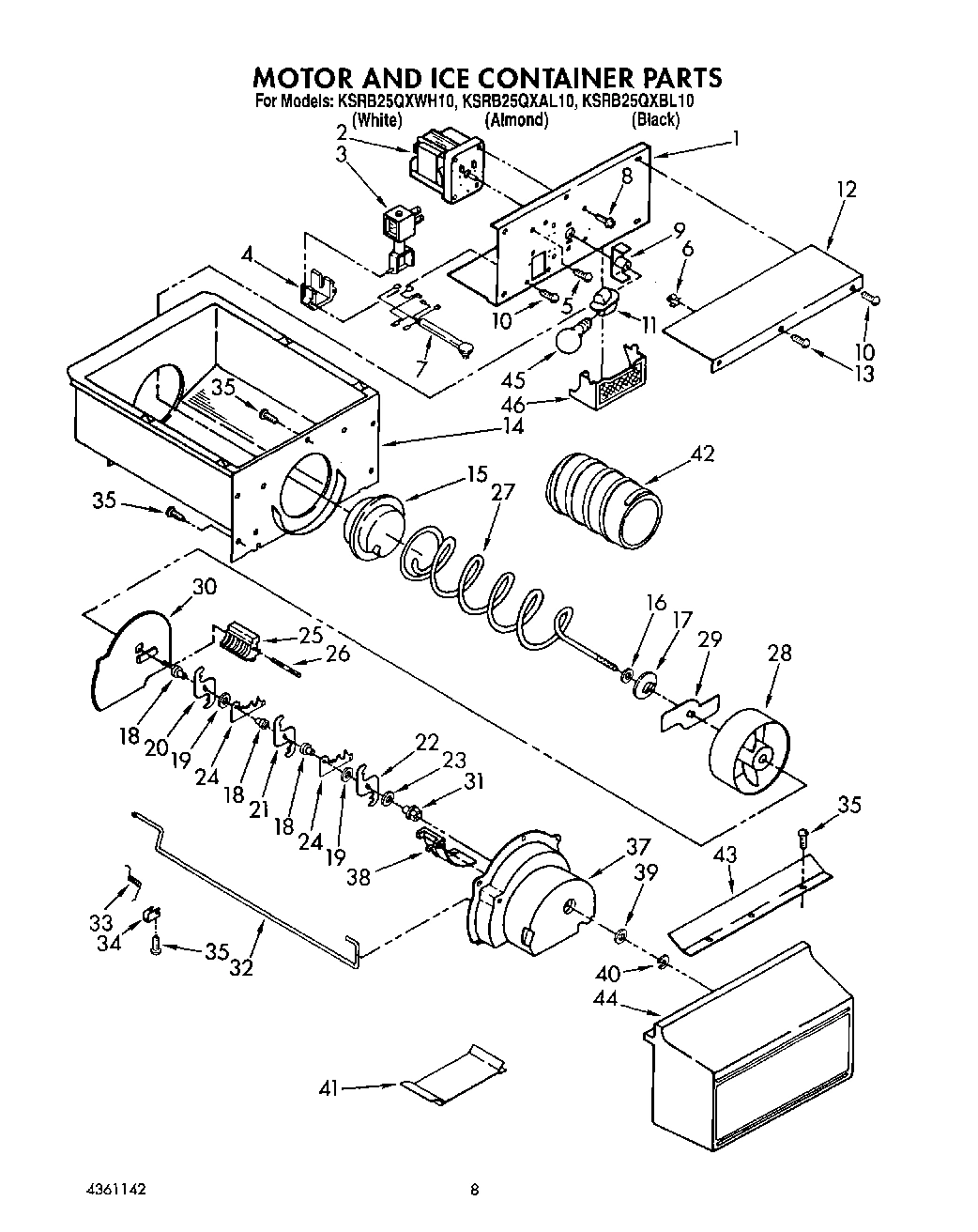

07 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL

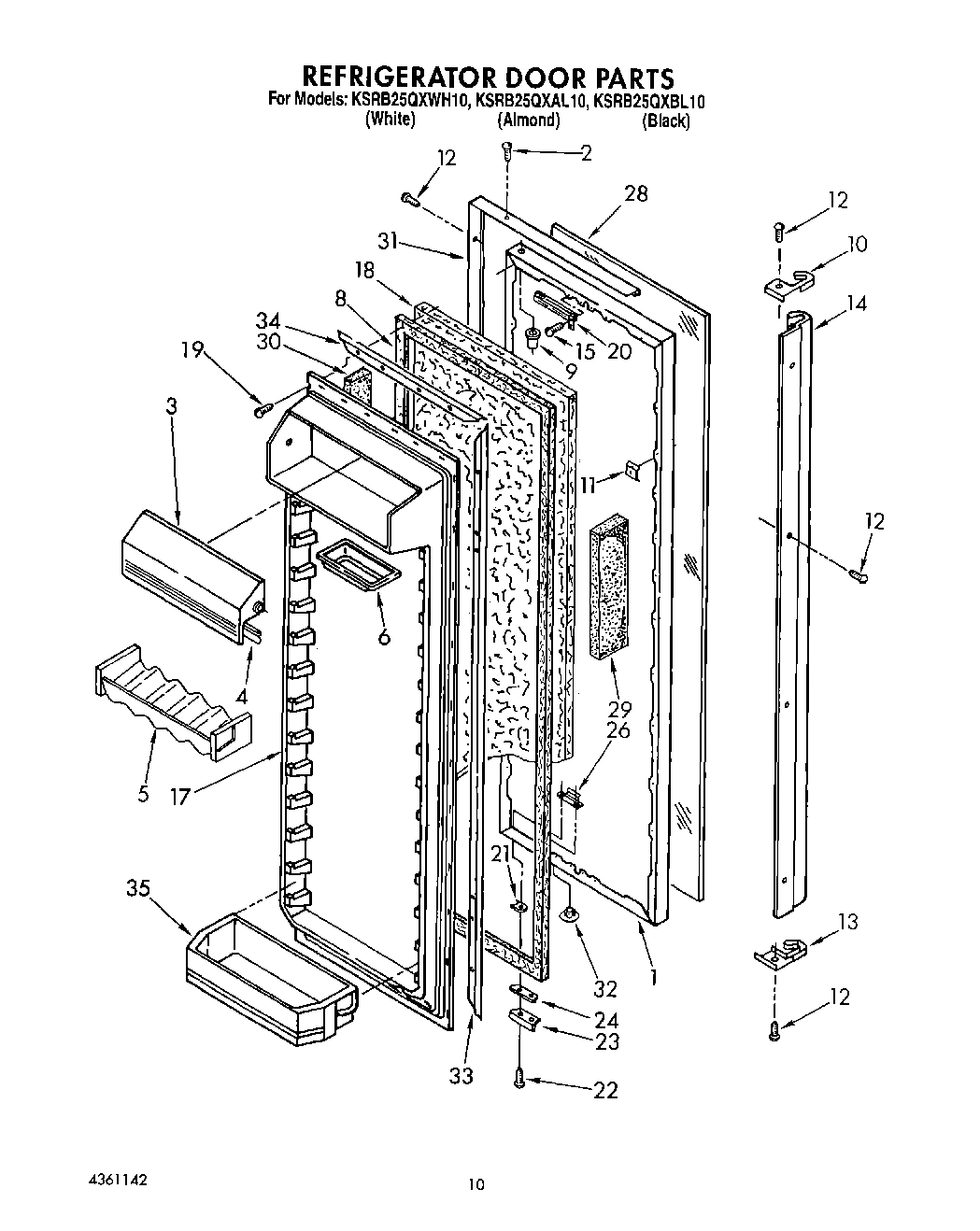

08 - REFRIGERATOR DOOR

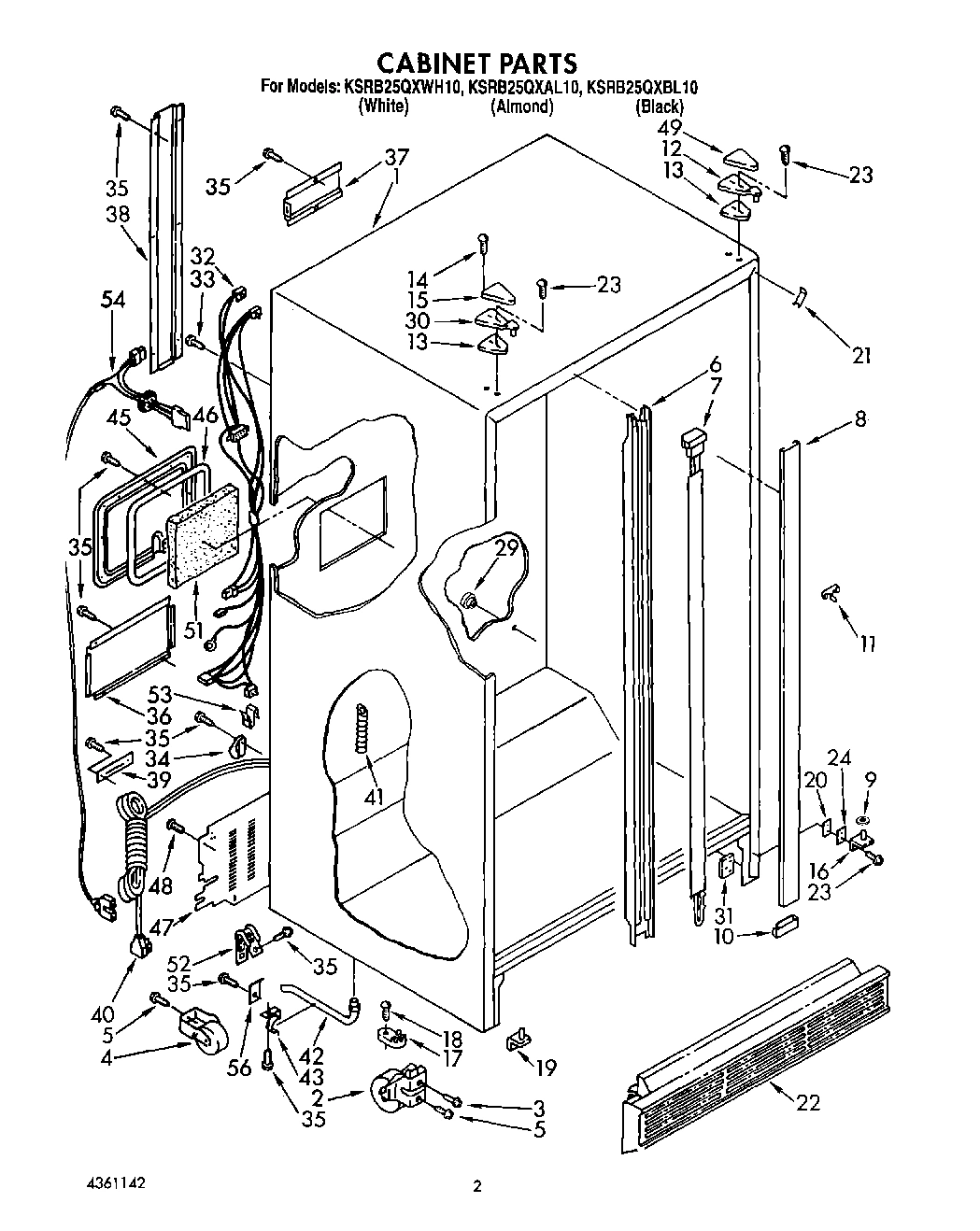

02 - CABINET

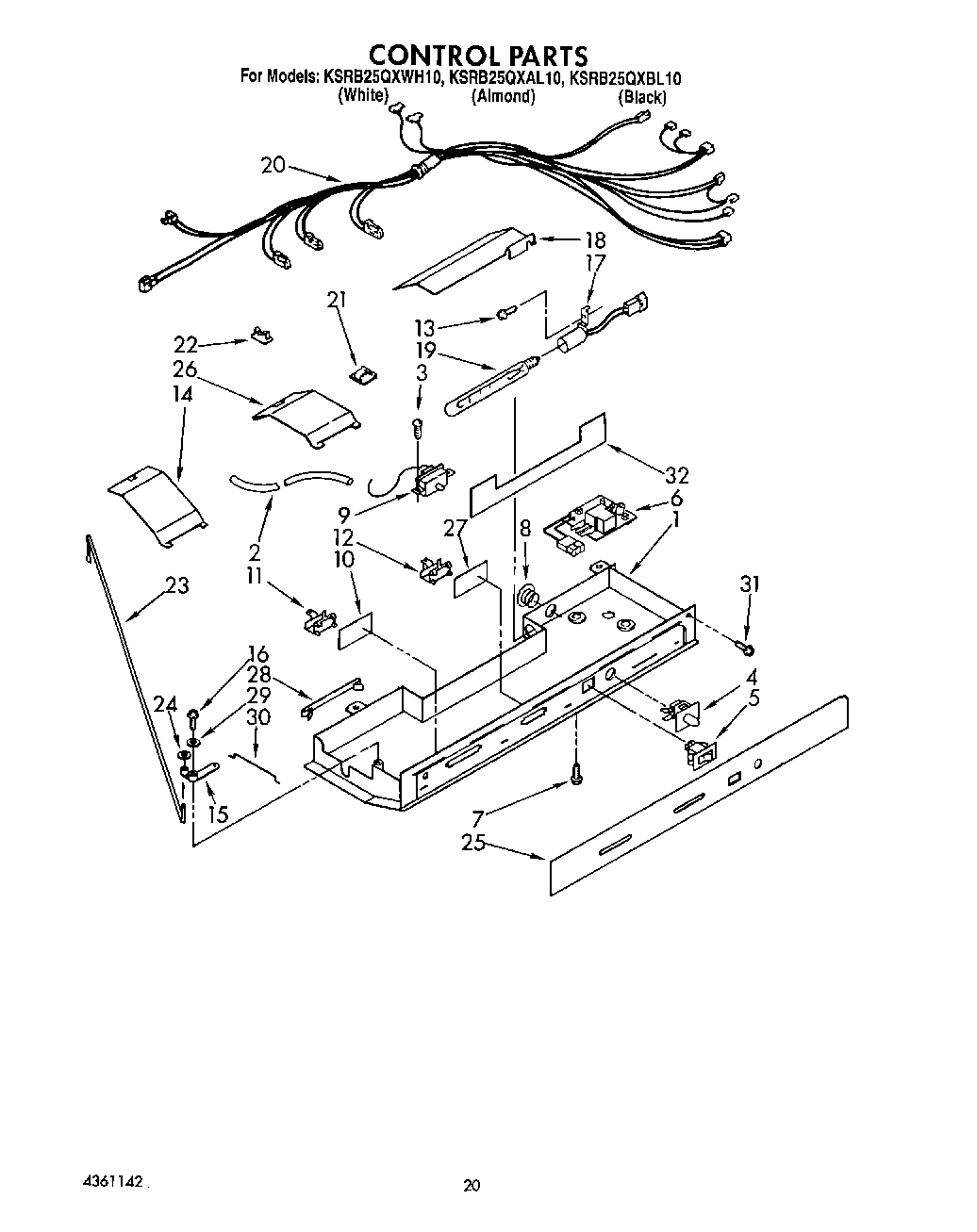

13 - CONTROL

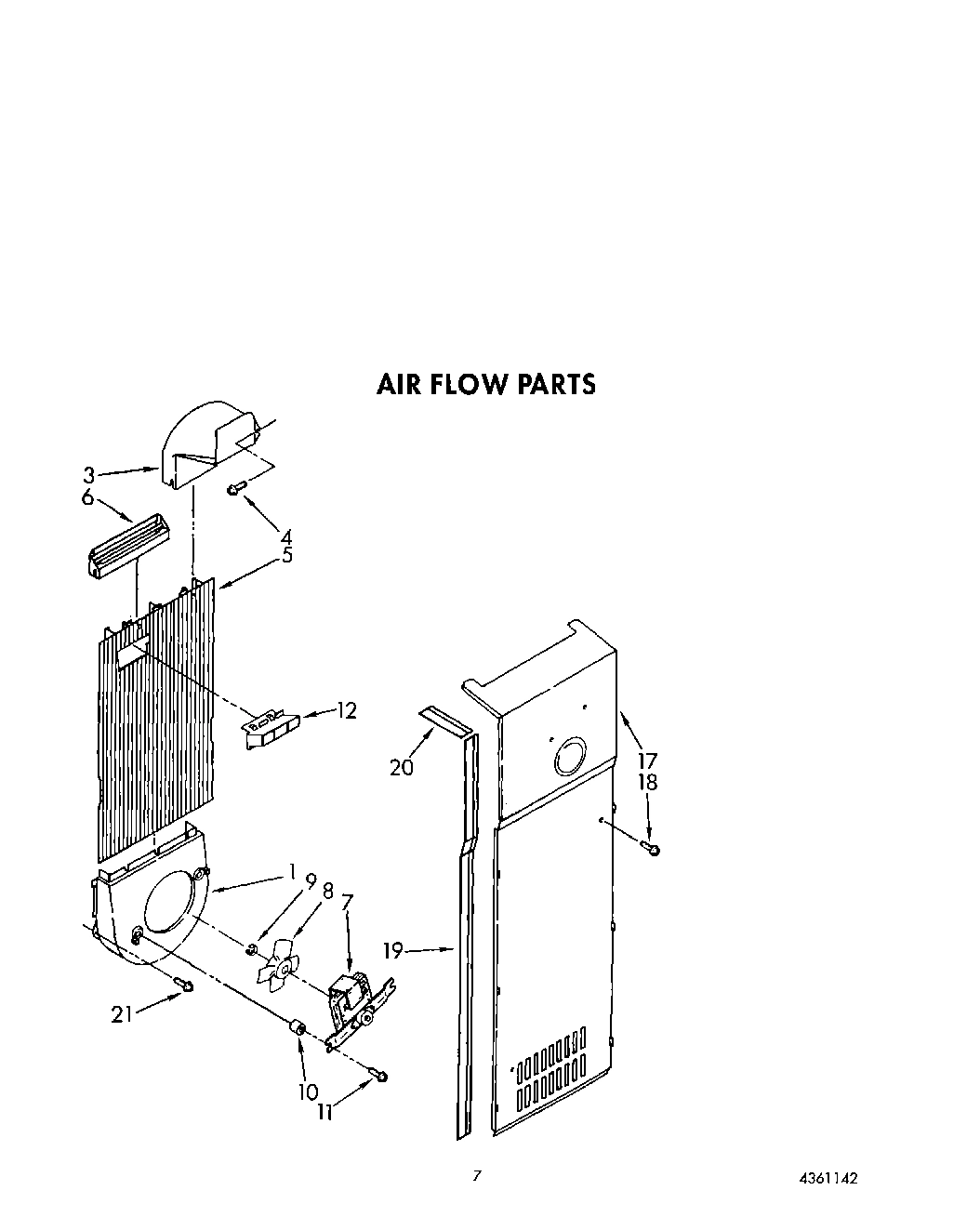

06 - AIRFLOW

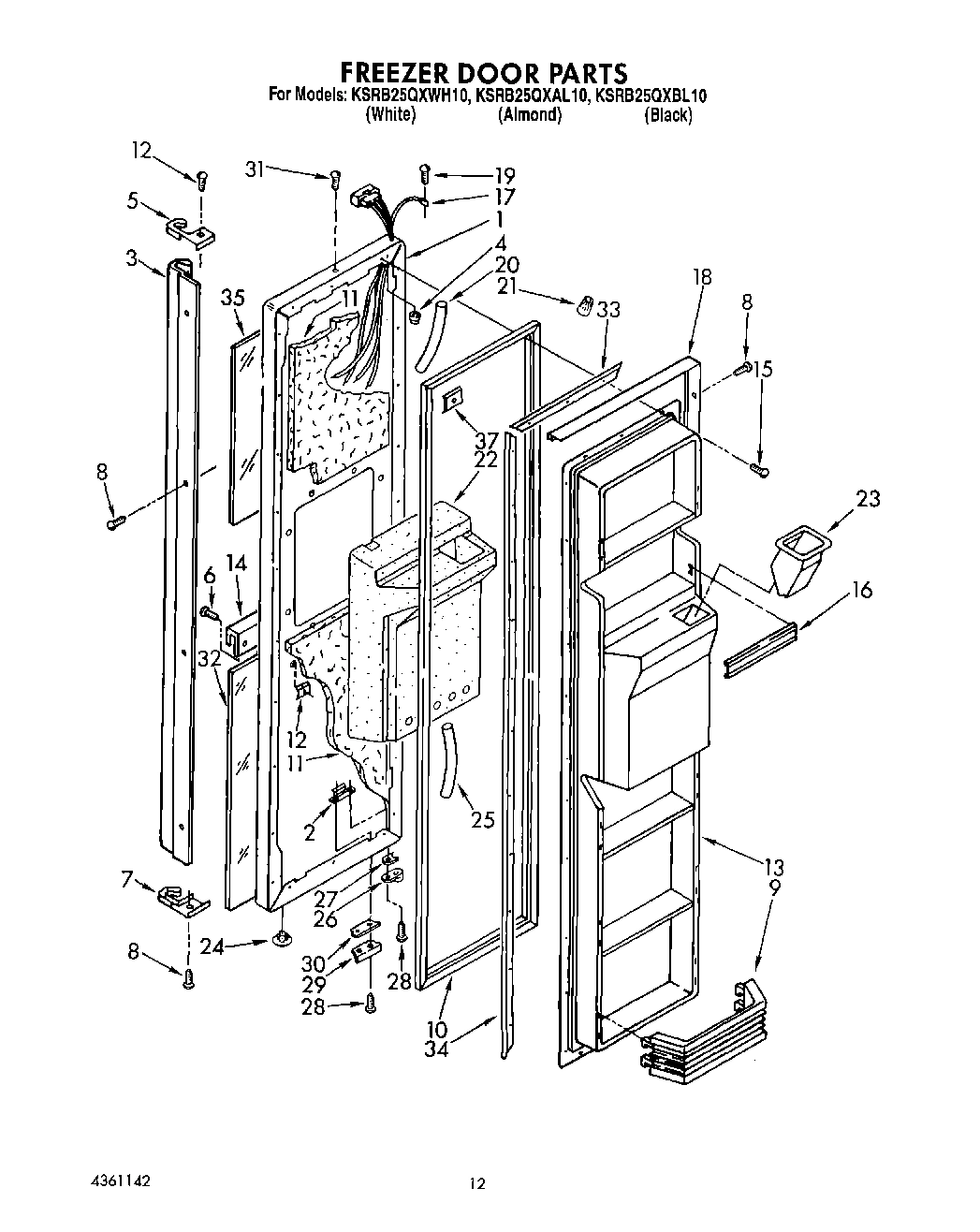

09 - FREEZER DOOR

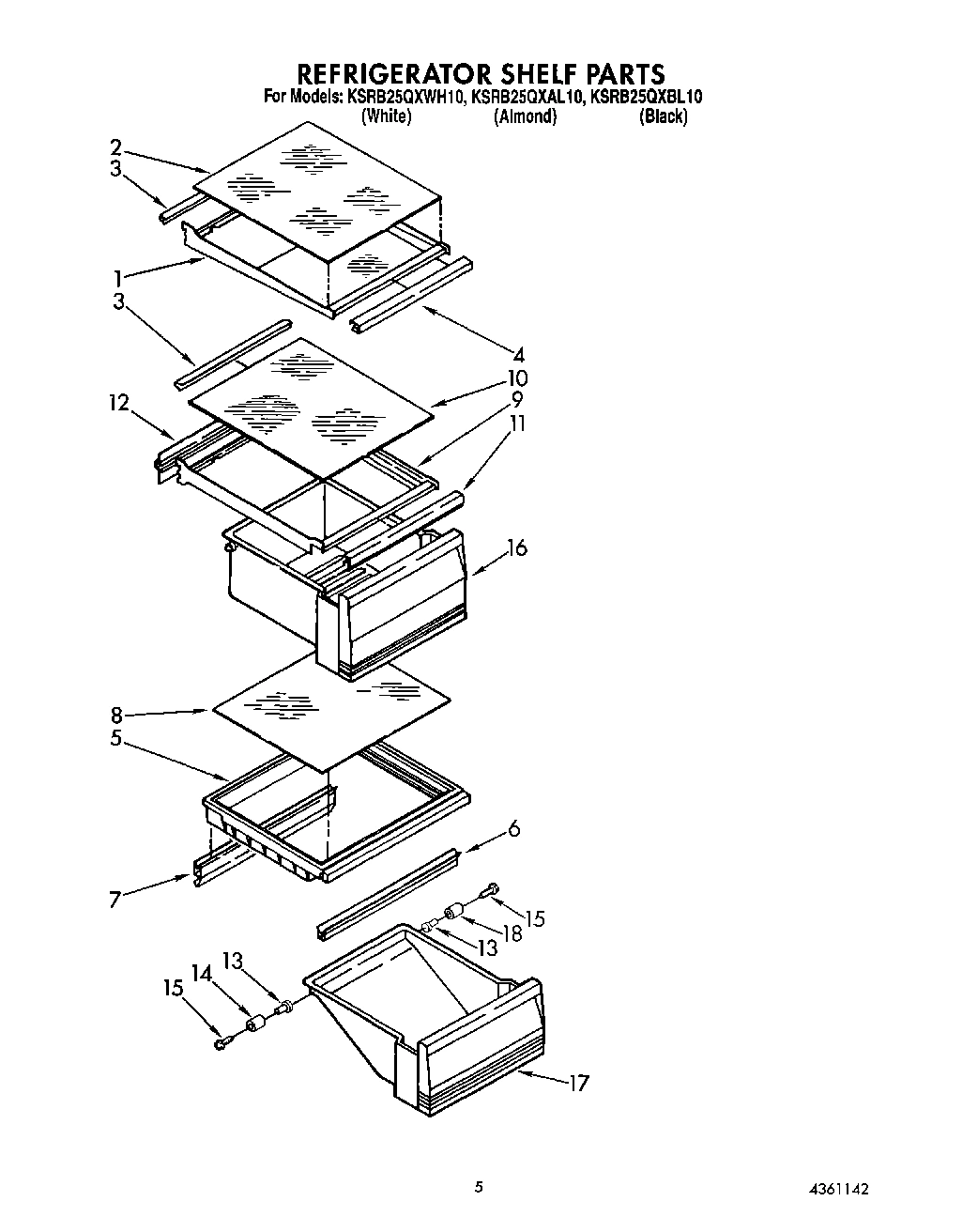

04 - REFRIGERATOR SHELF

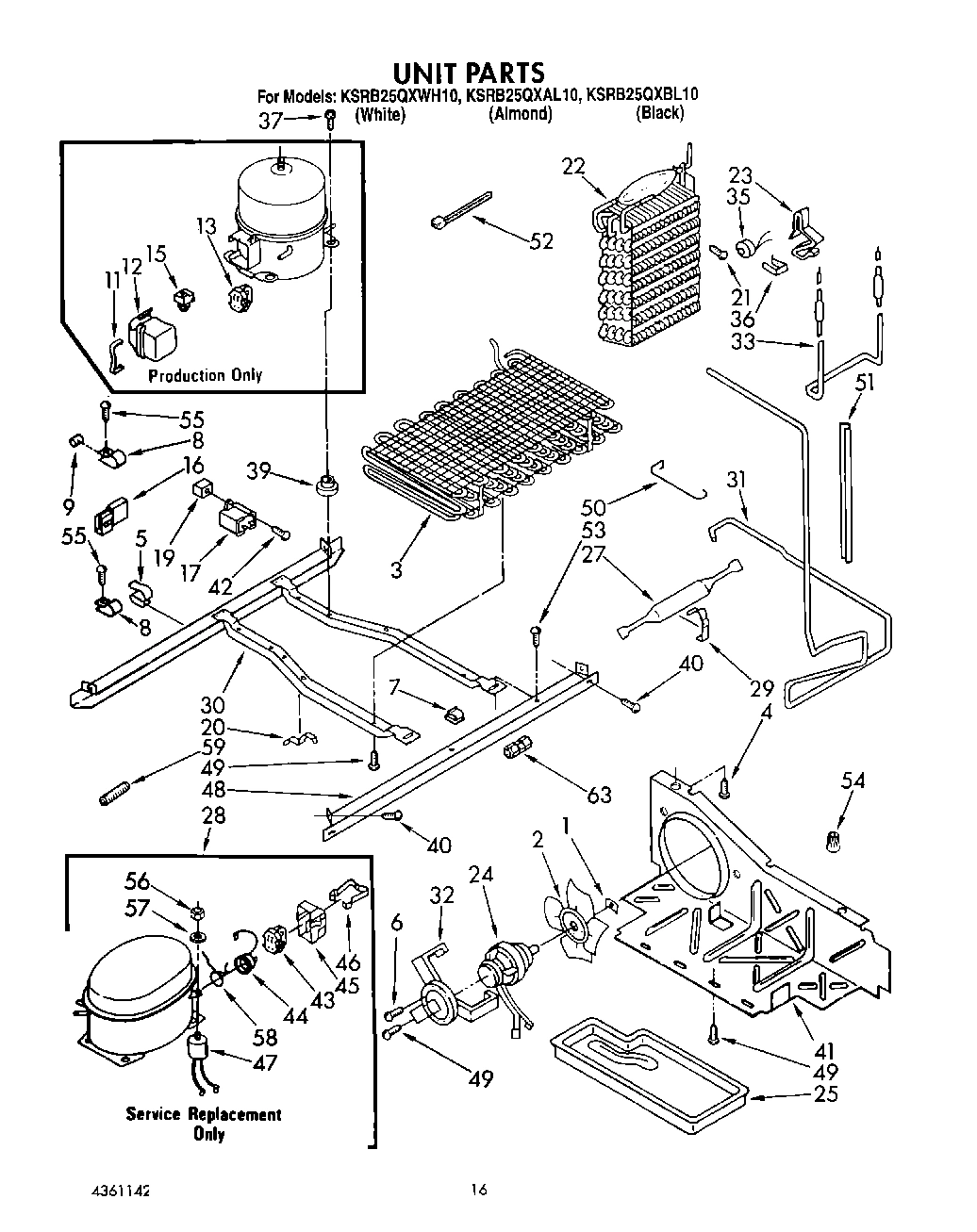

11 - UNIT
Common parts from model Whirlpool KSRB25QXAL10
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1117998 WPL LIT1117998 Contact Us For Availability
WPL LIT1125682 WPL LIT1125682 Contact Us For Availability
WPL LIT2154810 WPL LIT2154810 Contact Us For Availability
WPL LIT4361142 WPL LIT4361142 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (White) WPL 1117871 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 1117875 Contact Us For Availability
1
Refrigerator, Door Panel (Black (Also Order I WPL 1117975 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI94924A4 Contact Us For Availability
1
Control Box WPL 1126344 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Bla WPL 1117980 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Whi WPL 1126004 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) (Alm WPL 1126012 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 1125597 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
3
Handle WPL 1125914 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
5
End Cap WPL 1125917 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Switch, Lighted WPL 1125964 Contact Us For Availability
5
Air Duct Freezer WPL 2157550 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
6
Mullion Rail WPL 2155016 Contact Us For Availability
6
Diffuser Air Duct WPL 1110666 Contact Us For Availability
6
Screw, 8 x 7/16 WPL 489374 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149943 Contact Us For Availability
7
End Cap, Bottom WPL 1125918 Contact Us For Availability
7
Heater Mullion WPL 1110606 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Clip (3) WPL 934011 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Screw WPL 489112 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123972 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123975 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Screw, 8 x 1/2 WPL 486214 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Washer WPL 489328 Contact Us For Availability
9
Thermostat Assembly WPL 1125769 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Shelf Bin (4) WPL 1125676 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1125599 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Hinge, Top WPL 1117937 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Grille, Overflow (Chrome) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 1114644 Contact Us For Availability
13
Shim, Hinge Top WPL 1123518 Contact Us For Availability
13
Panel, Interior Door WPL 1125608 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Overload WPL 2154794 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Screw, Bind WPL 489284 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Trim, Dispenser WPL 1125980 Contact Us For Availability
14
Roller WPL 1112303 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Hinge Cover (White) WPL 1109209 Contact Us For Availability
15
Hinge Cover (Almond) WPL 1109212 Contact Us For Availability
15
Hinge Cover (Black) WPL 1115888 Contact Us For Availability
15
Pivot Arm WPL 1125589 Contact Us For Availability
15
Relay WPL 2154654 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Trim, Door Shelf WPL 1125686 Contact Us For Availability
16
Crisper Pan (2) WPL 1117908 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Panel, Interior Door WPL 1117905 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Cover, Evaporator WPL 1127167 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
17
Utility Pan WPL 1117910 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
18
Trim, Door WPL 1125916 Contact Us For Availability
18
Roller, R.S. WPL 1125530 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 2157554 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2154809 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
21
Clip WPL 652604 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
22
Grille (Black) WPL 1129054 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1119038 Contact Us For Availability
22
Evaporator WPL 1110668 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Connecting Rod WPL 1125587 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2147476 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Hole Plug (2) WPL 534927 Contact Us For Availability
24
Shim .030 WPL 836196 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 1126144 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Black Glass WPL 1126015 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Bracket, Door Stop WPL 1115906 Contact Us For Availability
29
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
29
Grommet WPL 1129178 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Switch, Water WPL 841336 Contact Us For Availability
30
Shim WPL 988421 Contact Us For Availability
30
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1117987 Contact Us For Availability
30
Connecting Rod (Short) WPL 1125590 Contact Us For Availability
31
Screw WPL 489376 Contact Us For Availability
31
Trim, Door WPL 1117900 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Exchanger, Heat WPL 1114662 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Control Arm WPL 2147138 Contact Us For Availability
32
Cabinet Harness WPL 2149745 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Black Glass, Lower WPL 1126017 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
33
Heater, Defrost WPL 2154543 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
35
Trim Kit Panels (Black) WPL 4210348 Contact Us For Availability
35
Almond Handle Inserts WPL 4211147 Contact Us For Availability
35
White WPL 4211148 Contact Us For Availability
35
Trim Kit Acrylic Panel Kit WPL 4318336 Contact Us For Availability
35
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
35
Woodgrain WPL 4318340 Contact Us For Availability
35
Black Grille Kit WPL 4318417 Contact Us For Availability
35
Black Glass, Upper WPL 1126016 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
WPL 1115349 WPL 1115349 Contact Us For Availability
38
WPL 1125974 WPL 1125974 Contact Us For Availability
38
WPL 2147478 WPL 2147478 Contact Us For Availability
38
Wiring Shield, Long WPL 1119063 Contact Us For Availability
39
WPL 1125798 WPL 1125798 Contact Us For Availability
39
WPL 1125801 WPL 1125801 Contact Us For Availability
39
WPL 1125803 WPL 1125803 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
WPL 1125673 WPL 1125673 Contact Us For Availability
40
WPL 1125805 WPL 1125805 Contact Us For Availability
40
WPL 1125807 WPL 1125807 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
``O`` Ring WPL 488794 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
WPL 488316 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
44
Overload WPL 483054 Contact Us For Availability
45
Cover, Plug WPL 1110626 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
WPL 489336 WPL 489336 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
WPL 542639 WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
46
Sealing Gasket WPL 1115322 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Cover, Unit WPL 2147323 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
51
Insulation WPL 1118237 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Clamp, Water Line (2 WPL 836472 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
