Model Whirlpool KSRA22KKWH01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Door (Includes No.7) (Black) WPL 2206780B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Stainless WPL 2206780SB Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2206780T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2206780W Contact Us For Availability

1

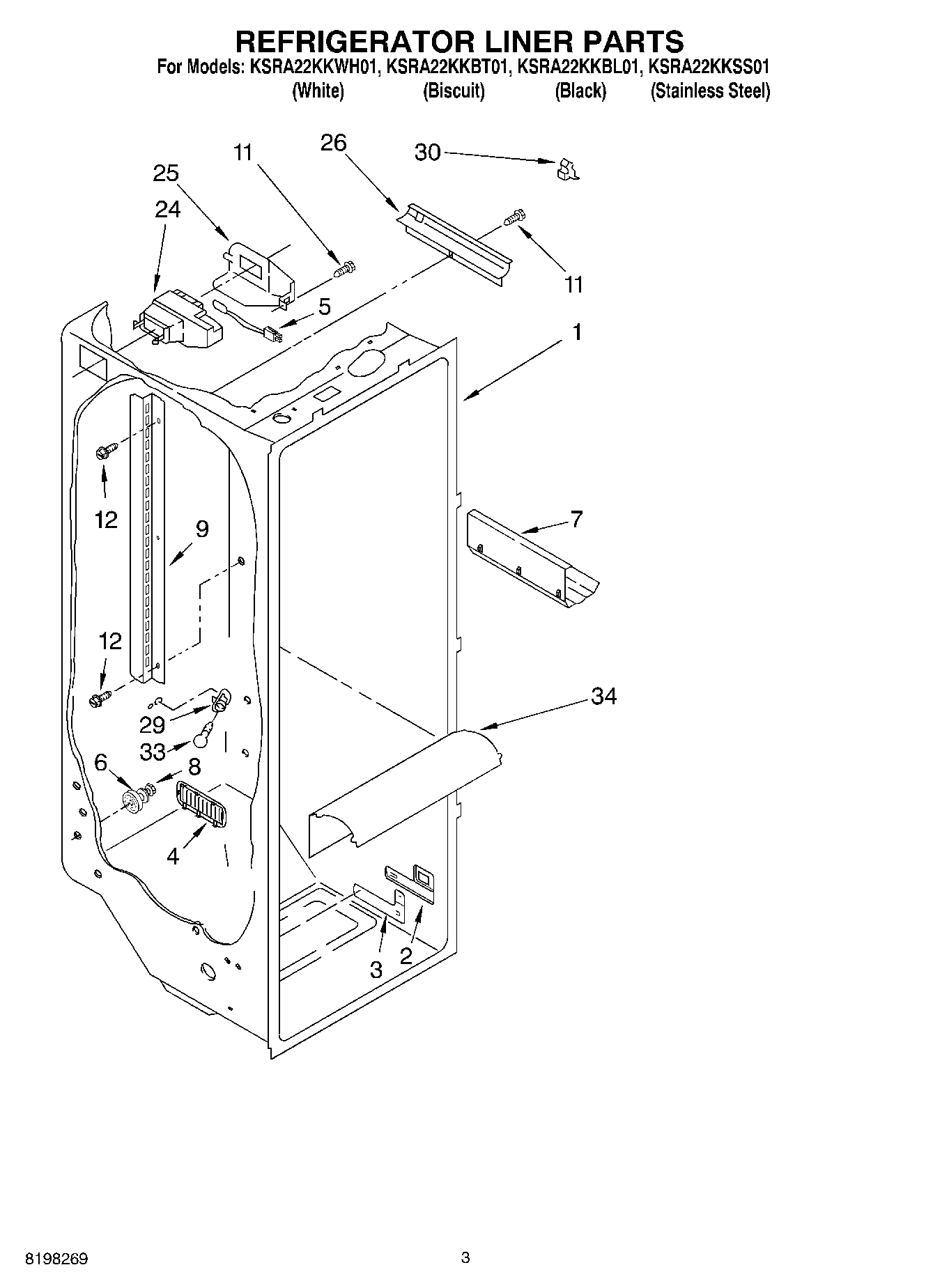

Liner (Not A Seviceable Part) WPL ARI93124A3 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $33.80

2

Fan, Blade WPL 2190685 Contact Us For Availability

3

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Gasket WPL 2209604 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

Butter, Dish WPL 2165792 Contact Us For Availability

5

Air Duct Freezer WPL 2203592 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Stud, Handle Mounting WPL 2203690 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

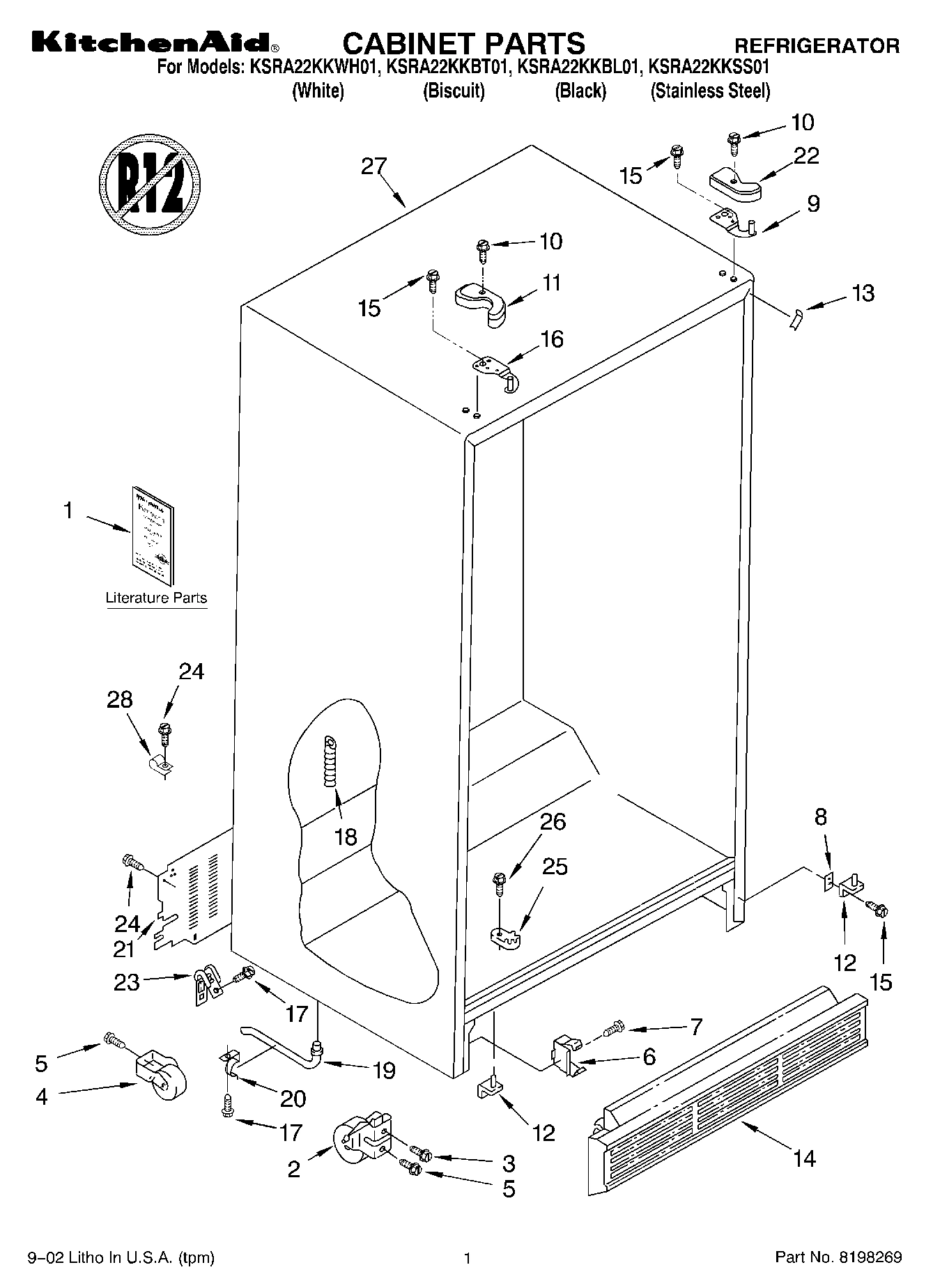

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $87.71

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

Shelf WPL 2174266 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Screw, Set WPL 98654 Contact Us For Availability

9

Gasket WPL 2209605 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Glass, Cover WPL 2255144 Contact Us For Availability

Handle (White) WPL 2188635W Contact Us For Availability

Handle (Black) WPL 2188635B Contact Us For Availability

Handle (Stainless Steel) WPL 2188635S Contact Us For Availability

Handle (Biscuit) WPL 2188635T Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Support, Stud WPL 2196207 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2216116 Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

Shelf WPL 2179325 Contact Us For Availability

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2160912 Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

Start Device, Combination (Start Relay and Ov WPL 2212193 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $93.63

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

Slide, Bin (Left Side) WPL 2181759 Contact Us For Availability

Slide, Bin (Right Side) WPL 2181760 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Window, Crisper WPL 2174076 Contact Us For Availability

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

Grommet WPL 509812 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Shelf Bin (4) WPL 2205821 Contact Us For Availability

20

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Basket, Slope WPL 2181762 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

23

Basket, Tall WPL 2181761 Contact Us For Availability

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

24

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $103.28

24

Trim, Basket WPL 2171768 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

4389202 Whirlpool Wire Harness Backorder WPL 4389202 $162.16

26

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323197 Whirlpool Refrigerator Heater In Stock WPL WP2323197 $47.25

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489473 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
