Model Whirlpool KSM96CU0 SMALL APPLIANCE, STAND MIXER, 4.5 QT – Common Parts & Diagrams

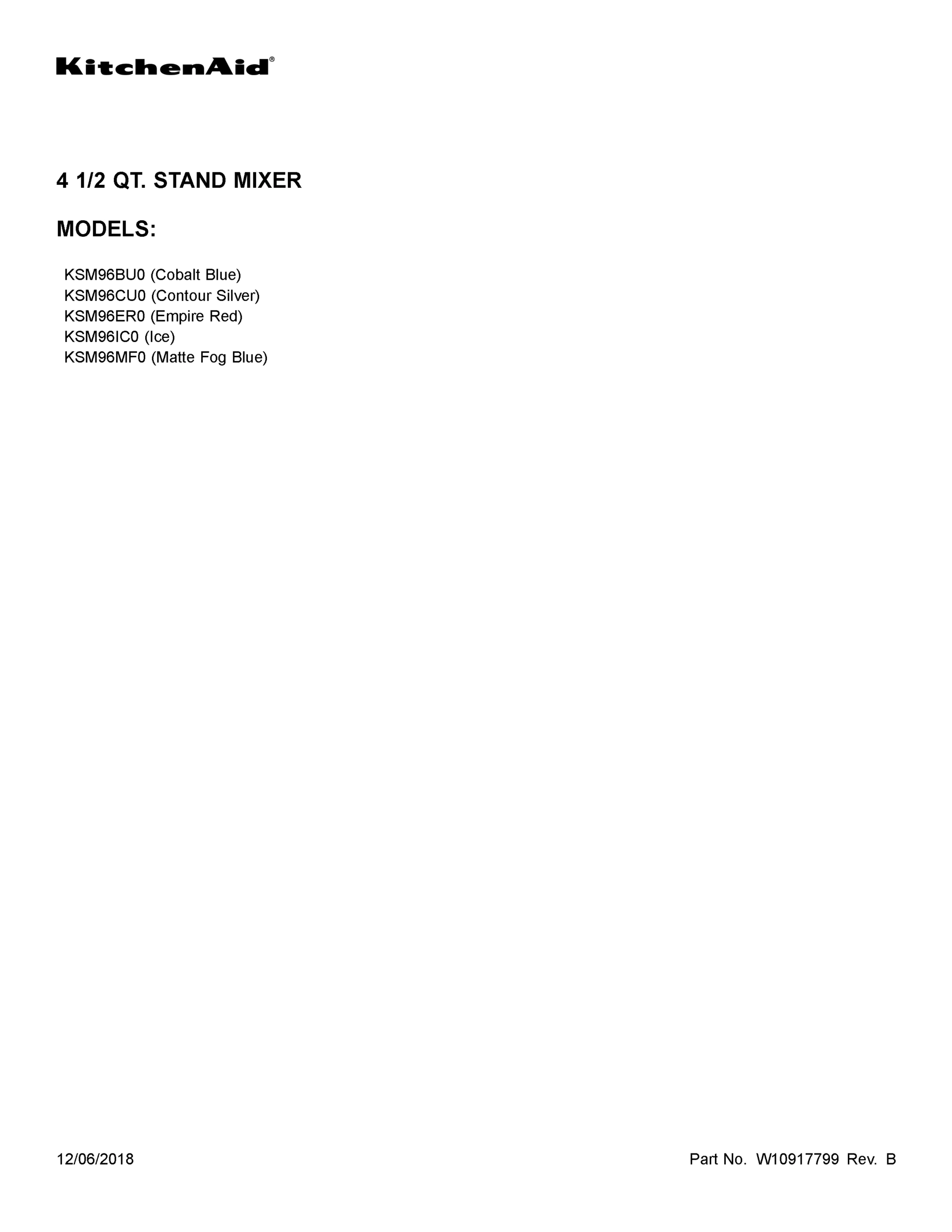

01 - COVER SHEET

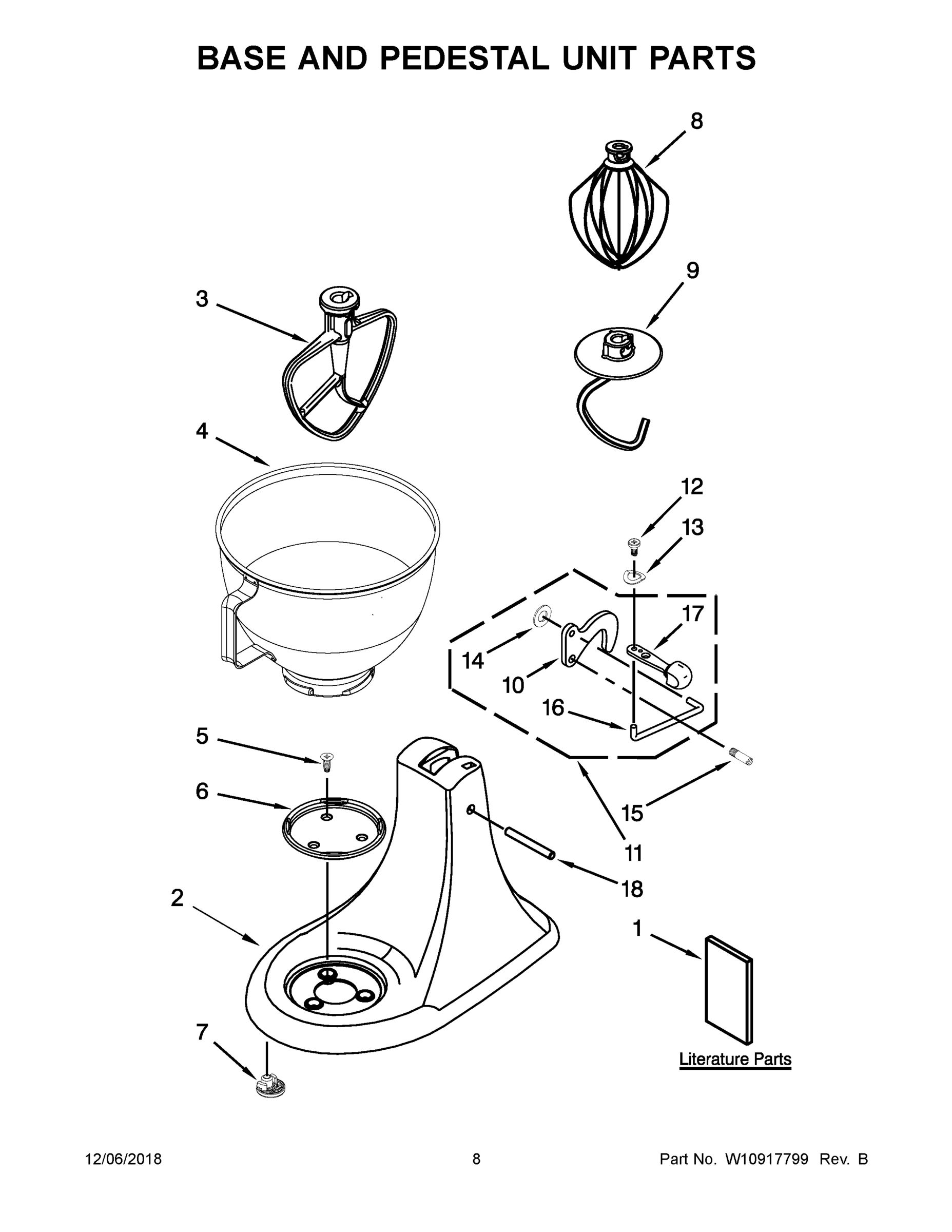

05 - BASE AND PEDESTAL UNIT PARTS

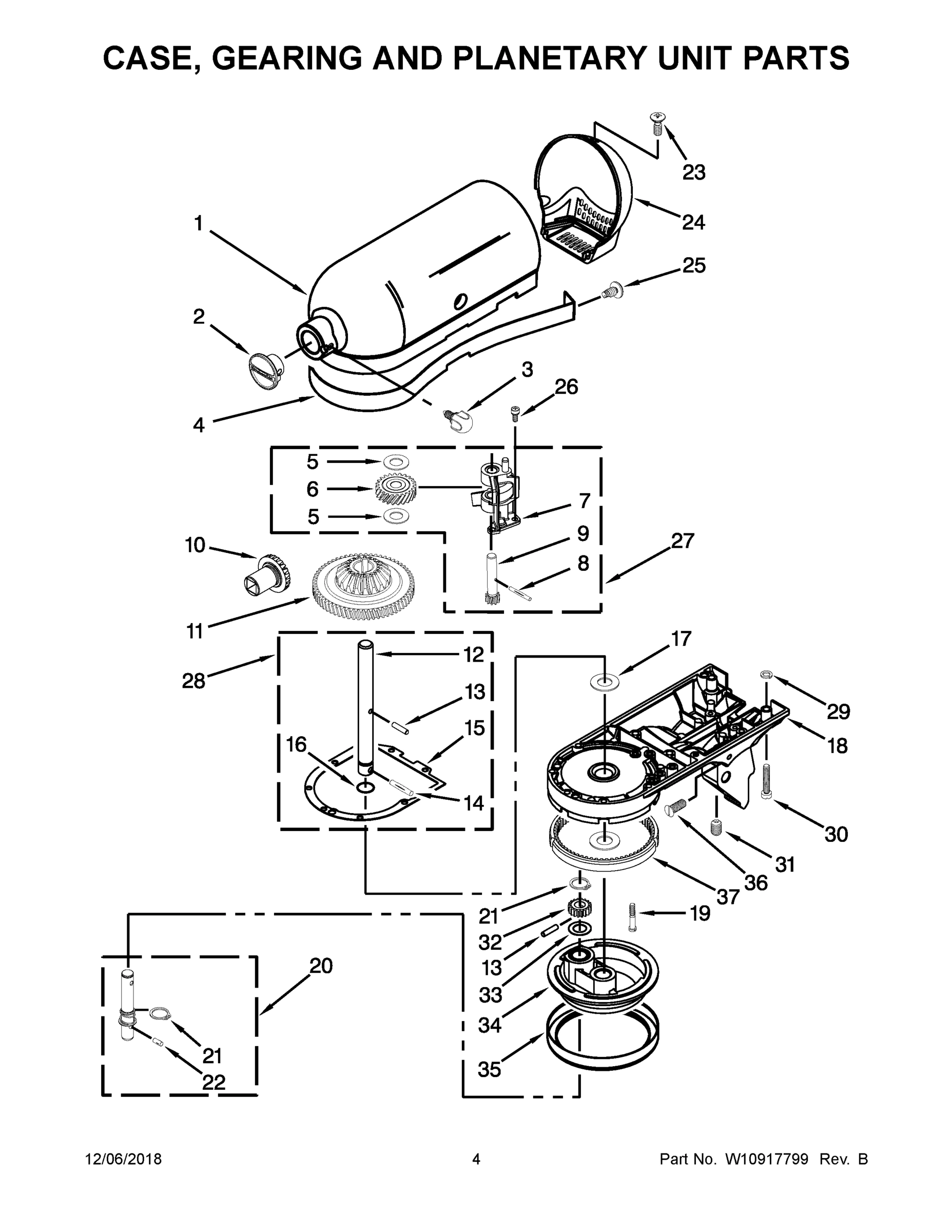

03 - CASE, GEARING AND PLANETARY UNIT PARTS

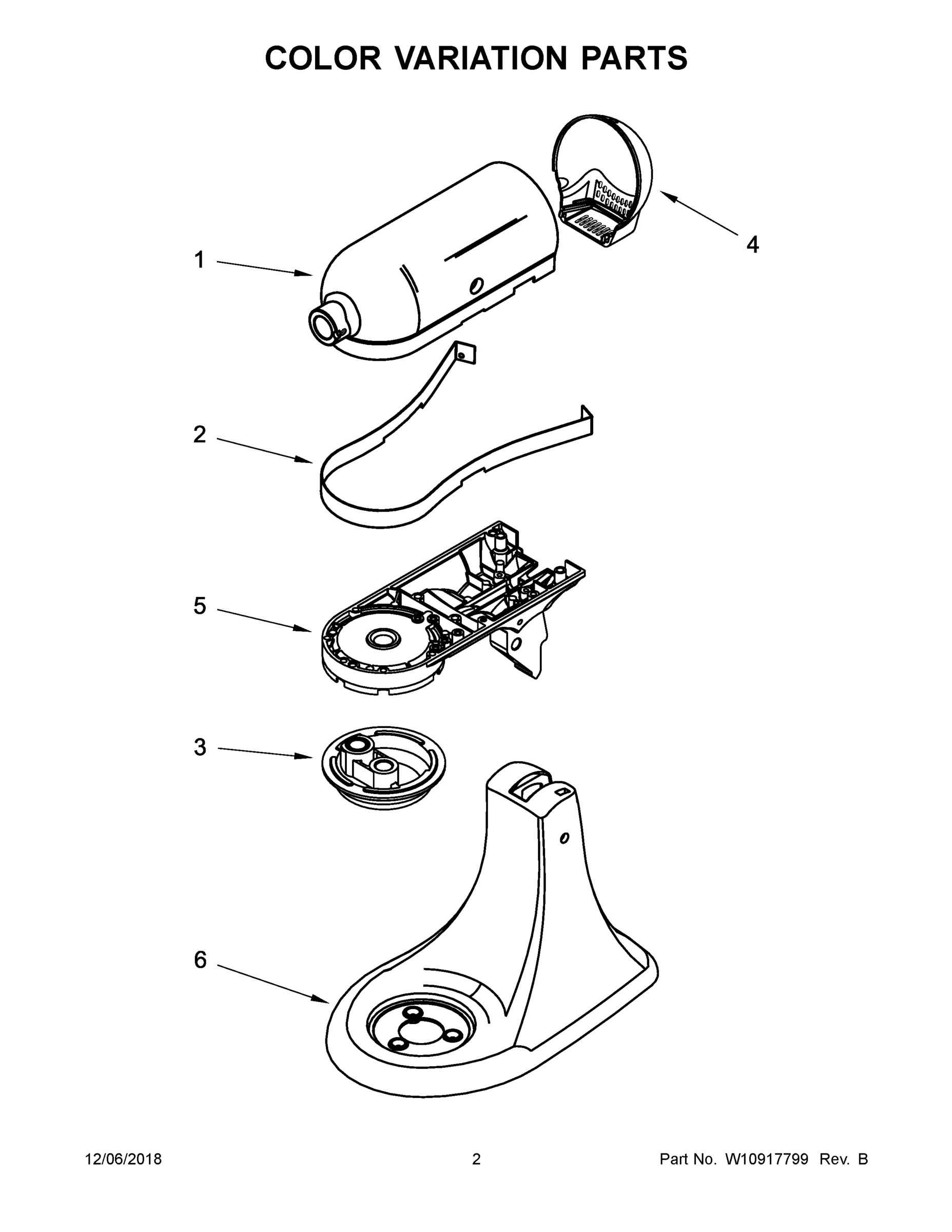

02 - COLOR VARIATION PARTS

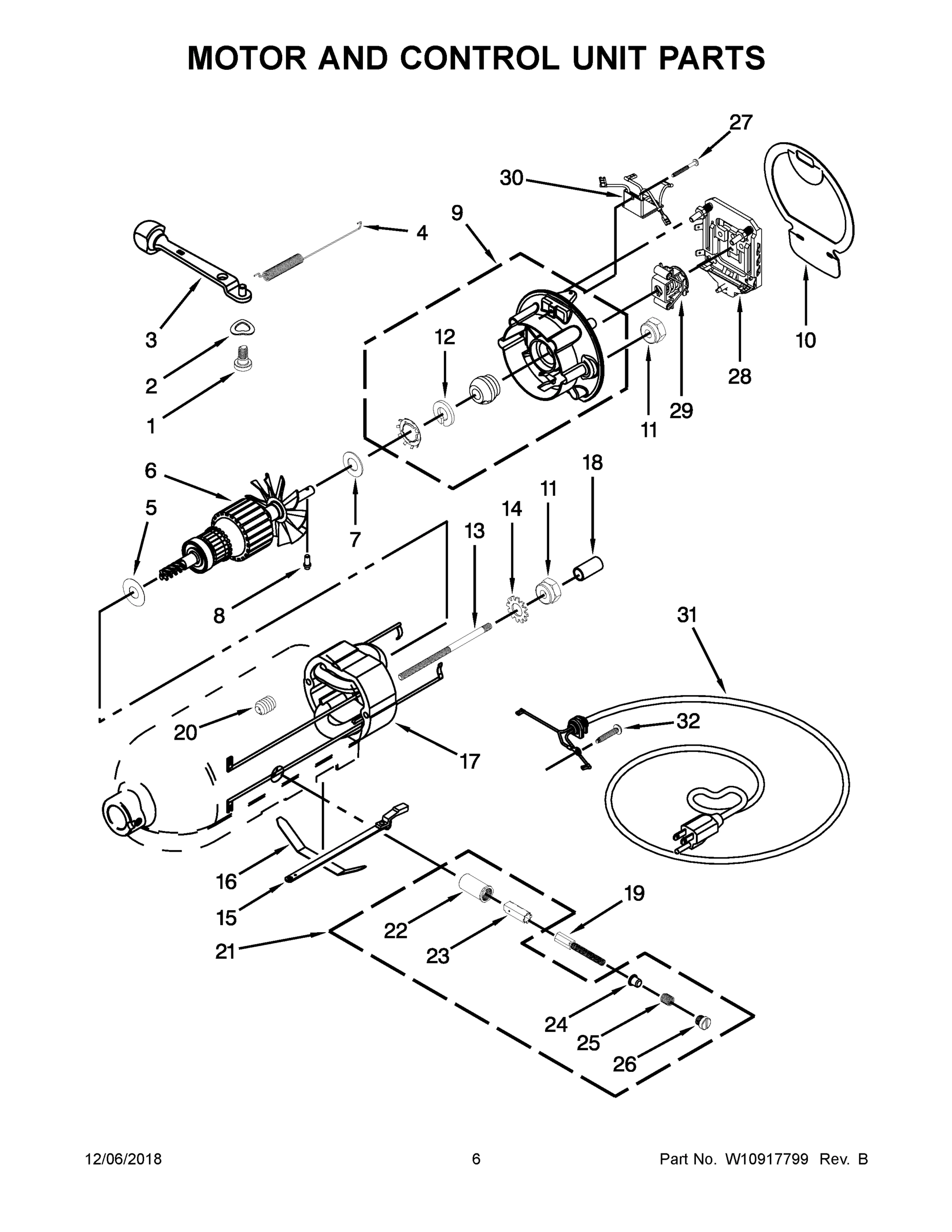

04 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool KSM96CU0 SMALL APPLIANCE, STAND MIXER, 4.5 QT
1
MOTOR HOUSING (COBALT BLUE) WPL 2402917 Contact Us For Availability
1A
MOTOR HOUSING (CONTOUR SILVER) WPL W10350463 Contact Us For Availability
1B
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1C
MOTOR HOUSING (ICE / ICE BLUE) WPL 9707662 Contact Us For Availability
1D
MOTOR HOUSING (MATTE FOG BLUE) WPL W11113876 Contact Us For Availability
1E
MOTOR HOUSING (BLACK MATTE) WPL W10885700 Contact Us For Availability
2
TRIM BAND (DARK PLATINUM) WPL W10884582 Contact Us For Availability
3
PLANETARY (COBALT BLUE) WPL 24028610 Contact Us For Availability
3A
PLANETARY (CONTOUR SILVER) WPL W10350465 Contact Us For Availability
3B
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
3C
PLANETARY (ICE / ICE BLUE) WPL 9707665 Contact Us For Availability
3D
PLANETARY (MATTE FOG BLUE) WPL W11113891 Contact Us For Availability
4
END COVER (COBALT BLUE) WPL 2402538 Contact Us For Availability
4A
END COVER (CONTOUR SILVER) WPL W10350456 Contact Us For Availability
4B
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
4C
END COVER (ICE / ICE BLUE) WPL 9707667 Contact Us For Availability
4D
END COVER (MATTE FOG BLUE) WPL W11113834 Contact Us For Availability
4E
END COVER (BLACK MATTE) WPL W10885707 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5
LOWER GEARCASE (COBALT BLUE) WPL 24035031 Contact Us For Availability
5A
LOWER GEARCASE (CONTOUR SILVER) WPL W10350459 Contact Us For Availability
5B
LOWER GEARCASE (EMPIRE RED) WPL 24035084 Contact Us For Availability
5C
LOWER GEARCASE (ICE) WPL 9707659 Contact Us For Availability
5D
LOWER GEARCASE (MATTE FOG BLUE) WPL W11113868 Contact Us For Availability
5E
LOWER GEARCASE (BLACK MATTE) WPL W10885696 Contact Us For Availability
6
PEDESTAL W/FEET (COBALT BLUE) WPL 3179263 Contact Us For Availability
6A
PEDESTAL W/FEET (CONTOUR SILVER) WPL W10350457 Contact Us For Availability
6C
PEDESTAL W/FEET (ICE) WPL 9707656 Contact Us For Availability
6D
PEDESTAL W/FEET (MATTE FOG BLUE) WPL W11113857 Contact Us For Availability
6E
PEDESTAL W/FEET (BLACK MATTE) WPL W10885695 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
10
SEAL, END WPL 2407751 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
21
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
32
SCREW WPL 3184609 Contact Us For Availability
34
PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL NP Contact Us For Availability
× ![]()
