Model Whirlpool KSM88RBQLR0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams
01 - COVER SHEET
03 - CASE, GEARING AND PLANETARY UNIT PARTS

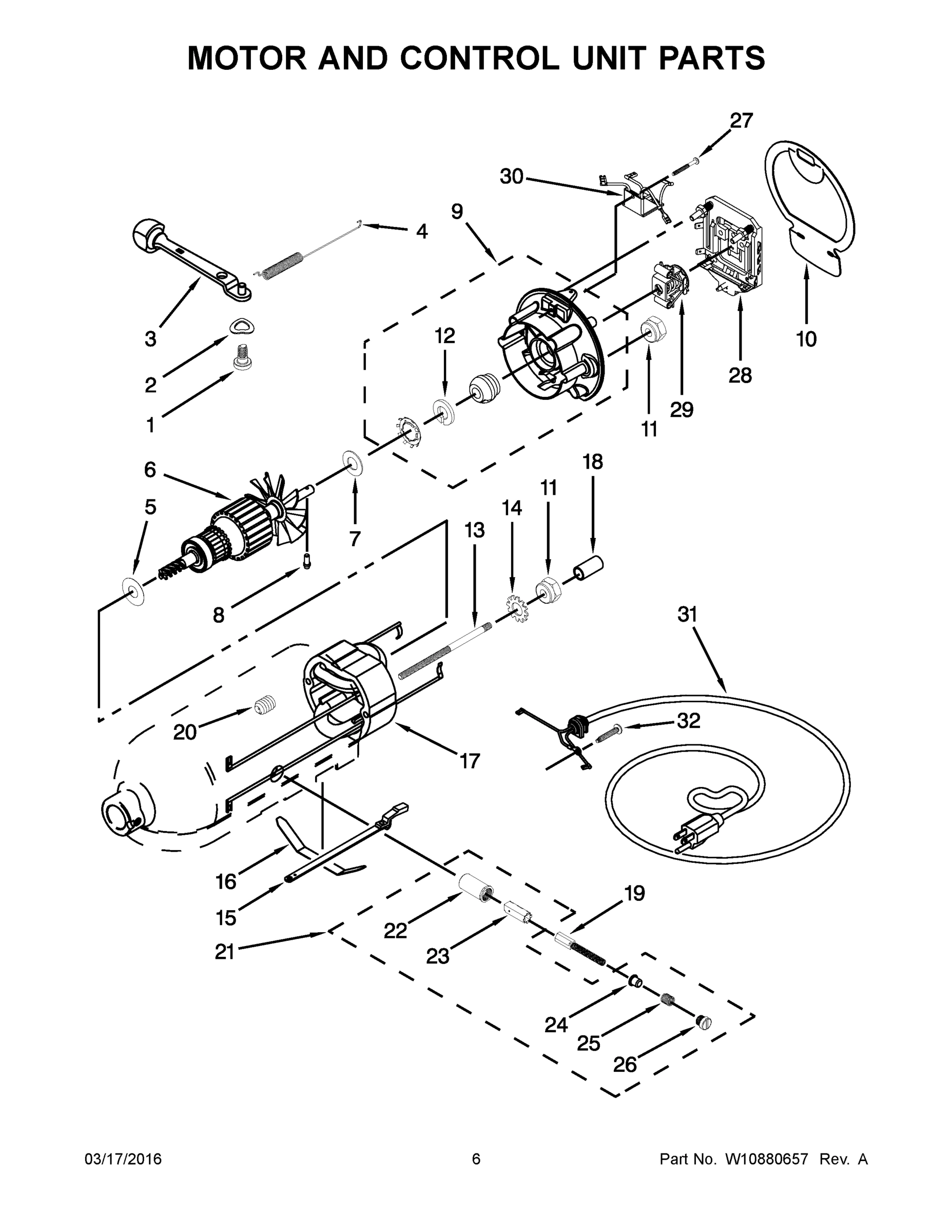

04 - MOTOR AND CONTROL UNIT PARTS

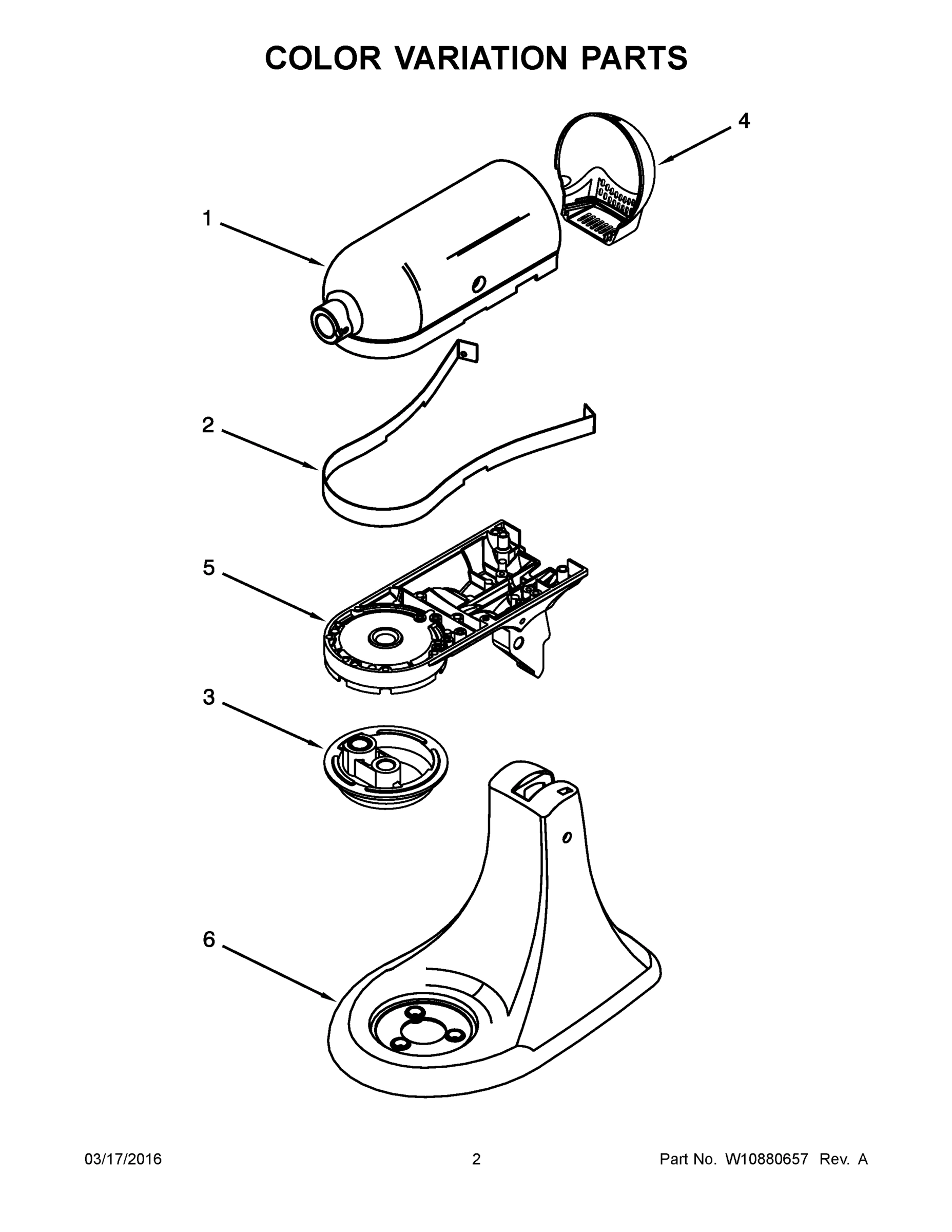

02 - COLOR VARIATION PARTS

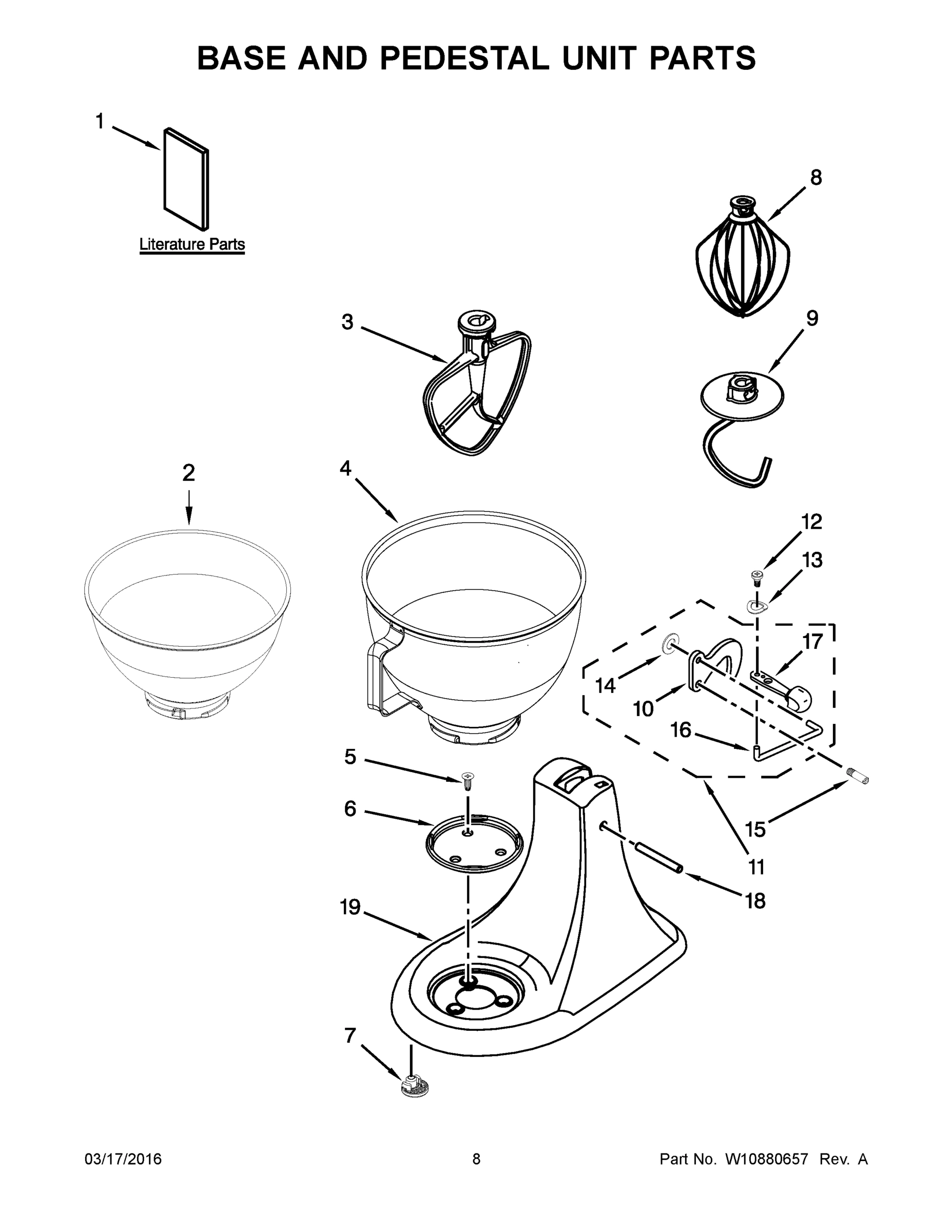

05 - BASE AND PEDESTAL UNIT PARTS
Common parts from model Whirlpool KSM88RBQLR0 SMALL APPLIANCE, STAND MIXER
1
MOTOR HOUSING (COBALT BLUE) WPL 2402917 Contact Us For Availability
1
USE & CARE GUIDE WPL W10844303 Contact Us For Availability
1A
MOTOR HOUSING (BOYSENBERRY) WPL W10140801 Contact Us For Availability
1B
MOTOR HOUSING (CRANBERRY/FLAMINGO) WPL 9706796 Contact Us For Availability
1C
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
1D
MOTOR HOUSING (CONTOUR SILVER) WPL W10350463 Contact Us For Availability
1E
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1F
MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability
1G
MOTOR HOUSING (GLOSS CINNAMON) WPL 9709442 Contact Us For Availability
1H
MOTOR HOUSING (ICE) WPL 9707662 Contact Us For Availability
1I
MOTOR HOUSING (LAVENDER CREAM) WPL W10678736 Contact Us For Availability
1J
MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability
1K
MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability
1L
MOTOR HOUSING (PINK) WPL 9706473 Contact Us For Availability
1M
MOTOR HOUSING (PERSIMMON) WPL 9709613 Contact Us For Availability
1N
MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability
2
TRIM BAND (BLACK) WPL W10348219 Contact Us For Availability
2
BOWL, 3 QT WPL W10713675 Contact Us For Availability
3
PLANETARY (COBALT BLUE) WPL 24028610 Contact Us For Availability
3A
PLANETARY (BOYSENBERRY) WPL W10140798 Contact Us For Availability
3B
PLANETARY (CRANBERRY/FLAMINGO) WPL 9706799 Contact Us For Availability
3C
PLANETARY (CRYSTAL BLUE) WPL W10476794 Contact Us For Availability
3D
PLANETARY (CONTOUR SILVER) WPL W10350465 Contact Us For Availability
3E
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
3F
PLANETARY (GREEN APPLE) WPL 9709685 Contact Us For Availability
3G
PLANETARY (GLOSS CINNAMON) WPL 9709439 Contact Us For Availability
3H
PLANETARY (ICE) WPL 9707665 Contact Us For Availability
3I
PLANETARY (LAVENDER CREAM) WPL W10678731 Contact Us For Availability
3J
PLANETARY (MAJESTIC YELLOW) WPL 24028622 Contact Us For Availability
3K
PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability
3L
PLANETARY (PINK) WPL 9706475 Contact Us For Availability
3M
PLANETARY (PERISMMON) WPL 9709610 Contact Us For Availability
3N
PLANETARY (WHITE) WPL 2402861 Contact Us For Availability
4
END COVER (COBALT BLUE) WPL 2402538 Contact Us For Availability
4A
END COVER (BOYSENBERRY) WPL W10140796 Contact Us For Availability
4B
END COVER (CRANBERRY/FLAMINGO) WPL 9706801 Contact Us For Availability
4C
END COVER (CRYSTAL BLUE) WPL W10476773 Contact Us For Availability
4D
END COVER (CONTOUR SILVER) WPL W10350456 Contact Us For Availability
4E
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
4F
END COVER (GREEN APPLE) WPL 9709683 Contact Us For Availability
4G
END COVER (GLOSS CINNAMON) WPL 9709437 Contact Us For Availability
4H
END COVER (ICE) WPL 9707667 Contact Us For Availability
4I
END COVER (LA WPL W10678729 Contact Us For Availability
4J
WPL 24025321 WPL 24025321 Contact Us For Availability
4K
WPL 24025314 WPL 24025314 Contact Us For Availability
4L
WPL 9706469 WPL 9706469 Contact Us For Availability
4M
WPL 9709608 WPL 9709608 Contact Us For Availability
4N
WPL 2402531 WPL 2402531 Contact Us For Availability
5
WPL 24035031 WPL 24035031 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL W10140804 WPL W10140804 Contact Us For Availability
5B
WPL 9706792 WPL 9706792 Contact Us For Availability
5C
WPL W10476775 WPL W10476775 Contact Us For Availability
5D
WPL W10350459 WPL W10350459 Contact Us For Availability
5E
WPL 24035084 WPL 24035084 Contact Us For Availability
5F
WPL 9709691 WPL 9709691 Contact Us For Availability
5G
WPL 9709445 WPL 9709445 Contact Us For Availability
5H
WPL 9707659 WPL 9707659 Contact Us For Availability
5I
WPL W10678734 WPL W10678734 Contact Us For Availability
5J
WPL 24035082 WPL 24035082 Contact Us For Availability
5K
WPL 24035056 WPL 24035056 Contact Us For Availability
5L
WPL 9706471 WPL 9706471 Contact Us For Availability
5M
WPL 9709616 WPL 9709616 Contact Us For Availability
5N
WPL 2403504 WPL 2403504 Contact Us For Availability
6
WPL 3179263 WPL 3179263 Contact Us For Availability
6A
WPL W10140807 WPL W10140807 Contact Us For Availability
6B
WPL 9706790 WPL 9706790 Contact Us For Availability
6C
WPL W10488414 WPL W10488414 Contact Us For Availability
6D
WPL W10350457 WPL W10350457 Contact Us For Availability
6F
WPL 9709694 WPL 9709694 Contact Us For Availability
6G
WPL 9709448 WPL 9709448 Contact Us For Availability
6H
WPL 9707656 WPL 9707656 Contact Us For Availability
6I
WPL W10678730 WPL W10678730 Contact Us For Availability
6J
WPL 9702303 WPL 9702303 Contact Us For Availability
6K
WPL 3179275 WPL 3179275 Contact Us For Availability
6L
WPL 9706470 WPL 9706470 Contact Us For Availability
6M
WPL 9709618 WPL 9709618 Contact Us For Availability
6N
WPL 3179260 WPL 3179260 Contact Us For Availability
10
SEAL, END WPL 2407751 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
15
LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
19
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
32
SCREW WPL 3184609 Contact Us For Availability
× ![]()
