Model Whirlpool KSM88PSQCE0 MIXER – Common Parts & Diagrams

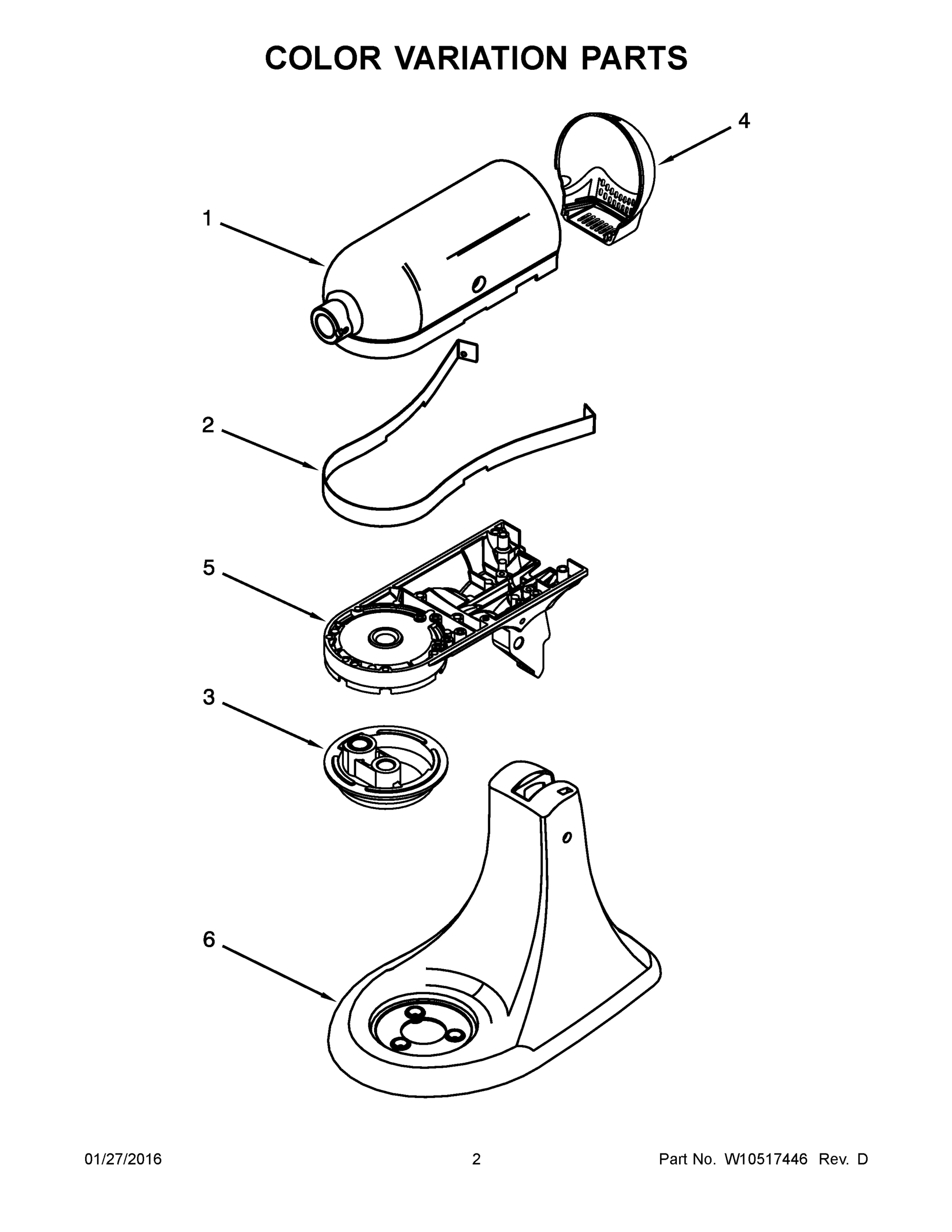

02 - COLOR VARIATION PARTS

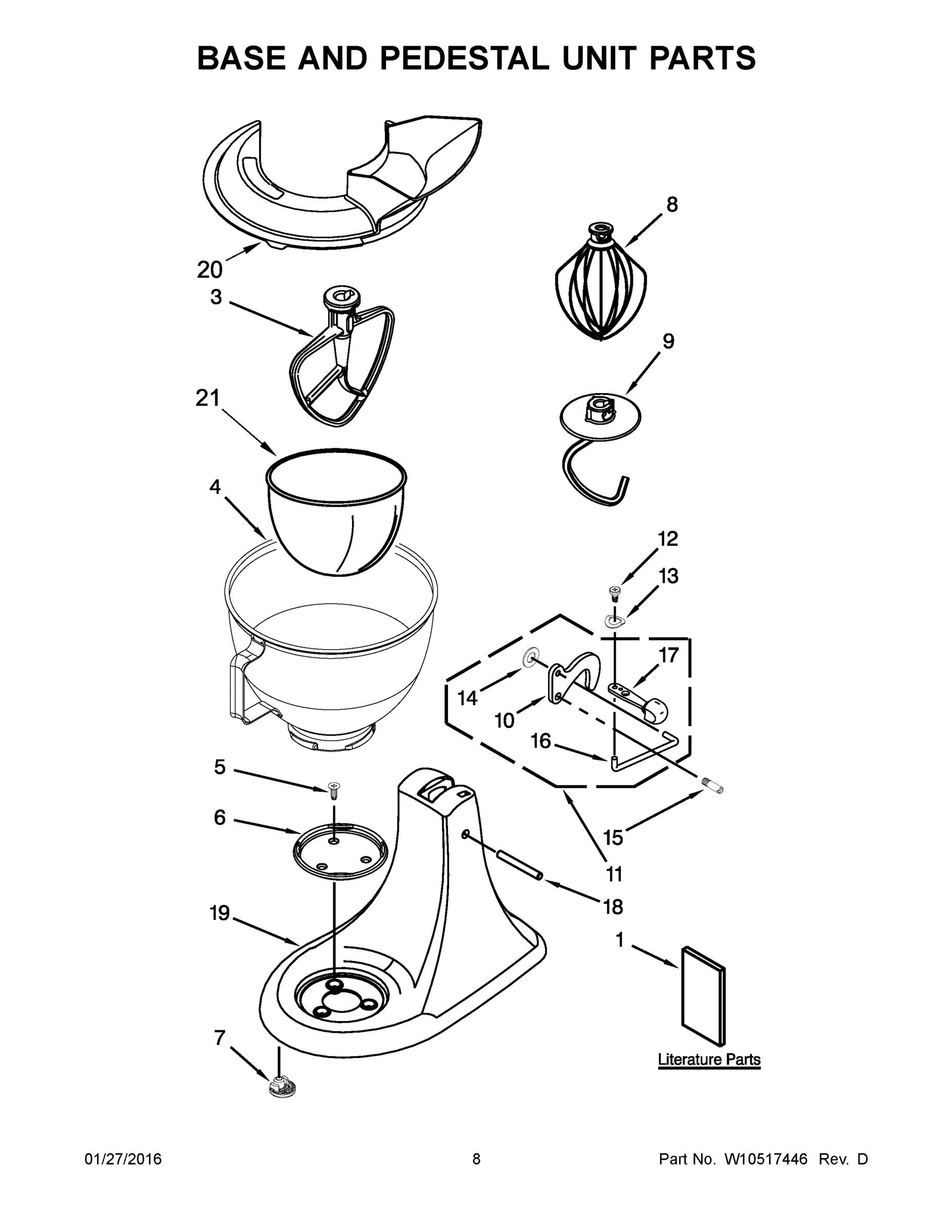

05 - BASE AND PEDESTAL UNIT PARTS
04 - MOTOR AND CONTROL UNIT PARTS
01 - COVER SHEET
03 - CASE, GEARING AND PLANETARY UNIT PARTS
Common parts from model Whirlpool KSM88PSQCE0 MIXER
1
USE AND CARE GUIDE WPL 9709785 Contact Us For Availability
1F
MOTOR HOUSING (BAYLEAF) WPL W10140788 Contact Us For Availability
1G
MOTOR HOUSING (BLUE WILLOW) WPL 9709600 Contact Us For Availability
1H
MOTOR HOUSING (COPPER PEARL) WPL W10513208 Contact Us For Availability
1I
MOTOR HOUSING (GLOSS CINNAMON) WPL 9709442 Contact Us For Availability
1J
MOTOR HOUSING (PISTACHIO) WPL 9706836 Contact Us For Availability
1K
MOTOR HOUSING (SILVER METALLIC) WPL W10121193 Contact Us For Availability
1L
MOTOR HOUSING (COBALT BLUE) WPL 2402917 Contact Us For Availability
1M
MOTOR HOUSING (AQUA SKY) WPL W10193501 Contact Us For Availability
1N
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
1O
MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability
1P
MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability
1Q
MOTOR HOUSING (PINK) WPL 9706473 Contact Us For Availability
1R
MOTOR HOUSING (TANGERINE) WPL 9706849 Contact Us For Availability
1S
MOTOR HOUSING (SILVER) WPL W10349279 Contact Us For Availability
1T
MOTOR HOUSING (CRANBERRY/FLAMINGO) WPL 9706796 Contact Us For Availability
1U
MOTOR HOUSING (METALLIC CHROME) WPL 9704025 Contact Us For Availability
2
TRIM BAND (BLACK) WPL W10348219 Contact Us For Availability
2
CAP, ATTACHMENT HUB (CHROME) WPL 2427652 Contact Us For Availability
3
PLANETARY (WHITE) WPL 2402861 Contact Us For Availability
3A
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
3B
PLANETARY (IMPERIAL GRAY) WPL 24028624 Contact Us For Availability
3C
PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability
3D
PLANETARY (ALMOND CREME) WPL 24028618 Contact Us For Availability
3E
PLANETARY (BUTTERCUP) WPL 9709900 Contact Us For Availability
3F
PLANETARY (BAYLEAF) WPL W10140785 Contact Us For Availability
3G
PLANETARY (BLUE WILLOW) WPL 9709597 Contact Us For Availability
3H
PLANETARY (COPPER PEARL) WPL W10512356 Contact Us For Availability
3I
PLANETARY (GLOSS CINNAMON) WPL 9709439 Contact Us For Availability
3J
PLANETARY (PISTACHIO) WPL 9706839 Contact Us For Availability
3L
PLANETARY (COBALT BLUE) WPL 24028610 Contact Us For Availability
3M
PLANETARY (AQUA SKY) WPL W10193498 Contact Us For Availability
3N
PLANETARY (CRYSTAL BLUE) WPL W10476794 Contact Us For Availability
3O
PLANETARY (GREEN APPLE) WPL 9709685 Contact Us For Availability
3P
PLANETARY (MAJESTIC WPL 24028622 Contact Us For Availability
3Q
WPL 9706475 WPL 9706475 Contact Us For Availability
3R
WPL 9706852 WPL 9706852 Contact Us For Availability
3S
WPL W10349281 WPL W10349281 Contact Us For Availability
3T
WPL 9706799 WPL 9706799 Contact Us For Availability
3U
WPL 9706670 WPL 9706670 Contact Us For Availability
4
WPL 2402531 WPL 2402531 Contact Us For Availability
4A
WPL 24025322 WPL 24025322 Contact Us For Availability
4B
WPL 24025323 WPL 24025323 Contact Us For Availability
4C
WPL 24025314 WPL 24025314 Contact Us For Availability
4D
WPL 24025316 WPL 24025316 Contact Us For Availability
4E
WPL 9709898 WPL 9709898 Contact Us For Availability
4G
WPL 9709595 WPL 9709595 Contact Us For Availability
4H
WPL W10512235 WPL W10512235 Contact Us For Availability
4I
WPL 9709437 WPL 9709437 Contact Us For Availability
4J
WPL 9706841 WPL 9706841 Contact Us For Availability
4K
WPL W10121188 WPL W10121188 Contact Us For Availability
4L
WPL 2402538 WPL 2402538 Contact Us For Availability
4M
WPL W10193496 WPL W10193496 Contact Us For Availability
4N
WPL W10476773 WPL W10476773 Contact Us For Availability
4O
WPL 9709683 WPL 9709683 Contact Us For Availability
4P
WPL 24025321 WPL 24025321 Contact Us For Availability
4Q
WPL 9706469 WPL 9706469 Contact Us For Availability
4R
WPL 9706854 WPL 9706854 Contact Us For Availability
4S
WPL W10348293 WPL W10348293 Contact Us For Availability
4T
WPL 9706801 WPL 9706801 Contact Us For Availability
4U
WPL 9704029 WPL 9704029 Contact Us For Availability
5
WPL 2403504 WPL 2403504 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL 24035084 WPL 24035084 Contact Us For Availability
5B
WPL 24035086 WPL 24035086 Contact Us For Availability
5C
WPL 24035056 WPL 24035056 Contact Us For Availability
5D
WPL 24035062 WPL 24035062 Contact Us For Availability
5E
WPL 9709906 WPL 9709906 Contact Us For Availability
5F
WPL W10140791 WPL W10140791 Contact Us For Availability
5G
WPL 9709603 WPL 9709603 Contact Us For Availability
5H
WPL W10513176 WPL W10513176 Contact Us For Availability
5I
WPL 9709445 WPL 9709445 Contact Us For Availability
5J
WPL 9706832 WPL 9706832 Contact Us For Availability
5K
WPL W10121196 WPL W10121196 Contact Us For Availability
5L
WPL 24035031 WPL 24035031 Contact Us For Availability
5M
WPL W10193504 WPL W10193504 Contact Us For Availability
5N
WPL W10476775 WPL W10476775 Contact Us For Availability
5O
WPL 9709691 WPL 9709691 Contact Us For Availability
5P
WPL 24035082 WPL 24035082 Contact Us For Availability
5Q
WPL 9706471 WPL 9706471 Contact Us For Availability
5R
WPL 9706845 WPL 9706845 Contact Us For Availability
5S
WPL W10349276 WPL W10349276 Contact Us For Availability
5T
WPL 9706792 WPL 9706792 Contact Us For Availability
5U
WPL 9706662 WPL 9706662 Contact Us For Availability
6
WPL 3179260 WPL 3179260 Contact Us For Availability
6B
WPL 9702305 WPL 9702305 Contact Us For Availability
6C
WPL 3179275 WPL 3179275 Contact Us For Availability
6D
WPL 3179277 WPL 3179277 Contact Us For Availability
6E
WPL 9709909 WPL 9709909 Contact Us For Availability
6G
WPL 9709606 WPL 9709606 Contact Us For Availability
6H
WPL W10512281 WPL W10512281 Contact Us For Availability
6I
WPL 9709448 WPL 9709448 Contact Us For Availability
6K
WPL W10121199 WPL W10121199 Contact Us For Availability
6L
WPL 3179263 WPL 3179263 Contact Us For Availability
6M
WPL W10193507 WPL W10193507 Contact Us For Availability
6N
WPL W10488414 WPL W10488414 Contact Us For Availability
6O
WPL 9709694 WPL 9709694 Contact Us For Availability
6P
WPL 9702303 WPL 9702303 Contact Us For Availability
6Q
WPL 9706470 WPL 9706470 Contact Us For Availability
6R
WPL 9706843 WPL 9706843 Contact Us For Availability
6S
WPL W10348330 WPL W10348330 Contact Us For Availability
6T
WPL 9706790 WPL 9706790 Contact Us For Availability
6U
WPL 9706684 WPL 9706684 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
10
SEAL, END WPL 2407751 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
15
LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
21
BOWL, 3 QT. WPL 3179861 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
32
SCREW WPL 3184609 Contact Us For Availability
34
PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL NP Contact Us For Availability
× ![]()
