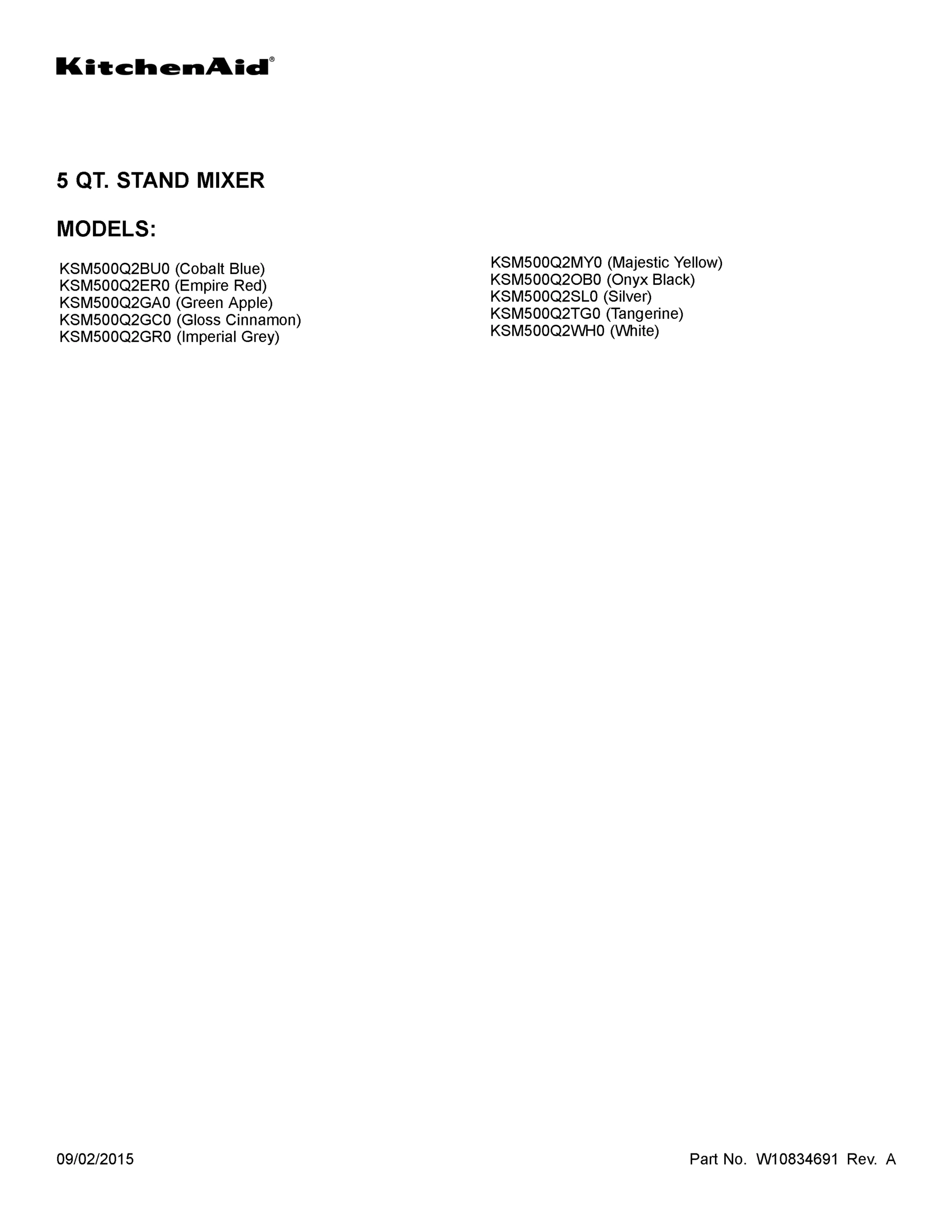

Whirlpool KSM500Q2BU0 MIXER

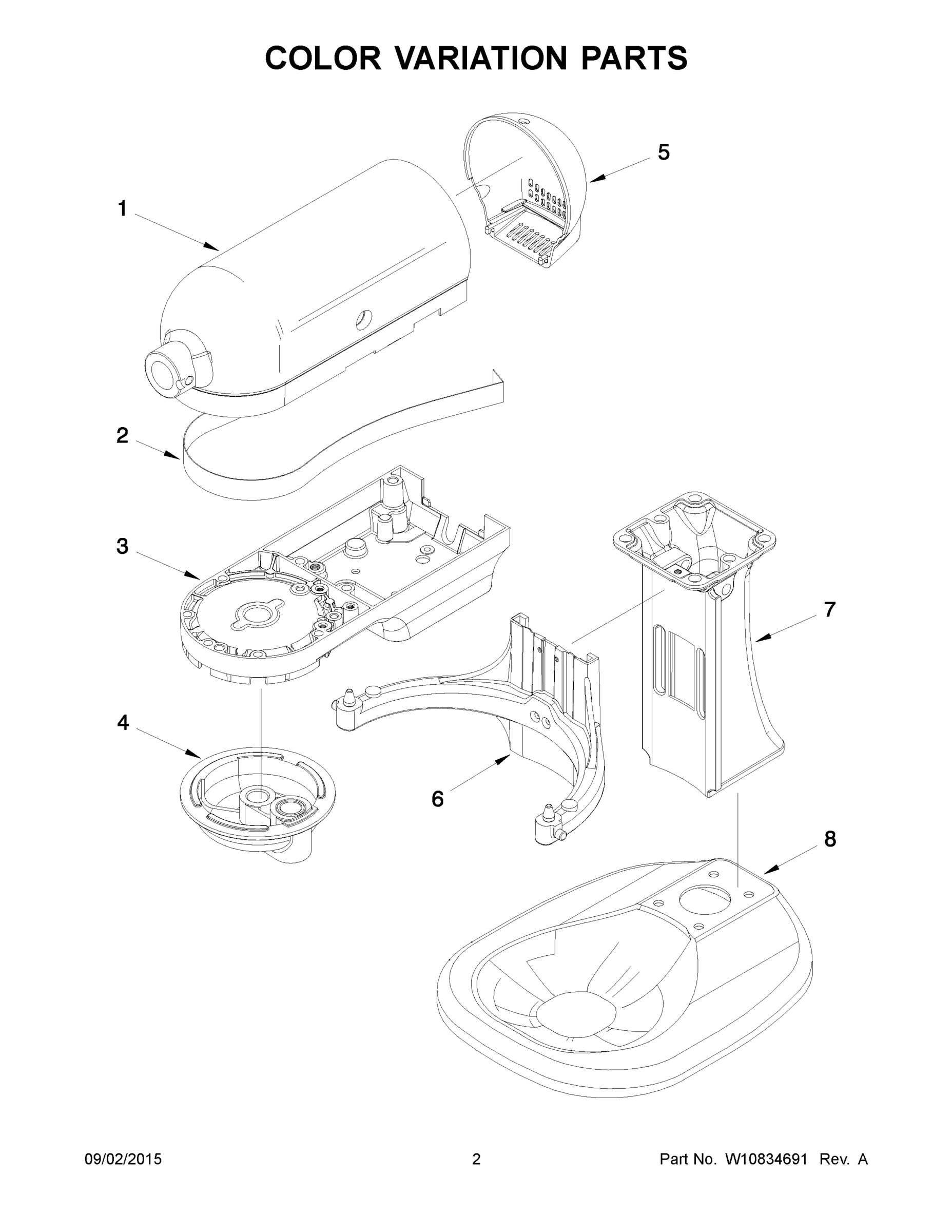

1

MOTOR HOUSING (COBALT BLUE) WPL 2402917 Contact Us For Availability

View on Model

1A

MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability

View on Model

1B

MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability

View on Model

1C

9709442 Whirlpool Housing Backorder WPL 9709442 $67.71

View on Model

1D

MOTOR HOUSING (IMPERIAL GRAY) WPL 24029122 Contact Us For Availability

View on Model

1E

MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability

View on Model

1F

MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability

View on Model

1G

MOTOR HOUSING (SILVER) WPL W10349279 Contact Us For Availability

View on Model

1H

MOTOR HOUSING (TANGERINE) WPL 9706849 Contact Us For Availability

View on Model

1I

MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability

View on Model

2

W10158179 Whirlpool Trim Band Backorder WPL W10158179 $27.93

View on Model

2

W11312468 Whirlpool Pour Shelf In Stock WPL W11312468 $19.38

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $12.61

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.33

View on Model

3

LOWER GEARCASE (COBALT BLUE) WPL 24035426 Contact Us For Availability

View on Model

3A

LOWER GEARCASE (EMPIRE RED) WPL 9704499 Contact Us For Availability

View on Model

3B

LOWER GEARCASE (GREEN APPLE) WPL W10777153 Contact Us For Availability

View on Model

3C

LOWER GEARCASE (GLOSS CINNAMON) WPL W10275890 Contact Us For Availability

View on Model

3D

LOWER GEARCASE (IMPERIAL GRAY) WPL W10777150 Contact Us For Availability

View on Model

3E

LOWER GEARCASE (MAJESTIC YELLOW) WPL 9704501 Contact Us For Availability

View on Model

3F

LOWER GEARCASE (ONYX BLACK) WPL 24035443 Contact Us For Availability

View on Model

3G

LOWER GEARCASE (SILVER) WPL W10777151 Contact Us For Availability

View on Model

3H

LOWER GEARCASE (TANGERINE) WPL W10777152 Contact Us For Availability

View on Model

3I

LOWER GEARCASE (WHITE) WPL 2403543 Contact Us For Availability

View on Model

4

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 $2.91

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.91

View on Model

4

PLANETARY (COBALT BLUE) WPL 24028610 Contact Us For Availability

View on Model

4A

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

4B

9709685 Whirlpool Planetary Assembly Backorder WPL 9709685 $31.00

View on Model

4C

9709439 Whirlpool Planetary Gear Backorder WPL 9709439 $31.00

View on Model

4D

PLANETARY (IMPERIAL GRAY) WPL 24028624 Contact Us For Availability

View on Model

4E

PLANETARY (MAJESTIC YELLOW) WPL 24028622 Contact Us For Availability

View on Model

4F

PLANETARY (ONYX BLACK) WPL 24028616 Contact Us For Availability

View on Model

4G

PLANETARY (SILVER) WPL W10349281 Contact Us For Availability

View on Model

4H

PLANETARY (TANGERINE) WPL 9706852 Contact Us For Availability

View on Model

4I

PLANETARY (WHITE) WPL 2402861 Contact Us For Availability

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $4.58

View on Model

5

END COVER (COBALT BLUE) WPL 2402538 Contact Us For Availability

View on Model

5A

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

5B

END COVER (GREEN APPLE) WPL 9709683 Contact Us For Availability

View on Model

5C

9709437 Whirlpool Cover Backorder WPL 9709437 $29.99

View on Model

5D

END COVER (IMPERIAL GRAY) WPL 24025323 Contact Us For Availability

View on Model

5E

END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability

View on Model

5F

END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability

View on Model

5G

END COVER (SILVER) WPL W10348293 Contact Us For Availability

View on Model

5H

9706854 Whirlpool Cover Backorder WPL 9706854 $29.99

View on Model

5I

WPL 2402531 WPL 2402531 Contact Us For Availability

View on Model

6

W11209422 Whirlpool Armature Backorder WPL W11209422 $49.90

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $7.98

View on Model

6

WPL 3179303 WPL 3179303 Contact Us For Availability

View on Model

6A

WPL 3179318 WPL 3179318 Contact Us For Availability

View on Model

6B

WPL W10776970 WPL W10776970 Contact Us For Availability

View on Model

6C

WPL W10275875 WPL W10275875 Contact Us For Availability

View on Model

6D

WP3179304 Whirlpool Support Backorder WPL WP3179304 $77.47

View on Model

6E

WPL 3179319 WPL 3179319 Contact Us For Availability

View on Model

6F

WPL 3179311 WPL 3179311 Contact Us For Availability

View on Model

6G

WPL W10776968 WPL W10776968 Contact Us For Availability

View on Model

6H

WPL W10776969 WPL W10776969 Contact Us For Availability

View on Model

6I

3179300 Whirlpool Support Assembly Backorder WPL 3179300 $43.59

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $8.84

View on Model

7

WPL 2401488 WPL 2401488 Contact Us For Availability

View on Model

7A

WPL 9702393 WPL 9702393 Contact Us For Availability

View on Model

7B

WPL W10776977 WPL W10776977 Contact Us For Availability

View on Model

7C

WPL W10275883 WPL W10275883 Contact Us For Availability

View on Model

7D

WPL 24014810 WPL 24014810 Contact Us For Availability

View on Model

7E

WPL 9702394 WPL 9702394 Contact Us For Availability

View on Model

7F

WPL 24014815 WPL 24014815 Contact Us For Availability

View on Model

7G

WPL W10776974 WPL W10776974 Contact Us For Availability

View on Model

7H

W10776976 Whirlpool Column Backorder WPL W10776976 $54.37

View on Model

7I

WPL 2401484 WPL 2401484 Contact Us For Availability

View on Model

8

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.91

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $2.91

View on Model

8

WPL 3179283 WPL 3179283 Contact Us For Availability

View on Model

8A

WPL 3179299 WPL 3179299 Contact Us For Availability

View on Model

8B

WPL W10777199 WPL W10777199 Contact Us For Availability

View on Model

8C

WPL W10275899 WPL W10275899 Contact Us For Availability

View on Model

8D

WPL 2404938 WPL 2404938 Contact Us For Availability

View on Model

8E

WPL 9704505 WPL 9704505 Contact Us For Availability

View on Model

8F

WPL 3179292 WPL 3179292 Contact Us For Availability

View on Model

8G

WPL W10777196 WPL W10777196 Contact Us For Availability

View on Model

8H

WPL W10777197 WPL W10777197 Contact Us For Availability

View on Model

8I

3179280 Whirlpool Base Backorder WPL 3179280 $48.06

View on Model

9

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $12.50

View on Model

9

WP9708649 Whirlpool Foot Backorder WPL WP9708649 $2.91

View on Model

10

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $25.20

View on Model

11

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

View on Model

12

240169 Whirlpool Bracket Backorder WPL 240169 $19.16

View on Model

13

WASHER WPL W10260809 Contact Us For Availability

View on Model

14

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.91

View on Model

14

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.91

View on Model

15

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 $17.70

View on Model

15

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $9.94

View on Model

15

LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability

View on Model

17

W10854966 Whirlpool Washer Backorder WPL W10854966 $2.91

View on Model

19

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $3.93

View on Model

20

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $10.39

View on Model

20

WPW10731415 Whirlpool Stand Mixer Wire Whip In Stock WPL WPW10731415 $19.11

View on Model

21

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $15.46

View on Model

21

WP241764 Whirlpool Mixer Lift Arm Bowl In Stock WPL WP241764 $4.89

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

View on Model

23

W11656718 Whirlpool Insert Backorder WPL W11656718 $3.42

View on Model

23

WP241877 Whirlpool Screw Backorder WPL WP241877 $2.91

View on Model

24

W10598843 Whirlpool Handle Assembly Backorder WPL W10598843 $24.96

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.91

View on Model

26

W10861883 Whirlpool Screw Backorder WPL W10861883 $2.91

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.91

View on Model

28

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $18.94

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $10.94

View on Model

29

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $9.24

View on Model

30

WPW10325124 Whirlpool Phase Board In Stock WPL WPW10325124 $10.39

View on Model

31

W11396625 Whirlpool Power Cord In Stock WPL W11396625 $9.85

View on Model

32

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $3.11

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $2.91

View on Model

35

WP240285 Whirlpool Drip Ring Backorder WPL WP240285 $5.36

View on Model
