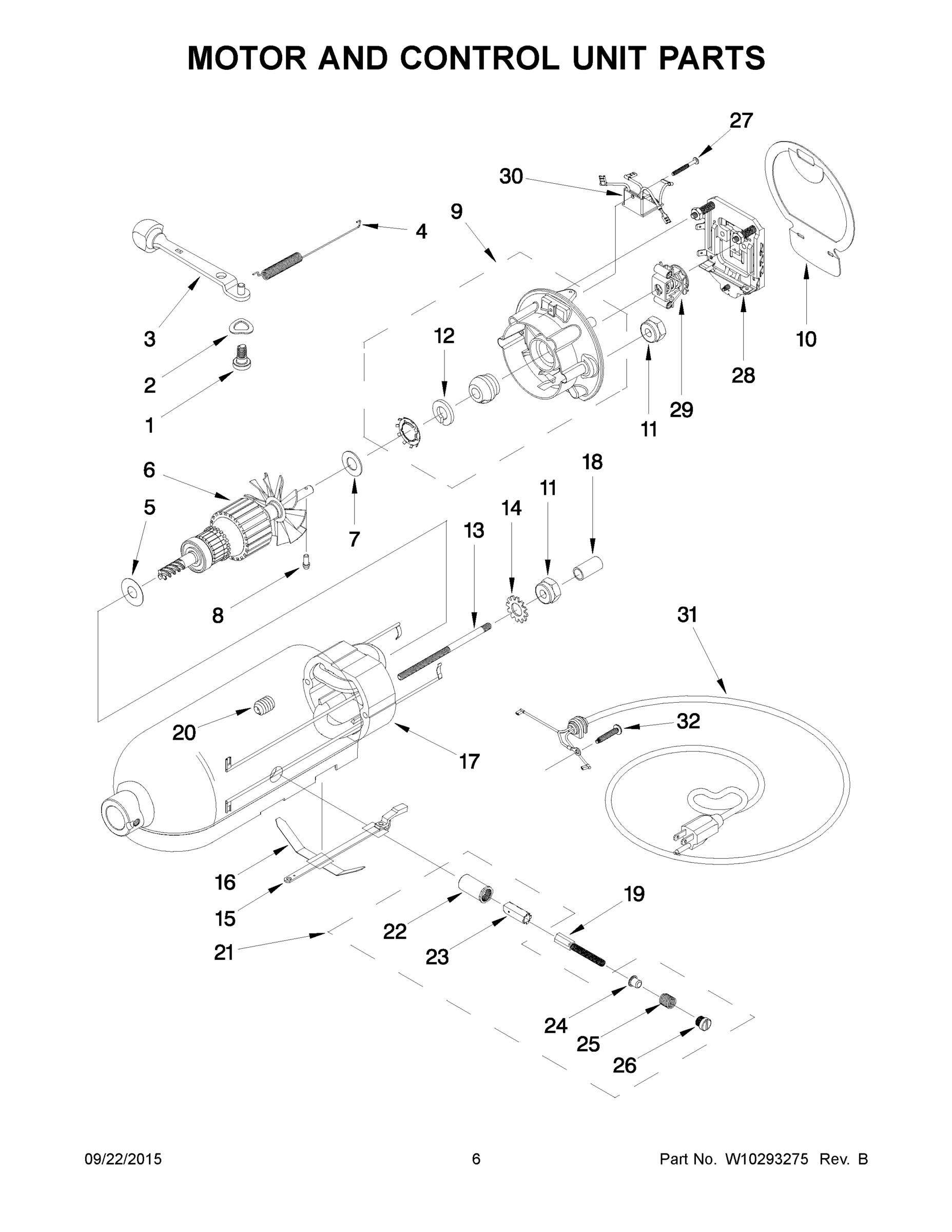

Model Whirlpool KSM455PSSM0 MIXER – Common Parts & Diagrams

1
MOTOR HOUSING (SILVER METALLIC)
MOTOR HOUSING (SILVER METALLIC) WPL W10121193 Contact Us For Availability
View on Model
2
CAP, ATTACHMENT HUB (CHROME)
CAP, ATTACHMENT HUB (CHROME) WPL 2427652 Contact Us For Availability
View on Model
9
GEAR, PINION AND SHAFT
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
View on Model
10
SEAL, END
SEAL, END WPL 2407751 Contact Us For Availability
View on Model
12
BRACKET, BOWL LIFT
BRACKET, BOWL LIFT WPL 240169 Contact Us For Availability
View on Model
12
WASHER, FELT
WASHER, FELT WPL 3180238 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL W10260809 Contact Us For Availability
View on Model
13
PIN, AGITATOR SHAFT
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
View on Model
15
LINK, SPEED AND CAM ASSEMBLY
LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability
View on Model
15
NUT
NUT WPL 8533907 Contact Us For Availability
View on Model
16
SCREW
SCREW WPL 3182904 Contact Us For Availability
View on Model
16
"O" RING
"O" RING WPL 6750055 Contact Us For Availability
View on Model
18
BEATER, FLAT
BEATER, FLAT WPL 2402354 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL 103994 Contact Us For Availability
View on Model
21
BRUSH HOLDER ASSEMBLY
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
View on Model
27
WORM GEAR BRACKET AND GEAR ASSEMBLY
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
View on Model
28
SHAFT, CENTER AGITATOR ASSEMBLY
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
View on Model
32
SCREW
SCREW WPL 3184609 Contact Us For Availability
View on Model
34
PLANETARY (REFER TO COLOR VARIATION PARTS PAG
PLANETARY (REFER TO COLOR VARIATION PARTS PAG WPL NP Contact Us For Availability
View on Model
