Model Whirlpool KSM192XDOB0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams

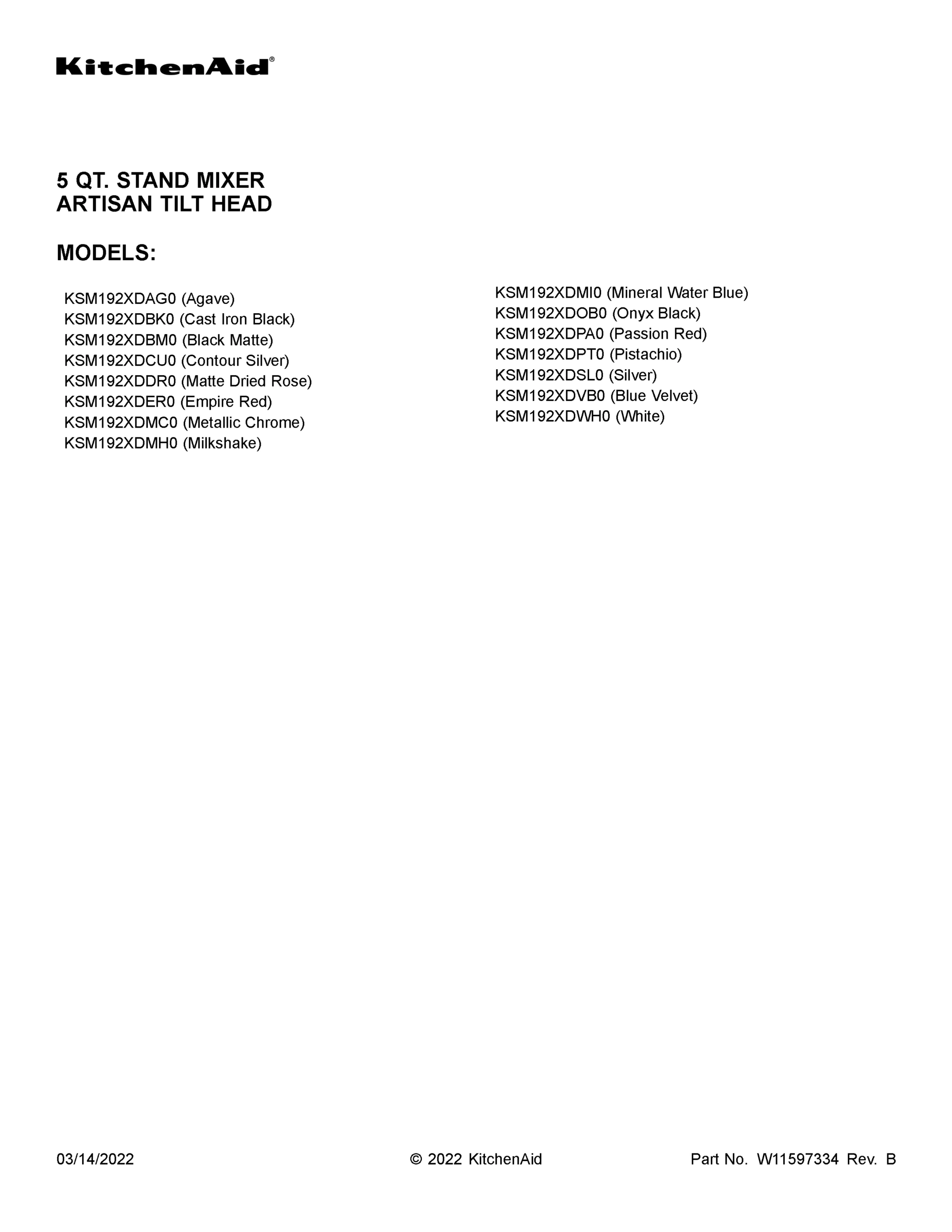

01 - COVER SHEET

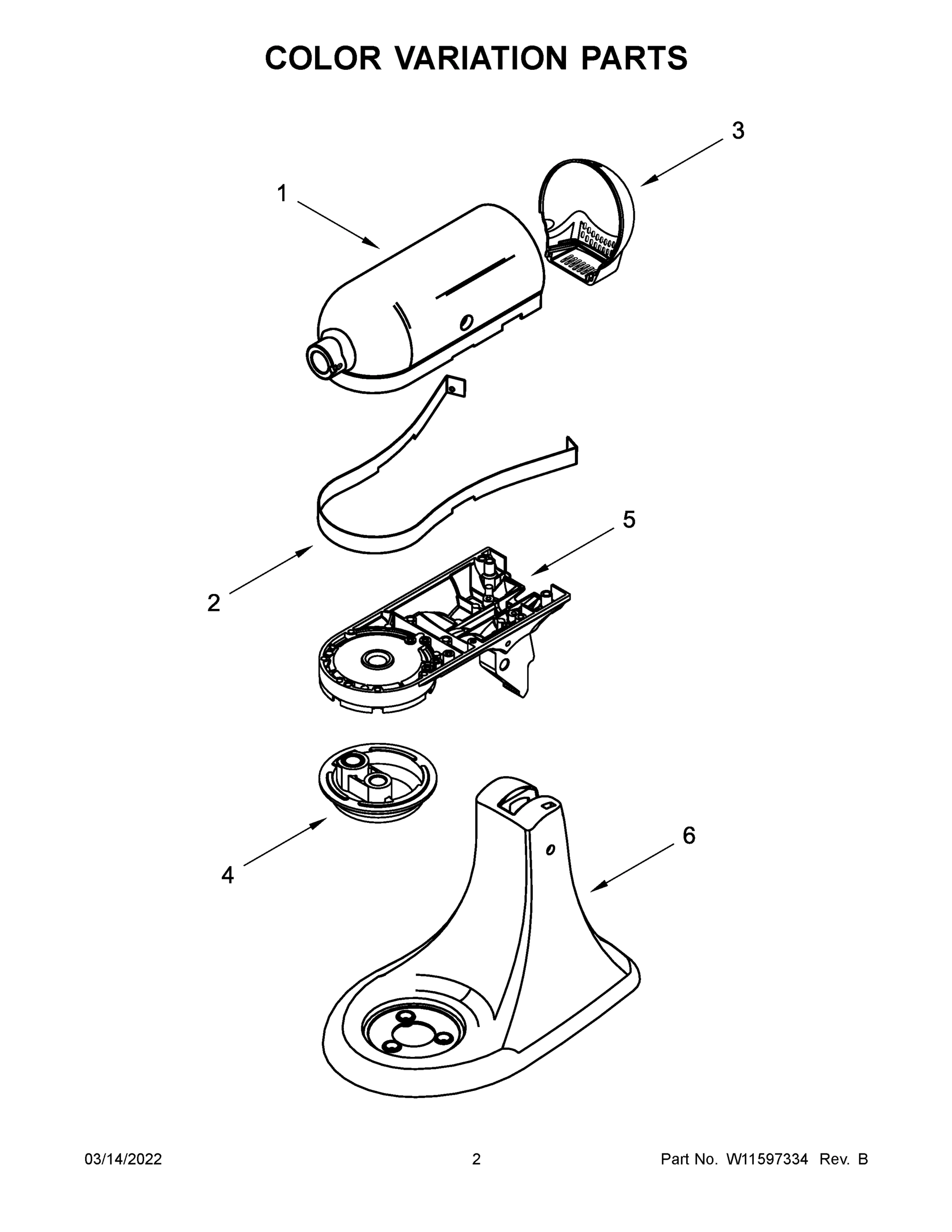

02 - COLOR VARIATION PARTS

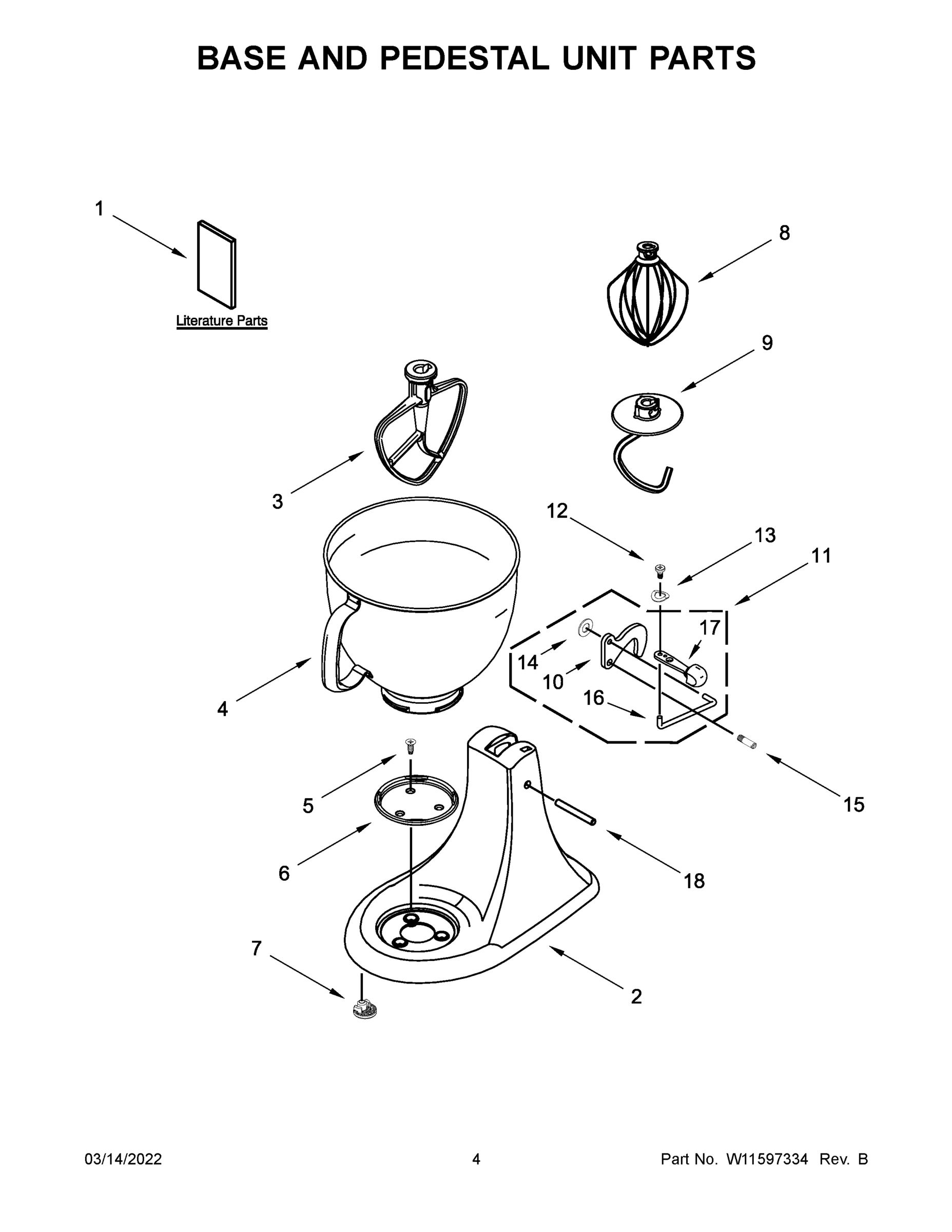

03 - BASE AND PEDESTAL UNIT PARTS

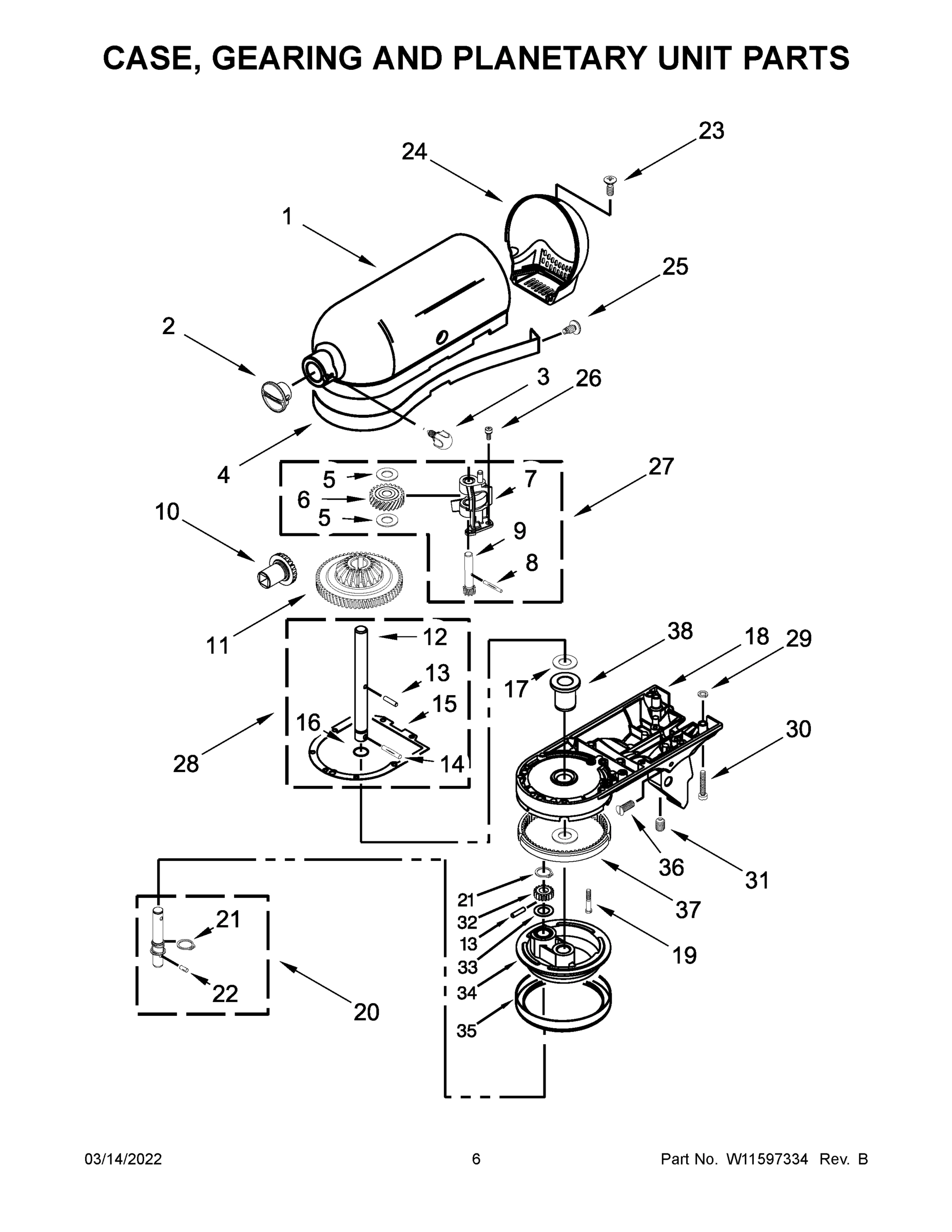

04 - CASE, GEARING AND PLANETARY UNIT PARTS

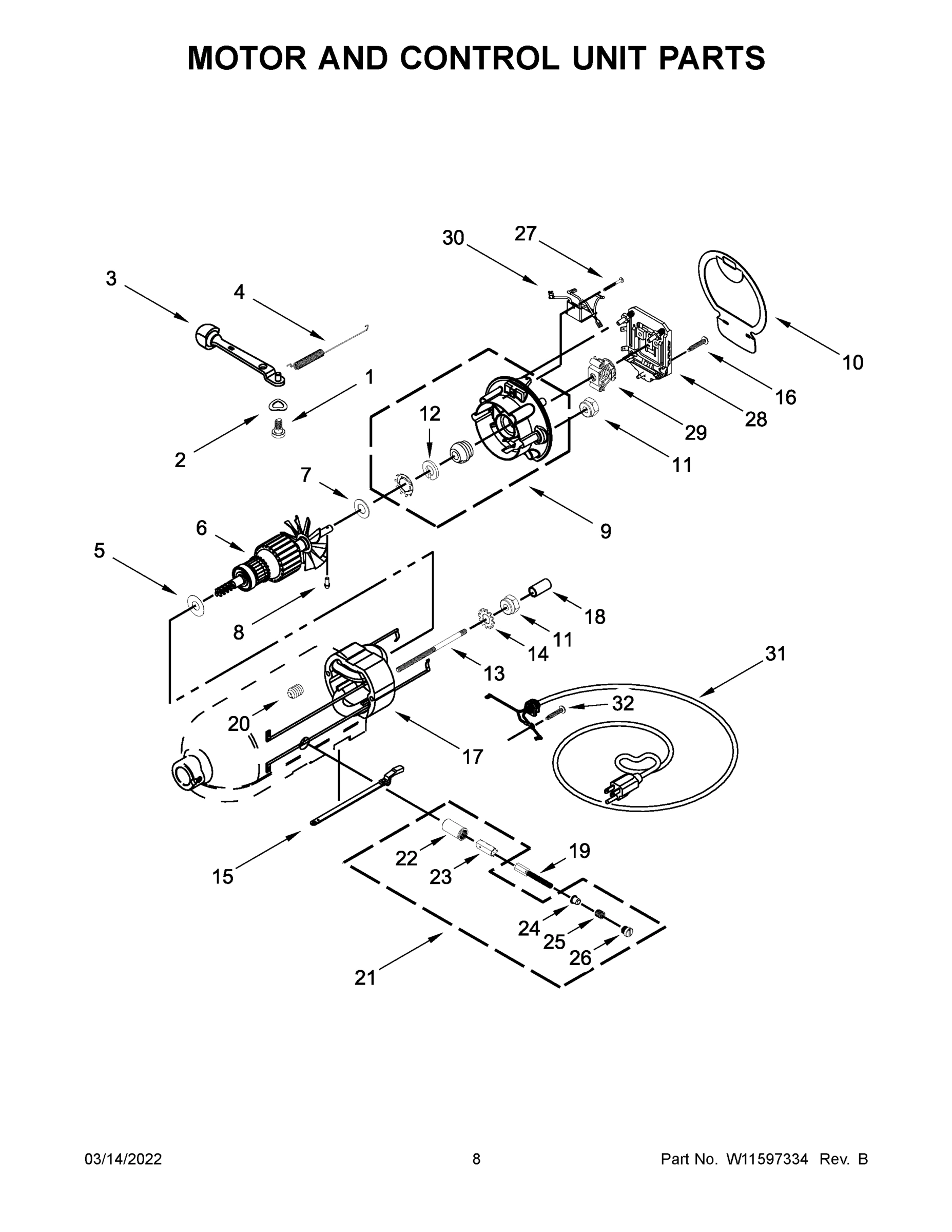

05 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool KSM192XDOB0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
1
USE & CARE GUIDE WPL W11555615 Contact Us For Availability
1D
MOTOR HOUSING (MATTE DRIED ROSE) WPL W11209495 Contact Us For Availability
1E
MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability
1F
MOTOR HOUSING (METALLIC CHROME) WPL 9704025 Contact Us For Availability
1G
MOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE) WPL W11113872 Contact Us For Availability
1H
MOTOR HOUSING (MINERAL WATER BLUE) WPL W11444673 Contact Us For Availability
1I
MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability
1J
MOTOR HOUSING (PASSION/SIGNATURE RED) WPL W11298420 Contact Us For Availability
1K
MOTOR HOUSING (PISTACHIO) WPL 9706836 Contact Us For Availability
1L
MOTOR HOUSING (SILVER/SILVER TREAD) WPL W10349279 Contact Us For Availability
1M
MOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE WPL W11209471 Contact Us For Availability
1N
MOTOR HOUSING (WHITE) WPL 2402911 Contact Us For Availability
3
END COVER (AGAVE) WPL W11579591 Contact Us For Availability
3A
END COVER (CAST IRON/IMPERIAL BLACK) WPL 9704805 Contact Us For Availability
3B
END COVER (BLACK MATTE) WPL W10885707 Contact Us For Availability
3C
END COVER (CONTOUR SILVER) WPL W10350456 Contact Us For Availability
3D
END COVER (MATTE DRIED ROSE) WPL W11209501 Contact Us For Availability
3E
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3F
END COVER (METALLIC CHROME) WPL 9704029 Contact Us For Availability
3G
END COVER (MILKSHAKE/MATTE MILKSHAKE) WPL W11113835 Contact Us For Availability
3H
END COVER (MINERAL WATER BLUE) WPL W11444606 Contact Us For Availability
3I
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3J
END COVER (PASSION/SIGNATURE RED) WPL W11298415 Contact Us For Availability
3K
END COVER (PISTACHIO) WPL 9706841 Contact Us For Availability
3L
END COVER (SILVER/SILVER TREAD) WPL W10348293 Contact Us For Availability
3M
END COVER (BLUE VELVET/MATTE VINTAGE BLUE) WPL W11209472 Contact Us For Availability
3N
END COVER (WHITE) WPL 2402531 Contact Us For Availability
4
PLANETARY (AGAVE) WPL W11579603 Contact Us For Availability
4
BOWL, 5 QT. WPL W11259899 Contact Us For Availability
4A
PLANETARY (CAST IRON/IMPERIAL BLACK) WPL 9704797 Contact Us For Availability
4C
WPL W10350465 WPL W10350465 Contact Us For Availability
4D
WPL W11209496 WPL W11209496 Contact Us For Availability
4E
WPL 24028623 WPL 24028623 Contact Us For Availability
4F
WPL 9706670 WPL 9706670 Contact Us For Availability
4G
WPL W11113886 WPL W11113886 Contact Us For Availability
4H
WPL W11444675 WPL W11444675 Contact Us For Availability
4I
WPL 24028616 WPL 24028616 Contact Us For Availability
4J
WPL W11298422 WPL W11298422 Contact Us For Availability
4K
WPL 9706839 WPL 9706839 Contact Us For Availability
4L
WPL W10349281 WPL W10349281 Contact Us For Availability
4M
WPL W11209470 WPL W11209470 Contact Us For Availability
4N
WPL 2402861 WPL 2402861 Contact Us For Availability
5
WPL W11579600 WPL W11579600 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL 9707103 WPL 9707103 Contact Us For Availability
5B
WPL W10885699 WPL W10885699 Contact Us For Availability
5C
WPL W10350459 WPL W10350459 Contact Us For Availability
5D
WPL W11209493 WPL W11209493 Contact Us For Availability
5E
WPL 24035084 WPL 24035084 Contact Us For Availability
5F
WPL 9706662 WPL 9706662 Contact Us For Availability
5G
WPL W11113859 WPL W11113859 Contact Us For Availability
5H
WPL W11444671 WPL W11444671 Contact Us For Availability
5I
WPL 24035056 WPL 24035056 Contact Us For Availability
5J
WPL W11298417 WPL W11298417 Contact Us For Availability
5K
WPL 9706832 WPL 9706832 Contact Us For Availability
5L
WPL W10349276 WPL W10349276 Contact Us For Availability
5M
WPL W11209465 WPL W11209465 Contact Us For Availability
5N
WPL 2403504 WPL 2403504 Contact Us For Availability
6
WPL W11579599 WPL W11579599 Contact Us For Availability
6A
WPL 9707100 WPL 9707100 Contact Us For Availability
6B
WPL W10885695 WPL W10885695 Contact Us For Availability
6C
WPL W10350457 WPL W10350457 Contact Us For Availability
6D
WPL W11231606 WPL W11231606 Contact Us For Availability
6F
WPL 9706684 WPL 9706684 Contact Us For Availability
6G
WPL W11113853 WPL W11113853 Contact Us For Availability
6H
WPL W11444670 WPL W11444670 Contact Us For Availability
6I
WPL 3179275 WPL 3179275 Contact Us For Availability
6J
WPL W11298419 WPL W11298419 Contact Us For Availability
6K
WPL 9706830 WPL 9706830 Contact Us For Availability
6L
WPL W10348330 WPL W10348330 Contact Us For Availability
6M
WPL W11231604 WPL W11231604 Contact Us For Availability
6N
WPL 3179260 WPL 3179260 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
10
SEAL, END WPL 2407751 Contact Us For Availability
11
LATCH, LINK ASSEMBLY (CHROME) WPL W11300265 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
15
GASKET, TRANSMISSION WPL 240684 Contact Us For Availability
16
"O" RING WPL 6750055 Contact Us For Availability
17
LEVER, LATCH (CHROME) WPL W11300267 Contact Us For Availability
21
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
31
CORD, POWER (BLACK) WPL W11249139 Contact Us For Availability
34
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
35
RING, PLANETARY DRIP (POLISHED) WPL 2402852 Contact Us For Availability
× ![]()
