Model Whirlpool KSM154GBQOB0 5 QT. STAND MIXER - TILT HEAD DELUXE EDITION - GLA – Common Parts & Diagrams

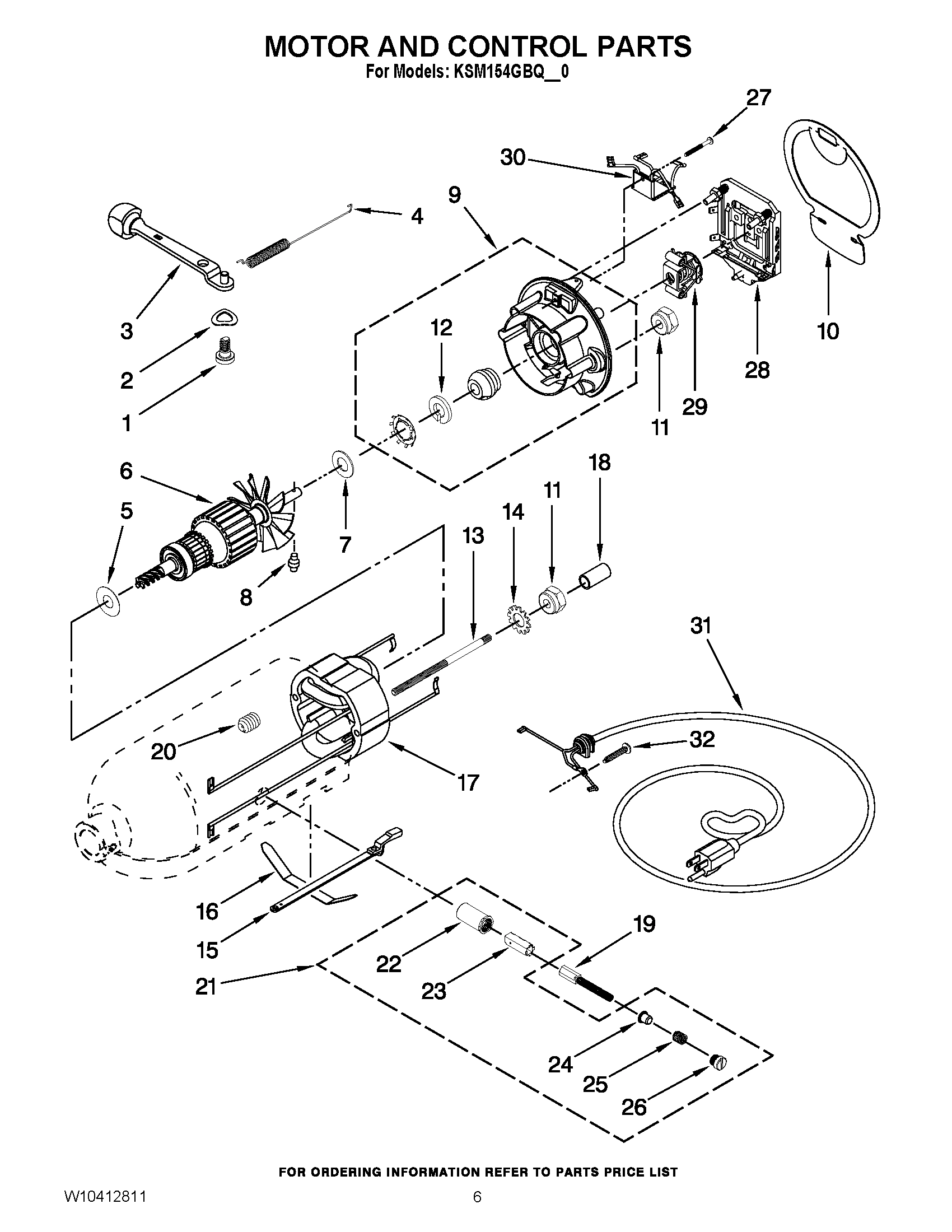

03 - MOTOR AND CONTROL PARTS
05 - ACCESSORY PARTS

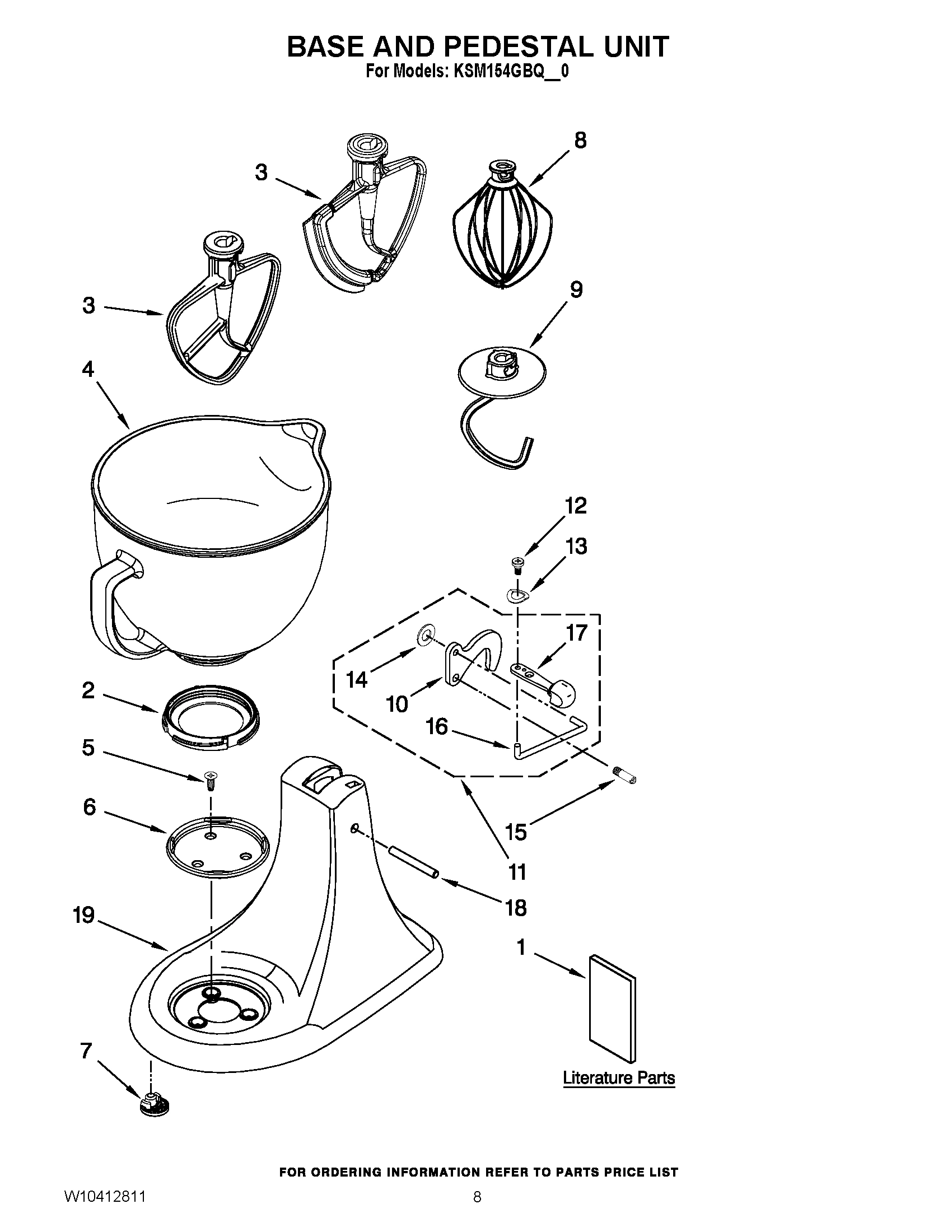

04 - BASE AND PEDESTAL UNIT

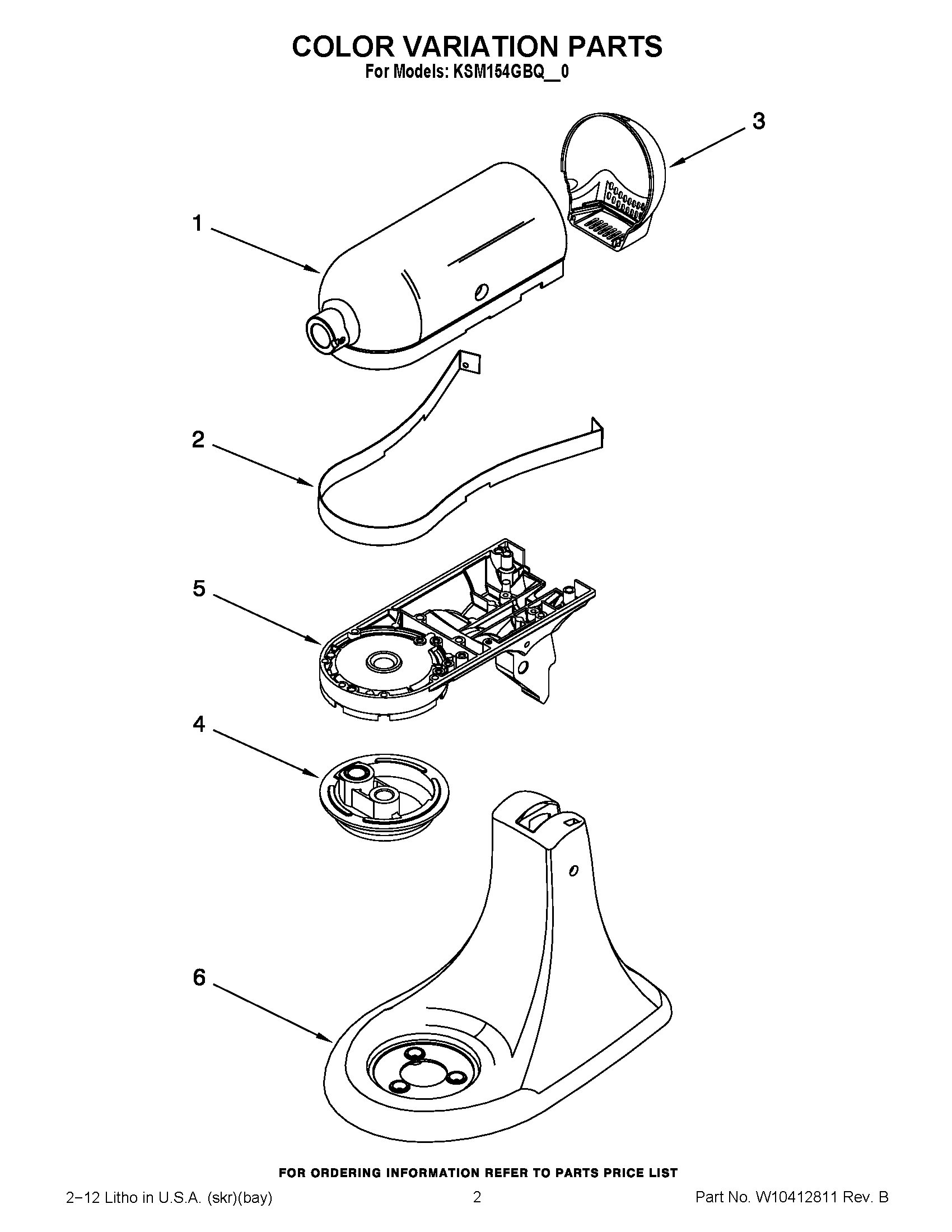

01 - COLOR VARIATION PARTS

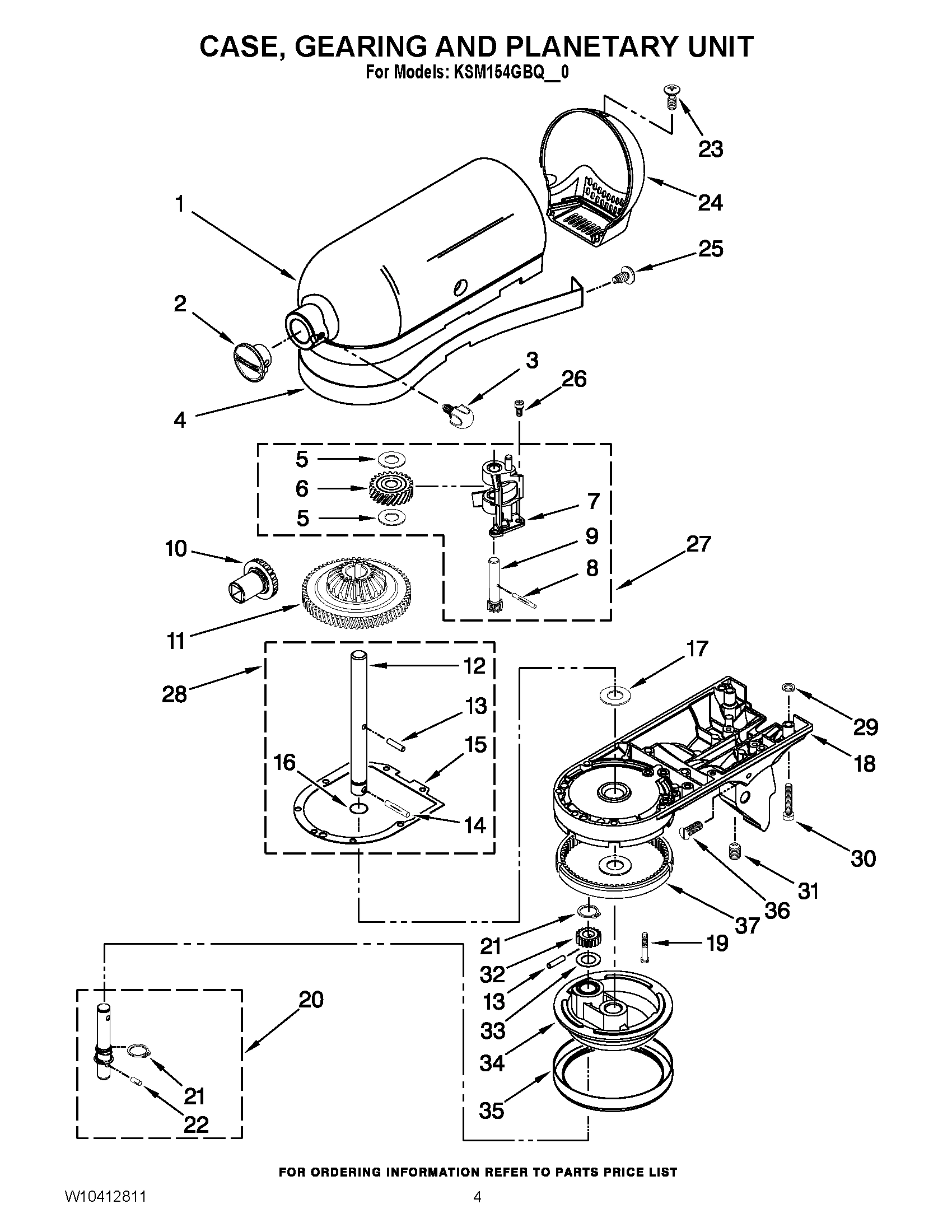

02 - CASE, GEARING AND PLANETARY UNIT
Common parts from model Whirlpool KSM154GBQOB0 5 QT. STAND MIXER - TILT HEAD DELUXE EDITION - GLA
1
Motor Housing (White) WPL 2402911 Contact Us For Availability
1
Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability
1
Motor Housing (Almond Creme) WPL 24029116 Contact Us For Availability
1
Motor Housing (Majestic Yellow) WPL 24029120 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability
1
MOTOR HOUSING-Tangerine WPL 9706849 Contact Us For Availability
1
Motor Housing (Green Apple) WPL 9709688 Contact Us For Availability
1
Motor Housing (Buttercup) WPL 9709903 Contact Us For Availability
1
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
2
TRIM BAND (DARK PLATINUM) WPL W10405178 Contact Us For Availability
2
Cap, Attachment Hub (Chrome) WPL 2427652 Contact Us For Availability
3
END COVER-White WPL 2402531 Contact Us For Availability
3
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3
End Cover (Almond Creme) WPL 24025316 Contact Us For Availability
3
END COVER-Majestic Yellow WPL 24025321 Contact Us For Availability
3
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3
End Cover (Blue Willow) WPL 9709595 Contact Us For Availability
3
End Cover (Green Apple) WPL 9709683 Contact Us For Availability
3
END COVER (CRYSTAL BLUE) WPL W10476773 Contact Us For Availability
4
PLANETARY-White WPL 2402861 Contact Us For Availability
4
PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability
4
Planetary (Almond Creme) WPL 24028618 Contact Us For Availability
4
PLANETARY-Majestic Yellow WPL 24028622 Contact Us For Availability
4
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
4
PLANETARY-Tangerine WPL 9706852 Contact Us For Availability
4
Planetary (Blue Willow) WPL 9709597 Contact Us For Availability
4
Planetary (Buttercup) WPL 9709900 Contact Us For Availability
4
WPL W10383631 WPL W10383631 Contact Us For Availability
5
WPL 2403504 WPL 2403504 Contact Us For Availability
5
WPL 24035056 WPL 24035056 Contact Us For Availability
5
WPL 24035062 WPL 24035062 Contact Us For Availability
5
WPL 24035082 WPL 24035082 Contact Us For Availability
5
WPL 24035084 WPL 24035084 Contact Us For Availability
5
WPL 9706845 WPL 9706845 Contact Us For Availability
5
WPL 9709445 WPL 9709445 Contact Us For Availability
5
WPL 9709603 WPL 9709603 Contact Us For Availability
5
WPL 9709691 WPL 9709691 Contact Us For Availability
5
WPL W10350459 WPL W10350459 Contact Us For Availability
6
WPL 3179275 WPL 3179275 Contact Us For Availability
6
WPL 3179277 WPL 3179277 Contact Us For Availability
6
WPL 9702303 WPL 9702303 Contact Us For Availability
6
WPL 9706843 WPL 9706843 Contact Us For Availability
6
WPL 9709448 WPL 9709448 Contact Us For Availability
6
WPL 9709606 WPL 9709606 Contact Us For Availability
6
WPL 9709694 WPL 9709694 Contact Us For Availability
6
WPL W10350457 WPL W10350457 Contact Us For Availability
6
WPL W10403051 WPL W10403051 Contact Us For Availability
6
WPL W10488414 WPL W10488414 Contact Us For Availability
9
Shaft & Pinion WPL 2402102 Contact Us For Availability
11
LATCH, LINK & LEVER (BUFF KNOB) WPL 244523 Contact Us For Availability
13
Pin (Vertical Center Shaft) WPL 2400181 Contact Us For Availability
15
Speed Link & Cam WPL 3184176 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
19
Screw WPL 103994 Contact Us For Availability
27
GEAR, WORM AND BRACKET WPL 2403092 Contact Us For Availability
34
PLANETARY WPL NP Contact Us For Availability
NI
BOWL COVER, (KBC90N1) WPL 9709314 Contact Us For Availability
× ![]()
