Model Whirlpool KSM153PSMC1 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS

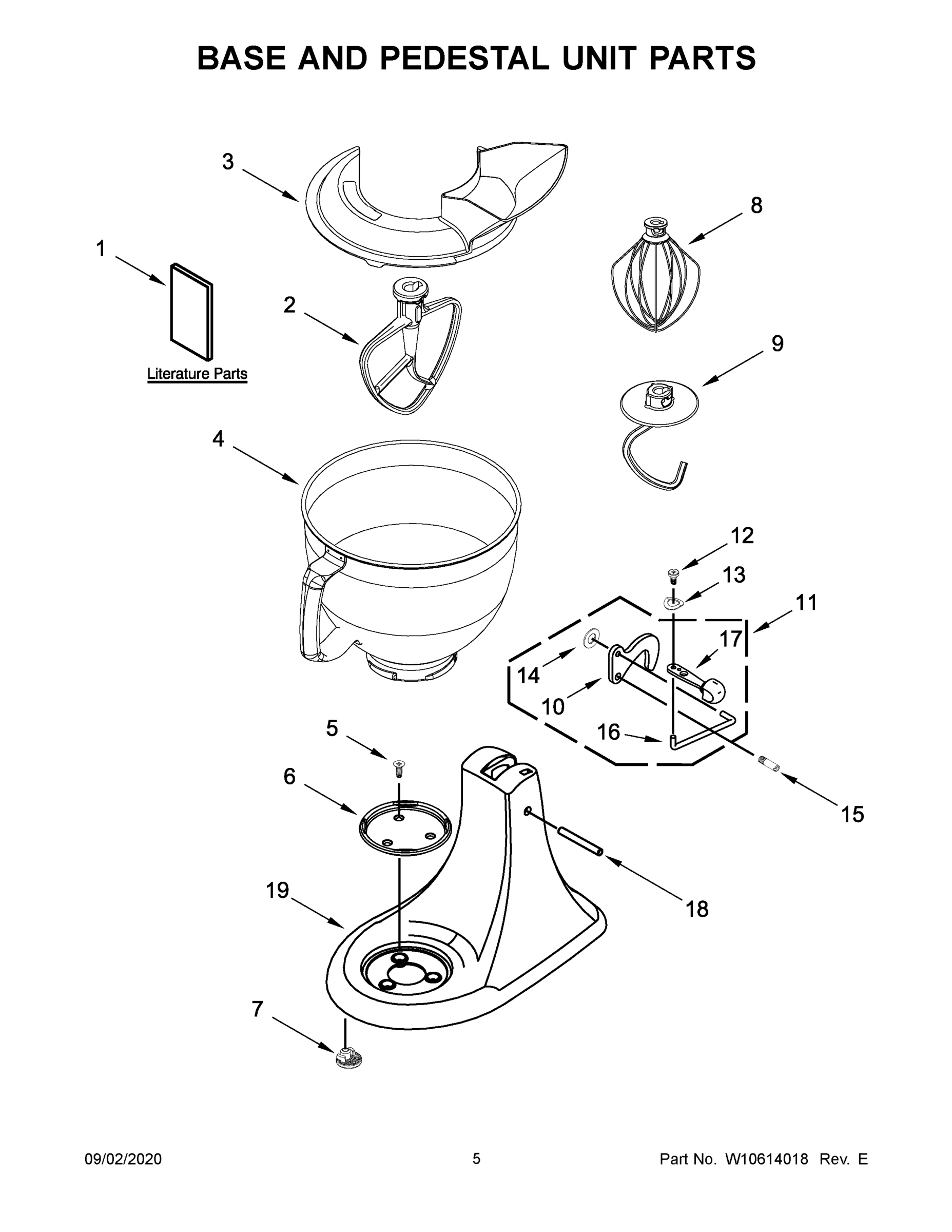

03 - BASE AND PEDESTAL UNIT PARTS

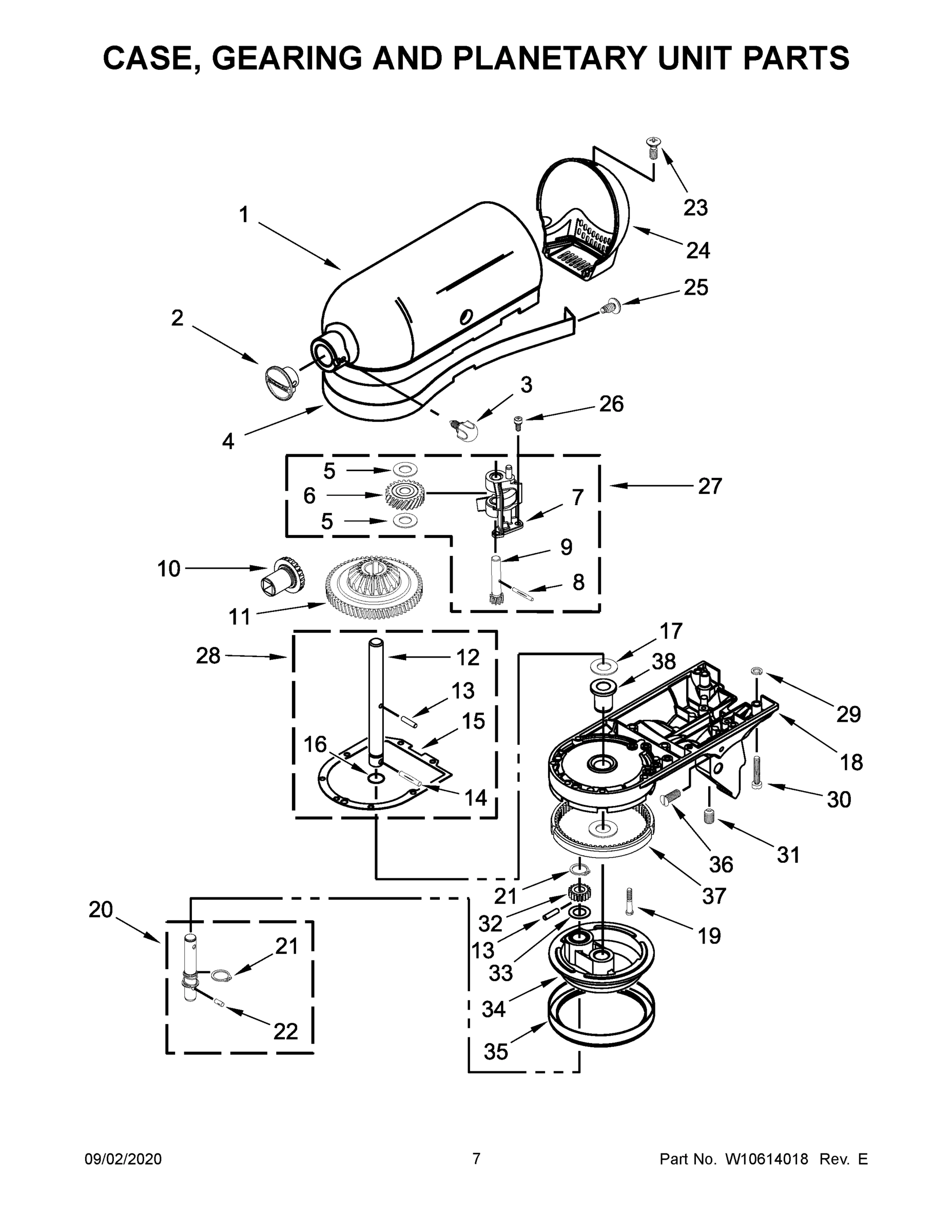

04 - CASE, GEARING AND PLANETARY UNIT PARTS

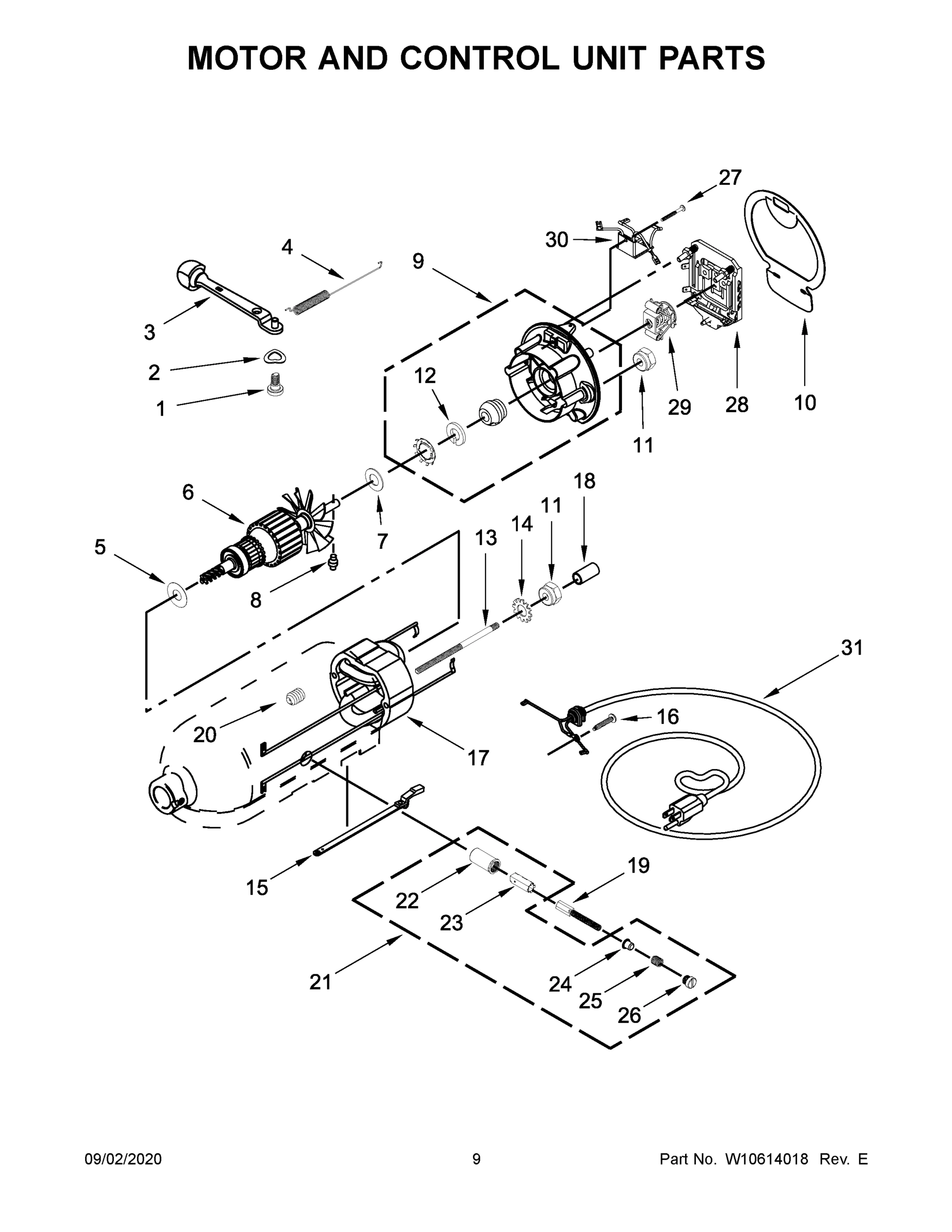

05 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool KSM153PSMC1 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
1
USE & CARE GUIDE WPL W11368487 Contact Us For Availability
1C
MOTOR HOUSING (METALLIC CHROME) WPL 9704025 Contact Us For Availability
1E
MOTOR HOUSING (TANGERINE) WPL 9706849 Contact Us For Availability
1F
MOTOR HOUSING (AQUA SKY) WPL W10193501 Contact Us For Availability
1G
MOTOR HOUSING (COBALT BLUE) WPL 2402917 Contact Us For Availability
1H
MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability
1I
MOTOR HOUSING (GLOSS CINNAMON) WPL 9709442 Contact Us For Availability
1J
MOTOR HOUSING (CRANBERRY/FLAMINGO) WPL 9706796 Contact Us For Availability
1K
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
1L
MOTOR HOUSING (CONTOUR SILVER) WPL W10350463 Contact Us For Availability
1M
MOTOR HOUSING (MATTE BLACK VIOLET) WPL W11113873 Contact Us For Availability
1N
MOTOR HOUSING (BLUE WILLOW) WPL 9709600 Contact Us For Availability
1O
MOTOR HOUSING (BOYSENBERRY) WPL W10140801 Contact Us For Availability
1P
MOTOR HOUSING (COPPER PEARL) WPL W10513208 Contact Us For Availability
1Q
MOTOR HOUSING (MATTE WHITE) WPL W10885723 Contact Us For Availability
1R
MOTOR HOUSING (GUAVA GLAZE) WPL W11113874 Contact Us For Availability
1S
MOTOR HOUSING (HONEYDEW) WPL W11383818 Contact Us For Availability
1T
MOTOR HOUSING (INK BLUE) WPL W11113875 Contact Us For Availability
1U
MOTOR HOUSING (ICE/ICE BLUE) WPL 9707662 Contact Us For Availability
1V
MOTOR HOUSING (MATTE LAVENDER CREAM) WPL W10678736 Contact Us For Availability
1W
MOTOR HOUSING (OCEAN DRIVE) WPL W10885691 Contact Us For Availability
1X
MOTOR HOUSING (BIRD OF PARADISE) WPL W11209486 Contact Us For Availability
1Y
MOTOR HOUSING (PISTACHIO) WPL 9706836 Contact Us For Availability
1Z
MOTOR HOUSING (TOFFEE DELIGHT) WPL W11159843 Contact Us For Availability
2
TRIM BAND (BLACK) WPL W10588282 Contact Us For Availability
2A
TRIM BAND (BLACK/SILVER) WPL 9706630 Contact Us For Availability
3
END COVER (WHITE) WPL 2402531 Contact Us For Availability
3A
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3B
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3C
END COVER (METALLIC CHROME) WPL 9704029 Contact Us For Availability
3D
END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability
3E
END COVER (TANGERINE) WPL 9706854 Contact Us For Availability
3F
END COVER (AQUA SKY) WPL W10193496 Contact Us For Availability
3G
END COVER (COBALT BLUE) WPL 2402538 Contact Us For Availability
3H
END COVER ( WPL 9709683 Contact Us For Availability
3I
WPL 9709437 WPL 9709437 Contact Us For Availability
3J
WPL 9706801 WPL 9706801 Contact Us For Availability
3K
WPL W10476773 WPL W10476773 Contact Us For Availability
3L
WPL W10350456 WPL W10350456 Contact Us For Availability
3M
WPL W11113837 WPL W11113837 Contact Us For Availability
3N
WPL 9709595 WPL 9709595 Contact Us For Availability
3O
WPL W10140796 WPL W10140796 Contact Us For Availability
3P
WPL W10512235 WPL W10512235 Contact Us For Availability
3Q
WPL W10885728 WPL W10885728 Contact Us For Availability
3R
WPL W11113836 WPL W11113836 Contact Us For Availability
3S
WPL W11383814 WPL W11383814 Contact Us For Availability
3T
WPL W11113833 WPL W11113833 Contact Us For Availability
3U
WPL 9707667 WPL 9707667 Contact Us For Availability
3V
WPL W10678729 WPL W10678729 Contact Us For Availability
3X
WPL W11209489 WPL W11209489 Contact Us For Availability
3Y
WPL 9706841 WPL 9706841 Contact Us For Availability
3Z
WPL W11159846 WPL W11159846 Contact Us For Availability
4
WPL 2402861 WPL 2402861 Contact Us For Availability
4A
WPL 24028616 WPL 24028616 Contact Us For Availability
4B
WPL 24028623 WPL 24028623 Contact Us For Availability
4C
WPL 9706670 WPL 9706670 Contact Us For Availability
4D
WPL 24028622 WPL 24028622 Contact Us For Availability
4E
WPL 9706852 WPL 9706852 Contact Us For Availability
4F
WPL W10193498 WPL W10193498 Contact Us For Availability
4G
WPL 24028610 WPL 24028610 Contact Us For Availability
4H
WPL 9709685 WPL 9709685 Contact Us For Availability
4I
WPL 9709439 WPL 9709439 Contact Us For Availability
4J
WPL 9706799 WPL 9706799 Contact Us For Availability
4K
WPL W10476794 WPL W10476794 Contact Us For Availability
4L
WPL W10350465 WPL W10350465 Contact Us For Availability
4M
WPL W11113888 WPL W11113888 Contact Us For Availability
4N
WPL 9709597 WPL 9709597 Contact Us For Availability
4O
WPL W10140798 WPL W10140798 Contact Us For Availability
4P
WPL W10512356 WPL W10512356 Contact Us For Availability
4Q
WPL W10885730 WPL W10885730 Contact Us For Availability
4R
WPL W11113889 WPL W11113889 Contact Us For Availability
4S
WPL W11383821 WPL W11383821 Contact Us For Availability
4T
WPL W11113890 WPL W11113890 Contact Us For Availability
4U
WPL 9707665 WPL 9707665 Contact Us For Availability
4V
WPL W10678731 WPL W10678731 Contact Us For Availability
4W
WPL W10885690 WPL W10885690 Contact Us For Availability
4X
WPL W11209487 WPL W11209487 Contact Us For Availability
4Y
WPL 9706839 WPL 9706839 Contact Us For Availability
4Z
WPL W11159845 WPL W11159845 Contact Us For Availability
5
WPL 2403504 WPL 2403504 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5A
WPL 24035056 WPL 24035056 Contact Us For Availability
5B
WPL 24035084 WPL 24035084 Contact Us For Availability
5C
WPL 9706662 WPL 9706662 Contact Us For Availability
5D
WPL 24035082 WPL 24035082 Contact Us For Availability
5E
WPL 9706845 WPL 9706845 Contact Us For Availability
5F
WPL W10193504 WPL W10193504 Contact Us For Availability
5G
WPL 24035031 WPL 24035031 Contact Us For Availability
5H
WPL 9709691 WPL 9709691 Contact Us For Availability
5I
WPL 9709445 WPL 9709445 Contact Us For Availability
5J
WPL 9706792 WPL 9706792 Contact Us For Availability
5K
WPL W10476775 WPL W10476775 Contact Us For Availability
5L
WPL W10350459 WPL W10350459 Contact Us For Availability
5M
WPL W11113860 WPL W11113860 Contact Us For Availability
5N
WPL 9709603 WPL 9709603 Contact Us For Availability
5O
WPL W10140804 WPL W10140804 Contact Us For Availability
5P
WPL W10513176 WPL W10513176 Contact Us For Availability
5Q
WPL W10885718 WPL W10885718 Contact Us For Availability
5R
WPL W11113861 WPL W11113861 Contact Us For Availability
5S
WPL W11383816 WPL W11383816 Contact Us For Availability
5T
WPL W11113862 WPL W11113862 Contact Us For Availability
5U
WPL 9707659 WPL 9707659 Contact Us For Availability
5V
WPL W10678734 WPL W10678734 Contact Us For Availability
5W
WPL W10885686 WPL W10885686 Contact Us For Availability
5X
WPL W11209481 WPL W11209481 Contact Us For Availability
5Y
WPL 9706832 WPL 9706832 Contact Us For Availability
5Z
WPL W11159847 WPL W11159847 Contact Us For Availability
6
WPL 3179260 WPL 3179260 Contact Us For Availability
6A
WPL 3179275 WPL 3179275 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
10
SEAL, END WPL 2407751 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
16
"O" RING WPL 6750055 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
34
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
× ![]()
