Model Whirlpool KSM150EPER0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams

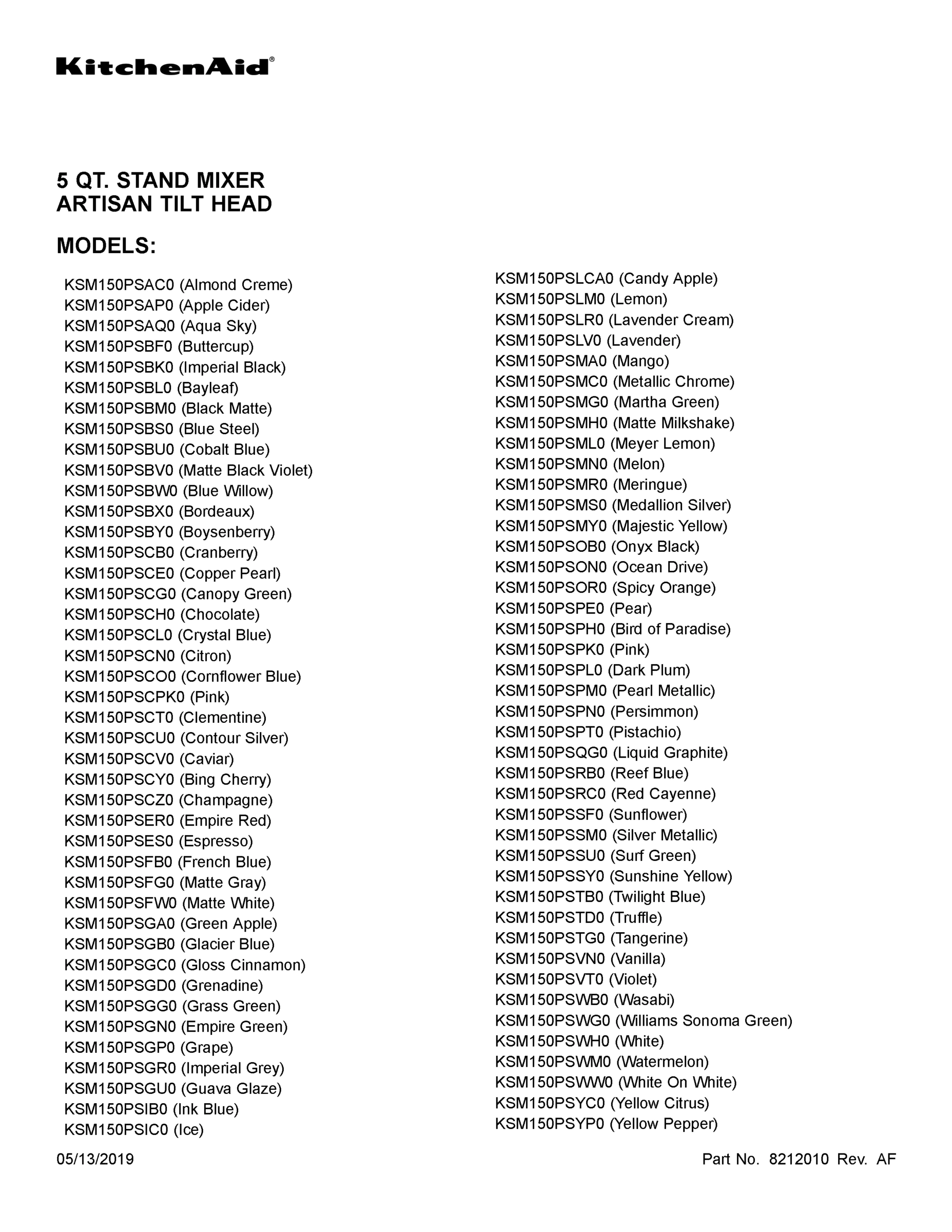

01 - COVER SHEET

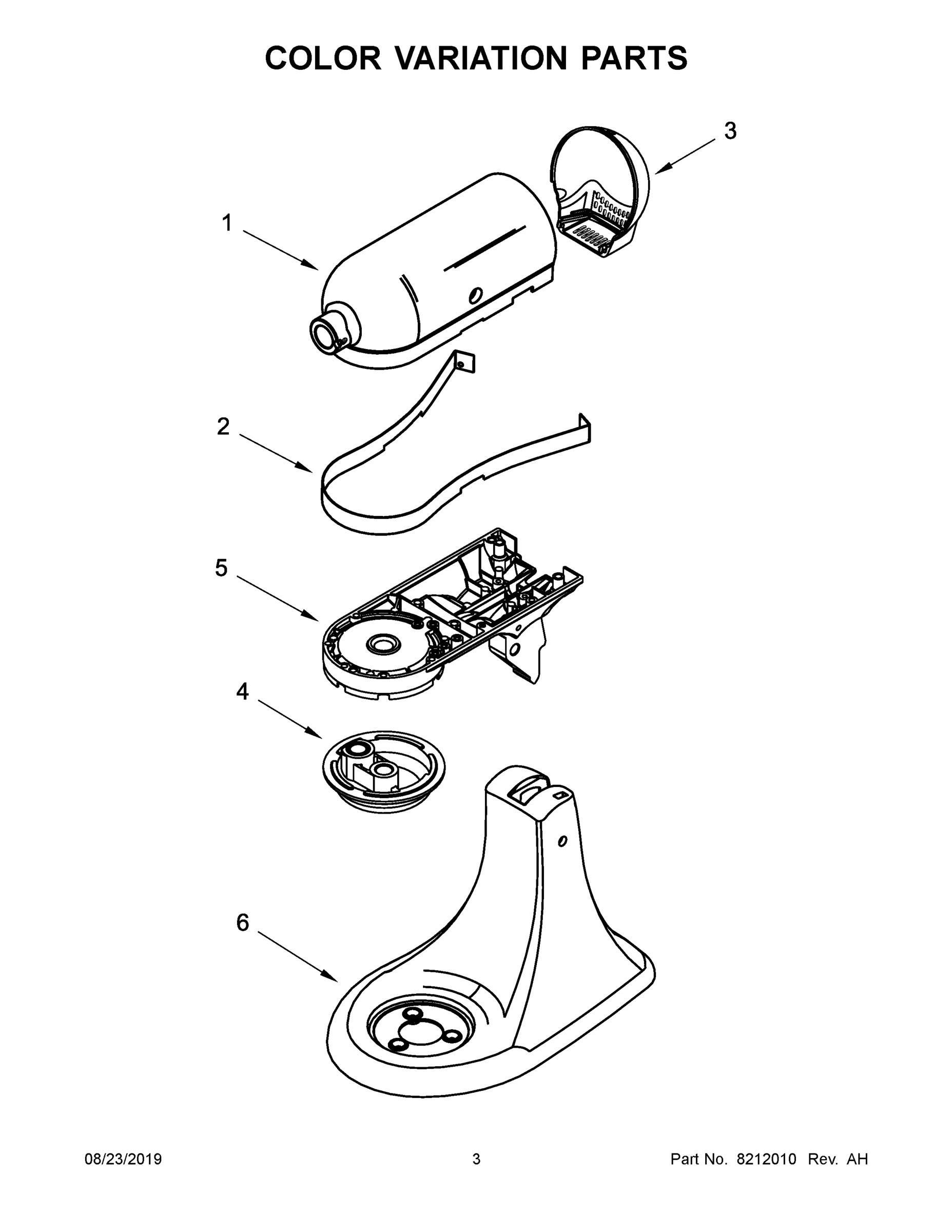

02 - COLOR VARIATION PARTS

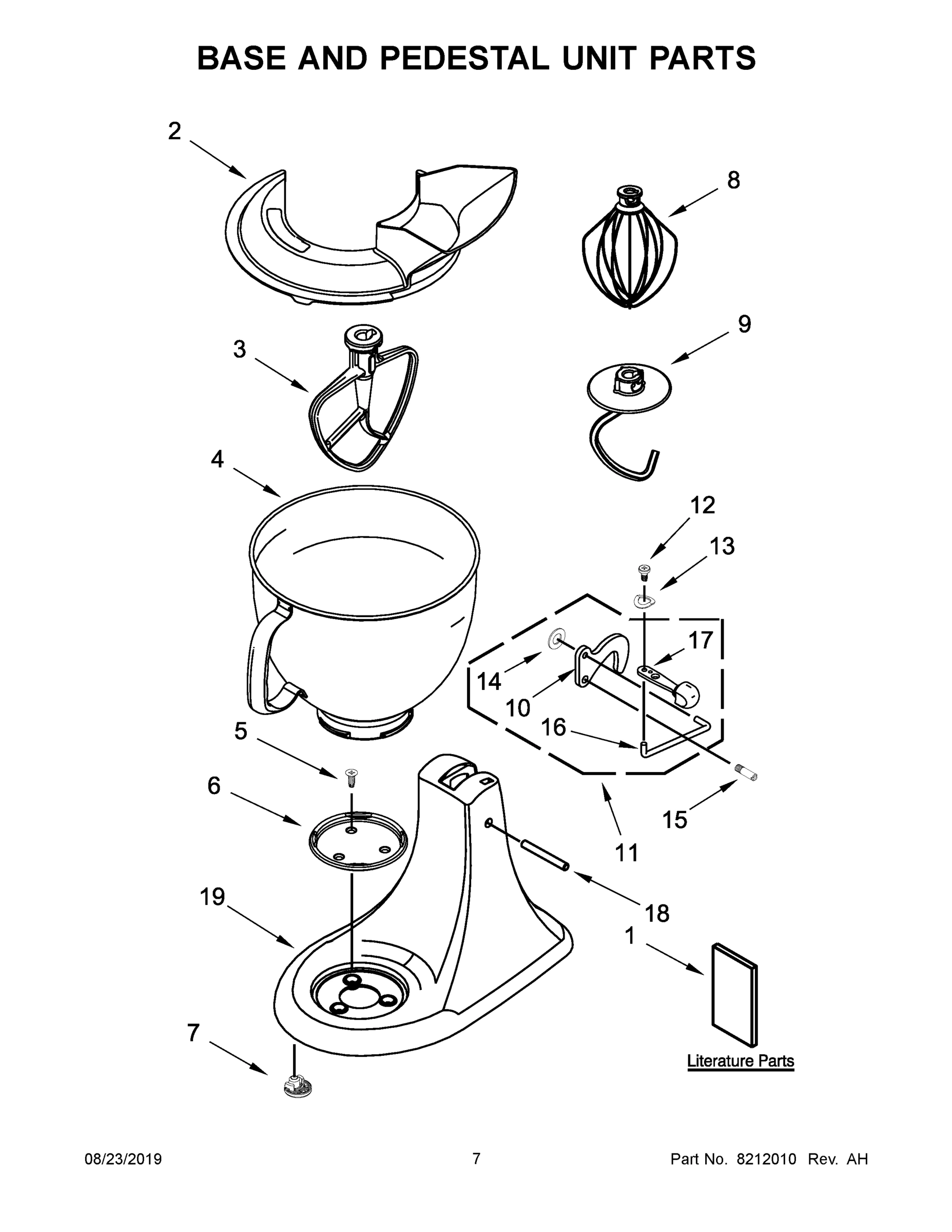

03 - BASE AND PEDESTAL UNIT PARTS

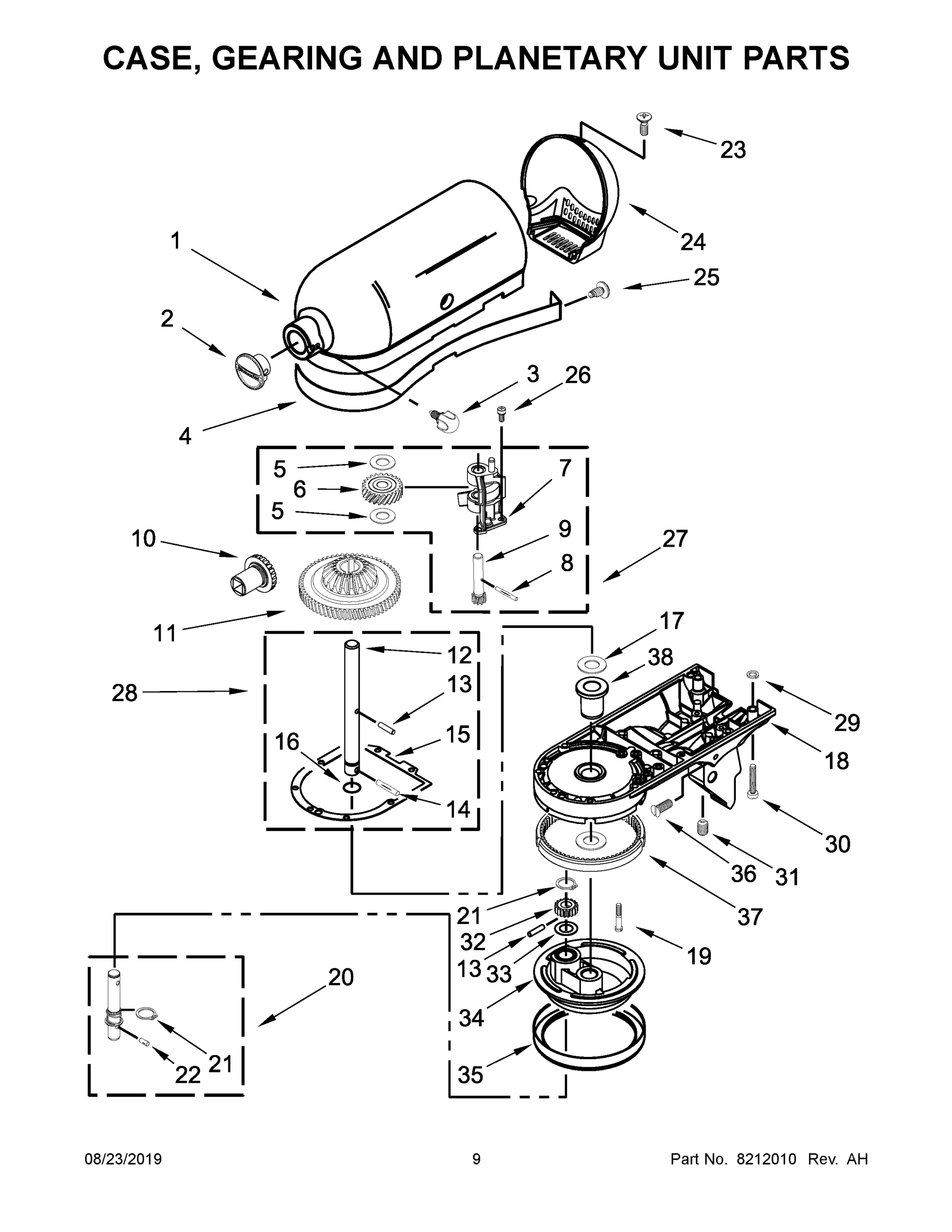

04 - CASE, GEARING AND PLANETARY UNIT PARTS

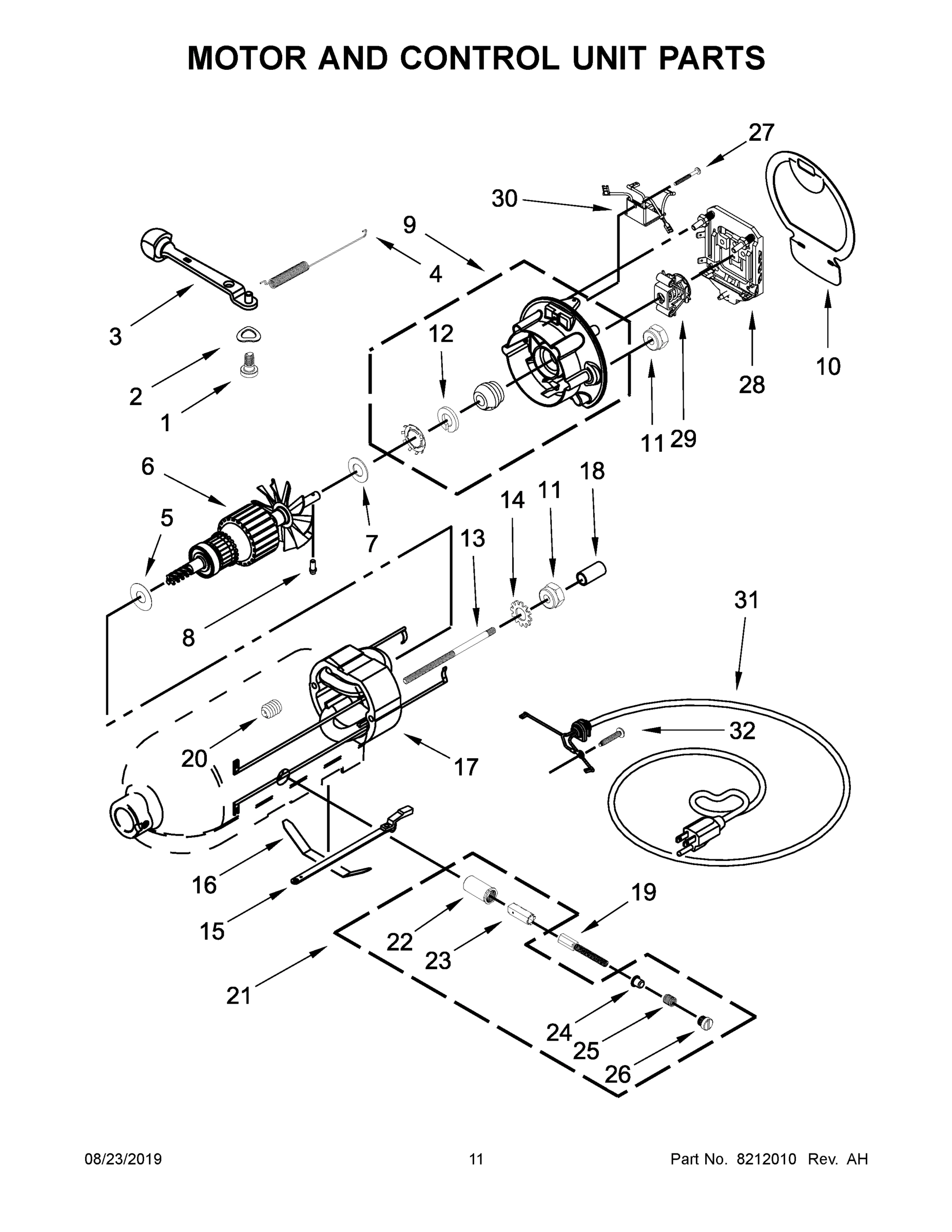

05 - MOTOR AND CONTROL UNIT PARTS
Common parts from model Whirlpool KSM150EPER0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
1
USE & CARE GUIDE WPL W11118281 Contact Us For Availability
1AC
MOTOR HOUSING (FRENCH BLUE) WPL W10181821 Contact Us For Availability
1AD
MOTOR HOUSING (GLACIER BLUE) WPL 9706678 Contact Us For Availability
1AE
MOTOR HOUSING (GLOSS CINNAMON) WPL 9709442 Contact Us For Availability
1AG
MOTOR HOUSING (GRASS GREEN) WPL W10181807 Contact Us For Availability
1AH
MOTOR HOUSING (GREEN APPLE) WPL 9709688 Contact Us For Availability
1AI
MOTOR HOUSING (GRENADINE) WPL W10572197 Contact Us For Availability
1AJ
MOTOR HOUSING (GUAVA GLAZE) WPL W11113874 Contact Us For Availability
1AK
MOTOR HOUSING (ICE/ICE BLUE) WPL 9707662 Contact Us For Availability
1AL
MOTOR HOUSING (CAST IRON/IMPERIAL BLACK) WPL 9704790 Contact Us For Availability
1AM
MOTOR HOUSING (IMPERIAL GREY) WPL 24029122 Contact Us For Availability
1AN
MOTOR HOUSING (INK BLUE) WPL W11113875 Contact Us For Availability
1AO
MOTOR HOUSING (LAVENDER) WPL 9706823 Contact Us For Availability
1AP
MOTOR HOUSING (MATTE LAVENDER CREAM) WPL W10678736 Contact Us For Availability
1AQ
MOTOR HOUSING (LEMON) WPL 9707152 Contact Us For Availability
1AR
MOTOR HOUSING (LIQUID GRAPHITE) WPL W10513207 Contact Us For Availability
1AS
MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability
1AT
MOTOR HOUSING (MANGO) WPL 9709398 Contact Us For Availability
1AU
MOTOR HOUSING (MARTHA GREEN) WPL 9707433 Contact Us For Availability
1AV
MOTOR HOUSING (MATTE BLACK VIOLET) WPL W11113873 Contact Us For Availability
1AW
MOTOR HOUSING (MATTE GRAY) WPL W10885714 Contact Us For Availability
1AX
MOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE) WPL W11113872 Contact Us For Availability
1AY
MOTOR HOUSING (MATTE WHITE) WPL W10885723 Contact Us For Availability
1B
MOTOR HOUSING (AQUA SKY) WPL W10193501 Contact Us For Availability
1BA
MOTOR HOUSING (MELON) WPL 9708286 Contact Us For Availability
1BB
MOTOR HOUSING (MERINGUE) WPL W10637140 Contact Us For Availability
1BC
MOTOR HOUSING (METALLIC CHROME) WPL 9704025 Contact Us For Availability
1BD
MOTOR HOUSING (OCEAN DRIVE) WPL W10885691 Contact Us For Availability
1BE
MOTOR HOUSING (ONYX BLACK) WPL 24029113 Contact Us For Availability
1BF
MOTOR HOUSING (PEAR) WPL W10193514 Contact Us For Availability
1BG
MOTOR HOUSING (PEARL WPL W10128417 Contact Us For Availability
1BH
WPL 9709613 WPL 9709613 Contact Us For Availability
1BI
WPL 9706473 WPL 9706473 Contact Us For Availability
1BJ
WPL 9706836 WPL 9706836 Contact Us For Availability
1BK
WPL W10802438 WPL W10802438 Contact Us For Availability
1BL
WPL 9709385 WPL 9709385 Contact Us For Availability
1BM
WPL W11349621 WPL W11349621 Contact Us For Availability
1BN
WPL W10121193 WPL W10121193 Contact Us For Availability
1BO
WPL 9708877 WPL 9708877 Contact Us For Availability
1BP
WPL 9707139 WPL 9707139 Contact Us For Availability
1BQ
WPL W10181794 WPL W10181794 Contact Us For Availability
1BR
WPL 9709372 WPL 9709372 Contact Us For Availability
1BS
WPL 9706849 WPL 9706849 Contact Us For Availability
1BT
WPL W10539816 WPL W10539816 Contact Us For Availability
1BU
WPL W10788459 WPL W10788459 Contact Us For Availability
1BV
WPL 9708221 WPL 9708221 Contact Us For Availability
1BW
WPL 9708299 WPL 9708299 Contact Us For Availability
1BX
WPL 9707649 WPL 9707649 Contact Us For Availability
1BZ
WPL 2402911 WPL 2402911 Contact Us For Availability
1C
WPL W10140788 WPL W10140788 Contact Us For Availability
1CA
WPL 9709891 WPL 9709891 Contact Us For Availability
1CB
WPL W10255156 WPL W10255156 Contact Us For Availability
1CC
WPL W10266833 WPL W10266833 Contact Us For Availability
1CD
WPL W11431674 WPL W11431674 Contact Us For Availability
1CE
WPL W11357463 WPL W11357463 Contact Us For Availability
1CF
WPL W11444673 WPL W11444673 Contact Us For Availability
1CG
WPL W11298420 WPL W11298420 Contact Us For Availability
1CH
WPL W11444680 WPL W11444680 Contact Us For Availability
1D
WPL 9709664 WPL 9709664 Contact Us For Availability
1E
WPL W11209486 WPL W11209486 Contact Us For Availability
1F
WPL W10885700 WPL W10885700 Contact Us For Availability
1G
WPL W10787892 WPL W10787892 Contact Us For Availability
1H
WPL 9709600 WPL 9709600 Contact Us For Availability
1I
WPL W10725880 WPL W10725880 Contact Us For Availability
1J
WPL W10140801 WPL W10140801 Contact Us For Availability
1K
WPL 9709903 WPL 9709903 Contact Us For Availability
1L
WPL W10239115 WPL W10239115 Contact Us For Availability
1M
WPL W10589975 WPL W10589975 Contact Us For Availability
1N
WPL 9705243 WPL 9705243 Contact Us For Availability
1O
WPL W10754815 WPL W10754815 Contact Us For Availability
1P
WPL 9708141 WPL 9708141 Contact Us For Availability
1Q
WPL W11209510 WPL W11209510 Contact Us For Availability
1R
WPL 9709734 WPL 9709734 Contact Us For Availability
1S
WPL 2402917 WPL 2402917 Contact Us For Availability
1T
WPL W10350463 WPL W10350463 Contact Us For Availability
1U
WPL W10513208 WPL W10513208 Contact Us For Availability
1V
WPL 9709746 WPL 9709746 Contact Us For Availability
1W
WPL 9706796 WPL 9706796 Contact Us For Availability
1X
WPL 9707165 WPL 9707165 Contact Us For Availability
1Y
WPL 9709517 WPL 9709517 Contact Us For Availability
1Z
WPL 24029110 WPL 24029110 Contact Us For Availability
2
WPL 9706630 WPL 9706630 Contact Us For Availability
2A
WPL 9706632 WPL 9706632 Contact Us For Availability
2A
CAP, ATTACHMENT HUB (WHITE) WPL 2427654 Contact Us For Availability
2B
WPL 9706659 WPL 9706659 Contact Us For Availability
2B
CAP, ATTACHMENT HUB (ALMOND) WPL 2427655 Contact Us For Availability
3
WPL 24025316 WPL 24025316 Contact Us For Availability
3A
WPL W10383578 WPL W10383578 Contact Us For Availability
3A
THUMB SCREW (STORM GREY) WPL 2403742 Contact Us For Availability
3AA
WPL 24025322 WPL 24025322 Contact Us For Availability
3AB
WPL W10383633 WPL W10383633 Contact Us For Availability
3AC
WPL W10181816 WPL W10181816 Contact Us For Availability
3AD
WPL 9706668 WPL 9706668 Contact Us For Availability
3AE
WPL 9709437 WPL 9709437 Contact Us For Availability
3AF
WPL 9707131 WPL 9707131 Contact Us For Availability
3AG
WPL W10181802 WPL W10181802 Contact Us For Availability
3AH
WPL 9709683 WPL 9709683 Contact Us For Availability
3AI
WPL W10572184 WPL W10572184 Contact Us For Availability
3AJ
WPL W11113836 WPL W11113836 Contact Us For Availability
3AK
WPL 9707667 WPL 9707667 Contact Us For Availability
3AL
WPL 24025313 WPL 24025313 Contact Us For Availability
3AM
WPL 24025323 WPL 24025323 Contact Us For Availability
3AN
WPL W11113833 WPL W11113833 Contact Us For Availability
3AO
WPL 9706828 WPL 9706828 Contact Us For Availability
3AP
WPL W10678729 WPL W10678729 Contact Us For Availability
3AQ
WPL 9707157 WPL 9707157 Contact Us For Availability
3AR
WPL W10512234 WPL W10512234 Contact Us For Availability
3AS
WPL 24025321 WPL 24025321 Contact Us For Availability
3AT
WPL 9709393 WPL 9709393 Contact Us For Availability
3B
THUMB SCREW (BUFF) WPL 2403743 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
10
SEAL, END WPL 2407751 Contact Us For Availability
12
WASHER, FELT WPL 3180238 Contact Us For Availability
13
PIN, AGITATOR SHAFT WPL 2400181 Contact Us For Availability
16
"O" RING WPL 6750055 Contact Us For Availability
17A
LEVER, LATCH (STORM GREY) WPL 2429282 Contact Us For Availability
17B
LEVER, LATCH (BUFF) WPL 2429283 Contact Us For Availability
21
BRUSH HOLDER ASSEMBLY WPL 4162546 Contact Us For Availability
26B
CAP, BRUSH HOLDER (ALMOND CREME) WPL 3184213 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
32
SCREW WPL 3184609 Contact Us For Availability
34
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
× ![]()
