Model Whirlpool KSM120BLQCU0 MIXER – Common Parts & Diagrams

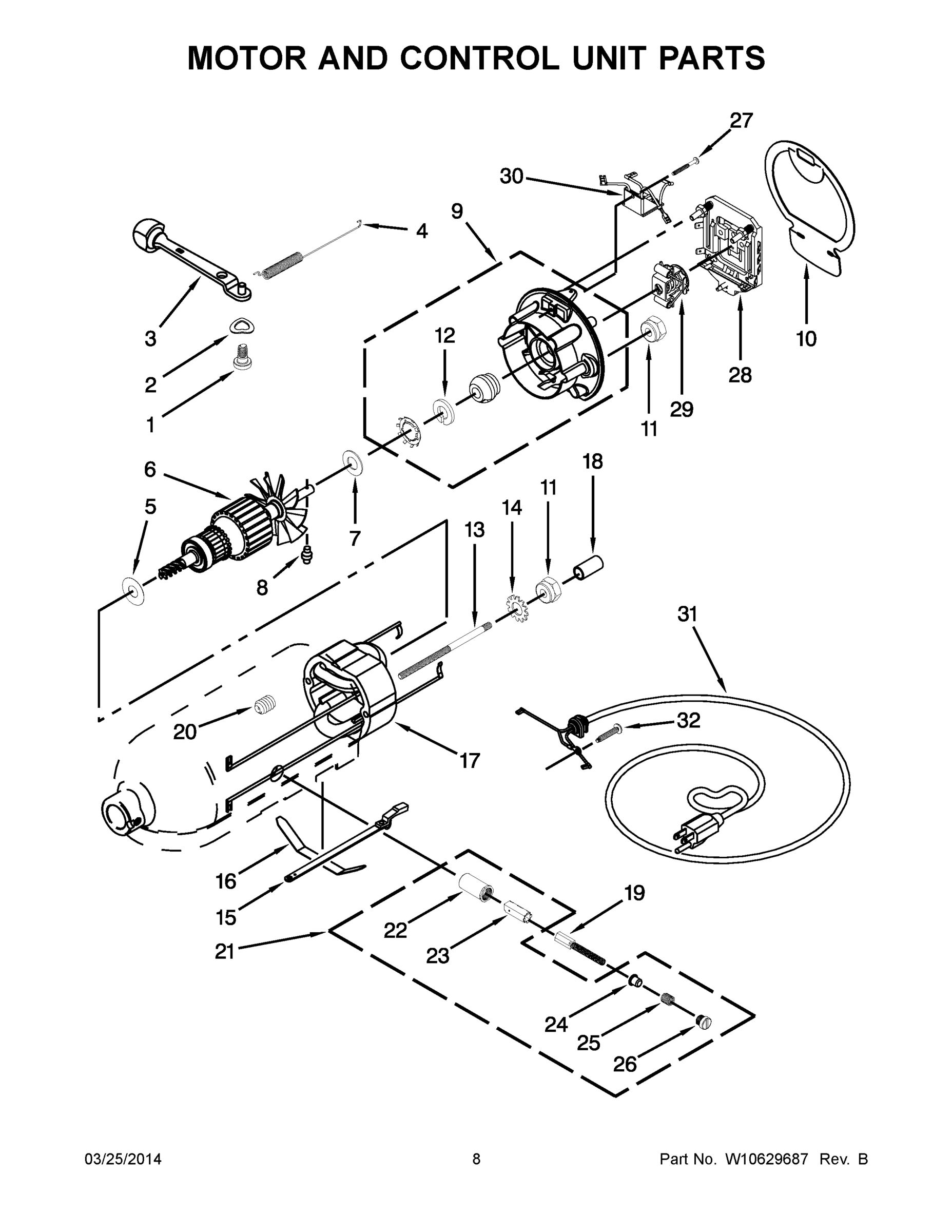

05 - MOTOR AND CONTROL UNIT PARTS

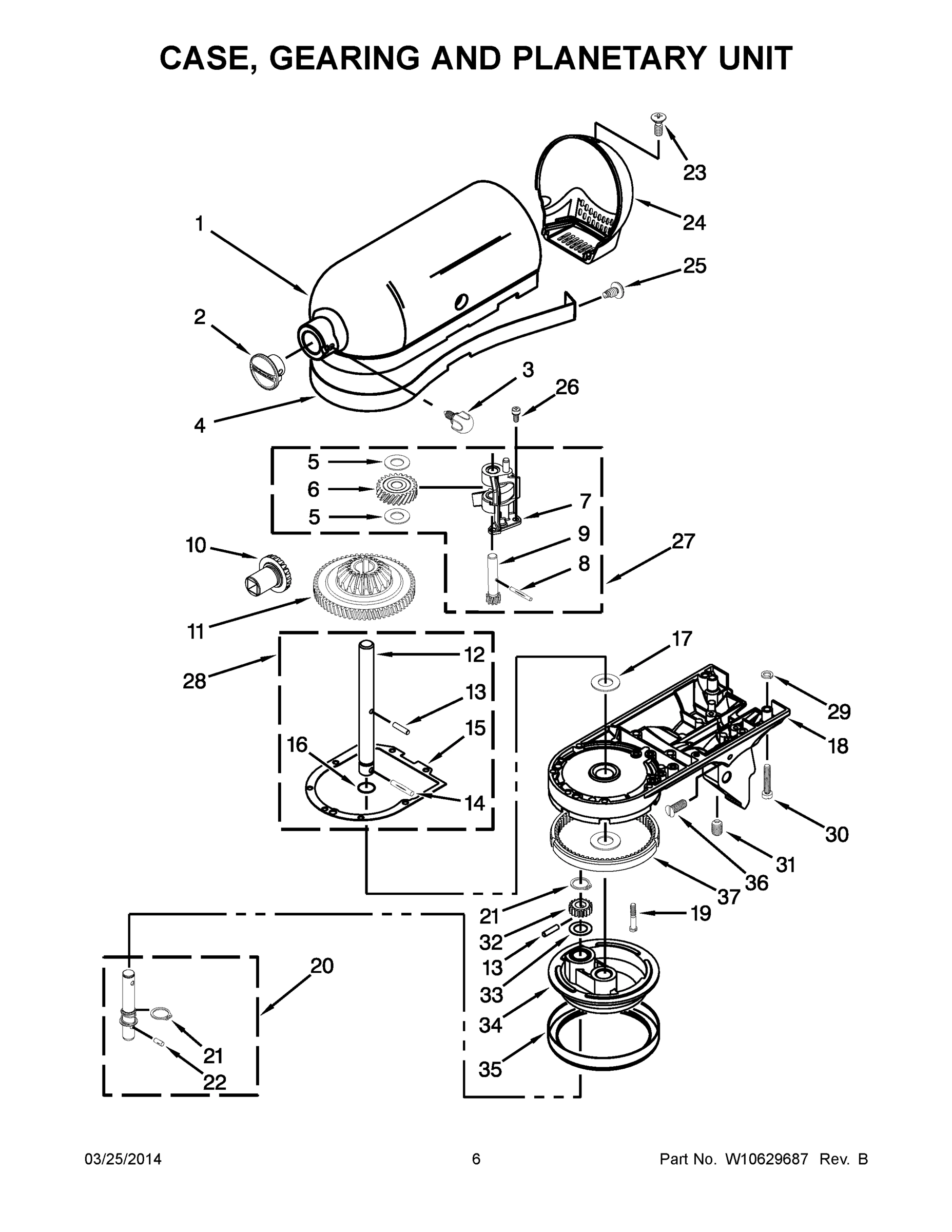

04 - CASE, GEARING AND PLANETARY UNIT

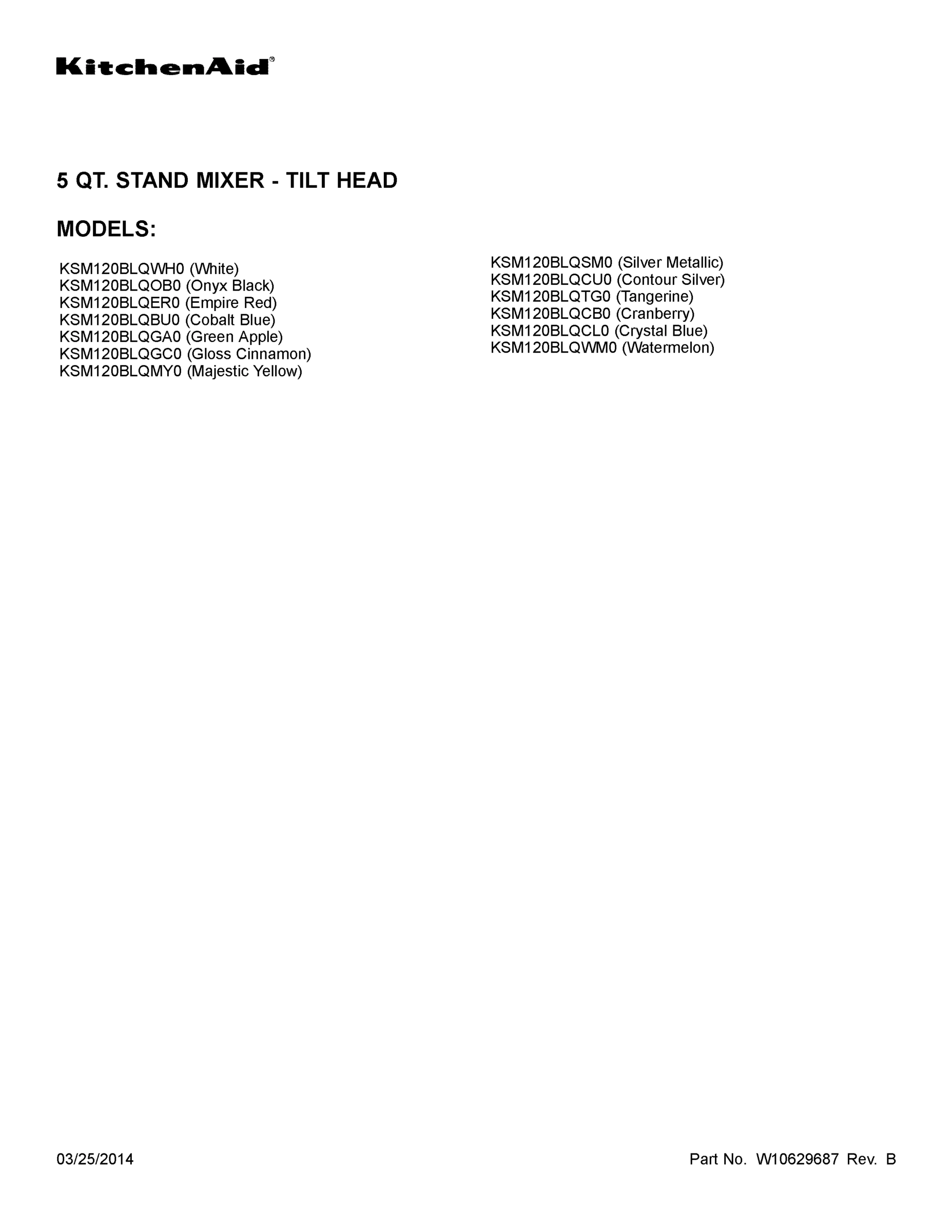

01 - COVER SHEET
03 - BASE AND PEDESTAL UNIT

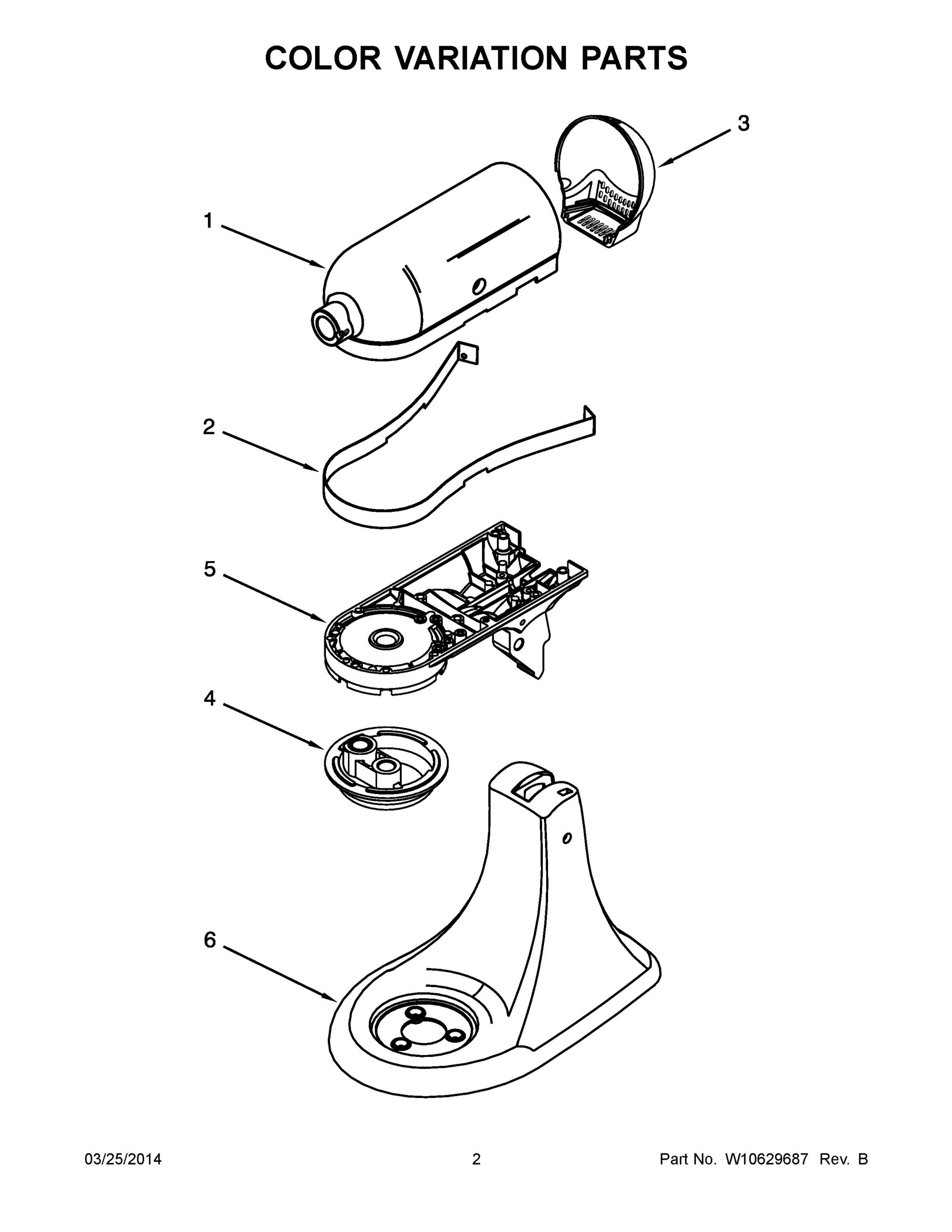

02 - COLOR VARIATION PARTS
Common parts from model Whirlpool KSM120BLQCU0 MIXER
1
Motor Housing (Silver Metallic) WPL W10121193 Contact Us For Availability
1
USE AND CARE GUIDE WPL 9709785 Contact Us For Availability
1
Motor Housing (White) WPL 2402911 Contact Us For Availability
1
Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability
1
Motor Housing (Majestic Yellow) WPL 24029120 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability
1
Motor Housing (Cobalt Blue) WPL 2402917 Contact Us For Availability
1
MOTOR HOUSING (CRANBERRY/FLAMINGO) WPL 9706796 Contact Us For Availability
1
MOTOR HOUSING-Tangerine WPL 9706849 Contact Us For Availability
1
Motor Housing (Gloss Cinnamon) WPL 9709442 Contact Us For Availability
1
Motor Housing (Green Apple) WPL 9709688 Contact Us For Availability
1
MOTOR HOUSING (CONTOUR SILVER) WPL W10350463 Contact Us For Availability
1
MOTOR HOUSING (CRYSTAL BLUE) WPL W10476791 Contact Us For Availability
1
MOTOR HOUSING (WATERMELON) WPL W10564356 Contact Us For Availability
3
END COVER-White WPL 2402531 Contact Us For Availability
3
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
3
END COVER-Majestic Yellow WPL 24025321 Contact Us For Availability
3
END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability
3
END COVER-Cobalt Blue WPL 2402538 Contact Us For Availability
3
END COVER (CRANBERRY/FLAMINGO) WPL 9706801 Contact Us For Availability
3
END COVER-Tangerine WPL 9706854 Contact Us For Availability
3
End Cover (Gloss Cinnamon) WPL 9709437 Contact Us For Availability
3
End Cover (Green Apple) WPL 9709683 Contact Us For Availability
3
End Cover (Silver Metallic) WPL W10121188 Contact Us For Availability
3
END COVER (CONTOUR SILVER) WPL W10350456 Contact Us For Availability
3
END COVER (CRYSTAL BLUE) WPL W10476773 Contact Us For Availability
3
END COVER (WATERMELON) WPL W10564338 Contact Us For Availability
4
BOWL, 5 QUART WPL W10612985 Contact Us For Availability
4
PLANETARY-White WPL 2402861 Contact Us For Availability
4
PLANETARY-Cobalt Blue WPL 24028610 Contact Us For Availability
4
PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability
4
PLANETARY-Majestic Yellow WPL 24028622 Contact Us For Availability
4
PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability
4
PLANETARY (CRANBERRY/FLAMINGO) WPL 9706799 Contact Us For Availability
4
PLANETARY-Tangerine WPL 9706852 Contact Us For Availability
4
Planetary (Gloss Cinnamon) WPL 9709439 Contact Us For Availability
4
Planetary (Green Apple) WPL 9709685 Contact Us For Availability
4
PLANETARY (CONTOUR SILVER) WPL W10350465 Contact Us For Availability
4
PLANETARY (CRYSTAL BLUE) WPL W10476794 Contact Us For Availability
4
PLANETARY (WATERMELON) WPL W10564344 Contact Us For Availability
5
SCREW WPL 3400020 Contact Us For Availability
5
Lower WPL 24035031 Contact Us For Availability
5
WPL 2403504 WPL 2403504 Contact Us For Availability
5
WPL 24035056 WPL 24035056 Contact Us For Availability
5
WPL 24035082 WPL 24035082 Contact Us For Availability
5
WPL 24035084 WPL 24035084 Contact Us For Availability
5
WPL 9706792 WPL 9706792 Contact Us For Availability
5
WPL 9706845 WPL 9706845 Contact Us For Availability
5
WPL 9709445 WPL 9709445 Contact Us For Availability
5
WPL 9709691 WPL 9709691 Contact Us For Availability
5
WPL W10121196 WPL W10121196 Contact Us For Availability
5
WPL W10350459 WPL W10350459 Contact Us For Availability
5
WPL W10476775 WPL W10476775 Contact Us For Availability
5
WPL W10564350 WPL W10564350 Contact Us For Availability
6
WPL 3179260 WPL 3179260 Contact Us For Availability
6
WPL 3179263 WPL 3179263 Contact Us For Availability
6
WPL 3179275 WPL 3179275 Contact Us For Availability
6
WPL 9702303 WPL 9702303 Contact Us For Availability
6
WPL 9706790 WPL 9706790 Contact Us For Availability
6
WPL 9706843 WPL 9706843 Contact Us For Availability
6
WPL 9709448 WPL 9709448 Contact Us For Availability
6
WPL 9709694 WPL 9709694 Contact Us For Availability
6
WPL W10121199 WPL W10121199 Contact Us For Availability
6
WPL W10350457 WPL W10350457 Contact Us For Availability
6
WPL W10488414 WPL W10488414 Contact Us For Availability
6
WPL W10564341 WPL W10564341 Contact Us For Availability
9
GEAR, PINION AND SHAFT WPL 2402102 Contact Us For Availability
13
Pin, Agitator Shaft WPL 2400181 Contact Us For Availability
15
LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability
15
Screw, Latch Bearing WPL 103993 Contact Us For Availability
16
O RING WPL 6750055 Contact Us For Availability
19
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
21
Brush Holder Assembly WPL 4162546 Contact Us For Availability
27
WORM GEAR BRACKET AND GEAR ASSEMBLY WPL 2403092 Contact Us For Availability
28
SHAFT, CENTER AGITATOR ASSEMBLY WPL 4160474 Contact Us For Availability
× ![]()
